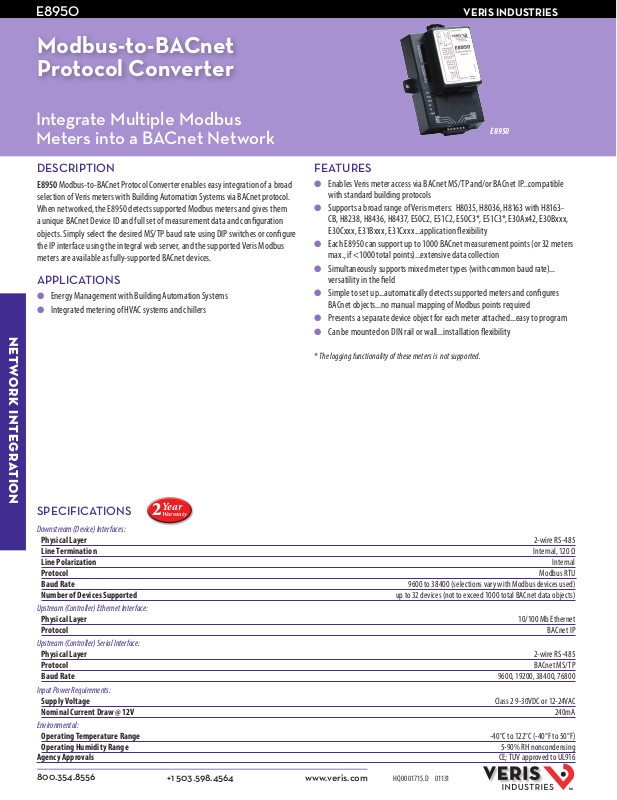

Veris E8950 Datasheet
E8950
Modbus-to-BACnet
Protocol Converter
VERIS INDUSTRIES
Integrate Multiple Modbus
Meters into a BACnet Network
DESCRIPTION
E8950 Modbus-to-BACnet Protocol Converter enables easy integration of a broad
selection of Veris meters with Building Automation Systems via BACnet protocol.
When networked, the E8950 detects supported Modbus meters and gives them
a unique BACnet Device ID and full set of measurement data and conguration
objects. Simply select the desired MS/TP baud rate using DIP switches or congure
the IP interface using the integral web server, and the supported Veris Modbus
meters are available as fully-supported BACnet devices.
APPLICATIONS
● Energy Management with Building Automation Systems
● Integrated metering of HVAC systems and chillers
network integration
E8950
FEATURES
● Enables Veris meter access via BACnet MS/TP and/or BACnet IP...compatible
with standard building protocols
● Supports a broad range of Veris meters: H8035, H8036, H8163 with H8163-
CB, H8238, H8436, H8437, E50C2, E51C2, E50C3*, E51C3*, E30Ax42, E30Bxxx,
E30Cxxx, E31Bxxx, E31Cxxx...application exibility
● Each E8950 can support up to 1000 BACnet measurement points (or 32 meters
max., if <1000 total points)...extensive data collection
● Simultaneously suppor ts mixed meter types (with common baud rate)...
versatility in the eld
● Simple to set up...automatically detects suppor ted meters and congures
BACnet objects...no manual mapping of Modbus points required
● Presents a separate device object for each meter attached...easy to program
● Can be mounted on DIN rail or wall...installation exibility
* The logging func tionality of these meters is not suppor ted.
SPECIFICATIONS
Downstream (Device) Interfaces:
Physical L ayer 2-wire RS- 485
Line Termination Internal, 120 Ω
Line Polarization Internal
Protocol Modbus RTU
Baud Rate 9600 to 384 00 (selections var y with Modbus devices used)
Number of Devices Supported up to 32 devices (not to exceed 1000 total BACnet data objects)
Upstream (Controller) Ethernet Interface:
Physical L ayer 10/100 Mb Ethernet
Protocol BACnet IP
Upstream (Controller) Serial Interface:
Physical L ayer 2-wire RS- 485
Protocol BACnet MS/TP
Baud Rate 9600, 19200, 38400, 76800
Input Power Requirements:
Supply Voltage Class 2 9-30VDC or 12-24VAC
Nominal Current Draw @ 12V 240mA
Environmental:
Operating Temperature Range -40°C to 122°C (-40°F to 50°F)
Operating Humidity Range 5-90% RH noncondensing
Agency Approvals CE; TUV approved to UL916
800.354.8556
Year
2
Warranty
+1 503.598.4564
www.veris.com
HQ0001715.D 01131
800.354.8556
+1 503.598.4564
www.veris.com
DIMENSIONAL DRAWING
22.9”
(74 mm)
4.5”
(115 mm)
3.25”
(83 mm)
3.6”
(92 mm)
5.1”
(129 mm)
1.6”
(41 mm)
APPLICATION/WIRING EXAMPLE
BACnet IP
(Ethernet)
E8950
Modbus to BACnet
Protocol Converter
Modbus RTU
(RS-485 Serial)
H8036
E5xCx
Meter
BACnet MS/TP
(RS-485 Serial)
H81xx with
H8163-CB
H8238
Multi-Circuit Meter
H843x
Meter
E30Ax42
E30Bxxx
E30Cxxx
Meter
E31Bxxx
E31Cxxx
Meter
network integration
ORDERING INFORMATION
MODEL DESCRIPTION
E8950 Modbus to BACnet Converter
HQ0001715.D 01131
RoHS
Compliant
