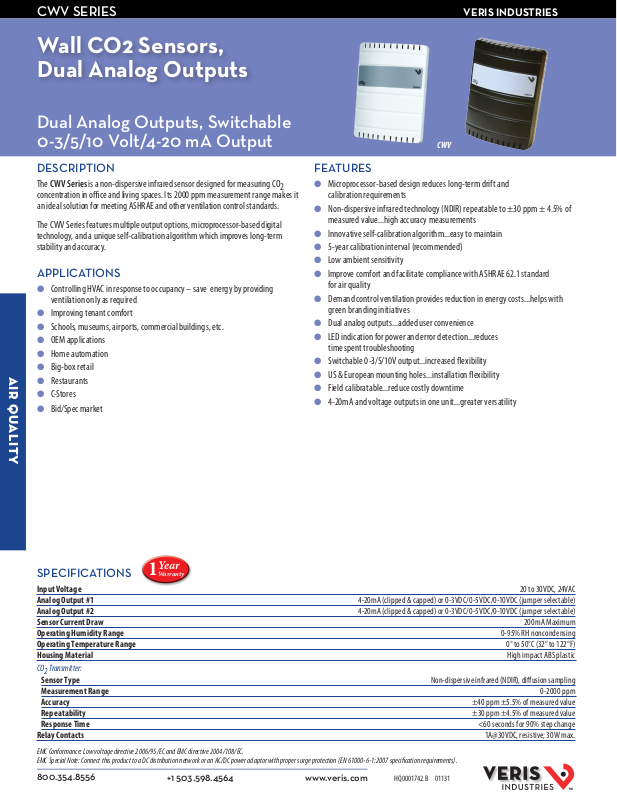

CWV SERIES

Wall CO2 Sensors, Dual Analog Outputs

Dual Analog Outputs, Switchable

VERIS INDUSTRIES

0-3/5/10 Volt/4-20 mA Output

DESCRIPTION

The CWV Series is a non-dispersive infrared sensor designed for measuring CO2 concentration in oce and living spaces. Its 2000 ppm measurement range makes it an ideal solution for meeting ASHRAE and other ventilation control standards.

The CWV Series features multiple output options, microprocessor-based digital technology, and a unique self-calibration algorithm which improves long-term stability and accuracy.

APPLICATIONS

● Controlling HVAC in response to occupancy – save energy by providing

ventilation only as required

● Improving tenant comfort

● Schools, museums, airports, commercial buildings, etc.

● OEM applications

● Home automation

● Big-box retail

AIR QUALITY

● Restaurants

● C-Stores

● Bid/Spec market

CWV

FEATURES

● Microprocessor-based design reduces long-term drift and

calibration requirements

● Non-dispersive infrared technology (NDIR) repeatable to ±30 ppm ± 4.5% of

measured value...high accuracy measurements

● Innovative self-calibration algorithm...easy to maintain

● 5-year calibration interval (recommended)

● Low ambient sensitivity

● Improve comfort and facilitate compliance with ASHRAE 62.1 standard

for air quality

● Demand control ventilation provides reduction in energy costs...helps with

green branding initiatives

● Dual analog outputs...added user convenience

● LED indication for power and error detection...reduces

time spent troubleshooting

● Switchable 0-3/5/10V output...increased exibility

● US & European mounting holes...installation exibility

● Field calibratable...reduce costly downtime

● 4-20mA and voltage outputs in one unit...greater versatility

Yea r

SPECIFICATIONS

Input Voltage 20 to 30VDC, 24VAC Analog Output #1 4-20mA (clipped & capp ed) or 0-3VDC/0-5VDC/0-10VDC (jumper selec table) Analog Output #2 4-20mA (clipped & capp ed) or 0-3VDC/0-5VDC/0-10VDC (jumper selec table) Sensor Current Draw 200mA Maximum Operating Humidity Range 0-95% RH noncondensing Operating Temperature Range 0° to 50°C (32° to 122°F) Housing Material High impac t ABS plastic

CO2 Transmitter:

Sensor Type Non-dispersive infrared (NDIR), diusion sampling Measurement Range 0-2000 ppm Accurac y ±40 ppm ±5.5% of measured value Repeatability ±30 ppm ±4.5% of measured value Response Time <60 seconds for 9 0% step change Relay Contacts 1A@30VDC, resistive; 30W max.

EMC Conformance: Low voltage directive 2006/95/EC and EMC directive 2004/108/EC. EMC Special Note: Connect this product to a DC distribution network or an AC/DC power adaptor with proper surge protection (EN 61000-6-1:2007 specication requirements).

800.354.8556

Warranty

+1 503.598.4564

www.veris.com

HQ00 01742. B 01131

800.354.8556

+1 503.598.4564

www.veris.com

DIMENSIONAL DRAWINGAPPLICATION/WIRING DIAGRAM

POWER SOURCE

20 to 30 VDC

24 VAC

DDC PANEL

COMMON

INPUT mA OR VOLTAGE

Power

Ground

Output #1

V OUT 1 Relay 2

5 3

V OUT 2 Relay 1

5 3

Output #2 mA or voltage

mA or voltage

Status 800 1000

Calibrate

Relay 1 output (optional)

Relay 2/temp output (optional)

3.3"

(84 mm)

1.4"

(36 mm)

4.6"

(116 mm)

ORDERING INFORMATION

Outputs Relay Option

CWVS

1 = 0-3/5/10VDC and 4-20mA 2 = Dual 4-20mA 3 = Dual 0-3/5/10VDC

Example:

CWVS 1 1 1 5

X = None 1 = Relay

Thermistor/2nd Relay option

X = No option B = 100R Platinu m C = 1k Platinum D = 10k T2 E = 2.2k F = 3k H = 10k T3 J = 10k Dale K = 10k w/11k with shunt M = 20k NTC N = 1800 ohm P = 10m V/C R = 10k US S = 10k 3A 221 U = 20k “D”, Thermis tor W = 10k T2 high accuracy, Thermistor Y = 10k T3 high accuracy, Thermistor Z = 10k E1, Thermistor 1 = Relay

Warranty

1 = 1 Year 3 = 3 Years 5 = 5 Years

Housing

Blank = White/gray B = Black

AIR QUALITY

ACCESSORIES

Calibration kits and gases (AA01, AA26, AA27, AA28, AA29) Handheld air qua lity testers (1010, 1008, 770)
