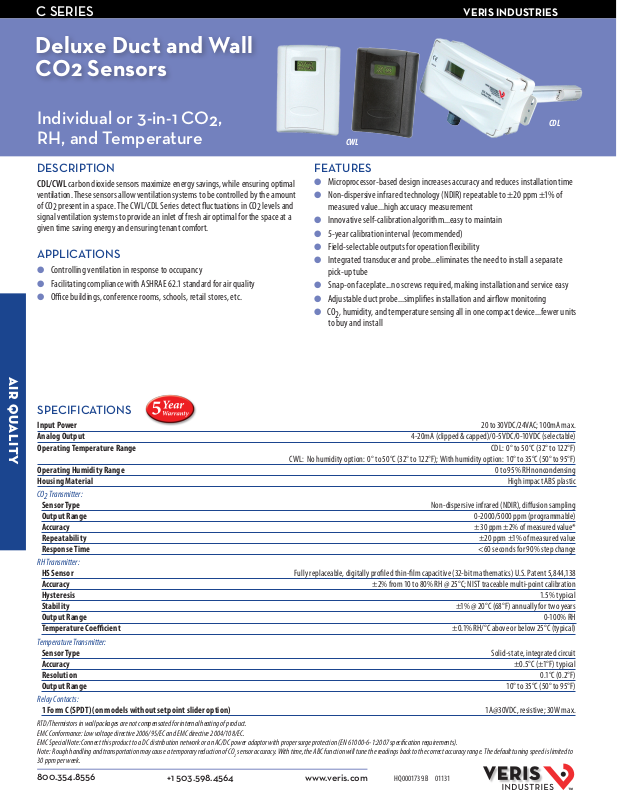

C SERIES
Deluxe Duct and Wall
CO2 Sensors
VERIS INDUSTRIES
Individual or 3-in-1 CO2,
RH, and Temperature
DESCRIPTION
CDL/CWL carbon dioxide sensors maximize energy savings, while ensuring optimal
ventilation. These sensors allow ventilation systems to be controlled by the amount
of CO2 present in a space. The CWL/CDL Series detect uctuations in CO2 levels and
signal ventilation systems to provide an inlet of fresh air optimal for the space at a
given time saving energy and ensuring tenant comfort.
APPLICATIONS
● Controlling ventilation in response to occupancy
● Facilitating compliance with ASHRAE 62.1 standard for air quality
● Oce buildings, conference rooms, schools, retail stores, etc.
AIR QUALITY
SPECIFICATIONS
Input Power 20 to 30VDC/24VAC; 100mA max.
Analog Output 4-20mA (clipped & capped)/0-5VDC/0-10VDC (selectable)
Operating Temperature Range CDL: 0° to 50°C (32° to 122°F)
CWL: No humidity option: 0° to 50°C (32° to 122°F); With humidity option: 10° to 35°C (50° to 95° F)
Operating Humidity Range 0 to 95% RH noncondensing
Housing Material High impac t ABS plastic
CO2 Transmitter:
Sensor Type Non-dispersive infrared (NDIR), diusion sampling
Output Range 0-2000/5000 ppm (programmable)
Accurac y ±30 ppm ±2% of measured value*
Repeatability ±20 ppm ±1% of measured value
Response Time <60 seconds for 9 0% step change
RH Transmitter:
HS Sensor Fully replaceable, digitally proled thin-lm c apacitive (32-bit mathematics) U.S. Patent 5,8 44,138
Accurac y ±2% from 10 to 80% RH @ 25°C; NIST traceable multi-point calibration
Hysteresis 1.5% typical
Stability ±1% @ 20°C (68° F) annually for two years
Output Range 0-100% RH
Temperature Coecient ±0.1% RH/ °C above or below 25°C (typical)
Temperature Transmitter:
Sensor Type Solid-state, integrated circuit
Accurac y ±0.5°C (±1°F) typical
Resolution 0.1°C (0.2°F)
Output Range 10° to 35°C (50° to 95°F)
Relay Contacts:
1 Form C (SPDT) (on models without setpoint slider option) 1A@30VDC, resistive; 30W max.
RTD/Thermistors in wall packages are not compensated for internal heating of product.
EMC Conformance: Low voltage directive 2006/95/EC and EMC directive 2004/108/EC.
EMC Special Note: Connect this product to a DC distribution network or an AC/DC power adaptor with proper surge protection (EN 61000-6-1:2007 specication requirements).
Note: Rough handling and transportation may cause a temporary reduction of CO2 sensor accuracy. With time, the ABC function will tune the readings back to the correct accuracy range. The default tuning speed is limited to
30 ppm per week.
800.354.8556
+1 503.598.4564
FEATURES
● Microprocessor-based design increases accuracy and reduces installation time
● Non-dispersive infrared technology (NDIR) repeatable to ±20 ppm ±1% of
● Innovative self-calibration algorithm...easy to maintain
● 5-year calibration interval (recommended)
● Field-selectable outputs for operation exibility
● Integrated transducer and probe...eliminates the need to install a separate
● Snap-on faceplate...no screws required, making installation and service easy
● Adjustable duct probe...simplies installation and airow monitoring
● CO
www.veris.com
CWL
measured value...high accuracy measurement
pick-up tube
, humidity, and temperature sensing all in one compact device...fewer units
2
to buy and install
HQ00 01739.B 01131
CDL
800.354.8556
+1 503.598.4564
APPLICATION/WIRING DIAGRAMS
CDL: CO2 only
www.veris.com
CDL: Temp and/or RH Options
CONFIGURATION
PUSHBUTTONS
PLUS
ENTER
MINUS
V+ CO2-OUT GND
NC COMM NO
CWL: CO2, RH, Thermistor,
Pushbutton Override, and Relay
Options
RH OUT
RTD/THERMISTOR/OVERRIDE OUT
Power (+24)
CO2 OUT
COMMON
RTD/THERMISTOR/OVERRIDE OUT
RELAY N.O.
RELAY COM
RELAY N.C.
Optional *
DIMENSIONAL DRAWINGS
CWL Wall Mount CDL Duct Mount
mA Volt
ABC
ON
LOW
OFF
CWL: CO2, RH, Thermistor,
Pushbutton Override, and Setpoint
Slider Options
RH OUT
RTD/THERMISTOR/OVERRIDE OUT
Power (+24)
CO2 OUT
COMMON
RTD/THERMISTOR/OVERRIDE OUT
SLIDER RIGHT
SLIDER WIPER
SLIDER LEFT
Optional *
PLUS
CONFIGURATION
PUSHBUTTONS
CWL: CO2, RH, Temperature
ENTER
MINUS
Transmitter Options
V+
CO2 OUT
GND
RH OUT
TEMP OUT/RTD
RTD
NC COMM NO
mA
Volt
CWL: CO2, RH, Temperature
Transmitter, and Setpoint Slider
Options
RH OUT
T OUT
Power (+24)
CO2 OUT
COMMON
Optional *
RELAY N.O.
RELAY COM
RELAY
N.C.
Power (+24)
CO2 OUT
* Note: Connector bl ocks and headers for o ptional features are not in cluded with non-opti on models.
COMMON
RH OUT
T OUT
Optional *
SLIDER RIGHT
SLIDER WIPER
SLIDER LEFT
4.8"
(122 mm)
3.5"
(89 mm)
1.2"
(30 mm)
ORDERING INFORMATION
Duct Mount
Examp le:
Temp
T = Temp
X = No Temp
(Stop here)
A = Transmitter
B = 100R Platinum, RTD
C = 1k Platinum, RTD
D = 10k T2, Thermistor
E = 2.2k, Thermistor
F = 3k, Thermistor
G = 10k CPC, Thermistor
H = 10k T3, Thermistor
J = 10k Dale, Thermistor
K = 10k w/11k shunt, Thermistor
M = 20k NTC, Thermistor
N = 1800 ohm, Thermistor
R = 10k US, Thermistor
S = 10k 3A221, Thermistor
T = 100k, Thermistor
U = 20k “D”, Thermistor
W = 10k T2 high accuracy, Thermistor
Y = 10k T3 high accuracy, Thermistor
Z = 10k E1, Thermistor
RH Option RH Option
CDLS
H = RH2%
X = No RH
CDLS H T B 2
Optional
Cal Cer t
CWLS
Blank = None
1 = 1 pt Temp Cert
2 = 2 pt Temp Cert
ACCESSORIES
Calibration kits and gases
(AA01, AA26, AA27, AA28, AA29)
Handheld air quality testers
(1010, 100 8, 770)
Replacement covers and housing fo r
wall units (AA52, AA52B, AA55)
6.7"
(170 mm)
H = RH 2%
X = No RH
Wall Mount
Temp. Sensor TypeSensor Type
T = Temp
X = No
(stop here)
3.1"
(78 mm)
2.4"
(61 mm)
Temp Cal Cert Option
A = Transmitter
B = 100R Platinu m, RTD
C = 1k Platinum, RTD
D = 10k T2, Therm istor
E = 2.2k, Ther mistor
X = No
1 = 1pt Temp
Cert
2 = 2pt Temp
Cert
F = 3k, Therm istor
G = 10k CPC, Ther mistor
H = 10k T3, Thermi stor
J = 10k Dale, Ther mistor
K = 10k w/11k shunt, Thermist or
M = 20k NTC, Ther mistor
N = 1800 ohm, Ther mistor
R = 10k US, Thermis tor
S = 10k 3A221, Thermis tor
T = 100k, The rmistor
U = 20k “D”, Thermis tor
W = 10k T2 high accuracy, Thermistor
Y = 10k T3 high accuracy, Thermistor
Z = 10k E1, Thermistor
10.2"
(258 mm)
7.8"
(97 mm)
Available Options
Setpoint Slider Value
1 = Push Button
-
Override *
2 = Set Point
A = 1k
Slider
3 = Push Button
Override*+Set
Point Slider
F = 10k
G = 20k
K = 50k
M =10 0k
Examp le:
CWLS H T C 2 2 A
* The Push Button Override feature is not
available with temperature transmitter
models. Only resistive temperature models
qualify for this feature
Housing
Blank =
Cloud white
B = Black
Options
AIR QUALITY
HQ00 01739.B 01131
