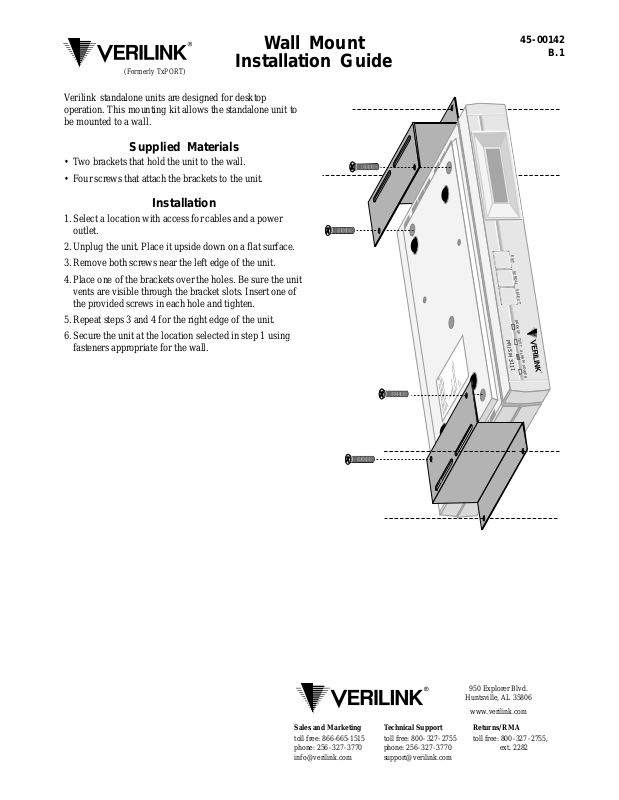

Wall Mount
Installation Guide
45-00142 B.1
(Formerly TxPORT)
Verilink standalone units are designed for desktop operation. This mounting kit allows the standalone unit to be mounted to a wall.
Supplied Materials
•Two brackets that hold the unit to the wall.
•Four screws that attach the brackets to the unit.

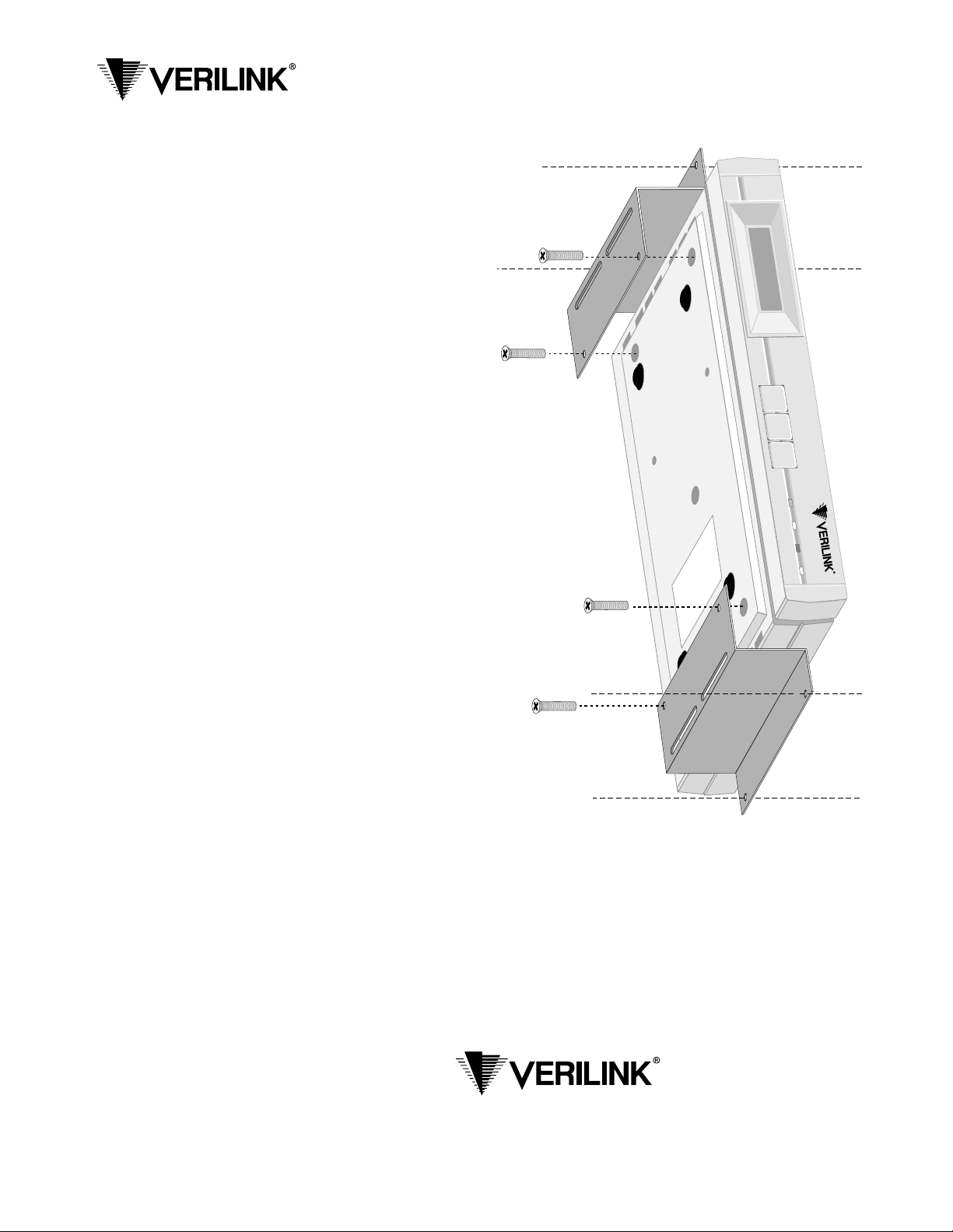

Installation
1.Select a location with access for cables and a power outlet.
2.Unplug the unit. Place it upside down on a flat surface.
3.Remove both screws near the left edge of the unit.
4.Place one of the brackets over the holes. Be sure the unit vents are visible through the bracket slots. Insert one of the provided screws in each hole and tighten.
5.Repeat steps 3 and 4 for the right edge of the unit.
6.Secure the unit at the location selected in step 1 using fasteners appropriate for the wall.
|
