Verbatim WIRELESS TRAVEL MOUSE WITH 5-BUTTONS User Manual

Wireless Travel Mouse with 5-Buttons

User Manual

Product Features

1. Radio frequency 27MHz wireless transmission

2. Use of 256 ID codes to prevent interference between several wireless mice being used

simultaneously

3. Automatic power sleep function to extend battery life

4. Mouse includes 5 Buttons and software for user defined actions to 3 of these buttons

System Compatibility

Win 95/98/Me/2000/XP

Initial Set up

1. Turn the computer power on and log in

2. Connect wireless mouse receiver to USB port

3. Ensure batteries are installed in the mouse and mouse power is turned on (See “Battery

Installation” instructions below).

4. Hold mouse close to the receiver

5. Click the ID button at the end of the receiver once, (See Figure 1 below). The red light

will start to flash

6. Next, click the ID button on the underside of the mouse as indicated in Figure 1

Figure 1

7. The red light on the receiver will flash rapidly for a few seconds then stop flashing

8. Now the mouse is ready for use

Battery Installation

1. See Figure 2 below.

2. While pushing down on the area indicated slide the cover off the mouse

Figure 2

3. Insert 2 x AAA batteries as indicated

4. Replace the mouse cover over the batteries

5. To turn the mouse power on push the ID button, as indicated by Figure 3 below, for 3

seconds or more until the light comes on

Figure 3

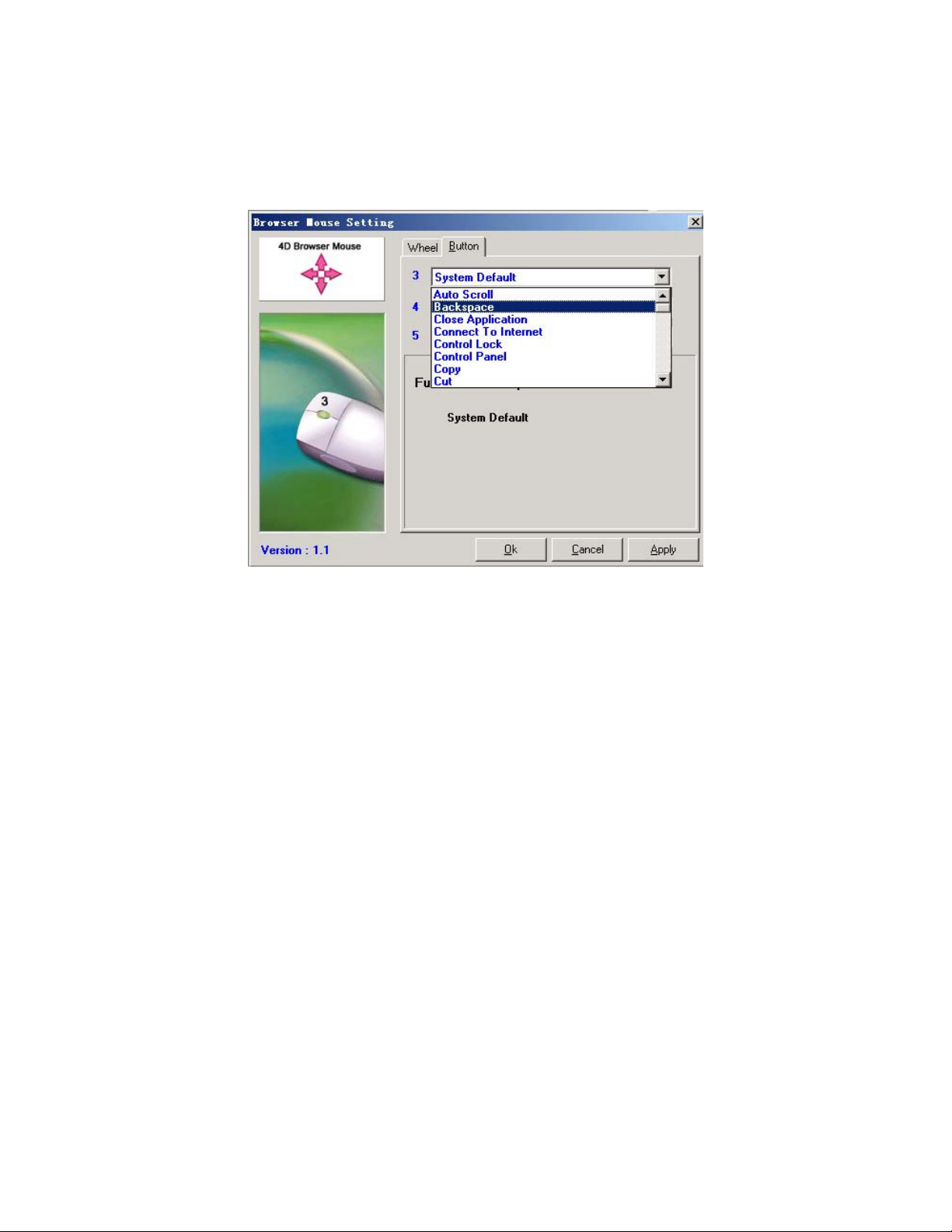

User-Defined Buttons Software Setup

This product includes software to allow the end user to define actions to 3 of the buttons. Figure

4 below describes the buttons which can be defined.

Figure 4

1. Insert the program disk into the computer drive.

2. If the program does not start automatically, open the folder titled “Mouse” on the disc and

run the file called “setup.exe”

3. The program will start to run as follows;

• Click “next” button
