Verbatim Wireless Network Multimedia Hard Drive User Manual

Download

MediaStation Pro

Wireless Network Multimedia Hard Drive

User Guide

English

Contents

Introduction 3

Precautions 3

Speciﬁ cations 3

Package Content 4

Product Overview 4

1. Use as External USB HDD 5

1.1 Copy Data via USB 5

1.1.1 Windows 2000, XP 5

1.1.2 Linux 6

1.1.3 Mac 6

2. Connect to PC via Network 6

2.1 Wired LAN Connection 6

2.2 Wireless LAN Connection 7

3. Shared File Playback (Stream) 9

3.1 Windows 2000 9

3.2 Windows XP 11

3.3 Windows Vista 13

4. Use USB Host 15

5. Connect to External AV Device 15

5.1 Connect Video Cable 15

5.2 Connect Audio Cable 16

6. Basic Setup 17

6.1 Video Setup 17

6.2 Audio Setup 17

6.3 Network Setup 18

6.4 Wireless Setup 19

6.5 Wireless Security Setup 19

6.6 LED Setup 19

6.7 Photo View Setup 19

6.8 Language Setup 20

6.9 Screen Ratio Setup 20

6.10 Auto Play Setup 20

6.11 Internet (How to setup the Internet) 21

6.12 i-RADIO 21

6.13 SKIN 22

6.14 ETC 23

6.15 Protocol 24

6.16 FTP Server / Client setup 24

7. How to Play (Remote Control) 25

7.1 Basic Screen Menu 25

7.1.1 Mode Selection 25

7.1.2 File Selection 25

7.2 Play Video Files 26

7.3 Play DVD File 27

7.4 Play Audio File 28

7.5 Play Photo File 29

7.6 Make a Play List 30

7.7 Create a Private Folder 31

8. Firmware Upgrade 32

Technical Support 32

Limited Warranty Terms 32

WEEE Notice 32

FCC Compliance 33

CE Declaration - EC DECLARATION OF CONFORMITY 33

RoHS Compliance 33

Introduction

MediaStation Pro fully supports HD (High Deﬁ nition) ﬁ les and can stream media ﬁ les from a PC via wireless (802.11b/g) or wired LAN. It also has USB host that can support external USB storage devices and memory card readers..

• Wireless High Deﬁ nition Multimedia Player

• Features powerful media decoding chip -Sigma Design EM8621 Chip

• Full HD ﬁ le playback up to 1920 x 1080p

• HDMI Video output

• IEEE 802.11g(54Mbps) 802.11b(11Mbps) wireless standard / 10/100Mbs wired LAN

• Wireless security - WEP (Wired Equivalent Privacy)

• Wireless Infrastructure and Ad-Hoc Mode

• External storage device for PC via USB 2.0 connection

• 2x USB 2.0 host connectors for external USB devices

• DVD Manager - Playback of DVD File same as Original DVD title

• Video output - HDMI, Component, S-Video and Composite

• Audio output – Stereo, Digital Coaxial & Optical 5.1 ch. Sound, DTS down mix to stereo

• FTP Sever / Client function

• Internet Radio function

• UPnP function

• Firmware Upgradable

Precautions

Please read the followings carefully and refer to [Cautions] in the manual for proper use.

Codec *There are very many different codecs and ﬁ le formats in use today. MediaStation Pro may not play all associated media ﬁ les. Please

USB Device * Connect the power adapter when you connect MediaStation Pro to a PC.

USB Host * The USB Host may not be compatible with all USB storage devices.

Network connection * Data transfer through wired or wireless network connection may be disrupted by other network trafﬁ c which may affect playback

Radio transmission * MediaStation Pro generates radio waves, do not use in areas where radio transmissions are prohibited e.g. hospitals and aircraft.

Data Backup * We strongly recommend you to back up the data to another safe media. We are not responsible for data damage or loss.

Handling * Handle MediaStation Pro with care. Do not drop or subject to impact or shock.

Disassembly * Do not disassemble MediaStation Pro as you may cause damage and you will invalidate your warranty

Exposure to water, moisture, etc * Do not expose MediaStation Pro to oil, water, dust, moisture or rain and wind.

Cautions for heat * Keep MediaStation Pro away from heated areas. Set it up in well-ventilated places.

Cautions for magnetic materials * Keep all magnetic materials away from MediaStation Pro. Magnetic materials such as speakers or magnets may erase or cause damage

check list of supported codecs later in this manual.

Do not connect MediaStation Pro with a cable longer than 3m. If the USB cable is too long the transfer speed may be adversely affected. We recommend you to use the supplied USB cable.

If you connect this device to USB 1.1 Host Adapter the speed is USB 1.1 (Max. 12Mbps)

performance.

to the data stored in the hard disk.

Speciﬁ cations

Product Name MediaStation Pro

Power 12V / 3A

Weight 1300g (including HDD & wireless antenna)

Dimension 48 x 150 x 210 mm (without wireless antenna)

Available OS USB Device Compatible: Windows 2000/XP/Vista, Mac OS 9.0 higher, Linux 2.4 higher

USB Device Device Port x 1ea, 480Mbps USB 2.0 (USB 1.1 compatible)

USB Host Host Port x 2ea, 480Mbps USB 2.0 (USB 1.1 compatible)

Supporting to read USB devices e.g. External USB HDD, ODD, Flash Drive, Card Reader

Wired LAN 10/100 Mbps LAN (RJ-45) x 1ea, 100BaseTx:UTP/STP Category 5 LAN cable compatible

Wireless LAN 54Mbps IEEE802.11g, 5dBi detachable antenna x 1ea, SMA type connector

HDD Type 3.5” SATA HDD

HDD File System NTFS / FAT32 (Preformatted to FAT32)

TV Type NTSC / PAL

Video Format AVI : MS-MPEG4v3/XviD/WMV9 (Not support XviD which has GMC option applied)

WMV : WMV9

ASF : WMV9

MP4 : MPEG4 Video

DAT : MPEG1

VOB : MPEG2

MPG/MPEG : MPEG1/MPEG2

TP/TS/TRP : HD-MPEG2/SD-MPEG2

ISO, IFO

Audio Format MP3, OGG, WAV, WMA

Photo Format JPG/JPEG, PNG, BMP

Video Output COMPOSITE

S-VIDEO

HD COMPONENT Y, Pb, Pr (480p, 720p, 1080i)

HDMI (480p, 720p, 1080i, 1080p)

Audio Output STEREO L-R

S/PDIF Digital Output ( Coaxial/Optical )

Working Temperature 0˚C ~ 60˚C

Working Humidity 10% ~ 50%

Package Contents

Mediastation Pro network multimedia drive, Remote Control (+Battery), Stand, Composite video / Stereo audio cable, Component Video cable, HDMI cable, USB Cable, External AC Power Adapter, User manual CD , Quick start guide

Product Overview

Back ViewFront View

① USB HOST

② LAN

③ USB DEVICE

④ CVBS

⑤ Y,PB,PR

⑥ OPTICAL

⑦ S-VIDEO

⑧ HDMI

⑨ PWR

④ NEXT / FF / RIGHT

⑤ STOP / DOWN

① POWER

② PLAY/PAUSE

③ PRE / REW / LEFT

⑥ PWR

⑦ NET

⑧ HDD

⑨ IR

⑩ ANT

⑪ COAXIAL

Front View

① POWER Power On, Off

② PLAY / PAUSE Play all ﬁ les from selected ﬁ le / Pause

③ PRE / REW / LEFT Go to the previous page or Rewind / Left key

④ NEXT / FF / RIGHT Go to the next page or Fast Forward / Right key

⑤ STOP / DOWN Stop / Scroll down key

⑥ IPWR Power LED

⑦ NET Network LED

⑧ HDD HDD running LED

⑨ IR IR Receiver

Back View

① USB HOST Connect to an external USB device with USB cable

② LAN Connect LAN cable for wired networking

③ USB Device Connect to a computer with USB cable

④ CVBS Connect Composite cable for video output

⑤ Y, PB, PR Connect component Y, Pb, Pr cable for video output

⑥ OPTICAL Connect Optical cable for 5.1 ch. Digital audio output

⑦ S-VIDEO Connect S-Video cable for video output

⑧ HDMI Connect HDMI cable for video output

⑨ PWR Connect power adapter

⑩ ANT Connect wireless antenna for wireless networking

⑪ COAXIAL Connect Coaxial cable for 5.1 ch. Digital audio output

1. Use as External USB HDD

1.1 Copy Data via USB

It is possible to use as a external USB hard disk drive in case of inserting hard disk into MediaStation PRO. You can copy data from your PC to built-in HDD of MediaStation Pro via USB. It is possible to play media ﬁ les at the hard disk on TV set.

* When connecting PC, you have to connect power cable of MediaStation Pro

1.1.1 Windows 2000, XP, Vista

1) After connecting MediaStation Pro and plug power cable, Windows itself will install driver automatically. And then, check the driver installation at Windows [Start > Settings > Control panel > (switch to classic View on Windows XP) > system > Hardware > Device manager > Universal Serial Bus controllers > USB Mass Storage Device ].

2) Check ‘My Computer’ or ‘Explorer’, there should be a new volume. You can copy any data to this volume.

3) After copying data, remove MediaStation Pro with using remove icon at Windows right-down corner. If you don’t follow this procedure, data and MediaStation Pro may have damage.

✓ If new volume is not be appeared, check HDD format or not. W and HDD ﬁ le system. Windows 2000, XP detect both FAT32 and NTFS ﬁ le system.

✓ When you see ‘Non High-Speed USB Hub Message’ The message will be displayed On windows XP when you plug MediaStation Pro into USB 1.1 spec. Host adapter.

1.1.2 Linux

✓ It can be available on Linux 2.4 higher.

Automatic Mount

After booting, do log-in.

Connect MEDIASTATION PRO -> Power On MEDIASTATION PRO -> Check the detection with [fdisk] -> make Mount Pointer (ex. mediatest) at Folder Mount(/mnt) -> Edit [/etc/fstab] -> add the following;

/dev/sda /mnt/mediatest vfat noauto, user 0 0

(in case of FAT32 HDD)

/dev/sda /mnt/mediatest ntfs noauto, user 0 0

(in case of NTFS HDD)

Do Log-in again.

✓ Above example “sda” is assumed that the MEDIASTATION PRO will be detected as “sda” on your system. If not, you have to write the drive name which is detected as “USB Mass Storage”, not “sda”

1.1.3 Mac

✓ It can be available on Mac 9.0 higher.

Manual Mount

Connect MEDIASTATION PRO -> Power On MEDIASTATION PRO -> Check the detection with [fdisk] -> make Mount Pointer (ex. mediatest) at Folder Mount(/mnt) -> Edit [/etc/fstab] -> add the following;

mount –t vfat /dev/sda /mnt/mediatest (in case of FAT32 HDD)

mount –t ntfs /dev/sda /mnt/mediatest (in case of FAT32 HDD)

How to stop using

Do [unmount] at Device Control.

No need to install the installation driver at Mac OS 9.x version and the MEDIASTATION PRO will be detected automatically. If the MEDIASTATION PRO is detected correctly, an icon is appeared at a monitor.

When removing MEDIASTATION PRO safely, drag the icon to a trash and unplug MEDIASTATION PRO.

2. Connect to PC via Network

2.1 Wired LAN Connection

When connecting with IP Router or HubWhen connecting Computer to MEDIASTATION directly

Connect LAN cable to LAN port between MEDIASTATION and PC. In this case, you have to use Cross LAN cable type generally.

[TIP] If the computer’s LAN card was connected to Internet line, you can mount additional LAN card to your PC and connect that additional LAN card to MEDIASTATION.

✓ When you want to play shared multimedia ﬁ les on network, refer to “3.Shared File Playback (Stream)”.

Connect LAN cable to LAN port between IP Router or Hub.

In this case, you have to use Direct LAN Cable type generally.

2.2 Wireless LAN Connection

MediaStation Pro supports two types of wireless structure-Infrastructure mode & Ad-Hoc mode.

Ad-Hoc Mode 1:1 wireless LAN connection type between wireless adapter and MediaStation Pro without wireless access point.

✓ Note Wireless Access Point (Infrastructure Mode) or Wireless Adapter (Ad-Hoc Mode) is required for wireless connection. IEEE 802.11g wireless standard is recommended for better wireless environment. MediaStation Pro is compatible with IEEE 802.11g & b standard.

① Move to Setup screen by pressing [SETUP] button.

② Move to ‘Wireless-I’ Icon and press [OK] button. Setup box will be displayed under icon menu..

③ Move to ‘AP Scan’ and press [OK] button. Available wireless network are detected and displayed.

Infrastructure Mode Wireless LAN connection type with Wireless Access Point.

④ Select preferred network from list of available wireless networks. *Wireless network information is displayed.

-SSID: Name of Wireless Network

-Connection Mode: AP Mode (to connect an Access Point) Ad-hoc Mode (to connect wireless adapter)

-Channel: Wireless channel used by wireless station

⑤ Information of wireless station will be displayed. Press [SETUP] for saving conﬁ guration.

✓ Note: When connecting Ad-Hoc Mode, manual setting of IP Address and Subnet mask will be needed.

Manual setting of IP address and Subnet mask of wireless adapter and MediaStation Pro will be required. Disable DHCP and enter “IP Address” and “Subnet mask”. IP address must be different between MediaStation Pro and wireless adapter, subnet mask must be the same for both MediaStation Pro and wireless adaptor. Example: MediaStation Pro: IP Address(192.168.10.2) Subnet(255.255.255.0) ==> Wireless adapter: IP Address(192.168.10.3) Subnet mask (255.255.255.0)

<Wireless Adapter IP manual setting

⑥ [WIRELESS] icon is activated. Select the icon, and the PC list on the network is displayed. Access your preferred PC and ﬁ les stored on it.

✓ Note: When wireless icon is not activated or not connected to wireless station.

1. [Waiting or Rebooting] It might take some time to assign IP address from AP in case of AP Mode. If it fails to connect reboot Access Point and MediaStation Pro simultaneously.

2. [Manual Setting of IP address and Subnet mask] In case of AP Mode, disable DHCP support and set IP Address and subnet mask manually. IP address must be different between MediaStation Pro and wireless adapter, subnet mask must be the same for both MediaStation Pro and wireless adaptor. Example: MediaStation Pro: IP Address(192.168.10.2) Subnet(255.255.255.0) ==> Wireless adapter: IP Address(192.168.10.3) Subnet mask (255.255.255.0)

Check IP address of AP

Manual Setting of IP address and subnet mask MediaStation Pro

✓ Note: When connecting to AP with wireless security If wireless network has security applied you will be required to enter appropriate key to enable communication. MediaStation Pro supports the following wireless security protocols: WEP, WPA – TKIP or WPA-AES

Select appropriate security protocol for your wireless network and then enter the corresponding security key. Press [OK] to save conﬁ guration.

3. Shared File Playback (Stream)

After connecting LAN cable, you have to set network conﬁ gurations of both Computer and MediaStation Pro.

*It is possible to assign IP address and Subnet Mask of MediaStation Pro as dynamic or static.

3.1 Windows 2000

1. Select a folder which you want to share. Right-click the folder and click ‘Sharing’ in pop menu.

2. Check ‘Share this folder’ and write ‘share name’.

For example, “My Movie”

✓ Make sure to write ‘share name’ within 12 characters in English.

3. Click ‘Permissions’ and check whether “Everyone” account is or not. If not, add “Everyone” account.

4. After that, the shared folder will be displayed as following picture.

5. Move to [Settings > Control Panel> Administrative Tools > Computer management > Local Users and Groups > Users], and double click ‘Guest’.

✓ Recommend only to use ‘Read>Allow’ at Permissions.

6. Check ‘User cannot change password’ and ‘Password never expires’.

7. Move to [Control Panel>Network and Dial-up Connections], and select Properties of ‘Local Area Connections’ by right click of mouse.

✓ If you see two or more ‘Local area connections’, select one that you will use for connecting to MEDIASTATION PRO.

For example,

IP address: 192.168.1.3

Subnet mask: 255.255.255.0

✓ If you have already been ‘obtained an IP address automatically’ from DHCP Server or IP Router on your local area network, you don’t need to write speciﬁ c IP address absolutely. Use ‘Obtain an IP address automatically’ or write IP address & Subnet mask that DHCP Server or IP Router provide.

10. Set the network conﬁ gurations of MediaStation Pro.

✓ You have to connect MediaStation Pro to TV set for this setup. See “6.1 Connect Video Cable”.

8. Double click ‘Internet Protocol (TCP/IP)’ that you want to use on your computer.

Press [SETUP] of remote control for moving to setup screen. On

that screen, select ‘DHCP Support Off’ and write IP address & Subnet mask.

For example,

IP Address: 192.168.1.2

Subnet mask: 255.255.255.0

After writing, press [SETUP] again for saving conﬁ gurations.

✓ If you have already been provided dynamic IP address from DHCP Server or IP Router on your local area network, you don’t need to write static IP address absolutely. Use ‘DHCP on’ or write IP address & Subnet mask that DHCP Server or IP Router provide.

✓ Check ‘IP address obtained automatically’ When you use ‘DHCP On’, you can see the IP address on information screen with pressing [INFO] button.

9. Check ‘Use the following IP address’, and write ‘IP address’ & ‘Subnet mask’ that you want to use.

3.2 Windows XP

1. Select a folder which you want to share. Right-click the folder and click ‘Sharing and Security’ in pop menu.

2. Check ‘Share this folder on the network’ and write ‘Share name’.

For example, “My Movie”

✓ Make sure to write ‘share name’ within 12 characters in English.

5. Check ‘User cannot change password’ and ‘Password never expires’.

3. After that, the shared folder will be displayed as following picture.

4. Move to [Settings>Control Panel>Administrative Tools>Computer management>Local Users and Groups>Users], and double click ‘Guest’.

✓ This is for Windows XP Professional. Windows XP Home users can’t see this ﬁ gure. Go to next number 6). ✓ If you can’t ﬁ nd ‘Administrative Tools’ at Control Panel, click “Switch to classic view” in left-up corner on screen.

6. Move to [Control Panel>Network connections], and select ‘Local area connections’ properties by right click of mouse.

✓ If you can’t ﬁ nd ‘Administrative Tools’ at Control Panel, click “Switch to classic view” in left-up corner on screen. ✓ If you see two or more ‘Local area connections’, select one that you will use for connecting to MediaStation Pro.

7. Double click ‘Internet Protocol (TCP/IP)’ that you want to use on your computer.

8. Check ‘Use the following IP address’, and write ‘IP address’ & ‘Subnet mask’ that you want to use.

For example,

IP address: 192.168.1.3

Subnet mask: 255.255.255.0

9. At above number 7) ﬁ gure, click ‘Advanced’ Tab. Disable ‘Internet Connection Firewall’.

✓ If you use service pack 2, refer to the following ﬁ gures. Click ‘Settings’ at ‘Windows Firewall’

✓ If you have already been provided dynamic IP address from DHCP Server or IP Router on your local area network, you don’t need to write static IP address absolutely. Use ‘Obtain an IP address automatically on’ or write IP address & Subnet mask that DHCP Server or IP Router provide.

Check ‘Off’ and click ‘OK’

10. Set the network conﬁ gurations of MediaStation Pro.

After writing, press [SETUP] again for saving conﬁ gurations.

✓ You have to connect MediaStation Pro to TV set for this setup. See “6.1 Connect Video Cable”.

Press [SETUP] of remote control for moving to setup screen. On

that screen, select ‘DHCP Support Off’ and write IP address &

✓ Check ‘IP address obtained automatically’ When you use ‘DHCP On’, you can see the IP address on information screen with pressing [INFO] button.

Subnet mask.

For example,

IP Address: 192.168.1.2

Subnet mask: 255.255.255.0

3.3 Windows Vista

Before you do “folder sharing”, you need to set up 3 things for Network sharing.

1. Setup of User Accounts and Family safety

a. Click Start > Settings > Control Panel > Users Accounts and

Family safety

b. Make sure the account is “Guest”.

c. If the “Guest” account is off, then switch it to “On”.

2. Disable “Firewall”

a. Click Start > Setting > Control Panel > Security > Windows

Firewall on / off

b. Click at ‘Off (not recommended)

c. make a folder you want to share.

d. You will get a popup “Choose people to share with” then

select “Everyone (All users in this list) and press “Add” button.

3. Setup of Network and Sharing Center

a. Click Start > Setting > Control Panel > Network and Internet >

Network and Sharing Center

b. Select “Password Protected sharing” and select “Turn off

password protected sharing”.

e. After you register the user account, then click “Share” button.

4. Using the USB Host

✓ Note: How to eject the tray of external USB ODD (Optical Disk Drive) Stop playback and press number [3] button in order to eject the tray of external USB ODD. In addition, original DVD title with CSS Lock should not be played when connecting with USB host, but it is possible to play other format like XviD.

✓ Note: It is not possible to guarantee compatibility with all USB devices available in the marketplace. The MediaStation Pro has been tested on a variety of devices from various manufacturers without issue.

Connect your external USB device to one of the USB host ports of MediaStation Pro.

The USB icon will be activated on ﬁ le selection screen.

Select the USB icon and the ﬁ les or folders of the USB device will be displayed. Select ﬁ le for playback.

5. Connect to External AV Device

5.1 Connect Video Cable

MediaStation Pro supports 4 type of video output; “Composite, S-video, Component, HDMI”. Use the video connection that your TV supports. Standard TV supports composite video connection, and this package includes a composite video cable.

① Component: Y, Pb, Pr component cable (supplied)

Green (Y)

Red (Pr) Connect Pr Jack of TV

Blue (Pb) Connect Pb Jack of TV

② Composite: Yellow RCA cable. (Supplied)

Red (right)

White (Left)

Yellow (CVBS)

③ S-Video: (cable not supplied)

Connect Y Jack of TV

Connect to Audio RED of TV

Connect to Audio White of TV

Connect to Composite (CVBS) Jack of TV

S-VIDEO

④ HDMI : HDMI Cable (supplied)

HDMI

✓ If you can not see a picture after connecting video cable, check the following:

1. “TV “– Switch to Video Input Mode: Turn on TV, and switch to video input mode same as video connection. See TV user manual.

2. “MediaStation Pro” – Switch to Video Output Mode: Press [TV OUT] button repeatedly. Whenever you press [TV OUT], video output signal is changed.

3. Once you see a picture you must save video conﬁ gurations of MediaStation Pro.See “6.1 Video Setup”.

Connect HDMI Jack of TV

Connect S-Video Jack of TV

5.2 Connect Audio Cable

MediaStation Pro supports 3 type of audio output; “Stereo, Coaxial, Optical”. Use the audio connection that your TV or Audio system supports. Normally TV supports stereo audio connection, and this package includes a stereo audio cable.

① Stereo L / R (Supplied)

Red (right)

White (Left)

Yellow (CVBS)

② Optical (): Optical Cable for Digital 5.1 ch. (not supplied)

OPTICAL ()

✓ Don’t connect optical and coaxial cable together at the same time.

③ Coaxial: Coaxial cable for Digital 5.1 ch. (not supplied)

COAXIAL

Connect Optical Jack of Ampliﬁ er or Receiver

Connect coaxial jack of Ampliﬁ er or Receiver.

Connect to Audio RED of TV

Connect to Audio White of TV

Connect to Composite (CVBS) Jack of TV

✓ If you can not hear sound after connecting Optical or Coaxial Cable, you must change audio setup of MediaStation Pro to Encoded Digital. See “6.2 Audio Setup”

6. Basic Setup

6.1 Video Setup

This is the guide for setting the video output of your MediaStation Pro.

✓ If you can not see a picture after connecting video cable, check the following:

1. “TV “– Switch to Video Input Mode: Turn on TV, and switch to video input mode same as video connection. See TV user manual.

2. “MediaStation Pro” – Switch to Video Output Mode: Press [TV OUT] button repeatedly. Whenever you press [TV OUT], video output signal is changed.

TV Video Input Mode MEDIASTATION PRO Video Output Mode Connection on TV, MEDIASTATION Pro Video Cable Type

Normal Video

S-Video S-Video

Component 480i

Component 480p 720p 1080p

HDMI 480p 720p 1080i 1080p 640x480 800x600 1024x768 1280x1024 1600x1200

✓ NTSC, PAL : Standard of TV Output. Select a proper one for using in your country. (European standard is PAL)

“TV Output” = Composite Mode “Composite Mode” = C/S-Video

“TV Output” = Composite Mode ”Composite Mode” = C/YPbPr

”TV Output” = Component Mode ”Component Mode” = Select one among 480p, 720p, and 1080i same as TV input mode

”TV Output” = HD-DVI Mode ”HD-HDMI Mode” = Select one among 480p, 720p, 1080i, 1080p, 640x480, 800x600, 1024x768, and 1280x1024, 1600x1200 same as TV input mode

CVBS or Composite (Generally Yellow)

Component 3 * Y(Green), Pb(Blue), Pr(Red)

HDMI HDMI Cable

Yellow RCA Cable (Supplied)

S-Video Cable * Black rounded

Component Cable * Y(Green), Pb(Blue), Pr(Red)

Setup Procedure

① Turn on MediaStation Pro and press [SETUP] on Mode Selection screen.

② Move to ‘Video Out’ icon and press [OK]. Setup box will be displayed under icon menu. ③ Select a TV Out Mode and each detailed video output mode according to the selected TV Out, and then press [OK]. ④ Finally, press [SETUP] again for saving configurations.

6.2 Audio Setup

This is the guide for setting the audio output of MediaStation Pro. You can use Stereo or Digital 5.1 ch.

✓ Analogue/DCPM: Select when you connect the supplied audio cables (Red / White) to TV or Audio set directly. ✓ Encoded Digital: Select when you want to listen through 5.1Ch / DTS Dolby by connecting receiver (or amplifier) with an Optical or Coaxial cable.

Setup Procedure

① Turn on MediaStation Pro and press [SETUP] on Mode Selection screen.

② Move to ‘Audio Out’ icon and press [OK]. Setup box will be displayed under icon menu. ③ Select Audio Out Mode from Stereo or Encoded Digital, and then press [OK]. ④ Finally, press [SETUP] again for saving configuration.

6.3 Network Setup

It is possible to obtain an IP address automatically from DHCP Server or IP Router, or set the speciﬁ c IP address. Check your network environment.

✓ Note DHCP On: You can use this option when it is possible to obtain IP address automatically from DHCP Server or IP Router. (Recommended for most users) DHCP Off: When it is not possible to obtain IP address automatically or you connect to your PC directly without DHCP Server or IP Router, you have to use this option. Just write IP address and Subnet mask.

‘DHCP Support On’ Setup Procedure

① Turn on MediaStation Pro and press [SETUP] on Mode Selection screen.

② Move to ‘Network’ icon and press [OK]. Setup box will be displayed under icon menu. ③ Select ‘DHCP Support-ON’ and press [OK]. ④ Finally, press [SETUP] again for saving configuration..

DHCP Support OFF Setup Procedure

① Turn on MediaStation Pro and press [SETUP] on Mode Selection screen.

② Move to the ‘Network’ icon and press [OK]. Setup box will be displayed under icon menu. ③ Select ‘DHCP Support-OFF’ and press [OK].

✓ Check the obtained IP address Press [INFO] on Mode Selection screen, and you will see the current IP address obtained from the DHCP

④ Move to ‘IP Address’, ‘Subnet’ and press [OK]. Input box will be displayed, enter number with [Direction] button or [Number] button. Finally, press [ENTER] for saving configuration.

✓ Check the obtained IP address Press [INFO] on Mode Selection screen, and you will see the current IP address obtained from the DHCP server.

6.4 Wireless Setup

Refer to “2. Connect to PC via Network > 2.2 Wireless LAN Connection”.

6.5 Wireless Security Setup

Refer to “2. Connect to PC via Network > 2.2 Wireless LAN Connection”.

6.6 LED Setup

It is possible to turn on or off a backlight LED of arrow button on the front side. When the LED disturbs you in night, turn off the LED.

① Turn on MediaStation Pro and press [SETUP] on Mode Selection screen.

② Move to ‘LED’ icon and press [OK]. Setup box will be displayed under icon menu. ③ Select one out of ‘ON’ or ‘OFF’ and press [OK]. ④ Finally, press [SETUP] again for saving configurations.

6.7 Photo View Setup

When playing photo ﬁ les it is possible to enable or disable Back Ground Music (BGM) and set the playback interval time of each photo ﬁ les.

✓ Back Ground Music, Music Slide Show Make a ‘music’ folder (in a lower case at root directory) of built-in HDD and save MP3 files into this folder. When you play one or all photo files, you can listen to mp3 files and see the photo slide show together. Before playing photo files, set the Photo mode by pressing [PHOTO] button.

Setup Procedure

① Turn on MediaStation Pro and press [SETUP] on Mode Selection screen.

② Move to ‘Photo View’ icon and press [OK]. Setup box will be displayed under icon menu. ③ Select ‘ON’ or ‘OFF’ and press [OK] and set up [Slide show] / [Effect]. ④ Finally, press [SETUP] again for saving configuration. *It is possible to set the slide show interval time.

6.8 Language Setup

It is possible to set the preferable language. This language setup option may not be supported. In addition, this language will be applied on OSD Language, not subtitle.

6.9 Screen Ratio Setup

This is guide for setting TV Type. You can use 4:3 Letter Box, 4:3 Pan Scan, and 16:9.

Setup Procedure

① Turn on MediaStation Pro and press [SETUP] on Mode Selection screen.

② Move to ‘Scr. Rate’ icon and press [OK]. Setup box will be displayed under icon menu. ③ Select one out of ‘4:3 Letter Box’, ‘4:3 PanScan’ or ’16:9’, and press {OK}. ④ Finally, press [SETUP] again for saving configurations.

6.10 Auto Play Setup

When this Auto Play function is On, MEDIASTATION PRO play the ﬁ le continuously form the time of being stopped.

Setup Procedure

① Turn on MediaStation Pro and press [SETUP] on Mode Selection screen.

② Move to ‘Auto Play’ icon and press [OK]. Setup box will be displayed under icon menu. ③ Select one out of ‘ON’ or ‘OFF’ and press {OK}. ④ Finally, press [SETUP] again for saving configurations.

6.11 Internet (How to setup the Internet)

This is for how to connect MEDIASTATION PRO to the Internet.

① Turn on MediaStation Pro and press [SETUP] on Mode Selection screen.

6.12 i-RADIO

How to set up the “i-Radio” on MEDIASTATION PRO.

✓ [Note] i-Radio includes server lists of Shoutcast , Inlive ( live broadcasting list scan ) or UserList. ( save pls, m3u files in “iradio “ folder.).

How to setup

② Go to the 2nd page and select [INTERNET] icon and press [ENTER] button then you will get the above page. ③ By using arrow buttons, go to the bottom setup. By using arrow & number keys, set the configuration and press [ENTER] for saving of the configuration. ④ Press [SETUP] button for the saving of the configuration.

① After turning MediaStation Pro on, press [SETUP] button and go to [SETUP] page.

✓ Server lists Shoutcast and Inlive has many server lists, you may wish to limit the server number list with this function.

② Go to the 2nd page and select [i-RADIO] icon and press [ENTER] button. ③ By using arrow buttons, go to the bottom setup. By using arrow & number keys, set the configuration and press [ENTER] for saving of the configuration. ④ Press [SETUP] button for the saving of the configuration.

If “Off” option has been selected at the server list setting

✓ [Note] After you have created the “iradio” folder in the root directory in the HDD of MEDIASTATION PRO, it shows only the list saved in pls, m3u file. You can utilize play list creation software or media player software to create personal internet radio playlists.

① Press ◀ key at the main page, select “i-RADIO” icon and press [ENTER] button.

② Server lists saved in the “iradio” folder at the root directory are displayed. Select a list and press [ENTER] button, after communicating with server radio stream should begin.

If “Shoutcast / Icecast” option has been selected at the server list setting

① It shows the live broadcasting server list and your own playlist from “iradio” folder.

② Select a list and press [ENTER] button, after communicating with server radio stream should begin.

6.13 SKIN

With SKIN function, you can make your own GUI of MEDIASTATION PRO.

✓ [Note] Save your own GUI or icon images in “skin1” folder at the root directory of MEDIASTATION PRO.

① After turning MediaStation Pro on, press [SETUP] button and go to [SETUP] page. ② Go to the 2nd page and select [SKIN] icon and press [ENTER] button then you will see

✓ SKIN Folder : you can make up to 10 (skin1,skin2…,skin10). ✓ User Color File: If “colorx.txt” file is in the SKIN folder, it is showed as the user wants. If there is no color.txt file, then the default color is showed. ✓ Font color: Select the font color on the GUI (default : black) ✓ Font color selected: Font color when it is selected (Default : White)

the setup page. ③ By using arrow buttons, go to the bottom setup. By using arrow & number keys, set the configuration and press [ENTER] for saving of the configuration. ④ Press [SETUP] button for the saving of the configuration.

How to setup

① Make “skin1” folder and save “GUI” or “Images” in the folder at the root directory in a HDD of MediaStation Pro

③ Now you see the changed GUI. If you can not see the font, then change the font color. (Setup Page => SKIN=> Change Font Color)

② At Setup page of SKIN, select [ON] of [SKIN Support] and select [SKIN folder]. Press [SETUP] button for saving the configuration.

④ As the above, it supports several font colors.

6.14 ETC

Here you set up a number of miscellaneous features; sound effect, screensaver and loading message.

How to setup

① After turn MediaStation Pro on, press [SETUP] button and go to [SETUP] page.

② Go to the 2nd page and select [ETC] icon and press [ENTER] button then you will get the above page. ③ By using arrow buttons, go to the bottom setup. By using arrow & number keys, set the configuration and press [ENTER] for saving of the configuration. ④ Press [SETUP] button for the saving of the configuration.

6.15 Protocol

Here you can set up data transfer protocol to access data stored on servers on your network

How to setup

① After turning MediaStation Pro on, press [SETUP] button and go to [SETUP] page. ② Go to the 2nd page and select [Protocol] icon and press [ENTER]

③ Select Protocol you require from the options of SAMBA, NFS, FTP or uPNP ④ Depending on protocol selected enter the required parameters i) SAMBA Server Address Setting : Select Auto or Manual ii) SAMBA Server Address : Enter the server address iii) NFS Server Address : Enter the NFS server address iv) NFS Shared Folder : Enter the shared folder path. v) FTP Address : Enter the FTP address vi) FTP ID : Enter the FTP ID

Use the numeric pad and up/down buttons to select appropriate characters, [PREV] button allows you to delete entries. Press [SETUP] button to save the configuration.

6.16 FTP Server / Client setup

You can set up for FTP Server / Client.

How to setup

① After turning MediaStation Pro on, press [SETUP] button and go to [SETUP] page. ② Go to the 2nd page and select [FTP] icon and press [ENTER]

③ Use the numeric pad and up/down buttons to select appropriate characters, [PREV] button allows you to delete entries. ④ Set the appropriate parameters: i) FTP Client Local Disk : Enter the HDD path that you will use FTP client disk. ii) MediaStation Pro FTP Server Setting : Set MediaStation Pro as FTP server. iii) FTP Server Disk : Enter the HDD path that you will use FTP Server disk. iv) Server ID : create the Server ID v) Server Password : create the password to access the FTP server. vi) Server Port : The default is 21 and you can select a preferable port number. Press [SETUP] button to save the configuration.

7. How to Play (Remote Control)

7.1 Basic Screen Menu

7.1.1 Mode Selection

After turning on the MEDIASTATION PRO, you can see mode selection screen. In this screen you can select HDD, External USB device, LAN(wired network) or WIRELESS(wireless network)

You can select one out of them.

7.1.1.1 Built-in HDD or external USB device

Following example is in case of built-in HDD. External USB device is same as built-in HDD.

① [Mode Selection] Select ‘HDD’ icon and press [OK]. (In case of external USB device, select ‘USB’ icon)

② Data of built-in HDD is displayed. In order to play, select a file and press [OK].

7.1.1.2 Wired & Wireless Network

Following example is in case of wired network. Functionality is the same for wireless networking.

① [Mode Selection] Select ‘LAN’ icon and press [OK]. (In case of wireless network, select ‘WIRELESS’ icon,

③ Shared folder of PC is displayed. In order to play, select a file and press [OK].

② [PC List on Network] All accessible computers on your network will be displayed on the screen.

✓ Refresh Network PC To refresh list of computers on your network press [STOP]

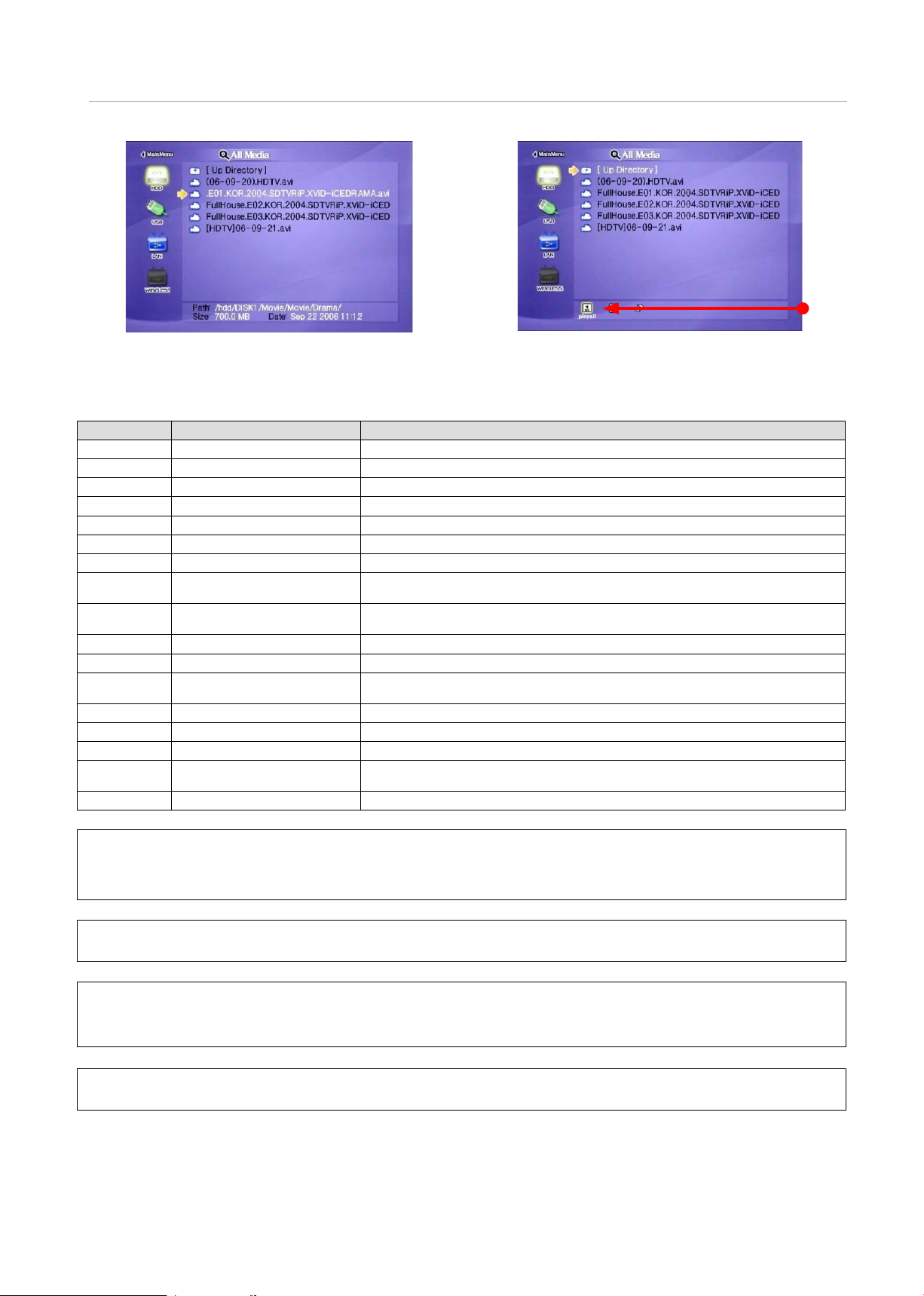

7.1.2 File Selection

Select a ﬁ le and press [OK] in order to play.

Function and Button Descriptions

Remote Control Function Descriptions

MENU Menu Icon Menu Icon is displayed including ‘Play one, Play all and Play-list’. Press again for returning ﬁ le selection screen.

STWX

PREV IWW

NEXT XXI

SLOW ()

DEVICE Mode Selection Return to HDD, USB, LAN, WIRELESS selection screen.

OK XI

SELECT (Number 1)

SELECT ALL (Number2)

MOVIE Movie Mode Only Movie ﬁ les are displayed.

MUSIC Music Mode Only Music ﬁ les are displayed.

PHOTO Photo Mode

ALL MEDIA All Media Mode All media ﬁ les are displayed including movie, music and photo.

INFO - Current information of MEDIASTATION PRO is displayed.

TV OUT Video Out Signal Press button to cycle through video signal types until you see a picture on your display screen.

Brt.CONT

SETUP - Move to setup screen.

Direction Key Direction key

Move by page In case of two or more ﬁ le list page, move to previous page.

Move by page In case of two or more ﬁ le list page, move to next page.

Up directory Return to up directory.

Playback Play a ﬁ le.

Register a ﬁ le at Play-List Use when registering a ﬁ le at Play-List. After selecting a ﬁ le, move to “[MENU]>Play-List”

Register all ﬁ les at Play-List Use when registering all ﬁ les at Play-List. After selecting ﬁ les, move to “[MENU]>Play-List”

Only Photo ﬁ les are displayed *After pressing [PHOTO], you can use photo slide show.

Control luminosity, colour depth, brightness

When pressing this button, 3 modes switch. After selecting a mode, change settings with TS arrow buttons.

✓ Play All File, Play One File Press [MENU] and move to ‘Play Mode’ icon. Two Play modes are available, when pressing [OK], change the mode “Play one>Play all”. After selecting one, press [MENU] again for saving configurations. *Play One: Play the selected file and stop. *Play All: Played the selected file and continue to play next all files at the directory including sub directory.

✓ Refresh Network Press [STOP], computers listed on the network or shared folder list are refreshed.

✓ Jump to first or last page There might to be two or more list pages in case of many files at directory. At the time, conveniently jump to first or last page. *Jump to last page from first page: Move to [Up Directory] on the top of first page and press [▲] or [Previous]. *Jump to first page from last page: Move to the last file on last page and press [▼] or [Next]

✓ See a long directory path In case of Directory path information is longer than file information, press [Scr.SIZE].

7.2 Play Video Files

Select a file and press [OK].

When pressing [MENU] while playing a file, “Tool Box Menu” is displayed. Tool Box allows using detailed playback function.

Function and Button Descriptions

Remote Button Function Description

MENU Tool Box Tool Box is displayed. For returning to playback, press again.

OK XII

NEXT XXI

PREV IWW

Direction XXX

Direction WWW

SLOW Playback Slow Play slowly 1/2x, 1/4x, and 1/8x whenever pressing this button.

SEARCH Jump to Preferable Playback Time

VOLUME +

Direction S

VOLUME -

Direction T

MUTE Sound Off Mute the sound.

SUBTITLE

BOOKMARK Speciﬁ c Playback Time Memory

AUDIO Dual Audio

INFO Show File Information Show the ﬁ le information which is being played. In order to hide the information, press this button again.

Brt. CONT Control luminosity, color depth, brightness

Playback Play ﬁ le.

Pause When pressing while playing a ﬁ le, pause the playback. To resume playback, press again.

Playback Next File

Playback Previous File

Fast Forward Press this button to change play speed : 2x -4x- 8x -16x - 32x

Rewind Press this button to change reverse play speed : 2x -4x- 8x -16x - 32x

Volume Up Volume up.

Volume Down Volume down.

Subtitle Move & Size

Subtitle Sync.

Subtitle Select or Hide

Subtitle Language Select

Play the next ﬁ le after the ﬁ le currently being played. *” Play all” must be selected in order to use this function.

Play the previous ﬁ le after the ﬁ le currently being played. *” Play all” must be selected in order to use this function.

Move to a selected time of a ﬁ le. Enter your preferred playback time with [Number] and press [OK]

It is possible to change subtitle size and location. WX arrow button changes size and ST arrow button changes location. After doing, press [OK].

It is possible to set the subtitle sync. with WX(one second) ST(60 second) when motion and subtitle synchronisation does not match.

The subtitle name same as video ﬁ le is displayed on screen automatically. However, it is possible to open the other preferred subtitle ﬁ les or hide.

It is possible to switch each subtitle language when the subtitle is dual language format, for example, including a local language and English. * When selecting ‘Discriminating subtitle language’, ﬁ rst subtitle language will be displayed.

Save speciﬁ c playback time when pressing this button. If you want to see book mark list, press [BOOKMARK] on ﬁ le selection screen.

It is possible to switch each audio language when the audio format is dual-audio, for example, including a local language and English.

When pressing this button, 3 modes switch. After selecting a mode, change settings with ST arrow buttons.

7.3 File Selection

DVD manager function supports the playback of backed up DVD Files in the same way as the original DVD.

Make a folder and then save all the DVD ﬁ les into the folder. After connecting TV(or Monitor), select VIDEO_TS.IFO ﬁ le at the folder. Make sure that all the DVD backup ﬁ les including VIDEO_TS.IFO from one DVD title will be located in one folder

✓ √ Note If you can not find VIDEO_TS.IFO file among all the backed up files from an original DVD title, DVD manager function will not work.

Move to the folder including backed up DVD files

Select ‘video_ts.ifo’ file and press [OK] button.

Function and Button Descriptions

Remote Control Function Descriptions

AUDIO Dual Audio

SUBTITLE Select Subtitle Type Subtitle type will be changed whenever pressing this button.

Scr. SIZE Screen Size Screen size will be changed when press the button.

MENU Go to Menu Move to main menu while playing DVD.

SLOW Playback Slow Play slowly 1/2x, 1/4x, and 1/8x whenever pressing this button.

REPEAT Chapter, Title Repeat Set chapter, title repeat.

A-B REPEAT A-B repeat Set the A-B repeat.

TITLE Go to Title Menu Move to title menu while playing DVD.

ANGLE Angle Apply angle function.

INFO Show File Information Show the ﬁ le information which is being played. In order to hide the information, press this button again.

SEARCH Jump to Preferable Playback Time

Brt. CONT

XXI

FF XXX

REW WWW

OK XII

VOLUME +

Direction S

VOLUME -

Direction T

MUTE Sound Off Mute the sound. In order to hear sound, press this button again.

Control luminosity, color depth, brightness

Playback Next Chapter

Playback Previous Chapter

Fast Forward Whenever pressing this button, play speed is changed with 8x, 16x, 32x, 48x in forward.

Rewind Whenever pressing this button, play speed is changed with 8x, 16x, 32x, 48x in backward.

Playback Play ‘Video_ts.ifo’ ﬁ le.

Pause Pause playback, if pressing this button when a ﬁ le is being played. In order to play again, press this button again.

Volume Up Volume Up.

Volume Down Volume Down.

It is possible to switch each audio language when the audio format is dual-audio, for example, including a local language and English.

Move to a selected time of a ﬁ le. (It is not possible to use time searching bar.)

When pressing this button, 3 modes switch. After selecting a mode, change settings with ST arrow buttons.

Play a next chapter.

Play a previous chapter.

7.4 Play Audio File

Move to the folder including backed up DVD files

When pressing [MENU] while playing a file, “Tool Box Menu” is displayed. Tool Box allows using detailed playback function.

Function and Button Descriptions

Remote Control Function Descriptions

MENU Tool Box Tool Box is displayed. For returning to playback, press again.

OK XI

NEXT XXI

PREV IWW

FF XXX

REW WWW

SEARCH Playback Time Enter your preferable playback time with [Number] and press [OK].

VOLUME +

Direction S

VOLUME -

Direction T

MUTE Sound Off Mute the sound. In order to hear sound, press this button again.

INFO Show File Information Show the ﬁ le information which is being played. In order to hide the information, press this button again.

Brt. CONT Control luminosity, color depth, brightness

Playback Play ﬁ le.

Pause When pressing while playing a ﬁ le, pause the playback. For returning to playback, press again.

Playback Next File

Playback Previous File

Fast Forward Whenever pressing this button, play speed is changed with 2x, 4x 8x, 16x, 32x in forward.

Rewind Whenever pressing this button, play speed is changed with 8x, 16x, 32x in backward.

Volume Up

Volume Down

Play a next ﬁ le after a current playback ﬁ le. * Play mode must be in Play all in order to use this function.

Play a previous ﬁ le after a current playback ﬁ le. * Play mode must be in Play all in order to use this function.

Volume Up. *It is not possible to use this button when manual subtitle is displayed while playing audio ﬁ le.

Volume Down. *It is not possible to use this button when manual subtitle is displayed while playing audio ﬁ le.

When pressing this button, 3 modes switch. After selecting a mode, change settings with ST arrow buttons.

7.5 Play Photo File

Select a file and press [OK].

When pressing [MENU] while playing a file, “Tool Box Menu” is displayed. Tool Box allows using detailed playback function.

Function and Button Descriptions

Remote Control Function Descriptions

MENU Tool Box

Playback Play ﬁ le.

OK XI

NEXT XXI

PREV IWW

INFO Show File Information

Brt. CONT Control luminosity, color depth, brightness

✓ Photo Slide Show When play mode is set on ‘Play all(Default value)’, all photo files will be played continuously. So, It is possible to use as photo slide show.

✓ Music Slide Show Make a ‘music’ folder (in lowercase) at the root directory of built-in HDD and save MP3 files at the folder. When you play one or all photo files, you can listen to the mp3 files and view photo slide show simultaneously.

✓ Set the playback interval time For a more convenient photo slide show, it is possible to set slide show interval setting . Press [SETUP] to access settings.

Pause

Playback Next File

Playback Previous File

Tool Box is displayed. For returning to playback, press again.

When pressing while playing a ﬁ le, pause the playback. For returning to playback, press again.

Play a next ﬁ le after a current playback ﬁ le. * Play mode must be in Play all in order to use this function.

Play a previous ﬁ le after a current playback ﬁ le. * Play mode must be in Play all in order to use this function.

Show the ﬁ le information which is being played. In order to hide the information, press this button again.

When pressing this button, 3 modes switch. After selecting a mode, change settings with ST arrow buttons.

7.6 Make a Play List

You can make a playlist by selecting your favourite media ﬁ les. Music, photo and movie ﬁ les may be combined in the list.

✓ Note After rebooting MEDIASTATION PRO, registered play list will be clear.

① Highlight the required file(s) and confirm by pressing [SELECT] or [SELECT ALL].

② After compiling files, press [MENU] and select “Play List”.

③ Play List screen is displayed.

-Play: Play the registered files.

-Cancel: Close the Play List screen.

-Move up, down: Change the file location..

-Shuffle: File location is mixed randomly.

-Delete: Delete the selected file..

-Delete all: Delete all the registered files.

7.7 Create a Private Folder

You can create your own folder of media content. This can be viewed by entering a PIN code during the device setup.

✓ Note The “private” folder access is only controlled during playback on a display. If the HDD is connected to a computer all folders (and their contents) including “private” folder can be viewed

① When connected to your computer create a folder in the root directory called “private” (in lowercase)

② Press [SETUP] button, highlight “Folder Lock” and select [OK]

③ You can choose to enable “private folder view” by highlighting “ON” and pressing [OK] ④ You can set your own password. The default password is 0000. Press down arrow to move to next input box. ⑤ Enter your chosen password using the numeric keys. ⑥ Press down arrow to move to next input box. ⑦ Confirm chosen password. ⑧ Press [OK] and press [SETUP] to save setting change. ⑨ “private” folder is now visible.

8. Firmware Upgrade

From time to time a ﬁ rmware upgrade ﬁ le may be available, please check www.verbatim-europe.com/support . You can check the version of ﬁ rmware installed in your MediaStation Pro by pressing [INFO] button from main ﬁ le selection screen.

Download upgrade ﬁ le from website and save to the root directory of MediaStation Pro hard disk.

After connecting TV set, highlight the upgrade ﬁ le and press [OK]. Upgrade will be completed automatically.

After ﬁ nishing upgrade, you can check ﬁ rmware version on Setup screen. Press [SETUP] button.

Technical Support

If you are experiencing difﬁ culty installing or using your Verbatim product, please visit the main Verbatim Technical Support website at www. verbatim-europe.com. From this page you can access our library of user documentation, read answers to frequently asked questions, and download available software updates. Although most of our customers ﬁ nd this content sufﬁ cient to put them back on the right track, this page also lists ways in which you can contact the Verbatim Technical Support Team directly.

Europe: For technical support in Europe e-mail drivesupport@verbatim-europe.com or call 00 800 3883 2222 in the following countries: Austria, Belgium, Denmark, Finland, France, Germany, Hungary, Italy, Luxemburg, Monaco, Netherlands, Norway, Poland, Portugal, Republic of Ireland, Spain, Sweden, Switzerland and the United Kingdom. All other countries call +353 61 226586.

Limited Warranty Terms

Verbatim Limited warrants this product to be free from defects in material and workmanship for a period of 2 years from date of purchase. This warranty excludes batteries. If this product is found to be defective within the warranty period, it will be replaced at no cost to you. You may return it with your original cash register receipt to the place of purchase or contact Verbatim.

In the following European countries, Austria, Belgium, Denmark, Finland, France, Germany, Greece, Hungary, Italy, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Republic of Ireland, Spain, Sweden, Switzerland, and the United Kingdom call 00 800 3883 2222. All other European countries call +353 61 226586. You can email drivesupport@verbatim-europe.com.

Product replacement is your sole remedy under this warranty, and this warranty does not apply to normal wear or to damage resulting from abnormal use, misuse, abuse, neglect or accident, or to any incompatibility or poor performance due to the speciﬁ c computer software or hardware used. VERBATIM WILL NOT BE LIABLE FOR DATA LOSS OR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, HOWEVER CAUSED, FOR BREACH OF WARRANTIES OR OTHERWISE. This warranty gives you speciﬁ c legal rights and you may also have other rights which vary from state to state or country to country

WEEE Notice

The Directive on Waste Electrical and Electronic Equipment (WEEE), which entered into force as European law on 13th February 2003, resulted in a major change in the treatment of electrical equipment at end-of-life.

The WEEE logo (shown at the left) on the product or on its box indicates that this product must not be disposed of or

dumped with your other household waste. For more information about electronic and electrical waste equipment disposal, recovery, and collection points, please contact your local municipal household waste disposal service or shop from where you purchased the equipment.

FCC Compliance

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CE Declaration EC DECLARATION OF CONFORMITY

It is hereby declared that this product complied with the essential protection requirements of Council Directive 89/336/EEC and its amendments on the approximation of the laws of the Member States relating to electromagnetic compatibility.

This declaration applies to all specimens manufactured identical to the model submitted for testing/evaluation.

EN 55022: 1998 + A1: 2000 +A2: 2003

EN 61000-3-3:1995 + A1: 2001

EN 55024: 1998 + A1: 2001 + A2: 2003

IEC 61000-4-2: 1995 + A1: 1998 + A2: 2000

IEC 61000-4-3: 2002 + A1: 2002

IEC 61000-4-4: 1995 + A1: 2000 + A2: 2001

IEC 61000-4-5: 1995 + A1: 2000

IEC 61000-4-6: 1996 + A1: 2000

IEC 61000-4-8: 1993 + A1: 2000

IEC 61000-4-11: 1994 + A1: 2000

RoHS Compliance

This product is in compliance with Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003, on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS) and its amendments.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Verbatim Wireless Network Multimedia Hard Drive User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
