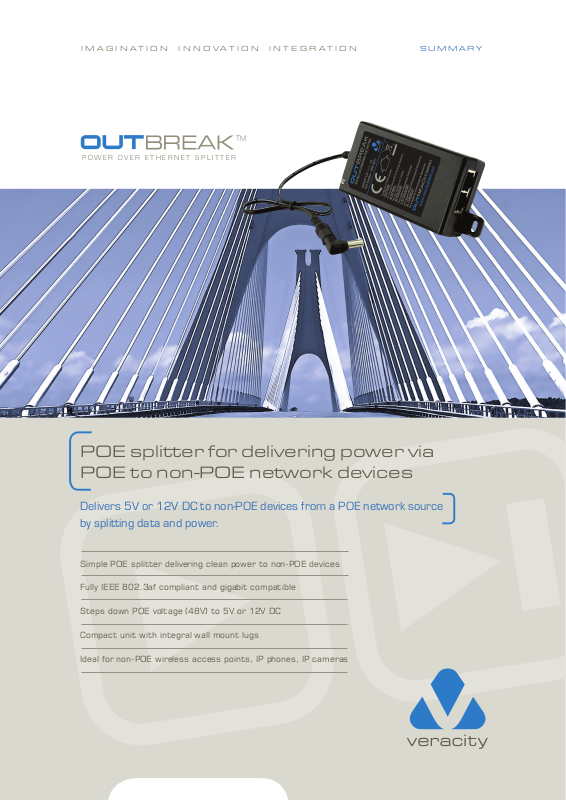

Page 1
IMAGINATION INNOVATION INTEGRATION SUMMARY
Power over ethernet SPLItter
POE splitter for delivering power via
POE to non-POE network devices
Delivers 5V or 12V DC to non-POE devices from a POE network source
by splitting data and power.
Simple POE splitter delivering clean power to non-POE devices
Fully IEEE 802.3af compliant and gigabit compatible
Steps down POE voltage (48V) to 5V or 12V DC
Compact unit with integral wall mount lugs
Ideal for non-POE wireless access points, IP phones, IP cameras
Page 2
TECHNICAL SPECIFICATION
POWER
Input voltage 36V to 56V DC, receiving power on either data or spare pairs
Input current 0.6A at 36V maximum load
OUTPUT POWER
OUTBREAK 5 12.5 watts at 5V DC
OUTBREAK 12 12-14 watts at 12V DC
Output with short-circuit protection
DC Output connector Barrel connector 9mm x 2.5mm x 5.5mm, centre positive
POE STANDARDS
IEEE 802.3af POE
ETHERNET INTERFACE RJ45 Data and POE IN port
RJ45 Data OUT port
10/100/1000 Base-T compatible
LEDS
Status indicator Green LED ON - Output OK
PHYSICAL/ENVIRONMENTAL
Dimensions L 100mm (excluding flying lead) W 56mm H 28mm
Weight 200g [7.0oz]
Mounting Integral wall-mount lugs
Operating temperature 0oC to +40oC [32oF to 104oF]
Relative humidity 5% to 90% non-condensing
Compliance CE, FCC, RoHS
PRODUCT CODES VOR-OB5 OUTBREAK 5V 5V POE Splitter
VOR-OB12 OUTBREAK 12V 12V POE Splitter
OUTBREAK 12V OUTBREAK 5V
