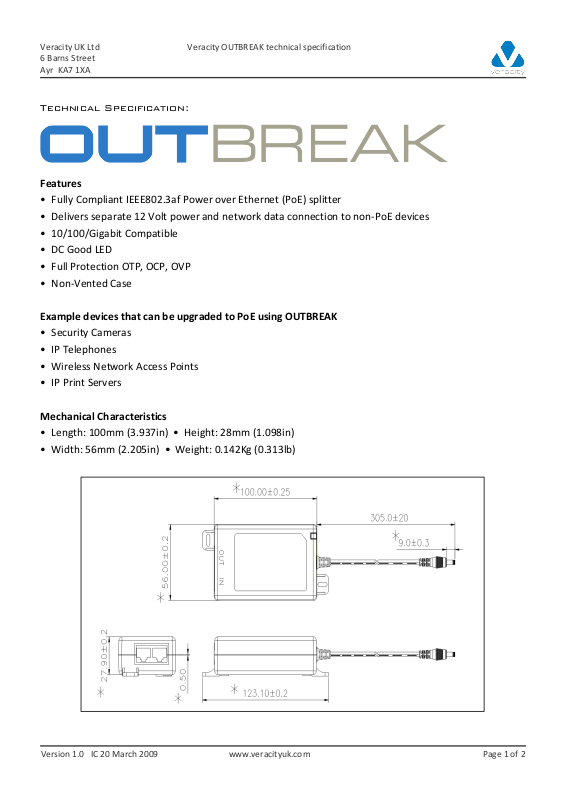

Veracity OUTBREAK Specsheet

Veracity UK Ltd Veracity OUTBREAK technical specification 6 Barns Street Ayr KA7 1XA
Technical Specification:
Features
• Fully Compliant IEEE802.3af Power over Ethernet (PoE) splitter
• Delivers separate 12 Volt power and network data connection to non-PoE devices
• 10/100/Gigabit Compatible
• Full Protection OTP, OCP, OVP
• Non-Vented Case
Example devices that can be upgraded to PoE using OUTBREAK
• Security Cameras
• IP Telephones
• Wireless Network Access Points
• IP Print Servers
Mechanical Characteristics
• Length: 100mm (3.937in) • Height: 28mm (1.098in)
• Width: 56mm (2.205in) • Weight: 0.142Kg (0.313lb)
Version 1.0 IC 20 March 2009 www.veracityuk.com Page 1 of 2
Veracity UK Ltd Veracity OUTBREAK technical specification 6 Barns Street Ayr KA7 1XA
Input
IEEE 802.3af Class 0 device
Receives power from either data or spare pairs
Output
12V DC, 1A
1.17A available when used with OUTSOURCE and up to 100 metres cable
Other voltages available to special order
Line and load regulation ±4%
Ripple 120mVp-p
Crowbar protection against overvoltage
The Splitter output is isolated from incoming POE voltages
Environmental
Operating temperature 0 to +40°C
Storage temperature -20 to +65°C
Operating humidity 5 to 90%
Immunity
ESD: EN61000-4-2. Level 3
RS: EN61000-4-3. Level 2
CS: EN61000-4-6. Level 2
Note: RS and CS tested with OUTSOURCE
Electromagnetic compatibility
EN55022 Class A
Indicators
GREEN LED – Output Good
Data connectors
8P8C (RJ45) , input and output
Power output Connector
Center positive barrel type
9mm x 2.5mm (inner) x 5.5mm (outer)
Version 1.0 IC 20 March 2009 www.veracityuk.com Page 2 of 2
