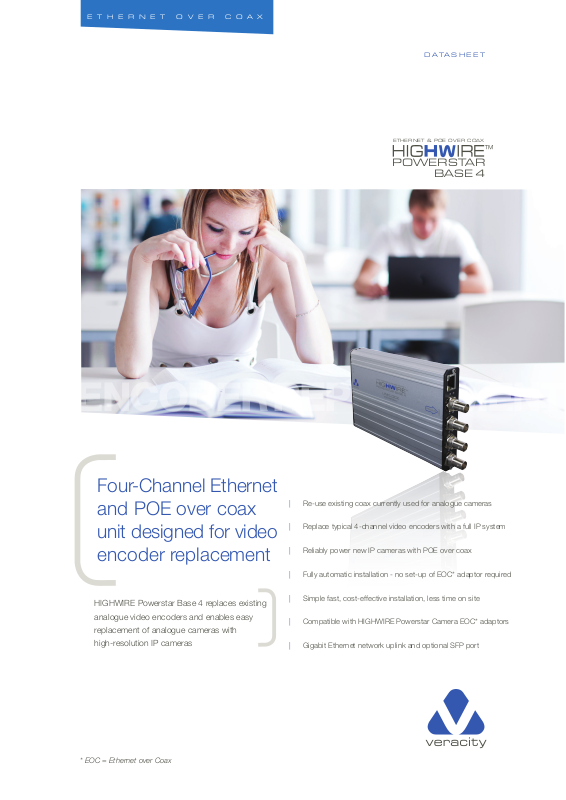

Veracity HIGHWIRE Powerstar Base 4 Specsheet

ENCODER REPLACEMENT

ETHERNET OVER COAX

DATASHEET

ETHERNET & POE OVER COAX

POWERSTAR

BASE 4

Four-Channel Ethernet

| Re-use existing coax currently used for analogue cameras

and POE over coax
unit designed for video

| Replace typical 4-channel video encoders with a full IP system

encoder replacement

| Reliably power new IP cameras with POE over coax

| Fully automatic installation - no set-up of EOC* adaptor required

HIGHWIRE Powerstar Base 4 replaces existing
analogue video encoders and enables easy
replacement of analogue cameras with
high-resolution IP cameras

| Simple fast, cost-effective installation, less time on site

| Compatible with HIGHWIRE Powerstar Camera EOC* adaptors

| Gigabit Ethernet network uplink and optional SFP port

* EOC = Ethernet over Coax

A true plug-and-play solution
for connecting and powering
IP cameras over legacy
coaxial cabling

The HIGHWIRE Powerstar product family offers reliable power delivery
and long-range extension even over low-grade coaxial cable and now
enables direct replacement of existing analogue video encoders to
allow cost-effective upgrade to IP cameras

Existing Video Encoders

Many CCTV installations made the first
step to IP video by using analogue
video encoders to digitise their existing
analogue cameras and stream IP video
onto their network. This allowed the
analogue cameras running over
existing coaxial cables to be used
with modern network video recorders
(NVRs) and to be streamed anywhere
on the network (to a video wall,
operator screen or display monitor
for example). Video encoders were
frequently used to get the video onto a
network at the most convenient point
thus avoiding having to run coax cable
very long distances all the way to the

equipment room end. Digitising and
networking the video also added some
flexibility to the system in terms of how
the video data was routed and used,
and indeed this is part of the power
of IP Video systems.

Legacy Video Encoders

Existing video encoders come in many
forms, but by far the most common is
the stand-alone four-channel encoder,
as manufactured by hundreds of
different companies around the world.
All have very similar characteristics:
Four BNC connections for the coax
cables, a network connection and a
power connection.

EXAMPLE OF A TYPICAL ANALOGUE ENCODER INSTALLATION

NETWORK

POWER

SWITCH

ETHERNET

POWER

POWER
SUPPLY

TYPICAL
ANALOGUE
VIDEO
ENCODER

ANALOGUE VIDEO

PTZ Control/Audio
Some video encoders also had
RS232 or RS485 ports for controlling
analogue PTZ cameras. Of course,
such serial connections are not
required for IP PTZ cameras, as all
control signals go through the Ethernet
network connection along with the
digital video. Likewise, some analogue
encoders had audio I/O, but again,
separate audio connections are not
required for IP cameras, as the signals
are incorporated into the network data
and recorded by the NVR.

HIGHWIRE Powerstar Base 4 directly
replaces the analogue encoder unit.

ANALOGUE

ANALOGUE

ANALOGUE

ANALOGUE

ETHERNET DATA ONLY

POWER

Diagram 1. A typical four-channel analogue
video encoder installation is illustrated here

IMAGINATION | INNOVATION | INTEGRATION DATASHEET

ETHERNET AND POWER OVER COAX INSTALLATION DIAGRAM

VHW-HWPS-C

IP

CAMERA

GIGABIT
ETHERNET

POE & DATA OVER COAX

UP TO 300M ON RG59 / 500M ON RG11

Diagram 2. HIGHWIRE Powerstar Base 4
delivers Ethernet and POE over legacy coax,
for maximum reliability and with no rewiring.

IP

IP

IP

ETHERNET & POE

CAMERA

CAMERA

CAMERA

NETWORK

SWITCH

POWER

POWER
SUPPLY

VPSU-57V-1500
OR
VPSU-57V-800

ETHERNET DATA ONLY

VHW-HWPS-B4

HIGHWIRE

POWERSTAR

BASE 4

ETHERNET & POE

Direct Encoder Replacement

HIGHWIRE Powerstar Base 4 builds
on the market-leading HIGHWIRE
range of Ethernet-over-coax (EOC)
adaptors from Veracity, and is
designed as a direct replacement for
legacy analogue video encoders.

EOC Base and Camera Units

In Diagram 2 above, the legacy
analogue encoder is replaced by a
HIGHWIRE Base 4 unit and the coax
cables are connected to four separate
single-channel HIGHWIRE Powerstar
Camera adaptors. Note that Duo and
Quad Camera adaptors are also
available. The low-resolution, locally

powered analogue cameras are
replaced by high-resolution POE
powered IP cameras. A Gigabit
Ethernet uplink connection on the
HIGHWIRE Base 4 ensures there is no
network bandwidth limit on available
image quality and resolution.

Automatic connection

As soon as the power is supplied to
the Base 4 unit, a connection is
established automatically with the
Camera units, the IP cameras are
powered up and the camera IP
addresses will be available on the
network. The HIGHWIRE units require
no configuration, do not require IP

POE-OVER-COAX RANGE TABLE

RANGE TABLE CAMERA POWER (watts)

Cable Type 5W 10W 15W 20W 25W

RG-11 (14AWG core) 500m 500m 500m 500m 500m

Copper Core 1640ft 1640ft 1640ft 1640ft 1640ft

RG-59 (22/20AWG core) 300m 300m 300m 300m 300m

Copper Core 1000ft 1000ft 1000ft 1000ft 1000ft

RG-59 (22AWG CCS) 270m 265m 185m 140m 110m

Copper coated steel 880ft 870ft 610ft 460ft 360ft

address settings and are completely
transparent to the network.

Recommended Power Supplies

There are two PSU options available
for HIGHWIRE Powerstar Base 4
units. They are 57V DC to provide the
maximum power and distance
possible within the POE standard.
(IEEE 802.8af and 802.3at)

The options provide 40W or 80W.
The 40W unit provides 10W per
channel over the coax on the Base 4
unit, which is sufficient for most static
IP cameras. The 80W unit provides
up to 20W per channel on Base 4.

POE-over-Coax™ Range

HIGHWIRE Powerstar delivers reliable
power at long range, even over low
grade CCS cable. No set-up is
required and the coax connection is
automatically established on power-up.

The table shows the range achievable
by cable type and camera wattage.

www.veracityglobal.com

ETHERNET OVER COAX

TECHNICAL SPECIFICATION

POWERSTAR

BASE 4

POWER
Unit power 4.5 watts
POE Out IEEE 802.3af (POE) or IEEE 802.3at (POE Plus) up to 25W per channel

Power input 57V DC, up to 6A via a 2 pin detachable screw terminal (supplied)

or a 2 pin Micro-Fit power connector

HIGHWIRE INTERFACE
Connector type BNC 75 Ohm x 4
Cable type Any 75 Ohm coaxial (other impedances supported)
Range Up to 300m [1000ft] on RG59 or 500 metres [1640 feet] on RG11 at full rate.
Bandwidth 200 Mbps (total up + down) x 4

ETHERNET INTERFACE
Connector type RJ45
Cable type Patch or crossover, auto-detected
Rate Gigabit Ethernet

LEDS
Status indicators HIGHWIRE coax link
Ethernet link/activity (BASE)
POE-over-coax
See Quickstart Guide for LED indicator table and diagnostics

PHYSICAL/ENVIRONMENTAL
Dimensions L 173mm (including BNC connectors) W 110mm H22mm
Weight 356g [12.5oz]

Operating temperature 0ºC to 40ºC [32ºF to 104ºF]

Relative humidity 85% non-condensing
Compliance FCC, CE, RoHS, REACH

PRODUCT CODES

VHW-HWPS-B4 HIGHWIRE Powerstar Base 4™ - four channel EOC base unit

VHW-HWPS-B8 HIGHWIRE Powerstar Base 8™ - eight channel EOC base unit (optional rackmount)

VHW-HWPS-C HIGHWIRE Powerstar™ single channel EOC adaptor for camera end

VHW-HWPS-C2 HIGHWIRE Powerstar Duo™ - dual channel EOC adaptor for camera end

VHW-HWPS-C4 HIGHWIRE Powerstar Quad™ - four channel EOC adaptor for camera end

VPSU-57V-800-UK/EU/US 57V DC, 800 mA (40W) power supply with UK or EU or US cable

VPSU-57V-1500-UK/EU/US 57V DC, 1500 mA (80W) power supply with UK or EU or US cable

EOC = Ethernet over Coax
