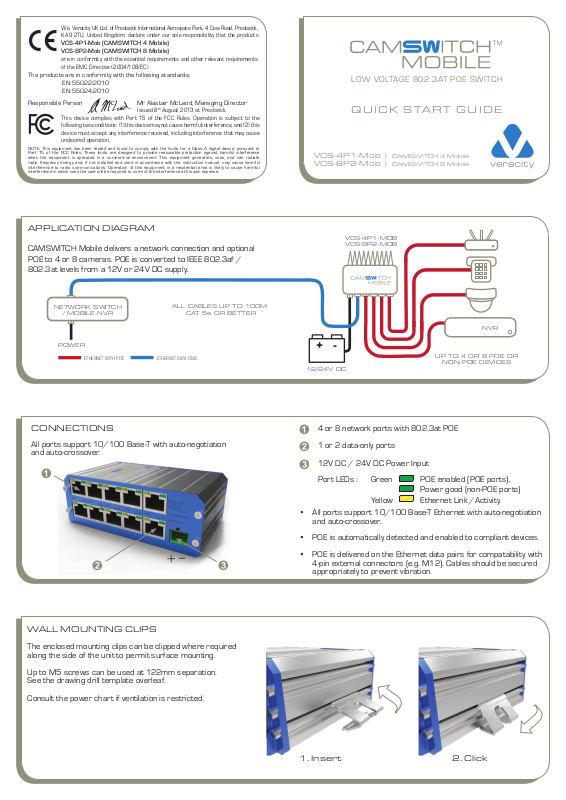

Veracity CAMSWITCH Mobile User Manual

We, Veracity UK Ltd. of Prestwick International Aerospace Park, 4 Dow Road, Prestwick,
KA9 2TU, United Kingdom, declare under our sole responsibility that the products
VCS-4P1-Mob (CAMSWITCH 4 Mobile)
VCS-8P2-Mob (CAMSWITCH 8 Mobile)
are in conformity with the essential requirements and other relevant requirements
of the EMC Directive (2004/108/EC)

The products are in conformity with the following standards:
EN 55022:2010
EN 55024:2010

Responsible Person Mr Alastair McLeod, Managing Director

Issued 8
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1)this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.

NOTE: This equipment has been tested and found to comply with the limits f or a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable pr otection against harmful interfer ence
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with t he instruction manual, may cause harmful
interference to radio communications. Operation of t his equipment in a residential area is likely to cause harmful
interference in which case the user will be required t o correct the interference at his own expense.

th

August 2013 at Prestwick.

LOW VOLTAGE 802.3AT POE SWITCH

QUICK START GUIDE

VCS-4P1-Mob | CAMSWITCH 4 Mobile
VCS-8P2-Mob | CAMSWITCH 8 Mobile

APPLICATION DIAGRAM

CAMSWITCH Mobile delivers a network connection and optional
POE to 4 or 8 cameras. POE is converted to IEEE 802.3af /

802.3at levels from a 12V or 24V DC supply.

NETWORK SWITCH

/ MOBILE NVR

POWER

ETHERNET WITH POE ETHERNET DATA ONLY

ALL CABLES UP TO 100M

CAT 5e OR BETTER

CONNECTIONS

All ports support 10/100 Base-T with auto-negotiation
and auto-crossover.



VCS-4P1-MOB
VCS-8P2-MOB

NVR

UP TO 4 OR 8 POE OR

12/24V DC

4 or 8 network ports with 802.3at POE



1 or 2 data-only ports



12V DC / 24V DC Power Input



NON-POE DEVICES

Port LEDs : Green POE enabled (POE ports),
Power good (non-POE ports)
Yellow Ethernet Link /Activity

• Allportssupport10/100Base-TEthernetwithauto-negotiation

and auto-crossover.

_

+





WALL MOUNTING CLIPS

The enclosed mounting clips can be clipped where required
along the side of the unit to permit surface mounting.

Up to M5 screws can be used at 122mm separation.
See the drawing drill template overleaf.

Consult the power chart if ventilation is restricted.

• POEisautomaticallydetectedandenabledtocompliantdevices.

• POEisdeliveredontheEthernetdatapairsforcompatabilitywith

4-pin external connectors (e.g. M12). Cables should be secured
appropriately to prevent vibration.

1. Insert 2. Click

POWER BUDGET

FUSE

VCS-4P1-MOB
VCS-8P2-MOB

40

70

INPUT VOLTAGE

(VOLTS DC)

OUTPUT POWER

(WATTS)

30º above ambient

CAMSWITCH Mobile can deliver up to 80 watts of total camera
power at its rated ambient temperature of 50°C.

To calculate the power budget required, add up the power draw
in watts of all POE devices, as given in their datasheets. (Power
classes are not used, and cable losses are already accounted for.)

Note that the enclosure may become hot in operation. Restricted access
to the product is recommended.

The graph opposite shows the approximate temperature rise
with moderate ventilation. Note that restricted ventilation and space

can lead to signifi cantly increased ambient temperature.

80

60

20º above ambient

50

If the input voltage drops below 12V (for example during engine
cranking) the power budget should be reduced as shown on the
graph, down to 50 watts at the minimum 8.5V DC input

POWER CONNECTIONS

CAMSWITCH Mobile can operate from an 8.5V to 40V DC
supply, and steps this up to a steady POE voltage internally.
(For AC applications, contact Veracity.)

The power supply or battery and wiring must be appropriately
rated and fused for the current required. Recommended fuse
ratings (slow blow type) are:

Power Budget 80W 60W 40W 20W No POE

Fuse Rating (12V) 10A 7.5A 5A 3A 2A

Fuse Rating (24V) 5A 4A 3A 2A 2A

8.5 12 24 40

Note that the POE voltage is not isolated from the DC supply. CAMSWITCH
Mobile is intended for use with IEEE-compliant (individually isolated) POE
and Ethernet devices within a closed system.

DIMENSIONS | MOUNTING HOLE TEMPLATE

Width 110mm
(131mm inc. clips)

Depth 108mm
(inc. DC connector)

Height 40mm

Weight VCS-4P1-Mob 290g
VCS-8P2-Mob 350g

Scale 1:1

5

8

25

131

110

102

122
