of the sound is played. The lens on the disc tab le should be kept clean. Do not touch the lens or pok e at it. If you
do so, the lens may be damaged and the unit will to operate properly.
On installation
Never install the unit where it would be subjected to:
- heat sources such as radiators or airducts.
- direct sunlight.
- excessive dust.
- moisture or rain.
- mechanical vibration or shock.
- unleveled surface.
• Do not place any heavy object on top of the unit.
• When the unit is used with an AC power adaptor, do not wrap the unit in a cloth, blanket, etc. If you do
so, the temperature inside and outside the unit may rise considerably, resulting in malfunctioning of the
unit or serious accidents.
• If the unit is brought directly from a cold to a warm location, or is placed in a very damp room, moisture
may condense on the lens inside the unit. Should this occur, the unit will not operate. In this case,
remove the disc and leave the unit in a warm place for several hours until the moisture
evaporates.
• For the unit to operate at its best, it should not be subjected to temperatures below 5
o
C (41o F) or above
35o C (95o F).
Notes on headphones / earphone
Do not use headphones / earphone while driving, cycling, or operating any motorized vehicle, it may create a
traffic hazard and is illegal in some areas. It can also be potentially dangerous to play your headsets at high
volume while walking, especially at pedestrian crossings. You should exercise caution or discontinue use in
potentially hazardous situations.
Avoid using headphones / earphone at high volume. Hearing experts advise against continuous, loud and
extended play. If you experience a ringing in your ears, reduce volume or discontinue use.
Keep the volume at a moderate level. This will allow you to hear outside sounds and to be considerate to the
people around you.
If you have any questions or problems concerning your unit, please consult your nearest dealer.
POPO
POPO
PO
WER SOURWER SOUR
WER SOURWER SOUR
WER SOUR
CESCES
CESCES
CES
Using With Batteries
Insert two size AA batteries (LR6 or MN1500 alkaline) according to the “ ” and “ ” marks correctly
aligned.
Notes on batteries
• Insert batteries with correct polarity.
• Do not use old batteries together with new ones or different types of batteries together.
• If the electrolyte inside the battery should leak, wipe the contaminated parts in the battery
compartment with a cloth and replace the old batteries with new ones.
• When the unit is not to be used for a long period of time, remove the batteries.
• Do not mix old and new batteries.
• Do not mix ALKALINE, standard (CARBON-ZINC) or rechargeable (NICKEL-CADMIUM) batteries.
Notes on “ ”
• During playback (batteries are in use), “ ” is off.
• When the battery voltage level is low, “
” will flash for approx. 10 ~15 minutes, playback still continues
in this period.
• Playback would automatically come to a stop when the batteries have no more power. Do not repeatedly
press “ ” as the unit may operate incorrectly. Replace all the batteries with new ones.
• “
” would not be on if an AC adaptor is used.
Using on house current
If the unit you purchased does not include an AC power adaptor, please use a 6V 350mA AC power adaptor.
Plus pole “ ” to the centre pin of the 3.5mm socket.
When the unit is not to be used, be sure to disconnect the AC power adaptor.

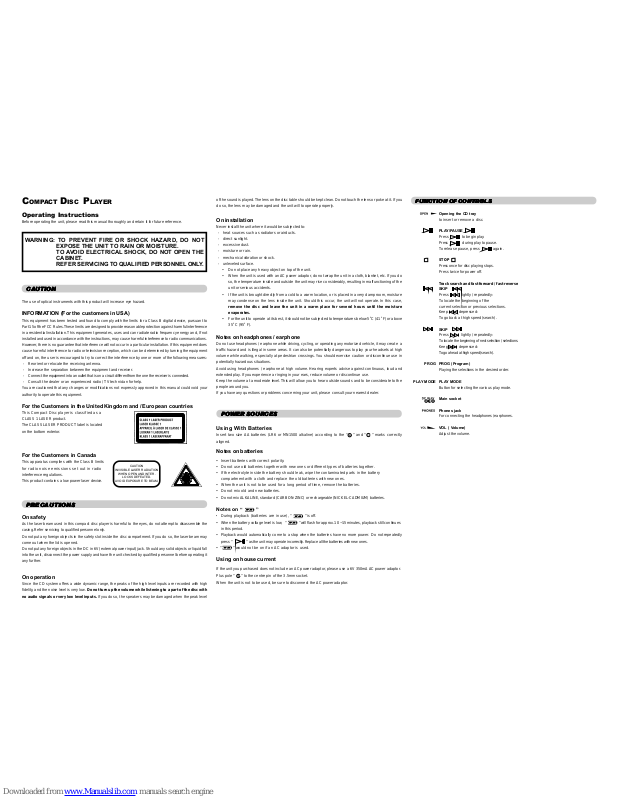

COMPACT DISC PLAYER
Operating Instructions
Before operating the unit, please read this manual thoroughly and retain it for future reference.
CACA
CACA
CA
UTIONUTION
UTIONUTION
UTION
The use of optical instruments with this product will increase eye hazard.
INFORMATION (For the customers in USA)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, If not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interf erence will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet that is on a circuit different from the one the receiver is connected.
- Consult the dealer or an experienced radio / TV technician for help.
You are cautioned that any changes or modifications not expressly approved in this manual could void your
authority to operate this equipment.
For the Customers in the United Kingdom and / European countries
This Compact Disc player is classified as a
CLASS 1 LASER product.
The CLASS LASER PRODUCT label is located
on the bottom exterior.
For the Customers in Canada
This apparatus complies with the Class B limits
for radio noise emissions set out in radio
interference regulations.
This product contains a low power laser device.
PRECAUTIONSPRECAUTIONS
PRECAUTIONSPRECAUTIONS
PRECAUTIONS
On safety
As the laser beam used in this compact disc player is harmful to the eyes, do not attempt to disassemble the
casing. Refer servicing to qualified personnel only.
Do not put any foreign objects in the safety slot inside the disc compartment. If you do so, the laser beam may
come out when the lid is opened.
Do not put any foreign objects in the DC in 6V (external power input) jack. Should any solid objects or liquid fall
into the unit, disconnect the power supply and have the unit checked by qualified personnel bef ore oper ating it
any further.
On operation
Since the CD system offers a wide dynamic range, the peaks of the high level inputs are recorded with high
fidelity, and the noise lev e l is very low. Do not turn up the volume while listening to a part of the disc with
no audio signals or very low level inputs. If you do so, the speakers may be damaged when the peak level
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THE UNIT TO RAIN OR MOISTURE.
TO AVOID ELECTRICAL SHOCK, DO NOT OPEN THE
CABINET.
REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
CAUTION
INVISIBLE LASER RADIATION
WHEN OPEN AND INTER.
LOCKS DEFEATED.
AVOID EXPOSURE TO BEAM.
FUNCTION OF CONTRFUNCTION OF CONTR
FUNCTION OF CONTRFUNCTION OF CONTR
FUNCTION OF CONTR
OLSOLS
OLSOLS
OLS
Opening the CD tray
to insert or remove a disc.
PLAY/PAUSE
Press to begin play.
Press during play to pause.
To release pause, press again.
STOP
Press once for disc playing stops.
Press twice for power off.
Track search and fast forward / fast reverse
SKIP
Press lightly / repeatedly:
To locate the beginning of the
current selection or previous selections.
Keep depressed:
To go back at high speed(search).
SKIP
Press lightly / repeatedly:
To locate the beginning of ne xt s el ection / selections.
Keep depressed:
To go ahead at high speed (search).
PROG PROG (Program)
Playing the selections in the desired order.
PLAY MODE PLAY MODE
Button for selecting the various play mode.
Main socket
Phones jack
For connecting the headphones / earphones.
VOL ( Volume)
Adjust the volume.
MAINTENMAINTEN
MAINTENMAINTEN
MAINTEN
ANCEANCE
ANCEANCE
ANCE
Cleaning the unit
Do not use volatile chemicals on this unit. Clean by lightly wiping with a soft cloth.
Cleaning CD
If the CD skips or will not play, the disc may need to be cleaned. Before playing, wipe the disc in a circular
motion from the centre out with a cleaning cloth. After playing, store the disc in its case.
Handling the disc
Only touch the CD on the edge to avoid finger prints on its surface. Do not stic k paper or tape nor write anything
on the surface.
TRTR
TRTR
TR
OUBLE SHOOOUBLE SHOO
OUBLE SHOOOUBLE SHOO
OUBLE SHOO
TING GUIDETING GUIDE
TING GUIDETING GUIDE
TING GUIDE
Should any problem persist after you have made the following checks, consult your nearest service facility.
Disc play does not start:
• The disc is inserted upside down or incorrectly. Insert the disc correctly with the label surface up
• Dusty or defective disc
• Dirty or dusty lens
• The disc compartment lid is not closed
• Moisture condensation -> Leave the unit in a warm place until the moisture evaporates
• The AC power adaptor is not plugged into the wall outlet
• The unit is not placed on a level surface
• Weak batteries
No sound from the headsets:
• The headphones / earphone plug is not firmly connected to the “ PHONES ” jack
• Adjust the “ VOL ” control
• Dirty plug
No sound from the connected speakers:
• Check the connections
• The amplifier is not turned on
Skipping of sound:
• Dirty or defective disc
• Dirty lens.
• Strong vibration
When using with batteries the battery life is short:
• Manganese batteries are used. Use alkaline batteries
Display window shows “ ” error message and the unit cannot be
operated:
• No disc , dirty disc or scratched disc. The unit will return to full stop mode after approx. 30 seconds,
or reset the player by pressing “ ” once and then insert a disc to start playing.
SPECIFICASPECIFICA
SPECIFICASPECIFICA
SPECIFICA
TIONSTIONS
TIONSTIONS
TIONS
General
Output (at 1KHz 0dB level) Headphones / earphone (stereo mini-jack)
15 mW + 15 mW at 16W to 32W
Power requirements 3V --- (2 x AA / LR6 /MN1500) alkaline batteries, or DC IN 6V, 350mA
power adaptor
Polarity of plug
Dimensions Approx. 129 x 30 x 142 mm (W/H/D)
Weight Approx. 225g (not include batteries)
Operating voltage:
U.S.A., Canada: Middle East and Australia: UK and Germany:
120V AC +_ 5% 60Hz 240V AC +_ 5% 50Hz 230V AC +_ 5% 50Hz
Chile: Singapore, Malaysia & Thailand: Japan:
230V AC +_ 5% 50Hz 200-240V AC +_ 5% 50Hz 100V AC +_ 5% 50/60Hz
We continually strive to improve our products, specifications may change without prior notice.
3. Pressing “
” again will cease the “ INTRO ” play and continue
playback in the “ NORMAL ” play mode.
* “ INTRO ” play always starts from the first track.
SHUFFLE PLAY - Playing the selections in random order
1. Press “ PLAY MODE ” during play until “ SHUFF ” flashes in the
display window.
2. Press “ ” to begin the “ SHUFFLE ” play.
* To locate the next track: press “
” . However, you cannot locate a
previous track even if you keep “ ” pressed.
PROG (Program) Play - Playing the selections in the desired order
1. Press program button until “ ” and “ ” flash in the display
window.
2. Press “
” or “ ” to select the desired selection.
3. Press program button to register track no. 4, for example, as the first
selection. The track no indication will be returned to “
”.
4. Repeat steps 2 and 3. until all the desired tracks are programmed (up
to 20 tracks).
5. Press “ ” , “ ” stops flashing and program play starts.
NOTES:
* Repeat play and “ INTRO ” play can be performed during program play.
* The program is erased when the disc compartment is opened or the auto power off function turns the
power off.
* If the program mode is exited by means of the “ ” key, all the programs would still remain in memory.
Program Edition
To add: To add additional tracks to your selection during program playback, press
“ ”
button first
and then press program button repeatedly until
“ ”
flashes in the display window
.
Repeat the above step 2 and 3 to store additional tracks.
To check: Press “ PROG ” lightly during programming before you press “ ” .
Each time “ PROG ” is pressed the track number appears in the display windo w.
To change: When checking press either “ ” or “ ” to alter the track number for the program
currently displayed. Press “ PROG ” to register the newly selected track into memory.
To delete: When open the CD door including that program will be cancelled.
SKIP PRSKIP PR
SKIP PRSKIP PR
SKIP PR
OO
OO
O
TECTION SYTECTION SY
TECTION SYTECTION SY
TECTION SY
STEMSTEM
STEMSTEM
STEM
The SKIP PROTECTION System incorporates a special electronic circuit that prevents sound from skipping
when the unit is subjected to shocks and vibration during play.
When you start playback, the SKIP PROTECTION System tu rn s o n and “
” indicator appears
in the display to prevent sound skipping.
When the unit receives a physical shock which prevents the laser pick-up from "reading" the CD, this system
immediately starts playing the sound stored in its memory and continues until the laser pick-up recovers.
If the unit is subjected to continuous shocks and all the data stored in memory is used up the sound will skip.
If the vibration stops then the data memory will be restored. If continuous vibration is applied when the data
memory is empty, an error message “ ” will be displayed. T o reset the CD player press “ ” once.
DISC PLAYINGDISC PLAYING
DISC PLAYINGDISC PLAYING
DISC PLAYING
1. Open the CD tray with the “ OPEN ” button.
2. Insert the CD with the printed side facing upwards and push the disc gently until it clicks so that the
disc fits into the pivot.
3. Press the CD door to close.
On display windows
When you press “ ”, the display window shows:
During play
The track number of the current selection appears.
When " " is pressed during play, total number of tracks on the disc will be displayed and the unit is still on.
The unit will be returned to full stop mode automatically after approximately 30 seconds if no button is pressed
again within the 30 seconds.
If “
” is pressed again the unit will be returned to full stop mode. If “ ” is pressed the unit returns to
play mode.
During pause
The playing track number will flash.
When no disc is inserted onto the player and when “
” is pressed, the display window shows " ".
The unit cannot be operated when error message is displayed. After approx. 30 seconds the unit will return to full
stop mode, or reset the player by pressing “ ” once and then insert a disc to start playing.
VARIOUS PLAYING MODESVARIOUS PLAYING MODES
VARIOUS PLAYING MODESVARIOUS PLAYING MODES
VARIOUS PLAYING MODES
During playback, every time the PLAY MODE key is pressed, the mode would be changed to the next one as
follow s:
NORMAL play -> (
)repeat one -> ( )repeat all -> INTRO -> SHUFFLE
NORMAL play - Playing the whole disc
The CD is played once from beginning to end.
REPEAT PLAYBACK (Repeat One and Repeat All)
• To repeat the same track
Press “ PLAY MODE ” during play until “ ” appears in the
display window. Select desired track to be played only once by pressing
“ ” or “ ” .
• To repeat the whole disc
Press “ PLAY MODE ” during play until “ ” appears in the
display window.
INTRO PLAY - Playing the First About Ten seconds of all the selections:
1. Press “ PLAY MODE ” during play until “ ” flashes in the display
windows.
2. Press “
” to begin the “ INTRO ” play. (Play each track for approx. 10
second).
Pause mode of the second track
Printed in China
811-872191-011
Total number of tracks First track playing begins
Loading...
