Venmar Signature S1 Series, Signature Series, Signature S3 Series, Signature S4 Series, Signature S2 Series Installation Instructions And User Manual
INSTALLATION INSTRUCTIONS AND USER’S MANUAL
HB0019
SIGNATURE SERIES
RESIDENTIAL USE ONLY
READ AND SAVE THESE INSTRUCTIONS
INSTALLER: LEAVE THIS MANUAL TO HOMEOWNER.
HOMEOWNER: USE AND CARE INFORMATION ON PAGE 7.
Venmar Ventilation Inc., 550 Lemire Blvd., Drummondville, Qc., Canada J2C 7W9
Tel: 1-800-567-3855 Fax: 1-819-475-2660
www.venmar-ventilation.com 04521 rev A
! !
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSON(S) OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by
the manufacturer. If you have questions,
contact the manufacturer at the address or
telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power
off at service panel and lock service
disconnecting means to prevent power from
being switched on accidentally. When the
service disconnecting means cannot be
locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
3. Installation work and electrical wiring must
be done by qualified personnel in
accordance with all applicable codes and
standards, including fire-rated construction
codes and standards.
4. Sufficient air is needed for proper combustion
and exhausting of gases through the flue
(chimney) of fuel burning equipment to prevent
backdrafting. Follow the heating equipment
manufacturer’s guidelines and safety
standards such as those published by the
National Fire Protection Association (NFPA),
and the American Society for Heating,
Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any solid-state
speed control device.
8. To reduce the risk of fire, use only steel ductwork.
9. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE:
a) Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on
low or medium settings.
b) Always turn hood ON when cooking at high
heat or when cooking flaming foods.
c) Clean ventilating fans frequently. Grease should
not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware
appropriate for the size of the surface element.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSON(S)
IN THE EVENT OF A RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie
sheet, or metal tray, then turn off the burner. BE
CAREFUL TO PREVENT BURNS. IF THE
FLAMES DO NOT GO OUT IMMEDIATELY,
EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN – You may be
burned.
3. DO NOT USE WATER, including wet dishcloths or
towels – This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC
B. The fire is small and contained in the
C. The fire department has been called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published
by NFPA.
CAUTION
1. For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and vapors.
2. To avoid motor bearing damage and noisy
and/or unbalanced impellers, keep drywall
spray, construction dust, etc. off power unit.
3. Your hood motor has a thermal overload which
will automatically shut off the motor if it becomes
overheated. The motor will restart when it cools
down. If the motor continues to shut off and
restart, have the hood serviced.
4. For best capture of cooking impurities, the bottom
of the hood should be a minimum of 20” (24”
over a gas range) and a maximum of 30” above
the cooking surface.
5. Please read specification label on product for
further information and requirements.
6. To reduce the risk of fire and to properly
exhaust air on a ducted installation, be sure to
duct air outside – Do not exhaust air into spaces
within walls or ceiling or into attics, crawl spaces,
or garage.
7. This product is equipped with a thermostat
which may start blower automatically. To reduce
the risk of injury and to prevent power from being
switched on accidentally, switch power off at
service panel and lock or tag service panel.
8. Because of the high exhausting capacity of this
hood, you should make sure enough air is
entering the house to replace exhausted air by
opening a window close to or in the kitchen.
- 2 -
extinguisher and you know how to operate it.
area where it started.
ABOUT THIS MANUAL
!
Hood
3 1/4" x 10" duct
Roof cap
Wall
cap
HH0011A
Hood
6" round duct
Roof cap
Wall
cap
3 1/4" x 10"
to 6" transition
HH0014A
Your new Signature Series range hood can be installed either with an exterior outlet
or not. In this last case, you must install your hood with a charcoal filter module (sold
separately).
Because of the large amount of models covered by this publication, the illustrations are
typical ones. Some details of your unit may be slightly different of the ones shown.
Please take note that this manual uses the following symbols to emphasize particular
information:
WARNING
Identifies an instruction which, if not followed, might cause serious
personal injuries including possibility of death.
CAUTION
Denotes an instruction which, if not followed, may severely damage
the unit and/or its components.
NOTE: Indicates supplementary information needed to fully complete an instruction.
HOOD INSTALLED WITH A CHARCOAL FILTER MODULE
This module must be installed prior to proceed to the hood installation. Refer to the
installation sheet included in the charcoal filter unit kit.
TOOLS NEEDED TO INSTALL THE RANGE HOOD
- Phillips screwdriver #2 or Robertson #1
- Hammer and flat head screwdriver (to open the knockout holes)
- Sheet metal sheers (ducted installation only, for duct adjustment)
- Pair of pliers (ducted installation only, for duct adjustment)
- Scissors (to cut duct tape)
- Pen
1. INSTALL DUCTWORK
Plan where and how the ductwork will be installed.
Install proper-sized ductwork, elbow(s) and roof or wall cap for the type of blower you
are installing. If using 6’’ (150 mm) round ducts, use a transition. Use 2’’ (50 mm) duct tape
to seal duct joints.
- 3 -
2. MEASURE INSTALLATION
HO0002
2-3/8''
Dimensions for the most common installations are shown below.
We recommend to install the hood at a minimum of 20” (508 mm) from an
electric range and at 24” (610 mm) from a gas range.
For optimal performance, the hood should not be installed more than 30” (762 mm)
from cooktop.
Cabinets
HH0013A
Cabinets
Hood
20" minimum
clearance
(24" for gas)
Standard 36" h.
cook top
HH0012A
Hood
30" maximum
clearance
Standard 36" h.
cook top
3. PREPARE THE INSTALLATION
Make sure that the following items are included:
-Hood
-Filters
-Bag of parts including :
(1) wire clamp, (5) 1/2’’ double thread screws, (2) wire connectors and (6) 1/2’’ screws
-Adapter/damper assembly 3-1/4’’ x 10’’ (located inside the hood, under the cover)
ts sold separately:
Par
- Appliance bulbs (40W maximum, A15 model)
- Transition 3-1/4”x 10” to 6”round (optional, for ducted installation only)
NOTE: If the bottom of the cupboard is recessed, attach wood strips (not included),
as shown below, to be able to properly install the range hood (A) or charcoal
filter unit to the cabinet (B).
A
B
HD0033
- 4 -
Remove the filters. Remove the screw located at the bottom of the hood and
remove the cover (A) and the adapter/damper assembly (B) from the inside of hood.
1
2
B
HO0010
A
3
4. CHOOSE THE OPENING
Remove the knockouts for the chosen opening (vertical (A) or horizontal (B)) at the
back or on top of the hood and for electric connection.
HD0038
AB
HD0039
NOTE: For the best ventilation performance, use a transition 3-1/4’’ x 10’’ to 6’’ (8.25 x 25.4
to 15.24 cm), if round duct is used. The wall duct must be well prepared to
receive the adapter. Before performing the installation, make sure the adapter
fits easily in the duct. If this hood replaces another hood, please note that location
of the air exhaust can vary from one manufacturer to another.
5. INSTALL THE ADAPTER
Using (2) 1/2’’ screws, secure the adapter to the top or back of the hood. Tape the
adapter to the hood using duct tape to seal it.
HD0005
HD0006
- 5 -
6. INSTALL THE HOOD
!
HO0011
HD0043
Run power cable to installation location. Place the
hood at its location. Mark the position of the screws
(smaller part of the embossed key holes) with a pen.
Remove the hood and install the (4) 1/2” double
thread screws leaving a 1/8” gap. Place the wire
clamp, insert the cable in the hood and tighten the
wire clamp to secure the cable. Place the hood
1
2
under the cabinet and slide it in position. Make sure
3
the adapter/damper assembly enters the ducting.
Secure the hood by tightening the screws completely.
Insert the last 1/2” double thread screw in the
remaining embossed hole. Make sure the damper
over the adaptor opens freely.
HD0042
7. CONNECT WIRING
WARNING
Risk of electrical shock. Electrical wiring must be done by
qualified personnel in accordance with all applicable codes and standards.
Before connecting wires, switch power off at service panel and lock service
disconnecting means to prevent power to be switched on accidentally.
Connect cable to range hood wiring using
wire connectors included.
Connect BLACK to BLACK, WHITE to WHITE,
and GREEN wire under GREEN ground screw.
DO NOT FORGET TO CONNECT THE
GROUND.
HE0011
1) Ground screw
1
8. REINSTALL BOTTOM COVER
Reinstall the bottom cover, using 5 screws,
as shown. Then, install filters.
1
2
3
CAUTION
Remove protective plastic film
covering filters before installing
them (if applicable).
9. LIGHT BULBS
This range hood uses two appliance bulbs,
maximum 40 watts, A15 model (not included).
To install them, remove the light diffuser by
pushing on its claps and pull down, as
shown. Then, install the bulbs by rotating
them clockwise into their socket holder.
Reinstall the light diffuser.
CAUTION
Always use appliance bulbs. Failure to do so will damage the light diffuser.
- 6 -
1
2
3
10. USE AND CARE
!
Filters and impeller
The filters, impeller and the intake ring should be
cleaned frequently. Use a warm detergent solution.
The intake ring and impeller are dishwasher safe.
To remove the impeller, first take off the intake ring.
Then remove the impeller by pulling it down smoothly.
There is a tab on the interior ring of the wheel, make
sure it fits into one of the holes on the motor (you will
feel it fall into position), when reinstalling the wheel.
WARNING
We take great care to keep sharp edges to a minimum, but please
be careful; the hood cover edges may be sharp.
Hood cleaning
Stainless steel cleaning:
Do:
- Regularly wash surfaces with clean cloth or rag soaked with warm water and mild
soap or liquid dishwashing detergent.
- Always clean in the direction of original polish lines.
- Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely.
- You may also use a specialized household stainless steel cleaner.
Don’t:
- Do not use any steel or stainless steel wool or any other scrapers to remove
stubborn dirt.
- Do not use any harsh or abrasive cleansers.
- Do not allow dirt to accumulate.
- Do not let plaster dust or any other construction residues reach the hood. During
construction or renovation, cover the hood to make sure no dust sticks to stainless
steel surface.
Avoid: when choosing a detergent
- Any cleaners that contain bleach will attack stainless steel.
- Any products containing : chloride, fluoride, iodide or bromide will deteriorate
surfaces rapidly.
- Any combustible products used for cleaning such as acetone, alcohol, ether,
benzol, etc., are highly explosive and should not be used close to a range.
Enamel finish:
Clean with warm water and mild detergent only. If discoloration occurs, use a good
enamel polish such as automotive polish. (DO NOT use rough abrasive cleaner or
porcelain cleaner.)
How to maintain its « BRIGHT LOOK »
HD0037
- 7 -
!
11. OPERATION
Always turn ON your hood before you begin cooking in order to establish an air flow
in the kitchen. Let the blower run for a few minutes to clear the air after you turn off
the range. This will help keep the whole kitchen cleaner and brighter.

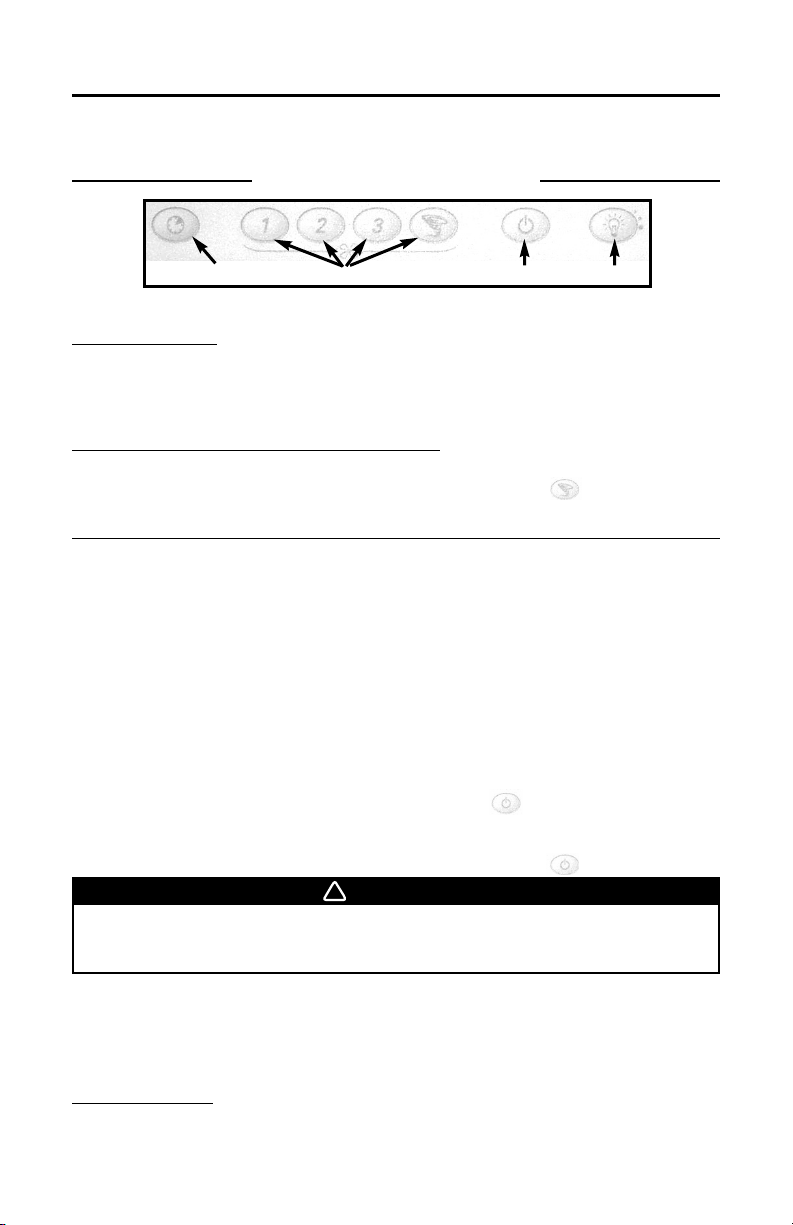

ELECTRONIC CONTROL
HC0001
1) Delay switch 3) Master OFF/Filter maintenance switch/Heat detector
2) Start/Stop/Speed selection switches 4) Light switch
1. Delay switch:
When a speed is selected, press the delay switch to activate the delay function.
The corresponding speed indicator light will start flashing to indicate this function
is activated. The fan will continue to operate for 5 minutes and will stop automatically.
To cancel the delay function, press the delay switch once again.
2. Star
3.
Smarvent™*(on some models only):
t / Stop / Speed selection switches:
Press the switch corresponding to the desired fan speed. The light indicates the
selected speed (from speed“1” for Silentsure™* mode to for ’’Boost Mode’’).
To turn off the fan, press once more on the corresponding fan speed switch.
Master Off / Filter maintenance switch / Heat detector: (Triple function switch)
a) To turn Off the motor and the lights simultaneously, press the switch once.
b) After 25 hours of operation, the filter maintenance light indicator will turn
itself on. This indicates that the filters and the blower wheel need to be
cleaned in order to maintain efficient operation of the unit. The indicator light
will stay ON until the function is reactivated by pressing this switch for 3 seconds.
c) The light indicator is used for the Smartvent™* function as well (see below).
When an excessively high temperature is detected, the detector takes control
over the blower and ensure that an appropriate ventilation is produced. The
controller is equipped with two detection levels.
Protected mode level 1 : When medium heat is detected, the blower sets
Protected mode level 2 : When a greater heat is detected, the blower then
1
2
itself to speed 3, the corresponding light indicator
comes ON and the indicator flashes.
sets itself to Boost mode, the corresponding light
indicator turns ON and the indicator flashes.
3 4
WARNING
The protected mode can start the blower even if the hood is turned OFF.
In protected mode, it is impossible to turn the blower OFF with the push
buttons. If you must stop the blower, do it from the main electrical panel.
The blower will remain ON until the heat is back to normal, it then returns to the speed
previously selected.
NOTE: In a case of range top grease fire (temperature exceeding 90°C), the
protected mode will be deactivated to prevent fire propagation.
*TM in Canada only. US TM pending.
4. Light switch:
The light switch allows three different lighting levels according to your needs.
Use appliance light bulbs (120V, 40W, A15 model).
- 8 -

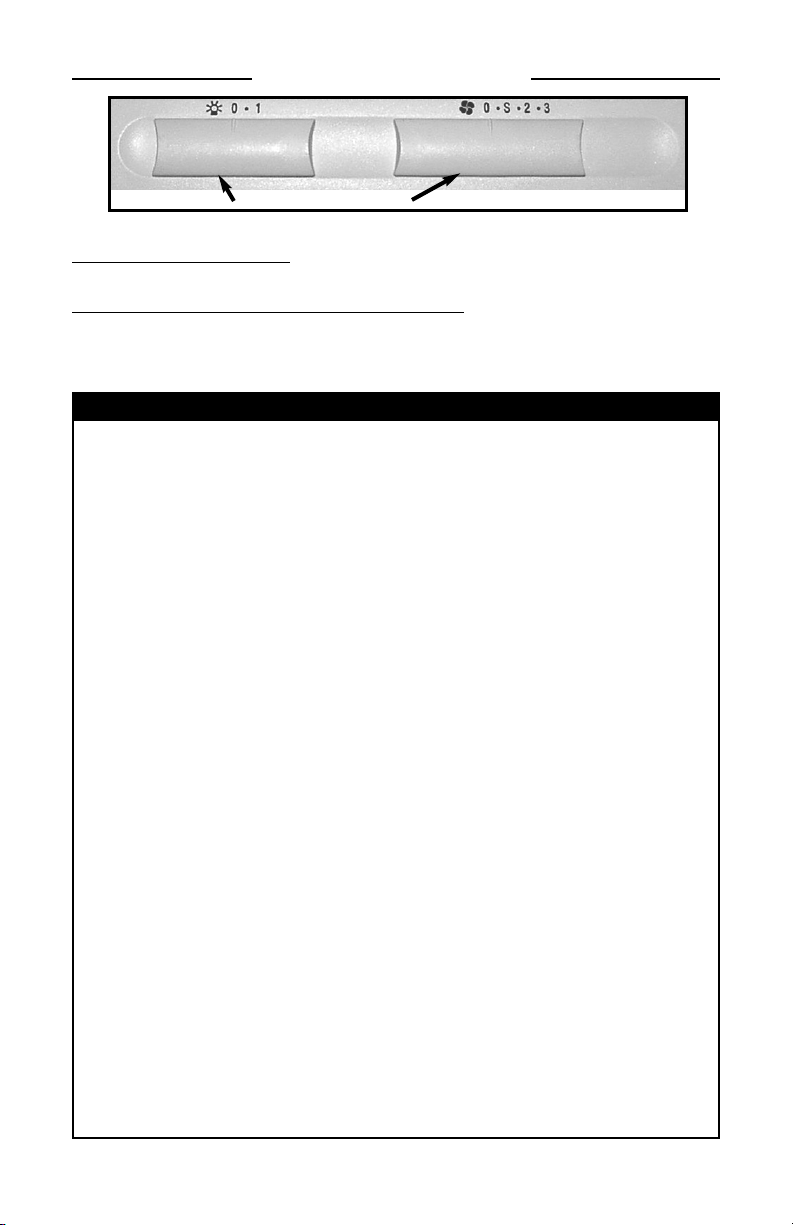

MECHANICAL CONTROL
HC0002
1) OFF / ON light switch 2) OFF / ON motor and speed control switch
1. OFF / ON light switch:
Slide this switch to turn on the light. Use appliance light bulbs (120V, 40W, A15 model).
2. OFF / ON motor and speed contr
Slide this switch corresponding to the desired fan speed. Speed ‘’S’’ indicates
Silentsure™* mode.
*TM in Canada only. US TM pending
1
2
ol switch:
WARRANTY
Venmar Ventilation inc. warrants to the original consumer purchaser of its products, that
such products will be free from defects in materials or workmanship for a period of
(10) years, including in-home service for the first 90 days, from date of original purchase.
THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. VENMAR VENTILATION INC. WILL NOT BE HELD RESPONSIBLE
FOR ANY CLAIMS OVER THE ORIGINAL PURCHASE PRICE OF A SIGNATURE
RANGE HOOD, NOR HELD RESPONSIBLE FOR SUBSEQUENT DAMAGE OR INCIDENT.
During the period stated above, Venmar Ventilation inc. will, at its opinion, repair or
replace, without charge, any product or part which is found to be defective under normal
use and service. THIS WARRANTY DOES NOT EXTEND TO ANY LIGHT BULBS. This
warranty does not cover a) normal maintenance and service b) any products or parts
which have been subject to misuse, negligence, accident, improper maintenance or
repairs made by other than Venmar Ventilation inc, or c) a faulty installation or installation
contrary to recommended installation instructions.
The duration of any implied warranty is limited to the 10-year period as specified for
the express warranty. Some states or provinces do not allow limitation on how long
an implied warranty lasts, so the above limitation may not apply to you.
VENMAR VENTILATION INC'S OBLIGATION TO REPAIR OR REPLACE AT VENMAR'S
OPTION, SHALL BE THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS
WARRANTY. VENMAR SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL
OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT
USE OR PERFORMANCE. SOME STATES OR PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
This warranty gives you specific legal rights and you may also have other rights, which
vary from state or province to another. This warranty supersedes all prior warranties.
To contact Venmar Ventilation inc. warranty service call 1-800-567-3855 in Canada and
1-800-836-6271 in the United States.
In order to qualify for a warranty claim, the owner of a Signature range hood must
have the model and serial number along with a proof of the original
purchase date. At the time of requesting service, describe the nature of any defect
in the product or part.
In case of discrepancies between the english version of the warranty and french
and/or spanish version, the english version will prevail.
- 9 -

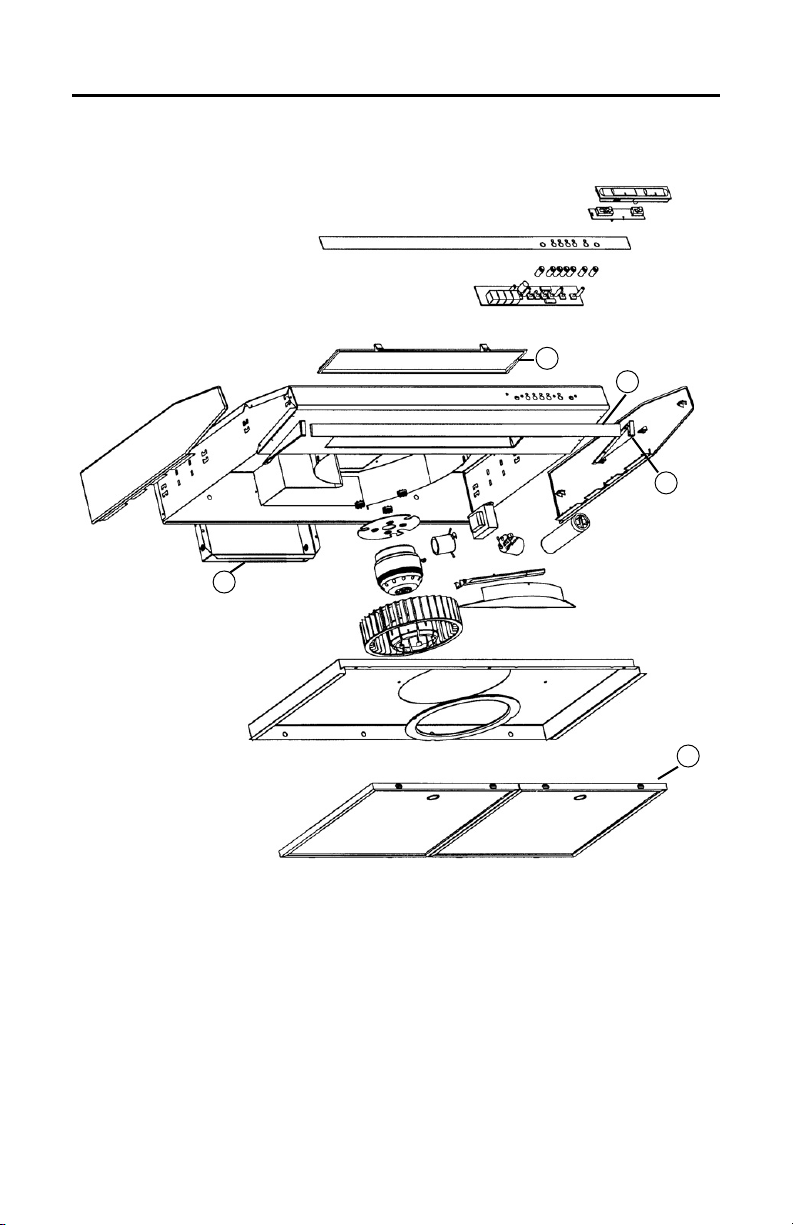

SERVICE PARTS
1
2
3
5
HL0015
4
- 10 -
SERVICE PARTS
Ref.# Qty. Description Part Number
1 1 Light Diffuser 01752
1 30” clear glass 01832
1 36” clear glass 02049
2
1 30” tinted glass 01874
1 36” tinted glass 02050
1 White glass holder (the pair) 01991
3 1 Almond / Biscuit glass holder (the pair) 01993
1 Black glass holder (the pair) (also for s/s) 01992
1 Mesh filters for 30” hood (the pair) 01989
1 Micromesh filters for 30” hood (the pair) 14131
4
2 Mesh filters for 36” hood (unit) 02070
1 Micromesh filters for 36” hood (the pair) 14132
5 1 Adapter and damper 13296
1 Instruction manual 04521
Installation bag
1 (6) screws # 6 x 1/2", (5) double thread screws
and (2) wire connectors)
((1) wire clamp,
04281
TECHNICAL SPECIFICATIONS
Transformer 120 VAC, 60 Hz
Bulbs (A15) 2 x 40 W max.
Models: S1x S2x S3x S4x
Total power consumption 200 W 245 W 245 W 245 W
cfm 270 370 270/370 300/440
- 11 -

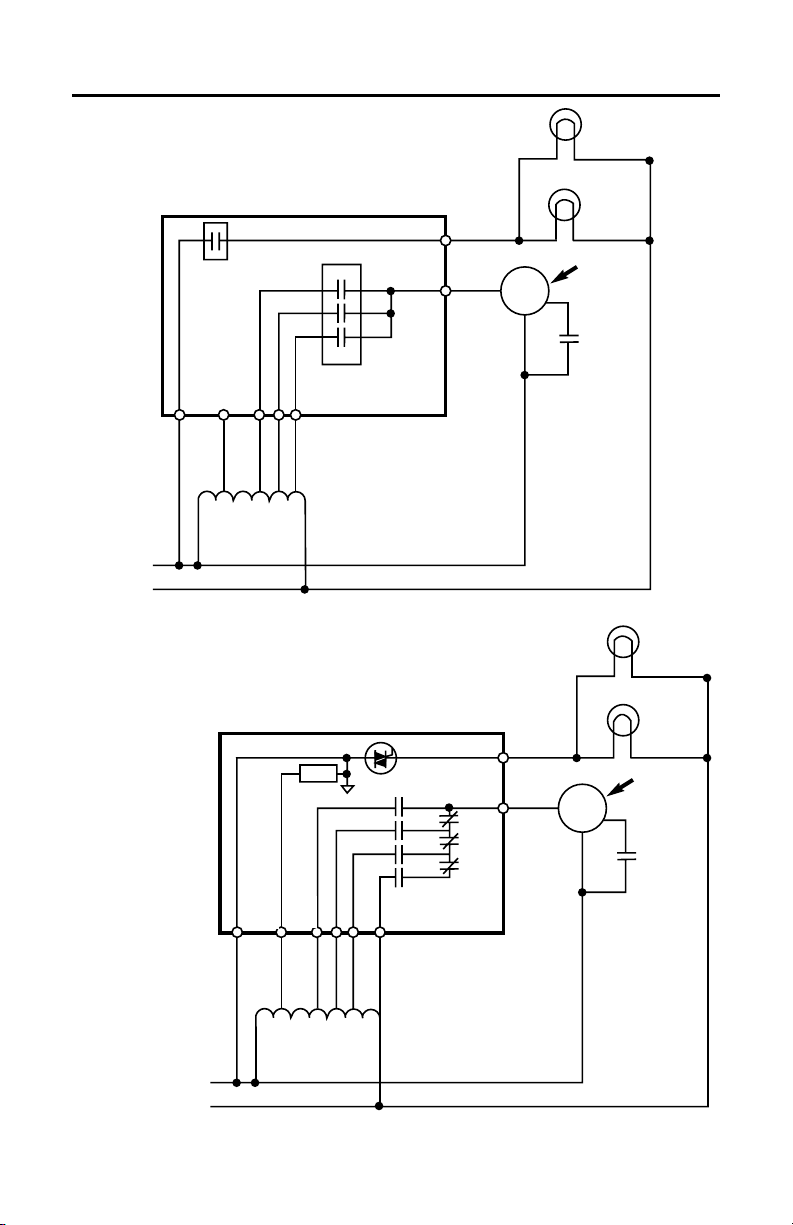

WIRING DIAGRAMS
Signature S1x and S2x Models
CONTROL BOARD
J2-2
ME
S2
J2-3
120 VAC
75 VAC
HI
120 VAC
LINE
120 VAC
NEUTRAL
S1
J1-2
J1-1
10 VAC
AUTOTRANSFORMER
J2-1
50 VAC
EL
LO
Signature S3x and S4x Models
J1-3
J2-5
BULB 40W
BULB 40W
FAN
MOTOR
120W
CW
CAPACITOR
BULB 40W
120 VAC
LINE
120 VAC
NEUTRAL
HE0013
J1-2
J1-1
10 VAC
AUTOTRANSFORMER
CONTROL BOARD
LOGIC
LOGIC REFERENCE
GROUND
J2-1
J2-2
J2-3
70 VAC
85 VAC
50 VAC
EL
LO
ME
HI
J2-4
120 VAC
BOOST
- 12 -
K1 NO
K2 NO
K3 NO
K4 NO
K1 NC
K2 NC
K3 NC
J1-3
J2-5
BULB 40W
FAN
MOTOR
165W
CW
CAPACITOR
Loading...
