4 CHANNEL USB RECORDER / LOGGER

PCS10 / K8047

User manual

Velleman Instruments

Altough developments in the field of electronics proceed at breakneck speed, we have always been able to create the

ideal mix between innovation and durability. The innovations are mainly expressed in our scopes, which are created with the aid of the latest techniques.

The velleman Instruments team

Table of Contents

Foreword

IContents

Part I English

................................................................................................................................... 31 General

.......................................................................................................................................................... 3Specifications

.......................................................................................................................................................... 3System requirements

.......................................................................................................................................................... 3Safety & Warnings

.......................................................................................................................................................... 4Warranty

................................................................................................................................... 42 Connections

.......................................................................................................................................................... 5power led

.......................................................................................................................................................... 5diagnostic led

.......................................................................................................................................................... 5Signal input

.......................................................................................................................................................... 5USB output

................................................................................................................................... 63 Readout screens

.......................................................................................................................................................... 6Analog screen

.......................................................................................................................................................... 6Digital screen

................................................................................................................................... 74 Software controls

.......................................................................................................................................................... 7Analog readout

......................................................................................................................................................... 7Voltage range

......................................................................................................................................................... 7Channels

......................................................................................................................................................... 8Time/div

......................................................................................................................................................... 8Measuring

......................................................................................................................................................... 9Scrollbar

.......................................................................................................................................................... 9Digital readout

......................................................................................................................................................... 9Momentary voltage

......................................................................................................................................................... 10Max. & Min. voltage storage

................................................................................................................................... 105 Menu options

.......................................................................................................................................................... 10File menu

......................................................................................................................................................... 11Date

.......................................................................................................................................................... 12Edit menu

.......................................................................................................................................................... 12Options menu

......................................................................................................................................................... 13Colors

.......................................................................................................................................................... 13View menu

......................................................................................................................................................... 13Markers

......................................................................................................................................................... 14Markers dV & t

......................................................................................................................................................... 14Markers V & dt

......................................................................................................................................................... 14Move the markers

......................................................................................................................................................... 15Display digital

.......................................................................................................................................................... 15Help menu

......................................................................................................................................................... 16About

................................................................................................................................... 166 Assistance

.......................................................................................................................................................... 16Troubleshooting

.......................................................................................................................................................... 16Product support

................................................................................................................................... 167 glossary

.......................................................................................................................................................... 16Administrator

.......................................................................................................................................................... 16DLL

.......................................................................................................................................................... 17Logical printer

.......................................................................................................................................................... 17Plug and Play

.......................................................................................................................................................... 17Port

.......................................................................................................................................................... 17Print spooler

.......................................................................................................................................................... 17Printer

PCS10 - K8047 recorder / LoggerII

.......................................................................................................................................................... 17Spooling

.......................................................................................................................................................... 17USB

Index 18

1 English

1.1 General

1.1.1 Specifications

Hardware :

• USB connected and powered.

• Four DC-coupled input channels

• Input resistance 1Mohm

• Maximum samples per second: 100

• Four input ranges, 3V / 6V / 15V and 30V

• Sensitivity 10mV

• Accuracy ±3% of full scale

• Maximum input 30Vdc

• Power and recording/diagnostic LED

Software :

English 3

• Analogue trace or DVM readout

• 4 simultaneous channels recording

• Minimum / maximum sample hold function for DVM

• From 1 sec to 1000 sec per division

• Storage and recall of screens (full colour) or data

• Automatic recording option for long time recordings

• On screen markers for time and voltage

• DLL included for own development

1.1.2 System requirements

Minimum system requirements :

• IBM compatible PC

• Windows 98SE, ME, Windows 2000, Windows XP.

• SVGA display card (min. 800 x 600).

• Mouse

• Free USB port

• CD-Rom player.

Software updates :

Check our web site www.velleman.be for updates (or just click on "updates").

1.1.3 Safety & Warnings

SAFETY and WARNINGS

Important safety information!

PCS10 - K8047 recorder / Logger4

1.1.4 Warranty

This product is guaranteed against defects in components and construction from the moment it is purchased and for a period of ONE YEAR starting from the date of sale.

This guarantee is only valid if the unit is submitted together with the original purchase invoice. VELLEMAN Components limits its responsibility to the reparation of defects or, as VELLEMAN Components deems necessary, to the replacement or reparation of defective components. Costs and risks connected to the transport, removal or placement of the product, or any other costs directly or indirectly connected to the repair, will not be reimbursed by VELLEMAN Components. VELLEMAN Components will not be held responsible for any damages caused by the malfunctioning of a unit.

GAlways remember that the ground of all the channels are interconnected !

1.2 Connections

The unit is connected to the USB port of the computer, using a USB cable.

1.2.1 power led

Indicates that the unit is correctly connected with the computer

1.2.2 diagnostic led

Lights when the unit is recording data.

1.2.3 Signal input

4 input channels enable you to measure 4 signals at the same time.

1.2.4 USB output

English 5

Connect the computer to the USB recorder/logger via the USB cable

Make the connections :

PCS10 - K8047 recorder / Logger6

1.3 Readout screens

1.3.1 Analog screen

Using this screen the 4 channels can be viewed simultanously as a trace on the screen .

1.3.2 Digital screen

K8047 / PCS10 screenshot

Powerfull feature which allows digital visualisation of the measurements

1.4 Software controls

1.4.1 Analog readout

1.4.1.1 Voltage range

English 7

1.4.1.2 Channels

PCS10 - K8047 recorder / Logger8

1.4.1.3 Time/div

1.4.1.4 Measuring

1.4.1.5 Scrollbar

English 9

1.4.2 Digital readout

1.4.2.1 Momentary voltage

PCS10 - K8047 recorder / Logger10

1.4.2.2 Max. & Min. voltage storage

1.5 Menu options

1.5.1 File menu

Open image : Opens a image file and display it on the screen. Open data : Opens and displays the waveform data saved in text format using the Save data

option.

Save image : Saves the image to a file in Windows Bitmap (*.BMP) format, (full color).

1.5.1.1 Date

English 11

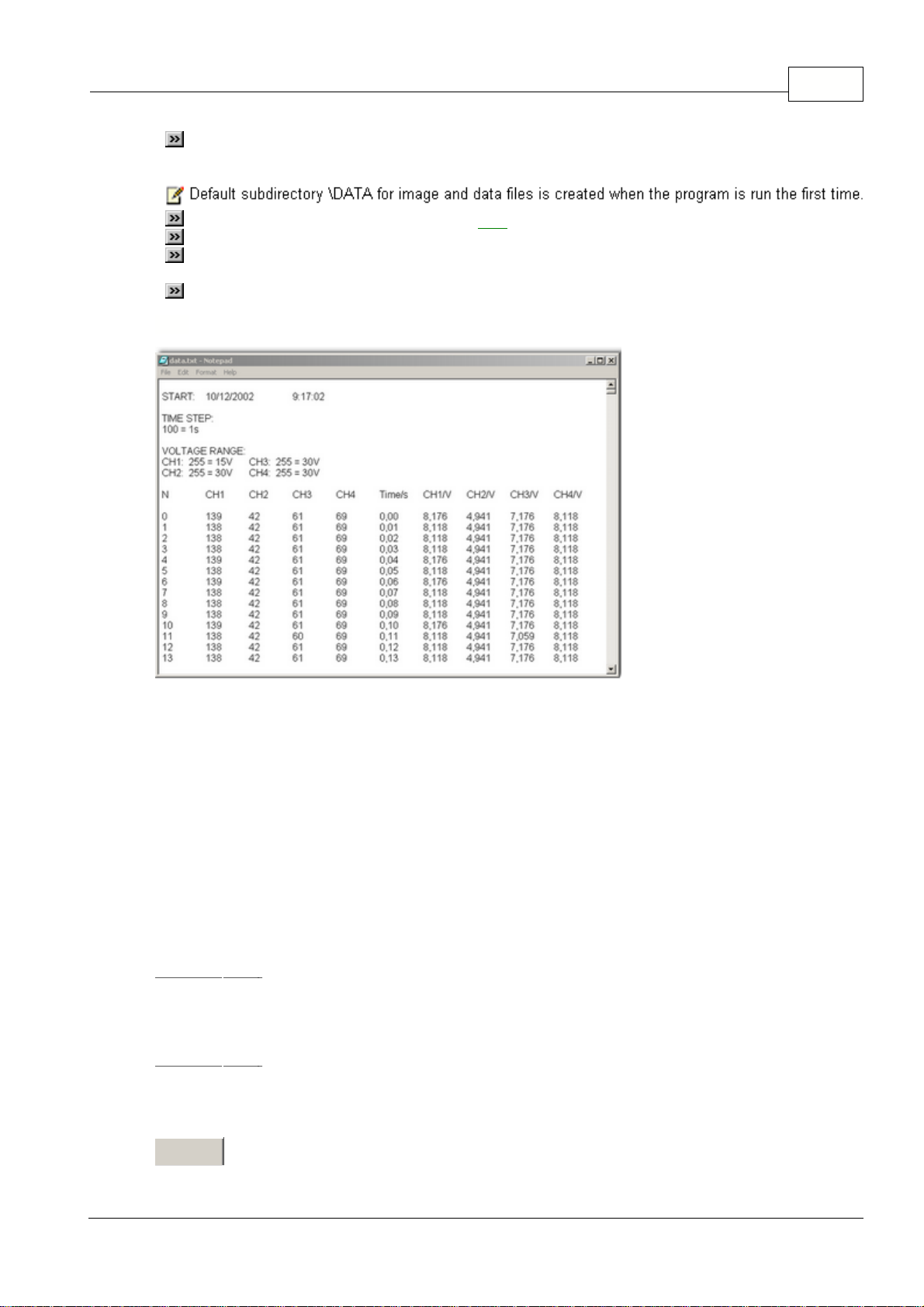

Save data : Saves the waveform in text format. only the portion of the data displayed on the

screen is saved.

AutoSave data : Saves the image and its date to a file during the run of a sample. Print : Print the image.

Print setup : Selects a printer and sets printer options before printing. The available options

depend on the printer you select.

Exit : Teminates the program.

Start : start time of the recording Time step : Timescale setting 100 samples = 1second

Voltage range CH1 : Voltage range channel 1 => measured value 255 corresponds to 15V CH2 : Voltage range channel 2 => measured value 255 corresponds to 30V

CH3 : Voltage range channel 3 => measured value 255 corresponds to 30V CH4 : Voltage range channel 4 => measured value 255 corresponds to 30V

1700 measurements values are taken per display, numbered from 0 to 1700. In addition to this, the measured values can be read from channel 1 to channel 4.

Example CH1 :

Point in time : 13 x 1/100 = 0,13s + 9:17:02 = 9:17:02.13 Voltage : 138 x 15/255 = 8,118V

Example CH3 :

Point in time : 4 x 1/100 = 0,04s + 9:17:02 = 9:17:02.04 Voltage : 61 x 30/255 = 7,176V

Print page

PCS10 - K8047 recorder / Logger12

1.5.2 Edit menu

Copy : Copies the image to the windows 'clipboard'. Paste : Pastes the image residing in windows 'clipboard' to the screen.

1.5.3 Options menu

Colors : Select the color for various items on the waveform display. To change the color of an

item, click the corresponding button. This will open a dialog in which you can select a new color. Full color selection is possible only if True color (24bit) palette is used. There are restrictions in

the color combinations to the default settings. Click Default colors button to resets all colors to the default settings.

Demo mode : Unit goes into demo mode, several signals are displayed.

1.5.3.1 Colors

English 13

1.5.4 View menu

Markers dV & t : The absolute time of the marker position is displayed. (2)

Two horizontal markers for measuring voltage (1)

Markers V & dt : The time difference between the two markers is displayed.(1)

Two horizontal markers for measuring voltage (2)

You can move the markers by using your mouse.

DVM display : Displays the digital screen recorder/logger.

Bright grid : Brightens the blue grid on the screen.

1.5.4.1 Markers

The user can perform measurements on one or 4 signals by using the markers. This can be useful when measuring the interval between two points of the amplitude.

PCS10 - K8047 recorder / Logger14

1.5.4.2 Markers dV & t

1.5.4.3 Markers V & dt

1.5.4.4 Move the markers

• Place the mouse pointer over a dached marker line.

• Press and hold the left mouse button.

• The marker line turns solid.

• Drag the marker to the approriate position.

1.5.4.5 Display digital

English 15

Unique feature allowing digital visualization of the max. and min. voltage peak during measurements

1.5.5 Help menu

Contents : Display the help file.

About : Displays information of the program version.

K8047 / PCS10 screenshot

PCS10 - K8047 recorder / Logger16

1.5.5.1 About

1.6 Assistance

1.6.1 Troubleshooting

• If the Record Led of the Recorder/Logger unit is continuously lit at the startup:

- Disconnect and then reconnect the unit to the PC.

- The Record LED should show sequence of three blinks and then stay off until the Run button is depressed.

1.6.2 Product support

E-mail :

Support@Velleman.be

Website :

http://www.velleman.be

1.7 glossary

1.7.1 Administrator

A person responsible for setting up and managing domain controllers or local computers and their user and group accounts, assigning passwords and permissions, and helping users with networking issues. Administrators are members of the Administrators group and have full control over the domain or computer.

1.7.2 DLL

An operating system feature that allows executable routines (generally serving a specific function or set of functions) to be stored separately as files with .dll extensions. These routines are loaded only

when needed by the program that calls them.

1.7.3 Logical printer

The software interface between the operating system and the printer in Windows. While a printer is the device that does the actual printing, a logical printer determines how a print job is processed and how it is routed to its destination (to a local or network port, to a file, ...). When you print a document, it is spooled (or stored) on the logical printer before it is sent to the printer itself.

1.7.4 Plug and Play

A set of specifications developed by Intel that allows a computer to automatically detect and configure a device and install the appropriate device drivers.

1.7.5 Port

Generally, a connection point on your computer where you can connect devices that pass data into and out of a computer. For example, a printer is typically connected to a parallel port (also called an LPT port), and a modem is typically connected to a serial port (also called a COM port).

English 17

1.7.6 Print spooler

Computer software that accepts a document sent to a printer by the user and then stores it on disk or in memory until the printer is ready for it. This collection of dynamic-link libraries (DLLs) receives, processes, schedules, and distributes documents for printing. The term spooler is an acronym created from "simultaneous print operations on line."

1.7.7 Printer

A device that puts text or images on paper or other print media. Examples include laser printers or dotmatrix printers.

See also logical printer; Printer; Print spooler.

1.7.8 Spooling

A process on a server in which print documents are stored on a disk until a printer is ready to process them. A spooler accepts each document from each client, stores it, then sends it to a printer when the printer is ready.
