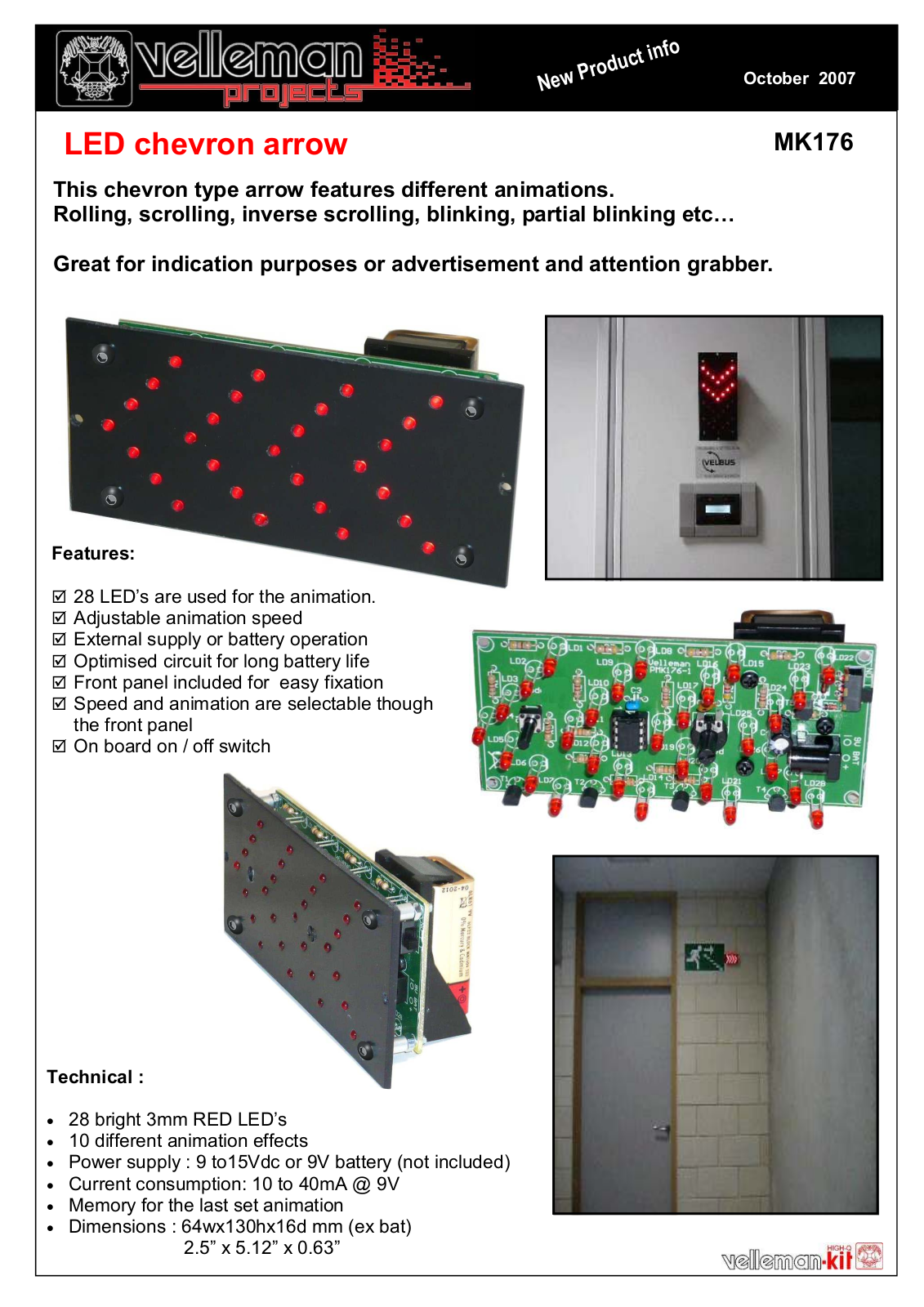

Velleman MK176 Datasheet

N

o

f

n

i

t

c

u

d

o

r

P

w

e

October 2007

LED chevron arrow

This chevron type arrow features different animations.
Rolling, scrolling, inverse scrolling, blinking, partial blinking etc…

Great for indication purposes or advertisement and attention grabber.

Features:



28 LED’s are used for the animation.



Adjustable animation speed



External supply or battery operation



Optimised circuit for long battery life



Front panel included for easy fixation



Speed and animation are selectable though
the front panel



On board on / off switch

MK176

Technical :

•

28 bright 3mm RED LED’s

•

10 different animation effects

•

Power supply : 9 to15Vdc or 9V battery (not included)

•

Current consumption: 10 to 40mA @ 9V

•

Memory for the last set animation

•

Dimensions : 64wx130hx16d mm (ex bat)

2.5” x 5.12” x 0.63”
