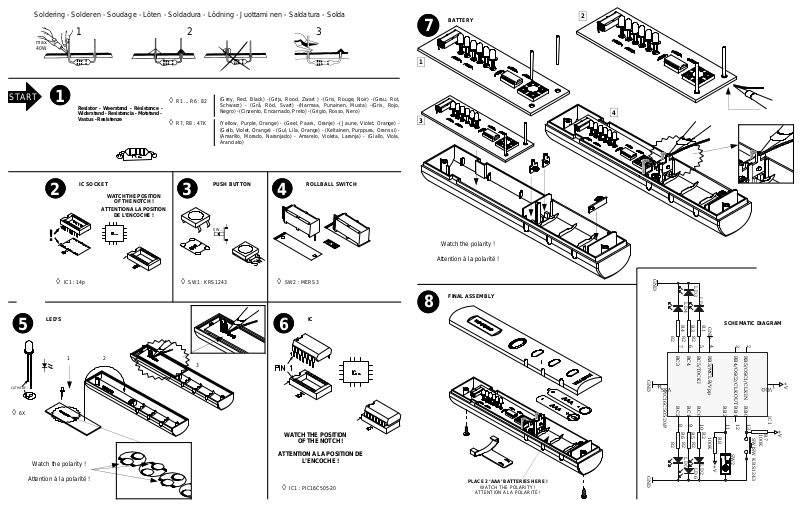

Velleman MK154 User Manual
Soldering - Solderen - Soudage - Löten - Soldadura - Lödning - Juottami nen - Saldatura - Solda
max.
40W
1 3
2
1
7
BATTERY
2
START
5
CATHODE
◊ 6X
Watch the polarity !
Attention à la polarité !
1
Resistor - Weerstand - Résistance Widerstand - Resistencia - Motstand -
Vastus - Resistenze
IC SOCKET
2 3 4
WATC H TH E PO S I TI ON
OF THE NOTCH !
ATTENTION A LA POSITION
DE L’ENCOCHE !
◊ R1 ... R6 : 82
◊ R7, R8 : 47K
(Grey, Red, Black) -(Grijs, Rood, Zwart ) -(Gris, Rouge, Noir) -(Grau, Rot,
Schwarz) - (Grå, Röd, Svart) -(Harmaa, Punainen, Musta) -(Gris, Rojo,
Negro) -(Cinzento, Encarnado, Preto) -(Grigio, Rosso, Nero)
(Yellow, Purple, Orange) - (Geel, Paars, Oranje) -( Jaune, Violet, Orange) (Gelb, Violet, Orange) - (Gul, Lila, Orange) - (Keltainen, Purppura, Oranssi) (Amarillo, Morado, Naranjado) - Amarelo, Violeta, Laranja) - (Giallo, Viola,
Aranciato)
PUSH BUTTON
SW...
!
◊ IC1 : 14p
LED’S
1 2
◊ SW1 : KRS1243
3
ROLLBALL SWITCH
◊ SW2 : MERS3
IC
6
WATCH THE POSIT ION
OF THE NOTCH !
ATTENTION A LA POSITION DE
◊ IC1 : PIC16C505-20
L’ENCOCHE !
3
Watch the polarity !
Attention à la polarité !
FINAL ASSEMBLY
8
PLACE 2 ‘AAA’ BATTERIES HERE !
WATCH TH E P O LARITY !
ATTENTION A LA POLARITÉ !
4
GND
GND
GND
14
PIC16C505-20/P
7
VSS
RC28RC19RC0
82
LD3
LD4
R482R382R1
82
LD5
LD6
LD1
SCHEMATIC DIAGRAM
GND
RB3/MCLR/Vpp4RC5/T0CKI5RC46RC3
11
10
R282R582R6
R8
100K
LD2
+V
SW2
3
RB4/OSC2/CLKOUT
2
RB5/OSC1/CLKIN
+V
1
VDD
RB013RB112RB2
IC1
+V
R7
100K
SW1SW KRS1243
