Vega 80ST13 User Manual

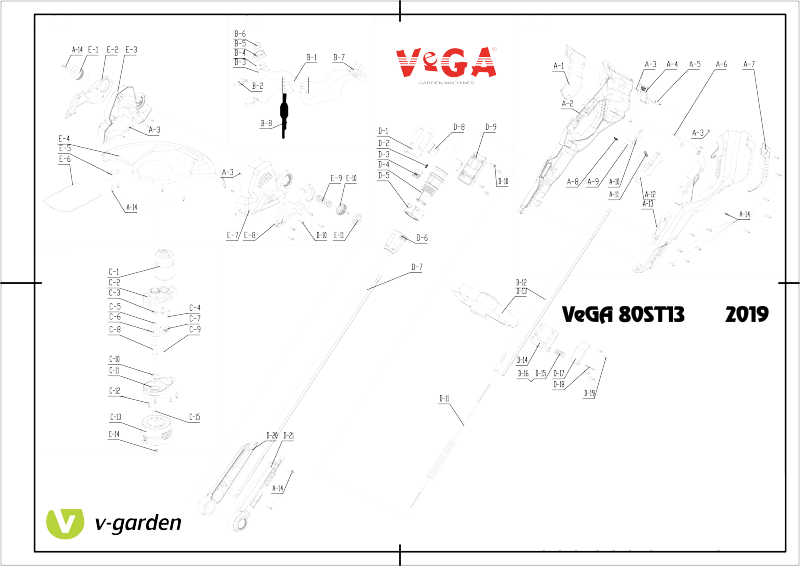

VeGA 80ST13 2019
_1
No. ID Zboží Název No. ID Zboží Název
A D
A-01 ST101700055 Handle Decoration-Rright D-01 ST102900010 Upper Cover
A-02 ST101200010 Handle Assey-Right D-02 ST102F00000 Spring
A-03 B3057B00000 Screw D-03 ST102E00013 Push Btton
A-04 CS103F00013 Battery pack lock D-04 ST102B00010 Sleeve
A-05 CS103G00000 Spring D-05 ST102C00010 Sleeve
A-06 ST101B00000 Spring D-06 ST102D00010 Locking Cover
A-07 ST101600055 Handle Decoration-Left D-07 ST102J00000 Aluminium tube
A-08 CS103C00000 Spring D-08 ST102G00010 Fixed Plate
A-09 ST101400013 Self-locking Switch D-09 ST102A00010 Lower Cover
A-10 ST101500010 Conection D-10 B3045B00000 Screw
A-11 CS103D00000 Spring D-11 ST103300000 Line
A-12 ST101300013 Switch Plate D-12 ST102H00000 Aluminium tube
A-13 ST101100010 Handle Assey-Left D-13 ST102100010 Handel
A-14 B3070B00000 Screw D-14 ST102200010 Handel cover
D-15 ST102400010 Lever pressure plate
D-16 ST102600000 Rubber
No. ID Zboží Název
D-17 ST102300013 Lock Lever
B
D-18 B8007B00000 Pin
B-01 ST203100000 Master control board D-19 B3063B00000 Screw
B-02 E2028000000 Switch D-20 ST102M00010 Support- Right
B-03 B3035B00000 Screw D-21 ST102L00010 Support- Left
B-04 ST103500000 Start Board
B-05 ST101A00013 Indicator Plate
B-06 CS103B00000 Lampshade
No. ID Zboží Název
B-07 E202D000000 Battery Connection Assey
E
B-08 ST203400000 EMI E-01 ST104300013 Button
E-02 ST104200055 Decoration - Right
E-03 ST104700010 Chassis- Right
No. ID Zboží Název
E-04 ST104800010 Protection Cover
C
E-05 ST104D00000 Blade
C-01 ST205100000 Motor E-06 ST104C00000 plant protector
C-02 ST105200000 Center Support E-07 ST104600010 Chassis -Left
C-03 B0028W00000 Bearing E-08 ST104100055 Decoration - Left
C-04 B3067B00000 Screw E-09 ST104B00000 Spring
C-05 B9022B00000 Ring E-10 ST104500010 Sliding block
C-06 ST105500000 Gear E-11 ST104400013 Lock
C-07 ST105400000 Gear
C-08 ST105600000 Output Axle
C-09 BE009W00000 Pin
C-10 B0026W00000 Bearing
C-11 ST105300000 Cover
C-12 B3056B00000 Screw
C-13 ST106100013 Trimmer Head
C-14 B2007W00000 Nut
C-15 B5051W00000 Plate
Part A
Part B
Part C
Part D
Part E
