Revised diagram FA 24/02/2003

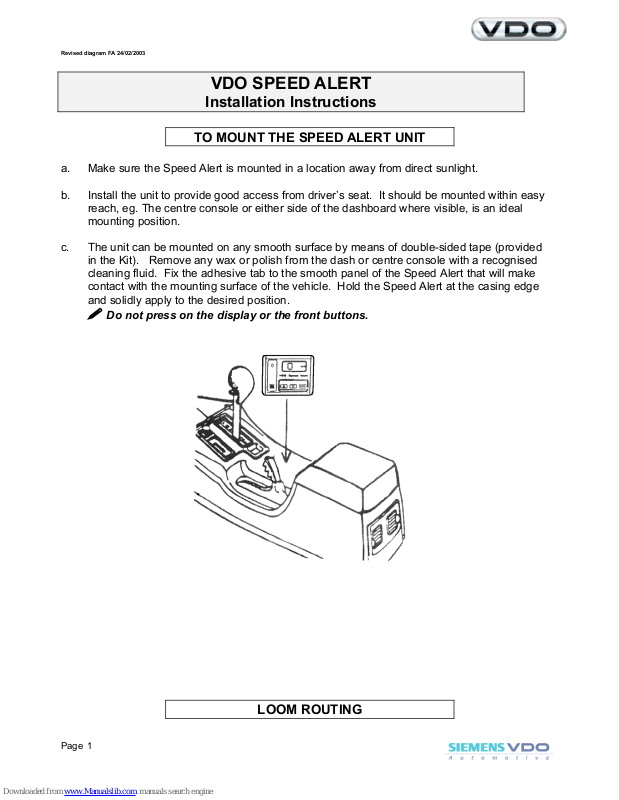

VDO SPEED ALERT

Installation Instructions

TO MOUNT THE SPEED ALERT UNIT

a. Make sure the Speed Alert is mounted in a location away from direct sunlight.

b. Install the unit to provide good access from driver’s seat. It should be mounted within easy

reach, eg. The centre console or either side of the dashboard where visible, is an ideal
mounting position.

c. The unit can be mounted on any smooth surface by means of double-sided tape (provided

in the Kit). Remove any wax or polish from the dash or centre console with a recognised
cleaning fluid. Fix the adhesive tab to the smooth panel of the Speed Alert that will make
contact with the mounting surface of the vehicle. Hold the Speed Alert at the casing edge
and solidly apply to the desired position.

 Do not press on the display or the front buttons.

LOOM ROUTING

Page 2

ELECTRONIC SPEEDOMETER

In vehicles with electronic speedometers, the Speed Alert signal wire (Blue) can be directly
connected to the speed sensor signal output.

You may need to refer to your vehicles service/repair manual or contact your local Dealer to find
out the speed signal colour wire.

MECHANICAL SPEEDOMETER

In the case of a mechanical speedometer, fit an electronic speed sensor to the vehicle as per the
instructions of that particular unit.

If the speed sensor supplied in the mechanical Speed Alert kit doesn’t suit your application,
contact VDO Kienzle or your supplier for further information on alternative speed sensors.

EXAMPLE OF A GENERATOR TYPE SENDER

SIGNAL GROUND

Connect to earth.

SIGNAL OUTPUT

Connect to blue wire of
Speed Alert.
