OPERATOR'S MANUAL T SERIES
Versu
Ref no 39 885 21 1 ( 10/2014 )
YOUR WORKING MACHINE

About this manual

The manual is meant for agricultural tractors only. If the tractor is used for other applications, it is the owner's responsibility to ensure compliance with local regulations. In this case, always contact your dealer first.
The purpose of this manual is to enable the owner and operator to use the tractor in a proper manner. Providing that the instructions are followed carefully, the tractor will provide years of service in the tradition of Valtra.
WARNING: Before using the tractor, read and understand all the instructions in this manual. They must then be strictly followed when operating and maintaining the tractor.
IMPORTANT: When using the tractor, always follow all valid laws and regulations even if they are not specifically pointed out in this manual.
The manual contains detailed instructions for operating, servicing and maintaining the tractor.
Optional equipment in the manual refers to equipment that can be selected when ordering the tractor.
Extra equipment refers to equipment that can also be bought and installed on the tractor later.
Due to the continual development of the products, the content of this manual may not always correspond to the new product. Therefore, we retain the right to make alterations without prior notification.
Maintenance, repairs and adjustments which are not described in this manual require special tools and exact technical data. For such work contact your dealer who has specially trained personnel to help you.
Valtra Inc.
- 1 -

Tractor serial numbers

1
234
5
6
When ordering spare parts or service, give the model indication and serial numbers and, in some cases, the engine, front axle, cab and transmission numbers.
GUID-83FD881F-92C4-4883-87A2-FEFA9521C800
1. Cab number and Type plate EEC
• Model = model indication used by service/spare part department
• Identification number = tractor serial number
2. Power take-off identification number
3. Engine number
4. Tractor serial number
5. Transmission Identification number
6. Front axle number
- 2 -

Contents

Contents
About this manual........................................................................................1
Tractor serial numbers.................................................................................2
1 Safety precautions................................................................................14
1.1 Hazard statements.............................................................................................14
1.2 Safety rules........................................................................................................ 14
1.2.1 Replacing safety and information signs............................................................14
1.2.2 Maintaining hardware safety............................................................................ 15
1.2.3 Using safety features........................................................................................16
1.2.4 Safe operation..................................................................................................18
1.2.4.1 Following safe operating practices............................................. 18
1.2.4.2 Getting into and out of the cab....................................................21
1.2.4.3 Driving on public roads............................................................... 21
1.2.4.4 Controlling the driving speed...................................................... 22
1.2.4.5 Driving downhill...........................................................................22
1.2.4.6 Operating with implements......................................................... 23
1.2.4.7 Running with power take-off driven implements or machines.... 24
1.2.4.8 Using ballast weights.................................................................. 24
1.2.4.9 Towing........................................................................................ 25
1.2.4.10 Ensuring personal safety of other people................................... 25
1.2.4.11 Fire hazards................................................................................26
1.2.4.12 Handling viton seals subjected to high temperatures................. 26
1.2.4.13 After-treatment system............................................................... 27
2 Instruments and controls...................................................................... 28
2.1 One-key locking system.....................................................................................28
2.2 Pedals................................................................................................................ 28
2.3 Dashboard......................................................................................................... 29
2.4 Control panel for A-pillar display and Proline.....................................................30
2.5 Proline instrument panel ................................................................................... 30
2.5.1 Symbols on the Proline instrument panel display.............................................31
2.5.2 Indicator lights on the left side of the display....................................................32
2.5.3 Indicator lights on the right side of the display................................................. 33
2.6 Controls on the right-hand side..........................................................................35
2.6.1 Tractor terminal................................................................................................ 35
2.6.2 Driving controls.................................................................................................36
2.6.3 Linkage.............................................................................................................37
2.6.3.1 Rear linkage................................................................................37
2.6.3.2 Front linkage............................................................................... 38
2.6.4 Power take-off.................................................................................................. 39
2.6.4.1 Rear power take-off.................................................................... 39
2.6.4.2 Front power take-off....................................................................40
2.6.5 Auxiliary hydraulics...........................................................................................40
2.6.6 Other controls...................................................................................................41
2.6.7 Main power emergency button.........................................................................42
2.7 Controls on the rear side....................................................................................42
2.7.1 Rear window opening latch.............................................................................. 42
2.7.2 Additional wipers.............................................................................................. 43
2.7.3 Reverse drive system controls......................................................................... 43
2.8 Controls on the left-hand side............................................................................ 44
2.9 Controls on the right-hand side roof console .................................................... 45
2.10 Air conditioning controls.....................................................................................46
2.10.1 Automatic air conditioning and additional heater controls................................46
2.10.2 Manual air conditioning and additional heater controls.................................... 46
2.10.3 Manual air conditioning.................................................................................... 47
2.10.4 Heater controls.................................................................................................47
- 3 -
Contents
2.11 Operator's seat...................................................................................................48
2.11.1 Air suspended operator's seat..........................................................................48
2.11.2 Valtra Evolution operator's seat....................................................................... 49
2.12 Controls on the rear mudguard.......................................................................... 50
2.13 Front end controls and connections...................................................................51
2.14 Rear controls and connections outside the cab................................................. 52
3 Operation..............................................................................................54
3.1 Running the tractor in.........................................................................................54
3.2 Preparing for use............................................................................................... 54
3.2.1 Adjusting the air-suspended driver's seat........................................................ 54
3.2.2 Adjusting the Valtra Evolution driver's seat...................................................... 57
3.2.3 Adjusting the right-side armrest........................................................................61
3.2.4 Adjusting the steering wheel............................................................................ 61
3.2.5 Adjusting standard mirrors .............................................................................. 62
3.2.6 Adjusting optional mirrors.................................................................................63
3.2.7 Heating mirrors.................................................................................................64
3.2.8 Using the windscreen wiper and washer..........................................................64
3.2.9 Using the side window wiper and washer........................................................ 65
3.2.10 Using the rear window wiper and washer.........................................................66
3.2.11 Using the rear window heater...........................................................................66
3.2.12 Power shuttle lever...........................................................................................67
3.2.13 Control stop......................................................................................................68
3.2.14 Using the control stop.......................................................................................68
3.2.15 Using the ignition switch...................................................................................69
3.2.16 Main power.......................................................................................................70
3.2.17 Using the main power emergency button.........................................................70
3.2.18 Using the roof hatch......................................................................................... 71
3.3 Starting the tractor............................................................................................. 72
3.3.1 Starting under normal conditions......................................................................72
3.3.2 Starting under cold conditions..........................................................................74
3.3.3 Starting with an auxiliary battery...................................................................... 75
3.4 Using lights........................................................................................................ 76
3.4.1 Using the light switch........................................................................................76
3.4.2 Using the follow-me-home functionality............................................................77
3.4.3 Using the light panel.........................................................................................77
3.4.4 Using the cab light............................................................................................79
3.5 Using notification devices.................................................................................. 80
3.5.1 Using turn signals.............................................................................................80
3.5.2 Using the horn..................................................................................................81
3.5.3 Using the rotary beacon light............................................................................81
3.5.4 Using hazard lights...........................................................................................82
3.6 Heating and ventilation...................................................................................... 82
3.6.1 Using the heater...............................................................................................82
3.6.2 Using the manual air conditioning.................................................................... 83
3.6.3 Using the manual air conditioning and additional heater................................. 83
3.6.4 Automatic air conditioning................................................................................ 84
3.6.4.1 Automatic air conditioning control panel and display..................84
3.6.4.2 Using the automatic air conditioning...........................................85
3.6.4.3 Using ECO mode........................................................................86
3.6.4.4 Using the additional heater......................................................... 87
3.6.4.5 Using defrost...............................................................................88
3.7 Power outlets..................................................................................................... 89
3.7.1 Lighters.............................................................................................................89
3.7.2 Using the two-pin current socket and power switch......................................... 89
3.7.3 Three-pin current socket.................................................................................. 90
3.7.4 Trailer socket....................................................................................................90
3.8 Driving the tractor...............................................................................................92
3.8.1 Notifications about steering..............................................................................92
3.8.2 Power shuttle....................................................................................................92
- 4 -
Contents
3.8.3 Parking brake................................................................................................... 93
3.8.4 Using the power shuttle lever...........................................................................93
3.8.5 Adjusting the power shuttle engagement speed ............................................. 95
3.8.6 Clutch pedal..................................................................................................... 96
3.8.6.1 Using the clutch pedal while driving............................................96
3.8.6.2 Adjusting the clutch pedal engagement position........................ 96
3.8.7 Braking............................................................................................................. 98
3.8.8 Using the emergency brake button.................................................................. 98
3.8.9 Using the emergency brake lever.....................................................................99
3.8.10 Starting to drive.............................................................................................. 100
3.8.11 Transmission system......................................................................................101
3.8.11.1 Speed matching........................................................................102
3.8.11.2 Selecting the speed range........................................................ 102
3.8.11.3 Selecting the creeper speed range...........................................104
3.8.11.4 Using Powershift.......................................................................104
3.8.11.5 Preprogramming gear for driving direction changing................105
3.8.11.6 Using the shifting automatics....................................................107
3.8.11.7 Programming shifting automatics............................................. 109
3.8.11.8 Using the Powershift limiter...................................................... 111
3.8.11.9 Programming automatic shifting between speed ranges C
and D........................................................................................ 112
3.8.12 Using the ECO function..................................................................................113
3.8.13 Parking the tractor..........................................................................................114
3.8.14 Refuelling the tractor...................................................................................... 114
3.8.14.1 Filling the fuel tank....................................................................114
3.8.14.2 Filling the AdBlue/DEF tank......................................................115
3.8.15 Cruise control................................................................................................. 117
3.8.15.1 Cruise control buttons...............................................................118
3.8.15.2 Programming the driving speed cruise control......................... 119
3.8.15.3 Activating and deactivating the driving speed cruise control ... 119
3.8.15.4 Programming the engine speed cruise control......................... 121
3.8.15.5 Activating and deactivating the engine speed cruise control.... 121
3.8.16 Automatic traction control...............................................................................122
3.8.17 Front axle air suspension............................................................................... 123
3.8.18 AutoComfort cab suspension......................................................................... 124
3.8.19 Differential lock...............................................................................................124
3.8.19.1 Differential lock......................................................................... 124
3.8.19.2 Engaging and disengaging the differential lock........................ 125
3.8.20 Four-wheel drive.............................................................................................126
3.8.20.1 Four-wheel drive....................................................................... 126
3.8.20.2 Engaging and disengaging the four-wheel drive.......................127
3.8.21 Driving start automatics..................................................................................127
3.8.21.1 Driving start automatics............................................................ 127
3.8.21.2 Setting the driving start automatics...........................................128
3.8.22 QuickSteer......................................................................................................129
3.8.22.1 QuickSteer................................................................................ 129
3.8.22.2 Using QuickSteer......................................................................129
3.8.22.3 Resetting QuickSteer................................................................130
3.8.23 TwinTrac reverse drive system...................................................................... 130
3.8.23.1 TwinTrac reverse drive system.................................................130
3.8.23.2 Activating and deactivating TwinTrac....................................... 131
3.8.23.3 Using TwinTrac with QuickSteer...............................................131
3.8.24 Hillhold............................................................................................................132
3.8.24.1 Hillhold...................................................................................... 132
3.8.24.2 Using hillhold............................................................................ 132
3.8.25 Permitted driving inclinations..........................................................................134
3.9 Displays........................................................................................................... 134
3.9.1 Adjusting display brightness...........................................................................134
3.10 Proline instrument panel display...................................................................... 135
3.10.1 Fixed views.....................................................................................................136
- 5 -
Contents
3.10.2 Single-row and two-row views........................................................................136
3.10.2.1 Working time view.....................................................................137
3.10.2.2 Battery voltage view..................................................................137
3.10.2.3 Cruise control view................................................................... 138
3.10.2.4 Driving speed view....................................................................138
3.10.2.5 Wheel slip view......................................................................... 139
3.10.2.6 Rear power take-off speed view............................................... 139
3.10.2.7 Front power take-off speed view...............................................140
3.10.2.8 Engine speed view....................................................................140
3.10.2.9 Fuel consumption views........................................................... 140
3.10.2.10 Rear lower links' position view.................................................. 142
3.10.2.11 Gearbox temperature view....................................................... 142
3.10.2.12 Travel distance and surface area view..................................... 143
3.10.3 Periodical maintenance view..........................................................................143
3.10.3.1 Clearing the periodical maintenance view................................ 144
3.10.4 Resetting views.............................................................................................. 145
3.10.5 Changing parameters.....................................................................................146
3.10.5.1 Activating and exiting the setting mode.................................... 146
3.10.5.2 Changing the parameter value................................................. 147
3.10.5.3 Setting the implement width......................................................148
3.10.5.4 Changing the hour display........................................................ 148
3.10.5.5 Changing the minute display.................................................... 149
3.10.5.6 Changing the clock mode......................................................... 149
3.10.5.7 Activating the direction indicator buzzer................................... 149
3.10.5.8 Changing the temperature unit................................................. 150
3.10.5.9 Changing the length unit...........................................................150
3.10.5.10 Changing the volume unit......................................................... 151
3.10.5.11 Activating and deactivating the front power take-off speed
view...........................................................................................151
3.10.5.12 Adjusting the display contrast................................................... 152
3.11 A-pillar display..................................................................................................152
3.11.1 A-pillar display control panel.......................................................................... 153
3.11.2 Drive display...................................................................................................153
3.11.2.1 Power shuttle section................................................................153
3.11.2.2 Transmission section................................................................ 154
3.11.2.3 General information section......................................................155
3.11.2.4 Changing general information section views............................ 157
3.12 Tractor terminal................................................................................................157
3.12.1 Tractor terminal control button functions........................................................158
3.12.2 Entering menus.............................................................................................. 158
3.12.3 Power shuttle-related drive view symbols...................................................... 160
3.12.4 Transmission-related drive view symbols.......................................................161
3.12.5 General information drive view symbols.........................................................161
3.12.6 Pop-up views..................................................................................................163
3.12.7 Entering the large drive view..........................................................................164
3.12.8 Split drive view............................................................................................... 164
3.12.9 Entering the split drive view............................................................................165
3.12.10 Changing the lower field views.......................................................................165
3.12.11 Lower field views............................................................................................166
3.12.11.1 Power take-off speed views......................................................167
3.12.11.2 Engine speed view....................................................................168
3.12.11.3 Rear hydraulic valve settings view............................................168
3.12.11.4 Front hydraulic valve settings view........................................... 168
3.12.11.5 Gearbox temperature view....................................................... 169
3.12.11.6 Working hydraulics oil temperature view.................................. 169
3.12.11.7 Rear lower link position view.................................................... 169
3.12.11.8 Wheel slip view......................................................................... 170
3.12.11.9 Working time view.....................................................................170
3.12.11.10 Travel distance view................................................................. 171
3.12.11.11 Surface area view.....................................................................171
- 6 -
Contents
3.12.11.12 Fuel consumption views........................................................... 172
3.12.11.13 Battery voltage view..................................................................173
3.12.11.14 Urea level view......................................................................... 174
3.12.11.15 Cruise control view................................................................... 174
3.12.12 Entering the hydraulics settings view.............................................................174
3.12.13 Hydraulics view symbols................................................................................175
3.12.14 Selecting the display theme........................................................................... 176
3.12.15 Changing units............................................................................................... 176
3.12.16 Changing parameters.....................................................................................178
3.12.16.1 Setting the implement width......................................................178
3.12.16.2 Editing counters........................................................................ 179
3.12.16.3 Resetting counters....................................................................179
3.12.17 Transmission settings view............................................................................ 180
3.12.17.1 Selecting the transmission settings memory slot......................181
3.12.17.2 Resetting the transmission settings memory slot values to
default....................................................................................... 181
3.12.18 Tractor information view.................................................................................182
3.12.19 I/O query view................................................................................................ 182
3.13 Rear linkage.....................................................................................................183
3.13.1 Diagnostic light...............................................................................................184
3.13.2 Lift/lower indicator lights ................................................................................185
3.13.3 Activating the linkage..................................................................................... 185
3.13.4 Using the lift/stop/lower switch....................................................................... 186
3.13.5 Using the position control knob...................................................................... 187
3.13.6 Overriding the position set by position control knob.......................................188
3.13.7 Using the linkage floating position..................................................................189
3.13.8 Using the lift/lower switch...............................................................................190
3.13.9 Using the lift/lower push buttons.................................................................... 190
3.13.10 Setting the lowering speed.............................................................................191
3.13.11 Limiting the lifting height.................................................................................192
3.13.12 Draft control....................................................................................................192
3.13.12.1 Activating and deactivating the draft control............................. 193
3.13.13 Drive balance control......................................................................................193
3.13.13.1 Using the drive balance control ............................................... 194
3.13.14 Slip control......................................................................................................194
3.13.14.1 Using the slip control................................................................ 195
3.14 Three-point linkage.......................................................................................... 196
3.14.1 Attaching implements.....................................................................................197
3.14.2 Using quick couplings for lower links .............................................................199
3.14.3 Adjusting lift links............................................................................................201
3.14.3.1 Adjusting lift links ..................................................................... 201
3.14.3.2 Adjusting hydraulic lift link ........................................................202
3.14.4 Adjusting lower links ......................................................................................203
3.14.5 Adjusting side limiters.....................................................................................204
3.14.6 Automatic side limiters .................................................................................. 204
3.14.6.1 Setting automatic side limiters to fixed position........................ 205
3.14.6.2 Setting automatic side limiters to floating position.................... 206
3.14.7 Adjusting the side limiters' support.................................................................206
3.15 Auxiliary hydraulics.......................................................................................... 208
3.15.1 Auxiliary hydraulic controls and functions...................................................... 209
3.15.1.1 Activating and deactivating the auxiliary hydraulics..................210
3.15.1.2 Selecting joystick functions for auxiliary hydraulics.................. 211
3.15.1.3 Selecting predefined settings for auxiliary hydraulics valves ...211
3.15.1.4 Controlling the auxiliary hydraulics rear valves 1 and 2
and front valves 1F and 2F....................................................... 213
3.15.1.5 Controlling the auxiliary hydraulics rear valves 3, 4 and 5
and the front valve 3F .............................................................. 214
3.15.1.6 Using the auxiliary hydraulics on/off valves.............................. 214
3.15.1.7 Controlling the rear valve 1 from rear mudguard push
buttons...................................................................................... 215
- 7 -
Contents
3.15.1.8 Using the front linkage shut-off valve .......................................216
3.15.2 Changing the auxiliary hydraulics settings..................................................... 217
3.15.2.1 Auxiliary hydraulic control's safety time out.............................. 218
3.15.2.2 Adjusting the auxiliary hydraulic control's safety time out
speed limit.................................................................................219
3.15.2.3 Activating and deactivating the hydraulics assistant.................220
3.15.2.4 Activating and deactivating the position locking....................... 221
3.15.2.5 Activating and deactivating the floating position ...................... 222
3.15.3 Connecting to the valves................................................................................222
3.15.3.1 Using quick couplings............................................................... 222
3.15.3.2 Using Power Beyond couplings................................................ 223
3.15.3.3 Using a hydraulic valve as a single-action valve...................... 225
3.15.3.4 Connecting an external hydraulic motor to the auxiliary
hydraulics..................................................................................225
3.16 Front linkage.................................................................................................... 226
3.16.1 Using the front linkage....................................................................................226
3.16.2 Setting front linkage lifting link positions.........................................................227
3.17 Using the Valtra front loader............................................................................ 228
3.17.1 Using the Valtra Quick front loader coupling device.......................................230
3.17.2 Using Softdrive...............................................................................................230
3.17.3 Locking the equipment................................................................................... 231
3.17.4 Controlling the extra cylinder with the change valve...................................... 232
3.18 Power take-off..................................................................................................232
3.18.1 Attaching implements to the power take-off................................................... 232
3.18.2 Rear power take-off........................................................................................234
3.18.2.1 Recommended rear power take-off shafts................................236
3.18.2.2 Activating rear power take-off................................................... 237
3.18.2.3 Starting rear power take-off...................................................... 238
3.18.2.4 Stopping rear power take-off temporarily..................................239
3.18.2.5 Deactivating rear power take-off...............................................241
3.18.2.6 Stopping the rear power take-off in emergency........................242
3.18.2.7 Using the rear power take-off automatic start/stop................... 243
3.18.2.8 Proportional ground speed power take-off................................244
3.18.2.9 Adjusting the rear power take-off engagement.........................246
3.18.3 Front power take-off....................................................................................... 248
3.18.3.1 Activating and deactivating front power take-off....................... 249
3.19 U-Pilot headland automatics............................................................................ 249
3.19.1 U-Pilot operating requirements.......................................................................250
3.19.2 U-Pilot controls...............................................................................................250
3.19.3 U-Pilot view.................................................................................................... 251
3.19.4 U-Pilot view symbols...................................................................................... 251
3.19.5 U-Pilot programme examples.........................................................................253
3.19.6 Using U-Pilot programmes............................................................................. 254
3.19.6.1 Selecting a U-Pilot programme.................................................254
3.19.6.2 Recording a U-Pilot programme............................................... 255
3.19.6.3 Previewing a U-Pilot programme.............................................. 256
3.19.6.4 Running a U-Pilot programme.................................................. 257
3.19.7 Managing U-Pilot programmes.......................................................................259
3.19.7.1 Adding a new U-Pilot programme.............................................259
3.19.7.2 Renaming a U-Pilot programme............................................... 259
3.19.7.3 Removing a U-Pilot programme............................................... 260
3.19.7.4 Recovering a deleted U-Pilot programme.................................261
3.19.8 Editing U-Pilot programmes........................................................................... 261
3.19.8.1 Entering the programme editing view....................................... 261
3.19.8.2 Changing a programme function.............................................. 261
3.19.8.3 Removing a programme function..............................................262
3.19.8.4 Adding a new programme function........................................... 263
3.19.8.5 Moving a programme function.................................................. 263
3.19.8.6 Editing the programme function distance................................. 264
3.19.9 U-Pilot error codes......................................................................................... 265
- 8 -
Contents
3.20 Implement signal connection........................................................................... 267
3.20.1 Implement signal connector........................................................................... 267
3.20.2 Resetting the implement signal connection....................................................268
3.21 Isobus implement control system.....................................................................269
3.21.1 ISOBUS terminal connector........................................................................... 270
3.21.2 ISOBUS implement connector....................................................................... 270
3.21.3 Bus extension connectors.............................................................................. 270
3.21.4 ISOBUS terminal............................................................................................270
3.22 Auto-Guide Readiness.....................................................................................270
3.22.1 Using Auto-Guide...........................................................................................271
3.22.2 Using Auto-Guide with QuickSteer.................................................................272
3.22.3 Auto-Guide with TwinTrac and QuickSteer.................................................... 273
3.22.4 Resetting the Auto-Guide steering valve........................................................273
3.23 Towing devices................................................................................................ 273
3.23.1 Nordic pick-up hitch........................................................................................273
3.23.2 Euro pick-up hitch...........................................................................................274
3.23.3 Hydraulic pick-up hitch................................................................................... 275
3.23.4 Using the pickup hitch.................................................................................... 277
3.23.4.1 Unlatching the pick-up hitch .....................................................277
3.23.4.2 Latching the Nordic and Euro pick-up hitch.............................. 277
3.23.4.3 Extending the Hydraulic pick-up hitch.......................................279
3.23.4.4 Latching the Hydraulic pick-up hitch......................................... 279
3.23.5 Changing the pick-up hitch implement........................................................... 281
3.23.5.1 Changing the Euro pick-up hitch implement............................. 281
3.23.5.2 Changing the Hydraulic pick-up hitch implement......................282
3.23.6 Agricultural drawbar....................................................................................... 283
3.23.6.1 Adjusting the agricultural drawbar............................................ 284
3.23.7 Towing device frames.................................................................................... 284
3.23.7.1 Adjusting the jaw height............................................................285
3.23.7.2 Attaching to the mechanical jaw............................................... 287
3.23.7.3 Attaching to the mechanical jaw K80........................................288
3.23.7.4 Attaching to fixed Piton fix/fixed Ø80mm ball hitch...................289
3.23.7.5 Attaching to the automatic jaw..................................................289
3.24 Air pressure system......................................................................................... 291
3.25 Trailer...............................................................................................................292
3.25.1 Trailer turn signals..........................................................................................293
3.25.2 Trailer air pressure brakes............................................................................. 294
3.25.3 Hydraulic trailer brake valve...........................................................................295
4 Maintenance.......................................................................................296
4.1 Maintenance schedule..................................................................................... 296
4.2 Service inspection............................................................................................296
4.3 Performing maintenance tasks........................................................................ 297
4.3.1 Cleaning the tractor........................................................................................298
4.3.1.1 Cleaning the engine compartment............................................299
4.3.1.2 Cleaning front axle suspension bellows....................................300
4.3.1.3 Cleaning polycarbonate windows............................................. 300
4.3.2 Greasing lubricating points fitted with grease nipples.................................... 300
4.3.3 Supporting the tractor.....................................................................................301
4.4 Recommended fuel and lubricants.................................................................. 303
4.4.1 Fuel................................................................................................................ 303
4.4.1.1 Quality requirements for engine fuel.........................................303
4.4.1.2 Storing fuel................................................................................303
4.4.1.3 Storing AdBlue/DEF..................................................................303
4.4.1.4 Biodiesel fuel............................................................................ 304
4.4.1.5 AdBlue/DEF.............................................................................. 304
4.4.2 Grease............................................................................................................305
4.4.2.1 Universal Grease - NLGI2 universal grease............................. 305
4.4.2.2 Calsium LF - NLGI2 calsium grease LF....................................305
4.4.2.3 Grease Moly - NLGI2 moly grease........................................... 306
- 9 -
Contents
4.5 Storing the tractor............................................................................................ 306
4.5.1 Storing the tractor for a period shorter than two months................................306
4.5.2 Storing the tractor for a period longer than two months................................. 306
4.6 Running the tractor in after storage................................................................. 307
4.6.1 Running the tractor in after a storing period shorter than two months........... 307
4.6.2 Running the tractor in after a storing period longer than two months............ 307
4.7 Periodical maintenance....................................................................................308
4.7.1 Periodical maintenance chart.........................................................................309
4.7.2 Daily maintenance..........................................................................................311
4.7.2.1 Checking the engine oil level.................................................... 311
4.7.2.2 Checking the coolant level........................................................312
4.7.2.3 Cleaning radiators.....................................................................314
4.7.2.4 Checking the oil level in the transmission system.................... 315
4.7.2.5 Checking the oil level in the hydraulic system.......................... 315
4.7.3 Weekly maintenance......................................................................................319
4.7.3.1 Greasing the rear linkage......................................................... 319
4.7.3.2 Checking the pick-up hitch........................................................321
4.7.3.3 Greasing the Nordic and Euro pick-up hitch............................. 322
4.7.3.4 Greasing the hydraulic pick-up hitch.........................................323
4.7.3.5 Checking and greasing the front linkage.................................. 324
4.7.3.6 Checking the front power take-off.............................................325
4.7.3.7 Greasing the brake mechanism................................................326
4.7.3.8 Greasing front axle mounting bearings.....................................326
4.7.3.9 Greasing air-suspended front axle mounting bearings............. 327
4.7.3.10 Checking belts' tension.............................................................328
4.7.3.11 Changing the fan and alternator belt........................................ 329
4.7.3.12 Checking the tyre pressure.......................................................330
4.7.3.13 Checking the emergency brake................................................ 331
4.7.3.14 Checking the windscreen washer fluid amount........................ 331
4.7.3.15 Checking the air pressure system antifreeze fluid amount....... 332
4.7.4 Maintenance every 600 hours........................................................................333
4.7.4.1 Checking, cleaning and greasing the battery terminals............ 333
4.7.4.2 Changing the engine oil and the oil filter...................................334
4.7.4.3 Changing the cab ventilation air filter........................................336
4.7.4.4 Changing the recirculation filter................................................ 337
4.7.4.5 Checking the front loader frame bolt tightness......................... 337
4.7.4.6 Checking the wheel nut tightness............................................. 343
4.7.4.7 Checking the brake pedal free travel........................................ 343
4.7.4.8 Adjusting the brake pedal free travel........................................ 343
4.7.4.9 Checking the parking brake...................................................... 344
4.7.4.10 Adjusting the parking brake...................................................... 345
4.7.4.11 Changing transmission oil filters............................................... 346
4.7.4.12 Changing the hydraulic system oil filter.................................... 347
4.7.4.13 Checking the engine breathing system.....................................348
4.7.4.14 Checking the oil level in the front axle differential.....................348
4.7.4.15 Checking the oil level in front axle hubs................................... 349
4.7.4.16 Changing oil in the hubs of the front axles with brakes............ 349
4.7.4.17 Changing the front PTO housing oil and washing the oil filter.. 350
4.7.4.18 Checking front PTO couplings.................................................. 351
4.7.4.19 Checking and greasing the trailer air-pressure brake system.. 352
4.7.4.20 Checking the air pressure system's automatic water draining..352
4.7.4.21 Filling the air pressure system antifreeze container................. 354
4.7.4.22 Adjusting engine valves............................................................ 354
4.7.4.23 Running the transmission automatic calibration....................... 354
4.7.5 Maintenance every 1200 hours or yearly....................................................... 354
4.7.5.1 Changing oil in the hydraulic system........................................ 354
4.7.5.2 Changing oil in the front axle differential...................................356
4.7.5.3 Changing oil in the front axle hubs........................................... 357
4.7.5.4 Changing the fuel filter..............................................................357
4.7.5.5 Changing the fuel prefilter.........................................................358
- 10 -
Contents
4.7.5.6 Changing engine air filters........................................................ 360
4.7.5.7 Changing the selective catalytic reduction system supply
module main filter..................................................................... 362
4.7.5.8 Checking the front wheel toe-in................................................ 363
4.7.5.9 Adjusting the front wheel toe-in................................................ 364
4.7.5.10 Changing the hydraulic breather...............................................364
4.7.5.11 Checking the power shuttle operation...................................... 365
4.7.6 Maintenance every 2400 hours or every other year.......................................365
4.7.6.1 Changing oil in the transmission system.................................. 365
4.7.6.2 Changing the transmission breather.........................................367
4.7.6.3 Cleaning the suction strainer.................................................... 367
4.7.6.4 Bleeding the brake system....................................................... 368
4.7.6.5 Bleeding the front axle brake system........................................370
4.7.6.6 Cleaning the cooling system.....................................................371
4.7.6.7 Checking the engine vibration damper..................................... 373
4.7.6.8 Maintaining the air conditioning................................................ 374
4.8 Checks and adjustments..................................................................................374
4.8.1 Changing tyres............................................................................................... 374
4.8.1.1 Setting the tyre parameter........................................................ 375
4.8.1.2 Tyre parameters....................................................................... 376
4.8.1.3 Calibrating speed sensors........................................................ 377
4.8.2 Track widths................................................................................................... 379
4.8.2.1 Front axle track widths..............................................................380
4.8.2.2 Rear axle track widths.............................................................. 380
4.8.3 Using chains...................................................................................................381
4.8.4 Using twin-mounted wheels........................................................................... 381
4.8.5 Engine............................................................................................................ 382
4.8.5.1 Bleeding the fuel system...........................................................382
4.8.6 Electrical system............................................................................................ 383
4.8.6.1 Safety precautions for the electrical system............................. 383
4.8.6.2 Checking the battery.................................................................383
4.8.6.3 Alternator.................................................................................. 384
4.8.6.4 Protecting the electrical system before welding........................384
4.8.6.5 Fuses and relays...................................................................... 385
4.8.6.6 Fuses and relays in the cab electric centre.............................. 385
4.8.6.7 Fuses and relays in the roof electric centre.............................. 393
4.8.6.8 Fuses and relays in the main electric centre............................ 396
4.8.6.9 Fuses and relays in the engine electric centre......................... 398
4.8.6.10 Adjusting headlights..................................................................400
4.8.7 Power transmission system............................................................................401
4.8.7.1 Changing the rear power take-off shaft.................................... 401
4.8.7.2 Checking the transmission ratio of a power take-off driven
trailer.........................................................................................402
4.8.8 Steering system..............................................................................................402
4.8.8.1 Adjusting the steering angle..................................................... 402
4.8.8.2 Calibrating the steering angle................................................... 403
4.8.9 Cab and shields..............................................................................................405
4.8.9.1 Cleaning the cab ventilation air filter.........................................405
4.8.9.2 Adjusting steps for driving off-road........................................... 406
4.8.9.3 Checking and adjusting front mudguards................................. 407
4.8.9.4 Adjusting flexible front mudguards............................................408
4.8.10 Towing devices...............................................................................................409
4.8.10.1 Adjusting lifting links of the pick-up hitch.................................. 409
4.8.10.2 Maintaining the automatic jaw of the wagon towing device...... 410
5 Troubleshooting..................................................................................411
5.1 Handling error situations.................................................................................. 411
5.2 Warnings on the Proline instrument panel display...........................................411
5.3 Identifying a blocked transmission or hydraulic system filter........................... 412
5.4 Viewing service codes..................................................................................... 414
- 11 -
Contents
5.5 Viewing the IO-list............................................................................................ 414
5.6 Automatic air conditioning error codes.............................................................416
5.7 Steering system malfunctions.......................................................................... 416
5.8 Towing the tractor............................................................................................ 417
5.8.1 Towing the tractor when the engine is running.............................................. 417
5.8.2 Towing the tractor when the engine is not running........................................ 418
6 Technical specifications..................................................................... 419
6.1 Dimensions...................................................................................................... 419
6.2 Weights............................................................................................................ 419
6.3 Maximum permissible axle loading.................................................................. 419
6.4 Tyres................................................................................................................ 419
6.4.1 Wheel nut tightening torques..........................................................................420
6.4.2 Wheel stud dimensions.................................................................................. 420
6.4.3 Tyre loadings and pressures..........................................................................421
6.5 Flange distance for axles................................................................................. 421
6.6 Track widths.....................................................................................................422
6.6.1 Rear axle track widths....................................................................................422
6.6.2 Front axle track widths................................................................................... 424
6.7 Engine..............................................................................................................424
6.7.1 Engine lubrication system ............................................................................. 425
6.7.2 Fuel system....................................................................................................425
6.7.3 Selective catalytic reduction system...............................................................425
6.7.4 Air cleaner...................................................................................................... 426
6.7.5 Cooling system...............................................................................................426
6.8 Electrical system ............................................................................................. 426
6.9 Power transmission..........................................................................................427
6.9.1 Power shuttle..................................................................................................427
6.9.2 Clutch............................................................................................................. 427
6.9.3 Gearbox..........................................................................................................427
6.9.4 Rear axle differential lock...............................................................................427
6.9.5 Rear power take-off........................................................................................428
6.9.5.1 Rear power take-off alternatives...............................................428
6.9.5.2 Rear power take-off ratios........................................................ 428
6.9.5.3 Rear power take-off shafts........................................................428
6.9.5.4 Lower link end distance from rear power take-off shaft............ 428
6.9.5.5 Proportional ground speed power take-off................................429
6.9.6 Front power take-off....................................................................................... 429
6.9.6.1 Front power take-off ratios........................................................429
6.9.6.2 Front power take-off shafts....................................................... 429
6.10 Brake system................................................................................................... 429
6.11 Steering system .............................................................................................. 430
6.11.1 Front axle....................................................................................................... 430
6.11.2 Turning circle radius.......................................................................................431
6.11.3 Front axle air suspension............................................................................... 431
6.12 Cab and shields............................................................................................... 432
6.12.1 Cab filter capacity...........................................................................................432
6.12.2 Windscreen washer........................................................................................432
6.12.3 Air conditioning system.................................................................................. 432
6.12.4 Noise level......................................................................................................432
6.12.5 Exposure to vibration......................................................................................432
6.13 Hydraulic system..............................................................................................433
6.13.1 Low-pressure circuit....................................................................................... 433
6.13.2 Steering hydraulic circuit................................................................................ 433
6.13.3 Working hydraulic circuit................................................................................ 433
6.13.3.1 Valves for auxiliary hydraulics.................................................. 434
6.13.3.2 Counter pressure when using the return connection for
auxiliary hydraulics................................................................... 435
6.13.4 Rear linkage................................................................................................... 435
- 12 -
Contents
6.13.4.1 Lifting forces and lifting ranges................................................. 435
6.13.5 Front linkage...................................................................................................436
6.13.6 Towing devices...............................................................................................436
6.13.6.1 Pick-up hitch............................................................................. 436
6.13.6.2 Euro pick-up hitch..................................................................... 436
6.13.6.3 Hydraulic pick-up hitch..............................................................437
6.13.6.4 Agricultural towing device......................................................... 438
6.13.6.5 Towing device frames...............................................................439
Alphabetical index................................................................................... 441
- 13 -
1. Safety precautions

1 Safety precautions

Always follow the safety precautions given when working with the tractor.
The regulations given do not release the operator from statutory and other national regulations regarding traffic safety and occupational health and safety.
In addition to the precautions given in this manual, always follow the safety regulations applicable to different types of working sites and existing road traffic laws.

1.1 Hazard statements

Five types of notifications are used in the documentation.
DANGER: Indicates an imminently hazardous situation that, if not avoided, results in death or very serious injury.
WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in minor injury.
IMPORTANT: Indicates special instructions or procedures which, if not strictly observed, could result in damage to or destruction of the machine, process or surroundings.
NOTE: Indicates points of particular interest for a more efficient and convenient repair or operation.

1.2 Safety rules

1.2.1 Replacing safety and information signs

Replacement signs are available from your dealer in the event of loss or damage.
1. Replace any danger, warning, caution or instruction signs that are not readable or are missing.
WARNING: Do not remove or obscure danger, warning, caution or instructions signs.
- 14 -

1.2.2 Maintaining hardware safety

To ensure maximum safety for the operator, maintain tractor hardware safety.
The owner is responsible for repairing any damage or wear which might endanger the safety of the tractor.
• Cab
Repair damages on the cab without delay to ensure the cab's protective capability.
WARNING: If damage occurs to the cab, replace all affected parts with new ones. Do not attempt any repair work (welding, drilling, cutting or grinding) without first consulting the manufacturer.
• Tractor construction
Do not change the tractor construction, such as maximum driving speed or maximum power.
The tractor is type-approved to comply with construction and use regulations. Any changes to the tractor construction may reduce safety and durability and affect the warranty terms.
1. Safety precautions
• Brakes
• Always check before driving that the brakes are working.
• Lock the brake pedals together whenever individual wheel brakes are not required and always when driving on the road.
• Extensive repairs to the braking system should be undertaken only by an authorised Valtra workshop.
• When implements or ballast weights are front-end-mounted, the rear axle loading is decreased.
• Check that the rear brakes are still effective.
• Use appropriate ballast weights at rear as required.
• Cleaning
Keep the tractor clean to decrease the risk of fire.
• Lights
• Make sure that lights and reflectors are clean and in working order.
• Make sure that the headlights are correctly adjusted.
• Steps
Keep the steps clean as dirty steps can lead to falls and injuries.
• Quick couplings
WARNING: Clean the quick couplings and ball joints before attaching an implement. There is a risk that the implement is not attached properly.
- 15 -
1. Safety precautions
• Maintenance
• Follow the maintenance instructions and safety precautions applicable to the tractor.
• Stop the engine and lower the implement before carrying out any maintenance work on the tractor or implement.
DANGER: Support the tractor from the correct support points on the frame and use suitable blocks or stands when carrying out maintenance tasks that require supporting the tractor.

1.2.3 Using safety features

The tractor has several features that contribute to the safety of the operator.
• Steering wheel and safety handles
WARNING: Hold on to the steering wheel or safety handles in the cab if the tractor tips over. Never try to jump out.
• Safety belt
Always use the safety belt when using the tractor.
• Emergency exits
Familiarise yourself with the three emergency exits of the tractor cab, that is, the door, the rear window and the roof hatch. If necessary, the right side window can be broken and used as emergency exit.
- 16 -
• Roof hatch
1
2
1. Safety precautions
GUID-D8CDDFCE-E360-4AD1-8F47-2993DCD750B2
1. Handle
2. Gas springs with quick locks
• Pull open the sun shade.
• Turn the handle to unlock the hatch.
• Detach both gas springs from their quick locks.
• Push the hatch fully open. WARNING: When driving on ice, keep the roof hatch open.
• Emergency brake
Use the emergency brake only in emergency situations if braking with brake pedals is not possible.
WARNING: Turning the ignition switch to OFF position cannot be used as an emergency brake.
WARNING: Emergency brake uses the parking brake which is not designed for continuous use. The parking brake can become faulty.
WARNING: Using emergency brake in slippery conditions can result in skidding and loss of control. Release the emergency brake immediately when there is danger of wheels locking up. Release the emergency brake only if you can do it safely.
- 17 -
ON/OFF
1
1
AUTO
CONTROL
2
OFF
ON OFF
1. Safety precautions

1.2.4 Safe operation

1.2.4.1 Following safe operating practices
To operate the tractor safely, follow all safety precautions and instructions.
• Avoid operating the tractor near ditches, embankments and holes.
• Stay off slopes too steep for safe operation.
• When using chemicals, carefully follow the chemical manufacturer's instructions for use, storage and disposal.
Also follow the chemical application equipment manufacturer's instructions.
• Protect yourself against engine noise.
Use hearing protectors to avoid injuries when you are working outside the cab near the engine.
• Avoid carbon monoxide poisoning.
WARNING: To avoid carbon monoxide poisoning, do not start the engine or run it indoors with the doors closed unless the exhaust is vented to the outside.

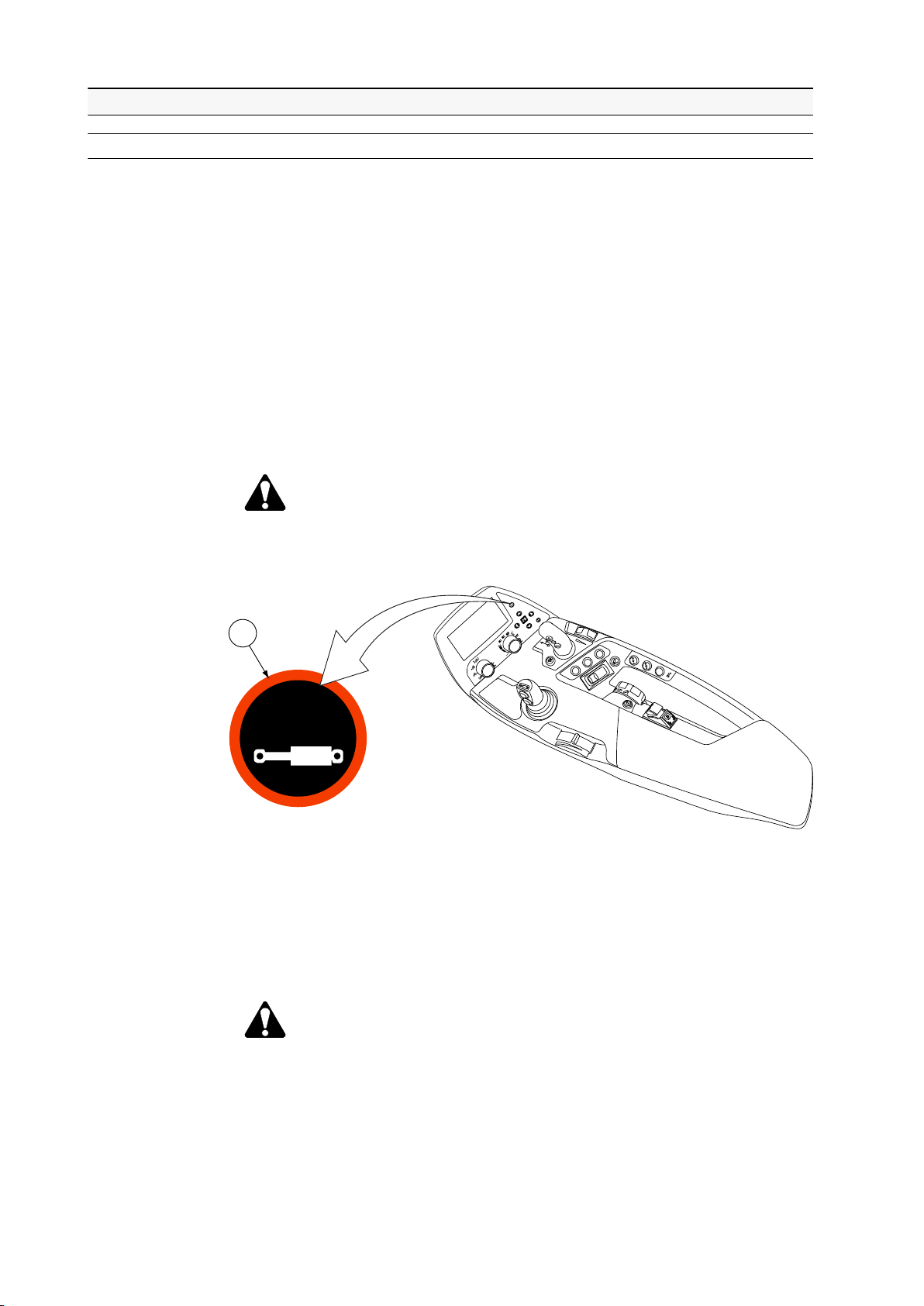

• Functionality of the auxiliary hydraulics on/off push button.
GUID-D86EB646-4A12-4128-80C2-1547474AC4EE
1. Auxiliary hydraulics on/off push button
Pressing the auxiliary hydraulics on/off push button turns off or on all the functions of the auxiliary hydraulics. The button has no effect on the functionality of the ON/OFF valves or the rear linkage.
When the auxiliary hydraulics on/off symbol on the auxiliary hydraulics push button is white, the auxiliary hydraulics is deactivated.
DANGER: To prevent accidental auxiliary hydraulics control movements,
always turn off the auxiliary hydraulics during road driving and during work if you do not need it.
- 18 -
1
1. Safety precautions
• Restart after engine stop.
• If the engine has stalled, for example due to too heavy loading, turn the ignition key to the Off position.
• Restart the engine. Keep an eye on the indicator lights on the instrument panel.
• Do not go under the tractor.
GUID-17F24D26-0416-440F-8C1F-D28A4B0A49EE
1. Radar
WARNING: Do not go under the tractor until the ignition key has been turned to the OFF position. If the tractor is equipped with a radar (optional) it presents a hazard to your eyes.
• Front linkage
WARNING: When the front linkage is connected to the rear valve, make sure there is no load on the front linkage or rear implement connected to the same valve. The load on the front linkage or rear valve implement discharges when the shut-off valve lever is turned. This may cause the implements to move abruptly.
- 19 -
1. Safety precautions
• Front loader
• Ensure that no one is in the working area when you are working with a
• Lower the front loader to the down position before leaving the tractor.
• Observe any special instructions issued by the loader manufacturer.
• Differential lock
Use the differential lock only when running on loose or slippery ground.
WARNING: The programmable features of the joystick or other controls must not be used to operate a loader. To prevent involuntary loader motion, the loader joystick controller must be of the self-neutralising type. When the operator releases their grip on the joystick, the joystick must return to the neutral position, except for the float detent position in the loader lowering direction.
front loader.
WARNING: The risk of overturning increases as the loader is raised. Be extra careful on slopes when operating the loader. Always carry the load as low as practical for the conditions.
• Overturning
• Always consider the way in which the tractor is to be used and the fact that the centre of gravity of the tractor/implement assembly changes according to the load being transported or towed.
• Adapt the tractor speed according to visibility, weather conditions and the type of terrain.
WARNING: The instructions concerning overturning in this manual are not exhaustive.
• Hydraulic/fuel pressure
Do not attempt to locate a leak in the hydraulic system or attempt to close a leak using any part of your body.
CAUTION: Oil/fuel under high pressure easily penetrates clothing and skin and can cause serious injuries.
• Hot surfaces
CAUTION: Be careful of hot surfaces during operation and service work, in particular the engine and hydraulics components.
• Falling Object Protection Structure (FOPS)
DANGER: The cab structure is designed for protection against falling objects in accordance with the OECD code 10 (energy level 1362 J).Before operating, make sure the protection is adequate for your work conditions.
- 20 -
• Operator Protection Structure (OPS)
DANGER: Protection against penetrating objects is not provided (no OPS available) if the cab of your tractor is fitted with windows made of glass. Protection against penetrating objects is provided in accordance with ISO 8084 (OPS is available) if the cab of your tractor is fitted with windows made of polycarbonate, except the Side visibility cab (no OPS in Side visibility cab). Before operating, make sure the protection is adequate for your work conditions.
• Hazardous substances EN 15695-1:2009
DANGER: The cab is classified as category 2 according to the draft of EN 15695-1:2009. Protection against dust is provided. Protection against hazardous substances (agricultural chemicals, etc.) is not provided. Personal protective equipment must be used according to the chemical manufacturer's recommendations. Without air conditioning and with manual air conditioning, the fan knob position must be 3 or higher and recirculation must be closed. With automatic air conditioning, the fan speed must be set to maximum.
1. Safety precautions
• Forest work
• When working in forest, pay special attention to safety issues. The specific dangers related to forest work are falling or penetrating objects and overturning.
1.2.4.2 Getting into and out of the cab
When getting into and out of the cab, pay special attention to safety issues.
• Always use three-point contact with the tractor and face the tractor when getting in and out.
• Use handrails, grab handles and steps when getting in and out.
• Do not use control levers as a handhold.
• Do not step on the pedals when getting in and out.
• Never attempt to get into or out from a moving tractor.
• Never jump off a tractor.
1.2.4.3 Driving on public roads
When driving on public roads, pay special attention to the safety issues.
• Before driving
• Check that the tractor is safe for driving on the road.
• Lock the brake pedals together with a pin.
• Adjust the rear view mirrors to give the correct viewing angle.
• Lock the check links with pins when transporting implements using three-
point linkage.
- 21 -
1
1. Safety precautions
• When driving the tractor on public roads
WARNING: Do not transport anything on the auxiliary hydraulic valves while driving on the road. The load, trailer link steering and such have to be locked (for example mechanically).

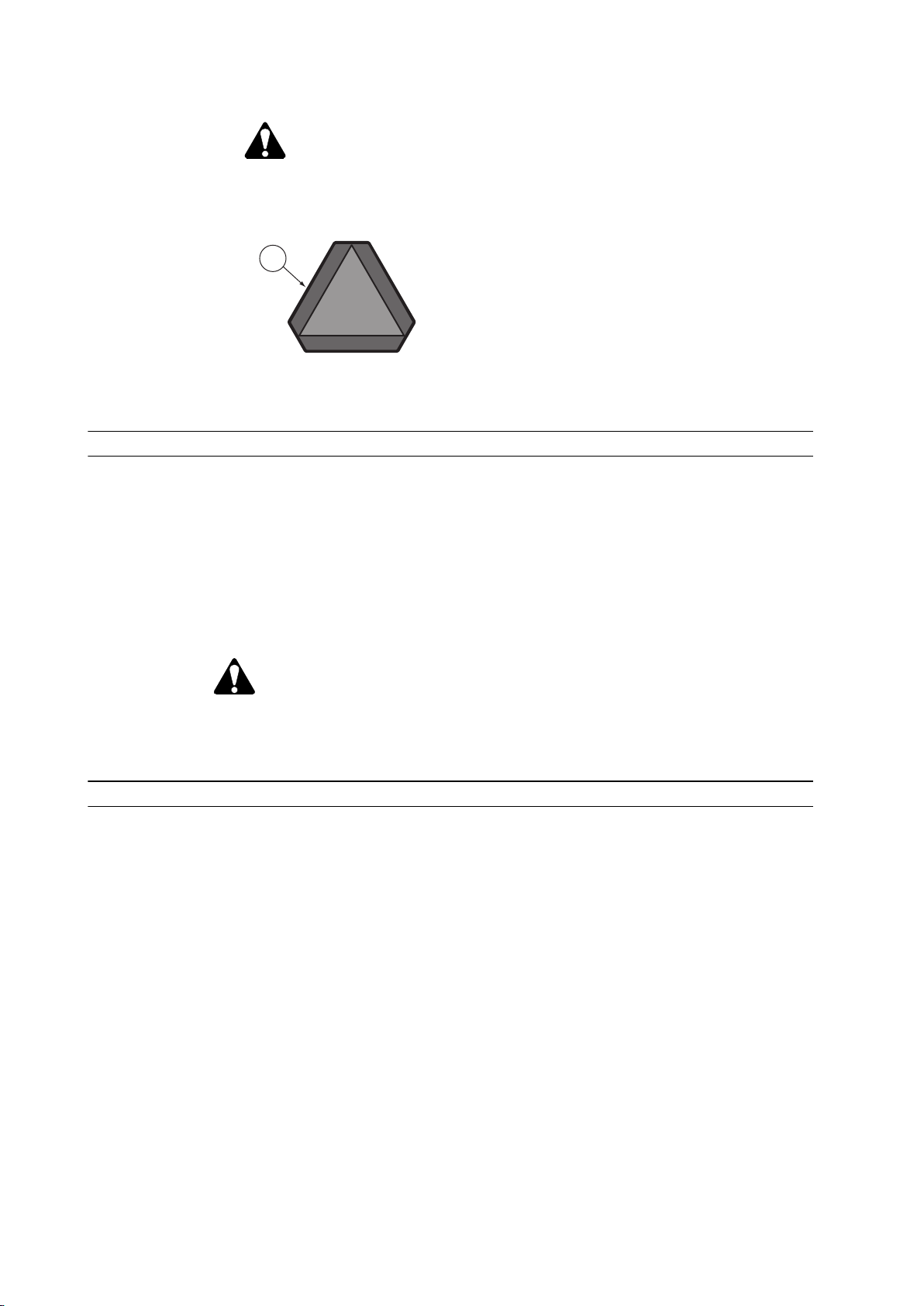

• Use the slow moving vehicle emblem on the rear end of the tractor if allowed by law.
GUID-CAF1D698-1F3A-4F6B-9D6F-47C26D964EC6
1. Slow moving vehicle emblem
1.2.4.4 Controlling the driving speed
Adjust the driving speed to suit the driving surface, visibility and load.
IMPORTANT: Do not alter the maximum driving speed of the tractor. The maximum reverse driving speed is 20 km/h.
• Avoid any sudden increase or reduction (braking) in the driving speed.
• Avoid tight turns at high driving speed.
WARNING: When driving the tractor with an attached implement with the centre of gravity far from the tractor, the tractor may sway considerably during cornering. The tractor may tip over or the load may be displaced.
1.2.4.5 Driving downhill
Be careful when driving downhill.
• Check the brakes often while driving downhill.
• Change to a lower gear before driving down a steep decline.
IMPORTANT: Do not brake continuously as the brakes may overheat.
IMPORTANT: Do not let the engine overrun to avoid damage to the engine.
NOTE: If the speed is too high, a speed warning is shown on the instrument panel display and a buzzer goes off.
IMPORTANT: Engage the hillhold when starting on a slope. Otherwise the tractor jerks downhill before traction engages even if the driving direction is uphill.
- 22 -
1.2.4.6 Operating with implements
Read and follow the instructions to avoid unnecessary risks when operating with implements and attachments.
WARNING: Always follow carefully the instructions given in the implement's user documentation. It is not allowed to use an implement without reading and understanding all the precautions and regulations.
WARNING: Before entering between the tractor and the implement, prevent the tractor from moving by applying the parking brake or blocking the wheels. There is a risk of accidents if the tractor or implement should move.
WARNING: Implements attached to the linkage or the auxiliary hydraulic system must be lowered to the ground while parking and during maintenance.
1. Safety precautions
WARNING: When installing an implement, air in the hydraulic hoses and cylinders can cause erratic operation. Run the engine at a low speed and make slow movements with the joystick to purge any air from the hydraulic system.
WARNING: When installing an implement, keep hands and feet away from moving components. Do not use your fingers to check the alignment of holes or pins. Use a mandrel or a steel rod.
WARNING: When disconnecting, the implement may fall downward.
IMPORTANT: When attaching a trailer or implement, do not exceed the maximum weight of the rear axle.
• Allow sufficient clearance for turning.
Three-point hitch and side-mounted implements make a much larger arc when turning than towed equipment. Use only Valtra-approved attachments and implements.
• Familiarise yourself with the working area and terrain.
Pay attention to vertical clearance and limitations that arise due to the increased reach.
WARNING: Pull only from the approved drawbar. Attaching to other locations and then towing may cause the tractor to overturn.
- 23 -
1. Safety precautions
GUID-8924D3B6-EBB0-42EC-B132-A9A189E79D81
1.2.4.7 Running with power take-off driven implements or machines
Read and follow the given instructions to use power take-off (PTO) driven implements and machines safely.
DANGER: Serious accidents may occur due to failure to use the prescribed safety devices.
• Use the prescribed safety devices and ensure that they are in good condition.
• Follow the directions given by the implement or machine manufacturer.
1.2.4.8 Using ballast weights
Use ballast weights according to the instructions when needed.
WARNING: When driving on the road, at least 20% of the gross weight of the tractor must be on the front axle. When lifting an implement, the weight on the front end of the tractor is reduced and the steering ability is impaired or sometimes lost.
IMPORTANT: When using salt liquid as ballast weight in the wheels, the manufacturer does not take the responsibility for the damages caused by salt.
• Use sufficient ballast weights.
• Mount ballast weights only at the points intended for this purpose.
- 24 -
1.2.4.9 Towing
Read and follow the given instructions to tow a trailer or an implement safely.
1. Safety precautions
WARNING: When the tractor is towing a trailer, the brake pedals must be locked together. The brakes are not to be used individually for steering.
WARNING: When using a trailer, make sure that the hitch latch is locked.
WARNING: When using a trailer, always use the trailer brakes if required by law. The trailer brakes are recommended to be used in 50 km/h models also in those countries where it is not required by law.
WARNING: Be sure no-one is standing between tractor and implement.
IMPORTANT: When attaching a trailer or implement, do not exceed the maximum weight of the rear axle or the maximum load of the tyre type and rear axle.
• Couple a trailer to the drawbar using an approved trailer coupling.
• Always lower a loaded drawbar with the hydraulic lift.
• Check that trailer brakes are operating properly and observe any special instructions issued by the trailer manufacturer.
• Secure the trailer load properly.
WARNING: On tractors with trailers, the load must be properly secured. The load must not obstruct the operator's vision or cover lights and reflectors. Loads which project more than one meter behind the vehicle must be suitably marked. During daytime, this should be done with a flag, and during darkness, with a red light and a reflector arrangement.
1.2.4.10 Ensuring personal safety of other people
Avoid hazards for other people when using the tractor.
DANGER: Do not allow children in the cab or near the tractor or an attached implement while the engine is running.
DANGER: If the tractor engine is running, do not leave anybody in the cab without supervision, as the push buttons are easily operated. Always apply the parking brake.
- 25 -
1. Safety precautions
• Stop the engine and lower the implement to the ground when leaving the tractor.
• Do not let passengers ride in the tractor unless it is provided with a special seat.
Other personal transport, for example on front-mounted loaders, is not permissible.
• Do not let passengers ride on the platform inside the tractor.
• Never lend the tractor to a person who is not used to driving it.
• Do not allow children or untrained or unqualified persons to operate your tractor.
They could injure themselves or someone else.
1.2.4.11 Fire hazards
DANGER: You may be held responsible for any resulting accidents.
WARNING: Open fire, smoking and sparks are prohibited near the fuel system and batteries. Especially when charging batteries, explosive gases are present.
The main switch of the battery has a main power emergency button to disconnect the battery immediately if needed. The red-coloured push button is located below the right fender fuse and relay board. The emergency off switching can be done only when the ignition key is turned to the Off position.
Using the main power emergency button causes uncontrolled battery disconnection. For example, the AdBlue urea lines are not emptied properly and electrical control unit operating data has not been saved as designed.
1.2.4.12 Handling viton seals subjected to high temperatures
At temperatures over 300°C, the viton seals of the engine produce highly corrosive, hydrofluoric acid.
• Do not touch viton seals subjected to abnormally high temperatures with your bare hands.
Use neoprene rubber or heavy-duty gloves and safety glasses when decontaminating.
• Wash seals and the contaminated area with 10% calcium hydroxide or other alkali solution.
• Put all the removed material in sealed plastic bags and deliver them to the point stated by the authorities concerned.
WARNING: Never burn viton seals.
- 26 -
1.2.4.13 After-treatment system
The selective catalytic reduction (SCR) after-treatment system contains vanadiumpentoxide . Vanadiumpentoxide can be hazardous.
The SCR after-treatment system is installed in the muffler. The system is not hazardous to health under normal use and handling.
When the SCR after-treatment system is handled in such a way that there is a risk of exposure to dust, safety precautions must be taken. Such work includes, for example, opening the after-treatment system, machining and disposing of the after-treatment system.
Safety instructions for work involving the SCR after-treatment system
• Inhalation: If dust is inhaled, the affected person must be immediately taken to breathe plenty of fresh air. If a considerable amount of dust has been inhaled, seek medical help.
• Contact with eyes: Rinse eyes immediately with water. If irritation continues, seek medical help.
• Contact with skin: Wash with soap and water. Take off contaminated clothes.
• Swallowing: If you swallow a large amount, drink plenty of water and try to vomit. Seek medical help.
1. Safety precautions
Environmental hazards
Vanadiumpentoxide is toxic to aquatic organisms and may cause long-term adverse effects in the aquatic environment.
Precautions to protect the environment
All dust and spillage must be gathered in a container for recycling or disposal in accordance with local regulations. They must not be allowed to enter water systems or the general waste management system.
When an SCR after-treatment system is no longer used, it must be disposed of in accordance with applicable EU regulations, national regulations or local regulations. The EU classifies the parts of the SCR after-treatment system as hazardous to the environment.
- 27 -
1
234
5
2. Instruments and controls

2 Instruments and controls

2.1 One-key locking system

There is one key for locking and unlocking all the locking devices of the tractor.
• Ignition switch
• Door handle lock
• Fuel tank cap lock
• AdBlue tank cap lock
• Engine hood lock
• Battery housing lock
A replacement key is available from your dealer in the event of loss or damage.

2.2 Pedals

GUID-A3BF0361-B682-4D15-91FA-F0A489D7275C
1. Clutch pedal
2. Locking pedal for steering wheel rake adjustment
3. Latch for brake pedals
4. Brake pedals
5. Drive pedal
- 28 -

2.3 Dashboard

6
10
11
12
13
9
14
15
234
5
7
8
5
20
30
40
50
0
5
0
20
25
30
1
2. Instruments and controls
GUID-93386ADA-DF9C-4082-AA9E-A69B37AC3C27
1. Power shuttle lever
2. Preprogramming push button
3. Lever for adjusting steering wheel position
4. Steering wheel
5. Multifunction lever
6. Proline instrument panel
7. 3-pin current socket (optional)
8. Lighter/power outlet (optional)
9. A-pillar display
10. Control panel for A-pillar display and Proline
11. Instrument panel light dimmer
12. Hazard lights switch
13. Pressure gauge (optional)
14. Main power/ignition switch
15. Light switch
- 29 -
5
20
30
40
50
0
5
0
20
25
30
1
234
5
6
5
20
30
40
50
0
5
0
20
25
30
1
234
5
3
6
7
2. Instruments and controls

2.4 Control panel for A-pillar display and Proline

GUID-983CD1D6-7614-41B0-8D19-1E07FB1000A9
1. Proline instrument panel selection
2. Arrow up
3. A-pillar display selection
4. Back
5. Arrow down
6. SET / selection
NOTE: Moving back in the selection menu automatically saves the selection.
When power is switched on, the control panel controls the Proline instrument panel as a default.

2.5 Proline instrument panel

The operator receives information from the gauges, coolant thermometer, tachometer, speedometer and indicator lights. All this can be seen on the Proline instrument panel.
GUID-288866C1-6188-4BEE-8DE6-85ABC831721E
- 30 -
cruise
RPM
cruise
KMH
min
l/ha
Avg
l/ha
2. Instruments and controls
1. Fuel gauge
2. Coolant temperature gauge
3. Indicator lights for turn signal
4. Tachometer
5. Speedometer
6. Indicator light for the high beam
7. Proline instrument panel display
The fuel gauge shows the amount of fuel left in the tank.
The coolant thermometer indicates the engine temperature. The zone between blue (cold) and red (hot) is the normal operating temperature.

2.5.1 Symbols on the Proline instrument panel display

The Proline instrument panel display has fixed views and views that can be selected by the operator.
Fixed view symbols
The fixed views are the two functions shown on the bottom row of the display:
Symbol Function
Operating hours (hhhh.h)
Clock (hh:mm)
The periodical maintenance symbol is lit on the centre row of the display when the tractor periodical service must be carried out.
Symbol
Function
Periodical maintenance
Selectable view symbols
The selectable views are the functions shown on the top and centre row of the display:
Symbol
km/h/mph Driving speed (km/h/mph)
Function
Working time (h:mm)
Battery charge (V)
Cruise control
Wheel slip (%, 0-100)
Rear power take-off (PTO) speed (rpm)
Front power take-off (PTO) speed (rpm)
Engine speed (rpm)
Immediate fuel consumption (ha, acre)
Average fuel consumption (ha, acre)
Table continued on next page
- 31 -
l/h
Avg
l/h
5
20
30
40
50
0
5
0
20
25
30
2. Instruments and controls
Symbol Function
Immediate fuel consumption
Average fuel consumption
Fuel consumption
Lower link position (%, 0-100)
Gearbox temperature (C/F)
Travel distance (m/km/miles)
Square area (ha)
RESET Counters reset

2.5.2 Indicator lights on the left side of the display

GUID-CB29C874-ACE0-4926-913A-C3F8F4E1CE27
Indicator light
Indication
Turn signal indicator light of a vehicle combination with two trailers. The signal light blinks when there are two trailers connected to the tractor, or one trailer with double
GUID-3B4DA5EC-8F5A-4A6B-9F05-00
3A821F23D1
lamps. If a bulb of the trailer combination has failed the light is not lit.
When the hazard lights are switched on the signal light blinks if there are four turn signals blinking in the trailer combination.
If the turn signal indicator light is lit during the first two blinks, there is a fault in the direction indicator relay and it must be calibrated. Contact an authorised Valtra workshop.
Turn signal indicator light of a vehicle combination with one trailer having one pair of lamps. The signal light blinks when there is one trailer connected to the tractor.
GUID-2A79A904-AD5A-4544-B5C3-
BB0100DB3265
When the hazard lights are switched on the signal light blinks if there are two or three turn signals blinking in the trailer.
If the turn signal indicator light is lit during the first two blinks, there is a fault in the direction indicator relay and it must be calibrated. Contact an authorised Valtra workshop.
Engine emission system failure or malfunction indicator light.
The light is lit when the AdBlue/DEF tank is empty or a malfunction occurs in the SCR-
GUID-1945DB50-4F62-415E-8EFA-3B
A4A422AE5C
system. If the AdBlue/DEF is not filled or the malfunction is on, after a period of time the light begins to flash until the error is resolved. Engine torque and speed is reduced to avoid excessive engine exhaust emissions.
Engine air cleaner clogging indicator light.
The light is lit when the engine is running and a buzzer sounds once to indicate that the
GUID-670E595F-C714-4B9C-
B3E9-59F9EAEE02B4
engine air filter is clogged and needs to be serviced.
Engine oil pressure light.
The light is lit when the engine is running, a buzzer sounds continuously and the STOP
A94E67B5-80C5-471B-94AD-90062174
GUID-
2615
indicator light flashes to indicate that the oil pressure is too low.
Table continued on next page
- 32 -
Indicator light Indication
P
F
R
S T O P
5
20
30
40
50
0
5
0
20
25
30
Ʃ-indicator light (optional on models T144, T154, T174E).
The light is lit continuously (yellow) when the tractor is operating in the higher power range and using PTO.
GUID-9ECAC14D-0D4E-4140-A7E0-
EF644A757258
Glow indicator light.
The light (yellow) is lit when the ignition key is in position II and the engine is cold.
GUID-578F4FB0-505C-4C35-8A38-
A986A78BBDAF
Parking brake indicator light
2. Instruments and controls
GUID-180F20EC-F75E-4E1F-9232-
EFAB59DA1A6C
• The light (red) is lit to indicate that the parking brake has engaged
• The light blinks when the parking brake is engaging or disengaging
• The light blinks and the buzzer sounds continuously when there is a fault in the parking brake
Low fuel level indicator light
The light is lit (yellow) and a buzzer sounds once to indicate that the fuel level is low.
GUID-4E05E947-0AFA-48E8-B011-
E6FBFD3BC3FB
The light blinks if there is water in the fuel.
Battery charging indicator light
The light is lit and a buzzer sounds once when battery charging is not ongoing.
GUID-7327F975-26FF-444E-
BF66-5428A4842D72
IMPORTANT:
A charging failure must be fixed immediately. When the voltage is reduced, the electric valves may reduce the oil pressure for the multi-disc clutches and cause clutch slippage which may damage the clutch discs.

2.5.3 Indicator lights on the right side of the display

GUID-0315966E-3019-407F-A9DF-2578B614B73C
- 33 -
2. Instruments and controls
Indicator light Indication
STOP indicator light (red).
The light flashes to indicate serious fault.
GUID-5E3E430F-
F6C2-4C78-85F1-385620
934CD2
GUID-F4FD89FD-
DFD9-4D66-9A65-
E079AA64E74A
GUID­BE46976E-2C22-4647­A1D7-1640D38AEDF4
GUID-
EB66B97E-9737-4317-94
70-085AA880C5CE
GUID-933C683A-
E18B-487C-
BE99-4DDE147A64A6
GUID-A18BF127-
B0C4-4F56-9233-
A751CAF738F3
GUID-7509DC21-51C9-43
43-9A76-2511D9C5A4E2
GUID-17CD4EC5-5F8C-4
B81-
ADB0-16B48368201A
GUID-26C800DE-4D35-4
423-
A349-2DE614865CE5
Possible reasons:
• Engine oil pressure too low
• Engine temperature too high (gauge)
• Gearbox oil pressure too low
• Gearbox oil temperature too high
• Hydraulic oil temperature too high
• Hydraulic oil level too low
IMPORTANT:
If the STOP light starts flashing, stop the tractor and engine immediately. You can continue driving only in an emergency, for example to move the tractor to the roadside.
Gearbox oil pressure light.
The light is lit and the STOP indicator light flashes to indicate that the gearbox oil pressure is too low.
Gearbox oil temperature light.
The light is lit and the STOP indicator light flashes to indicate that the gearbox oil temperature is too high.
The gearbox oil temperature can be shown on the tractor terminal or Proline instrument panel display.
Gearbox/hydraulic oil pressure oil filter clogging indicator light.
The light is lit to indicate that the pressure filter(s) of the hydraulic or transmission system requires service. Oil filter clogging is monitored when the oil temperature is within the normal operating range.
Four-wheel drive (4WD) indicator light.
The light is lit (yellow) to indicate that 4WD is engaged.
Front power take-off (PTO) indicator light.
The light (yellow) is continuously on and indicates that the front PTO (optional) is engaged.
Auto-Guide indicator light.
The light is on (yellow) to indicate that Auto-Guide steering valve (optional) is powered on.
Cruise control indicator light.
The light is on (yellow) to indicate that cruise control is engaged (constant driving speed/ constant engine speed chosen).
Differential lock indicator light.
The light is lit (yellow) to indicate that the differential lock is engaged.
Rear PTO indicator light
GUID-C48E8C30­B87F-4C58-9EE5-
E4B3C23E9E7E
• The light is lit when the PTO is on or the proportional ground speed power take-off has been engaged
• The light blinks quickly if the PTO is rotating but no longer engaged
• The light blinks with normal speed when the PTO is not rotating and the gear selected with the speed selection switch is engaged
• The light blinks slowly if the PTO is not rotating and the gear selected with the speed selection switch is not engaged
• The light is not lit when the PTO is not on and the speed selection switch is in the N position
- 34 -

2.6 Controls on the right-hand side

M1
M2
M3
EDIT
OFF
1F
2
ON/OFF
1
234
1
2
OFF
ON OFF
AUTO
CONTROL

2.6.1 Tractor terminal

The tractor terminal contains the following components.
2. Instruments and controls
GUID-5E4A9AD7-FCDE-4DA5-99C4-BB6AA205A6E4
1. Tractor terminal display
2. OK button
3. Arrow buttons
4. ESC button
- 35 -
CONTROL
STOP
1
1
2
2
OFF
ON
OFF
AUTO
CONTROL
1
234
5
6
7
9
10
11
12
131415
1681718192021
22
2. Instruments and controls

2.6.2 Driving controls

GUID-64FF0F5D-DB13-4692-86A7-98A5CB622FFA
1. Emergency brake button
2. Switch for four-wheel drive (4WD)
3. Switch for differential lock
4. QuickSteer control knob (optional)
5. QuickSteer activation button (optional)
6. Auto-Guide steering valve on/off button (optional)
7. Auto-Guide receiver on/off button (optional)
8. Control stop switch (optional)
9. PowerShift limit push button
10. Gear lever
11. Cruise control speed adjustment wheel
12. Push button for EcoPower (optional)
13. Push button for shifting automatics
14. Activation / recording button 1 for U-Pilot
15. Activation / recording button 2 for U-Pilot
16. U-pilot on/off button
17. Driving speed cruise control off button
18. Driving speed cruise control memory button 2
19. Driving speed cruise control memory button 1
20. Hand throttle
21. Auto-Guide remote activation button (optional)
22. Engine RPM memory button
- 36 -

2.6.3 Linkage

CONTROL
STOP
1
AUTO
CONTROL
2
OFF
ON
OFF
1
2
1
234
5
6
7
12
13
14
8
11
10
9
2.6.3.1 Rear linkage
2. Instruments and controls
GUID-3042C29A-D4B5-4D11-B463-104B1EC1AB2E
1. Lowering indicator light
2. Lifting indicator light
3. Diagnostic light
4. Lowering speed selector
5. Max lifting height selector
6. Draft control selector
7. Lifting/lowering switch
8. Trailer hitch release lever (optional)
9. Lift/stop/lower switch
10. Override button for position control knob
11. Position control knob
12. Drive balance control light
13. Drive balance control, slip control system (optional)
14. Slip control light (optional)
- 37 -
1
AUTO
CONTROL
2
OFF
ON OFF
1
2
1
234
2. Instruments and controls
2.6.3.2 Front linkage
The front linkage is optional.
GUID-3EB09E37-93DA-499A-8371-FFEF86F4B088
1. Auxiliary hydraulics on/off push button
2. Joystick function selector
3. Changeover button for front linkage / front loader (optional)
4. Joystick
- 38 -

2.6.4 Power take-off

1
1
2
2
OFF
ON OFF
AUTO
CONTROL
1
234
2.6.4.1 Rear power take-off
2. Instruments and controls
GUID-76E2111F-FCD5-4375-829F-2BB6AD567BE2
1. Button for rear PTO automatic start/stop
2. Speed control knob for rear PTO
3. Switch for rear PTO when front PTO is included
4. Switch for rear PTO when front PTO is not included
- 39 -
1
1
AUTO
CONTROL
2
OFF
ON
OFF
1
2
CONTROL
STOP
1
AUTO
CONTROL
2
OFF
ON
OFF
1
2
10
11
12
13
14
1
2
6
789
3
4
5
2. Instruments and controls
2.6.4.2 Front power take-off
The front power take-off (PTO) is optional.
GUID-3995D1BE-DD76-4E4C-8A64-3BCFF668E177
1. Switch for front PTO

2.6.5 Auxiliary hydraulics

The following instruments and controls are used to control the auxiliary hydraulics.
GUID-B9873D58-B512-48DA-BEDC-083A63BDD477
- 40 -
1. Switch for rear on/off valve 1
1
234
5
6
789
10
11
2. Switch for rear on/off valve 2 (optional)
3. Joystick functions selector
4. Selector for the predefined factory / user settings
5. Auxiliary hydraulics on/off push button
6. Control lever for auxiliary hydraulics rear valve 3 (optional)
7. Control lever for auxiliary hydraulics rear valve 4 (optional)
8. Control lever for auxiliary hydraulics rear valve 5 (optional)
9. Control lever for auxiliary hydraulics front valve 3F (optional)
10. Button for hydraulic implement locking (optional)
11. Button for Softdrive (optional)
12. Changeover button for front linkage / front loader (optional)
13. Joystick push buttons
14. Joystick

2.6.6 Other controls

2. Instruments and controls
GUID-8B2AA90B-137C-4A4E-BD33-01DDED84D545
1. Storage compartment
2. Lighter / power outlet (optional)
3. 3-pin current socket
4. 3-pin current socket (optional)
5. ISOBUS terminal connector (optional)
6. ISOBUS bus extension connectors (behind the cover; optional)
7. Implement signal connector (optional)
8. Power switch for 2-pin current socket
9. 2-pin current socket (controlled by power switch / U-pilot)
10. 2-pin current socket (optional)
11. Indicator light for implement signal connection (optional)
- 41 -
1
2
3
1
2. Instruments and controls

2.6.7 Main power emergency button

GUID-662324B9-8FB4-4FF7-BEDB-61435F936ACF
1. Main power emergency button
2. Main power on (green light)
3. Main power off (red light)

2.7 Controls on the rear side

2.7.1 Rear window opening latch

GUID-6B43C7C5-A73C-48E8-AE3A-7A8465D12A09
1. Rear window opening latch
- 42 -

2.7.2 Additional wipers

1
2
1
234
5
7
6
8
9
10
GUID-815FF11E-1BE7-4131-828E-7F42BD38D28C
1. Rear window wiper switch (optional)
2. Side window wiper switch (optional)
2. Instruments and controls

2.7.3 Reverse drive system controls

The reverse drive system is optional.
GUID-A3897C57-B689-4C6F-A140-AFBF99C5C188
1. PowerShuttle lever
2. Preprogramming push button
3. Steering wheel
4. Mirror
5. C-pillar display
6. Clutch pedal
7. Lever for adjusting steering wheel horizontal position
- 43 -
1
234
5
6
1
2. Instruments and controls
8. Lever for steering wheel rake adjustment
9. Brake pedal
10. Drive pedal

2.8 Controls on the left-hand side

The following controls are positioned on the left-hand side.
GUID-CBEEB308-1F37-4109-A69A-8EABADDB4497
1. Storage compartment
2. Cool box (optional)
3. Ashtray (optional)
4. Lighter / power outlet
5. Passenger seat with seat belt
6. Storage pocket
- 44 -
1
234
5
6
789
OK
1 2
OK
1 2
1
2
3
4
5
6
7
8
2. Instruments and controls

2.9 Controls on the right-hand side roof console

The following controls are positioned on the right-hand side roof console.
GUID-F64DE483-75FF-4D51-9A29-17BDA57EDD55
1. Light panel on/off button
2. Front working lights
3. Front waist working lights (optional)
4. Rotary beacon light (optional)
5. Rear working lights (optional)
6. Automatic operation of the rear working lights (optional)
7. Trailer hitch light (optional)
8. Rear waist working lights
9. Automatic operation of the rear waist working lights (optional)
GUID-B1111944-FCC4-43FE-A805-F7A93D5177B2
- 45 -
AUTO
AUTO
°
C
124
5
3
6
7
1
234
2. Instruments and controls
1. Radio (optional)

2. Air conditioning controls

3. Tachograph (optional)
4. Mirror adjustment knob (optional)
5. Mirror heating switch (optional)
6. Interior light
7. Control switch for interior light
8. Rear window heater push button (optional)
2.10 Air conditioning controls

2.10.1 Automatic air conditioning and additional heater controls

The automatic air conditioning and additional heater system is optional.
GUID-DDF9F4A0-689E-45E8-B4AA-5455ED35A00D
1. Fan speed control knob (selection OFF/Auto/Manual)
2. Defrost
3. Display
4. Air conditioning ON/OFF
5. Temperature control knob
6. Additional heater fan speed decrease (selection Manual/OFF/Auto)
7. Additional heater fan speed increase (selection ON/Manual)

2.10.2 Manual air conditioning and additional heater controls

The manual air conditioning and additional heater system is optional.
GUID-A6F90B40-8A1F-47EE-8492-6E97052B878E
1. OFF/Fan speed control knob
2. AC ON/OFF
3. Additional heater OFF/fan speed control knob
4. Temperature control knob
- 46 -

2.10.3 Manual air conditioning

1
2
3
1
2
The manual air conditioning system is optional.
GUID-0913C775-1DDA-46DF-9676-D334471A4A4E
1. OFF/Fan speed control knob
2. AC ON/OFF
3. Temperature control knob

2.10.4 Heater controls

2. Instruments and controls
GUID-DC873987-32C9-48B4-88EC-C1CE9002D57D
1. OFF/Fan speed control knob
2. Temperature control knob
- 47 -
off on
1
2
6
3
458
7109
11
12
131415
2. Instruments and controls

2.11 Operator's seat

2.11.1 Air suspended operator's seat

Air suspended operator's seat is standard and Air suspended + operator's seat is optional.
GUID-415AF9F9-7272-4394-9E91-E403FB5E4EF0
1. Armrest adjustment (Air suspended +)
2. Storage compartment (Air suspended +) or net (Air suspended) for manuals
3. Seat heating
4. Lumbar support adjustment (Air suspended + only)
5. Seat depth and cushion angle adjustment
6. Headrest height adjustment and removal
7. Seat turning lock/release
8. Armrest adjustment
9. Backrest tilt adjustment
10. Forward/backward adjustment
11. Lateral suspension adjustment (Air suspended + only)
12. Longitudinal suspension adjustment
13. Height and vertical suspension adjustment
14. Suspension stiffness adjustment
15. Seat belt anchor point
- 48 -

2.11.2 Valtra Evolution operator's seat

1
4
5
6
7
8 9 10 11 12 13 14
15
2
3
Valtra Evolution operator's seat is optional.
2. Instruments and controls
GUID-BB08344C-7902-498A-9CAB-EC0108650236
1. Storage compartment for manuals
2. Headrest height adjustment and removal
3. Armrest adjustment
4. Seat heating and ventilation
5. Upper backrest support adjustment
6. Lower backrest support adjustment
7. Backrest tilt adjustment
8. Seat depth adjustment
9. Seat cushion angle adjustment
10. Forward/backward adjustment
11. Longitudinal suspension adjustment
12. Seat turning lock/release
13. Vertical shock absorption adjustment
14. Height and vertical suspension adjustment
15. Lateral suspension adjustment
- 49 -
ON/OFF
1
234
2. Instruments and controls

2.12 Controls on the rear mudguard

GUID-5A1672F3-326F-42DB-B47F-AC5631B2E48C
1. Rear power take-off on/off push button
2. Lifting/lowering push button
3. On/off valve 1 push buttons (optional)
4. Rear valve 1 push buttons (optional)
- 50 -

2.13 Front end controls and connections

3
4
152
Front linkage and front quick couplings are optional.
2. Instruments and controls
GUID-69FCD1F6-D695-4EBF-9A06-0554487C5E11
1. Engine bonnet lock
2. Trailer socket (optional)
3. Lifting/lowering push buttons for the front linkage (optional)
4. Front valve 1 push buttons (optional)
5. Front quick couplings (optional)
- 51 -
STOP
1
2
3
5
789
10
11
12
13141516171819202122232425
26
27
4
28
6
2. Instruments and controls

2.14 Rear controls and connections outside the cab

GUID-75076D39-D28F-4606-BEA3-F80A27CC6E19
1. Trailer coupling, Duo-Matic (optional)
2. Trailer coupling, 2-line system (optional)
3. Trailer coupling, 1-2-line system (optional)
4. Inlet for implement control cables/wires
- 52 -
2. Instruments and controls
5. Emergency stop plug for rear power take-off (PTO)
6. Front linkage shut-off valve (optional)
7. Top link
8. Top link/lower link ball storage bracket
9. Power Beyond couplings
10. Quick couplings, auxiliary hydraulics
11. Quick coupling, on/off valve 1
12. On/off valve 2 (optional)
13. Auxiliary hydraulics system return coupling
14. Case drain coupling for Power Beyond (optional)
15. Quick coupling for air pressure devices (optional)
16. Trailer socket
17. Power outlet (12 V)
18. ISOBUS connector (optional)
19. Quick coupling for hydraulic trailer brakes (optional)
20. Pick-up hitch lift links (optional together with the pick-up hitch)
21. Lift link
22. Levelling screw
23. Hydraulic levelling link (optional)
24. Side limiter
25. Automatic side limiter (optional)
26. Lower link
27. Power take-off (PTO) shaft
28. Pick-up hitch (optional)
The pick-up hitch is optional with many alternatives.
- 53 -
3. Operation

3 Operation

3.1 Running the tractor in

The tractor is run in during the 50 first hours of use. Running the tractor in correctly gives the tractor a longer service life and makes it more economical.
Before you start driving, make sure that:
• You understand all the instruments and the functions of the controls.
• You have read the safety precautions.
IMPORTANT: Check that all bolts and nuts, for example in the wheels and exhaust system, are properly tightened.
IMPORTANT: Carry out the daily maintenance before you drive the tractor for the first time each day.
When running the tractor in:
• Drive smoothly and vary the loading.
• Do not race the engine.
• Do not run the engine at maximum speed.
• Do not pull a heavy load at low engine speed.
• Avoid driving with the same gear engaged and at the same engine speed for a long period at a time.
Check all instruments immediately after the engine has started. Keep an eye on the instruments while driving.

3.2 Preparing for use

Before you start using the tractor, read this manual thoroughly.
• Make sure that the tractor is handled and maintained in the correct way to ensure reliability and provide economical operation.
• Follow the maintenance program carefully and include the daily maintenance in your normal routine.
• Use only genuine AGCO Parts spare parts for optimum performance.

3.2.1 Adjusting the air-suspended driver's seat

You can adjust the air-suspended driver's seat according to your height and weight.With these adjustments you can minimise the exposure to vibration, obtain the best support for your lower back and get the most comfortable driving position. You may need to change the adjustments according to work conditions or the components you are using such as the tyre type. Power must be switched on while adjusting the air-suspended driver's seat, but the seat has its own compressor. The air-suspended driver's seat is extra equipment.
- 54 -
off on
1
2
6
3
458
7109
11
12
131415
3. Operation
CAUTION: Do not attempt to adjust the seat while driving. There is an increased risk of loss of control.
GUID-415AF9F9-7272-4394-9E91-E403FB5E4EF0
1. Armrest adjustment (Air-suspended +)
2. Storage compartment (Air-suspended +) or net (Air-suspended) for manuals
3. Seat heating
4. Lumbar support adjustment (Air-suspended +)
5. Seat depth and cushion angle adjustment
6. Headrest height adjustment and removal
7. Seat turning lock/release
8. Armrest height adjustment
9. Backrest tilt adjustment
10. Forward/backward adjustment
11. Lateral suspension adjustment (Air-suspended + only)
12. Longitudinal suspension adjustment
13. Height and vertical suspension adjustment
14. Suspension stiffness adjustment
15. Seat belt anchor point
• Adjust the seat depth and cushion angle.
• To adjust the seat depth, pull up the right handle in the seat front.
• To adjust the seat cushion angle, pull up the left handle in the seat front.
- 55 -
3. Operation
• Turn the seat.
• Release the lock by pulling the lock/release lever upwards.
• Turn the seat to the desired position.
The seat can be turned between 190° anti-clockwise and 90° clockwise. The seat can be locked to set positions at 10°, 20°, 80° and 90° when turning clockwise and 10°, 20°, 180° and 190° when turning anti­clockwise.
• Adjust the seat forwards or backwards.
• Pull the forward/backward adjustment lever upwards.
• Move the seat forwards or backwards to the desired position.
• Turn the longitudinal suspension on or off.
• To turn on the longitudinal suspension, turn the lever to the rear position.
• To turn off the longitudinal suspension, turn the lever clockwise 180° to
the front position.
• Adjust the suspension according to the operator weight.
• Pull the suspension adjustment lever until the compressor starts.
The compressor runs and the suspension adjusts automatically according to the operator's weight.
If the operator is lighter than the previous operator, the compressor runs momentarily, the excess pressure is released, and the seat lowers.
The suspension setting remains stored in the seat memory even if the tractor is switched off.
The seat suspension travel is 100 mm (± 50 mm) regardless of the starting height. The suspension area is limited to 100 mm for safety reasons.
• Adjust the height of the seat.
The seat has a stepless height adjustment range of 80 mm (±40 mm from the seat middle position).
• Lift the seat by pulling the height adjustment lever upwards until the
desired height is reached (the seat's own compressor runs continuously but the main power must be switched on).
When the lever is released, the compressor stops and the seat stays at that height. If you set the seat too high so that the room for upward movement is less than 50 mm, the seat lowers automatically to the highest permissible position.
• Lower the seat by pressing the height adjustment lever downwards until
the desired height is reached.
If you set the seat too low so that the 50 mm downward suspension is not possible, the seat automatically rises to the lowest limit the next time you touch the lever.
If you sit very still on the seat during the adjustment, the seat may rise to the previous height in the memory.
When the seat is locked at a new height, you hear a faint click.
• Adjust the stiffness of the seat suspension.
• When the lever is at the back position, the suspension is at its firmest.
• When the lever is at the front position, the suspension is at its softest.
- 56 -
• Fasten the seat belt to the anchor points on the seat.
• Adjust the backrest inclination.
• Pull the backrest inclination lever up.
• Set the backrest to the desired position.
• Adjust the armrest.
• Remove the cover.
• Change the armrest position in the mounting slot.
• Adjust the lumbar support.
Turn the knob clockwise or anti-clockwise to adjust the lumbar support. The height and depth are adjusted at the same time.
• Turn the seat heating on or off.
• Adjust the headrest height by lifting or lowering it.
• Remove the headrest by pulling it upwards.

3.2.2 Adjusting the Valtra Evolution driver's seat

3. Operation
You can adjust the Valtra Evolution driver's seat according to your height and weight. With these adjustments you can minimize the exposure to vibration, obtain the best support for your lower back and get the most comfortable driving position. Note that you may need to change the adjustments according to work conditions or the components you are using such as the tyre type. Valtra Evolution driver's seat is extra equipment. If the tractor is equipped with reverse drive controls, it cannot be equipped with a seat with lateral suspension.
CAUTION: Do not attempt to adjust the seat while driving. There is an increased risk of loss of control.
- 57 -
1
4
5
6
7
8 9 10 11 12 13 14
15
2
3
3. Operation
GUID-BB08344C-7902-498A-9CAB-EC0108650236
1. Storage compartment for manuals
2. Headrest height adjustment and removal
3. Armrest adjustment
4. Seat heating and ventilation
5. Upper backrest support adjustment
6. Lower backrest support adjustment
7. Backrest inclination adjustment
8. Seat depth adjustment
9. Seat cushion angle adjustment
10. Forward/backward adjustment
11. Longitudinal suspension adjustment
12. Seat turning lock/release
13. Vertical shock absorption adjustment
14. Height and vertical suspension adjustment
15. Lateral suspension adjustment
• Keep the manuals in the storage compartment behind the backrest.
In models with reverse drive controls, the documents are placed in a net pocket.
- 58 -
3. Operation
• Adjust the headrest height.
• Lift the headrest by pulling it upwards.
• Lower the headrest by pushing it downwards.
• Remove the headrest by pulling it upwards.
• Adjust the height of the left side armrest.
• Remove the cover.
• Change the armrest position in the mounting slot.
• Adjust the left armrest inclination.
• To increase the armrest inclination, turn the handle outwards.
• To decrease the armrest inclination, turn the handle inwards.
• Adjust the seat heating and ventilation.
There are three functions for seat heating and ventilation.
• To switch on only the ventilation, press down the right side of the switch.
• To switch off both functions, place the switch in the middle position.
• To switch on only the heating, press down the left side of the switch.
• Adjust the upper backrest support.
• To increase the upper backrest support, press the + side of the switch. NOTE: Release the + side of the switch immediately when the backrest
does not expand any more. If you continue pressing, the height of the seat may change when the air pressure of the system lowers.
• To decrease the upper backrest support, press the - side of the switch.
• Adjust the lower backrest support.
• To increase the lower backrest support, press the + side of the switch. NOTE: Release the + side of the switch immediately when the backrest
does not expand any more. If you continue pressing, the height of the seat may change when the air pressure of the system lowers.
• To decrease the lower backrest support, press the - side of the switch.
• Adjust the backrest inclination.
• Pull up the backrest inclination lever.
• Set the backrest to the required position.
• Adjust the seat depth.
To adjust the seat depth, pull up the right handle in the seat front.
• Adjust the seat cushion angle.
To adjust the seat cushion angle, pull up the left handle in the seat front.
• Adjust the seat forwards or backwards.
• Pull the forward/backward adjustment lever upwards.
• Move the seat in the desired direction.
• Turn the longitudinal suspension on or off.
• To turn on the longitudinal suspension, turn the lever to the forward position.
• To turn off the longitudinal suspension, turn the lever to the backward position.
- 59 -
3. Operation
• Turn the seat.
• Release the lock by pulling the locking lever upwards.
• Turn the seat to the desired position.
You can turn the seat between 190° anti-clockwise and 90° clockwise from the normal position. The seat can be locked to set positions at 10°, 20°, 80° and 90° when turning clockwise and 10°, 20°, 180° and 190° when turning anti-clockwise.
• Adjust the vertical shock absorption.
The adjusting knob has five positions.
• To decrease the level of damping, turn the knob backwards.
• To increase the level of damping, turn the knob forwards.
• Adjust the seat height and vertical suspension.
IMPORTANT: Lifting or lowering the seat over a minute at a time can damage the compressor.
The seat has pneumatic height adjustment. The seat adjusts the vertical suspension automatically according to the operator's weight.
• To lift the seat, pull the height adjustment lever upwards. Release the lever when required height is reached.
• To lower the seat, push the height adjustment lever downwards. Release the lever when required height is reached.
If you set the seat too high or low, the seat adjusts automatically to the nearest permissible position to maintain the required margin for upward or downward suspension.
• Adjust the seat lateral suspension.
Lateral suspension is not in use if the tractor is equipped with reverse drive controls.
The lateral suspension is either on or off.
• To turn on the lateral suspension, pull the handle to the upper position.
• To turn off the lateral suspension, push the handle to the lower position.
- 60 -

3.2.3 Adjusting the right-side armrest

1
2
3
You can adjust the back/front position and the sideways position as well as the inclination of the armrest.
3. Operation
GUID-ABF6923F-EFCF-4E15-989E-28D0ABDE2040
1. Sideways adjustment
2. Forward/backward position adjustment / armrest height adjustment
3. Inclination adjustment
• Adjust the armrest sideways with the sideways adjustment lever.
• Pull the lever upwards.
• Turn the armrest into the desired position.
You can turn the armrest to both directions from the middle position. There are 5 positions available.
• Adjust the position of the armrest forwards and backwards by loosening the locking knobs, adjusting the armrest and then tightening the locking knobs.
• Adjust the height of the armrest by fully opening and detaching the locking knobs, adjusting the armrest height and then attaching the locking knobs.
There are three levels for adjusting the armrest height.
• Adjust the armrest inclination.
• Lift up the front edge of the armrest.
• Set the armrest to the desired position.

3.2.4 Adjusting the steering wheel

You can adjust the steering wheel position with a lever and a locking pedal.
CAUTION: Do not adjust the steering wheel position while driving. There is an increased risk of loss of control.
- 61 -
2
1
1
3. Operation
GUID-9C185E91-3B11-40DB-A18B-5F4F6CE81499
1. Lever for adjusting steering wheel position
2. Locking pedal for steering wheel rake adjustment
• Adjust the steering wheel position.
• Pull the lever upwards.
• Move the steering wheel up or down to the desired position.
• Push the lever down to lock the steering wheel position.
• Set the steering wheel rake.
• Press the locking pedal down.
• Adjust the steering wheel rake to the desired position.
• Release the pedal.

3.2.5 Adjusting standard mirrors

You can adjust the position of the standard mirrors manually.
GUID-84D4C889-6DC1-407F-86DA-FFD8196A71C1
1. Locking device of the mirror support
1. Loosen the locking device of the mirror support.
2. Adjust the mirror position.
3. Tighten the locking device.
- 62 -

3.2.6 Adjusting optional mirrors

OK
1 2
1
You can adjust the position of the optional mirrors electrically.
3. Operation
GUID-7737973C-BFC2-4F4C-971A-C6793957F5FC
1. Mirror adjustment
• To adjust the left mirror, turn the knob to the left and push the knob in the direction of the arrows.
• To adjust the right mirror, turn the knob to the right and push the knob in the direction of the arrows.
- 63 -
OK
1 2
1
5
20
30
40
50
0
5
0
20
25
30
1
3. Operation

3.2.7 Heating mirrors

Mirror heating is extra equipment.
GUID-21BE979D-022A-475E-8F28-23CC9FC1A6E6
1. Mirror heating switch
• To switch the mirror heating on, press down the symbol side of the switch.
• To switch the mirror heating off, press down the side of the switch opposite to the symbol.

3.2.8 Using the windscreen wiper and washer

GUID-50D64ECD-35D1-4CD7-A725-22439E1BBC6D
1. Multifunction lever
- 64 -
• To use the windscreen wiper, turn the multifunction lever.
1
The wiper has an intermittent position and two speeds.
• To use the windscreen washer, push the lever inwards.

3.2.9 Using the side window wiper and washer

The switch for the side window wiper and washer is located on the C-pillar.
3. Operation
GUID-DD5ABAC1-205B-4FD2-91F7-5FC599850A31
1. Side window wiper switch
• To use the side window wiper, turn the switch.
The wiper has an intermittent position and one speed.
• To use the washer, press the switch.
- 65 -
1
OK
1 2
1
3. Operation

3.2.10 Using the rear window wiper and washer

The rear window wiper is extra equipment.
The switch for the rear window wiper and washer is located on the C-pillar.
GUID-C6B05D9E-0C0C-45F0-B379-DF47A9625461
1. Rear window wiper switch
• To use the rear window wiper, turn the switch.
The wiper has an intermittent position and one speed.
• To use the washer, press the switch.

3.2.11 Using the rear window heater

Rear window heater is extra equipment.
GUID-7A9E3401-C437-4B39-926D-F669934AF04B
1. Rear window heater button
- 66 -
• Switch the window heater on by pressing the rear window heater button.
1
A green light indicates that the window heater is on.
• Switch the window heater off by pressing the rear window heater button again.
If the rear window heater is not switched off manually, it switches off automatically after 10 minutes.

3.2.12 Power shuttle lever

With the power shuttle lever you can change the driving direction and apply the parking brake.
3. Operation
GUID-F9BAA5C6-A67B-4A8F-8A35-2C4E78B77A27
1. Power shuttle lever
• F (front position) = forward driving direction
• N (centre position) = neutral
• R (rear position) = reverse driving direction
• P = parking brake position
With the power shuttle, you can change the driving direction without using the clutch pedal. However, if you use the clutch pedal, press the pedal fully down before moving the power shuttle lever.
• With the power shuttle lever in the centre position, the parking brake can be applied.
• When applying the parking brake, the four-wheel drive (4WD) is engaged and all wheels brake.
• Always apply the parking brake before turning off the power.
- 67 -
P
2
1
1
3. Operation
GUID-C8DBFD22-64C1-4BCB-B3E6-5FCFD5184ECD
1. Power shuttle lever
2. Collar

3.2.13 Control stop

The control stop is used when the tractor is running an implement in stationary mode (for example a compressor or pump) and the operator is not in the cab. Using the control stop reduces the risk of more serious damage to the engine or in the transmission. The control stop is extra equipment.
NOTE: When starting the engine, the control stop must be disengaged. Otherwise the engine does not start.
NOTE: Do not use the control stop when driving. The control stop automatically stops the engine if the stop light is lit.
IMPORTANT: If the control stop stops the engine, the fault must be found and repaired before the engine is started again.

3.2.14 Using the control stop

GUID-B318AE48-3350-46DD-A546-45BFF5DDE8D4
1. Control stop switch
• To activate the control stop, press down the symbol side of the control stop switch.
Release the locking device by pushing it towards the middle of the switch.
- 68 -
• To deactivate the control stop, press down the side of the control stop switch
0
I
II
III
4
5
6
1
2
3
opposite to the symbol.

3.2.15 Using the ignition switch

The ignition switch has four positions: OFF position, radio and cold box on position, power and instrumentation on position, and start position. After turning the ignition key to OFF position, there is a delay before the main power switches off.
3. Operation
GUID-3396B664-6140-46DE-9A14-D68094FD1B08
1. Ignition switch
2. Ignition key
3. OFF position
4. Radio and cold box (optional) on position
5. Power and instrumentation on position
6. Start position
• To turn on the power, turn the ignition key from the OFF position to the power on position.
In cold conditions, when the engine is cold, the glow indicator light on the instrument panel is lit.
• To start the engine, turn the ignition key from the power on position to the start position after the glow indicator light on the instrument panel has gone out.
• To turn off the power, turn the ignition key to the OFF position.
OFF position
• The tractor and several movements of the implements can be stopped if
a fault occurs by turning the ignition key to the OFF position. This will make the engine stop and the transmission disengage, and the movement of the linkage stops.
NOTE: Do not turn off the power when the tractor is moving. First, stop the tractor, apply the parking brake, check that the parking brake symbol (P) is lit on the instrument panel, and then turn off the power.
IMPORTANT: Do not keep extra keys on the same bunch with the ignition key. It is possible that your knee touches them and turns the power off.
- 69 -
1
2
3
3. Operation

3.2.16 Main power

The main power is controlled by the ignition switch.
The main power is automatically turned on when you turn the ignition to other than the OFF position. When you turn the ignition to the OFF position, the main power is turned off after a delay. During this delay, data is saved, the system performs a controlled shutdown and the urea system lines become empty. The light in the light switch is lit until the main power is switched off.
The main power is not switched off automatically in the following situations:
• the parking lights are on
• the hazard warning flasher is on
• the control electronics request for additional time, for example the Autoguide system

3.2.17 Using the main power emergency button

If in an emergency, you can use the separate main power emergency button to switch off all power immediately and without delay. In normal use, the main power is switched off after a delay when you turn the ignition to the OFF position, and there is no need to use the main power emergency button.
GUID-662324B9-8FB4-4FF7-BEDB-61435F936ACF
1. Main power emergency button
2. Main power on (green light)
3. Main power off (red light)
1. Turn the ignition to the OFF position and remove the key from the ignition switch.
2. Open the cover of the electric centre.
- 70 -
1
3. Operation
3. Press the red button of the main power emergency button for three seconds.
The main power is switched off without a delay and the red light is lit in the main power emergency button to indicate that the power is off.
NOTE: The electric system does not save data or perform controlled shutdown and the urea lines will not become empty.
The main power emergency button has a green and a red LED light to indicate its status.
• If neither light is lit, the main power emergency button status is OFF.
• If the green light is lit, the main power emergency button status is ON.
• If the green light is blinking, the main power is shutting down with the delay.
• If the red light is blinking, the red button has been pressed while the ignition has been in the OFF position and the main power shuts down after the delay. This is an unlikely situation as the main power emergency button is controlled automatically by the ignition switch.
• If the red light is lit, the red button has been pressed while driving and the main power shuts down after the delay once the ignition has been turned to the OFF position. This is an unlikely situation as the main power emergency button is controlled automatically by the ignition switch.
4. Reset the main power emergency shutdown in either of the two ways.
• Press the green button of the main power emergency button.
• Disconnect a battery cable terminal.

3.2.18 Using the roof hatch

GUID-49C3C0CD-044D-4E66-8D04-35A192DE63FE
1. Handle
1. Open the roof hatch.
• Slide the sun shade open by pulling it backward.
• Turn the handle to unlock the roof hatch.
• Push the roof hatch open.
- 71 -
3. Operation
2. Close the roof hatch.
• Pull the roof hatch closed.
• Turn the handle to lock the roof hatch.
• Slide the sun shade closed by pushing it forward.

3.3 Starting the tractor

3.3.1 Starting under normal conditions

WARNING: Never run the tractor in an enclosed building except with the exhaust vented to the outside.
WARNING: Never start the engine unless you are seated on the driver's seat.
CAUTION: Do not use starting aerosols. Due to the automatic glowing, there is a risk of explosion.
IMPORTANT: If the engine fails to start on the first try, wait until the engine has stopped completely before trying again.
When the power is turned on, all indicator lights in use are lit momentarily. The following indicator lights remain on until the engine is started and the systems operate normally:
- 72 -
5
20
30
40
50
0
5
0
20
25
30
1
2
3
4
5
6
GUID-354237EC-2DE8-4CC4-9EFD-94F1A0F0A031
1. Engine oil pressure
2. Stop light (is flashing)
3. Gearbox oil pressure
4. Four-wheel drive
5. Parking brake
6. Battery charging
3. Operation
1. Apply the parking brake.
2. Turn the hand throttle to the low idling position.
3. Ensure that the control stop (optional equipment) is deactivated.
4. Press down the clutch pedal.
5. Turn the main power/ignition switch to the power on position.
6. Wait until the glow indicator light
on the instrument panel has gone out.
7. Turn the ignition switch to the starting position.
• When the engine starts to fire up, keep the ignition switch in the starting position until the engine has started.
• If the engine fails to start within 10 seconds, stop starting and try again.
8. Release the ignition switch when the engine starts.
When the engine starts, the following indicator lights go out:
• Engine oil pressure
• Gearbox oil pressure
• Stop light
• Battery charging
- 73 -
Cruise
2
13.0
13 °C
C3
A5
1
Cruise
P
AUTO 1
N
Cruise
000
Cruise
3. Operation
9. Set the cruise control values.
When the engine has started the cruise control pop-up view is displayed.
GUID-B95BC766-BA79-4531-8739-1425E774606E
• Press the OK button or the selector for the predefined factory/user settings shortly to restore the previously saved cruise control values.
NOTE: If you do not press any button within 15 seconds after starting the engine, the previously saved cruise control values will be restored.
OR
• Press the right arrow button shortly to select the cruise control value reset function.
• Press the OK button or the selector for the predefined factory/user settings shortly to set the cruise control values to zero.
10. Use the driving pedal to control the engine speed.
IMPORTANT: Never race a cold engine.
After starting a cold engine, the glow indicator light can light up again. The afterglow reduces white smoke and keeps the cold engine running smoothly.

3.3.2 Starting under cold conditions

To ensure a successful start under cold conditions, use the engine heater and follow the instructions given.
IMPORTANT: If you start the engine when it is very cold, the indicator light for blocked hydraulic filters can be lit. This indicates that the oil is going through the bypass valve unfiltered.
IMPORTANT: Avoid using hydraulics until the oil has warmed up and the indicator light is no longer lit.
IMPORTANT: Always use the engine heater when the temperature is below 0°C.
IMPORTANT: If you are driving the tractor for a short distance only, make sure that the battery is charged enough to ensure starting.
NOTE: Use of the engine heater reduces the wear on the engine.
- 74 -
3. Operation
• When cold-starting the engine, turn off all unnecessary equipment that uses electrical power.
• Keep the battery in a warm place when it is not in use.
Starting the tractor under very cold conditions is easier if the battery is kept in a warm place when it is not in use.
• Use the engine heater to ensure a successful start under cold conditions.
Warming up the engine for 2–3 hours before starting is sufficient. When the engine heater is activated, you can hear a hissing sound.
• If you start the engine under very cold conditions, keep the ignition switch in the starting position until the engine has started.
IMPORTANT: Do not keep the ignition key in the starting position for more than 60 seconds at a time.
• If the temperature is below 0°C, first, warm up the engine and hydraulics oil for a while at low engine speed.
Allow the engine to run for a few minutes before starting to drive or engaging the power take-off. When first starting to use hydraulic functions, use the predefined factory setting M2 to set the maximum flow to 50% for the first few minutes.
• Never race a cold engine.
Run the engine with a light load until it has reached its normal operating temperature.

3.3.3 Starting with an auxiliary battery

You can start the engine with an auxiliary battery (jump starting).
WARNING: A fully charged battery connected directly to a dead battery can cause a current surge capable of causing the batteries to explode.
IMPORTANT: Never use jump leads that are damaged or otherwise inadequate. Use only well protected heavy-duty jump leads with strong clamps.
IMPORTANT: Never try to start the engine by short-circuiting leads.
1. Check that the auxiliary battery has the same voltage as the standard battery.
2. Connect the jump lead between the (+) terminal on the auxiliary battery and the (+) terminal on the tractor battery.
- 75 -
5
20
30
40
50
0
5
0
20
25
30
23451
6
3. Operation
3. Connect another jump lead between the (-) terminal on the auxiliary battery and the (-) terminal on the tractor battery.
WARNING: Make sure that the jump leads are properly connected to the terminals. Otherwise the jump leads can cause a short circuit, which might lead to the explosion of the battery.
4. Start the engine.
5. When the engine has started, disconnect the jump leads in the following order:
• Remove the jump lead between the (-) terminals.
• Remove the jump lead between the (+) terminals.

3.4 Using lights

3.4.1 Using the light switch

GUID-F7FDA353-7370-4A14-90F4-292028A04B95
1. Rotary light switch
2. Off position
3. Parking lights
4. Driving lights
5. Upper headlights
6. Multifunction lever
• Turn the light switch to the parking lights position to use the parking lights.
• Turn the light switch to the driving lights position to use the driving lights.
Working lights operate only when the parking lights or driving lights are switched on.
- 76 -
3. Operation
• If the tractor is equipped with upper headlights (optional), turn the light switch to the far right position to use them.
NOTE: Your tractor has a safety circuitry for lights, meaning that if the fuse of the light switch has burned and the lights are switched on, the front working lights are forced on.
NOTE: The main power is not switched off automatically if the light switch is in the parking light position. This feature is needed if the tractor has to be left on the road, for example.
NOTE: The main power is not switched off automatically if the hazard warning flasher is switched on.
• To turn on the high beams, pull the multifunction lever towards yourself.
If the tractor is equipped with upper headlights (optional) and the connector X130 (black wire 185) is connected together, high beams operate at the same time on the bonnet and on the top of the cab when the light switch is in the driving light position. When the light switch is turned to the upper headlight position, high beams only operate on the upper headlights and not on the bonnet.
• To use the headlight flasher, pull the multifunction lever towards yourself a bit when the headlights are on.

3.4.2 Using the follow-me-home functionality

In the follow-me-home functionality, the front waist working lights (optional) are still on even if the power is turned to the OFF position and you exit the cab.
• To use the follow-me-home functionality, turn the ignition to the OFF position and open the door before the main power turns off.
The follow-me-home functionality activates automatically and at the same time as the cab lights. The follow-me-home lights turn off when the cab lights or the main power turn off.
NOTE: The main power is not turned off if the hazard warning flasher or the parking lights are turned on. If the door is left open in such a situation, the cab lights and the follow-me-home lights are turned off after 10 minutes.

3.4.3 Using the light panel

The parking lights or the driving lights must be switched on before you can use the light panel. If the parking lights or the driving lights are not switched on and you try to use the light panel, the symbol on the light panel on/off button blinks.
- 77 -
1
234
5
6
789
OK
1 2
3. Operation
GUID-096AC2CD-7899-47BA-BACB-CB5F7441456F
1. Light panel on/off button
2. Front working lights
3. Front waist working lights (optional)
4. Rotary beacon light (optional)
5. Rear working lights (optional)
6. Automatic operation of the rear working lights (optional)
7. Trailer hitch light (optional)
8. Rear waist working lights
9. Automatic operation of the rear waist working lights (optional)
1. Press the light panel on/off button to switch on the panel.
You can turn on the working lights only after you have switched on the light panel. When the panel is switched on, the symbol on the on/off button is lit green.
2. Turn the working lights on and off with the corresponding working light buttons.
When a working light is turned on, the symbol on the working light button is lit green. The light is lit green even if the actual working light is not installed.
3. Use the automatic rear working lights with the corresponding working light buttons.
When the automatic operation is activated, the rear working lights are switched on automatically when the power shuttle lever is in the reverse position.
4. Press the light panel on/off button again to switch off the panel.
When the panel is turned off with the on/off button, the working light settings are saved and taken into use when the panel is turned on again. The panel can be turned off also by switching off the driving or the parking lights.
NOTE: The rotary beacon light (optional) can be turned on from the light panel also when the panel or the driving or parking lights are switched off.
- 78 -

3.4.4 Using the cab light

OK
1 2
1
2
The tractor is equipped with a cab light which can be used manually or set to work automatically.
3. Operation
GUID-9C953E56-E65D-4C8E-8A16-9A2D354A864F
1. Cab light
2. Cab light switch
The cab light switch has three positions: left, centre and right.
• When the door is opened, both the step and cab lights are lit.
• When the door is closed, the lights go out in 10 seconds.
• If the door is left open, the lights go out in 10 minutes.
• When the parking light or headlights are on, the right side panel is illuminated with the red LED light in the roof.
• To turn on the cab lights, push the switch to the right.
Two white cab lights are continuously on but the red panel light is off.
• To turn off the cab lights, push the switch to the centre position.
The two white cab lights are turned on only when the door is opened. The dim red cab light is not on.
• To turn on the red panel light, push the switch to the left.
The dim red panel light is continuously on, and the two white cab lights are turned on when the door is opened.
- 79 -
5
20
30
40
50
0
5
0
20
25
30
1
2
3. Operation

3.5 Using notification devices

3.5.1 Using turn signals

GUID-425CF0C2-AFB1-4410-8887-485A3207C6BA
1. Multifunction lever
2. Indicator lights for turn signals
• To switch on the left-hand side turn signal, move the multifunction lever upwards.
- 80 -
• To switch on the right-hand side turn signal, move the multifunction lever
5
20
30
40
50
0
5
0
20
25
30
1
OK
1 2
1
downwards.
The left or right indicator light blinks correspondingly.

3.5.2 Using the horn

3. Operation
GUID-39F97DFA-F605-48D5-853D-004FFCF16415
1. Horn button
• To sound the horn, push the horn button.

3.5.3 Using the rotary beacon light

Rotary beacon light is an extra equipment.
GUID-6F8BE120-48CF-48FF-AAC3-AF25A59C59B9
1. Button for rotary beacon light
1. Press the button for rotary beacon light to switch the beacon on or off.
When on, the symbol on the button is lit green. NOTE: The rotary beacon light (optional) can be turned on from the light
panel also when the panel or the driving or parking lights are switched off.
- 81 -
5
20
30
40
50
0
5
0
20
25
30
1
1
2
3. Operation

3.5.4 Using hazard lights

All four turn signals can be switched on to warn of a hazardous situation.
GUID-920AE15C-6FAE-4866-8C28-AC0AD8F28350
1. Switch for hazard lights
1. To make all four turn signals blink, press down the symbol side of the switch.
2. To stop the blinking, press down the side of the switch opposite to the symbol.
NOTE: If the hazard lights are turned on and the ignition switch is turned off, the main power will stay switched on until the hazard lights are switched off.

3.6 Heating and ventilation

3.6.1 Using the heater

GUID-DC873987-32C9-48B4-88EC-C1CE9002D57D
1. OFF/Fan speed control knob
2. Temperature control knob
• To regulate the speed of the fan, turn the fan speed control knob.
• To regulate the temperature, turn the temperature control knob.
- 82 -

3.6.2 Using the manual air conditioning

1
2
3
1
234
The manual air conditioning is optional equipment.
IMPORTANT: Use the air conditioning regularly to prevent seizing of the compressor.
IMPORTANT: When using the air conditioning, keep the cab doors and windows closed.
GUID-0913C775-1DDA-46DF-9676-D334471A4A4E
3. Operation
1. OFF/Fan speed control knob
2. Air conditioning ON/OFF
3. Temperature control knob
1. Press the air conditioning ON/OFF button to turn on the air conditioning.
2. To regulate the speed of the fan, turn the fan speed control knob.
3. To regulate the temperature, turn the temperature control knob.

3.6.3 Using the manual air conditioning and additional heater

The additional heater is optional equipment.
GUID-A6F90B40-8A1F-47EE-8492-6E97052B878E
1. OFF/Fan speed control knob
2. Air conditioning ON/OFF
3. Additional heater OFF/fan speed control knob
4. Temperature control knob
1. Press the air conditioning ON/OFF button to turn on the air conditioning.
2. To regulate the speed of the fan, turn the fan speed control knob.
3. To regulate the temperature, turn the temperature control knob.
- 83 -
AUTO
AUTO
°
C
124
5
3
6
7
3. Operation
4. To blow warm air to the lower part of the cab, turn the additional heater fan speed control knob.

3.6.4 Automatic air conditioning

The automatic air conditioning system is optional equipment.
IMPORTANT: Use the air conditioning regularly to prevent seizing of the compressor.
IMPORTANT: When using the air conditioning, keep the cab doors and windows closed.
The operating temperature of the air conditioning is -40°C...+80°C. The display decelerates in -30'C and stops working in -40'C.
When operating in cold conditions, the air conditioning stays in the starting mode until the temperature of the engine coolant reaches +40°C. During the starting mode the fan speed is at the minimum and the fresh-air intake intake is on. The starting mode ends when the engine coolant has reached the temperature of +40°C, or in the following cases:
• defrost is connected
• LO mode is connected
• a different fan speed is selected manually
3.6.4.1 Automatic air conditioning control panel and display
Control panel
GUID-DDF9F4A0-689E-45E8-B4AA-5455ED35A00D
1. Fan speed control knob (selection OFF/Auto/Manual)
2. Defrost
3. Display
4. Air conditioning ON/OFF
5. Temperature control knob
6. Additional heater fan speed decrease (selection Manual/OFF/Auto)
7. Additional heater fan speed increase (selection ON/Manual)
- 84 -
Display
1
234
5
GUID-F20FB364-0A39-4A5B-BE19-605EA501B52F
1. Automatic mode
2. Fan speed
3. Set temperature/Fault information
4. Additional heater
5. ECO mode
3. Operation
Indicator Indication
Displayed when the automatic fan speed and the AC compressor are on.
Displays the fan speed.
Displays the selected target temperature.
If adjusted below 16°C, LO is displayed. If adjusted over 29°C, HI is displayed.
In case of failure, the fault code is displayed.
Displays the additional heater fan status and speed (OFF, 1, 2, AUTO).
Displayed when the ECO mode (temperature control without the AC compressor switched on) is on.
3.6.4.2 Using the automatic air conditioning
NOTE: When you start the tractor, the air conditioning automatically defaults to the last selected adjustment.
NOTE: If the battery has been disconnected, the air conditioning system starts a calibration process automatically when turning the fan speed control knob to AUTO. During calibration, the air conditioning system cannot be used.
- 85 -
1
234
AUTO
AUTO
°
C
3. Operation
GUID-2B1A1B70-F454-4DD2-8498-15F6FA9B3AAB
1. Fan speed control knob
2. Display
3. Air conditioning ON/OFF
4. Temperature control knob
• To activate the automatic air conditioning system, turn the fan speed control knob to the AUTO position.
When the automatic air conditioning and the AC compressor are active, the LED next to the air conditioning ON/OFF button is lit and the indicator AUTO is shown on the display. The system regulates the fan speed automatically.
• Select the target temperature with the temperature control knob.
The target temperature is shown on the display.
• To reach the maximum cooling effect, turn the knob to the extreme
cooling position.
Indicator LO is shown on the display.
• To reach the maximum heating effect, turn the knob to the extreme
heating position.
Indicator HI is shown on the display.
• To regulate the fan speed manually, turn the fan speed control knob clockwise to the target speed.
The fan speed is shown on the display.
• To deactivate the air conditioning system, turn the fan control knob to the OFF position.
3.6.4.3 Using ECO mode
Use the air conditioning ECO mode to regulate the cab temperature without the AC compressor. In the ECO mode the system tries to achieve the target temperature by adjusting the water valve and fan speed. This mode saves both the battery power and fuel.
- 86 -
1
234
AUTO
°
C
ECO
3. Operation
GUID-FF8F7C17-A079-44D8-B446-B6178FED1C34
1. Fan speed control knob
2. Display
3. Air conditioning ON/OFF
4. Temperature control knob
• Using the ECO mode when the air conditioning system is in the AUTO mode.
• Switch off the AC compressor by pressing the air conditioning ON/OFF push button.
The fan speed is regulated by the system and indicators AUTO and ECO are displayed.
• Select the target temperature with the temperature control knob.
If you turn the temperature to LO the AC compressor is automatically turned on.
• Using the ECO mode when the air conditioning system is in the manual mode
• Switch off the AC compressor by pressing the air conditioning ON/OFF
push button.
• Select the target fan speed with the fan speed control knob.
• Select the target temperature with the temperature control knob.
If you turn the temperature to LO the AC compressor is automatically turned on.
• To deactivate the ECO mode:
• press the air conditioning ON/OFF button (the AC compressor is
activated), or
• turn the fan speed control knob to AUTO, or
• turn the fan speed control knob to OFF.
3.6.4.4 Using the additional heater
Use the additional heater to blow air to the lower part of the cab.
The additional heater operates automatically when the air conditioning is in the AUTO or ECO mode.
The additional heater has four modes: AUTO, fan speed 1, fan speed 2 and OFF.
- 87 -
1
234
AUTO
AUTO
°
C
1
°
C
3. Operation
GUID-5C4C2E1B-1CF1-4CEB-ABE3-52E8783259F0
1. Automatic air conditioning fan speed
2. Additional heater fan speed decrease
3. Display showing the additional heater's fan status and speed
4. Additional heater fan speed increase
• Using the additional heater when the air conditioning is in the AUTO mode
The air conditioning system is in the AUTO mode when either of the indicators AUTO or AUTO-ECO are displayed.
• Press the additional heater fan speed decrease and increase buttons to
• toggle between additional heater AUTO and OFF modes
• decrease and increase the additional heater fan speed manually.
• Using the additional heater when the air conditioning is in the ECO mode
The air conditioning system is in the ECO mode when indicator ECO displayed. In this mode, the AC compressor is off and the air conditioning fan speed is regulated manually.
• Press the additional heater fan speed decrease and increase buttons to toggle between speed 1, speed 2 and OFF.
3.6.4.5 Using defrost
Use defrost to clear frost or fog from windows.
GUID-68F48EE4-389E-4F1C-91EA-3FEAF62243BA
1. Defrost
• To activate defrost, press the defrost button.
The LED next to the button is lit. When defrost is active, the fan speed is at its maximum and the text HI is displayed.
• To deactivate defrost, press the defrost button again.
The defrosting button indicator LED goes off, and the former air conditioning mode is restored.
- 88 -

3.7 Power outlets

231
1
2
3

3.7.1 Lighters

Lighter sockets can be used as electric power outputs. A lighter socket provides an output of 12 V DC; 10 A at a maximum.
GUID-47FEE990-FDCD-4ACB-A4F0-83A0544070F7
3. Operation
1. Lighter on the left-hand side (optional)
2. Lighter on the front console (optional)
3. Lighter on the right-hand side

3.7.2 Using the two-pin current socket and power switch

A two-pin socket provides an output of 12 V DC; 10 A at a maximum.
GUID-E202B646-103D-4035-9A74-E95E868A9D26
1. Power switch
2. 2-pin current socket
3. 2-pin current socket (optional)
The current socket on the right hand side is active when the tractor power is on.
The current socket on the left hand side is controlled with the power switch. The current socket can also be connected or disconnected with a U-Pilot programme.
• To connect or disconnect the current socket, press down the symbol side of the switch.
When connected, the symbol of the switch is lit green. When not connected, the symbol of the switch is not lit.
- 89 -
13452
3. Operation

3.7.3 Three-pin current socket

GUID-84932CF5-F38B-4026-A174-A49D117AB680
1. Three-pin current socket on the front console (optional)
2. Three-pin current socket on the right-hand side (one standard, one optional)
3. 25 A
4. 5 A
5. Ground
The direct current is supplied through the current socket for different regulating elements, implements etc. 5 A is available through the ignition switch and 25 A direct from the battery. The current supply of the 25 A pin can be switched off with the ignition switch OFF position.

3.7.4 Trailer socket

Socket at the rear end
Current from the tractor to the trailer is supplied through the trailer socket.
- 90 -
3
4
5
6
1
2
7
1
3. Operation
GUID-61A1535A-EAE5-4869-A7E2-359E3574BB25
1. Direction indicator left (yellow)
2. Ignition switch current, max. 10 A (blue)
3. Ground (white)
4. Direction indicator right (green)
5. Parking light right (brown)
6. Brake light (red)
7. Parking light left (black)
Socket at the front end
The power socket at the front end is optional equipment. It can be used for supplying current for the lights and blinkers of the front implements, for example.
GUID-AA285D38-0574-4C34-A109-9A53EF8F8F00
1. Socket at the front end
- 91 -
3. Operation

3.8 Driving the tractor

3.8.1 Notifications about steering

WARNING: If the engine stops while the tractor is moving (for example, the fuel has run out), do not press the clutch pedal down. When the tractor is moving and the transmission is engaged, the engine is running and there is pressure in the system. If you press down the clutch pedal, the hydraulic pump does not run and steering deactivates, because there is no hydraulic pressure in the system.
CAUTION: If a malfunction occurs in the steering system, stop the tractor and correct the malfunction before restarting.
NOTE: When the engine is not running, the steering is not power-assisted.

3.8.2 Power shuttle

You can change the driving direction smoothly with the power shuttle lever. The engagement of the power shuttle is automatic.
You can request a driving direction change with the power shuttle lever at any driving speed, but the transmission starts to engage the new driving direction only when the speed is below 10 km/h. If the driving speed is higher, the traction releases and the transmission goes into idle until the speed is low enough. The new direction arrow starts to flash to indicate that the driving direction change has been requested, and is lit constantly when the new direction is engaged. If you return the power shuttle lever to the original direction when the driving speed is still over 10 km/h, the traction engages immediately.
The operator detector prevents the shuttle engagement if you are not on the seat. If the direction is selected, the arrow of the selected direction flashes on the display panel. The selected direction does not engage until you sit on the seat and move the power shuttle lever to the parking brake position (P) and then to the desired direction.
When the driving speed is below 5 km/h, if you leave the seat for more than two seconds and the clutch pedal is not pressed down more than 10%, the shuttle disengages and the direction arrow flashes. The direction stays selected but does not engage until you sit on the seat and move the power shuttle lever to the parking brake position (P) and then to the desired direction.
DANGER: Do not leave the seat when the tractor is moving.
- 92 -

3.8.3 Parking brake

P
1
When the parking brake is on, four-wheel drive (4WD) is engaged and all wheels brake.
You can use the parking brake by changing the position of the power shuttle lever. The parking brake engages when driving speed is approximately 3 km/h or lower.
IMPORTANT: Always apply the parking brake when parking the tractor.
WARNING: If you must leave the cab with the engine running, move the power shuttle lever to the parking brake position. Always ensure that the parking brake is actually engaged before leaving the tractor.
3. Operation
WARNING: The parking brake indicator light “PARKING BRAKE FAULT!” is shown on the instrument panel display if there is a fault in the parking brake system. In addition the buzzer alarms continuously. The parking brake might not function properly. Repair the fault before continuing to drive.
In some situations (for example, after working with a heavy load) when you engage the parking brake, the engine may perform cooling of the after-treatment system by increasing the idling RPM momentarily. The word COOL flashes on the A-pillar display.
IMPORTANT: Do not stop the engine while the idling rpm is increased and the word COOL flashes on the A-pillar display. Stopping the engine may damage the after-treatment system.

3.8.4 Using the power shuttle lever

flashes or message
GUID-F9BAA5C6-A67B-4A8F-8A35-2C4E78B77A27
1. Power shuttle lever
- 93 -
P
2
1
P
P
3. Operation
• F (front position) = forward driving direction
• N (centre position) = neutral
• R (rear position) = reverse driving direction
• P = parking brake position
• Engage the parking brake:
Stop the tractor completely. Pull up the collar round the power shuttle lever and move the lever to the parking brake (P) position.
GUID-C8DBFD22-64C1-4BCB-B3E6-5FCFD5184ECD
1. Power shuttle lever
2. Collar
The parking brake indicator light symbols on the A-pillar and tractor terminal displays are lit. If the indicator light is flashing, the engagement of the parking brake is delayed. The parking brake engages when driving speed is approximately 3 km/h or lower. If you move the power shuttle lever to the P position at higher driving speeds, the P symbols on the A-pillar and tractor terminal displays flash until the speed drops below the limit.
WARNING: The parking brake indicator light message “PARKING BRAKE FAULT!” is shown on the instrument panel display if there is a fault in the parking brake system. In addition the buzzer alarms continuously. The parking brake might not function properly. Repair the fault before continuing to drive.
• Disengage the parking brake:
Pull up the collar round the power shuttle lever and move the lever away from the parking brake (P) position to the neutral (N) position. If the indicator light is flashing, the disengagement of the parking brake is delayed.
on the instrument panel and the P
flashes or
• Select the desired driving direction:
Move the power shuttle lever to the forward (F) or reverse (R) driving direction. Change the driving direction at lower driving speeds with high load so that there is less stress on the power transmission.
- 94 -

3.8.5 Adjusting the power shuttle engagement speed

SET
1
2
3
F/R
2
1
3
START
x
4
x
C D
AUTO
AUTO 2
F R
1150 2050
F/R
You can adjust the power shuttle engagement speed through the tractor terminal transmission settings.
The index determines how quickly the torque of the power shuttle increases to the maximum value when the clutch is engaged. The index affects both the F (forward) and R (reverse) clutch engagements. The value ranges from 1–10, where:
• 1 = very slow engagement
• 10 = very quick engagement
GUID-B442195C-4000-4B2A-BC31-787CC8BACBA8
3. Operation
1. Power shuttle engagement speed setting
1. Press ESC.
2. Navigate to the menu 2 with the up and down arrow buttons.
3. Press the right arrow button to enter the transmission settings view.
NOTE: When the power shuttle lever is in the parking brake position (P), you can enter the transmission settings view by pressing the preprogramming button.
4. Select the wanted memory slot with the left and right arrow buttons.
5. Move the navigation box to the power shuttle engagement speed setting with the up and down arrow buttons or by rotating the selector for the
predefined factory/user settings.
6. Press the right arrow button, OK button or the selector for the predefined factory/user settings.
7. Set the value for the power shuttle engagement speed by pressing the up or down arrow button or by rotating the selector for the predefined factory/user settings.
8. Press the left arrow button or selector for the predefined factory/user settings to return to the transmission settings view main level.
With a short press of the ESC button you can return to the menu 2. A long press of the ESC button returns to the previously active drive display.
- 95 -
1
3. Operation

3.8.6 Clutch pedal

3.8.6.1 Using the clutch pedal while driving
GUID-02D21C15-7DD6-43EE-83D8-AADEFEE7CC46
1. Clutch pedal
1. Press the clutch pedal to release the traction.
2. Let the clutch pedal up gradually.
NOTE: Never rest your foot on the clutch pedal while driving.
NOTE: Do not allow the clutch to slip more than necessary when moving off.
3. Do not fully press the clutch pedal if you want the tractor to move very slowly.
You can use this feature when attaching implements. NOTE: When using the clutch to move the tractor very slowly, the coupling
point of the clutch may change and the clutch engages sooner.
WARNING: If the engine stops while the tractor is moving (for example, the fuel has run out), do not press the clutch pedal down. When the tractor is moving and the transmission is engaged, the engine is running and there is pressure in the system. If you press down the clutch pedal, the hydraulic pump does not run and steering deactivates, because there is no hydraulic pressure in the system.
WARNING: Do not descend slopes with the clutch pedal pressed down.
3.8.6.2 Adjusting the clutch pedal engagement position
You can adjust the clutch pedal's engagement position and clutch slipping properties according to your preferences through the tractor terminal transmission settings.
The index determines how quickly the clutch engages when the clutch pedal is raised. The value range is between 1…4.
• 1 = the clutch engages quickly, the engagement point is relatively low.
• 4 = the clutch engages slowly, the engagement point is relatively high.
- 96 -
20
905
2
SET
1
2
3
1
3. Operation
1. Press ESC.
2. Navigate to the menu 2 with the up and down arrow buttons.
3. Press the right arrow button to enter the transmission settings view.
NOTE: When the power shuttle lever is in the parking brake position (P), you can enter the transmission settings view by pressing the preprogramming button.
4. Move the navigation box to the clutch pedal engagement position setting
with the arrow buttons.
A short press moves the box in the selected direction one field at a time. A long press moves the box in the selected direction continuously.
GUID-C96D6986-1A05-4641-A7AA-FE3506B1FF3F
1. Clutch pedal engagement position setting
5. Select one of the four values for the clutch pedal engagement position with the up or down arrow button.
6. Press the ESC button or selector for the predefined factory/user settings to leave the transmission settings view.
With a short press of the ESC button you can return to the menu 2. A long press of the ESC button returns to the previously active drive display.
- 97 -
1
2
3. Operation

3.8.7 Braking

You can use the brake pedals differently in various working situations.
GUID-34380CCB-ED6A-4430-AA9E-E55A3F6893AC
1. Latch for brake pedals
2. Brake pedals
The tractor has two brake pedals which apply separately to the right and to the left side rear wheels. All four wheels are braking when pressing both brake pedals. The pedals can be locked together with a latch to brake evenly with all four wheels.
WARNING: The brake pedals must always be latched together when driving on the road.
CAUTION: If functional problems occur in the braking system, stop the tractor and repair the fault before continuing.
• To brake evenly with four wheels, press down both brake pedals.
DANGER: The brake action is weaker if the gearbox oil pressure warning light is lit and the STOP indicator light begins to flash. Stop the tractor and correct the fault before continuing.
GUID-8A559B36-7E0B-4B6C-98D8-B2F60428C7EC
• To intensify steering by braking when turning on the field, press down the brake pedal on the inner-curve side.

3.8.8 Using the emergency brake button

Use the emergency brake only in emergency situations if braking with brake pedals is not possible.
WARNING: Using the emergency brake releases traction.
- 98 -
1
GUID-20E98088-37AE-4CA8-BC1A-2C89F0EA4720
1. Emergency brake button
1. Press the emergency brake button to start braking.
3. Operation
The emergency brake button uses maximal braking power. Message “SECONDARY BRAKE!” is shown on the instrument panel display.
2. Release the emergency brake button to stop braking.
WARNING: Using emergency brake in slippery conditions can result in skidding and loss of control. Release the emergency brake immediately when there is danger of wheels locking up. Release the emergency brake only if you can do it safely.
WARNING: Emergency brake uses the parking brake which is not designed for continuous use. The parking brake can become faulty.
WARNING: Message “SECONDARY BRAKE FAULT!” is shown on the instrument panel display if there is a fault in the emergency brake system. Emergency brake is not in use.

3.8.9 Using the emergency brake lever

The emergency brake lever is in use in Germany only.
Use the emergency brake only in emergency situations if braking with brake pedals is not possible.
WARNING: Using the emergency brake releases traction.
- 99 -
