Remove protective label on bottom or
Slide the Logger as far right as possible
Insert the power supply (if required),
To ensure a secure

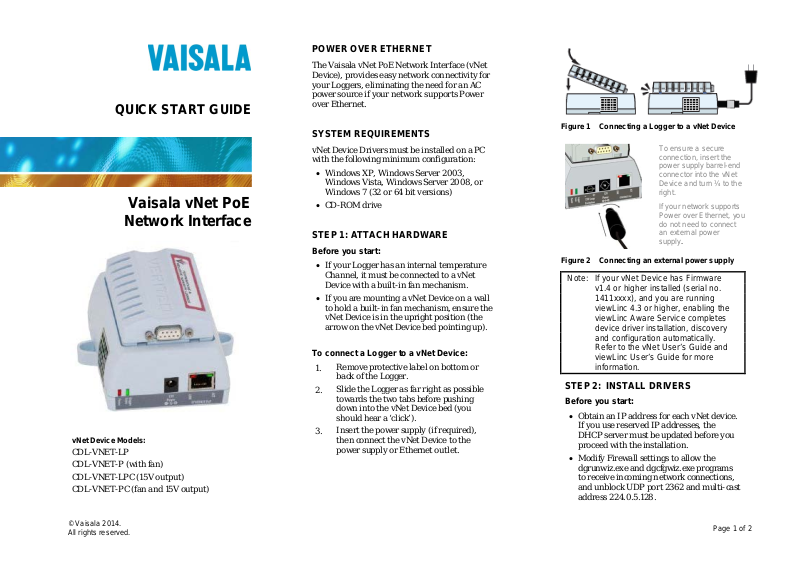

QUICK START GUIDE
Vaisala vNet PoE
Network Interface
vNet Device Models:
CDL-VNET-LP
CDL-VNET-P (with fan)
CDL-VNET-LPC (15V output)
CDL-VNET-PC (fan and 15V output)
POWER OVER ETHERNET
The Vaisala vNet PoE Network Interface (vNet
Device), provides easy network connectivity for
your Loggers, eliminating the need for an AC
power source if your network supports Power
over Ethernet.
SYSTEM REQUIREMENTS
vNet Device Drivers must be installed on a PC
with the following minimum configuration:
• Windows XP, Windows Server 2003,
Windows Vista, Windows Server 2008, or
Windows 7 (32 or 64 bit versions)
• CD-ROM drive
STEP 1: ATTACH HARDWARE
Before you start:
• If your Logger has an internal temperature
Channel, it must be connected to a vNet
Device with a built-in fan mechanism.
• If you are mounting a vNet Device on a wall
to hold a built-in fan mechanism, ensure the
vNet Device is in the upright position (the
arrow on the vNet Device bed pointing up).
To connect a Logger to a vNet Device:
1.
back of the Logger.
2.
towards the two tabs before pushing
down into the vNet Device bed (you
should hear a ‘click’).
3.
then connect the vNet Device to the
power supply or Ethernet outlet.
Figure 1 Connecting a Logger to a vNet Device
connection, insert the
power supply barrel-end
connector into the vNet
Device and turn ¼ to the
right.
If your network supports
Power over Ethernet, you
do not need to connect
an external power
supply.
Figure 2 Connecting an external power supply
Note: If your vNet Device has Firmware
v1.4 or higher installed (serial no.
1411xxxx), and you are running
viewLinc 4.3 or higher, enabling the
viewLinc Aware Service completes
device driver installation, discovery
and configuration automaticall y .
Refer to the vNet User’s Guide and
viewLinc User’s Guide for more
information.
STEP 2: INSTALL DRIVERS
Before you start:
• Obtain an IP address for each vNet device.
If you use reserved IP addresses, the
DHCP server must be updated before you
proceed with the installation.
• Modify Firewall settings to allow the
dgrunwiz.exe and dgcfgwiz.exe programs
to receive incoming network connections,
and unblock UDP port 2362 and multi-cast
address 224.0.5.128.
Vaisala 2014.
Page 1 of
Page 2
Visit our Internet pages at www.cik-solutions.com
B
To install drivers for vNet devices on the same subnet:
1. Insert the Vaisala Veriteq Device Drivers
CD.
2. Select
Device Setup Wizard, then click Next.
3. Identify your vNet Device using the MAC
address (found on the side of the vNet
Device), then click
Next.
4. Specify IP settings.
5. Select RealPort settings, and ensure the
option,
Install Digi RealPort on the computer,
is selected.
6. Optional: Enter a description and password.
7. When the list of installed vNet Devices
appears, record the COM port numbers of
the vNet Device installed.
To install drivers for vNet devices on a different subnet:
1. Insert the Vaisala Veriteq Device Drivers
CD.
2. Select
3. Select
vNet RealPort Setup, then click Next.
Add a New Device, then click Next.
4. Select <Device not listed>, then click Next.
5. Enter the Device Model (found on serial
number label).
6. Enter Network Settings:
• IP Address
• No of Ports: 1
• Set Starting COM to the lowest COM port
number displayed.
• Accept all other default settings
7. When the list of installed vNet Devices
appears, record the COM port number of
the vNet Device installed.
STEP 3: DISCOVER DEVICE
The Device Discovery function ensures that all
vNet Devices connected to your network are
identified by viewLinc or vLog software.
Note: If you use viewLinc 4.3, this step may
not be required. Refer to the vNet
User’s Guide for more information.
To complete device discovery:
1. Insert the Vaisala Veriteq vNet Device
Drivers CD.
2. Select
Device Discovery Install, then click
Next.
3. Select the destination for the program to
install, then click
4. From your PC desktop, select
Programs | Digi | Digi Device Discovery
Next.
Start |
.
5. Select your device (identified by the MAC
address). Refresh if required.
6. Update network settings:
• IP address
• Subnet Mask
• Default Gateway values
7. On the
Device Tasks menu, click Restart
, then click Restart.
device
STEP 4: CONFIGURE DEVICE
The vNet device has a web-based vNet
Configuration and Management interface
which allows you to make configuration
changes, restore default settings, and more. It
is recommended that you log in to this interface
to change the default password.
Note: If you use viewLinc 4.3, this step may
not be required. Refer to the vNet
User’s Guide for more information.
To log in to the vNet configuration interface:
1. From a PC on the same subnet as the vNet
Device, open the Internet browser and enter
the vNet Device IP address or NetBIOS
name, (for example,
‘
x’ is the serial number).
2. Log in using the default username root and
password,
dbps.
veriteqxxxxxxxx, where
3. Use the navigation pane to open the
Configuration | Security page, then enter a
new password.
4. Click
Apply to restart the vNet Device.
To complete the configuration settings, refer to
the Vaisala vNet PoE Network Interface User’s
Guide.
CUSTOMER SUPPORT
Note: This guide does not create any
legally binding obligations for
Vaisala towards the customer or
end user. All legally binding
commitments and agreements are
included exclusively in the
applicable supply contract or
Conditions of Sale.
N17728
Ref. M211655EN-
