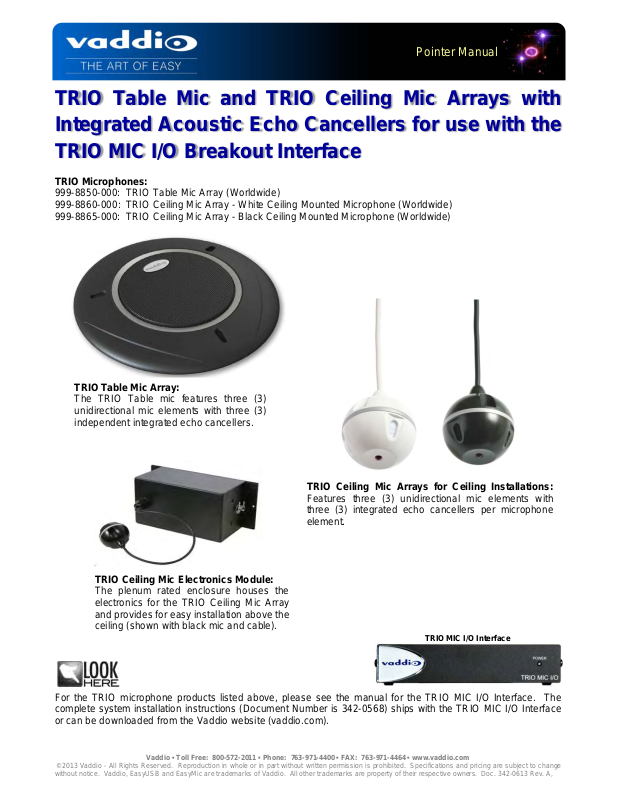

Pointer Manual

TRIO Table Mic and TRIO Ceiling Mic Arrays with
Integrated Acoustic Echo Cancellers for use with the
TRIO MIC I/O Breakout Interface

TRIO Microphones:

999-8850-000: TRIO Table Mic Array (Worldwide)
999-8860-000: TRIO Ceiling Mic Array - White Ceiling Mounted Microphone (Worldwide)
999-8865-000: TRIO Ceiling Mic Array - Black Ceiling Mounted Microphone (Worldwide)

TRIO Table Mic Array:

The TRIO Table mic features three (3)
unidirectional mic elements with three (3)
independent integrated echo cancellers.

TRIO Ceiling Mic Electronics Module:

The plenum rated enclosure houses the
electronics for the TRIO Ceiling Mic Array
and provides for easy installation above the
ceiling (shown with black mic and cable).

For the TRIO microphone products listed above, please see the manual for the TRIO MIC I/O Interface. The
complete system installation instructions (Document Number is 342-0568) ships with the TRIO MIC I/O Interface
or can be downloaded from the Vaddio website (vaddio.com).

TRIO Ceiling Mic Arrays for Ceiling Installations:
Features three (3) unidirectional mic elements with
three (3) integrated echo cancellers per microphone
element.

TRIO MIC I/O Interface
