Vaddio BU-Series User Manual
Installation and User Guide
prop
Cameras and Controllers
For Integrators
®
®
V
AADDDDIIO
V
Canon BU-47H Outdoor & BU-51H Indoor PTZ Cameras with Vaddio Accessories for Easy
Integration using the ProductionVIEW HD-SDI Console & Precision Camera Controller.
Part Numbers:
999-4147-000 Canon BU-47H Outdoor PTZ Camera System - North America (NTSC)
999-4147-001 Canon BU-47H Outdoor PTZ Camera System - International (PAL)
999-4151-000 Canon BU-51H Indoor PTZ Camera System - North America (NTSC)
999-4151-001 Canon BU-51H Indoor PTZ Camera System - International (PAL)
OVERVIEW
The Canon BU Series PTZ cameras (see Figure 1) are
broadcast quality PTZ cameras, built around Canon camcorder
technology. The BU-51H uses three 1/3”, 1.67 Megapixel
CCDs and a 20x optical zoom lens, while the BU-47H utilizes
three 1/3”, 2.37 Megapixel CCD’s and an 18x optical zoom
lens. The BU series cameras are ideal for virtually any indoor
or outdoor application. The BU Series cameras are easily
integrated with the Vaddio ProductionVIEW HD-SDI and
Precision Camera Controller, with the included Vaddio cables
and adapters. In addition, the native RS-422 found on the BU47H is converted to RS-232 for operation with both
ProductionVIEW HD-SDI and Precision Camera Controller.
Optional accessories include both a wall mount and a pedestal
mount for the indoor BU-51H.
INTENDED USE
Before installing the Canon BU Series Camera System, please read the manuals thoroughly. The BU-47H is designed for
outdoor use and the BU-51H camera system is designed for use indoors. Outdoor operation of the BU-51H is not recommended,
has not been tested, and could damage the camera and/or create a potentially unsafe operating condition. Use only the Vaddio
PowerRite power supply provided with the BU-47H.
SAVE THESE INSTRUCTIONS
The information contained in this manual will help you install the Canon BU Series cameras. For reference, Vaddio keeps
copies of Specifications, Installation and User Guides and most pertinent product drawings for the Vaddio product line on the
website. These documents can be downloaded from vaddio.com
IMPORTANT SAFEGUARDS
Read and understand all instructions before using. Do not operate any electrical device if it has been dropped or damaged. In
this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse
in water or other liquids and avoid extremely humid conditions.
INFORMATION
For RS-422 (BU-47H) and RS-232 (BU-51H) control information, please see the full-length Technical Manual for
the specific camera. These manuals can be found either on the Vaddio or Canon websites. Vaddio has also
O
C
AANNOON
//C
Use only the power supply provided with the system. Use of any unauthorized power supply will
void any and all warranties.
Please do not use “pass-thru” type RJ-45 connectors. These p ass-t hru t ype c onne ctor s d o not
work well for professional installations and can be the ca use of intermitten t co nnections which
can result in the RS-232 control line failing and locking up, and/or compromising the SHSDS ™
differential video. For best results please use standard RJ-4 5 connectors and test all cables
for
N
BBUU--S
er pin-out prior to termination.
S
EERRIIEESS
PPTTZ
Z
C
AAMMEERRAASS
C
Figure 1: Canon BU-46H
Outdoor PTZ camera (upper
left) and Canon BU-51H
Indoor PTZ Camera (lower
right).
©2013 Vaddio - All Rights Reserved. Document Number 341-909 Rev. C Page 1 of 8
Canon BU Series PTZ Camera Systems
prepared a number of Tech Notes, specifications and drawings designed to inform and educate integrators on the
value and the specific uses of Vaddio products.
UNPACKING
BU-47H System:
Carefully remove all of the parts from the packaging. Unpack and identify the following parts:
One (1) Canon BU-47H PTZ Camera
One (1) 12V PowerRite™ Power Supply with AC Cord Set (US or Euro and UK)
One (1) RS-232 to RS-422 Converter (998-1000-422)
One (1) RJ-45F to DB-9 Adapter (998-1005-232)
One (1) RJ-45F to DB-9 Adapter (998-1003-232)
One (1) RJ-45F to 12-pin Adapter
One (1) 3’ Cat. 5e Patch Cable (341-192)
One (1) Vaddio Manual
One (1) Canon BU-47H Manual

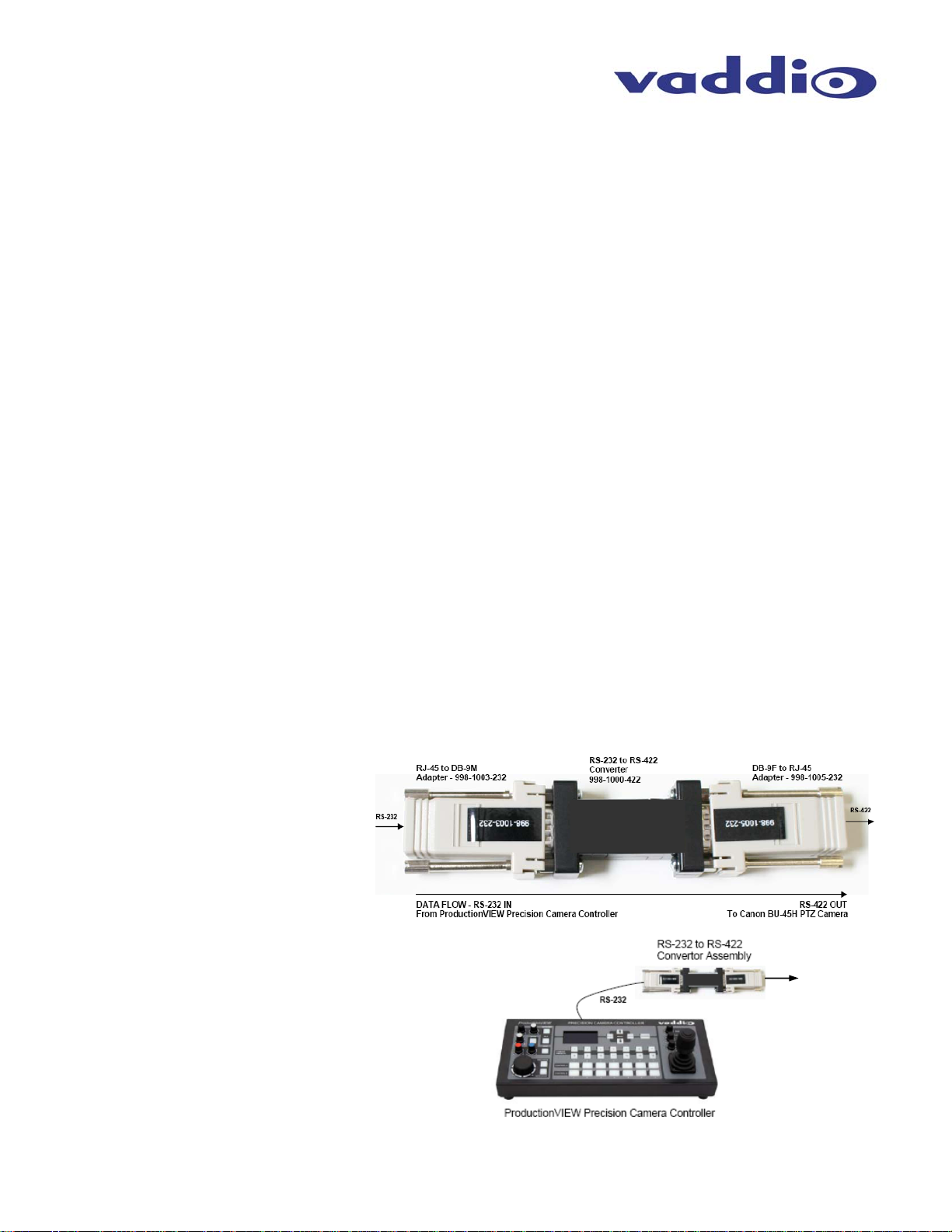

Figure 2: BU-47H Connected to Vaddio ProductionVIEW Precision Camera Controller
DB9F to RJ-45F
RS-232 to RS-422
Adapter
RJ-45F to DB9M Adapter
RS-422 Cat. 5e to
the RJ-45 to 12-pin
adapter input on the
BU-47H Camera
RS- 232 to
RS-422
Converter
3 ft. Cat. 5e
RS-232
Up to 500’
(152.4m)
of Cat. 5e
for Control
ProductionVIEW Precision Camera Controller
12 VDC, 10.0Amp
Power Supply
Canon BU-46H
PTZ Camera
Coax Cable for HD-SDI
See Canon Manual for
Distance Limits
To House HD-SDI
Switcher
Basic Connectivity of the BU-47H Outdoor PTZ System:
The Vaddio/Canon BU-47H PTZ system uses a Cat. 5e for RS-232/RS-422 control to the camera. The RS-232 to RS-422 is
port powered and it is recommended to be located close to the control source. While the Cat. 5e cable can be run up to 500’
(152.4m) from the camera, the Canon BU-47H is rated for a distance up to 246’ (75m). See Appendix 1 for wiring and pin-out
information.
Canon BU-Series PTZ Camera Installation and User Guide 341-909 Rev. C Page 2 of 8
Canon BU Series PTZ Camera Systems
BU-51H System
Carefully remove all of the parts from the packaging. Unpack and identify the following parts:
One (1) Canon BU-51H PTZ Camera
One (1) RJ-45F to DB-9 Adapter (998-1007-232)
One (1) AC Cord Set (US or Euro and UK)
Vaddio Manual
Canon BU-51H Manual
Figure 3:
BU-51H Connected to Vaddio ProductionVIEW HD-SDI Console
Canon BU-51H
PTZ Camera
RS-232 up to 500’ (152.4m) of
Cat. 5e for Control
ProductionVIEW HD-SDI
Mixer/Switcher
AC Cord
HD-SDI
INPUT
Coax Cable (from camera) for HD-SDI Video up to 246’
Basic Connectivity of the BU-51H Indoor PTZ System:
The Vaddio/Canon BU-51H PTZ system uses a Cat.. 5e for RS-232 control to the camera. While the control Cat.
5e cable can be run up to 500’ (152.4m) from the camera, the Canon BU-51H is rated for a distance up to 246’
(75m). See Appendix 1 for wiring and pin-out information.
Optional Accessories:
NOTE: The mounts below are intended for indoor use only, using the BU-51H PTZ camera.
BU-Series CCU
999-4190-000 (NTSC)
999-4190-001 (PAL)
BU-51H Wall Mount
998-4150-001
BU-51H Pedestal Mount
998-4150-002
Canon BU-Series PTZ Camera Installation and User Guide 341-909 Rev. C Page 3 of 8
