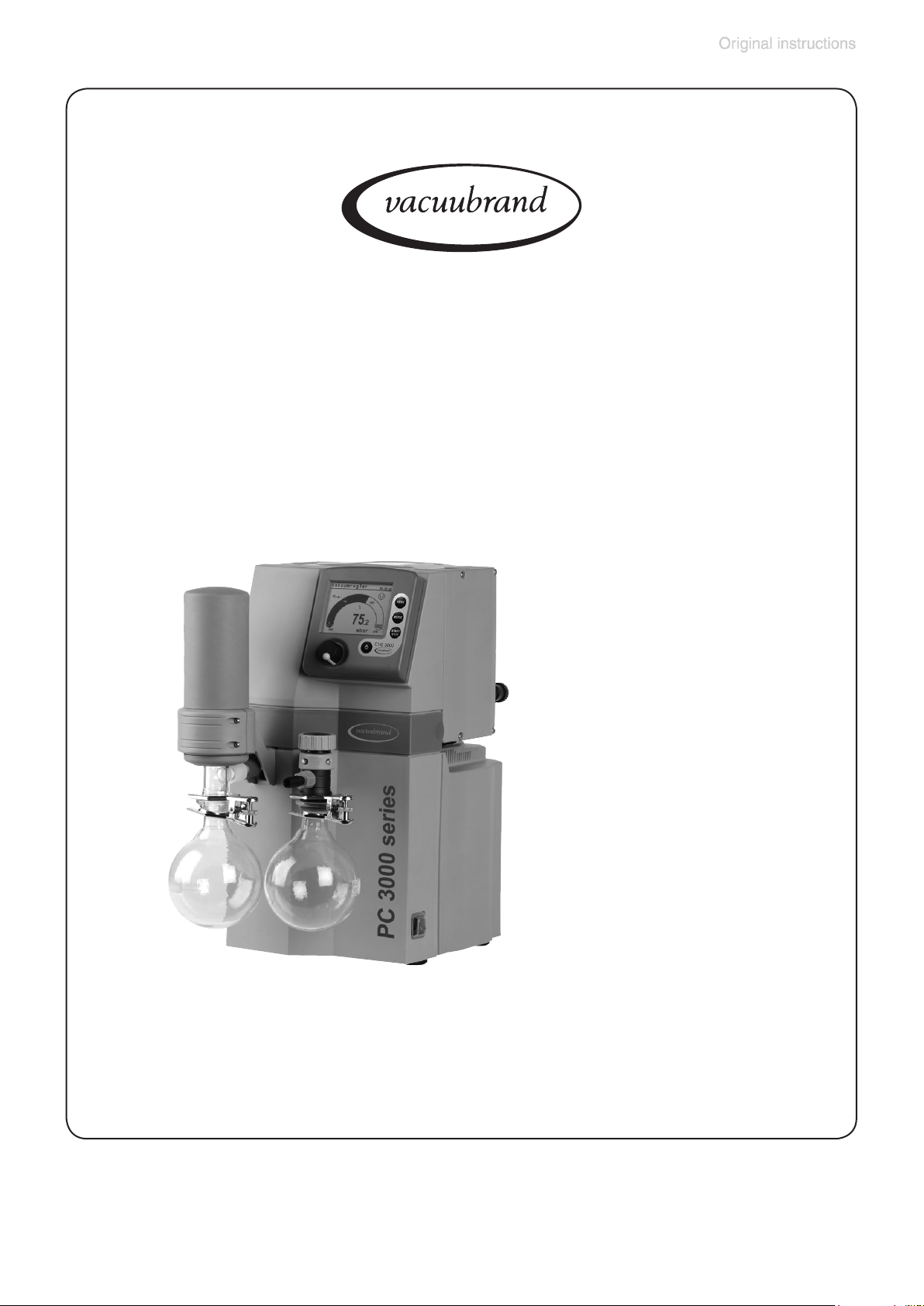

vacuubrand PC 3002 VARIO, MZ 2C NT VARIO, MD 4C NT VARIO, MV 10C VARIO-B, PC 3010 VARIO Instructions For Use Manual
...Page 1
Part I
page 1 of 129
Technology for Vacuum Systems
Instructions for use
Part I of II
Part I:
Safety information - Technical data Use and operation
Chemistry diaphragm pumps
ME 4C NT VARIO
MZ 2C NT VARIO
MD 4C NT VARIO
MV 10C VARIO-B
MD 12C VARIO-B
PC 3002 VARIO
PC 3003 VARIO
PC 3004 VARIO
PC 3010 VARIO
PC 3012 VARIO
Chemistry vacuum systems
Chemistry pumping units
Page 2
page 2 of 129
Dear customer,
Your VACUUBRAND diaphragm pumps are designed to provide you with
many years of trouble-free service with optimal performance. Our many
years of practical experience allow us to provide a wealth of application
and safety information. Please read these instructions for use before the
initial operation of your pump.
VACUUBRAND diaphragm pumps combine our many years of experience in design, construction and practical operation, with the latest developments in material and manufacturing technology.
Our quality maxim is the ”zero defect” principle:
Every diaphragm pump, before leaving our factory, is tested intensively,
including an endurance run of 18 hours. Any faults, even those which oc-
cur rarely, are identied and can be eliminated immediately.
After completion of the endurance run, every pump is tested, and must
achieve specications before shipment.
We are committed to providing our customers only pumps that meet this
high quality standard.
While our pumps cannot eliminate all of your work, we design, manufacture and test them to ensure that they will be an effective and trouble-free
tool to assist you in that work.
Yours,
VACUUBRAND GMBH + CO KG
After sales service:
Contact your local dealer or call +49 9342 808-5500.
Trademark index:
®
VACUU•LAN
(US-Reg.No 3,704,401), VACUU•BUS®, VACUU•CONTROLTM,
chemistry-HYBRIDTM, Peltronic®, TURBO•MODETM, VARIO® (US-Reg.No
3,833,788), VARIO-SPTM, VACUUBRAND® (US-Reg.No 3,733,388) and also
the shown company logos are trademarks of VACUUBRAND GMBH +
CO KG in Germany and/or other countries.
Page 3
page 3 of 129
DE
Achtung: Die vorliegende Betriebsanleitung ist nicht in allen EU-Sprachen verfügbar.
Der Anwender darf die beschriebenen Geräte nur dann in Betrieb nehmen, wenn er
die vorliegende Anleitung versteht oder eine fachlich korrekte Übersetzung der vollständigen Anleitung vorliegen hat. Die Betriebsanleitung muss vor Inbetriebnahme
der Geräte vollständig gelesen und verstanden werden, und alle geforderten Maßnahmen müssen eingehalten werden. ”Sicherheitshinweise für Vakuumgeräte”
EN
Attention: This manual is not available in all languages of the EU. The user must not
operate the device if he does not understand this manual. In this case a technically
correct translation of the complete manual has to be available. The manual must
be completely read and understood before operation of the device and all required
measures must be applied. ”Safety instructions for vacuum equipment”
FR
Attention: Le mode d’emploi présent n’est pas disponible dans toutes les langues
d’Union Européenne. L’utilisateur ne doit mettre le dispositif en marche que s’il
comprend le mode d’emploi présent ou si une traduction complète et correcte du
mode d’emploi est sous ses yeux. Le dispositif ne doit pas être mis en marche
avant que le mode d’emploi ait été lu et compris complètement et seulement si le
mode d’emploi est observé et tous les mesures demandées sont prises.
«Avis de sécurité pour des dispositifs à vide»
BG
Внимание: Тези инструкции не са преведени на всички езици от ЕО. Потребителят не бива да работи с уреда, ако не разбира инструкциите за ползване. В
този случай е необходимо да бъде предоставен пълен технически превод на
инструкциите за ползване. Преди работа с уреда е задължително потребителят да прочете изцяло инструкциите за работа.
”Указания за безопасност за вакуумни уреди”
CN
注意：该操作手册不提供所有的语言版本。操作者在没有理解手册之前，不能操作
该设备。在这种情况下，需要有一个整个操作手册技术上正确的翻译。在操作该设
备前，必须完全阅读并理解该操作手册，必须实施所有需要的测量。
真空设备的安全信息
CZ
Upozornění :Tento návod k použití není k dispozici ve všech jazycích Evropské
unie. Uživatel není oprávněn požít přístroj pokud nerozumí tomuto návodu. V takovém případě je nutno zajistit technicky korektní překlad manuálu do češtiny. Návod
musí být uživatelem prostudován a uživatel mu musí plně porozumět před tím než
začne přístroj používat. Uživatel musí dodržet všechna příslušná a požadovaná
opatření. ”Bezpečnostní upozornění pro vakuové přístroje”.
Page 4
page 4 of 129
DA
Bemærk: Denne manual foreligger ikke på alle EU sprog. Brugeren må ikke be-
tjene apparatet hvis manualen ikke er forstået. I det tilfælde skal en teknisk korrekt
oversættelse af hele manual stilles til rådighed. Manual skal være gennemlæst og
forstået før apparatet betjenes og alle nødvendige forholdsregler skal tages.
»Sikkerhedsregler for vakuumudstyr«
EE
Tähelepanu! Käesolev kasutusjuhend ei ole kõigis EL keeltes saadaval. Kasutaja
ei tohi seadet käsitseda, kui ta ei saa kasutusjuhendist aru. Sel juhul peab saadaval
olema kogu kasutusjuhendi tehniliselt korrektne tõlge. Enne seadme kasutamist tuleb kogu juhend läbi lugeda, see peab olema arusaadav ning kõik nõutud meetmed
peavad olema rakendatud. ”Ohutusnõuded vaakumseadmetele”
ES
Atención: Este manual no está disponible en todos los idiomas de UE. El usuario
no debe manejar el instrumento si no entiende este manual. En este caso se debe
disponer de una traducción técnicamente correcta del manual completo. El manual
debe ser leído y entendido completamente y deben aplicarse todas las medidas
de seguridad antes de manejar el instrumento. ”Notas sobre la seguridad para
equipos de vacío”
FI
Huomio: Tämä käyttöohje ei ole saatavilla kaikilla EU: n kielillä. Käyttäjä ei saa käyttää laitetta, jos hän ei ymmärrä tätä ohjekirjaa. Tässä tapauksessa on saatavilla oltava teknisesti oikein tehty ja täydellinen ohjekirjan käännös. Ennen laitteen käyttöä
on ohjekirja luettava ja ymmärrettävä kokonaan sekä suoritettava kaikki tarvittavat
valmistelut ja muut toimenpiteet. ”Vakuumilaitteen turvallisuustiedot”
GR
Προσοχή! : Οι οδηγίες αυτές δεν είναι διαθέσιµες σε όλες τις γλώσσες της Ευρωπαϊκής Ένωσης. Ο χρήστης δεν πρέπει να θέσει σε λειτουργία την συσκευή αν δεν
κατανοήσει πλήρως τις οδηγίες αυτές. Σε τέτοια περίπτωση ο χρήστης πρέπει να
προµηθευτεί ακριßή µετάφραση του ßιßλίου οδηγιών. Ο χρήστης πρέπει να διαßάσει και να κατανοήσει πλήρως τις οδηγίες χρήσης και να λάßει όλα τα απαραίτητα
µέτρα πριν θέσει σε λειτουργία την συσκευή. ”Υποδείξεις ασφάλειας για αντλίες
κενού”
HR
Pažnja:ove upute ne postoje na svim jezicima Europske Unije. Korisnik nemora raditi sa aparatom ako ne razumije ove upute.U tom slucaju tehnicki ispravni prijevod
cijelih uputstava mora biti na raspolaganju. Uputstva moraju biti cijela procitana i
razumljiva prije rada sa aparatom i sve zahtijevane mjere moraju biti primjenjene.
”Sigurnosne napomene za vakuumske uređaje”
Page 5
page 5 of 129
HU
Figyelem! Ez a kezelési utasítás nem áll rendelkezésre az EU összes nyelvén.
Ha a felhasználó nem érti jelen használati utasítás szövegét, nem üzemeltetheti a
készüléket. Ez esetben a teljes gépkönyv fordításáról gondoskodni kell. Üzembe
helyezés előtt a kezelőnek végig kell olvasnia, meg kell értenie azt, továbbá az
üzemeltetéshez szükséges összes mérést el kell végeznie. ”A vákuum-készülékekkel kapcsolatos biztonsági tudnivalók”
IT
Attenzione: Questo manuale non è disponibile in tutte le lingue della Comunità Europea (CE). L‘utilizzatore non deve operare con lo strumento se non comprende
questo manuale. In questo caso deve essere resa disponibile una traduzione tecnicamente corretta del manuale completo. Il manuale deve essere completamente
letto e compreso prima di operare con lo strumento e devono essere applicati tutti
gli accorgimenti richiesti. ”Istruzioni di sicurezza per apparecchi a vuoto”
JP
注意：この取扱説明書はすべての言語で利用可能ではありません。 もしこの取扱
説明書を理解できないならば、ユーザーは装置を操作してはなりません。 この場
合、技術的に正しい翻訳がなされた完全なマニュアルを用意しなければなりませ
ん。 装置を作動する前にマニュアルを完全に読み、そして理解されなくてはなり
ません。そして、すべての要求される対策を講じなければなりません。
真空装置を安全に取り扱うために
KR
주의 : 이 매뉴얼은 모든 언어로 번역되지는 않습니다. 만약 이 매뉴얼의 내용을 충분
히 인지하지 못했다면 기기를 작동하지 마십시오. 매뉴얼의 내용을 기술적으로 정확
하게 번역한 경우에 이용하십시오. 기기를 사용하기 전에 이 매뉴얼을 충분히 읽고
이해하고 모든 요구되는 사항들을 적용해야 합니다.
진공 장비에 대한 안전 정보
LT
Dėmesio: šis vadovas nėra pateikiamas visomis ES kalbomis. Naudotojui draudžiama eksploatuoti įtaisą, jeigu jis nesupranta šio vadovo. Tokiu atveju reikia turėti
viso vadovo techniškai taisyklingą vertimą. Vadovą būtina visą perskaityti ir suprasti
pateikiamas instrukcijas prieš pradedant eksploatuoti įtaisą, bei imtis visų reikiamų
priemonių. ”Vakuuminės įrangos saugos informacija”
LV
Uzmanību: Lietotāja instrukcija nav pieejama visās ES valodās. Lietotājs nedrīkst
lietot iekārtu, ja viņš nesaprot lietotāja instrukcijā rakstīto. Šādā gadījumā, ir nepieciešams nodrošināt tehniski pareizu visas lietotāja instrukcijas tulkojumu. Pirms
sākt lietot iekārtu, un, lai izpildītu visas nepieciešamās prasības, iekārtas lietotāja
instrukcija ir pilnībā jāizlasa un jāsaprot. ”Vakuuma iekārtu drošības noteikumi”
Page 6
page 6 of 129
NL
Attentie: Deze gebruiksaanwijzing is niet in alle talen van de EU verkrijgbaar. De
gebruiker moet niet met dit apparaat gaan werken als voor hem/haar de gebruiks-
aanwijzing niet voldoende duidelijk is. Bij gebruik van deze apparatuur is het noodzakelijk een technisch correcte vertaling van de complete gebruiksaanwijzing te
hebben. Voor het in gebruik nemen van het apparaat moet de gebruiksaanwijzing
volledig gelezen en duidelijk zijn en dienen alle benodigde maatregelen te zijn ge-
nomen. ”Veiligheidsvoorschriften voor vacuümapparaten”
PL
Uwaga!! Ta instrukcja nie jest dostępna we wszystkich językach Unii Europejskiej.
Użytkownik nie może rozpocząć pracy z urządzeniem dopóki nie przeczytał instrukcji i nie jest pewien wszystkich informacji w niej zawartych. Instrukcja musi byc w
całości przeczytana i zrozumiana przed podjęciem pracy z urządzeniem oraz należy podjąć wszystkie niezbędne kroki związane z prawidłowym uzytkowaniem.
”Wskazówki bezpieczeństwa do urządzeń próżniowych”
PT
Atenção: Este manual não está disponível em todas as línguas da UE. O usuário
não deve utilizar o dispositivo, se não entender este manual. Neste caso, uma tradução tecnicamente correta do manual completo tem de estar disponível. O manual deve ser lido e entendido completamente antes da utilização do equipamento e
todas as medidas necessárias devem ser aplicadas. ”Informação de Segurança
para Equipamento que funciona a Vácuo”
RO
Atentie: Acest manual nu este disponibil in toate limbile EU. Utilizatorul nu trebuie
sa lucreze cu aparatul daca daca nu intelege manualul. Astfel, va disponibile o
traducere corecta si completa a manualului. Manualul trebuie citit si inteles in intregime inainte de a lucra cu aparatul si a luat toate masurile care se impun.
”Instrucţiuni de siguranţă pentru aparatele de vidare”
RU
Внимание: Эта инструкция по эксплуатации не имеется на всех языках. Потребителю не дозволенно эксплуатировать данный прибор, если он не понимает
эту инструкцию. В этом случае нужен технически правильный перевод полной
инструкции. Прежде чем использовать этот прибор,
необходимо полностью прочитать и понять эту инструкцию и принять все необходимые меры. ”Указания по технике безопасности при работе с вакуумными устройствами”
Page 7
page 7 of 129
SE
Varning: Denna instruktion är inte tillgänglig på alla språk inom EU. Användaren får
inte starta utrustningen om hon/han inte förstår denna instruktion. Om så är fallet
måste en tekniskt korrekt instruktion göras tillgänglig. Instruktionen måste läsas och
förstås helt före utrustningen tas i drift och nödvändiga åtgärder göres.
”Säkerhetsinformation för vakuumutrustning”
SI
Pozor: Ta navodila niso na voljo v vseh jezikih EU. Uporabnik ne sme upravljati
z napravo, če ne razume teh navodil. V primeru nerazumljivosti mora biti na voljo
tehnično pravilen prevod. Navodila se morajo prebrati in razumeti pred uporaba
naprave, opravljene pa moraja biti tudi vse potrebne meritve.
”Varnostni nasveti za vakuumske naprave”
SK
Upozornenie: Tento manuál nie je k dispozícii vo všetkých jazykoch EÚ. Užívateľ
nesmie obsluhovať zariadenie, pokiaľ nerozumie tomuto manuálu. V takomto prípade musí byť k dispozícii technicky správny preklad celého manuálu. Pred obsluhou
zariadenia je potrebné si prečítať celý manuál a porozumieť mu, a musia byť prijaté
všetky opatrenia. ”Bezpečnostné pokyny pre vákuové zariadenia”
TR
Dikkat : Bu kullanım kitabı, tüm dillerde mevcut değildir. Kullanıcı, bu kullanım kitabını anlayamadıysa cihazı çalıştırmamalıdır. Bu durumda, komple kullanım kitabının, teknik olarak düzgün çevirisinin bulunması gerekir. Cihazın çalıştırılmasından
önce kullanım kitabının komple okunması ve anlaşılması ve tüm gerekli ölçümlerin
uygulanması gerekir. ”Vakumlu cihazlar için güvenlik uyarıları”
Page 8
page 8 of 129

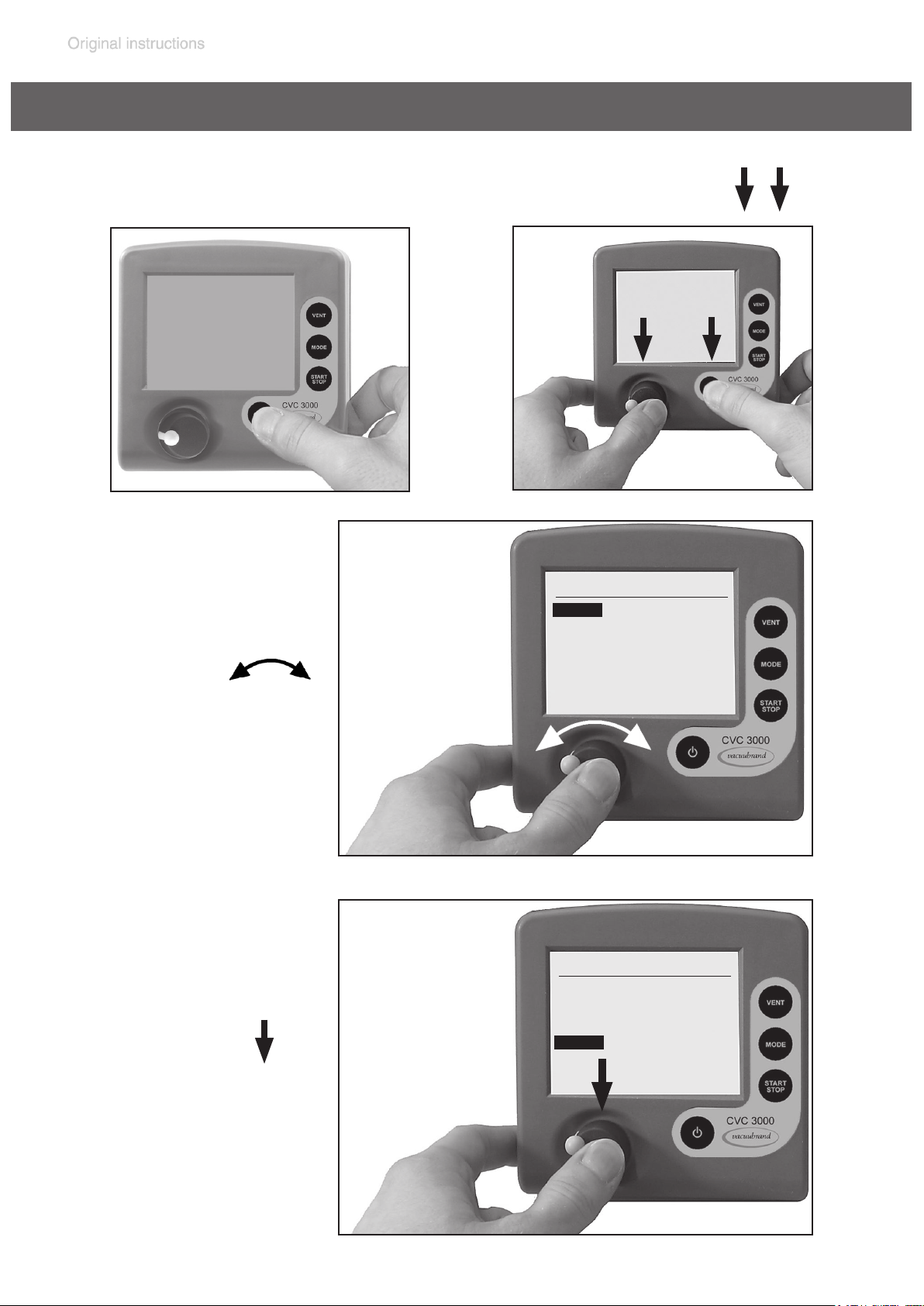

Reset / Language selection
1 switch off
3 turn
2 press both
CVC 3000 V2.0
Deutsch
English
Français
Italiano
Español
Türkçe
한국어
中文
Portuguê
Ρyccкий
Polski
Nederl.
日本語
Suomi
4 press
CVC 3000 V2.0
Deutsch
English
Français
Italiano
Español
Türkçe
한국어
中文
Portuguê
Ρyccкий
Polski
Nederl.
日本語
Suomi
Page 9
page 9 of 129
Contents
Part I................................................................. 1
Reset / Language selection ............................................. 8
Safety information! ........................................................... 11
Important information! ........................................................................11
General information ........................................................................... 13
Intended use...................................................................................... 13
Setting up and installing the equipment ............................................ 14
Ambient conditions ............................................................................ 17
Operating conditions ......................................................................... 17
Safety during operation ..................................................................... 19
Maintenance and repair..................................................................... 22
Important information: Equipment marking (ATEX) ..................... 24
`
Technical data ................................................................... 26
General technical data valid for all pumps/pumping units ................. 26
Gas inlet temperatures ..................................................................... 26
Wetted parts ..................................................................................... 31
Abbreviations .................................................................................... 32

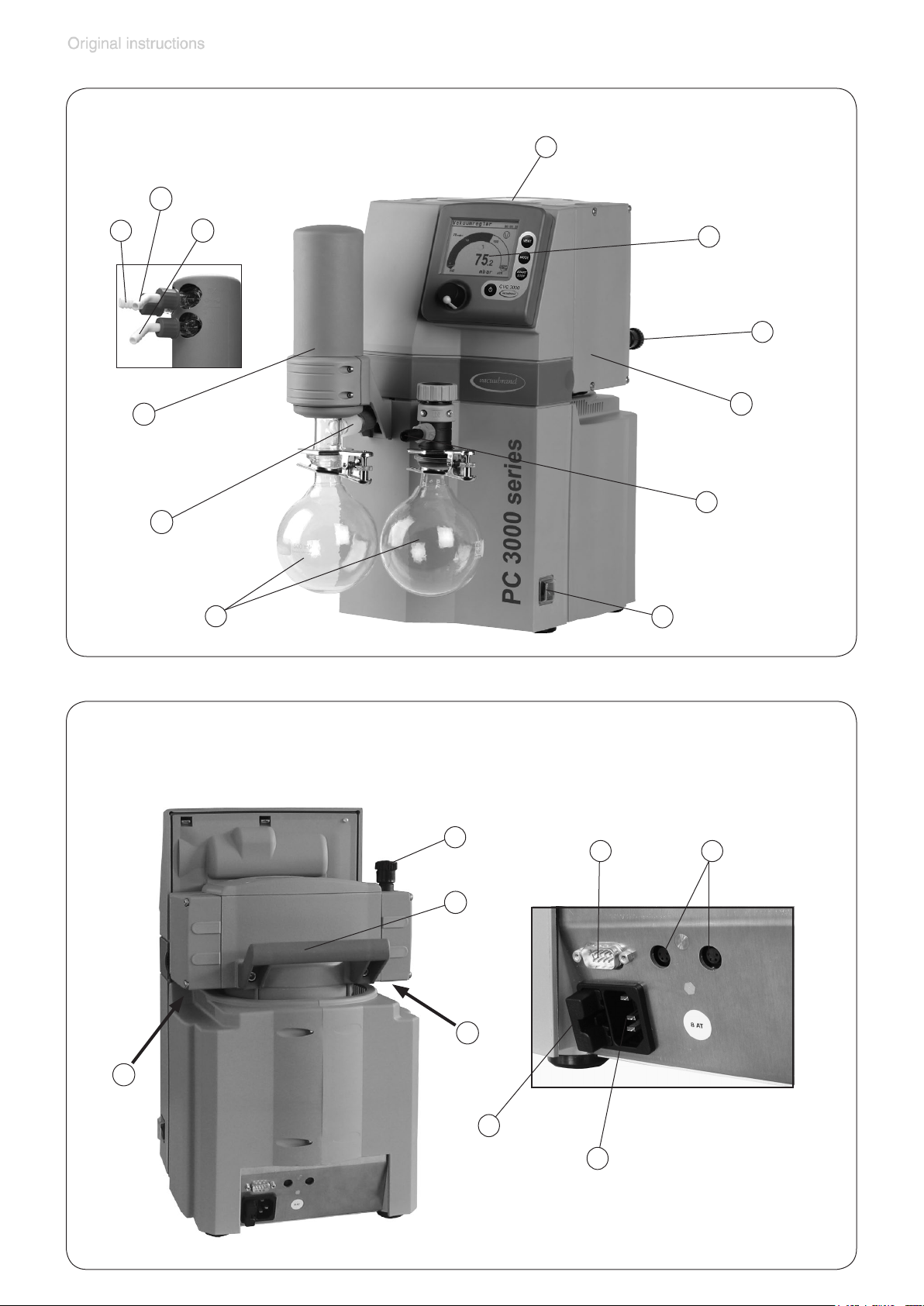

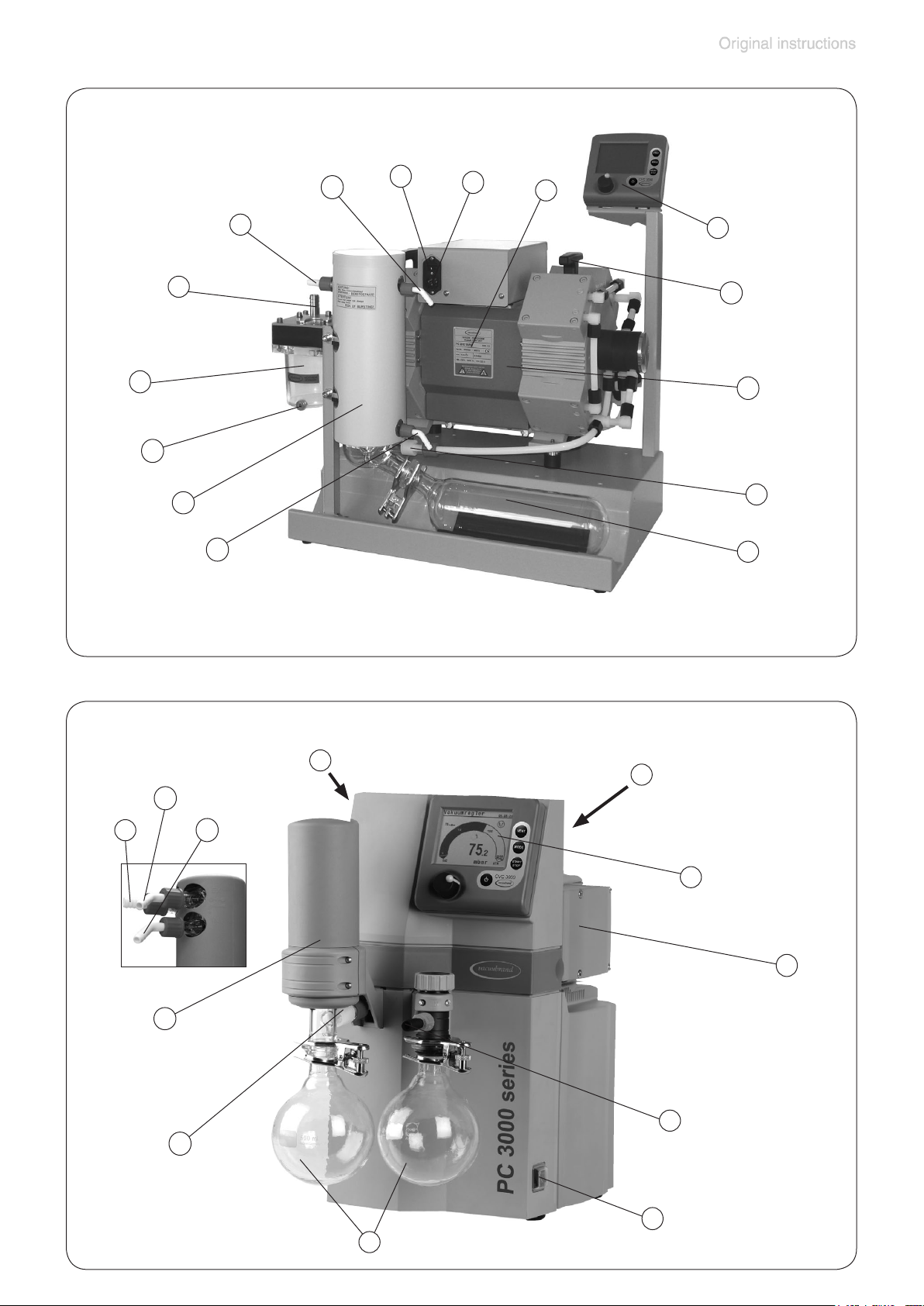

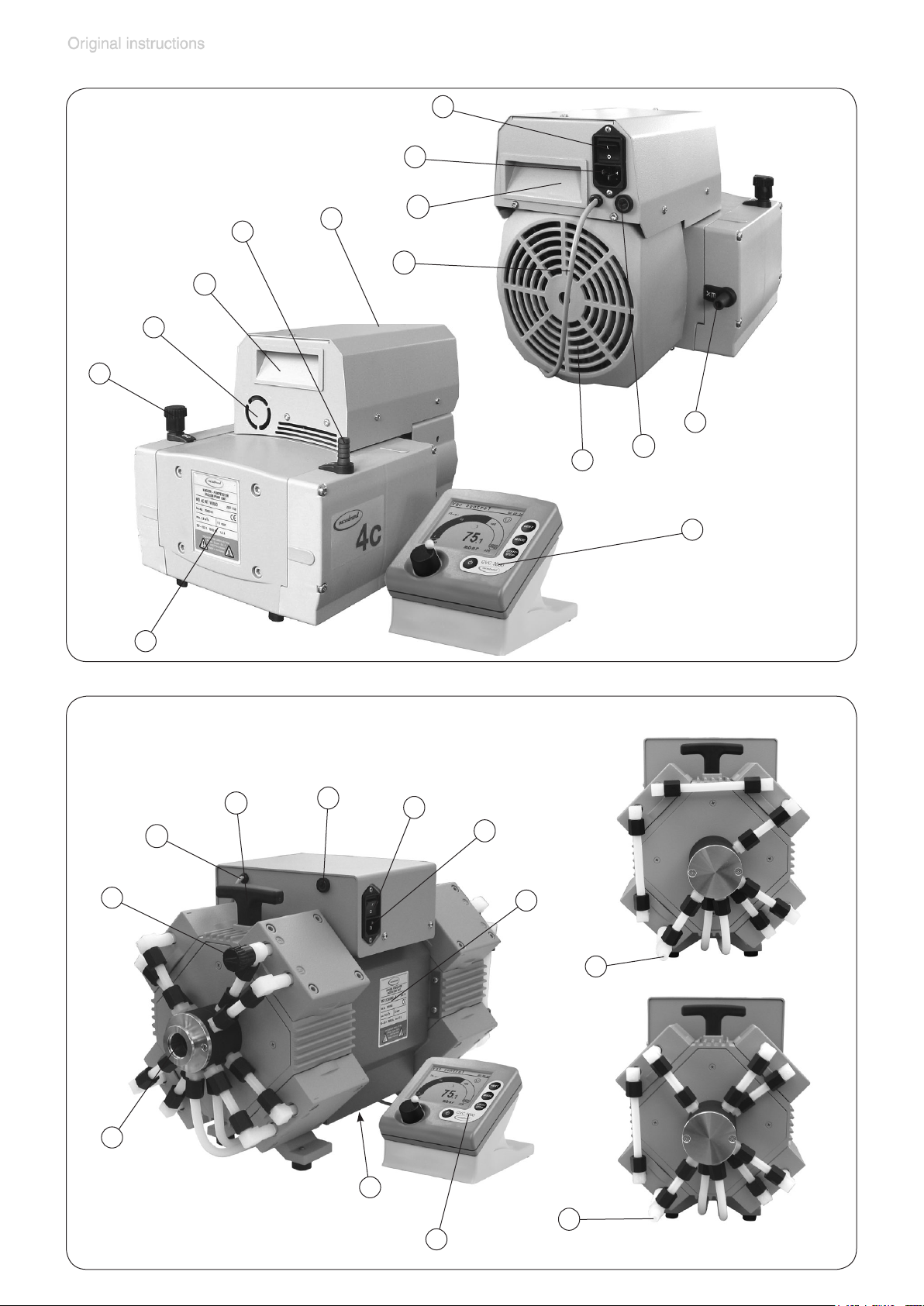

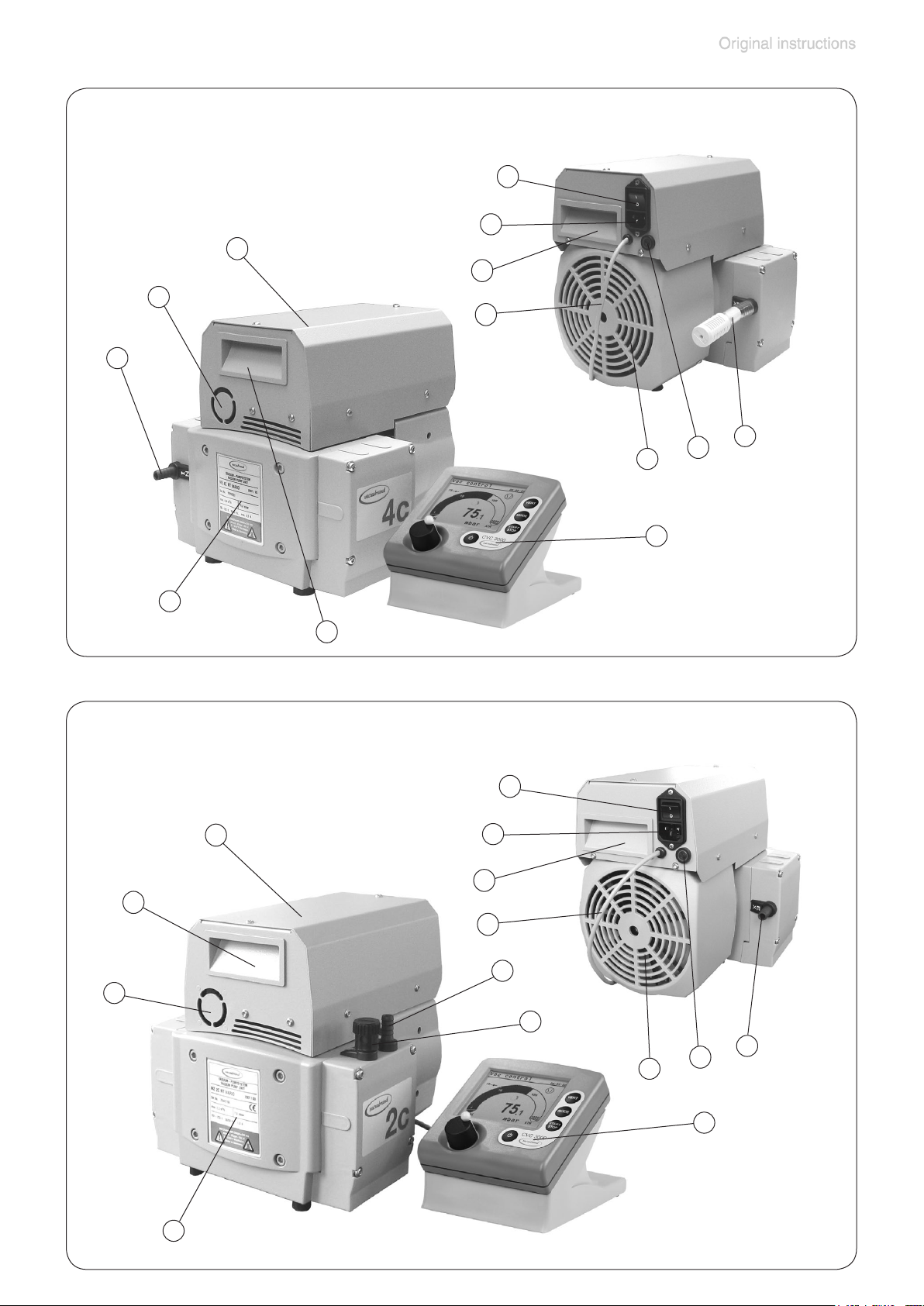

Pump parts ....................................................................................... 32
Use and operation ............................................................ 38
Installing a pump in a vacuum system .............................................. 38
During operation ................................................................................ 44

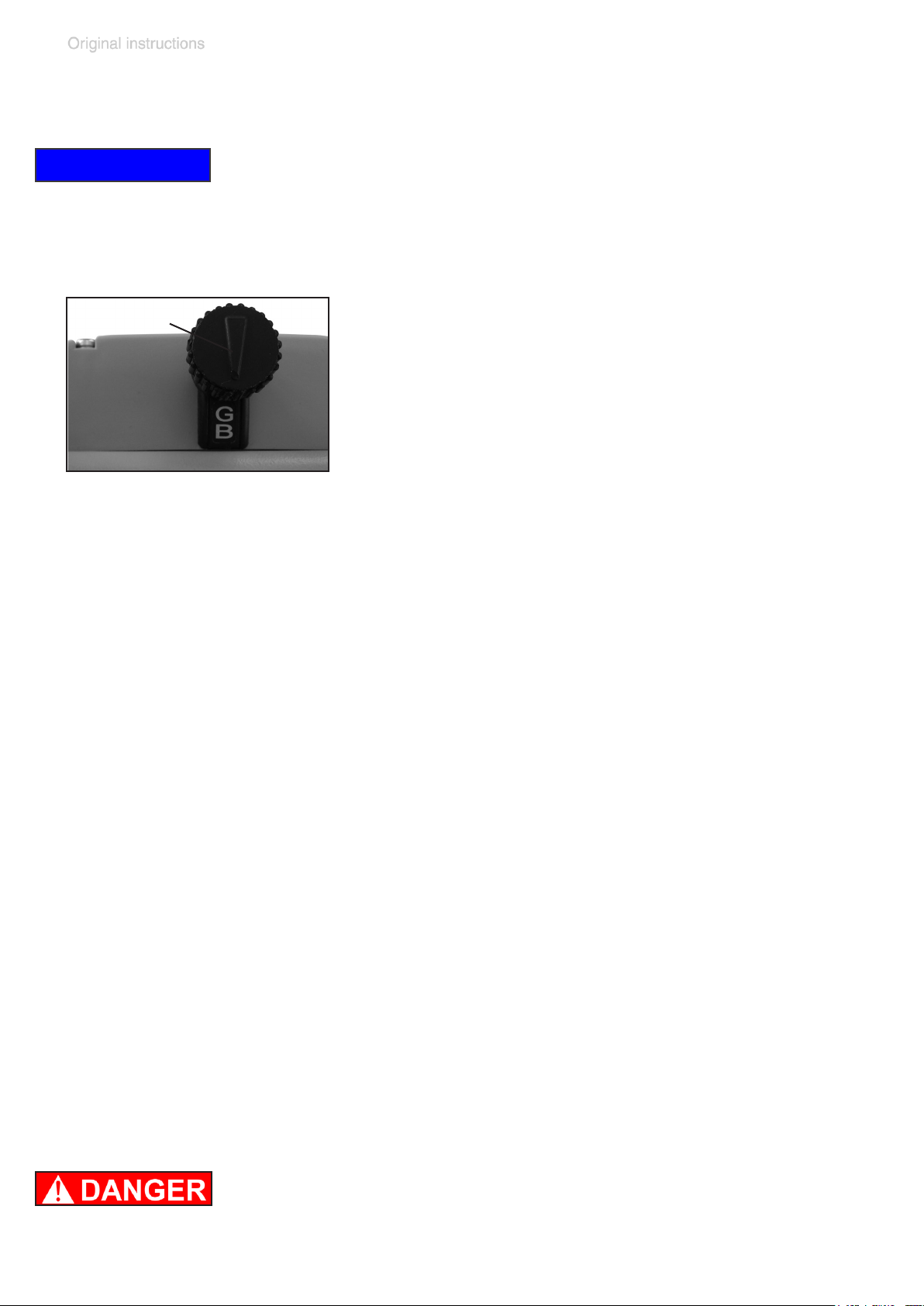

Important notes regarding the use of gas ballast .............................. 45
Important notes concerning the operation of the
exhaust waste vapor condenser........................................................ 46
Shutdown & storage .......................................................................... 48

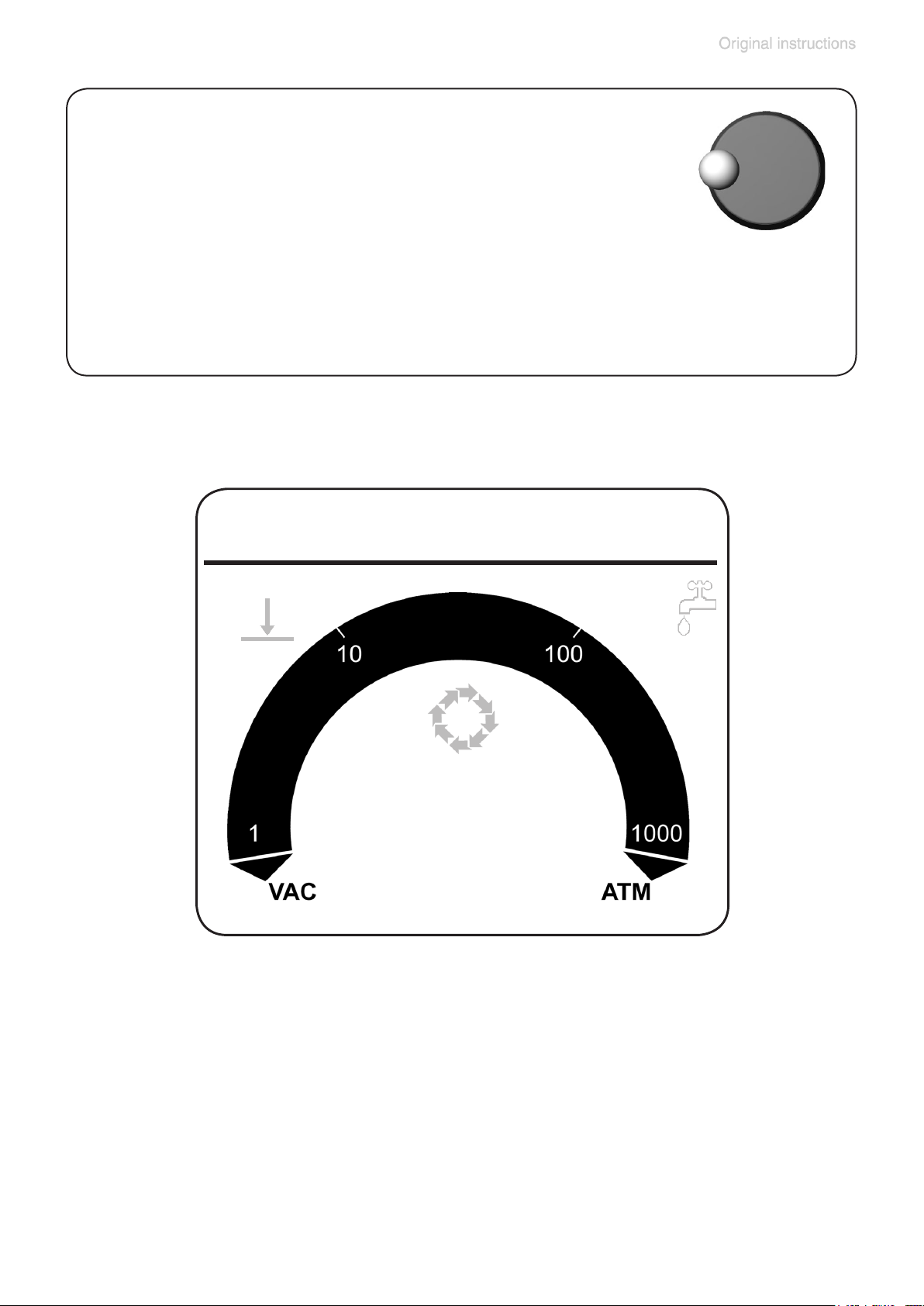

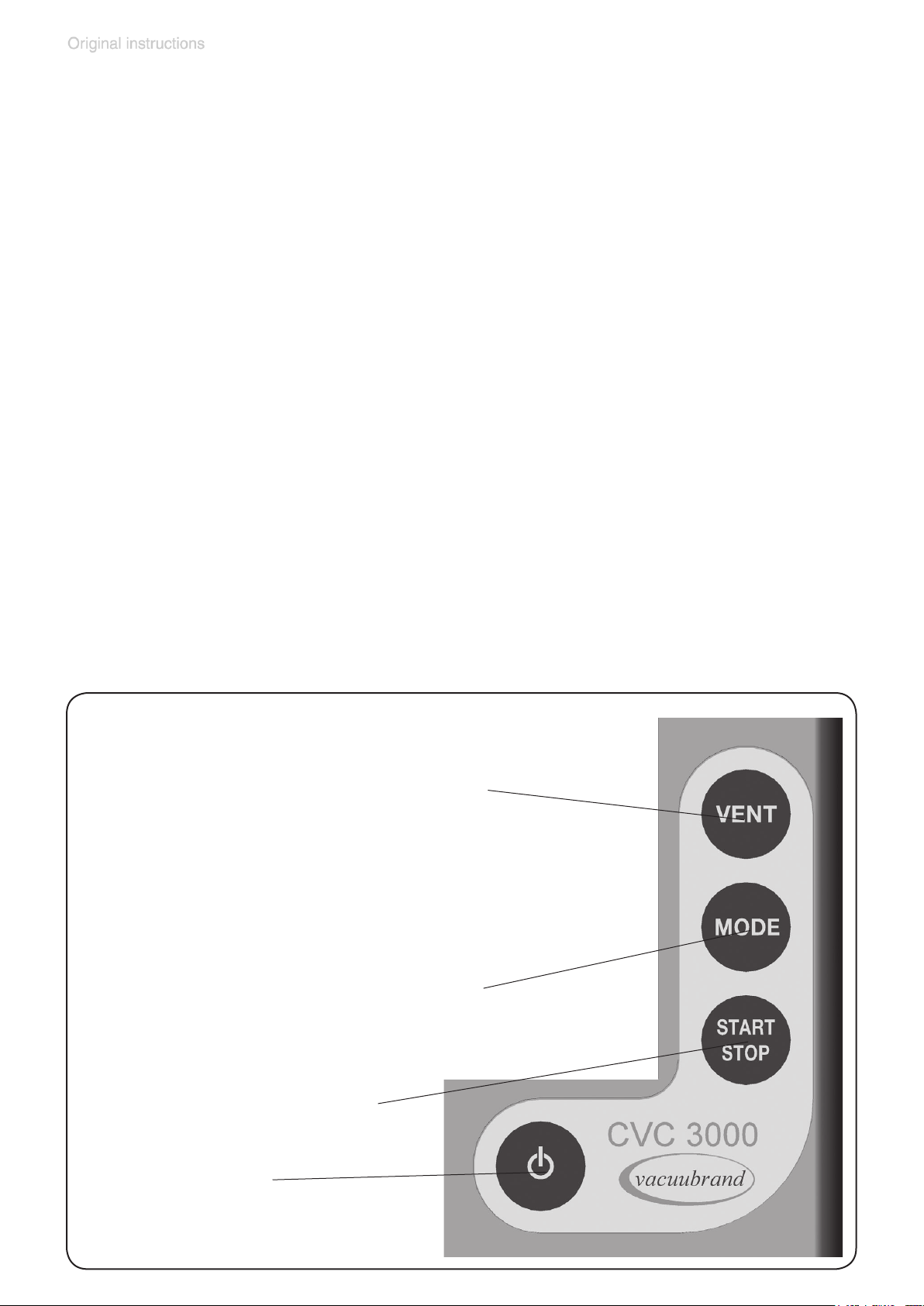

Vacuum controller CVC 3000 ............................................................ 50

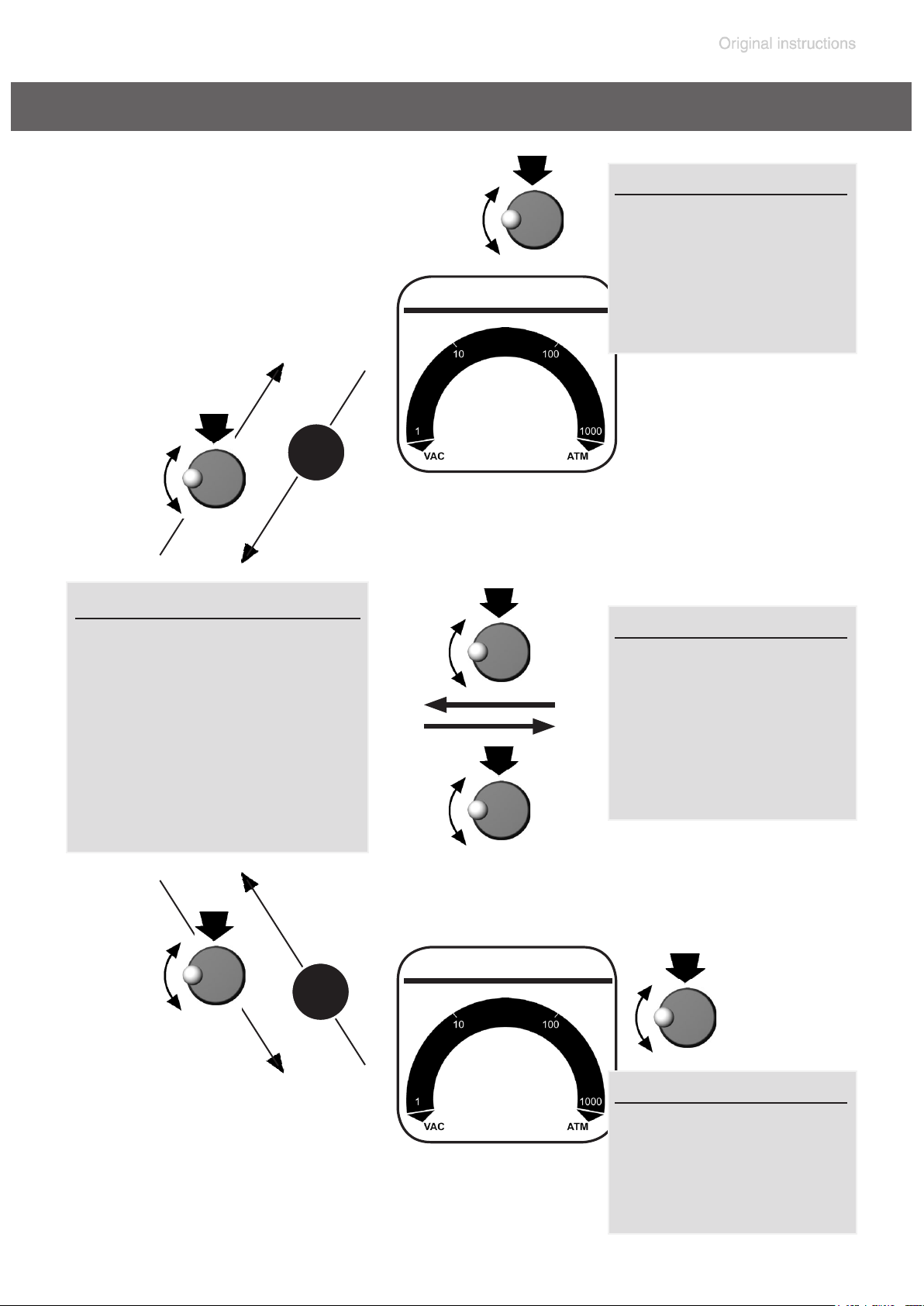

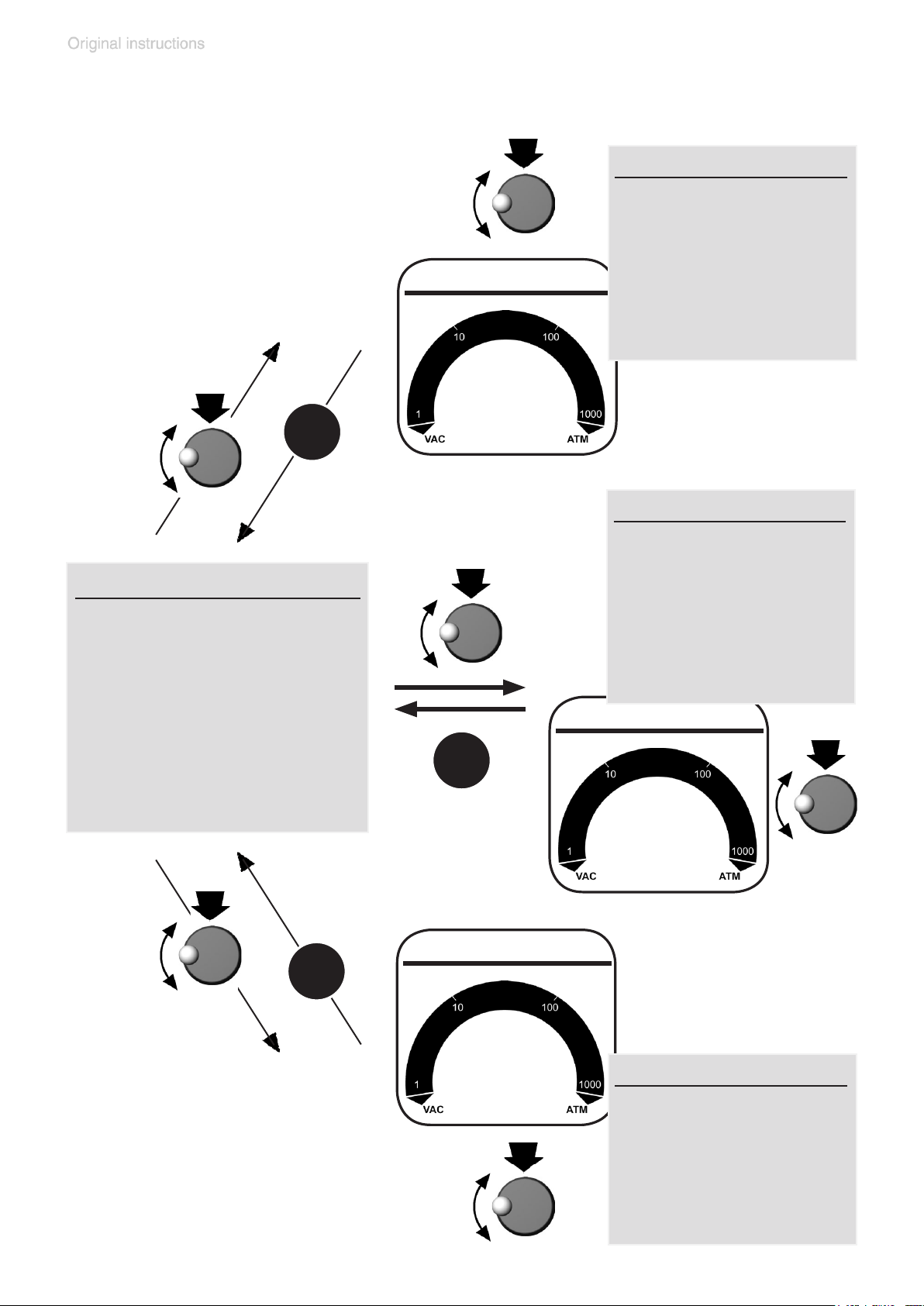

Menu guide ........................................................................ 55

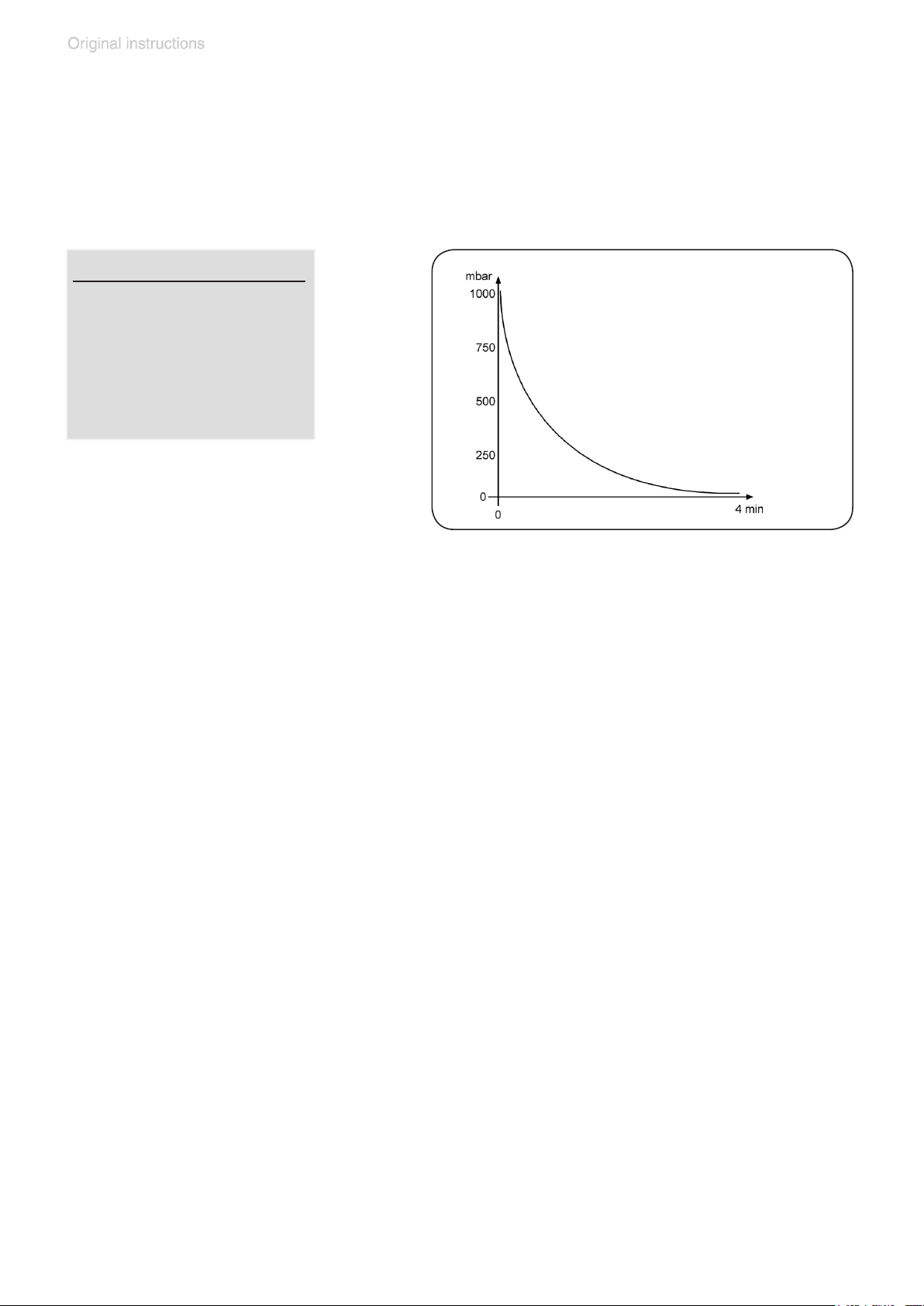

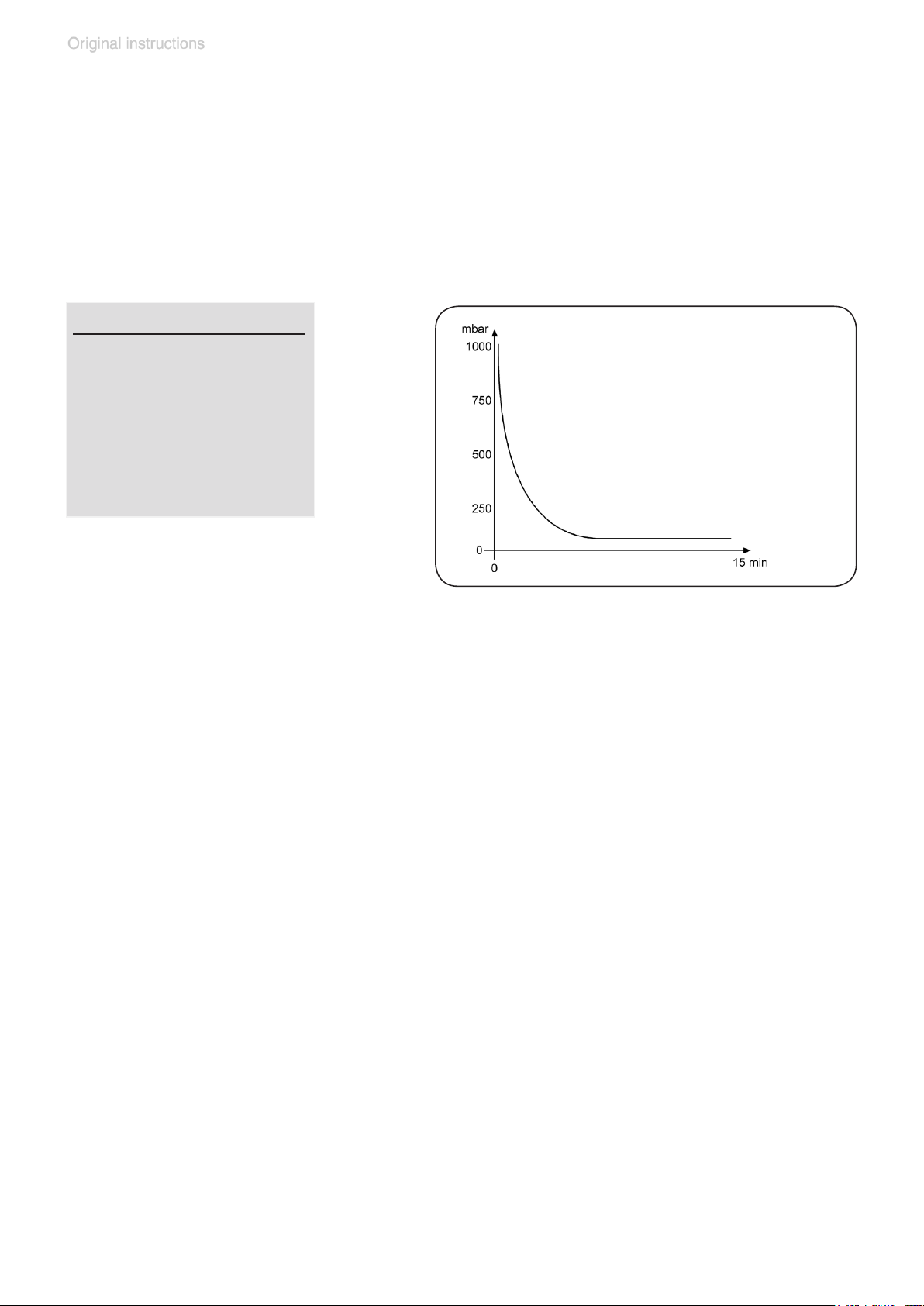

Pump down function ........................................................ 57
Vac Control function ........................................................ 59
Auto mode ......................................................................... 62
Program function .............................................................. 64
Application example ......................................................................... 66
VACUULAN function ........................................................ 67
Application examples....................................................... 69
Vacuum for ltration and suction ...................................................... 69
Page 10
page 10 of 129
Vacuum for gel dryer,
drying chambers and vacuum concentrators ................................... 70
Vacuum for distillation and evaporation (e.g., rotary evaporator) 70
Fore-vacuum for high vacuum pumps .............................................. 72
Conguration .................................................................... 73
Part II.............................................................. 75
Readjustment of CVC 3000 .............................................. 78
Calibration in the factory ................................................. 80
Cleaning the pressure transducer .................................. 81

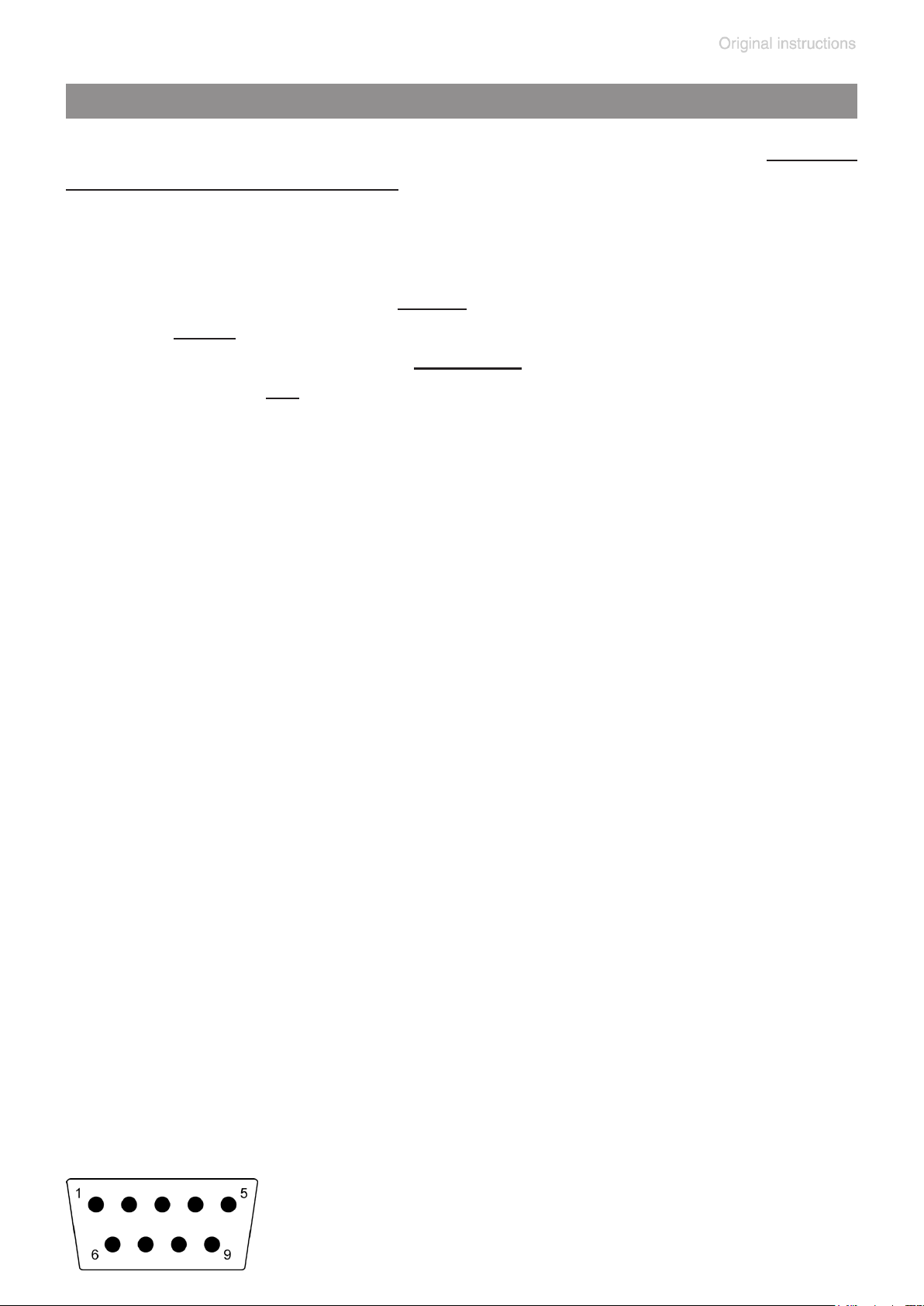

Interface parameters ........................................................ 82
Setting of the interface ..................................................................... 83
Read commands ”CVC 2000” .......................................................... 84
Write commands ”CVC 2000” .......................................................... 85
Read commands ”CVC 3000” .......................................................... 87
Write commands ”CVC 3000” .......................................................... 89

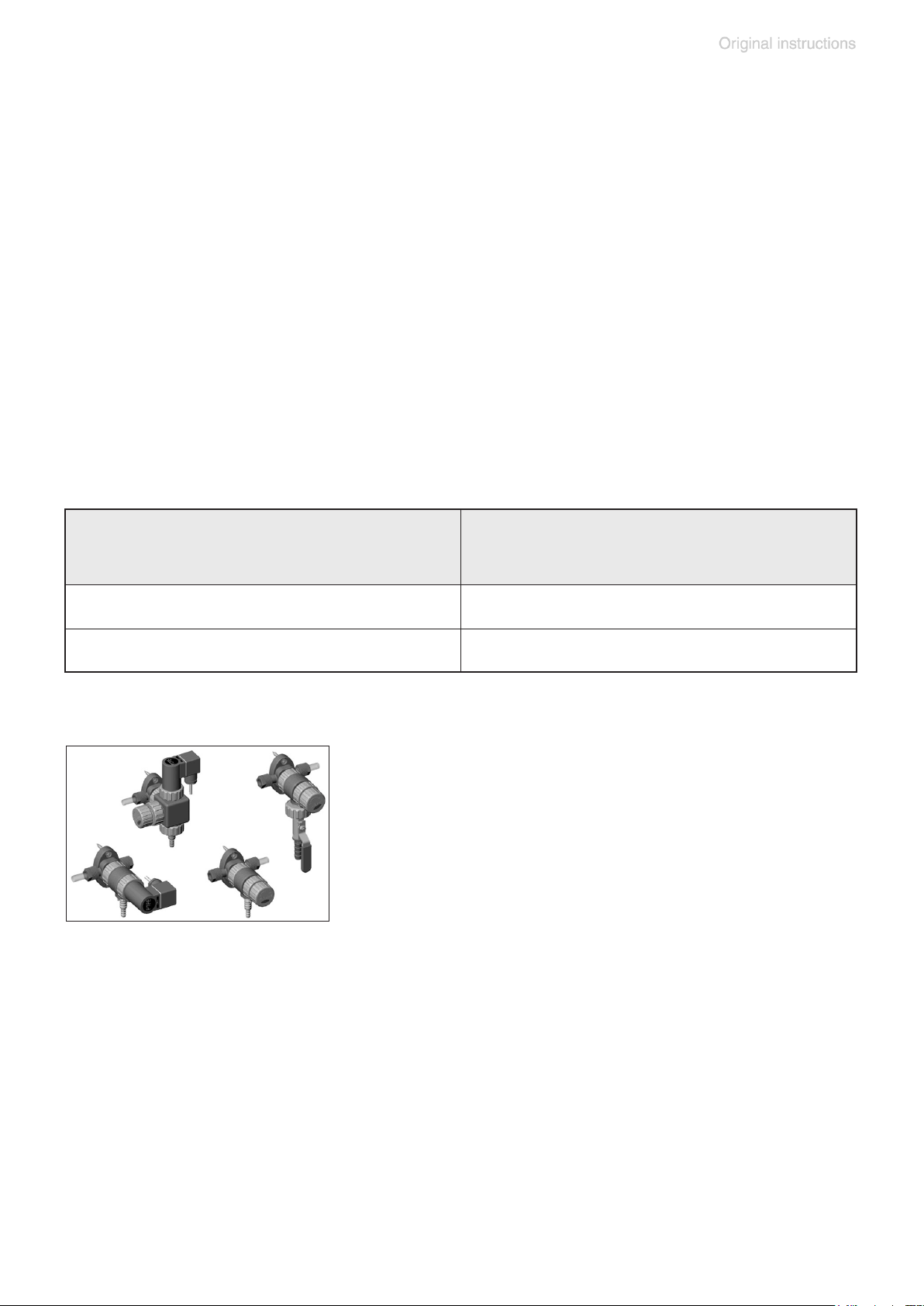

Accessories ...................................................................... 92
Troubleshooting ............................................................... 95

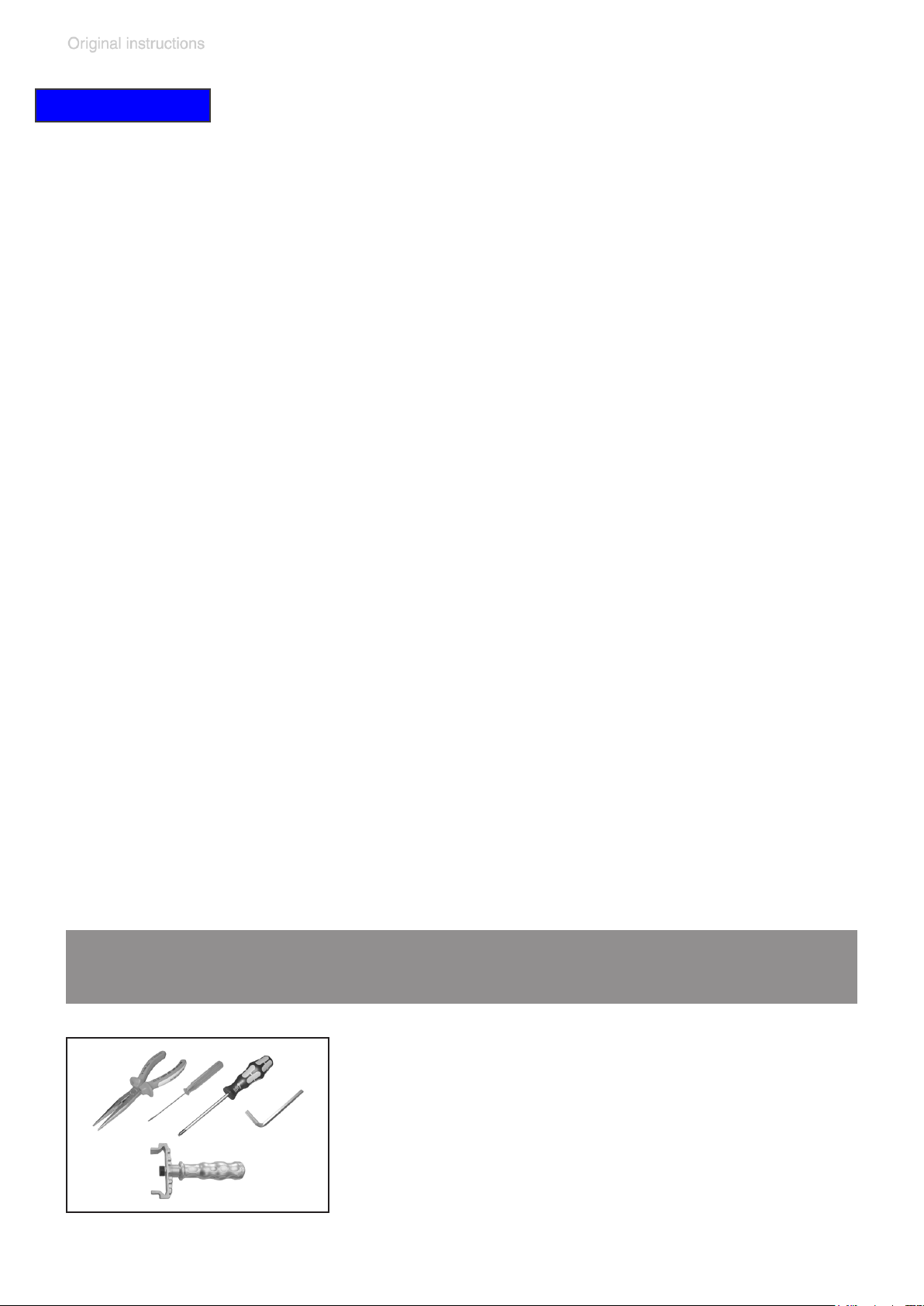

Replacing diaphragms and valves.................................. 99
Cleaning and inspecting the pump heads
(pumps NT VARIO / PC 300x VARIO) ............................................ 100
Replacing the diaphragm ............................................................... 105
Replacing the valves ...................................................................... 107
Cleaning and inspecting the pump heads
(pumps VARIO-B / PC 301x VARIO) .............................................. 111
Replacing the diaphragm ................................................................115
Assembling the pump heads ...........................................................116
Replacing the valve at the distributor (outlet side) ..........................117
Assembling the connecting hoses ...................................................118
Replacing the device fuse .............................................................. 121
Notes on return to the factory ....................................... 122
Warranty .......................................................................... 125
Health and safety clearance form ................................. 126
EC Declaration of Conformity of the Machinery ............. 127
Page 11
page 11 of 129
Safety information!
Important information!
+ Keep this manual complete and accessible to per-
sonnel at all times!
+ Read this manual carefully before installing or op-
erating the equipment. Observe the instructions
contained in this manual.
+ Do not modify the equipment without authorization.
NOTICE
This manual is an integral part of the equipment described therein. It describes the safe and proper use of
the vacuum pump. The manual consists of two parts.
Make operating personnel aware of dangers arising
from the pump and the pumped substances.
VACUUBRAND disclaims any liability for inappropriate use of these pumps and for damage from failure
to follow instructions contained in this manual.
This manual is only to be used and distributed in its complete and original form. It is strictly the users’ responsibility
to check carefully the validity of this manual with respect
to his product.
Manual-no.: 999219 / 07/31/2012
The following signal word panels and safety
symbols are used throughout this manual:
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury and death.
Page 12
page 12 of 129

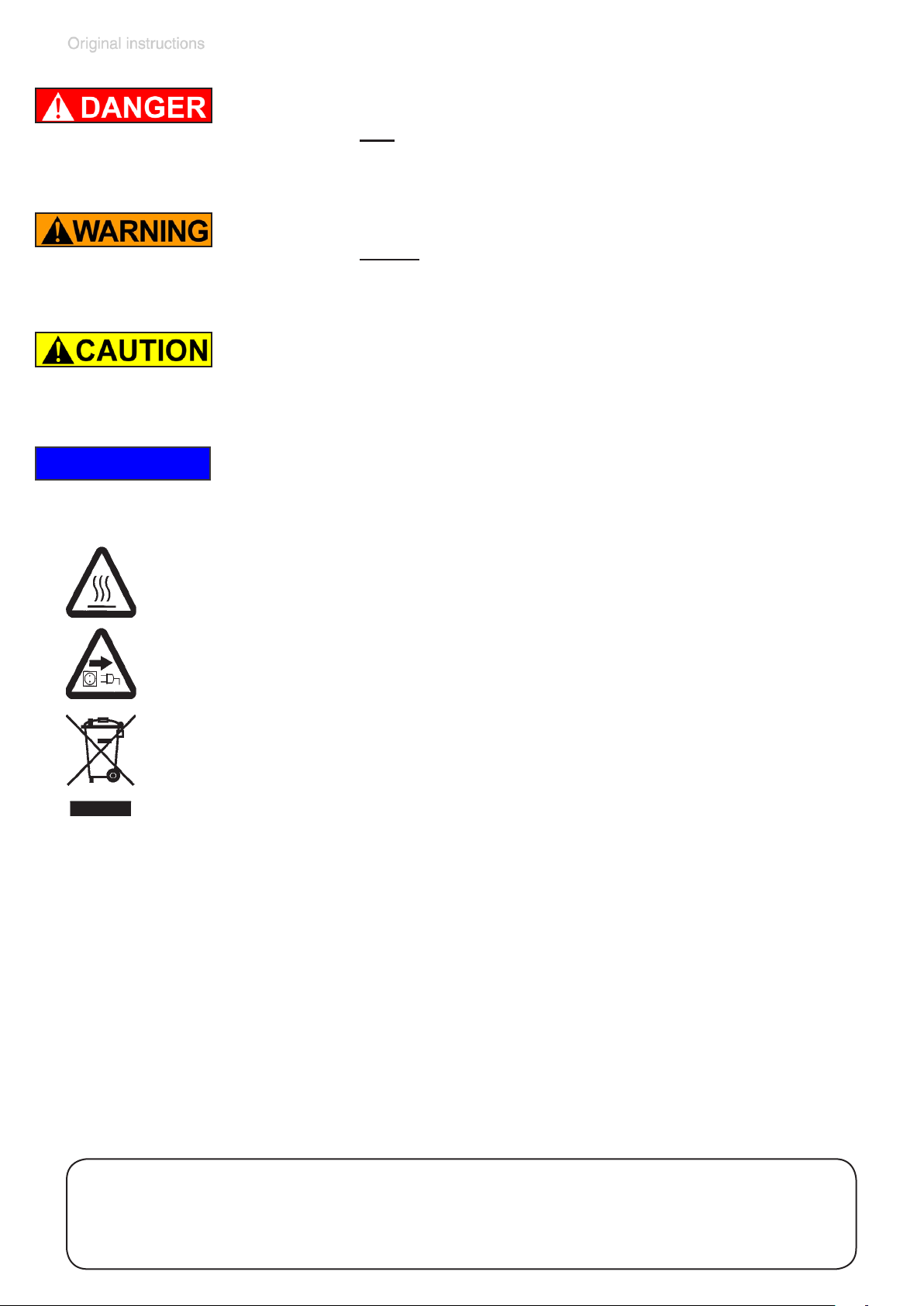

➨ DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
+ WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
• CAUTION indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE
NOTICE is used to address practices not related to per-
sonal injury.
Caution! Hot surface!
Disconnect equipment from AC power.
Dispose of electronic equipment according to regula-
tions.
Formatting used in this manual:
Note: The signal word panels in all sections of this manual always refer
to all paragraphs of the same format (➨ / + / • / plain text) following each
signal word panel.
The document ”Safety information for vacuum equipment” is
part of this manual! Read the ”Safety information for vacuum
equipment” and observe the instructions contained therein!
Page 13
page 13 of 129
General information
NOTICE
Remove all packing material from the packing box. Remove the product from its packing-box and retain all packaging until the equipment is inspected and tested. Remove the protective caps from the inlet and outlet ports
and retain for future use. Inspect the equipment promptly
and carefully.
If the equipment is damaged, notify the supplier and the
carrier in writing within three days. Retain all packing material for inspection. State the item number of the product
together with the order number and the supplier’s invoice
number. Failure to check and give notice of damage will
void any and all warranty claims for those deciencies.
Replace the protective caps, if the equipment is not used
immediately. Store the equipment in dry and non-corrosive
conditions (see also “Technical data”, pg. 26).
+ Do not use any damaged equipment.
• Use the mounted handle or the recessed grips when
moving the pump.
Intended use
+ Do not use the pump or any system parts on humans
or animals.
+ Prevent any part of the human body from coming into
contact with vacuum.
+ Ensure that the individual components are only con-
nected, combined and operated according to their design and as indicated in the instructions for use.
+ Comply with all notes on correct vacuum and electrical
connections; see section “Use and operation”, pg. 38.
+ Do not use the pump to generate pressure.
+ The pumps are designed for ambient temperatures
during operation between +50°F and +104°F (+10°C
Page 14
page 14 of 129
and +40°C). Periodically check maximum temperatures
if installing the pump in a cabinet or a housing. Make
sure ventilation is adequate to maintain recommended
operating temperature. Install an external automatic
ventilation system if necessary. If pumping hot process
gases, make sure that the maximum permitted gas inlet temperature is not exceeded. The maximum permitted gas inlet temperature depends on several parameters like inlet pressure and ambient temperature (see
“Technical data”, pg. 26).
+ Do not aspirate particles and dust.
+ Do not pump liquids.
NOTICE
• Ensure that the pump is chemically resistant to the
pumped substances prior to operation.
Use the equipment only as intended, that is, for generation, measurement, and control of vacuum in vessels designed for that purpose. Any other use will automatically
invalidate all warranty and liability claims. Remain aware
of safety and risks.
Setting up and installing the equipment
➨ Equipment must be connected only to a suitable elec-
trical supply and a suitable ground point. As such,
the plug must be plugged into an outlet that is properly
grounded. Failure to connect the motor to ground may
result in deadly electrical shock.
The supply cable may be tted with a molded Euro-
pean IEC plug or a plug suitable for your local electrical
supply. The cable contains wires color coded as follows: green or green and yellow: ground; blue or white:
neutral; brown or black: hot.
+ Due to the high compression ratio, the pump may gen-
erate overpressure at the outlet. Check pressure compatibility with system components (e.g., exhaust pipe-
Page 15
page 15 of 129
line or exhaust valve) at the outlet.
+ Do not permit any uncontrolled pressurizing. Make
sure that the exhaust pipeline cannot become blocked.
If there is an exhaust isolation valve, make sure that you
cannot operate the equipment with the valve closed to
avoid a risk of bursting!
+ Maximum permissible pressure at the pressure trans-
ducer: 21.8 psi (1.5 bar) absolute.
+ Always provide a free and pressureless exhaust outlet
to avoid damage to pump valves and risk of bursting of
condenser glassware.
+ Check the overpressure safety relief device at the ex-
haust waste vapor condenser at appropriate intervals.
+ Keep the electrical power cord away from heated sur-
faces.
• Provide a rm, level platform for the equipment. Check
that the system which you are going to evacuate is
mechanically stable. Check that all ttings are secure.
Ensure a stable position of the pump without any mechanical contact other than the pump feet.
• Comply with maximum permissible pressures at in-
let and outlet and with maximum permissible pres-
sure differences between inlet and outlet. See section
“Technical data”, pg. 26. Do not operate the pump
with overpressure at the inlet.
• Comply with maximum permissible pressures at the
pressure transducer. See section “Technical data”, pg.
26.
• Avoid overpressure of more than 17.5 psi absolute (1.2
bar absolute) in the event that inert gas is connected to
the pump, to the gas ballast or to a venting valve.
• Note: Flexible elements will shrink when evacuated.
• Connect hoses gas tight at inlet and outlet of the pump.
• Connect hoses gas tight at the pressure transducer.
• Ensure that no foreign objects can be drawn into the
pump.
Page 16
page 16 of 129
• Check the power source and the pump’s rating plate
to be sure that the power source and the equipment
match in voltage, phase, and frequency.
• Ensure that the coolant outlet pipe is always free and
that it cannot get blocked. If installing an optional coolant valve, it must always be in the supply line of the
exhaust waste vapor condenser.
NOTICE
Keep a minimum distance of 8 in (20 cm) between the
cooling fan and surrounding items (e.g., housing, walls,
etc.). Check fan regularly for dust/dirt. Clean fan guard
grill if necessary to avoid a reduction of ventilation.
PC 300x VARIO: Do not place the pumping unit on soft
surfaces (e.g., rubber foam) during operation. This may
reduce or block the fans’ air supply. Keep a minimum distance of 8 in (20 cm) between the cooling fan and surrounding items (e.g., housing, walls, etc.). Do not cover
the pumping unit.
Position the controller CVC 3000 and its vacuum line in
such a way that condensate cannot ow towards the pressure transducer.
Use only hoses at the inlet and outlet of the pump with
an inner diameter at least as large as the diameter of the
pump’s tubing (to avoid overpressure at the outlet, and
reduction of pumping speed at the inlet).
Allow the equipment to equilibrate to ambient temperature
if you bring it from cold environment into a room prior to
operation. Notice if there is water condensation on cold
surfaces.
Secure coolant hoses at the hose nozzles (e.g., with hose
clamp) to prevent their accidental slipping.
Comply with all applicable and relevant safety require-
ments (regulations and guidelines). Implement the re-
Page 17
page 17 of 129
quired actions and adopt suitable safety measures.
Ambient conditions
➨ Do not reach for this product if it has fallen into liquid.
There is a risk of deadly electrical shock. Unplug the
system immediately.
+ Do not use this product in an area where it can fall or
be pulled into water or other liquids.
+ Pay attention to the permissible maximum ambient
and gas inlet temperatures (see “Technical data”, pg.
NOTICE
26).
• Adopt suitable measures in case of differences from
recommended conditions, e.g., using the equipment
outdoors, installation in altitudes of more than 6500 ft
(2000 m) above mean sea level, conductive pollution or
external condensation on the pump.
• Do not operate this product near ames.
To the best of our knowledge the equipment is in compliance with the requirements of the applicable EC-directives and harmonized standards (see ”Declaration of Conformity”) with regard to design, type and model. Directive
EN 61010-1 gives in detail the conditions under which the
equipment can be operated safely (see also IP degree of
protection, “Technical data”, pg. 26).
Operating conditions
➨ These pumps are not approved for operation in po-
tentially explosive atmospheres. Do not operate the
pumps in potentially explosive atmospheres.
➨ Pumps without the
not approved for the pumping of potentially explosive atmospheres. Do not pump potentially explo-
”
” mark on the rating plate are
`
Page 18
page 18 of 129
sive atmospheres with those pumps.
➨ Pumps bearing the ”
are approved for the pumping of potentially ex-
plosive atmospheres according to their classica-
tion II 3G IIC T3 X according to ATEX, but they are
not approved for operation in potentially explosive
atmospheres (see section “
Equipment marking (ATEX)”, pg. 24).
➨ The pumps are not suitable to pump any of the sub-
stances listed below.
Do not pump:
- unstable substances
- substances which react explosively under impact
(mechanical stress) without air
- substances which react explosively when being exposed to elevated temperatures without air,
” mark on their rating plates
`
Important information:
`
- substances subject to auto-ignition,
- substances which are inammable without air
- explosive substances.
➨ The pumps are not approved for operation below
ground. Do not operate the pump below ground.
+ The pumps are not suitable for pumping dust.
Do not pump dust.
• Do not pump substances which may form deposits in-
side the pump. The pumps are not suitable for pumping
substances which may form deposits inside the pump.
Deposits and condensate in the pump may lead to increased temperatures even to the point of exceeding
the maximum permitted temperatures.
• Check the inlet and outlet of the pump, if there is a danger of forming deposits inside the pump, e.g., in the
pump chambers (the pump chamber is the part between
diaphragm and head cover. See section “Replacing
diaphragms and valves”, pg. 99). Inspect the pump
chambers regularly and clean if necessary.
Page 19
page 19 of 129
• Consider interactions and chemical reactions of
the pumped media. Ensure that the materials of the
pump’s wetted parts are compatible with the pumped
substances, see section “Technical data”, pg. 26.
When changing the substances pumped, we recom-
mend purging the pump with air or inert gas prior to
changing the pumped media. Purging the pump will
pump out residues and it will reduce the possibility of
reactions of the pumped substances with each other
and with the pump’s materials.
Safety during operation
➨ Adopt suitable measures to prevent the release of dan-
gerous, toxic, explosive, corrosive, noxious or polluting
uids, vapors and gases. To prevent any emission of
such substances from the pump outlet, install an appropriate collecting and disposal system and take protective action for pump and environment.
➨ You must take suitable precautions to prevent any for-
mation of explosive mixtures in the pump chamber or
at the outlet of the pump. In case, e.g., of a diaphragm
failure, mechanically generated sparks, hot surfaces or
static electricity may ignite these mixtures. Use inert
gas for gas ballast or venting, if necessary.
➨ Drain appropriately or otherwise remove any potential-
ly explosive mixtures at the outlet of the pump, or dilute
them with inert gas to non-explosive concentrations.
➨ Never operate this pump if it has a damaged cord or
plug.
+ If the pump is not working properly, has been dropped
or has fallen into water, contact your pump service provider.
+ Prevent any part of the human body from coming into
contact with vacuum.
Page 20
page 20 of 129
+ Never aspirate liquids or dust into the pump.
+ Make sure that the exhaust pipeline cannot become
blocked.
+ Check the overpressure safety relief device at the ex-
haust waste vapor condenser at appropriate intervals.
+ Attention: At pressures above approximately 795 Torr
(1060 mbar) the pressure reading becomes incorrect
due to saturation of the pressure transducer. The dis-
play ashes. Release pressure immediately! Risk of
bursting!
+ Comply with applicable regulations when disposing of
chemicals. Take into consideration that chemicals may
be contaminated. Take adequate precautions to protect people from the effects of dangerous substances
(chemicals, thermal decomposition products of uoroelastomers). Use appropriate protective clothing and
safety goggles.
+ Use only original manufacturer’s spare parts and
accessories. Otherwise the safety and performance of
the equipment, as well as the electromagnetic compatibility of the equipment might be reduced.
The CE mark or the cTÜVus mark may be voided if not
using original manufacturer’s spare parts.
+ Interruption of the pump (e.g., due to power failure),
failure of connected components or of parts of the supply, or change in parameters must not be allowed to
lead to dangerous conditions. In case of a diaphragm
failure or in case of a leak in the manifold, pumped substances might be released into the environment or into
the pump housing or motor.
Comply with all notes regarding proper use of the
pumps, as well as operation and maintenance guidance.
+ The residual leak rate of the equipment might render
possible an exchange of gas, albeit extremely slight,
Page 21
page 21 of 129
between the environment and the vacuum system.
Adopt suitable measures to prevent contamination of
the pumped substances or the environment.
• Ensure that no parts of your clothing, hair or ngers
can be caught or drawn in at the inlet of the pump. Nev-
er insert ngers or drop any other object into the inlet or
outlet.
• Pumping at high inlet pressure may lead to overpressure at the gas ballast valve. Pumped gases or condensate might be expelled if the valve is open. If an
inert gas supply is connected to the gas ballast, ensure
that its inlet pipeline is not contaminated.
• You must take suitable precautions to prevent any dangerous situation from arising if the controller starts a
NT VARIO or VARIO-B pump, switches a coolant valve
or opens a venting valve.
• Attention: If the controller is set to Autostart, the pro-
cess will start immediately after a power failure without pressing any further key. It is your responsibility to
ensure that automatic start-up of the system will not
lead to any dangerous condition. Provide appropriate
safety measures. Check prior to starting the process
whether the option ”Autostart” (menu: conguration) is
enabled.
• Pay attention to the safety symbol ”hot surfaces” on
the equipment. Hot parts may cause burns if touched.
Adopt suitable measures to prevent any danger arising
NOTICE
from hot surfaces or electric sparks. Ensure that hot
surfaces of the pump do not cause burns. Provide a
suitable contact guard if necessary.
• Ensure that the coolant outlet pipe at the waste vapor
condenser is always free and that it cannot get blocked.
Do not start the pump if the pressure difference between
inlet and outlet exceeds 16 psi (1.1 bar) at maximum.
Page 22
page 22 of 129
Prevent the backpressure of gases and the backow of
condensates at the outlet.
Check the liquid level in the catchpots or in the collecting
ask regularly and drain condensate in time to prevent
overlling. Install a level sensor (see ”Accessories”, pg.
92) for monitoring, if necessary.
Provide appropriate protective measures to allow for the
possibility of failure and malfunction. The protective measures must also allow for the requirements of the respective application.
In case of overload, the motor is shut down by a self-hold
NOTICE
thermal cutout in the winding.
Note: Only manual reset is possible. Press the START/
STOP key at the controller to conrm the error message.
Switch off the pump and disconnect from the power source.
Identify and eliminate the cause of failure. Wait approx.
ve minutes before restarting the pump.
Maintenance and repair
In order to comply with laws (occupational, health and
safety regulations, safety at work law and regulations for
environmental protection) vacuum pumps, components
and measuring instruments can only be returned when
certain procedures (see section “Notes on return to the
factory”, pg. 122) are followed.
Take advantage of our service seminars, which put special
focus on the maintenance and repair of vacuum pumps.
For details and for the online ”Instructions for repair” manual see www.vacuubrand.com.
In case of normal wear, the lifetime of the diaphragms and
valves is > 10000 operating hours. Bearings have a typical durability of 40000 h.
Page 23
page 23 of 129
➨ Ensure that the pump cannot be operated acciden-
tally. Never operate the pump if covers or other
parts of the pump are disassembled.
➨ Switch off the pump. Disconnect the electrical pow-
er cord and wait two minutes before starting mainte-
nance to allow the capacitors to discharge.
➨ Note: The pump may be contaminated with process
chemicals, which have been pumped during operation.
Ensure that the pump is completely decontaminated
before maintenance commences.
+ Take adequate precautions to protect people from the
NOTICE
effects of dangerous substances if contamination has
occurred. Use appropriate protective clothing, safety
goggles and protective gloves.
+ Wear parts have to be replaced regularly.
+ Never operate a defective or damaged pump.
+ Vent the pump before starting maintenance. Isolate
the pump and other components from the vacuum sys-
tem. Allow sufcient cooling of the pump. Separate the
pump from the coolant circuit and drain condensate, if
applicable.
Ensure that maintenance is done only by suitably trained
and supervised technicians. Ensure that the maintenance
technician is familiar with the safety procedures, which relate to the products processed by the pumping system.
Only dismantle the pump as far as necessary.
Page 24
page 24 of 129
Important information: Equipment marking (ATEX)
`
VACUUBRAND equipment bearing mark (see rating plate)
II 3G IIC T3 X
`
Internal Atm. only
Tech. File Ref.: VAC-EX01
and
VACUUBRAND equipment bearing mark (see rating plate)
X see manual
`
For equipment labelled with „
tion according to Directive 94/9/EC (ATEX) is valid:
Internal Atm. only, Tech. File Ref.: VAC-EX01.
The classication II 3G IIC T3 X according to ATEX is only valid for the inner part (wetted part, pumped gas or vapor) of the equipment. The equipment is not suitable for use in external, potentially explosive atmospheres
(environment).
The overall category of the equipment depends on the connected com-
ponents. If the connected components do not comply with the classication of the VACUUBRAND equipment, the specied category of the
VACUUBRAND equipment is no longer valid.
X see manual“ the following classica-
`
II 3G IIC T3 X,
`
Vacuum pumps and vacuum gauges in category 3 are intended for connection to equipment in which during normal operation explosive atmospheres caused by gases, vapors or mists normally don’t occur; or, if they
do occur, are likely to do so only infrequently and for a short period only.
Equipment in this category ensures the requisite level of protection during normal operation.
The use of gas ballast or the operation of venting valves is only permitted if thereby explosive atmospheres normally don’t occur in the interior
of the equipment or, if they do occur, are likely to do so only infrequently
and for a short period.
Page 25
page 25 of 129
The pumps are marked with ”X” (according to EN 13463-1), i.e., restrictions of the operation conditions:
• The equipment is designated for a low degree of mechanical stress
and has to be installed in a way so that it cannot be damaged from
outside.
Pumping units have to be installed so that they are protected against
shocks from the outside and against glass splinters in the event of
breakage (implosion).
• The equipment is designated for an ambient and gas inlet temperature
during operation of +10 to +40°C. Never exceed these ambient and
gas inlet temperatures. If pumping / measuring gases which are not
potentially explosive, extended gas inlet temperatures are permissible.
See instructions for use, section “Gas inlet temperatures” or “Technical data”.
After any intervention at the equipment (e.g., repair / maintenance) the ultimate vacuum of the pump has to be checked. Only if the pump achieves
its specied ultimate vacuum is the pump’s leak rate low enough to ensure that no explosive atmospheres will occur in the interior of the equipment.
After any intervention at the vacuum sensor, the leak rate of the equipment has to be checked.
Attention: This manual is not available in
all languages of the EU. The user must not
operate the device if he does not understand this manual. In such a case, a technically correct translation of the complete
manual has to be available. The manual
must be completely read and understood
before operation of the device and all required measures must be applied.
Page 26
page 26 of 129
Technical data
General technical data valid for all pumps/pumping units
Maximum permissible inlet pressure
(absolute)
Maximum permissible outlet pressure
(absolute)
Maximum pressure difference between
inlet and outlet
Maximum permissible pressure (absolute) at gas ballast valve
Permissible ambient temperature
storage / operation
Permissible relative atmospheric moisture during operation (no condensation)
Rated motor power
No-load speed 50/60 Hz rpm 30 - 2400
Maximum permissible range of supply
voltage ( ±10% )
Attention: Observe specications of rating plate!
psi
(bar)
psi
(bar)
psi
(bar)
psi
(bar)
°F
(°C)
% 30 to 85
hp
(kW)
14 to 140 / 50 to 104
(-10 to +60 / +10 to +40)
(0.575)
100-120 V~ 50/60 Hz,
200-230 V~ 50/60 Hz
16
(1.1)
16
(1.1)
16
(1.1)
17.5
(1.2)
0.77
Motor protection thermal cutout, manual reset
Coolant connection
(waste vapor condenser)
Maximum permissible pressure of
coolant at waste vapor condenser
Permissible range of coolant temperature
(waste vapor condenser)
psi
(bar)
°F
(°C)
hose nozzle for tubing
I.D. 1/4” - 5/16”
(hose nozzle DN 6-8 mm)
87 (absolute)
(6 (absolute))
5 to 68
(-15 to +20)
Gas inlet temperatures
Operating condition Inlet pressure
Continuous operation
Continuous operation
Short-time
(< 5 minutes)
> 75 Torr (100 mbar)
(high gas load)
< 75 Torr (100 mbar)
(low gas load)
< 75 Torr (100 mbar)
(low gas load)
Permitted range of gas
temperatures at inlet
➨ 50 °F to 104 °F
(+10°C to +40°C)
➨ 32 °F to 140 °F*
(0°C to +60°C*)
➨ 14 °F to 176 °F*
(-10°C to +80°C*)
* if pumping potentially explosive atmospheres: 50 °F to 104 °F (+10°C to +40°C)
Page 27
page 27 of 129
ME 4C NT
MZ 2C NT
Type
VARIO
Maximum pumping speed
50/60 Hz (ISO 21360)
Ultimate vacuum (absolute) without gas ballast*
Ultimate vacuum (absolute) with gas ballast*
Maximum rated current at:
100-120 V~ 50/60 Hz
200-230 V~ 50/60 Hz
Device fuse
Degree of protection IEC 529 IP 20
Inlet
cfm
(m3/h)
Torr
(mbar)
Torr
(mbar)
A
A
2.9
(4.9)
52.5
(70)
-
-
3.2
1.4
100-120V: slow blow fuse 8A
200-230V: slow blow fuse 4A
hose nozzle for tubing I.D. 3/8“
(hose nozzle DN 10 mm)
silencer or -
VARIO
1.66
(2.8)
5.3
(7)
9
(12)
3.2
1.4
MD 4C NT
VARIO
2.7
(4.6)
1.1
(1.5)
2.3
(3)
6.3
2.5
Outlet
hose nozzle for tubing I.D. 3/8“
(hose nozzle DN 10 mm)
A-weighted emission
sound pressure level**
(uncertainty K
: 3 dB(A))
pA
Dimensions L x W x H
approx.
dB(A) 45 43
in
(mm)
10.0 x 9.57 x
9.65
(254 x 243 x
245)
9.57 x 9.57 x
9.65
(243 x 243 x
245)
12.8 x 9.57 x
9.65
(325 x 243 x
245)
Weight approx. lbs. (kg) 30.4 (13.8) 30.4 (13.8) 35.9 (16.3)
* Ultimate vacuum at setting ”Pump down” at speed ”HI”
** Measurement according to EN ISO 2151:2004 and EN ISO 3744:1995 at 1500rpm and ulti-
mate vacuum with exhaust tube at outlet.
Page 28
page 28 of 129
PC 3002
PC 3003
Type
VARIO
Maximum pumping speed
50/60 Hz (ISO 21360)*
Ultimate vacuum (absolute) without gas ballast**
Ultimate vacuum (absolute) with gas ballast**
Maximum rated current at:
100-120 V~ 50/60 Hz
200-230 V~ 50/60 Hz
Device fuse
Degree of protection IEC 529 IP 40
Inlet
Outlet
cfm
(m3/h)
Torr
(mbar)
Torr
(mbar)
A
A
1.66
(2.8)
5.3
(7)
9
(12)
3.2
1.4
100-120V: 2 slow blow fuses 8A
200-230V: 2 slow blow fuses 6.3A
hose nozzle for tubing I.D. 3/8“
(hose nozzle DN 10 mm)
hose nozzle for tubing I.D. 3/8“
(hose nozzle DN 10 mm)
VARIO
1.66
(2.8)
0.5
(0.6)
1.5
(2)
6.3
2.5
PC 3004
VARIO
2.7
(4.6)
1.1
(1.5)
2.3
(3)
6.3
2.5
Volume of catchpot qt (ml) 0.52 (500)
A-weighted emission
sound pressure level***
(uncertainty K
: 3 dB(A))
pA
Dimensions L x W x H
approx.
dB(A) 43
in
(mm)
16.5 x 9.6 x 17.5
(419 x 243 x 444)
Weight approx. lbs. (kg) 38.4 (17.4) 45.4 (20.6) 45.4 (20.6)
* Pumping speed of diaphragm pump
** Ultimate vacuum at setting ”Pump down” at speed ”HI”
*** Measurement according to EN ISO 2151:2004 and EN ISO 3744:1995 at 1500rpm and ulti-
mate vacuum with exhaust tube at outlet.
Page 29
page 29 of 129
Type
MV 10C VARIO-B
PC 3010 VARIO
Maximum pumping speed
50/60 Hz (ISO 21360)*
Ultimate vacuum (absolute) without gas ballast**
Ultimate vacuum (absolute) with gas ballast**
Maximum rated current at:
100-120 V~ 50/60 Hz
200-230 V~ 50/60 Hz
Device fuse
Degree of protection IEC 529 IP 20
Inlet Pump
Pumping unit
cfm
(m3/h)
Torr
(mbar)
Torr
(mbar)
A
A
5.1
(8.6)
0.5
(0.6)
6.8
(9)
8.0
3.5
100-120V: slow blow fuse 8A
200-230V: slow blow fuse 4A
small ange DN 25
small ange DN 25 or hose nozzle for
tubing I.D. 5/8“ (hose nozzle DN 15 mm)
MD 12C VARIO-B
PC 3012 VARIO
5.9
(10.0)
1.5
(2)
6.8
(9)
8.0
3.5
Outlet
Volume collecting ask
(only pumping unit)
qt
(ml)
hose nozzle for tubing I.D. 3/8“
(hose nozzle DN 10 mm)
1.06
(1000)
A-weighted emission
sound pressure level***
(uncertainty K
: 3 dB(A))
pA
dB(A) 52
Dimensions L x W x H
approx.
Pump
Pumping unit
Weight approx.
Pump
Pumping unit
* Pumping speed of diaphragm pump
** Ultimate vacuum at setting ”Pump down” at speed ”HI”
*** Measurement according to EN ISO 2151:2004 and EN ISO 3744:1995 at 1500rpm and ulti-
mate vacuum with exhaust tube at outlet.
in (mm)
in (mm)
lbs. (kg)
lbs. (kg)
19.9 x 9.3 x 11.9 (505 x 237 x 303)
25.4 x 14.4 x 23.6 (645 x 365 x 600)
59.5 (27.0)
78.9 (35.8)
Page 30
page 30 of 129

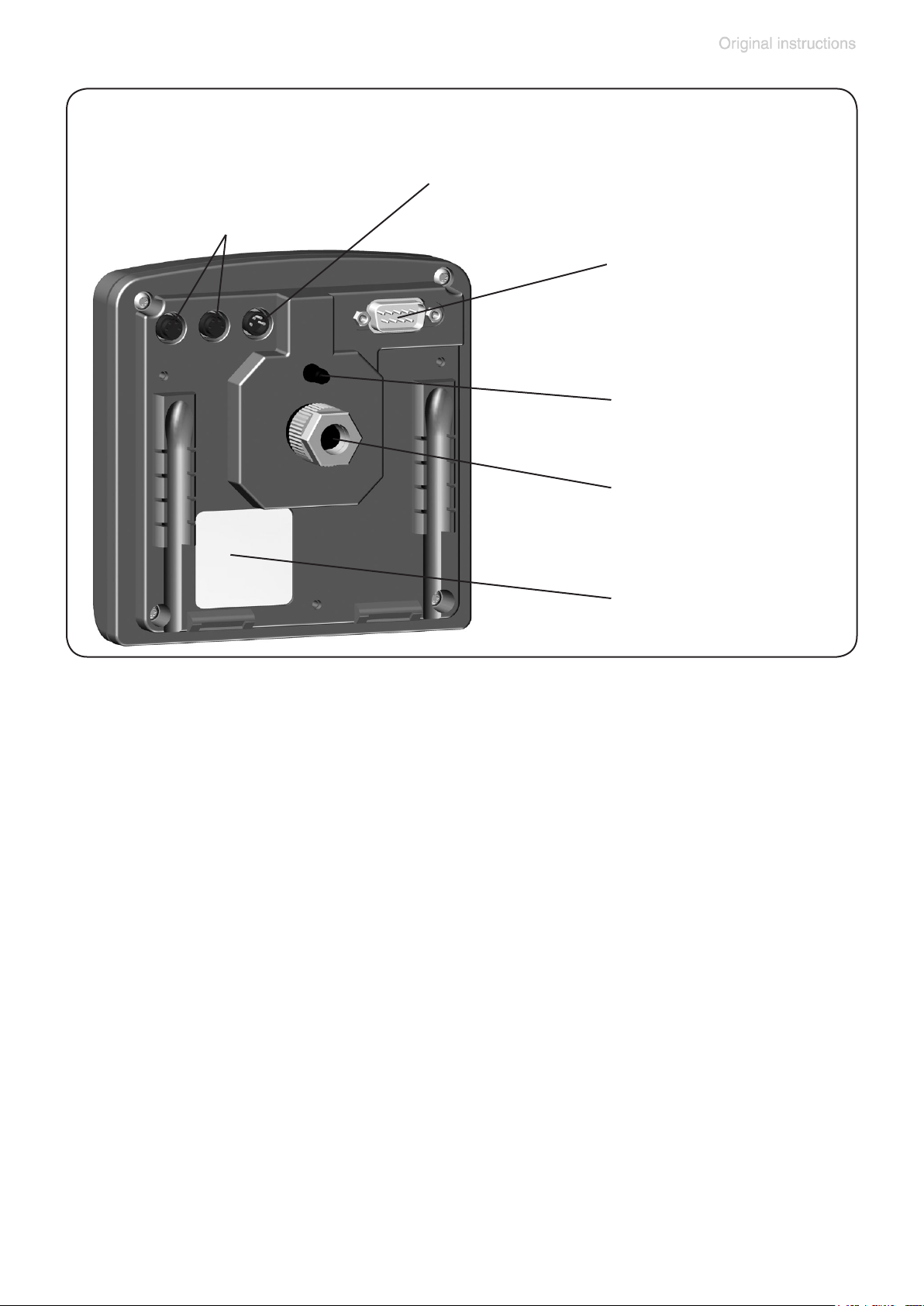

Controller CVC 3000
ceramic diaphragm (alumina),
Pressure transducer
Display LCD graphic display, illuminated
Pressure units / scale (selectable) Torr, mbar or hPa
Measuring range (absolute) 810 - 0.1 Torr (1080 - 0.1 mbar)
capacitive, absolute pressure,
gas type independent
Maximum control range with internal
pressure transducer (absolute)*
795 - 0.1 Torr (1060 - 0.1 mbar)
Resolution 0.07 Torr (0.1 mbar)
Maximum permissible pressure at pres-
sure transducer (absolute)
Maximum permissible temperature of
gaseous media**
continuous operation: 104°F (40°C),
for short periods (less than 5 minutes)
1125 Torr (1.5 bar)
up to 176°F (80°C)
Measurement uncertainty (absolute)
after careful adjustment and at constant
<± 0.75 Torr (1 mbar)
temperature
Temperature coefcient <± 0.07 mbar/K (0.05 Torr/K)
Ambient temperature range (operation) 50°F to 104°F (10°C to +40°C)
Ambient temperature range (storage) 14°F to 158°F (-10°C to +70°C)
Permissible relative atmospheric mois-
ture during operation (no condensation)
30% to 85%
Maximum permitted current of connected valves (connected components)
Degree of protection IEC 529
(front side)
4A
IP 42
connection for PTFE tube
Measurement connection of pressure
transducer
I.D. 3/8”, O.D. 5/16” (10 / 8 mm) or
hose nozzle for tubing
I.D. 1/4” / 3/8” (6 / 10 mm)
Venting connection hose nozzle for hose I.D. 3/16“ (4-5 mm)
Maximum admissible pressure at vent-
17.4 psi (1.2 bar) absolute
ing connection
Interface RS-232 C
* The actual vacuum control range in your application might be reduced due to ultimate vacuum
of the pump, volume of gas present, etc.
** if pumping potentially explosive atmospheres: 50 °F to 104 °F (+10°C to +40°C)
We reserve the right for technical modication without prior notice!
Page 31
page 31 of 129
Wetted parts
Components Wetted materials
Pump
Head cover; diaphragm clamping disc ETFE carbon ber reinforced
Diaphragm; tubing PTFE
Valves FFKM (ME 4C NT VARIO: PTFE)
O-rings FPM
Valve head (pumps NT VARIO) ECTFE carbon ber reinforced
Housing cover insert (pumps VARIO-B / PC
301x)
Gas ballast tube, inlet, outlet (pumps NT
VARIO)
Inlet (pumps VARIO-B)
Outlet (pumps VARIO-B) ETFE
Silencer // hose to silencer PBT/PVF // PVC
Fittings (pumps VARIO-B / PC 301x
VARIO) / elbow tting (PC 300x VARIO)
Pumping unit
Inlet pumping unit (PC 300x / PC 301x
VARIO)
Outlet pumping unit PET
Distribution head (inlet PC 300x) PPS glass ber reinforced
Tubing PTFE
Screw-in ttings ETFE / ECTFE
PTFE carbon reinforced
PTFE carbon reinforced
Stainless steel, highly corrosion
resistant
ETFE/ECTFE
PP / Stainless steel
O-ring at the catchpot (PC 300x VARIO) FPM
Overpressure safety relief device Silicone rubber / PTFE foil
Blind plug (inlet PC 300x VARIO) PP
Exhaust waste vapor condenser / catchpot /
collecting ask
Catchpot (inlet PC 301x VARIO) PMP
Drain screw (catchpot PC 301x VARIO) Steel, zinc-plated
O-rings at the catchpot (PC 301x VARIO) NBR
CVC 3000
Sensor Aluminum oxide ceramic
Vacuum connection (pump NT VARIO) PP
Vacuum connection (PC 300x VARIO) PP / PVDF
Sensor housing PPS / glass ber
Sensor seal Chemically resistant uoroelastomer
Venting valve seal FPM
Borsilicate glass
We reserve the right for technical modication without prior notice!
Page 32
page 32 of 129
Abbreviations
ETFE: Ethylene/Tetrauoroethylene
ECTFE: Ethylene/Chlorotriuoroethylene
FFKM: Peruoro elastomer
FPM: Fluoroelastomer
NBR: Nitrile butadiene rubber
PBT: Polybutylene terephthalate
PET: Polyethylene terephthalate
PMP: Poly-4-methylpentene-1
PP: Polypropylene
PPS: Polyphenylene sulde
PTFE: Polytetrauoroethylene
PVC: Polyvinyl chloride
PVDF: Polyvinylidene uoride
PVF: Polyvinyl uoride
Pump parts
Position Component
Diaphragm pump
1
NT VARIO
2 Controller CVC 3000
3 Mains connection
4 ON/OFF switch
Position Component
Exhaust waste vapor con-
13
denser
14 Catchpot
15 Coolant inlet
16 Coolant outlet
5 Pump rating plate
6 Fan
7 Inlet
8 Outlet
9 Gas ballast valve
10 Fuse holder
11 Recessed grip / handle
VACUU•BUS cable to
12
controller
17
Overpressure safety relief
device
18 Catchpot (inlet)
19 Drain screw
20 Collecting ask (outlet)
Connection jack
21
VACUU•BUS
22 Interface RS-232 C
Page 33
ME 4C NT VARIO
1
6
7
page 33 of 129
4
3
11
12
5
MZ 2C NT VARIO
1
11
11
11
12
10
6
2
4
3
8
7
6
9
6
5
10
8
2
Page 34
page 34 of 129
MD 4C NT VARIO
7
11
6
9
4
3
1
11
12
8
10
6
2
5
MV 10C VARIO-B /
MD 12C VARIO-B
11
12
9
10
outlet side MV 10C VARIO-B
4
3
5
8
7
6
8
2
outlet side MD 12C VARIO-B
Page 35
page 35 of 129
PC 3010 VARIO / PC 3012 VARIO
18
19
7
13
15
16
8
4
3
5
2
11
1
17
20
PC 3002 VARIO
16
8
15
13
17
9
5
2
1
7
14
4
Page 36
page 36 of 129
PC 3003 VARIO / PC 3004 VARIO
16
5
17
15
14
2
9
1
7
4
8
13
Rear side of PC 3002 / PC 3003 / PC 3004 VARIO
(shown: PC 3002 VARIO)
9
11
11
11
10
3
2122
Page 37
Rear side CVC 3000
page 37 of 129
jacks for connection of
VACUU•BUS components
(e.g., VSK 3000, coolant
valve)
Connection plug of the VACUU•BUS
line to NT VARIO / VARIO-B pump
serial interface
RS-232 C
venting connection
measurement
connection
rating plate
Page 38
page 38 of 129
Use and operation
When switching on the controller CVC 3000 for the very rst time, a menu
to select the language of the controller menu is displayed. Select the desired language (e.g., ”English”) by turning the selection knob and press
to conrm. Then select the pressure unit (”mbar”, ”Torr” or ”hPa”) in the
same way.
It is possible to access the language selection menu at any time
by switching on the controller while keeping the selection knob
pressed.
Installing a pump in a vacuum system
➨ If dangerous or polluting uids could be released at the
outlet, install an appropriate system to catch and dis-
pose of those uids.
+ Connect a gas-tight exhaust line at the pump outlet if
necessary. Always vent exhaust gases appropriately
(e.g., into a fume hood).
+ Never block the gas outlet. The exhaust line must al-
ways be free of obstructions (no back pressure) to ensure an unimpeded discharge of gas. The cross-section of the outlet tubing must be at least the size of the
pump’s exhaust connection.
+ Maximum permissible pressure: 21.8 psi (1.5 bar) ab-
solute.
+ Attention: At pressures above approximately 795 Torr
(1060 mbar) the pressure reading becomes incorrect
due to saturation of the pressure transducer. The dis-
play will ash. Release pressure immediately! Risk of
bursting!
+ Particles and dust must not be aspirated. If necessary,
you must install appropriate lters. You must ensure
their suitability concerning gas ow, chemical resis-
tance and resistance to clogging prior to use.
Page 39
page 39 of 129
+ Make sure ventilation is adequate, especially if the pump
is installed in an enclosure, or if the ambient temperature
is elevated. Provide external ventilation, if necessary.
• Reduce the transmission of vibration. Prevent mechanical load due to rigid pipelines. Insert elastic hoses or
exible elements as couplings between the pump and
rigid pipes.
Note: Flexible elements will compress or atten when
evacuated if not designed for use under vacuum.
• Hose connections at the pump inlet must always be
gas tight.
• A power failure may cause accidental ventilation of the
NOTICE
pump, especially if the gas ballast valve is open. If this
constitutes a potential source of danger, take appropriate safety measures.
• Check the power source and the pump’s rating plate
to be sure that the power source and the equipment
match in voltage, phase, and frequency.
Keep a distance of minimum 8 in (20 cm) between fan/
pumping unit and adjacent equipment or casework.
Use connecting hoses with large diameter and keep them
as short as possible to avoid ow losses. Locate the pump
as closely as possible to the application.
Always install outlet tubing descending from the pump to
avoid backow of condensate towards the pump.
Use a suitable valve to isolate the pump from the vacuum
application. This is to allow the pump to warm up before
pumping condensable vapors and to clean the pump after
use before it is switched off.
When assembling, ensure vacuum-tightness. After assembly, check the whole system for leaks.
Secure hose connections at the pump appropriately, e.g.,
with hose clamps, to protect against accidental detachment.
Page 40
page 40 of 129
To reduce pump noise emanating from the pump exhaust
port, connect an exhaust hose or use a silencer (see “Accessories”, pg. 92).
The VACUUBRAND controller CVC 3000 can only be
operated with components compatible with the VACU-
UBRAND VACUU•BUS system, (see “Accessories”, pg.
92).
The vacuum controller CVC 3000 controls VACUUBRAND
diaphragm pumps NT VARIO and VARIO-B, pumping
units PC 30xx VARIO, and optional coolant and venting
valves. Connected components (e.g., venting valve, level
sensor, external pressure transducer 3000 series) are au-
tomatically identied and congurated. Identical compo-
nents must be congurated beforehand; information upon
request.
Do not use more than one controller within the same
VACUU•BUS system.
Several controllers in the same VACUU•BUS system
will interfere with each other and result in error messages of the connected components (pumps, valves).
CVC 3000
The CVC 3000 is equipped with an internal capacitive
pressure transducer with ceramic diaphragm. It measures
the actual pressure independently of the gas type, and
with reference to the vacuum, i.e., absolute.
Pumps NT VARIO and VARIO-B:
Connect the controller CVC 3000 via the VACUU•BUS cable of the NT VARIO or VARIO-B pump to the diaphragm
pump. Attention: Do not apply off-axis forces when assembling or removing plug connections! Observe correct
orientation of the plug. To connect further components use
VACUU•BUS Y-adapters and extension cables.
Connect the vacuum connection of the controller via hose
or PTFE tubing to the vacuum application. The cross-section of the tubing should be as large as possible.
Inside a vacuum system where evaporation occurs, e.g.,
Page 41
page 41 of 129
a rotary evaporator, the vacuum is not uniform. For example, a condenser can act as a pump, or the vacuum in
the connecting tubing can be higher or lower than in the
application itself. This affects the measurement results as
well as the control levels. Therefore, carefully choose the
position where to connect the vacuum controller sensor.
Position the controller CVC 3000 and its vacuum line in
such a way that condensate cannot ow towards the pressure transducer.
Condensate and deposits will affect the measurement results. Clean the pressure transducer, if necessary. See
section “Cleaning the pressure transducer”, pg. 81.
NOTICE

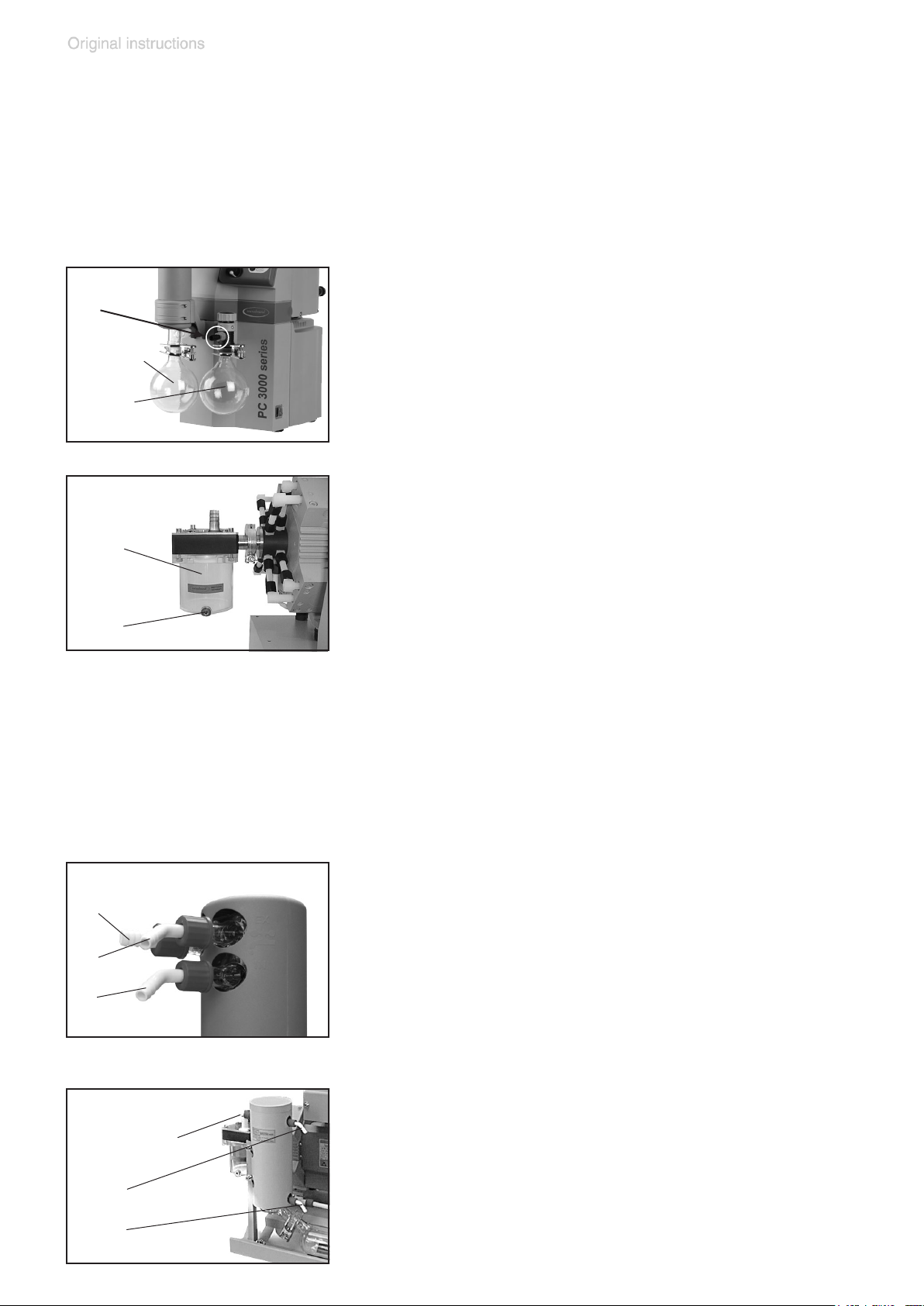

Pumping units PC 30xx VARIO with separator (at inlet)
and exhaust waste vapor condenser (at outlet)
Carrying the pumping units PC 3002 / PC 3003 / PC
3004 VARIO:
Hold the pumping unit with one hand at its handle and tilt
it slightly backwards.
Reach with the other hand underneath the pumping unit
and lift the pumping unit.
Or: Use the recessed grips on the side of the pump (below
pump heads). Do not grab if the pump is hot.
Attention: Do not grab the pumping unit at the holders of
the waste vapor condenser or of the catchpot!
Assembling the hose nozzle with union nut:
➨ Take the hose nozzle with attached compression fer-
rule and union nut out of the catchpot and put onto inlet
connection.
➨ Tighten the union nut by hand until you can feel the
stop. Then tighten an additional 1/4 rotation with an
open-ended wrench (size 17mm) for nal installation.
Catchpots:
Page 42
page 42 of 129
The catchpot at the inlet protects against droplets and particles from entering the pump.
+ Enhances lifetimes of diaphragms and valves.
+ Improves vacuum performance in applications with
condensable vapors.
PC 300x VARIO:
Both catchpots are coated with a protective lay-
catchpot at
outlet (14)
catchpot
at inlet (14)
(18)
(19)
er to protect against shattering in case of breakage or implosion.
➨ Assemble the catchpots at the inlet and at
the outlet using joint clips.
PC 301x VARIO:
➨ Assemble the inlet catchpot (18) with cen-
tring ring and clamping ring at the inlet of the
pump.
➨ Assemble the collecting ask (20) at the ex-
haust waste vapor condenser using the joint
clip.
➨ In addition to connecting the pump inlet to
the application, install a vacuum connection (hose) between the pressure transducer
(measurement connection at the rear of the
PC 300x VARIO
outlet (gas!) (8)
(16)
(15)
PC 301x VARIO
outlet (gas!) (8)
(16)
(15)
CVC 3000) and the vacuum system.
Exhaust waste vapor condenser:
➨ Assemble the hose nozzles for coolant inlet
(15) and coolant outlet (16) tubing and for
the gas outlet (8) at the exhaust waste vapor
condenser.
The exhaust waste vapor condenser enables
an efcient condensation of the pumped vapors
at the outlet.
+ No backow of condensates.
+ Controlled recovery of condensates.
+ Close to 100% solvent recovery.
+ The isolation cover protects against glass
splinters in case of breakage, acts as ther-
Page 43
page 43 of 129
mal isolation to avoid condensation of humidity and is intended to absorb shocks.
➨ Attach the tubing of the coolant circuit to the respective
hose nozzles (hose nozzles for tubing I.D. 1/4”-5/16”
(6-8 mm), see image) at the waste vapor condenser.
NOTICE
Check all hose connections prior to starting operation of
the cooling system.
Secure coolant hoses at the hose nozzles (e.g., with hose
clamps) to prevent their accidentally slipping off.
➨ Prevent the discharge of dangerous gases and vapors
to the surrounding atmosphere. If appropriate, connect
the exhaust line to a suitable treatment system.
+ Never block the gas outlet ((8) hose nozzle for tubing
I.D. 3/8” (10 mm)). The exhaust hose has always to be
unobstructed and without back pressure to enable an
unhindered discharge of gases and protect the pump
valves from damage.
• Note: Install the hoses of the cooling system in a way
to avoid the ow / dripping of condensed water onto the
pumping unit (especially cables and electronic parts,
see also IP degree of protection, “Technical data”, pg.
26.
• Ensure that the coolant outlet tubing is always unob-
structed and that it cannot get blocked.
• Maximum permissible coolant pressure at the exhaust
waste vapor condenser: 87 psi (6 bar) absolute. Outlet
ow must always be unhindered.
• Comply with the maximum permissible coolant pres-
sures of additional components in the coolant circuit
(e.g., coolant valve).
• Avoid overpressure in the coolant circuit (e.g., caused
by blocked or squeezed coolant hoses).
• Only install the optional coolant valve in the supply line
of the exhaust waste vapor condenser.
Page 44
page 44 of 129
During operation
➨ Vent and dispose of potentially dangerous gases or
vapors at the outlet of the pump appropriately.
+ Due to the high compression ratio, the pump might gen-
erate overpressure at the outlet. Check pressure compatibility with system components (e.g., exhaust tubing
or exhaust valve) at the outlet. Ensure that the pump
outlet is neither blocked nor restricted.
+ Maximum ambient temperature: 104 °F (40 °C)
Check the maximum temperatures, if installing the
pump in a cabinet or a housing. Make sure ventilation
NOTICE
is adequate, especially if the ambient temperature is
elevated.
• If the pump is installed at an altitude of more than 6500
ft (2000 m) above mean sea level, check compatibility
with applicable safety requirements, and adopt suitable
measures. There is a risk of the motor overheating due
to insufcient cooling.
• Check compatibility with the maximally permitted
pressure at outlet and the maximum pressure difference between inlet and outlet ports.
Do not start the pump if the pressure difference between
inlet and outlet ports exceeds max. 16.0 psi (1.1 bar).
Attempts to start the pump at higher pressure difference
may cause stalling and damage of the motor.
If pumping condensable vapors (water vapor, solvents,
etc.), let the pump run with gas ballast to help purge any
condensation in the pump.
Prevent internal condensation, transfer of liquids or dust.
The diaphragms and valves will be damaged, if liquids are
pumped in signicant amounts.
Check the pump regularly for external soiling and depos-
Page 45
page 45 of 129
its. Clean the pump if necessary to avoid an increase of
the pump’s operating temperature.
Operation with silencer (optional) at the outlet: Operating
the pump at a high inlet pressure or pumping dusty gases
for a long time may cause clogging of the silencer. Check
the silencer regularly and replace if necessary.
In case of overload, the motor is shut down by a self-hold
thermal circuit breaker in the winding.
Note: Only a manual reset is possible. Press the START/
STOP key at the controller to conrm the error message.
Switch off the pump and disconnect the electrical power
cord. Identify and eliminate the cause of failure. Wait ap-
prox. ve minutes before restarting the pump.
Check fan regularly for dust/dirt. Clean if necessary. Avoid
overheating (e.g., due to hot process gases).
A warm up period (approximately 15 min.) is required to
ensure that the rated ultimate vacuum and pumping speed
are attained. Avoid overheating (e.g., due to hot process
gases).
Important notes regarding the use of gas ballast
Gas ballast is a continuous purge to keep the pump’s interior as clean as possible and to reduce the possibility of
condensation inside the pump.
➨ Air and pumped media might react inside the pump or
at the outlet of the pump and form hazardous or explosive mixtures, when you use air rather than inert gas
for the gas ballast. This constitutes a risk of signicant
damage to equipment and/or facilities, a risk of personal injury or even loss of life.
+ Make sure that air/gas intake through the gas ballast
valve can never lead to hazardous, explosive or other-
Page 46
page 46 of 129
wise dangerous mixtures. If in doubt, use inert gas.
NOTICE
gas ballast (9)
(open)
To reduce condensation in the pump, do not pump vapor
before the pump has reached its operating temperature.
Open the gas ballast valve when pumping condensable
vapors. Turn gas ballast cap to open valve.
For condensable vapors (water vapor, sol-
vents, etc.):
- The gas ballast valve is open if the arrow on
the gas ballast cap is pointing towards the
labelling ”GB”.
MD 12C/MV 10C VARIO-B and PC 301x
VARIO: The gas ballast valve is open if the
arrow on the gas ballast cap is pointing away
from the pump‘s inlet.
- With gas ballast valve open, the ultimate vacuum will
be reduced.
- Use inert gas for gas ballast to avoid the formation of
explosive mixtures. A special adapter tting is needed
to connect an inert gas supply line (see “Accessories”,
pg. 92). This adapter replaces the standard gas ballast cap and allows for an inert gas line to be connected
via a KF DN 16 small ange at a maximum supply pressure of 17.5 psi (1.2 bar) absolute.
- Close the gas ballast valve by turning the cap 180°.
In case of low boiling solvents (when the formation of
condensate is unlikely), the use of gas ballast might be
unnecessary. Operating the pump without gas ballast increases the solvent recovery rate at the exhaust waste
vapor condenser.
Important notes concerning the operation of the exhaust waste vapor condenser
➨ Connect the exhaust to a suitable treatment system to
prevent the discharge of dangerous gases and vapors
to the surrounding atmosphere.
Page 47
page 47 of 129
+ Never block the gas outlet ((8) hose nozzle for tubing
I.D. 3/8” (10 mm)). The exhaust hose must always be
unobstructed and without back-pressure to enable an
unhindered discharge of gases.
+ Check the overpressure safety relief device (17) at the
exhaust waste vapor condenser (13) regularly; replace
if necessary. Check especially for deterioration, coalescence and cracks.
• Ensure that the coolant outlet hose is always free and
that it cannot get blocked.
• Maximum permissible coolant pressure at the exhaust
waste vapor condenser: 87 psi (6 bar) absolute
NOTICE
• Comply with the maximum permissible coolant pressures of additional components in the coolant circuit
(e.g., coolant valve).
• We strongly recommend installing an optional coolant
valve (see “Accessories”, pg. 92) in the supply line
of the exhaust vapor condenser to save water and reduce the risk of water spill.
• Avoid overpressure in the coolant circuit (e.g., caused
by blocked or kinked coolant hoses).
In case of condensation: Check the liquid level in both
catchpots (14) or in the collecting ask (20) during operation. Check the liquid level regularly. Do not allow the
catchpots or the collecting ask to overll. Drain catchpots or collecting ask in time to avoid overow. Install a
level sensor (see “Accessories”, pg. 92) for monitoring,
if necessary.
The maximum liquid level is at approximately 80% of the
total lling level to avoid problems when removing the
catchpots or the collecting ask.
Permissible range of coolant temperature at the exhaust
waste vapor condenser:
5 °F to 68 °F (-15°C to +20°C)
Check hose connections prior to starting operation of the
Page 48
page 48 of 129
cooling system.
Check coolant hoses regularly during operation.
Removing the catchpots:
Catchpot or collecting ask at outlet:
Remove joint clip. Remove catchpot or collecting ask and
drain condensate.
Catchpot at inlet:
Admit air or inert gas (via the pump inlet) to restore atmospheric pressure in the catchpot before attempting
removal. Remove joint clip. Remove catchpot and drain
condensate.
NOTICE
Catchpot at inlet (PC 301x VARIO):
Admit air or inert gas (via the pump inlet) to restore atmospheric pressure in the catchpot before attempting removal. Open drain screw (19) and drain condensate. Close
drain screw.
Reattach drained catchpots.
+ Important: Comply with regulations when disposing
of solvents/condensates. Recycle if possible; purify if
contaminated.
Shutdown & storage
NOTICE
The pump can be switched off under vacuum.
Short-term:
Has the pump been exposed to condensate?
- Allow the pump to continue to run at atmospheric pressure for a few minutes.
Has the pump been exposed to media which may damage
the pump materials or form deposits?
- Check and clean pump heads if necessary.
Page 49
page 49 of 129
Has the pressure transducer been exposed to media which
may form deposits?
- Clean pressure transducer at the CVC 3000 controller
if necessary.
Long-term:
- Take measures as described above regarding shortterm shutdown.
- Separate the pump from the application.
- Close inlet and outlet ports (e.g., with transport caps).
- Close the gas ballast valve.
- Drain catchpots.
- Store the pump under dry conditions.
Page 50
page 50 of 129
Vacuum controller CVC 3000
When switching on the controller CVC 3000 for the very rst time, a menu
to select the language of the controller menu is displayed. Select the desired language, e.g., ”English” by turning the selection knob and pressing
to conrm. Then select the pressure unit (”mbar”, ”Torr” or” hPa”) in the
same way.
It is possible to access the language selection menu at any time
by switching on the controller while keeping the selection knob
pressed.
After switching on the device, the version number of the software is
displayed, followed by the preselected function and the pressure reading.
Attention: Do not assemble or remove plug connections off-axis!
Orient the plug correctly before inserting. To connect additional
components use VACUU•BUS Y-adapters and extension cables. If
an external pressure transducer is connected, it is recognized automatically. Further information on how to use several sensors simultaneously is available upon request.
Keys
VENT:
• A short tap vents momentarily;
process continues.
• Pressing longer than 2 seconds vents the
system to atmospheric pressure (to 788 Torr
(1050 mbar) at maximum); process stops.
MODE:
• Selects menu ”function”
• Use for temporary switching during
operation to other functions
Start or Stop the process
ON/OFF switch
Page 51
page 51 of 129

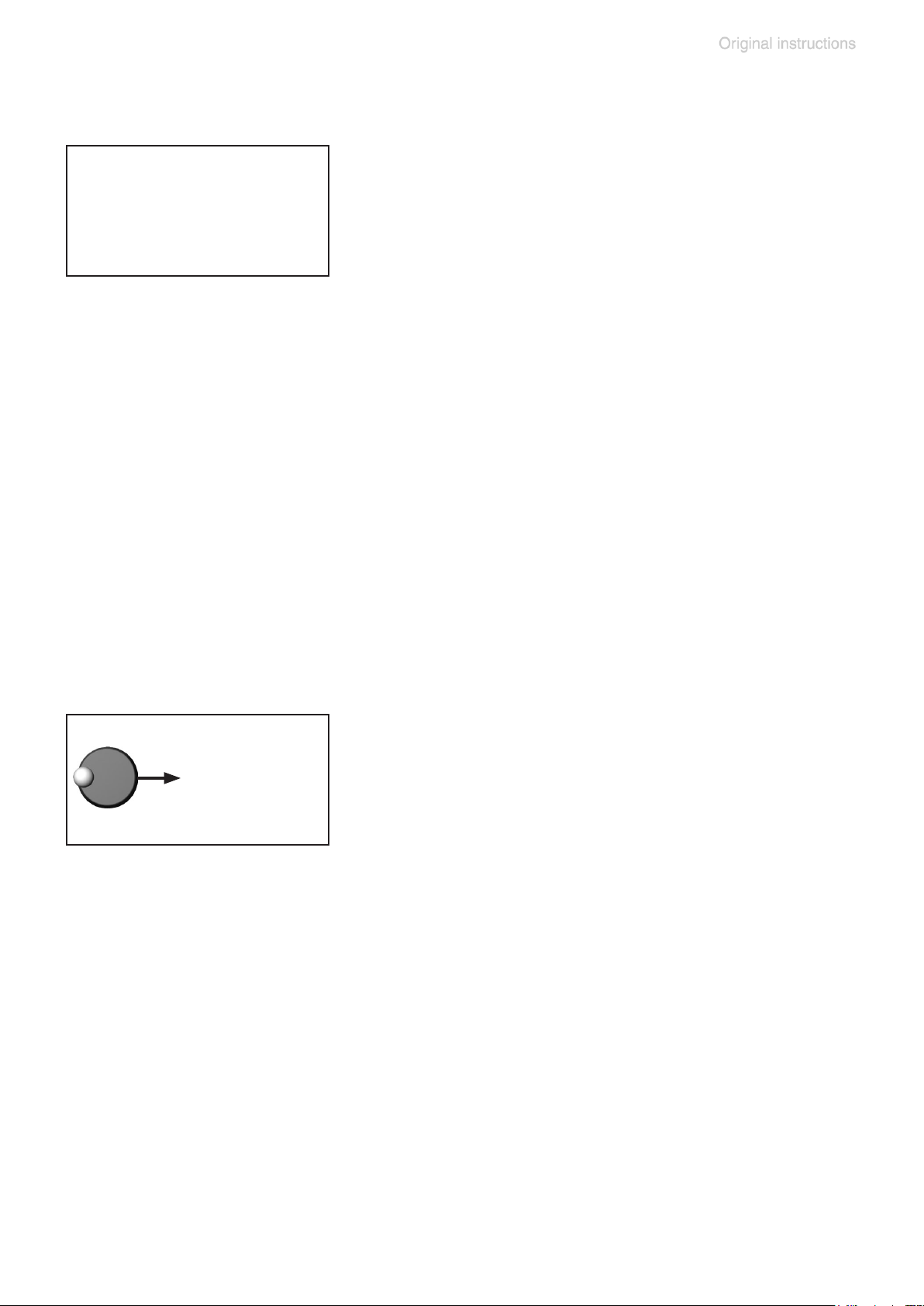

Selection knob
• Press to reach the set-up menu of the function
• Turn to choose the parameter you want to modify
• Press to select the parameter you want to modify
• Turn to change the set value of the parameter
• Press to conrm change of value and to reach further
parameters, or to leave the set-up menu
Display and symbols
Vac control
100
1013 . 2
mbar
Selected function (displayed in the upper left corner):
(A ”function” is an operation mode of the CVC 3000 controller.)
Pump down / Vac control / Auto mode (only with NT VARIO pump) /
Program / VACUULAN / Conguration

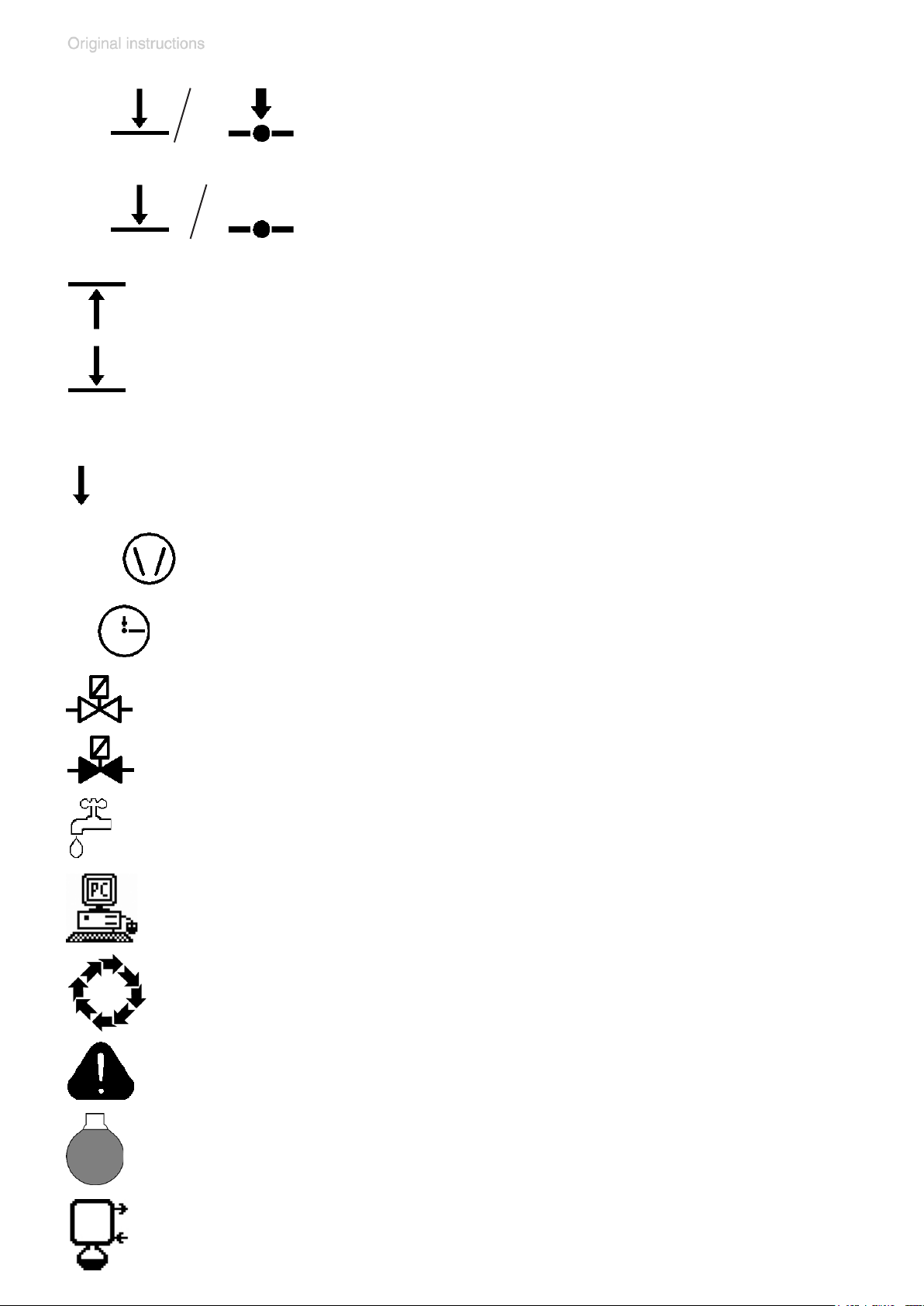

Other display symbols:
1013.2 Actual absolute pressure at the pressure transducer
mbar / Torr / hPa Preselected pressure unit
Page 52
100
page 52 of 129
Vacuum control to a preset vacuum value (here:
100
100 mbar/Torr/hPa)
(with NT pump / with NT VARIO pump)
Actual pressure is in the range ”Set vacuum + hysteresis” (with NT pump) / Actual pressure = ”Set
vacuum” (with NT VARIO pump)
Flashing: The actual pressure is greater than the preset maximum value (“Maximum“)
Minimum value (“Minimum“) reached
00:00:00
50%
5
Process runtime (only if process control is running)
Pump down (continuous pumping)
Pump symbol is displayed when pump is running. With an
NT VARIO pump, the pump’s motor speed is also displayed
in % of full speed.
Time meter is running (in function ”VACUULAN”); remaining
time in minutes is displayed
In-line valve switched on
Venting valve switched on
Coolant valve switched on
PC symbol: controller is in remote operation
Control is running
Warning notice (if necessary in combination with other sym-
bols), ashing
Level sensor activated; catchpots need to be emptied.
Peltronic emission condenser connected
Page 53
page 53 of 129
Notes on selecting the function
The CVC 3000 controller can be adapted to the specic application by
choosing the appropriate function depending on the connected components and the requirements of the application.
Automatic detection of the components
When switching on the controller, the conguration of the connected components is checked automatically.
Connected components (pump NT VARIO / VARIO-B, gauge head VSK
3000, valves) are detected automatically and controlled by the CVC
3000 until the controller is switched off. Switch off/on the controller to re-
new the conguration.
The last mode of operation and the preselected values (e.g., for pressure, speed or time for switching off) are stored.
If the preselections are chosen appropriately, it is possible to start immediately if similar operating conditions are desired.
The controller features ve functions and one conguration menu,
see section ”Menu guide”. Each of these functions involves different menu
options, which are presented automatically and reect the connected
components. The types of components connected (e.g., valves) determine the active menu items.
Changing the function:
➨ Switch controller on.
➨ Press ”START/STOP” key to terminate control in case control is run-
ning (e.g., if ”Autostart” is activated).
➨ Press ”MODE” key.
➨ Select function with knob and press to conrm.
+ Depending on the selected function and system components, the con-
troller provides different operating control, as follows:
’’Pump down’’
• Manages the continuous speed control of the NT VARIO/VARIO-B
pumps depending on preselected pressure and time settings.
• Coolant valve
Page 54
page 54 of 129
”Vac control”
• With pressure preselection, controls a NT VARIO / VARIO-B pump to
maintain pinpoint control of that pressure.
• Coolant valve
”Auto mode”
• Provides fully automatic boiling point determination and adaptation
with pinpoint precision, and optimization of pumping speed with NT
VARIO / VARIO-B pumps.
• Coolant valve
’’Program’’
• Control pump based on time and pressure preselections, or ”Auto
mode”
• Coolant valve
• Venting valve
”VACUULAN”
• Use continuous speed control to manage NT VARIO/VARIO-B pumps,
based on pressure and time preselections.
• Coolant valve
’’Conguration’’
Preselections for
• Adjustment of the pressure transducer
• Interface RS-232
• Sensors (conguration and switching between several sensors)
• Display (brightness and contrast of the display, language, sound)
• Autostart (automatic restart after power failure)
• Defaults (reset the controller to factory set values)
Page 55
Menu guide
page 55 of 129
Pump down
Pump down
Speed HI
Minimum Off
Delay Off
Duration Off
- - - - - - Graphic - - - - - -
- - - - - - - Back - - - - - - -
*
MODE
Function
Pump down
Vac control
Auto mode
Program
VACUULAN
Conguration
- - - - - - - - Back - - - - - - -
1013 . 2
mbar
*
Conguration
Adjustment 743 Torr
RS-232...
Sensors...
Display...
Autostart Off
Defaults Cancel
- - - - - - - Back - - - - - - -
*
VACUULAN
MODE
: or automatically after 20 seconds
*
without action
1013 . 2
mbar
VACUULAN
Set vacuum 19 Torr
Switch on 150 Torr
Delay 15 min
- - - - - - Graphic - - - - - -
- - - - - - - Back - - - - - - -
Page 56
page 56 of 129
Vac control
Vac control
Set vacuum 75 Torr
Speed HI
Maximum Off
Delay Off
Duration Off
- - - - - - Graphic - - - - - -
- - - - - - - Back - - - - - - -
*
MODE
Function
Pump down
Vac control
Auto mode
Program
VACUULAN
Conguration
- - - - - - - - Back - - - - - - -
1013 . 2
*
MODE
mbar
Auto mode
Sensitivity normal
Speed HI
Minimum Off
Delay Off
Duration Off
- - - - - - Graphic - - - - - -
- - - - - - - Back - - - - - - -
Auto mode
1013 . 2
mbar
*
MODE
: or automatically after
*
20 seconds without action
Program
1013 . 2
mbar
Program
Edit
Open 0
Store 0
Delay Off
- - - - - - Graphic - - - - - -
- - - - - - - Back - - - - - - -
Page 57
page 57 of 129
Pump down function
➨ Continuous pumping with pressure and time settings
• Operation on demand of a speed controlled NT VARIO / VARIO-B
pump
Preselections
+ Use the selection knob to select the parameters. All parameters can
be altered even while operation control is running.
+ Speed: Preselection of the motor speed for pump down. The selec-
tion ”HI” effects the maximum speed and best ultimate vacuum of the
pump (with automatic speed reduction at ultimate vacuum).
The ”Speed” is adjustable in a range of 1-100% and to ”HI”.
+ Minimum: The controller switches the pump off once the preset value
for ”Minimum” has been reached.
”Minimum” is adjustable in a range of 1-795 Torr (1-1060 mbar) or can
be set to ”Off”.
A preset ”Duration” (process time) has no effect if the process is
stopped due to a preset ”Minimum” before ”Duration” is reached.
+ Delay: ”Delay” determines the time the coolant valve remains open
after the process has been stopped.
The ”Delay” is adjustable in a range of 1-300 minutes or can be set to
”Off” (”Off” means that the coolant valve closes immediately when the
process stops.).
+ Duration: ”Duration” determines the total process time since control
start.
The process time is adjustable between 1-1440 minutes (24 h) or can
be set to ”Off”. ”Off” indicates that no endpoint for pump down is determined.
If a ”Duration” is preset, the controller switches off the pump when the
preset process time is reached, even if a preset ”Minimum” is still not
reached.
Page 58
page 58 of 129
+ If neither ”Minimum” nor ”Duration” is preset, process control has to be
stopped by pressing key ”STOP”.
The screen-shot shows the factory-set values.
Pump down
Speed HI
Minimum Off
Delay Off
Duration Off
- - - - - - Graphic - - - - - -
- - - - - - - Back - - - - - - -
00:00:00
Pump down
10 mbar
00:03:50

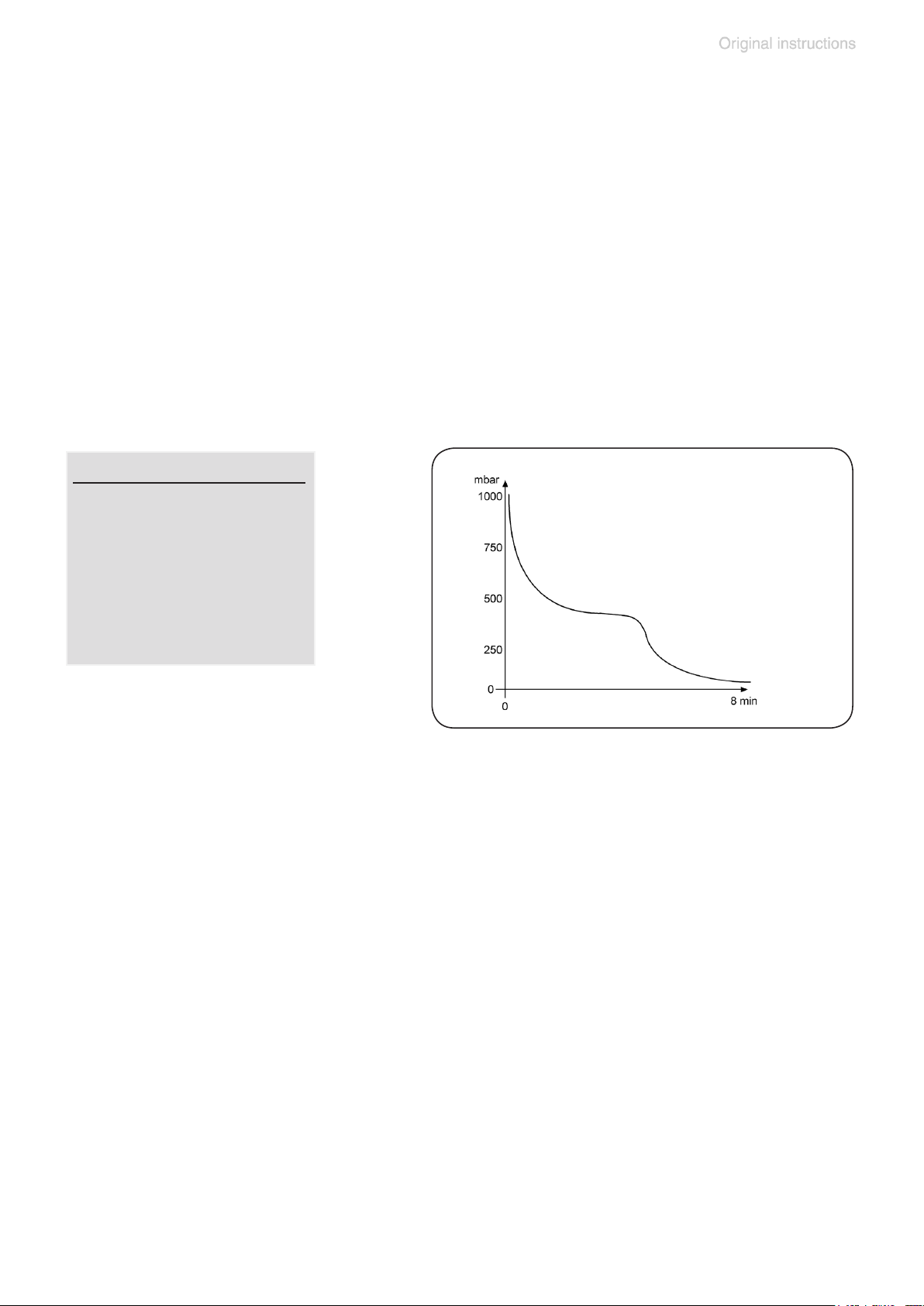

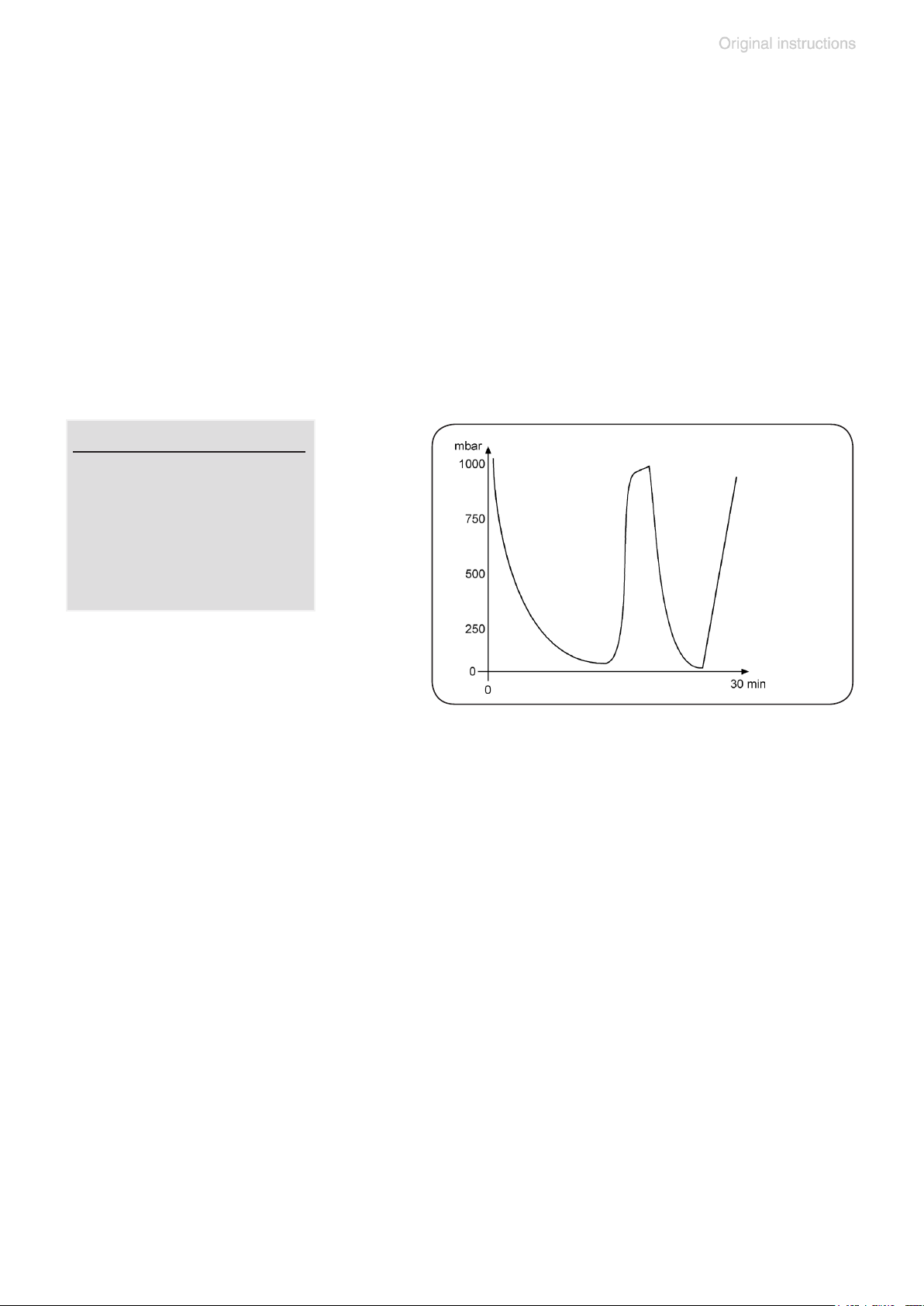

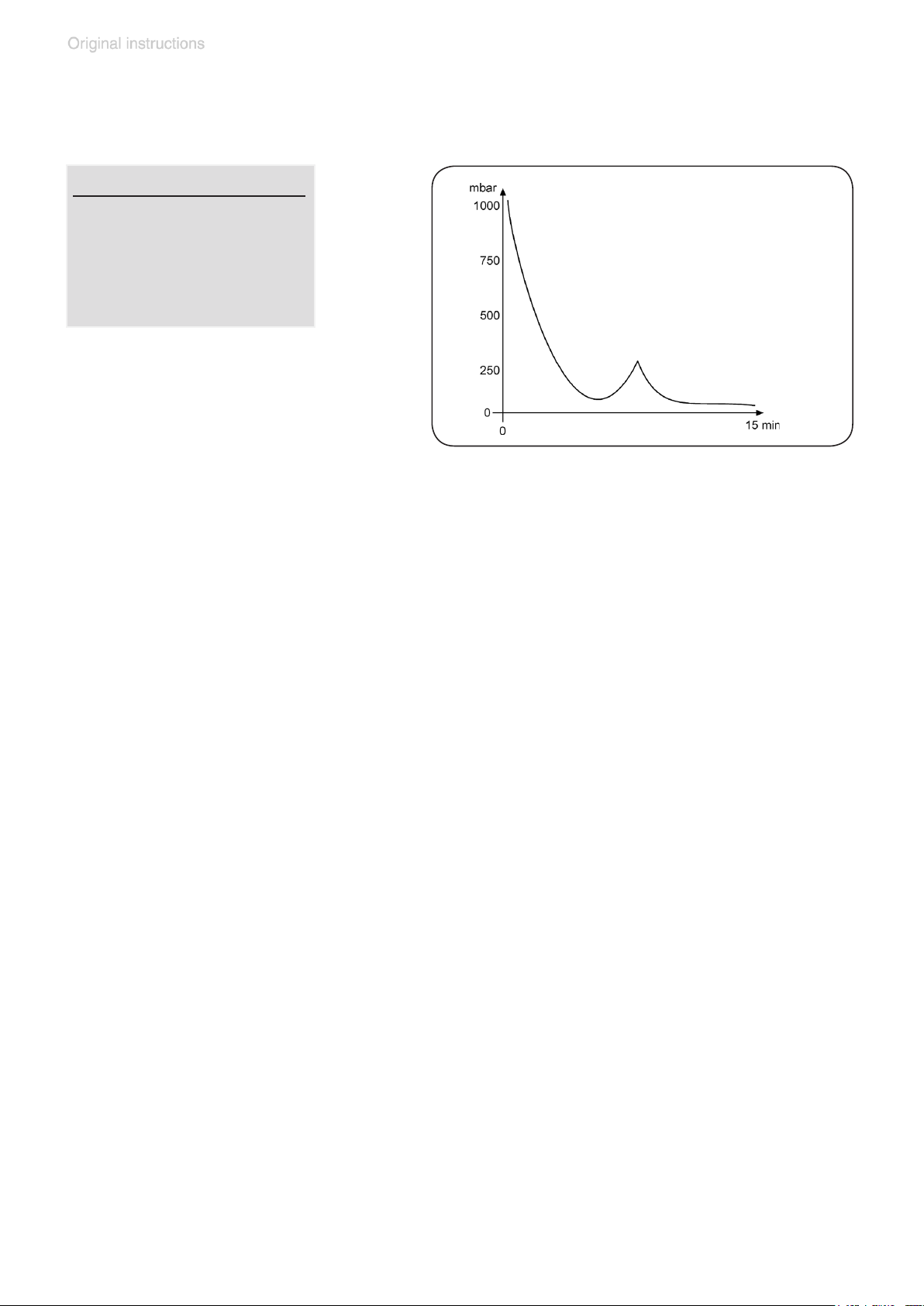

When selecting ”Graphic” the display shows a pressure vs. time curve.
The timeline in the diagram adapts automatically to the process time.
+ Press the selection knob twice to return to the standard display.
Temporary switching from ”Pump down” to ”Vac control” or ”Auto
mode” (only if control is running):
+ Press ”MODE” key. The controller switches to ”Vac control” function,
the current vacuum is used as set value.
+ Pressing ”MODE” key again switches to ”Auto mode” function. The
controller adapts the boiling pressure starting from the current vacuum
level.
+ The preset function of the controller does not change due to this tem-
porary switching. When pressing ”STOP” key, the controller is set
again to the ”Pump down” function.
Adapting the pumping speed during pump down:
+ Press the selection knob and turn.
+ Turning the knob to the left reduces the speed.
+ Turning the knob to the right increases the speed.
Page 59
page 59 of 129
Vac Control function
➨ Vacuum control to a preset vacuum value
• Operation on demand of a speed controlled pump (NT VARIO /
VARIO-B)
Preselections
+ Use the selection knob to select the parameters. All parameters can
be altered even while operation control is running.
+ Set vacuum: The ”Set vacuum” is the set point for vacuum control
with pinpoint precision for NT VARIO / VARIO-B pumps.
The ”Set vacuum” is adjustable in a range of 1-795 Torr (1-1060 mbar)
or can be set to ”Turbo”. The selection ”Turbo” leads to the optimum
backing pressure for a turbomolecular pump.
+ Speed: The maximum motor speed can be preselected (to control the
pumping speed).
The ”Speed” is adjustable in a range of 1-100% or can be set to ”HI”.
The selection ”HI” (recommended) provides the optimum pumping
speed of the pump and therefore an optimum ultimate vacuum.
+ Maximum: An upper pressure limit can be preselected. The pump
switches off if the pressure limit is exceeded, e.g., at the end of suc-
tions or ltrations. The pressure limit is only active once the pressure
has gone below ”Maximum”.
The ”Maximum” is adjustable in a range of 794-1Torr (1059 - 1 mbar)
(at the least 1 Torr (mbar) higher than the ”Set vacuum”) and to ”Off”.
”Off” means that no ”Maximum” value is preset.
+ Delay: ”Delay” determines the time the coolant valve remains open
after the process has been stopped.
The ”Delay” is adjustable in a range of 1-300 minutes or can be set to
”Off” (”Off” means that the coolant valve closes immediately when the
process stops.).
+ Duration: ”Duration” determines the total process time since control
start.
Page 60
page 60 of 129
A preset ”Duration” (process time) has no effect if the process is
stopped due to a preset ”Maximum” before ”Duration” is reached.
The ”Duration” is adjustable between 1-1440 minutes (24 h) or can be
set to ”Off”. ”Off” means that no endpoint of the process is dened.
The screen-shots show the factory-set values.
Vac control
Set vacuum 75 Torr
Speed HI
Maximum Off
Delay Off
Duration Off
- - - - - - Graphic - - - - - -
- - - - - - - Back - - - - - - -
00:00:00
Vac control
When selecting ”Graphic” the display shows a pressure vs. time curve.
The timeline in the diagram adapts automatically to the process time.
+ Press the selection knob twice to return to the standard display.
Temporarily switching from ”Vac control” to ”Auto mode” while process control is running:
+ Press ”MODE” key. The controller switches to ”Auto mode” and adapts
the boiling pressure starting with the actual set value. The preset func-
tion of the controller does not change due to this switching. When
pressing the ”STOP” key, the controller is in ”Vac control” function
again.
Adjustment of the set vacuum during vacuum control:
Dynamic, interactive adaptation:
+ Press the selection knob and keep pressed.
+ Turning the knob for a 1/4 turn to the left causes pump down.
+ Turning the knob for a 1/4 turn to the right causes venting.
+ When the knob is released, the current pressure value is used as new
set value.
Page 61
page 61 of 129
Alternatively:
Fine tuning:
The set vacuum can be ne-adjusted by turning the selection knob while
process is running.
+ Turn the selection knob.
+ A full turn causes a change of the set vacuum of 9 Torr (12 mbar).
+ Turning the knob one detent causes a change of the set vacuum of 1
Torr (mbar).
Page 62
page 62 of 129
Auto mode
➨ Control of a NT VARIO / VARIO-B pump in ”Auto mode”:
Automatic detection of boiling points, and automatic adjustment
of determined boiling points as process parameters change.
Preselections
+ Use the selection knob to set the parameters.
+ Sensitivity: The ”Sensitivity” of the control determines the control speed.
The ”Sensitivity” is adjustable to ”high”, ”normal” or ”low”.
High sensitivity leads to a reduced pump-down speed, e.g., for small
amounts of solvents or foaming processes. Use a low sensitivity for ”non-
critical” processes to reduce process time. Usually setting the ”Sensitiv-
ity” to ”normal” is appropriate.
+ Speed: The maximum motor speed can be preselected (to limit the
pumping speed).
The ”Speed” is adjustable in a range of 1-100% or can be set to ”HI”.
The selection ”HI” (recommended) causes an automatic limitation of
the adaptation depending on parameters determined during the pro-
cess. Only in case of very sensitive processes is it advisable to reduce
the maximum speed.
+ Minimum: If the vacuum value reaches ”Minimum” the process is
stopped. Use ”Minimum” for automatic process termination.
The ”Minimum” is adjustable in a range of 2-795 Torr (2 - 1060 mbar),
or can be set to ”Auto” or to ”Off”.
When selecting ”Auto” the controller switches off automatically at the
end of the process (boiling plateau). This is recommended only for
large amounts of solvents.
+ Delay: ”Delay” species the time the coolant valve remains open after
process stop.
The ”Delay” is adjustable in a range of 1-300 minutes or can be set to
”Off” (”Off” means that the coolant valve closes immediately when the
process stops.).
Page 63
page 63 of 129
+ Duration: ”Duration” determines the total process time since control
start.
The ”Duration” is adjustable between 1-1440 minutes (24 h) or can
be set to ”Off”. A preset ”Duration” (process time) has no effect, if the
process is stopped earlier by reaching the preset ”Minimum”.
The screen-shot shows the factory-set values.
Auto mode
Sensitivity normal
Speed HI
Minimum Off
Delay Off
Duration Off
- - - - - - Graphic - - - - - -
- - - - - - - Back - - - - - - -
00:00:00
Auto mode
50 mbar
00:07:45
When selecting ”Graphic” the display shows a pressure vs. time curve.
The timeline in the diagram adapts automatically to the process time.
+ Press the selection knob twice to return to the standard display.
Temporary switching from ”Auto mode” to ”Vac control” function
+ Press ”MODE” key. The controller switches to ”Vac control”. The cur-
rent pressure value is used and held as new set point.
+ The preset function of the controller does not change due to this tem-
porary switching. When pressing ”STOP” key, the controller is set
again to the ”Auto mode”.
Page 64
page 64 of 129
Program function
➨ Permits ten programs to be dened and stored, each with up to
ten program steps with preset values for vacuum and time.
+ Edit:
Use to dene the preset values for the process run:
Time: Denes either the process runtime for each program step to
reach a preset vacuum level or, if programming a ”Step”, the runtime
after having achieved the vacuum level. The total process runtime is
shown in the base line. Attention: A preset runtime of 99:59:59 hours
in the nal program step will cause the process to run endlessly. Ter-
minate the process by pressing the ”STOP” key .
Vacuum: Vacuum level to be attained.
Venting valve: Operating a venting valve to reach a preset vacuum
level.
”Step”: ”Step” causes pump down as fast as possible to the preset
vacuum level. As soon as the vacuum level is reached the time meter
starts running.
”Auto”: Auto =
point automatically, and will automatically adapt to changes in the boil-
ing point until a preselected time interval expires.
Auto = : indicates that the system will automatically adapt to chang-
es in the boiling point. The program step is nished when the selected
time or pressure value has been reached.
Selecting ”Auto” in combination with ”Step” in one program step is not
possible.
+ Open: Choose program (Programs 0 - 9).
➜
: indicates that the system will search for a boiling
+ Store: This command stores an edited program or the program of the
last process to one of the storage spaces 0 - 9.
+ Delay: ”Delay” species the time the coolant valve remains open after
process stop.
The ”Delay” is adjustable in a range of 1-300 minutes or can be set to
”Off” (”Off” means that the coolant valve closes immediately when the
process stops.).
Page 65
page 65 of 129
Editing:
+ To select row: turn and press selection knob.
+ To adjust parameter: turn the selection knob.
+ To conrm parameter: Press selection knob. Controller will accept
change and jump to the next parameter in the same row.
+ After 5 seconds without a change, the parameter is assumed to be the
current setting. Select the next row to edit or return to the Program menu.
➨ In case, store an edited program after having quit ”Edit” by storing it to
one of the storage spaces 0 - 9 (select ”Store”).
The screen-shot shows the factory-set values.
Program
Edit
Open 0
Store 0
Delay Off
- - - - - - Graphic - - - - - -
- - - - - - - Back - - - - - - -
00:00:00
Program 5 : 4 1013mbar
1013 mbar
00:28:00
When selecting ”Graphic”, the display shows a pressure vs. time curve.
Program number, and the step number in that program, along with the
vacuum setting, the actual current pressure and the actual runtime are
displayed across the top.
The timeline in the diagram adapts automatically to the process time.
+ Press the selection knob twice to return to the standard display.
The most recent process (except in ”VACUULAN” function) is stored in
the temporary data memory as long as the controller stays switched on.
This program can be transferred to a storage space and edited.
Once the program is nished, the clock symbol starts to ash. Conrm the
end of the program by pressing START/STOP (clock symbol will disappear).
Attention: If ”Autostart” is set to ”On”, the program will start again
(time will be reset to 00:00:00) after a power failure or after switching the controller off/on. Only if the end of the program (clock symbol
ashing) has been conrmed by pressing START/STOP, the program will
not start again.
Page 66
page 66 of 129
Attention: If the controller is set to ”Defaults”: ”On”, all stored programs will be deleted.
Application example
Example
NT VARIO vacuum pump with speed control (e.g., with a rotary evaporator): Degassing and automatic distillation with timing
Program
No hh:mm:ss Vac Vent. Step Auto
01 00:00:00 ATM ✔ ✔
02 00:10:00 300 ✔
03 01:00:00 2 *
04 00:01:00 ATM ✔ ✔
05 00:00:00 0
06 00:00:00 0
07 00:00:00 0
08 00:00:00 0
09 00:00:00 0
10 00:00:00 0
- - - - - - - - - - - - - Back - - - - - - - - - - - - - 01:11:00
➜
* If the pressure difference
between the vacuum for
degassing and the expected vacuum for distillation is
very small (distillation vacuum >75% of the degassing vacuum), select the
function ”Auto
” (adapting
the vacuum starting from
the current pressure) in-
stead of ” Auto
➜
” (at rst
searching the boiling point
automatically, and then
adapting the vacuum).
Program step 1 should be always a denite initial state, here atmospheric
pressure (ATM). To reach this state denitely, set a tickmark at ”Vent.”
and ”Step” by pressing the selection knob.
In step 2, pumping begins, attempting to reach 300 Torr/mbar as quickly
as possible (”Step”). Vacuum holds there for 10 minutes (degassing the
solvent).
In step 3, ”Auto
➜
” causes an automatic search of a boiling point in
the pressure interval between 300 Torr/mbar/hPa (depending on preset
pressure unit) and 2 Torr/mbar/hPa, followed by automatic adaptation to
changes in the boiling point. The following step starts either (1) once the
cumulative process time reaches the set limit (1 hour/60 minutes), even
if the preset pressure (2 Torr/mbar/hPa) has not been reached, or (2) if
a vacuum of 2 Torr/mbar/hPa is reached, even if the preset time has not
been completed.
Step 4 vents to atmospheric pressure as fast as possible and switches off
the control after one minute.
Page 67
page 67 of 129
VACUULAN function
➨ Optimizes vacuum control for vacuum networks
(e.g., VACUUBRAND VACUU•LAN)
➨ Permits on-demand operation of a speed-controlled pump
(NT VARIO/VARIO-B)
Preselections
+ Use the selection knob to select the parameters.
+ Set vacuum (the lower switch-off value): If the pressure drops below
the ”Set vacuum”, a time-meter starts to run and the motor speed is reduced. When the pressure exceeds the ”Set vacuum” pressure again,
the time meter is reset. If the ”Set vacuum” is not reached within 100
hours, the controller signals an error.
The ”Set vacuum” is adjustable in the range of 1-795 Torr (1-1060
mbar).
+ Switch on (the higher switching value): If the pressure exceeds this
pressure, pumping down starts again.
The ”Switch on” pressure is adjustable in the range of 2-795 Torr (2-
1060 mbar) (at the least 1 Torr (mbar) higher than the ”Set vacuum”).
In the event of a sudden high-pressure spike, pumping starts again
even if the ”Switch on” pressure has not been reached (pressure increase control).
+ Delay: If the vacuum is below ”Set vacuum” for longer than the ”Delay”
time, the pump is stopped. Pumping starts again in the event of a rapid
pressure increase or if the ”Switch on” level is exceeded.
The ”Delay” is adjustable in a range of 1-300 minutes or can be set to
”Off” (”Off” means that the pump stops immediately when the pressure
drops below ”Set vacuum”.).
Page 68
page 68 of 129
This screen-shot shows the factory-set values.
VACUULAN
00:00:00
VACUULAN 40 mbar
00:13:00
Set vacuum 19 Torr
Switch on 150 Torr
Delay 15 min
- - - - - - Graphic - - - - - -
- - - - - - - Back - - - - - - -
When selecting ”Graphic” the display shows a pressure vs. time curve.
The timeline in the diagram adapts automatically to the process time.
+ Press the selection knob twice to return to the standard display.
Page 69
page 69 of 129
Application examples
Assembly of a vacuum system
+ Assemble vacuum connection lines between vacuum pump, CVC
3000 and vacuum application.
+ Assemble the vacuum connection line between the controller and the
vacuum application, if the controller is not part of a pumping unit.
+ Assemble electrical connections.
+ Connect coolant if necessary.
Vacuum for ltration and suction
+ Select ”Pump down” function.
+ If necessary, set value for ”Speed” (high or low pumping speed). Re-
duce the speed in case of fast sedimentation (formation of a lter cake).
+ Set ”Minimum” to a value which provides adequate suction but does
not lead to evaporation of the solvent.
+ Start process by pressing ”START/STOP” key.
alternatively:
+ Select ”Vac control” function.
+ Set ”Set vacuum” to a value which does not lead to evaporation of the
solvent.
+ If necessary, set value for ”Speed” (high or low pumping speed). Re-
duce the speed in case of fast sedimentation (formation of a lter cake).
+ Set ”Maximum” pressure setting so that pump will switch off at the end
of the ltration process, or in the event that a lter cake cracks, leading
to a sudden pressure increase.
+ Start process by pressing ”START/STOP” key.
+ Tip for ltration: Adjust preset pressure to a value well above the
boiling pressure of the solvent (e.g., for water >>15 Torr (20 mbar)).
Set the maximum pressure to e.g., 375 Torr (500 mbar). Once the ltration has nished, the pressure increases and the pump is switched
off automatically.
Page 70
page 70 of 129
Vacuum for gel dryer, drying chambers and
vacuum concentrators
+ Select function ”Pump down” function. ”Speed” ”HI” is recommended.
For gel dryers set a lower speed if necessary (if the gels tend to crack).
+ Set ”Minimum” to prevent volatile components from evaporating. The
process is stopped automatically as soon as ”Minimum” is reached.
+ Set a process time (”Duration”) if necessary.
+ Start process by pressing ”START/STOP” key.
alternatively:
+ Select ”Vac control” function to dry at a predetermined vacuum level.
+ Set ”Set vacuum” to the preferred evaporation vacuum of the solvent.
+ Set a process time (”Duration”) if necessary.
+ Start process by pressing ”START/STOP” key.
Vacuum for distillation and evaporation
(e.g., rotary evaporator)
Fully automatic determination and adaptation of the boiling point
(recommended)
+ Select ”Auto mode”.
+ Start process by pressing ”START/STOP” key.
+ The ”Auto mode” allows a fully automatic distillation even if the boiling
vacuum is unknown. In case of solvent mixtures the vacuum is reduced
until all solvents or volatile components are evaporated (with respect
to the ultimate vacuum of the pump and the bath temperature).
+ If ”Minimum” is set, the controller switches off the pump when the pre-
set vacuum value is reached. The ”Minimum” should be well below
the boiling vacuum of the solvent to be evaporated and above the ultimate vacuum attainable in the apparatus. If the ”Minimum” is set to
”Auto” , the controller automatically switches off the pump at the end
of the evaporation (recommended for large solvent quantities only).
The setting of ”Duration” (process runtime) has no effect if the pump is
switched off due to ”Minimum” before ”Duration” is over.
Page 71
page 71 of 129
+ When setting a value for ”Duration” the controller switches off the
pump when ”Duration” has passed even if a preset ”Minimum” is still
not reached.
+ If neither ”Minimum” nor ”Duration” is preset, pumping down has to be
nished by pressing the ”START/STOP” key.
alternatively:
Semi-automatic distillation and evaporation
+ Select function ”Pump down”.
+ Start process by pressing ”START/STOP” key.
+ Observe process. As soon as evaporation starts, press ”MODE” key
(switching to ”Vac control”). The vacuum level is kept constant (at the
boiling pressure). Fine tuning of the vacuum value is possible by turning the selection knob.
Pressing ”MODE” key a second time switches to ”Auto mode” causing
the vacuum level to be automatically adapted to changes of the boiling
pressure.
alternatively:
+ Select ”Vac control” function.
+ Set a maximum ”Speed”, to select a faster or slower process.
+ To set ”Maximum” is usually not necessary, unlike ltrations, because
the pressure does not increase at the end of the evaporation.
+ Set a value for ”Duration” if the process should be terminated auto-
matically after a denite time.
+ Set ”Set vacuum” depending on the solvent and the temperature.
+ Start process by pressing ”START” key.
+ To temporarily switch to ”Auto mode”: Press ”MODE” key. The
controller switches to ”Auto mode”. The setting of the controller does
not change due to this switching. After pressing ”START/STOP” key
the controller is in ”Vac control” again.
Page 72
page 72 of 129
Fore-vacuum for high vacuum pumps
Using the pump NT VARIO as fore-vacuum pump (also know as a ”roughing pump” or ”backing pump”) for a high vacuum pump (e.g. turbo-molecular with high fore-vacuum tolerance):
+ Use ”Pump down” function with ”Speed” set to ”HI” or
+ Use ”Vac control” function with ”Set vacuum” set to ”Turbo”.
Page 73
page 73 of 129
Conguration
In the ”Conguration” menu the device parameters are preselected.
After 20 seconds without action the function ”Conguration” and its sub-
menus (except submenu ”Sensors”) are quit automatically without storing any possibly changed parameter.
Preselections
+ Use the selection knob to select the parameters.
+ Adjustment: Adjustment of the pressure transducer under vacuum
and/or at atmospheric pressure, see also section “Readjustment of
CVC 3000”, pg. 78.
Adjustment to atmospheric pressure is carried out at an absolute pres-
sure value between 795 - 525 Torr (1060 - 700 mbar). This is especially helpful in high elevation laboratories. Adjustment under vacuum
may be done at an absolute vacuum value between 0 - 15 Torr (0 - 20
mbar). In the range between 15 to 525 Torr (20 to 700 mbar) no adjustment is possible; ---- Torr is displayed.
+ RS-232: Conguration of the interface, setting of parameters and com-
mands, see section ”Interface”.
Baud rate can be set to 19200, 9600, 4800 or 2400, parity on ”8-N-1”,
”7-O-1” or ”7-E-1”, Handshake on ”no”, ”Xon-Xoff” or ”RTS-CTS” and
remote on ”On” or ”Off”.
+ Sensors: Selection of the pressure transducer to be controlled (maxi-
mum 4 external sensors).
+ Display: Selection of the device parameters ”Brightness” between 0
- 100%, ”Contrast” between 0 - 100%, ”Sound” ”On” or ”Off”, ”Units”
”mbar”, ”hPa” or ”Torr”, ”Language” ”German”, ”English”, ”French”,
”Italian”, ”Spanish”, ”Turkish”, ”Korean”, ”Chinese”, ”Portuguese”,
”Russian”, ”Polish”, ”Dutch”, ”Japanese”, ”Finnish”.
+ Autostart: If ”Autostart” is set to ”On” the controller restarts a running
process automatically after a mains failure. If this is unwanted, set
”Autostart” to ”Off”.
Attention: If ”Autostart” is preselected, the process starts
immediately after power failure without pressing any fur-
Page 74
page 74 of 129
ther key. It is the user’s responsibility to ensure that no
dangerous status of the system due to the automatic startup can occur and to provide appropriate safety measures.
If necessary, the user has to check prior to starting the
process if the option ”Autostart” is enabled.
+ Defaults: If ”Defaults” is set to ”Load”, the controller is reset to factory
set values. All stored programs and parameters are deleted.
This screen-shot shows the factory-set values.
Conguration
Adjustment 743 Torr
RS-232...
Sensors...
Display...
Autostart Off
Defaults Cancel
- - - - - - - Back - - - - - - -
Please continue with part 2 of this manual.
Page 75
Part II
page 75 of 129
Technology for Vacuum Systems
Instructions for use
Part II of II
Part II:
Readjustment - Interface parameters Accessories - Maintenance
Chemistry diaphragm pumps
ME 4C NT VARIO
MZ 2C NT VARIO
MD 4C NT VARIO
MV 10C VARIO-B
MD 12C VARIO-B
PC 3002 VARIO
PC 3003 VARIO
PC 3004 VARIO
PC 3010 VARIO
PC 3012 VARIO
Chemistry vacuum systems
Chemistry pumping units
Page 76
page 76 of 129
Contents
Part I................................................................. 1
Reset / Language selection ............................................. 8
Safety information! ........................................................... 11
Important information! ........................................................................11
General information ........................................................................... 13
Intended use...................................................................................... 13
Setting up and installing the equipment ............................................ 14
Ambient conditions ............................................................................ 17
Operating conditions ......................................................................... 17
Safety during operation ..................................................................... 19
Maintenance and repair..................................................................... 22
Important information: Equipment marking (ATEX) ..................... 24
`
Technical data ................................................................... 26
General technical data valid for all pumps/pumping units ................. 26
Gas inlet temperatures ..................................................................... 26
Wetted parts ..................................................................................... 31
Abbreviations .................................................................................... 32
Pump parts ....................................................................................... 32
Use and operation ............................................................ 38
Installing a pump in a vacuum system .............................................. 38
During operation ................................................................................ 44
Important notes regarding the use of gas ballast .............................. 45
Important notes concerning the operation of the
exhaust waste vapor condenser........................................................ 46
Shutdown & storage .......................................................................... 48
Vacuum controller CVC 3000 ............................................................ 50
Menu guide ........................................................................ 55
Pump down function ........................................................ 57
Vac Control function ........................................................ 59
Auto mode ......................................................................... 62
Program function .............................................................. 64
Application example ......................................................................... 66
VACUULAN function ........................................................ 67
Application examples....................................................... 69
Vacuum for ltration and suction ...................................................... 69
Page 77
page 77 of 129
Vacuum for gel dryer,
drying chambers and vacuum concentrators ................................... 70
Vacuum for distillation and evaporation (e.g., rotary evaporator) 70
Fore-vacuum for high vacuum pumps .............................................. 72
Conguration .................................................................... 73
Part II.............................................................. 75
Readjustment of CVC 3000 .............................................. 78
Calibration in the factory ................................................. 80
Cleaning the pressure transducer .................................. 81
Interface parameters ........................................................ 82
Setting of the interface ..................................................................... 83
Read commands ”CVC 2000” .......................................................... 84
Write commands ”CVC 2000” .......................................................... 85
Read commands ”CVC 3000” .......................................................... 87
Write commands ”CVC 3000” .......................................................... 89
Accessories ...................................................................... 92
Troubleshooting ............................................................... 95
Replacing diaphragms and valves.................................. 99
Cleaning and inspecting the pump heads
(pumps NT VARIO / PC 300x VARIO) ............................................ 100
Replacing the diaphragm ............................................................... 105
Replacing the valves ...................................................................... 107
Cleaning and inspecting the pump heads
(pumps VARIO-B / PC 301x VARIO) .............................................. 111
Replacing the diaphragm ................................................................115
Assembling the pump heads ...........................................................116
Replacing the valve at the distributor (outlet side) ..........................117
Assembling the connecting hoses ...................................................118
Replacing the device fuse .............................................................. 121
Notes on return to the factory ....................................... 122
Warranty .......................................................................... 125
Health and safety clearance form ................................. 126
EC Declaration of Conformity of the Machinery ............. 127
Page 78
page 78 of 129
Readjustment of CVC 3000
NOTICE
Adjustment at atmospheric pressure
The vacuum gauge was adjusted using factory standards,
which are traceable through regular calibration in an accredited laboratory (DAkkS calibration laboratory) to the
German national pressure standard. Depending on the
process and/or accuracy requirements, check the adjustment and readjust if necessary. For readjustment, the
device has to be adjusted both at atmospheric pressure
as well as under vacuum but only if the reference pressures are known with certainty. The adjustment mode can
be activated only if the process control is inactive. Press
”START/STOP” key, if necessary. In the range between 15
to 525 Torr (20 to 700 mbar) no adjustment is possible;
---- Torr is displayed.
An adjustment at atmospheric pressure is only
possible if the pressure is higher than 525 Torr
1013 mbar
➨ In ”Conguration” menu, select program ”Adjustment” at the controller.
➨ Use the selection knob to adjust the reading to the current atmospheric
pressure.
➨ Press the selection knob to conrm.
Note: To determine the actual atmospheric pressure, use an accurate
barometer or get accurate reading from the weather service, or a nearby
airport or other reliable source (taking into account the difference in alti-
(700 mbar).
Vent the measurement connection of the CVC
3000 and/or the vacuum system. Make sure
that the pressure transducer is at atmospheric
pressure.
tude between the source and the laboratory).
Page 79
page 79 of 129
Adjustment under vacuum
An adjustment under vacuum is only possible
if the pressure is lower than 15 Torr (20 mbar)
0 mbar
➨ In ”Conguration” menu, select program ”Adjustment” at the controller.
+ The reading is automatically adjusted to ”zero”.
➨ Press the selection knob to conrm.
absolute.
Evacuate the measurement connection of the
CVC 3000 to a pressure < 0.1 Torr (mbar)
(e.g. by applying a good two-stage rotary vane
pump).
Note: Adjustment under vacuum with an actual pressure higher than 0.1
Torr (mbar) reduces the accuracy of the measurement. If the pressure is
signicantly higher than 0.1 Torr (mbar), adjustment to a reference pressure is recommended.
Adjustment at a reference pressure
Instead of adjustment under vacuum to a pressure < 0.1 Torr (mbar), adjustment to a precise-
0...20 mbar
➨ In ”Conguration” menu, select program ”Adjustment” at the controller.
+ The reading is automatically adjusted to ”zero”.
ly known reference pressure within the range
of 0..... 15 Torr (20 mbar) is possible. Evacuate
the measurement connection of the CVC 3000
to a pressure within 0 ..... 15 Torr (0.....20 mbar).
➨ Use the selection knob to adjust the display to the reference pressure
at the vacuum line within the range of 0 ..... 15 Torr (0.....20 mbar).
➨ Press the selection knob to conrm.
Note: The accuracy of the value of the reference pressure will directly
affect the accuracy of the adjustment. If the nominal ultimate vacuum
of a diaphragm pump is used as reference vacuum, the accuracy of the
controller might be doubtful. The diaphragm pump may not achieve the
specied value (due to condensate, poor condition, failure of valves or
diaphragm, leaks).
Page 80
page 80 of 129
Calibration in the factory
Control of measuring equipment
The VACUUBRAND DAkkS calibration laboratory is accredited by the
Deutsche Akkreditierungsstelle GmbH (national accreditation body of the
Federal Republic of Germany) for the measurable variable pressure in
the pressure range from 7.5*10-4 Torr to 975 Torr (10-3 mbar to 1300
mbar) in accordance with the general criteria for the operation of testing
laboratories dened in the DIN EN ISO/IEC 17025:2000 series of standards (accreditation number D-K-15154-01).
The DAkkS is signatory to the multilateral agreements of the European
cooperation for Accreditation (EA) and of the International Laboratory Accreditation Cooperation (ILAC) for the mutual recognition of calibration
certicates.
Rely on calibration in the VACUUBRAND calibration laboratory:
- To meet the requirements of the DIN ISO 9000ff and 10012 series of
standards regarding the calibration of inspection, measuring and test
equipment at specied intervals.
- To document that the vacuum gauges calibrated are traceable to national standards of the PTB (Physikalisch-Technische Bundesanstalt;
German national institute for science and technology and the highest
technical authority of the Federal Republic of Germany for the eld of
metrology and certain sectors of safety engineering).
To order DAkkS calibration of the CVC 3000 pressure transducer,
order number: .............................................................................. 900217
Page 81
page 81 of 129
Cleaning the pressure transducer
NOTICE
Attention: Never use a pointed or sharp-edged tool to
clean the pressure transducer.
Never touch the ceramic diaphragm of the pressure
transducer with hard objects.
- Fill the measurement chamber with a solvent (e.g.,
benzene) and allow sufcient cleaning time. Observe
all regulations concerning usage and disposal of solvents!
- Drain the solvent and dispose of in accordance with
regulations. Repeat cleaning if necessary.
- Rinse the measurement chamber several times with alcohol in order to remove all solvent residues.
- Allow the pressure transducer to dry.
- Readjust the pressure transducer if necessary.
Readjustment of the controller CVC 3000
See section “Readjustment of CVC 3000”, pg. 78.
Page 82
page 82 of 129
Interface parameters
The CVC 3000 controller is equipped with a serial interface (RS 232C,
nine-pin Sub-D-plug).
+ Plug-in or remove the cable (cable RS 232C) from the interface only if
the equipment is switched off.
+ The interface is not electrically isolated from the measuring circuit.
+ For optimal electromagnetic compatibility assemble an interface lter
(cat. no.: 638235).
The controller is fully operable via the serial interface. Measuring results,
preselections and the status of the controller can be read at any time.
The factory-set read and write commands are completely compatible
with the VACUUBRAND CVC 2000 controller (see sections ”Read / Write
commands CVC 2000”). An extended instruction set is available using the
command ”CVC 3” (see sections ”Read / Write commands CVC 3000”).
Page 83
page 83 of 129
Setting of the interface
Set the interface parameters directly at the controller CVC 3000. The factory set values are underlined.
Edit and conrm the interface parameters in the ”Conguration” menu in
”RS-232” submenu using the selection knob.
➨ Baud: 2400, 4800, 9600 or 19200
➨ Parity: 8-N-1, 7-O-1 or 7-E-1
➨ Handshake: Off, Xon-Xoff or RTS-CTS
➨ Remote: On or Off
➨ Timeout: Sending 1s, receiving 10s.
In remote mode (Remote On, with the ”PC symbol” in the display) all keys
at the controller are inoperable.
To return to the manual operation of the controller, set the control-
ler to ”Remote off” in menu conguration: Switch off the controller.
Then switch the controller back on, and press the selection knob
within 2s.
➨ A maximum of ten commands per second is possible.
➨ Read commands and commands ”REMOTE”, ”CVC”, and ”STORE”
can always be sent. The sending of other write commands is only possible, if ”Remote on” is selected.
➨ The commands have to be written in capital letters.
➨ Command and parameter have to be separated by a blank.
➨ The string is terminated with <CR> or <LF> or <CR><LF>.
➨ The response of the controller is always terminated with <CR><LF>.
➨ Numerical values and parameters can be written without leading ze-
ros.
➨ The response of the controller always includes leading zeros.
Pin assignment RS-232 C
2: RxD 5: Mass 9: +5V (Bluetooth)
3: TxD 7: RTS
4: DTR 8: CTS
Page 84
page 84 of 129
Read commands ”CVC 2000”
Command Operation Response Description
IN_PV_1 current pressure
IN_PV_2 current frequency XX.X Hz pump speed
IN_CFG
IN_ERR error code
IN_STAT
device set
preselections
status of
process control
XXXX mbar/
Torr/hPa
0XXXX
1XXXX
2XXXX
3XXXX
X0XXX
X1XXX
XX0XX
XX1XX
XXX0X
XXX1X
XXXX0
XXXX1
1XXX
X1XX
XX1X
XXX1
0XXX
1XXX
X0XX
X1XX
XX00
XX01
XX02
XX03
XX10
XX11
XX20
XX21
XX22
XX23
XX30
XX31
XX32
XX33
unit according to preselections
VACUU•LAN
continuous pumping
vacuum control without automatic
vacuum control with automatic
no coolant valve
coolant valve
no venting valve
venting valve
no automatic switch off
automatic switch off
remote operation off
remote operation on
fault at pump electronics
overpressure
maloperation mode pressure transducer
last command to interface incorrect
coolant valve closed
coolant valve open
venting valve closed
venting valve open
VACUU•LAN: inactive
VACUU•LAN: pumping down,
current pressure > selected pressure
VACUU•LAN: pumping down, time for
automatic switching off is running
VACUU•LAN: system is switched off
continuous pumping: not active
continuous pumping; active
vacuum control: not active
vacuum control:
current pressure above set vacuum
vacuum control: current pressure
equals set vacuum (±1 Torr/mbar)
vacuum control:
current pressure below set vacuum
automatic: not active
automatic: determining boiling point
automatic: adjusting boiling point
automatic: system is switched off
Page 85
page 85 of 129
Write commands ”CVC 2000”
Command Operation Parameter Description
1
2
OUT_MODE function
OUT_SP_1 set vacuum XXXX
OUT_SP_V
OUT_SP_2 set frequency XX.X motor speed in Hz (99.9 for “HI”)
OUT_SP_3
OUT_SP_4 delay XX:XX hh:mm (hours:minutes)
OUT_SP_5
OUT_SP_6
set vacuum
with venting*
vacuum for switch
on (VACUU•LAN)
vacuum for auto-
matic switching
off
time for automatic
switching off
(VACUU•LAN)
3
30
31
32
XXXX
XXXX
XXXX
XX:XX hh:mm (hours:minutes)
continuous pumping
vacuum control without automatic
vacuum control with automatic
optional: sensitivity: low
optional: sensitivity: normal
optional: sensitivity: high
unit (mbar/Torr/hPa) according to preselection; see respective function for
parameter range
unit (mbar/Torr/hPa) according to preselection; see respective function for
parameter range
unit (mbar/Torr/hPa) according to preselection; see respective function for
parameter range
unit (mbar/Torr/hPa) according to preselection; see respective function for
parameter range
START
STOP
REMOTE
OUT_VENT
starting process
control
stopping process
control
remote
operation**
driving venting
valve
1
2
0
1
0
1
termination of process control
termination of process control and storage of the current pressure as new set
point
set controller to local operation
set controller to remote operation
close venting valve (not automatically)
open venting valve (process control
stopped)
* Pressure setting with venting is only possible in ”Vac control” function
if a venting valve is connected and congured, and vacuum control is
started. The venting valve opens automatically if the actual pressure
is at least 7.5 Torr (10 mbar) below the preset pressure. Automatic
venting becomes inactive if vacuum control is stopped (by pressing
”START/STOP” or ”VENT”), a pressure value is set using the command OUT_SP_1, or if the function is changed. Activate the command
OUT_SP_V again if necessary.
Page 86
page 86 of 129
** If remote operation is selected or deselected, the user has to ensure
that no dangerous status of the system can occur due to the change of
the mode of operation, and must take appropriate safety precautions,
especially if selecting remote operation interferes with a locally operated active process.
Page 87
page 87 of 129
Read commands ”CVC 3000”
Command Operation Response Description
IN_PV_1 current pressure XXXX.X mbar/Torr/hPa unit according to preselections
IN_PV_2 current speed XXX% 1-100% or ”HI”
IN_PV_3 time XX:XX h:m process runtime (hours:minutes)
pressure of all connected sensors,
IN_PV_X pressure XXXX.X XXXX.X ...
unit (mbar/Torr/hPa) according to
preselections
IN_PV_T
IN_CFG
operation time of
the controller
device set
preselections
+
Language:
0: German
1: English
2: French
3: Italian
4: Spanish
5: Turkish
6: Korean
7: Chinese
8: Portuguese
9: Russian
A: Polish
B: Dutch
C: Japanese
D: Finnish
XXXXdXXh operation time in days and hours
0XXXXXXXXXXXXXXX
1XXXXXXXXXXXXXXX
2XXXXXXXXXXXXXXX
3XXXXXXXXXXXXXXX
4XXXXXXXXXXXXXXX
5XXXXXXXXXXXXXXX
XyXXXXXXXXXXXXXX
XX0XXXXXXXXXXXXX
XX1XXXXXXXXXXXXX
XX2XXXXXXXXXXXXX
XXX0XXXXXXXXXXXX
XXX1XXXXXXXXXXXX
XXXX0XXXXXXXXXXX
XXXX1XXXXXXXXXXX
XXXXX0XXXXXXXXXX
XXXXX1XXXXXXXXXX
XXXXXX0XXXXXXXXX
XXXXXX1XXXXXXXXX
XXXXXXX0XXXXXXXX
XXXXXXX1XXXXXXXX
XXXXXXXX0XXXXXXX
XXXXXXXX1XXXXXXX
XXXXXXXXX0XXXXXX
XXXXXXXXX1XXXXXX
XXXXXXXXXX0XXXXX
XXXXXXXXXX1XXXXX
XXXXXXXXXXX0XXXX
XXXXXXXXXXX1XXXX
XXXXXXXXXXXX0XXX
XXXXXXXXXXXX1XXX
XXXXXXXXXXXXXyXX
XXXXXXXXXXXXXXyX
XXXXXXXXXXXXXXX0
XXXXXXXXXXXXXXX1
VACUU•LAN
Pump down
Vac control
Auto mode
Program
measuring device
y: 0......D: language
+
(hexadecimal)
pressure unit mbar
pressure unit Torr
pressure unit hPa
autostart off
autostart on
acoustic signal off
acoustic signal on
VARIO pump not connected
VARIO pump connected
VMS not connected
VMS connected
in-line valve not connected
in-line valve connected
coolant valve not connected
coolant valve connected
venting valve not connected
venting valve connected
fault indicator not connected
fault indicator connected
level sensor not connected
level sensor connected
remote module not connected
remote module connected
y: 1......9: sensor number
y: 1......9: sensor quantity
remote operation off
remote operation on
Page 88
page 88 of 129
Command Operation Response Description
IN_STAT
IN_ERR fault status
status process
control
0XXXXX
1XXXXX
X0XXXX
X1XXXX
XX0XXX
XX1XXX
XXX0XX
XXX1XX
XXXX0X
XXXX1X
XXXX2X
XXXX3X
XXXX4X
XXXX5X
XXXXX0
XXXXX1
XXXXX2
XXXXX3
0XXXXXXXX
1XXXXXXXX
X0XXXXXXX
X1XXXXXXX
XX0XXXXXX
XX1XXXXXX
XXX0XXXXX
XXX1XXXXX
XXXX0XXXX
XXXX1XXXX
XXXXX0XXX
XXXXX1XXX
XXXXXX0XX
XXXXXX1XX
XXXXXXX0X
XXXXXXX1X
XXXXXXXX0
XXXXXXXX1
pump off
pump on
in-line valve closed
in-line valve open
coolant valve closed
coolant valve open
venting valve closed
venting valve open
VACUU•LAN
Pump down
Vac control
Auto mode
Program
measuring device
control off
pump down determining boiling point
set vacuum reached boiling pressure found
current pressure below set vacuum
- automatic switch-off
no fault at pump
fault at pump
no fault at in-line valve
fault at in-line valve
no fault at coolant valve
fault at coolant valve
no fault at venting valve
fault at venting valve
no overpressure
overpressure
no fault at pressure transducer
fault at pressure transducer
no external fault
external fault
catchpot not full
catchpot full
last interface command correct
last interface command incorrect
IN_SP_1 set vacuum XXXX mbar/Torr/hPa unit according to preselections
IN_SP_2 maximum speed XXX% speed in % (1-100% or ”HI”)
switching pressure for VACUU•LAN
or two point control;
unit according to preselections
IN_SP_3
switching
pressure
XXXX mbar/Torr/hPa
Page 89
page 89 of 129
Command Operation Response Description
IN_SP_4 delay XX:XX h:m hours:minutes (00:00 = Off)
IN_SP_5
IN_SP_6 runtime XX:XX h:m process runtime (hours:minutes)
IN_SP_P1y time XX:XX:XX h:m:s
IN_SP_P2y pressure XXXX mbar/Torr/hPa
IN_SP_P3y venting valve
IN_SP_P4y Step
IN_SP_P5y Auto
IN_PV_Sx
switch off
pressure
current pressure
of pressure trans-
ducer x
XXXX mbar/Torr/hPa
0
1
0
1
0
1
XXXX mbar/hPa/Torr
”Maximum” for ”Vac control”,
”Minimum” for ”Pump down”)
unit according to preselections
time in program step y (0......9)
(hours:minutes:seconds)
pressure in program step y (0......9)
unit according to preselections
no venting valve in program step y
(0......9)
venting valve in program step y
(0.....9)
no ”Step” in program step y (0.....9)
”Step” in program step y (0......9)
no ”Auto” in program step y (0.....9)
”Auto” in program step y (0......9)
pressure of pressure transducer x
(order of numbering according to
display in ”Sensors” menu)
IN_VER version CVC 3000 VX.XX software version
Write commands ”CVC 3000”
Command Operation Parameter Description
OUT_MODE function
OUT_CFG
conguration
(bus monitoring)
0
1
2
3
30
31
32
4
yXXX
X0XX
X1XX
X2XX
XX0X
XX1X
XXX0
XXX1
VACUU•LAN
Pump down
Vac control
Auto mode
optional: sensitivity: low
optional: sensitivity: normal
optional: sensitivity: high
Program
y: 0......D: language
”Read commands CVC 3000”
pressure unit mbar
pressure unit Torr
pressure unit hPa
Autostart off
Autostart on
acoustic signal off
acoustic signal on
+
(hexadecimal), see
Attention (OUT_MODE): If control is running, it is only possible to switch either from 1 to 2, or
from 2 to 3, or from 3 to 2. The set vacuum is adopted in each case.
Page 90
page 90 of 129
Command Operation Parameter Description
OUT-SP_1 set vacuum XXXX
OUT_SP_V
set vacuum with
venting
XXXX
unit according to preselection; see respective function for parameter range
unit according to preselection; see respective function for parameter range
OUT_SP_2 speed XXX speed in % or ”HI”
OUT_SP_3 start-up pressure XXXX
unit according to preselection; see respective function for parameter range
OUT_SP_4 delay XX:XX hh:mm (hours:minutes)
OUT_SP_5
switch-off
pressure
XXXX
unit according to preselection; see respective function for parameter range
OUT_SP_6 switch-off time XX:XX hh:mm (hours:minutes)
OUT_SP_PL open program X program 0......9
OUT_SP_PS store program X program 0......9
OUT_SP_P1y time
XX:XX:XX
+XX:XX:XX
OUT_SP_P2y pressure XXXX
total runtime until program step y
(0.....9) or time for program step y
(0.....9) (additive)
pressure at program step y (0......9)
unit according to preselection
OUT_SP_P3y venting valve
OUT_SP_P4y Step
OUT_SP_P5y Auto
0
1
0
1
0
1
2
no venting valve in program step y (0...9)
venting valve in program step y (0......9)
no ”Step” in program step y (0.....9)
”Step” in program step y (0......9)
no ”Auto” in program step y (0.....9)
”Auto ” in program step y (0......9)
”Auto ” in program step y (0......9)
START 1 started
STOP
REMOTE*
ECHO**
0
1
2
0
1
0
1
Stop and delete fault
Stop
Stop and adopt the set vacuum
Remote off
Remote on
Echo off
Echo on,
write command with return value
CVC
2
3
CVC 2000 commands
CVC 3000 commands***
➜
OUT_VENT
STORE
0
1
2
venting valve closed
venting valve open
venting until atmospheric pressure
(788 Torr (1050 mbar) at maximum)
store settings permanently,
if ”ECHO = 1” after realization
Page 91
page 91 of 129
Command Operation Parameter Description
OUT_SENSOR
1
2...9
internal sensor
external sensors (if connected)
* If remote operation is selected or deselected, the user has to ensure
that no dangerous status of the system can occur due to the change of
the mode of operation, and must also take appropriate safety precautions, especially if selecting remote operation interferes with a locally
operated active process.
** With command ”ECHO 1” a return value can be activated at write com-
mands. A return value is only given if the command is performed correctly.
*** After being switched on, the controller is in ”CVC 2” mode by default.
Send ”CVC 3” and ”STORE” to permanently set the controller RS 232C
commands to the extended set ”CVC 3000”.
Page 92
page 92 of 129
Accessories
External pressure transducer VSK 3000, ..................................................636657
capacitive, ceramic diaphragm sensor 1080-0.1 mbar
Coolant valve VKW-B, VACUU•BUS ...........................................................674220
Venting valve VBM-B / KF 16, VACUU•BUS............................................... 674217
VACUU•BUS Y-type adapter ......................................................................636656
VACUU•BUS extension cable, 6.6ft (2m) .................................................... 612552
VACUU•BUS wall jack .................................................................................636153
Serial cable RS 232C, 9-pin, Sub-D .............................................................637837
Installation set CVC 3000 (clips and screws) ..............................................636593
Level sensor.................................................................................................699908
(control of liquid level in catchpots, only for PC 3002/3003/3004 VARIO)
Peltronic exhaust waste vapor condenser................................................699905
VACUU•BUS Digital-I/O-Module .................................................................636228
(e.g., fault indicator / remote module)
VACUU•BUS Analog-I/O-Module ................................................................636229
(for analog input and output of vacuum and motor speed)
Silencer (with connection hose)....................................................................636588
Attention: Dust-laden gases, deposits and condensed solvent vapor can
restrict air ow out the silencer. The resultant back pressure can lead to
damage of pump bearings, diaphragms, and valves. Under those conditions, a silencer must not be used.
Ways to connect NT VARIO chemistry diaphragm pumps:
Small ange KF DN 16, ..............................................................................677058
with hose - for installation at hose nozzle
Adapter hose nozzle DN 10 to hose nozzle 1/2
Small ange KF DN 16, ..............................................................................699918
for assembly directly at the valve head (at inlet of ME 4C NT VARIO / MD 4C NT
VARIO; at outlet of ME 4C NT VARIO / MZ 2C NT VARIO)
Small ange KF DN 16, ...............................................................................699919
for assembly directly at the valve head (at outlet of MD 4C NT VARIO)
Adapter to PTFE tubing*, ............................................................................636274
for assembly directly at the valve head (at inlet of ME 4C NT VARIO / MD 4C NT;
at outlet of ME 4C NT VARIO / MZ 2C NT VARIO)
Adapter to PTFE tubing*, ............................................................................636275
for assembly directly at the valve head
(at inlet of MZ 2C NT VARIO; at outlet of MD 4C NT VARIO)
Elbow connecting piece (90°) for PTFE tubing* .......................................638434
T-piece for PTFE tubing* .............................................................................638435
Adapter for gas ballast connection via small ange KF DN 16..................636193
PTFE tubing* (sold by meter) ...................................................................... 638644
” .......................................636002
Page 93
page 93 of 129
Ways to connect pumping units PC 300x VARIO:
Modication kit for small ange KF DN 16 at inlet ....................................699939
Hose nozzle for tubing I.D. 1/4” / 3/8” (6/10 mm), for inlet ........................636635
Elbow piece (90°) for PTFE tubing* for assembly at inlet ..........................637873
PTFE tubing* (sold by meter) .......................................................................638644
* PTFE tubing DN 10/8 mm
VACUU•LAN® networks are engineered to perform to specication when installed
®
with PTFE tubing, DN 10/8 mm. All VACUU•LAN
are designed for compatibility with this tubing.
modules, pumps and connectors
Conversion of VACUUBRAND valves with DIN plug to
VACUUBRAND valves with VACUU•BUS plug:
VACUUBRAND-valve with DIN
plug
Coolant valve VKW, 24 V= (676013) 612567
Venting valve VBM, 24 V= (666817) 612554
Conversion kit valve cable with
VACUU•BUS plug
Vacuum distribution:
VCL-B 11
The VACUU•LAN® modules allow process-oriented, exible and cost effective connections
VCL 02
according to your requirements. One vacuum
pump can support several workstations. Con-
VCL-B 10
VCL 01
VACUU•LAN® manual ow control module VCL 01 ..................................677106
VACUU•LAN® shut off / manual ow control module VCL 02 677107
VACUU•LAN® automatic control module VCL-B 10 ..................................677208
VACUU•LAN® manual ow control/
automatic control module VCL-B 11 ..........................................................677209
tact VACUUBRAND for details.
On this page we offer only a small selection of VACUU•LAN® options. Please contact VACUUBRAND for further
information. Listed modules are designed for surface-mounted installation. Different catalog numbers are used for
modules designed for ush-mounting with concealed tubing.
For additional accessories such as vacuum valves, small-ange components,
vacuum gauges or vacuum controllers refer to www.vacuubrand.com.
Page 94
page 94 of 129
Spare parts:
Catchpot 0.52 qt (500 ml), coated (PC 300x VARIO) ................................... 638497
Exhaust waste vapor condenser (PC 301x VARIO) ..................................699975
Collecting bottle 1.06 qt (1000ml) (PC 301x VARIO) .................................. 638877
Catchpot (at inlet) (PC 301x VARIO) ............................................................ 699980
Page 95
page 95 of 129
Troubleshooting
Fault Possible cause Remedy
❑
No display.
❑
Display disappears.
➨
Electrical power cord
not plugged in, electrical supply failure?
➨
Device fuse blown?
➨
Controller CVC 3000
or pump NT VARIO /
VARIO-B switched off?
➨
VACUU•BUS cable
between pump and
controller not plugged
in at controller?
➨
Other than above mentioned causes?
➨
Too much load (e.g.,
valves) connected?
➨
Short circuit at connected valves?
✔
Plug in power cord.
Check fuse.
✔
Identify cause of failure.
Replace device fuse.
✔
Switch on controller and/
or pump.
✔
Plug in VACUU•BUS
cable at CVC 3000 controller.
✔
Contact local distributor.
✔
Check current draw of the
connected devices.
✔
Replace valves.
❑
Pressure reading
incorrect.
❑
Digital pressure
reading is ashing, display shows
”0.0”.
➨
Short circuit at the
RS 232 plug?
➨
Other than above mentioned causes?
➨
Pressure transducer
decalibrated?
➨
Humidity in the measurement chamber?
➨
Pressure transducer
contaminated?
➨
Other than above mentioned causes?
➨
Pressure transducer
not correctly adjusted
under vacuum?
✔
Check plug and cable.
✔
Contact local distributor.
✔
Readjust CVC 3000.
✔
Let the pressure transducer dry, e.g., by pumping. Readjust if necessary. Determine and
eliminate the cause for
humidity.
✔
See ”Cleaning the pressure transducer”.
✔
Contact local distributor.
✔
Adjust CVC 3000 correctly.
Page 96
page 96 of 129
Fault Possible cause Remedy
❑
No digital pressure
reading.
❑
Digital pressure
reading is ashing,
one blip*.
❑
Warning triangle
and black valve
symbol are ashing, two blips*.
❑
Warning triangle
and valve symbol
are ashing, three
blips*.
❑
Warning triangle
and coolant valve
symbol are ashing, four blips*.
➨
Pressure transducer
defective?
➨
Overpressure at the
pressure transducer,
pressure > 795 Torr
(1060 mbar)?
➨
External venting valve
removed or defective?
➨
NT VARIO / VARIO-B
pump and in-line valve
connected?
➨
Coolant valve removed
or defective?
✔
Contact local distributor.
✔
Release pressure immediately (risk of bursting).
✔
Connect valve or replace
with a new one or recon-
gure without valve.
✔
Disconnect in-line valve;
switch controller off/on to
recongure.
✔
Check connection cable
of the valve; or use new
valve or recongure without valve.
❑
Warning triangle
and pump symbol
are ashing, six
blips*.
❑
Clock symbol is
ashing.
❑
Venting valve does
not respond, valve
symbol is displayed.
❑
”Vac control” function: Control stops,
”arrow up” is ashing.
❑
”Pump down” function: Control stops,
”arrow down” is
ashing.
➨
NT VARIO / VARIOB pump and VMS**
(Vacuum Management
System) connected?
➨
Fault at the NT VARIO /
VARIO-B pump?
➨
Preselected process
time is over?
➨
Venting valve contaminated?
➨
Preset maximum pressure exceeded?
➨
Pressure below preset
minimum pressure?
✔
Remove VMS. Restart
controller.
✔
Check pump, restart controller.
✔
Conrm by pressing
START/STOP key.
✔
Clean valve.
✔
Conrm by pressing
START/STOP key.
Change maximum pressure value if necessary.
✔
Conrm by pressing
START/STOP key.
Change minimum pressure value if necessary.
❑
Controller does
not respond when
pressing keys (except ON/OFF).
PC symbol is displayed.
➨
Controller in remote
mode?
✔
Control CVC 3000 via interface or switch off remote mode.
Page 97
page 97 of 129
Fault Possible cause Remedy
❑
Controller does
not respond when
operating any keys.
No change after
switching off/on.
❑
Pump does not
start or stops immediately. Warning
triangle and pump
symbol are ashing.
❑
Pump does not
achieve its ultimate
vacuum or usual
pumping speed.
➨
Pump has been exposed to condensate?
➨
Overpressure in outlet
line?
➨
Motor overloaded?
➨
Centring ring at small
ange connection not
correctly positioned, or
leak in the pipeline or
vacuum system?
✔
Contact local distributor.
✔
Allow pump to run for
some minutes at maximum speed with atmospheric pressure at the
inlet.
✔
Remove blockage in line,
open valve.
✔
Allow motor to cool down,
identify and eliminate
cause of failure. Manual
reset is necessary. Switch
off pump or unplug.
✔
Check pump directly
- connect CVC 3000 directly at pump inlet - then
check connection, pipeline and vacuum system if
necessary.
➨
Wrong setting at controller?
➨
Long, narrow vacuum
line?
➨
Pump has been exposed to condensate?
➨
Deposits have been
formed inside the
pump?
➨
Diaphragms or valves
damaged?
➨
Outgassing substances
or vapor generated in
the process?
✔
Select function ”Pump
down” with speed set to
”HI” and check again.
✔
Use lines with larger diameter, length as short as
possible.
✔
Allow pump to run for
some minutes with atmospheric pressure at the
inlet to purge.
✔
Clean and inspect the
pump heads.
✔
Replace diaphragms and/
or valves.
✔
Check process parameters.
Page 98
page 98 of 129
Fault Possible cause Remedy
❑
Pump does not
achieve its ultimate
vacuum or usual
pumping speed.
❑
Pump too noisy.
❑
Pump seized.
➨
Pressure below ”Minimum” in Auto mode?
➨
Pump too hot?
➨
Atmospheric or high
pressure at the pump
inlet?
➨
Diaphragm crack or
diaphragm clamping
disc loose?
➨
Other than above mentioned causes?
✔
Change switch off pressure (”Minimum”) if necessary.
✔
Allow pump to cool down.
Determine and eliminate
the cause of overheating.
✔
Connect hose or silencer
to pump outlet. Be careful
not to cause outlet overpressure, especially with
condensable vapors.
✔
Perform maintenance.
✔
Contact local distributor.
✔
Contact local distributor.
* only if ”Sound” ”On” is selected
** VMS: Vacuum management system to switch non-VARIO pumps
➨ A service manual with exploded view drawings, spare parts list and
directions for repair is available on request.
+ The service manual is intended for trained service people only.
Page 99
page 99 of 129
Replacing diaphragms and valves
+ Please read section ”Replacing diaphragms and valves” com-
pletely before starting maintenance.
The pictures may show other versions of pumps. This does not change
the method of replacing diaphragms and valves.
➨ Never operate the pump if covers or other parts of
the pump are disassembled.
➨ Before starting maintenance, disconnect the electri-
cal power cord. Wait two minutes after isolating the
equipment from AC power to allow the capacitors to
discharge.
➨ Ensure that the pump cannot be operated accidentally.
➨ Note: The pump might be contaminated with the pro-
cess chemicals that have been pumped during operation. Ensure that the pump is decontaminated before
maintenance.
➨ Avoid the release of pollutants.
+ Never operate a defective or damaged pump.
+ Take adequate precautions to protect people from the
effects of dangerous substances that may have contaminated the pump and may be released upon disassembly. Ensure that the maintenance technician is
familiar with the safety procedures which relate to the
products processed by the pumping system.
Use appropriate protective clothing, safety goggles and
protective gloves.
+ Allow sufcient cooling of the pump before starting
maintenance.
+ Vent the pump and isolate it from the vacuum sys-
tem before you start maintenance.
Page 100
page 100 of 129
NOTICE
Ensure that maintenance is done only by suitably
trained and supervised technicians.
The valves and diaphragms are wear parts. If the rated
ultimate vacuum is no longer achieved or in case of increased noise level, the pump interior, the diaphragms
and the valves must be cleaned and the diaphragms and
valves must be checked for cracks or other damage.
All bearings are encapsulated and are lled with long-life
lubricant. Under normal operating conditions, the drive
system is maintenance free.
In demanding circumstances, it may be efcient to
check and clean the pump heads on a regular basis. In
normal use, the lifetime of the diaphragms and valves
is more than 10,000 operating hours.
- Prevent internal condensation, transfer of liquids or
dust. The diaphragms and valves will be damaged if
liquid is pumped in signicant amount.
- Carry out maintenance frequently if the pump is exposed to corrosive media or in case of deposits.
- Regular maintenance will improve the lifetime of the
pump and also protect both users and the environment.
Service kit for ME 4C NT VARIO ................................................................696864
Service kit for MZ 2C NT VARIO / PC 3002 VARIO ....................................696869
Service kit for MD 4C NT VARIO / PC 3003/3004 VARIO ...........................696870
Service kit for MV 10C VARIO-B / MD 12C VARIO-B /
PC 301x VARIO ...........................................................................................696821
Diaphragm key (width 66 mm) ...................................................................636554
Cleaning and inspecting the pump heads
(pumps NT VARIO / PC 300x VARIO)
Tools required (metric):
- Torx driver T20
- Torx driver T10 (PC 300x VARIO)
- 5 mm wide Allen key
- 2.5 mm wide slotted screwdriver
- Flat pliers
- Diaphragm key width 66 mm
