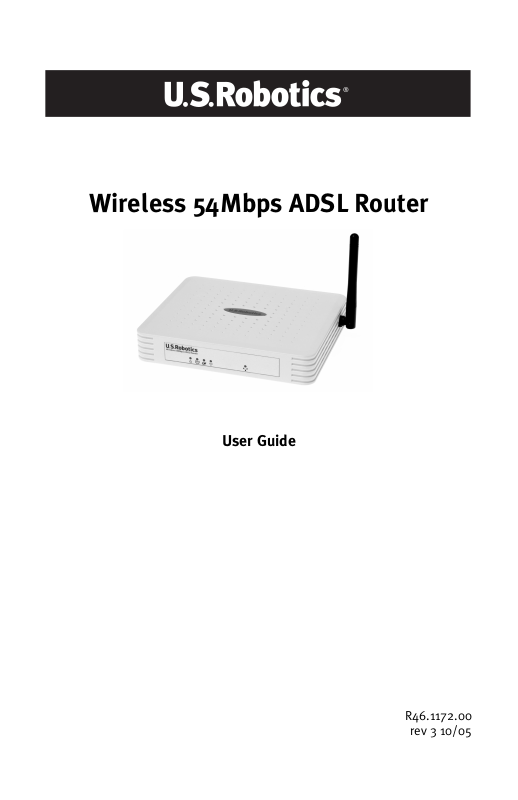

Wireless 54Mbps ADSL Router

User Guide

R46.1172.00

rev 3 10/05

Wireless 54Mbps ADSL Router

Installation ................................................................................ 3

Configuring the Wireless 54Mbps ADSL Router ......................... 7

Troubleshooting ...................................................................... 63

Specifications .......................................................................... 75

Regulatory ................................................................................81

Warranty.................................................................................. 85

HAPTER

NSTALLATION

USR5473 Package Contents

USR9110 Wireless 54Mbps ADSL Router One (1) Ethernet cable 12VDC Power Supply USR5422 54Mbps USB Adapter Installation Guide One (1) phone cable Installation CD-ROM

Prepare for Installation

Note: It is important that you have your serial number written down

before you install the Wireless 54Mbps ADSL Router. You can find your serial number on the bottom label of the Wireless 54Mbps ADSL Router. If you ever need to call our Technical Support department, you will need this number to receive assistance.

Model Number Serial Number

USR9110

Note: Be sure to find out what letter your CD-ROM drives uses before

you begin installing your new product. You will need to know this to properly install your software.

Step One: Connect Microfilter(s) (if included or required by your ISP)

A microfilter removes interference between voice and DSL signals. Your ISP will determine if a microfilter is necessary. If a microfilter was not included with the Wireless 54Mbps ADSL Router, ask your ISP if you need to purchase one or more.

To install a microfilter, plug each device (phone, fax machine, or other telephony device) into the microfilter and then plug the microfilter into the telephone wall jack. Do not install a microfilter on the cable that will connect your Wireless 54Mbps ADSL Router to the telephone jack unless your

NSTALLATION

microfilter has a connection for both the router and the phone.

Step Two: Connect your Wireless 54Mbps ADSL Router to the wall phone jack

• Turn off your computer.

• Connect one end of the included phone cable to the ADSL port on the

Wireless 54Mbps ADSL Router. Connect the other end of the phone cable to a wall phone jack.

Step Three: Connect your Wireless 54Mbps ADSL Router to your computer and connect the power supply

Connect one end of the supplied Ethernet cable to your computer’s Ethernet adapter. Connect the other end to the LAN port on the Wireless 54Mbps

ADSL Router.

Connect the included power adapter to the power socket on the Wireless 54Mbps ADSL Router. Plug the power adapter into a standard power outlet. Turn on your computer.

’

Proceed to Chapter 2 to configure the Wireless 54Mbps ADSL Router.

NSTALLATION

ONFIGURING THE

HAPTER

IRELESS

54M

To access the Wireless 54Mbps ADSL Router’s Web User Interface, launch a Web browser and type the default IP address of the Wireless 54Mbps ADSL Router in address line: http://192.168.2.1. By default, there is no password, so click LOGIN to access the Web User Interface.

If you are logging in to the Web User Interface for the first time, the country selection page will appear. Please select the country in which you will be using the Wireless 54Mbps ADSL Router and then click Apply. Then confirm your country selection by clicking OK.

BPS

ADSL R

OUTER

ONFIGURING THE WIRELESS

54M

BPS

ADSL R

OUTER

Navigating the Web User Interface

This is the advanced setup page:

Setup Wizard: Use the Setup Wizard if you want to quickly set up the Wireless 54Mbps ADSL Router. Go to “Setup Wizard” on page 9.

Advanced Setup: Advanced Setup supports more advanced functions like hacker attack detection, IP and MAC address filtering, virtual server setup, QoS, as well as other functions. Go to “Advanced Setup” on page 20.

Making Configuration Changes

Configurable parameters have a text box or a drop-down list. Once a configuration change has been made on a page, click

NEXT at the bottom of the page to enable the new setting.

Note: To ensure the screen refreshes after a command entry, be sure that Internet Explorer is configured as follows: Click To o l s,

Internet Options, General, Temporary Internet Files, and Settings.

The setting for Check for newer versions of stored pages should be Every visit to the page.

SAVE SETTINGS or

Setup Wizard

1. Begin the Setup Wizard

If this is the first time the Setup Wizard has been launched, select your country and click Apply. Verify you have selected the correct country and click OK.

Click NEXT.

ETUP WIZARD

2. Create a password for the router

Follow the on-screen instructions to create a password for access to the router. Remember that there is no current password to enter. After creating and confirming a password, click NEXT.

ONFIGURING THE WIRELESS

54M

BPS

ADSL R

OUTER

3. Enter your wireless network and security information

You will see the Channel and SSID page. Enter the appropriate information for your wireless and security settings. Refer to the table that follows for descriptions of the different settings. Click NEXT when done.

Parameter Description

SSID Service Set ID. The SSID must be the same on the Wireless

SSID Broadcast Enable or disable the broadcasting of the SSID.

54Mbps ADSL Router and all of its wireless clients.

Parameter Description

Wireless Mode This device supports both 11g and 11b wireless networks. Make

Security Type For Security, you can select either No WEP, No WPA; WEP Only; or

Channel The radio channel used by the wireless router and its clients to

your selection depending on the type of wireless network that you have.

WPA Only. If you select WEP or WPA, you will need to enter either a Pass phrase or a Key on the next page.

communicate with each other. This channel must be the same on the Wireless 54Mbps ADSL Router and all of its wireless clients.

The Wireless 54Mbps ADSL Router will automatically assign itself a radio channel, or you may select one manually.

Click NEXT to continue.

4. Enter your Parameter Settings

Select the country of your Internet Service Provider (ISP) and the name or type of your ISP. This will automatically configure the Wireless 54Mbps ADSL Router with the correct Protocol, Encapsulation and VPI/VCI settings for your ISP.

ETUP WIZARD

If your Country or Internet Service Provider is not listed, you will need to manually enter the settings. Go to “Parameter Setting - Country or ISP Not Listed” in this manual for more information. (It appears later in this document.)

If your ISP uses PPPoA or PPPoE, then you will need to enter the username, password and DNS Server address supplied by your ISP.

If your ISP uses 1483 Routing, then you will need to enter the IP

ONFIGURING THE WIRELESS

54M

BPS

ADSL R

OUTER

address, Subnet Mask, Default Gateway and DNS Server address supplied by your ISP.

Note: By default 192.168.2.1 is set for the DNS Server address, this needs to be changed to reflect your ISP’s DNS Server

address.

Click NEXT to continue to the Confirm settings page.

Parameter Setting - Country or ISP Not Listed

If your Country or Internet Service Provider is not listed in the dropdown menu, select Other. This will allow you to manually configure your ISP settings.

For manual configuration you will need to know the Protocol, DNS Server, Encapsulation, and VPI/VCI settings used by your ISP. If you have a Static IP address you will also need to know the IP address, Subnet Mask, and Gateway address. Please contact your ISP for these details if you do not already have them.

After selecting Other you will be required to select the Protocol your ISP uses from the Internet Service Provider dropdown list.

ETUP WIZARD

ISP uses Bridging - Parameter Setting

Enter the Bridging settings provided by your ISP.

Parameter Description

Management IP Address Enter the IP address provided by your ISP. (Default:

VPI/VCI Enter the Virtual Path Identifier (VPI) and Virtual

Encapsulation Select the encapsulation used by ISP from the

192.168.2.1)

Circuit Identifier (VCI) supplied by your ISP.

dropdown list.

Click NEXT to continue to the Confirm settings page.

ONFIGURING THE WIRELESS

54M

BPS

ADSL R

OUTER

ISP uses 1483 Bridging-DHCP - Parameter Setting

Enter the Bridging settings provided by your ISP.

Parameter Description

DNS Server Enter the Domain Name Server address.

VPI/VCI Enter the Virtual Path Identifier (VPI) and Virtual

Encapsulation Select the encapsulation used by ISP from the

Circuit Identifier (VCI) supplied by your ISP.

dropdown list.

Click NEXT to continue to the Confirm settings page (see “5. Confirm your settings” later in this document).

ETUP WIZARD

ISP uses 1483 Bridging-Fixed IP - Parameter Setting

Enter the bridging settings provided by your ISP.

Parameter Description

IP Address Enter the IP address provided by your ISP.

Subnet Mask Enter the subnet mask address provided by your ISP.

Default Gateway Enter the gateway address provided by your ISP.

DNS Server Enter the Domain Name Server address.

VPI/VCI Enter the Virtual Path Identifier (VPI) and Virtual

Encapsulation Select the encapsulation used by ISP from the

Circuit Identifier (VCI) supplied by your ISP.

dropdown list.

Click NEXT to continue to the Confirm settings page (see “5. Confirm your settings” later in this document).

ONFIGURING THE WIRELESS

54M

BPS

ADSL R

OUTER

ISP uses PPPoE - Parameter Setting

Enter the PPPoE (Point-to-Point Protocol over Ethernet) settings provided by your ISP.

Parameter Description

VPI/VCI Enter the Virtual Path Identifier (VPI) and Virtual

Encapsulation Select the encapsulation used by ISP from the

Username Enter the ISP assigned user name.

Password Enter your password.

Confirm Password Confirm your password.

Circuit Identifier (VCI) supplied by your ISP.

dropdown list.

Click NEXT to continue to the Confirm settings page (see “5. Confirm your settings” later in this document).

ETUP WIZARD

ISP uses PPPoA - Parameter Setting

Enter the PPPoA (Point-to-Point Protocol over ATM) settings provided by your ISP.

Parameter Description

VPI/VCI Enter the Virtual Path Identifier (VPI) and Virtual

Encapsulation Select the encapsulation used by ISP from the

Username Enter the ISP assigned user name.

Password Enter your password.

Confirm Password Confirm your password.

Circuit Identifier (VCI) supplied by your ISP.

dropdown list.

Click NEXT to continue to the Confirm settings page (see “5. Confirm your settings” later in this document).

ONFIGURING THE WIRELESS

54M

BPS

ADSL R

OUTER

ISP uses 1483 Routing - Parameter Setting

Enter the RFC1483 Routing settings provided by your ISP.

Parameter Description

IP Address Enter the IP address provided by your ISP.

Subnet Mask Enter the subnet mask address provided by your ISP.

Default Gateway Enter the gateway address provided by your ISP.

DNS Server Enter the Domain Name Server address.

VPI/VCI Enter the Virtual Path Identifier (VPI) and Virtual

Encapsulation Select the encapsulation used by ISP from the

Circuit Identifier (VCI) supplied by your ISP.

dropdown list.

Click NEXT to continue to the Confirm settings page (see “5. Confirm your settings”).

5. Confirm your settings

The Confirm page shows a summary of the configuration parameters. Make sure the parameters for ADSL operation mode (WAN), Network Layer Parameters (WAN), DHCP, and/or ISP parameters are correct (see the following example).

Parameter Description

ADSL Operation Mode (WAN)

ISP The type of ISP you have selected.

Protocol Indicates the protocol used.

VPI/VCI Virtual Path Identifier (VPI) and Virtual Circuit Identifier

AAL5 Encapsulation Shows the packet encapsulation type. See the “WAN”

Network Layer Parameters (WAN)

IP Address WAN IP address.

Subnet Mask WAN subnet mask.

Default Gateway WAN gateway.

(VCI).

section later in this chapter for more information on encapsulation.

ETUP WIZARD

ONFIGURING THE WIRELESS

Parameter Description

DHCP Parameters

Function Shows the DHCP function is enabled or disabled.

Default Gateway LAN IP address of the Wireless 54Mbps ADSL Router.

Subnet Mask The network subnet mask.

Name Server 1 Primary DNS server IP address.

Name Server 2 Alternate DNS server IP address.

Start IP Address Start IP address of DHCP pool of assigned IP addresses.

Number of IP Number of IP addresses available for assignment by the

54M

BPS

ADSL R

DHCP server.

OUTER

If all the information is correct, click NEXT to complete the Setup Wizard. You should now have Internet access. If any of the information is not correct, click BACK to get to the appropriate screen, modify the information, and then continue the configuration.

The information you supplied will be saved and the main screen of the Web User Interface will appear.

If at any time you want to validate your Internet settings, click Status.

Advanced Setup

Click Home in the upper right-hand corner. The left-hand side of the page displays the main menu and the right-hand side shows descriptive information.

DVANCED SETUP

The following table describes the main menu items on the advanced Web User Interface.

Menu Description

SYSTEM Sets the local time zone, the password for administrator access, and

WAN Specifies the Internet connection settings.

LAN Sets the TCP/IP configuration for the Wireless 54Mbps ADSL Router

WIRELESS Configures the radio frequency, SSID, and security for wireless

NAT Configures Address Mapping, virtual server and special applications.

ROUTING Sets the routing parameters and displays the current routing table.

FIREWALL Configures a variety of security and specialized functions including:

SNMP Community string and trap server settings.

UPnP With Universal Plug and Play, a device can automatically join a

QoS Allows you to optimize network quality by prioritizing data traffic.

ADSL Sets the ADSL operation type and shows the ADSL status.

the IP address of a PC or notebook that will be allowed to manage the Wireless 54Mbps ADSL Router remotely.

LAN interface and DHCP clients.

communications.

Access Control, URL blocking, Internet access control scheduling, intruder detection, and DMZ.

network, obtain an IP address, communicate its capabilities, and learn about the presence and capabilities of other devices. Devices can then directly communicate with each other. This further enables peer-topeer networking.

ONFIGURING THE WIRELESS

Menu Description

DDNS Dynamic DNS provides users on the Internet with a method to tie their

TOOLS Contains options to backup & restore the c urrent configuration, restore

STATUS Provides WAN connection type and status, firmware and hardware

54M

BPS

ADSL R

domain name to a computer or server.

all configuration settings to the factory defaults, update system firmware, or reset the system.

version numbers, system IP settings, as well as DHCP, NAT, and firewall information. Displays the number of attached clients, the firmware versions, the physical MAC address for each media interface, and the hardware version and serial number. Shows the security and DHCP client log.

OUTER

System

Time Settings

For accurate timing of log entries and system events, you need to set the time zone. Select your time zone from the dropdown list.

If you want to automatically synchronize the Wireless 54Mbps ADSL Router with a public time server, check the box to Enable Automatic Time Server Maintenance. Configure two different time servers by selecting a Primary Server and a Secondary Server.

DVANCED SETUP

Password Settings Use this page to change the password for accessing the Web User

Interface of the Wireless 54Mbps ADSL Router.

Passwords can contain from 3~12 alphanumeric characters and are case-sensitive.

Note: If you lost the password, or you cannot gain access to the

Web User Interface, press in and hold the reset button on the rear panel for at least five seconds to restore the factory defaults. By default, there is no password to log in to the Web User Interface.

Enter a maximum Idle Time Out (in minutes) to define a maximum period of time for which the login session is maintained during inactivity. If the connection is inactive for longer than the maximum idle time, it will perform a system logout and you will have to log in again to access the Web User Interface. The default is 10 minutes.

Remote Management By default, management access is only available to users on your

local network. However, you can also manage the Wireless 54Mbps ADSL Router from a remote host by entering the IP address of a remote computer on this screen. Select the Enabled checkbox, enter

ONFIGURING THE WIRELESS

54M

BPS

ADSL R

OUTER

the IP address of the Host Address, and click

SAVE SETTINGS

Note: If you select Enable and specify an IP address of 0.0.0.0,

any remote host can manage the Wireless 54Mbps ADSL Router. For remote management via WAN IP address, you need to connect using port 8080. Simply enter WAN IP address followed by :8080, for example, 212.120.68.20:8080.

DNS Domain Name Servers (DNS) are used to map a domain name

(e.g., www.somesite.com) with the IP address (e.g., 123.123.123.123). Your ISP should provide the IP address of one or more Domain Name Servers. Enter those addresses on this page and click

SAVE SETTINGS

WAN

Specify the WAN connection parameters provided by your Internet Service Provider (ISP).

The Wireless 54Mbps ADSL Router can be connected to your ISP in one of the following ways:

•ATM PVC

•Clone MAC

ATM PVC Enter the ATM (Asynchronous Transfer Mode) virtual connection

parameters here.

DVANCED SETUP

Parameter Description

Description Click on the VC to set the values for the connection.

VPI/VCI Virtual Path Identifier (VPI) and Virtual Circuit Identifier

(VCI).

ONFIGURING THE WIRELESS

Parameter Description

Encapsulation Specifies how to handle multiple protocols at the ATM

Protocol Protocol used for the connection.

54M

BPS

ADSL R

transport layer.

• VC-MUX: Point-to-Point Protocol over ATM Virtual

• LLC: Point-to-Point Protocol over ATM Logical Link

OUTER

Circuit Multiplexer (null encapsulation) allows only one protocol running per virtual circuit with less overhead.

Control (LLC) allows multiple protocols running over one virtual circuit (using slightly more overhead).

Clone MAC Address Some ISPs require you to register your MAC address with them. If this

is the case, the MAC address of the Wireless 54Mbps ADSL Router must be changed to the MAC address that you have registered with your ISP.

LAN

Use the LAN menu to configure the LAN IP address and to enable the DHCP server for dynamic client address allocation.

Parameter Description

LAN IP

IP Address The IP address of the Wireless 54Mbps ADSL Router.

IP Subnet Mask The subnet mask of the network.

DHCP Server The Wireless 54Mbps ADSL Router comes with the DHCP

DHCP Server

DHCP Server ID Specify the DHCP Server ID.

Lease Time Set the IP lease time. For home networks this may be set to

fu nct ion. Ena ble this f unc tion to d yna mical ly a ssig n an IP a ddr ess to client PCs.

Forever, which means there is no time limit on the IP address lease.

DVANCED SETUP

ONFIGURING THE WIRELESS

Parameter Description

IP Address Pool

Start IP Address Specify the start IP address of the DHCP pool. Do not include the

End IP Address Specify the end IP address of the DHCP pool.

Domain Name If your network uses a domain name, enter it here. Otherwise,

54M

BPS

ADSL R

gateway address of the Wireless 54Mbps ADSL Router in the client address pool. If you change the pool range, make sure the first three octets match the gateway’s IP address, i.e.,

192.168.2.xxx.

leave this field blank.

OUTER

Note: Remember to configure your client PCs for dynamic

address allocation.

Wireless

The Wireless 54Mbps ADSL Router also operates as a wireless access point, allowing wireless computers to communicate with each other. To configure this function, you need to enable the wireless function, define the radio channel, the domain identifier, and the security options. Select Enable and click

SAVE SETTINGS

Channel and SSID You must specify a common radio channel and SSID (Service Set ID)

to be used by the Wireless 54Mbps ADSL Router and all of its wireless clients. Be sure you configure all of the clients to the same values.

DVANCED SETUP

Parameter Description

ESSID Extended Service Set ID. The ESSID must be the same on the

ESSID Broadcast Enable or disable the broadcasting of the SSID.

Wireless Mode This device supports both 11g and 11b wireless networks. Make

Channel The radio channel used by the wireless router and its clients to

Wireless 54Mbps ADSL Router and all of its wireless clients.

your selection depending on the type of wireless network that you have.

communicate with each other. This channel must be the same on the Wireless 54Mbps ADSL Router and all of its wireless clients.

The Wireless 54Mbps ADSL Router will automatically assign itself a radio channel, or you may select one manually.

Access Control The MAC Filtering feature of the Wireless 54Mbps ADSL Router allows

you to control access to your network for up to 32 clients based on the MAC (Media Access Control) address of the client machine. This ID is unique to each network adapter. If the MAC address is listed in the table, then the access right of the client machine is controlled by the Access Rule.

ONFIGURING THE WIRELESS

54M

BPS

ADSL R

OUTER

Security To make your wireless network safe, you should turn on the security

function. The Wireless 54Mbps ADSL Router supports WEP (Wired Equivalent Privacy), WPA (Wi-Fi Protected Access), and 802.1x security mechanisms.

DVANCED SETUP

WEP

If you use WEP to protect your wireless network, you need to set the same parameters for the Wireless 54Mbps ADSL Router and all your wireless clients.

Parameter Description

WEP Mode Select 64 bit or 128 bit key to use for encryption.

Key Entry Method Select Hex or ASCII code for encryption key generation.

Key Provisioning Select Static if there is only one fixed key for encryption. If you

want to select Dynamic, you would need to enable 802.1x function first.

ONFIGURING THE WIRELESS

54M

BPS

ADSL R

OUTER

You may automatically generate encryption keys or manually enter the keys. To generate the key automatically with passphrase, select Passphrase and then enter a string of characters. Select the default key from the dropdown menu. Click

SAVE SETTINGS

Note: The passphrase can consist of up to 32 alphanumeric

characters.

To manually configure the encryption key, enter five hexadecimal pairs of digits for each 64-bit key, or enter 13 pairs for the single 128bit key. A hexadecimal digit is a number or letter in the range 0-9 or A-F.

WEP protects data transmitted between wireless nodes but does not protect any transmissions over your wired network or over the Internet.

DVANCED SETUP

WPA

Wi-Fi Protected Access (WPA) combines temporal key integrity protocol (TKIP) and 802.1x mechanisms. It provides dynamic key encryption and 802.1x authentication service.

Parameter Description

Cypher suite The security mechanism used in WPA for encryption.

Authentication Choose 802.1X or Pre-shared Key to use as the authentication

Pre-shared key type Select the key type to be used in the Pre-shared Key.

Pre-shared Key Type in the key here.

Group Key Re-Keying The period of renewing broadcast/multicast key.

method.

• 802.1X: for the enterprise network with a RADIUS server.

• Pre-shared key: for the Small Office/Home Office (SOHO) network environment without an authentication server.

ONFIGURING THE WIRELESS

54M

BPS

ADSL R

OUTER

802.1X

If 802.1x is used in your network, then you should enable this function for the Wireless 54Mbps ADSL Router. These parameters are used for the Wireless 54Mbps ADSL Router to connect to the authentication server.

Parameter Description

802.1X Authentication

Session Idle timeout Defines a maximum period of time for which the connection is

Re-Authentication Period

Quiet Period Defines a maximum period of time for which the Wireless 54Mbps

Server Type RADIUS authentication server.

RADIUS Server Parameters

Server IP The IP address of your authentication server.

Server Port The port used for the authentication service.

Secret Key The secret key shared between the authentication server and its

NAS-ID Defines the request identifier of the Network Access Server.

Enable or disable this authentication function.

maintained during inactivity.

Defines a maximum period of time for which the authentication server will dynamically re-assign a session key to a connected client.

ADSL Router will wait between failed authentications.

clients.

NAT

Network Address Translation allows multiple users to access the Internet, while sharing only one public IP.

Address Mapping Allows one or more public IP addresses to be shared by multiple

internal users. This also hides the internal network for increased privacy and security. Enter the Public IP address that you wish to share into the Global IP field. In the from field, enter a range of internal IPs that will share the global IP.

DVANCED SETUP

ONFIGURING THE WIRELESS

54M

BPS

ADSL R

OUTER

Virtual Server If you configure the Wireless 54Mbps ADSL Router as a virtual server,

remote users accessing services such as the Internet or FTP at your local site via public IP addresses can be automatically redirected to local servers with private IP addresses. In other words, depending on the requested service (TCP/UDP port number), the Wireless 54Mbps ADSL Router redirects the external service request to the appropriate server (located at another internal IP address).

For example, if you set Type/Public Port to TCP/80 (HTTP or Web) and the Private IP/Port to 192.168.2.2/80, then all HTTP requests from outside users will be transferred to 192.168.2.2 on port 80. Therefore, by just entering the IP address provided by the ISP, Internet users can access the service they need at the local address to which you redirect them.

A list of ports is maintained at the following link:

http://www.iana.org/assignments/port-numbers

DVANCED SETUP

Special Applications Some applications require multiple

connections, such as Internet gaming, video-conferencing, and Internet telephony. These applications may not work when Network Address Translation (NAT) is enabled. If you need to run applications that require multiple connections, use these pages to specify the additional public ports to be opened for each application.

ONFIGURING THE WIRELESS

54M

BPS

ADSL R

OUTER

NAT Mapping Table This page displays the current NAPT (Network Address Port

Translation) address mappings.

Routing

These pages define routing related parameters, including static routes and RIP (Routing Information Protocol) parameters.

Static Route Click Add to add a new static route to the list.

Parameter Description

Network Addre ss Enter the IP address of the remote computer for which to set

a static route.

DVANCED SETUP

Parameter Description

Subnet Mask Enter the subnet mask of the remote network for which to

Gateway Enter the WAN IP address of the gateway to the remote

set a static route.

network.

Click SAVE SETTINGS to save the configuration.

RIP RIP

(Routing Information Protocol) sends routing-update messages at

regular intervals and when the network topology changes. When a router receives a routing update that includes changes to an entry, it updates its routing table to reflect the new route. RIP routers maintain only the best route to a destination. After updating its routing table, the router immediately begins transmitting routing updates to inform other network routers of the change.

ONFIGURING THE WIRELESS

Parameter Description

General RIP Parameters

RIP mode Globally enables or disables RIP.

Auto summary If Auto summary is disabled, then RIP packets will

Table of current Interface RIP parameter

Interface The WAN interface to be configured.

Operation Mode Disable: RIP disabled on this interface.

Version Sets the RIP version to use on this interface.

Poison Reverse A method for preventing loops that would cause

Authentication Required • None: No authentication.

Authentication Code Password Authentication key.

54M

BPS

ADSL R

OUTER

include sub-network information from all subnetworks connected to the router. If enabled, this sub-network information will be summarized to one piece of information covering all sub-networks.

Enable: RIP enabled on this interface. Silent: Listens for route broadcasts and updates its

route table. It does not participate in sending route broadcasts.

endless retransmission of data traffic.

• Password: A password authentication key is included in the packet. If this does not match what is expected, the packet will be discarded. This method provides very little security as it is possible to learn the authentication key by watching RIP packets.

Routing Table

Parameter Description

Flags Indicates the route status:

C = Direct connection on the same subnet. S = Static route. R = RIP (Routing Information Protocol) assigned route. I = ICMP (Internet Control Message Protocol) Redirect route.

Network Address

Netmask The subnetwork associated with the destination.

Gateway The IP address of the router at the next hop to which frames are

Interface The local interface through which the next hop of this route is reached.

Metric When a router receives a routing update that contains a new or changed

Destination IP address.

This is a template that identifies the address bits in the destination address used for routing to specific subnets. Each bit that corresponds to a “1” is part of the subnet mask number; each bit that corresponds to “0” is part of the host number.

forwarded.

destination network entry, the router adds 1 to the metric value indicated in the update and enters the network in the routing table.

Firewall

The Wireless 54Mbps ADSL Router’s firewall inspects packets at the application layer, maintains TCP and UDP session information, including time-outs and the number of active sessions, and provides the ability to detect and prevent certain types of network attacks.

DVANCED SETUP

Network attacks that deny access to a network device are called Denial-of-Service (DoS) attacks. DoS attacks are aimed at devices

ONFIGURING THE WIRELESS

54M

BPS

ADSL R

OUTER

and networks with a connection to the Internet. Their goal is not to steal information, but to disable a device or network so users no longer have access to network resources.

The Wireless 54Mbps ADSL Router firewall function protects against the following DoS attacks: IP Spoofing, Land Attack, Ping of Death, IP with zero length, Smurf Attack, UDP port loopback, Snork Attack, TCP null scan, and TCP SYN flooding.

The firewall does not significantly affect system performance, so we advise leaving it enabled to protect your network. Select Enable and click

SAVE SETTINGS

to open the Firewall submenus.

Access Control Access Control allows users to define the outgoing traffic permitted

or not permitted through the WAN interface. The default is to permit all outgoing traffic.

The following items are on the Access Control screen:

Parameter Description

Enable Filtering Function Click Yes to turn on the filtering function.

Normal Filtering Table Displays the IP address (or an IP address range) filtering

table.

To add the PC to the filtering table:

1. Click Add PC on the Access Control screen.

2. Define the appropriate settings for client PC services.

DVANCED SETUP

3. Click OK and then click

SAVE SETTINGS

to save your settings.

MAC Filter The Wireless 54Mbps ADSL Router can also limit the network access

based on the MAC address. The MAC Filtering Table allows the Wireless 54Mbps ADSL Router to enter up to 32 MAC addresses that are allowed access to the WAN port.

ONFIGURING THE WIRELESS

54M

BPS

ADSL R

OUTER

Click Ye s to enable or No to disable this function.

Enter the MAC address in the space provided.

You can also select a client in the DHCP Client List and select the line to which you want to copy the information.

URL Blocking The Wireless 54Mbps ADSL Router allows the user to block access to

Web sites by entering either a full URL address or just a keyword. This feature can be used to protect children from accessing violent or pornographic Web sites.

DVANCED SETUP

You can define up to 30 sites here.

Schedule Rule You may filter Internet access for local clients based on rules. Each

access control rule may be activated at a scheduled time. Define the time schedule on this page and apply the rule on the Access Control page.

ONFIGURING THE WIRELESS

54M

BPS

ADSL R

OUTER

Follow these steps to add a schedule rule:

1. Click Add Schedule Rule.

2. Define the appropriate settings for a schedule rule (as shown in this example).

3. Click OK and then click

SAVE SETTINGS

to save your settings.

Intrusion Detection Stateful Packet Inspection (SPI) and Anti-DoS firewall protection

(Default: Enabled) — The Intrusion Detection Feature of the Wireless 54Mbps ADSL Router limits access for incoming traffic at the WAN port. When the SPI feature is turned on, all incoming packets will be blocked except for those types marked in the Stateful Packet Inspection section.

RIP Defect (Default: Disabled) — If an RIP request packet is not acknowledged by the router, it will stay in the input queue and not be released. Accumulated packets could cause the input queue to fill, causing severe problems for all protocols. Enabling this feature prevents the packets from accumulating.

Discard Ping to WAN (Default: Disabled) — Prevent a ping on the Wireless 54Mbps ADSL Router’s WAN port from being routed to the network.

Scroll down to view more information.

DVANCED SETUP

ONFIGURING THE WIRELESS

54M

BPS

ADSL R

OUTER

• Stateful Packet Inspection

This is called a “stateful” packet inspection because it examines the contents of the packet to determine the state of the communications; i.e., it ensures that the stated destination computer has previously requested the current communication. This is a way of ensuring that all communications are initiated by the recipient computer and are taking place only with sources that are known and trusted from previous interactions. In addition to being more rigorous in their inspection of packets, stateful inspection firewalls also close off ports until connection to the specific port is requested.

When particular types of traffic are checked, only the particular type of traffic initiated from the internal LAN will be allowed. For example, if the user only selects FTP Service in the Stateful Packet Inspection section, all incoming traffic will be blocked except for FTP connections initiated from the local LAN.

Stateful Packet Inspection allows you to select different application types that are using dynamic port numbers. If you wish to use the Stateful Packet Inspection (SPI) to block packets, select Yes in the Enable SPI and Anti-DoS firewall protection field and then select the

DVANCED SETUP

inspection type that you need, such as Packet Fragmentation, TCP Connection, UDP Session, FTP Service, H.323 Service, or TFTP Service.

• When hackers attempt to enter your network, we can alert you by e-mail

If the mail server needs to authenticate your identification before sending out any e-mail, please fill in the necessary information in the POP3 server, username and password fields. Otherwise leave the three fields blank.

• Connection Policy

Enter the appropriate values for TCP/UDP sessions as described in the following table:

Parameter Defaults Description

Fragmentation halfopen wait

TCP SYN wait 30 sec Defines how long the software will wait for a TCP

TCP FIN wait 5 sec Specifies how long a TCP session will be

TCP connection idle timeout

UDP session idle timeout

H.323 data channel idle timeout

10 sec Configures the number of seconds that a packet

3600 sec (1 hour)

30 sec The length of time for which a UDP session will be

180 sec The length of time for which an H.323 session will

state structure remains active. When the timeout value expires, the router drops the unassembled packet, freeing that structure for use by another packet.

session to synchronize before dropping the session.

maintained after the firewall detects a FIN packet.

The length of time for which a TCP session will be managed if there is no activity.

managed if there is no activity.

be managed if there is no activity.

ONFIGURING THE WIRELESS

54M

BPS

ADSL R

OUTER

• DoS Detect Criteria

Set up DoS detect and port scan criteria in the spaces provided.

Parameter Defaults Description

Total incomplete TCP/UDP sessions HIGH

Total incomplete TCP/UDP sessions LOW

Incomplete TCP/UDP sessions (per min) HIGH

Incomplete TCP/UDP sessions (per min) LOW

Maximum incomplete TCP/UDP sessions number from same host

Incomplete TCP/UDP sessions detect sensitive time period

Maximum half-open fragmentation packet number from same host

Half-open fragmentation detect sensitive time period

Flooding cracker block time

300 sessions

250 sessions

200 sessions

10 Maximum number of incomplete TCP/UDP

300 msec

30 Maximum number of half-open fragmentation

10000 msec

300 sec Length of time from detecting a flood attack to

Defines the rate of new unestablished sessions that will cause the software to open sessions.

Maximum number of allowed incomplete TCP/UDP sessions per minute.

Minimum number of allowed incomplete TCP/UDP sessions per minute.

sessions from the same host.

Length of time before an incomplete TCP/UDP session is detected as incomplete.

packets from the same host.

Length of time before a half-open fragmentation session is detected as half-open.

blocking the attack.

start

deleting half-

stop

deleting half-

Note: The firewall does not significantly affect system performance, so we advise enabling the prevention features to

protect your network.

DMZ If you have a client PC that cannot run an Internet application

properly from behind the firewall, you can open the client up to unrestricted two-way Internet access. Enter the IP address of a DMZ (Demilitarized Zone) host on this screen. Adding a client to the DMZ

may expose your local network to a variety of security risks, so be careful when using this option.

SNMP

Use the SNMP configuration screen to display and modify parameters for the Simple Network Management Protocol (SNMP).

DVANCED SETUP

Community A computer attached to the network, called a Network Management

Station (NMS), can be used to access this information. Access rights to the agent are controlled by community strings. To communicate with the Wireless 54Mbps ADSL Router, the NMS must first submit a valid community string for authentication.

ONFIGURING THE WIRELESS

Parameter Description

Community A community name authorized for management access.

Access Management access is restricted to Read Only (Read) or

Valid Enables/disables the entry.

54M

BPS

ADSL R

Read/Write (Write).

OUTER

Note: Up to five community names may be entered.

Trap Specify the IP address of the NMS to notify when a significant event

is detected by the agent. When a trap condition occurs, the SNMP agent sends an SNMP trap message to any NMS specified as a trap receiver.

DVANCED SETUP

Parameter Description

IP Address Traps are sent to this address when errors or specific events occur on

Community A community string (password) specified for trap management. Enter a

Version Sets the trap status to disabled, or enabled with V1 or V2c.

the network.

word, something other than public or private, to prevent unauthorized individuals from accessing information on your system.

The v2c protocol was proposed in late 1995 and includes enhancements to v1 that are universally accepted. These include a get-bulk command to reduce network management traffic when retrieving a sequence of MIB variables, and a more elaborate set of error codes for improved reporting to a Network Management Station.

ONFIGURING THE WIRELESS

54M

BPS

ADSL R

OUTER

UPnP

Select Enable to activate the Universal Plug and Play function of the router. This function allows the device to:

• dynamically join a network

• automatically obtain an IP address

ADSL

ADSL (Asymmetric Digital Subscriber Line) is designed to deliver more bandwidth downstream (from the central office to the customer site) than upstream. This section is used to configure the ADSL operation type and shows the ADSL status.

Parameters

DVANCED SETUP

Parameter Description

Operation Mode • Automatic

•T1.413 issue 2

• G.992.1 (G.DMT)

• G.992.2 (G.Lite)

• G.992.3 (ADSL2)

• G.992.5 (ADSL2+)

This page is designed for the engineer to test the ADSL loop condition. Therefore, it is advised that users should not change the settings here at all.

Status

The Status screen displays information on connection line status, data rate, operation data and defect indication, and statistics.

ONFIGURING THE WIRELESS

54M

BPS

ADSL R

OUTER

The following items are included on the ADSL status page:

Parameter Description

Status

Line Status Shows the current status of the ADSL line connection.

Link Type Two types of link: Fast path and Interleaved path.

Data Rate

Upstream Maximum upstream data rate.

Downstream Maximum downstream data rate.

Operation Data/Defect Indication

Noise Margin Maximum upstream and downstream noise margin.

Attenuation Maximum reduction in the strength of the upstream and

Fast Path FEC Correction

Interleaved Path FEC Correction

Fast Path CRC Error The number of Fast Path Cyclic Redundancy Check errors.

Interleaved Path CRC Error

Loss of Signal Defect

Fast Path HEC Error Fast Path Header Error Concealment errors.

Interleaved Path HEC Error

downstream signal.

There are two latency paths that may be used: fast and interleaved. For either path, a forward error correction (FEC) scheme is employed to ensure higher data integrity. For maximum noise immunity, an interleaver may be used to supplement FEC.

An interleaver is basically a buffer used to introduce a delay, allowing for additional error correction techniques to handle noise. Interleaving slows the data flow and may not be optimal for real-time signals such as video transmission.

The number of Interleaved Path Cyclic Redundancy Check errors.

Momentary signal discontinuities.

Interleaved Path Header Error Concealment errors.

Statistics (Superframes represent the highest level of data presentation.

Received cells Number of cells received.

Transmitted cells Number of cells transmitted.

Each superframe contains regular ADSL frames, one of which is used to provide superframe synchronization, identifying the start of a superframe. Some of the remaining frames are also used for special functions.)

DDNS

Dynamic DNS (DDNS) provides users on the Internet with a way to tie their domain name to a computer or server. By enabling this, your domain name will be linked to your IP address so that if your IP address changes, your DNS records will be automatically updated with the new location without any effort on your part. (This is done by a DDNS provider.)

DVANCED SETUP

If you enable this feature, you will need to select a DDNS provider and enter the site’s Domain Name, your account or e-mail address, and your password or key. When finished, click SAVE SETTINGS.

Tools

Use the Tools menu to back up the current configuration, restore a previously saved configuration, restore factory settings, update firmware, and reset the Wireless 54Mbps ADSL Router.

Configuration Tools Select a function and click Next.

ONFIGURING THE WIRELESS

54M

BPS

ADSL R

OUTER

Backup allows you to save the Wireless 54Mbps ADSL Router’s configuration to a file. Restore can be used to restore the saved backup configuration file. Restore to Factory Defaults resets the Wireless 54Mbps ADSL Router to the original settings.

You will be asked to confirm your decision.

Firmware Upgrade Use the Firmware Upgrade screen to update the firmware or Web

User Interface to the latest versions. Download the upgrade file, and save it to your hard drive. Click Browse to look for the downloaded file and then click BEGIN UPGRADE. Check the Status page Information section to confirm that the upgrade process was successful.

Reset

DVANCED SETUP

Click REBOOT ROUTER to reset the Wireless 54Mbps ADSL Router. If you perform a reset from this page, the configurations will not be changed back to the factory default settings.

Note: If you press the Reset button on the rear panel for one to

two seconds, the Wireless 54Mbps ADSL Router will perform a power reset. Press the button for over five seconds and the factory default settings will be restored.

ONFIGURING THE WIRELESS

54M

BPS

ADSL R

OUTER

Status

The Status page displays WAN/LAN connection status, firmware, and hardware version numbers, and illegal attempts to access your network, as well as information on DHCP clients connected to your network. The security log may be saved to a file by clicking Save and choosing a location.

DVANCED SETUP

The following items are included on the Status page:

Parameter Description

INTERNET Displays WAN connection type and status.

GATEWAY Displays system IP settings, as well as DHCP Server and Firewall

INFORMATION Displays the number of attached clients, the firmware versions,

ATM PVC Displays ATM connection type and status.

Disconnect Click on this button to disconnect from the ATM connection.

Connect Click on this button to establish a connection to the ATM

Security Log Displays illegal attempts to access your network.

Save Click on this button to save the security log file.

Clear Click on this button to delete the access log.

Refresh Click on this button to refresh the screen.

DHCP Client Log Displays information on DHCP clients on your network.

status.

the physical MAC address for each media interface and for the Wireless 54Mbps ADSL Router, as well as the hardware version and serial number.

connection.

ONFIGURING THE WIRELESS

54M

BPS

ADSL R

OUTER

PPENDIX

ROUBLESHOOTING

This section describes common problems you may encounter and possible solutions to them. The ADSL Router can be easily monitored through panel indicators to identify problems.

The Power LED is not illuminated. Possible Solution

Check connections between the ADSL Router, the external power supply, and the wall outlet.

Possible Solution

If the power indicator does not turn on when the power cord is plugged in, you may have a problem with the power outlet, power cord, or external power supply. However, if the unit powers off after running for a while, check for loose power connections, power losses, or surges at the power outlet.

If you still cannot isolate the problem, then the external power supply may be defective. In this case, contact Technical Support for assistance.

The Link LED is not illuminated. Possible Solution

Verify that the ADSL Router and attached device are powered on. Be sure the cable is plugged into both the ADSL Router and the corresponding device.

Possible Solution

Verify that the proper cable type is used and that its length does not

ROUBLESHOOTING

exceed the specified limits.

Possible Solution

Be sure that the network interface on the attached device is configured for the proper communication speed and duplex mode.

Possible Solution

Check the adapter on the attached device and cable connections for possible defects. Replace any defective adapter or cable if necessary.

I cannot ping the ADSL Router from the attached LAN. Possible Solution

Verify that the IP addresses are properly configured. For most applications, you should use the ADSL Router’s DHCP function to dynamically assign IP addresses to hosts on the attached LAN.

However, if you manually configure IP addresses on the LAN, verify that the same network address (network component of the IP address) and subnet mask are used for both the ADSL Router and any attached LAN devices.

Possible Solution

Be sure the device you want to ping (or from which you are pinging) has been configured for TCP/IP.

I cannot connect to the Internet. Possible Solution

Be sure you have configured the ADSL Router with the correct DSL connection information that was supplied by your ISP.

Possible Solution

Make sure that the power cord and all the Ethernet cables are connected correctly. This includes the cables connecting the Wireless 54Mbps DSL Router and all the computers.

ROUBLESHOOTING

Possible Solution

Check the network cabling between the computer and the ADSL Router.

I forgot or lost the password for the Wireless 54Mbps ADSL Router. Possible Solution

Press the Reset button on the rear panel for at least five seconds to restore the factory defaults.

A wireless client cannot associate with the ADSL Router. Possible Solution

Make sure the wireless client has the same SSID settings as the ADSL Router.

Possible Solution

You need to have the same security settings on the clients and the ADSL Router.

The ADSL Router cannot be detected by a wireless client. Possible Solution

The distance between the ADSL Router and wireless PC may be too great. Make sure the wireless client has the same SSID and security settings as the ADSL Router.

I cannot access the router’s Web User Interface. Possible Solution:

Make sure that the power cord and all the Ethernet cables are connected correctly. This includes the cables connecting the Wireless 54Mbps DSL Router and all the computers.

Possible Solution:

ROUBLESHOOTING

Make sure that your computer is using an IP address that is within the default range of 192.168.2.xxx. Make sure the address of the subnet mask is 255.255.255.0. The Default Gateway should be the IP address of the Wireless 54Mbps DSL Router, which is 192.168.2.1.

Possible Solution:

You need to verify the connection setting of your Web browser and that the HTTP Proxy feature of your Web browser is disabled. You need to do this so that your Web browser can read the configuration pages inside your Wireless 54Mbps DSL Router. Launch your Web browser. Internet Explorer users: Click Tools, Internet Options, and then the Connections tab. Select Never dial a connection, click Apply, and then click OK. Click Tools again, then click Internet Options. Click the Connections tab, and click the LAN Settings button. Clear all the check boxes and click OK. Click OK to close Internet Options. Netscape Navigator users: Click Edit, Preferences, and then doubleclick Advanced in the Category window. Click Proxies, select Direct connection to the Internet, and then click OK. Click Edit again, then click Preferences. Under Category, double-click Advanced, then click

Proxies. Select Direct connection to the Internet and click OK.

I am no longer able to access the Internet through the Wireless 54Mbps DSL Router. Possible Solution:

Make sure that the power cord, the DSL cable, and the Ethernet cable are all connected correctly.

Possible Solution:

ROUBLESHOOTING

verify all of these settings, perform the following steps:

Windows 95, 98, or Me Users: Click Windows Start and then Run. Type winipcfg and click OK. Check the IP Address, Subnet

Mask, Default Gateway, and DNS server data to make sure they are correct. If the information is not correct, click Release All and then click Renew All.

Windows NT, 2000, or XP Users: Click Windows Start and then Run. Type cmd and click OK. At the DOS prompt, type ipconfig /all. Check the IP Address, Subnet Mask, Default Gateway, and

DNS server data to make sure they are correct. If the information is not correct, type ipconfig /release and press ENTER. Then, type ipconfig /renew and press ENTER.

My Web User Interface for the Wireless 54Mbps DSL Router is not responding, but I can still access the Internet. Possible Solution:

If your Web User Interface stops responding, unplug and then plug back in the power supply of the Wireless 54Mbps DSL Router. This will reboot the Wireless 54Mbps DSL Router. If you are still unable to communicate with the router’s Web User Interface, use a paperclip to press in and hold the RESET button for five seconds. This will reset the Wireless 54Mbps DSL Router to the factory default settings. If you applied any personal configuration settings, you will need to make the changes again.

I am unable to connect to the wireless function of the Wireless 54Mbps DSL Router. Possible Solution: Be certain that you have each Wireless adapter is set to Infrastructure mode. If your 802.11g 54Mbps USB Adapter is set to Ad hoc

mode, you will not be able to use the wireless function. Refer to the documentation that came with your wireless adapter to determine how to change this setting.

ROUBLESHOOTING

Note: Ad hoc mode is used for peer-to-peer network configurations. Infrastructure mode is used for integrated wireless and wired LAN

configuration.

My computer does not recognise the wireless function of the Wireless 54Mbps DSL Router after I changed the settings. Possible Solution:

Ensure that you are connecting to the correct Wireless 54Mbps DSL Router by verifying the correct MAC address. Ensure that the correct passphrase and encryption option is being used. If you changed the settings in the configuration of the Wireless 54Mbps DSL Router, you must also change the settings of every Wireless adapter attached to this network. The settings of the Wireless adapters must match the new settings of the Wireless 54Mbps DSL Router.

I cannot achieve 54 Mbps connections to the Wireless 54Mbps DSL Router. Possible Solution:

Make sure the wireless products you are using to connect to the Wireless 54Mbps DSL Router support 54 Mbps speeds. 54 Mbps wireless products must be used in order to connect to the Wireless 54Mbps DSL Router at a rate of 54 Mbps. Launch the router’s Web User Interface and manually set the connection speed to 54 Mbps. If you are using non-U.S. Robotics wireless products, you may need to upgrade the firmware for those products in order to support 54 Mbps connections.

Possible Solution:

Low connection speed or range can also be caused by environmental interference. Try to move the product around to improve the link quality. In addition, keep in mind that other factors such as lead

ROUBLESHOOTING

based paint, concrete walls, and electronic items such as 2.4G phones may affect your wireless range.

I plugged in the 802.11g 54Mbps USB Adapter but I do not see the Configuration Utility icons. Possible Solution:

If you installed the 802.11g 54Mbps USB Adapter without installing the software and drivers first, you will not see the Configuration Utility. If the Installation CD-ROM is in your CD-ROM drive, remove it. Insert the Installation CD-ROM into your CD-ROM drive, select your product, and then click Software. Click Wireless USB Adapter Utility and Drivers. Follow the on-screen instructions to finish the installation procedure. If you are prompted, restart your computer.

Windows could not locate the drivers for the 802.11g 54Mbps USB Adapter. Possible Solution:

The software must be installed before the 802.11g 54Mbps USB Adapter is connected to your computer. Click Cancel on the Found New Hardware Wizard screen, unplug the 802.11g 54Mbps USB Adapter from your computer, and perform the Installation Procedure again, making sure to install the software and drivers first.

I cannot connect to the Internet via a wireless connection with the

802.11g 54Mbps USB Adapter. Possible Solution:

Check the Configuration Utility icon for the 802.11g 54Mbps USB Adapter in the system tray to confirm the connection status. If you are connected to your Wireless Router, the icon will be green or yellow. If the icon is red, open the Configuration Utility and scan the area so that you can connect to the correct wireless network.

Possible Solution:

Try performing the ping procedure to make sure you can connect with different areas of the wireless network and the internet. If at any time during the ping procedure you do not receive a return

ROUBLESHOOTING

message for a successful ping, this means that you cannot connect to that IP address. After you have made the corrections, continue with the ping procedure. 1Click Windows Start and then click Run. In the Run dialog box, Windows 98 and Me users should type command and click OK. Windows 2000 and XP users should type cmd and click OK. 2At the command prompt, type Ping 127.0.0.1 This is your local host address and this will ensure that the TCP/IP protocol is installed and functioning properly. If you cannot complete this ping, reinstall the TCP/IP protocol on your computer. Refer to your operating system’s documentation for instructions. 3Type Ping followed by your IP address. To determine your IP address, refer to the previous Possible Solution. This will ensure that your computer is responding to requests and that the 802.11g 54Mbps USB Adapter is properly installed. If you cannot complete this ping, uninstall the 802.11g 54Mbps USB Adapter and repeat the installation procedure. 4Type Ping followed by your gateway address to check the commu- nication with your gateway. The default gateway address is the IP address of your wireless router. Check your wireless router to verify this address. This will ensure that you can connect to the wireless network. If you cannot complete this ping, make sure your wireless settings are correct and that the 802.11g 54Mbps USB Adapter is fully inserted into a USB port on your computer. 5Type Ping followed by the outside Internet address that is pro- vided by your ISP. This procedure will ensure that your wireless network can connect to the Internet. If you cannot complete this ping, verify your internet connection between your modem and your wireless router or access point. 6Type Ping followed by your known DNS server address. This will allow you to resolve valid Internet host names to IP addresses and to verify that you can access the Internet.

ROUBLESHOOTING

Security is enabled on my Wireless 54Mbps DSL Router and my wireless client cannot connect. Possible Solution:

The 802.11g 54Mbps USB Adapter supports 64 and 128 bit encryption. Verify that all of the security features you have entered for the profile of your 802.11g 54Mbps USB Adapter match the settings for your Wireless 54Mbps DSL Router. For more information about setting up connection profiles and security features, refer to the Navigating the Wireless Configuration Utility section of the User Guide on the U.S. Robotics Installation CD-ROM.

Possible Solution:

If you created a Profile Setting, unplug the 802.11g 54Mbps USB Adapter and then plug it back in.

The U.S. Robotics Installation CD-ROM did not automatically launch when I inserted it into my CD-ROM drive. Possible Solution:

Some programs may keep the autolaunch feature of the Installation CD-ROM from beginning. Close any open applications and reinsert the Installation CD-ROM. If your CD-ROM still does not automatically launch, click Windows Start, Run, and type D:\setup (if your CD-ROM drive uses a different letter, type that letter in place of “D”) and click

OK.

I accidentally clicked Cancel during the installation procedure of the 802.11g 54Mbps USB Adapter. Possible Solution:

Remove and reinsert the U.S. Robotics Installation CD-ROM into your CD-ROM drive. Repeat the installation procedure of the software before you install any hardware.

ROUBLESHOOTING

My computer does not recognise the 802.11g 54Mbps USB Adapter. Possible Solution:

The 802.11g 54Mbps USB Adapter may not be properly connected. Make sure the 802.11g 54Mbps USB Adapter is fully inserted into the USB port on your computer.

The 802.11g 54Mbps USB Adapter does not work properly, and I may need to uninstall the device. Possible Solution:

Check to be certain the 802.11g 54Mbps USB Adapter is not in use before removing it. The computer may lock up if the 802.11g 54Mbps USB Adapter is removed while in use. If the 802.11g 54Mbps USB Adapter is not functioning correctly, perform the following steps:

Windows XP Users: Click Windows Start, All Programs, 802.11g Wireless USB Adapter Utility, and then Uninstall.

Windows 98, Me, and 2000 Users: Click Windows Start, Programs, 802.11g Wireless USB Adapter Utility, and then Uninstall.

I uninstalled the Configuration Utility and my computer doesn’t detect the 802.11g 54Mbps USB Adapter when I attempt to reinstall the Configuration Utility. Possible Solution:

If you uninstalled the Configuration Utility and then reinstalled it, you will need to unplug and then plug back in the 802.11g 54Mbps USB Adapter. Your computer will then detect the 802.11g 54Mbps USB Adapter.

ROUBLESHOOTING

When I perform a Site Survey, I cannot locate the wireless network to which I want to connect. Possible Solution:

If you do not see the correct wireless network, click Refresh.

If you still do not see the correct wireless network when you perform a Site Survey, try creating a profile using the necessary connection information for the appropriate wireless network, selecting the profile, and then clicking Apply in the Configuration tab. Refer to the “Navigating the Wireless Configuration Utility” section of the 802.11g 54Mbps USB Adapter User Guide on the Installation CD-ROM for more information about creating a profile.

Additional Support

Note: The product number for the Wireless 54Mbps ADSL Router is

9110. The product number for the 802.11g 54Mbps USB Adapter is

5422. You can find your serial number on the label on each product and on the side of the package. Write your serial number down. If you ever need to call our Technical Support department, you will need this number to receive assistance.

Model Number Serial Number

USR9110

USR5422

ROUBLESHOOTING

1. Go to the Support section of the U.S. Robotics Web site at

http://www.usr.com/support/.

Many of the most common difficulties users experience have been addressed in the FAQ and Troubleshooting Web pages for your specific product.

2. Submit your technical support question using an online form at http://www.usr.com/emailsupport/.

3. Call the U.S. Robotics Technical Support department. Technical questions about U.S. Robotics products can also be answered by technical support specialists.

Country Voice Online Support Hours

United States (888) 216-2850 http://www.usr.com/emailsupport 9:00 A.M. - 5:00 P.M., M-F CT & Canada Austria 07 110 900 116 http://www.usr.com/emailsupport/de 9:00 –17:00, M-F Belgium (Flemish) +32 (0)70 233 545 http://www.usr.com/emailsupport/ea 9:00 –17:00, M-F Belgium (French) +32 (0)70 233 546 http://www.usr.com/emailsupport/ea 9:00 –17:00, M-F Czech Republic http://www.usr.com/emailsupport/cz Denmark +45 7010 4030 http://www.usr.com/emailsupport/uk 9:00 –17:00, M-F Finland +358 98 171 0015 http://www.usr.com/emailsupport/ea 9:00 –17:00, M-F France 082 507 0693 http://www.usr.com/emailsupport /fr 9:00 –17:00, M-F Germany 01805671548 http://www.usr.com/emailsupport/de 9:00 –17:00, M-F Hungary 01805671548 http://www.usr.com/emailsupport/hu 9:00 –17:00, M-F Ireland 1890-252-130 http://www.usr.com/emailsupport/uk 9:00 –17:00, M-F Italy 848 80 9903 http://www.usr.com/em ailsupport/it 9:00 –17:00, M-F Luxembourg +352 342 080 8318 http://www.usr.com/emailsupport/bn 9:00 –17:00, M-F Middle East/Africa +44 8 70 844 4546 http://www.usr.com/emailsupport/me 9:00 –17:00, M-F Netherlands 0900 20 25 857 http://www.usr.com/emailsupport/bn 9:00 –17:00, M-F Norway +47 23 50 0097 http://www.usr.com/emailsupport/ea 9:00 –17:00, M-F Poland http://www.usr.com/emailsupport/pl Portugal +351 (0)21 415 4034 http://www.usr.com/emailsupport/pt 9:00 –17:00, M-F Spain 902 117 964 http://www.usr.com/emailsupport/es 9:00 –17:00, M-F Sweden +46 (0) 77 128 1020 http://www.usr.com/emailsupport/ea 9:00 –17:00, M-F Switzerland +0848 840 200 http://www.usr.com/emailsupport/de 9:00 –17:00, M-F Turkey http://www.usr.com/emailsupport/tk UK 0870 844 4546 http://www.usr.com /emailsupport/uk 9:00 –17 :00, M-F

For current support contact information, go to the following Web site: http://www.usr.com/support/.

PPENDIX

PECIFICATIONS

Physical Characteristics

Ports One 10/100Mbps RJ-45 Port One ADSL RJ-11

ADSL Features

Supports DMT line modulation Supports Annex A Full-Rate ADSL: up to 8 Mbps downstream, up to

1 Mbps upstream (G.992.1 &T1.413, Issue 2)

Supports G.Lite ADSL: up to 1.5 Mbps downstream, up to 512 Kbps

upstream

Dying GASP support

ATM Features

RFC1483 Encapsulation (IP, Bridging and encapsulated routing) PPP over ATM (LLC &VC multiplexing) (RFC2364) Classical IP (RFC1577) Traffic shaping (UBR, CBR) OAM F4/F5 support PPP over Ethernet Client

Management Features

Firmware upgrade via web based management Web based management (configuration) Power indicators Event and history logging Network ping QoS

PECIFICATIONS

Security Features

Password protected configuration access User authentication (PAP/CHAP) with PPP Firewall NAT NAPT VPN pass through (IPSec-ESP Tunnel mode,L2TP, PPTP)

LAN Features

IEEE 802.1d (self-learning transparent Bridging) DHCP Server DNS Proxy Static Routing, RIPv1 and RIP

Applications

Netmeeting, ICQ, Real Player, QuickTime, DialPad, PC Anywhere,

Telnet, SNTP, NNTP

Radio Features

Wireless RF module Frequency Band

802.11g Radio: 2.4GHz

802.11b Radio: 2.4GHz Europe - ETSI 2412~2472MHz (Ch1~Ch13) France 2457~2472MHz (Ch10~Ch13)

Modulation Type

OFDM, CCK

Operating Channels IEEE 802.11b compliant:

13 channels (ETSI) 4 Channels (France)

Operating Channels IEEE 802.11g compliant:

13 channels (Europe)

PECIFICATIONS

RF Output Power Modulation Rate-Output Power (dBm)

802.11b - 1Mbps (16 dBm)

802.11b - 2Mbps (16 dBm)

802.11b - 5.5Mbps (16 dBm)

802.11b - 11Mbps (16 dBm)

Modulation Rate-Output Power (dBm)

802.11g - 6Mbps (15 dBm)

802.11g - 9Mbps (15 dBm)

802.11g - 12Mbps (15 dBm)

802.11g - 18Mbps (15 dBm)

802.11g- 24Mbps (15 dBm)

802.11g - 36Mbps (15 dBm)

802.11g- 48Mbps (15 dBm)

802.11g - 54Mbps (15 dBm)

Sensitivity Modulation Rate-Receiver 2.412 ~ 2.484 HGz Sensitivity

(dBm)

802.11b - 1Mbps - (90 dBm)

802.11b - 2Mbps - (88 dBm)

802.11b - 5.5Mbps - (85 dBm)

802.11b- 11Mbps - (84 dBm)

PECIFICATIONS

Modulation Rate-Receiver Sensitivity Typical (dBm)

802.11g - 6Mbps - (88 dBm)

802.11g - 9Mbps - (87 dBm)

802.11g - 12Mbps - (84 dBm)

802.11g - 18Mbps - (82 dBm)

802.11g - 24Mbps - (79 dBm)

802.11g - 36Mbps - (75 dBm)

802.11g - 48Mbps - (68 dBm)

802.11g - 54Mbps - (68 dBm)

Environmental

Complies with the following standards:

Temperature: IEC 68-2-14

0 to 50 degrees C (Standard Operating)

-40 to 70 degree C (Non-operation)

Humidity

10% to 90% (Non-condensing)

Vibration

IEC 68-2-36, IEC 68-2-6

Shock

IEC 68-2-29

Drop

IEC 68-2-32

Dimensions

220 x 132 x 30 (mm)

Weight

550 g

Input Power 12 VDC

IEEE Standards

IEEE 802.3, 802.3u, 802.11g, 802.1d ITU G.dmt ITU G.Handshake ITU T.413 issue 2 - ADSL full rate

Standards Conformance Electromagnetic Compatibility

CE, ETSI, R&TTE, ETS 300 328, ETS 301 489

Safety

EN60950

Internet Standards

RFC 826 ARP RFC 791 IP RFC 792 ICMP RFC 768 UDP RFC 793 TCP RFC 783 TFTP RFC 1483 AAL5 Encapsulation RFC 1661 PPP RFC 1866 HTML RFC 2068 HTTP RFC 2364 PPP over ATM

PECIFICATIONS

PPENDIX

EGULATORY

CE Compliance

Manufacturer’s Declaration of Conformity

We, U.S. Robotics Corporation of 935 National Parkway, Schaumburg, Illinois, 60173-5157 USA, declare under our sole responsibility that the product, U.S. Robotics Wireless 54Mbps ADSL Router, Model 9110, to which this declaration relates, is in conformity with the following standards and/or other normative documents.

EN300 328 EN301 489-1 EN301 489-17 EN55022 EN55024 EN60950 EN61000-3-2 EN61000-3-3 EN50392

We, U.S. Robotics Corporation, hereby declare the above named product is in compliance and conformity with the essential requirements and other relevant provisions of Directive 1999/5/ EC.

The conformity assessment procedure referred to in Article 10(3) and detailed in Annex II of Directive 1999/5/EC has been followed.

This equipment is in compliance with the European recommendation 1999/519/ECC, governing the exposure to the electromagnetic radiation.

Network Compatibility Declaration This equipment is designed to work satisfactorily on all European Union PSTN networks.

This equipment is supplied with a suitable PSTN connector for the country in which it was supplied. If it is required to use this equipment on a different network to the one for which it was supplied, the user is advised to contact the vendor for guidance regarding connection.

This product can be used in the following countries: Belgium, Switzerland, Netherlands, Luxembourg, Italy, France, UK, Ireland, Spain, Portugal,

EGULATORY

Sweden, Norway, Denmark, Finland, Czech Republic, Poland, Hungary, and Greece

Regarding IEEE 802.11g we currently have the following information about restrictions in the R&TTE countries:

Country Frequency band Output power

France 2454-2483.5 MHz 10 mW EIRP outdoor

Regulatory Channel Frequency

Channel Frequency

(MHz)

1 2412 X

2 2417 X

3 2422 X

4 2427 X

5 2432 X

6 2437 X

7 2442 X

8 2447 X

9 2452 X

10 2457 X

11 2462 X

12 2467 X

13 2472 X

ETSI

EU Health Protection

This device complies with the European requirements governing exposure to electromagnetic radiation. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. This wireless device is a transmitter/receiver and has

EGULATORY

been designed and manufactured to comply with the exposure limits recommended by the Council of the European Union and the International Commission on Non-Ionizing Radiation Protection (ICNIRP, 1999) for the entire population. The exposure standard for portable equipment uses the "Specific Absorption Rate" as unit of measure. The maximum SAR value of this wireless device measured in the conformity test is 0.25 W/kg.

Operating Channels:

Go to www.usr.com

• IEEE 802.11g compliant

• 13 channels (ETSI)

to see the most recent channel restriction information.

EGULATORY

PPENDIX

ARRANTY

U.S. Robotics Corporation Two (2) Year Limited Warranty

1.0 GENERAL TERMS:

1.1 This Limited Warranty is extended only to the original end-user purchaser (CUSTOMER) and is not transferable.

1.2 No agent, reseller, or business partner of U.S. Robotics Corporation (U.S. ROBOTICS) is authorised to modify the terms of this Limited Warranty on behalf of U.S. ROBOTICS.

1.3 This Limited Warranty expressly excludes any product that has not been purchased as new from U.S. ROBOTICS or its authorised reseller.

1.4 This Limited Warranty is only applicable in the country or territory where the product is intended for use (As indicated by the Product Model Number and any local telecommunication approval stickers affixed to the product).

1.5 U.S. ROBOTICS warrants to the CUSTOMER that this product will be free from defects in workmanship and materials, under normal use and service, for TWO (2) YEARS from the date of purchase from U.S. ROBOTICS or its authorised reseller.

1.6 U.S. ROBOTICS sole obligation under this warranty shall be, at U.S. ROBOTICS sole discretion, to repair the defective product or part with new or reconditioned parts; or to exchange the defective product or part with a new or reconditioned product or part that is the same or similar; or if neither of the two foregoing options is reasonably available, U.S. ROBOTICS may, at its sole discretion, provide a refund to the CUSTOMER not to exceed the latest published U.S. ROBOTICS recommended retail purchase price of the product, less any applicable service fees. All products or parts that are exchanged for replacement will become the property of U.S. ROBOTICS.

1.7 U.S. ROBOTICS warrants any replacement product or part for NINETY (90) DAYS from the date the product or part is shipped to Customer.

1.8 U.S. ROBOTICS makes no warranty or representation that this product will meet CUSTOMER requirements or work in combination with any hardware or software products provided by third parties.

1.9 U.S. ROBOTICS makes no warranty or representation that the operation of the software products provided with this product will be uninterrupted or error free, or that all defects in software products will be corrected.

1.10 U.S. ROBOTICS shall not be responsible for any software or other CUSTOMER data or information contained in or stored on this product.

2.0 CUSTOMER OBLIGATIONS:

2.1 CUSTOMER assumes full responsibility that this product meets CUSTOMER specifications and requirements.

EGULATORY

2.2 CUSTOMER is specifically advised to make a backup copy of all software provided with this product.

2.3 CUSTOMER assumes full responsibility to properly install and configure this product and to ensure proper installation, configuration, operation and compatibility with the operating environment in which this product is to function.

2.4 CUSTOMER must furnish U.S. ROBOTICS a dated Proof of Purchase (copy of original purchase receipt from U.S. ROBOTICS or its authorised reseller) for any warranty claims to be authorised.

3.0 OBTAINING WARRANTY SERVICE:

3.1 CUSTOMER must contact U.S. ROBOTICS Technical Support or an authorised U.S. ROBOTICS Service Centre within the applicable warranty period to obtain warranty service authorisation.

3.2 Customer must provide Product Model Number, Product Serial Number and dated Proof of Purchase (copy of original purchase receipt from U.S. ROBOTICS or its authorised reseller) to obtain warranty service authorisation.

3.3 For information on how to contact U.S. ROBOTICS Technical Support or an authorised U.S. ROBOTICS Service Centre, please see the U.S. ROBOTICS corporate Web site at: www.usr.com

3.4 CUSTOMER should have the following information / items readily available when contacting U.S. ROBOTICS Technical Support:

• Product Model Number

• Product Serial Number

• Dated Proof of Purchase

• CUSTOMER contact name & telephone number

• CUSTOMER Computer Operating System version

• U.S. ROBOTICS Installation CD-ROM

• U.S. ROBOTICS Installation Guide

4.0 WARRANTY REPLACEMENT:

4.1 In the event U.S. ROBOTICS Technical Support or its authorised U.S. ROBOTICS Service Centre determines the product or part has a malfunction or failure attributable directly to faulty workmanship and/or materials; and the product is within the TWO (2) YEAR warranty term; and the CUSTOMER will include a copy of the dated Proof of Purchase (original purchase receipt from U.S. ROBOTICS or its authorised reseller) with the product or part with the returned product or part, then U.S. ROBOTICS will issue CUSTOMER a Return Material Authorisation (RMA) and instructions for the return of the product to the authorised U.S. ROBOTICS Drop Zone.

4.2 Any product or part returned to U.S. ROBOTICS without an RMA issued by U.S. ROBOTICS or its authorised U.S. ROBOTICS Service Centre will be returned.

4.3 CUSTOMER agrees to pay shipping charges to return the product or part to the authorised U.S. ROBOTICS Return Centre; to insure the product or assume the risk of loss or damage which may occur in transit; and to use a shipping container equivalent to the original packaging.

4.4 Responsibility for loss or damage does not transfer to U.S. ROBOTICS until the returned product or part is received as an authorised return at an authorised U.S. ROBOTICS Return Centre.

4.5 Authorised CUSTOMER returns will be unpacked, visually inspected, and matched to the Product Model Number and Product Serial Number for which the RMA was authorised. The enclosed Proof of Purchase will be inspected for date of purchase and place of purchase. U.S. ROBOTICS may deny warranty service if visual inspection of the returned product or part does not match the CUSTOMER supplied information for which the RMA was issued.

4.6 Once a CUSTOMER return has been unpacked, visually inspected, and tested U.S. ROBOTICS will, at its sole discretion, repair or replace, using new or reconditioned product or parts, to whatever extent it deems necessary to restore the product or part to operating condition.

ARRANTY

4.7 U.S. ROBOTICS will make reasonable effort to ship repaired or replaced product or part to CUSTOMER, at U.S. ROBOTICS expense, not later than TWENTY ONE (21) DAYS after U.S. ROBOTICS receives the authorised CUSTOMER return at an authorised U.S. ROBOTICS Return Centre.

4.8 U.S. ROBOTICS shall not be liable for any damages caused by delay in delivering or furnishing repaired or replaced product or part.

5.0 LIMITATIONS:

5.1 THIRD-PARTY SOFTWARE: This U.S. ROBOTICS product may include or be bundled with third-party software, the use of which is governed by separate end-user license agreements provided by third-party software vendors. This U.S. ROBOTICS Limited Warranty does not apply to such third-party software. For the applicable warranty refer to the end-user license agreement governing the use of such software.

5.2 DAMAGE DUE TO MISUSE, NEGLECT, NON-COMPLIANCE, IMPROPER INSTALLATION, AND/OR ENVIRONMENTAL FACTORS: To the extent permitted by applicable law, this U.S. ROBOTICS Limited Warranty does not apply to normal wear and tear; damage or loss of data due to interoperability with current and/or future versions of operating system or other current and/or future software and hardware; alterations (by persons other than U.S. ROBOTICS or authorised U.S. ROBOTICS Service Centres); damage caused by operator error or non-compliance with instructions as set out in the user documentation or other accompanying documentation; damage caused by acts of nature such as lightning, storms, floods, fires, and earthquakes, etc. Products evidencing the product serial number has been tampered with or removed; misuse, neglect, and improper handling; damage caused by undue physical, temperature, or electrical stress; counterfeit products; damage or loss of data caused by a computer virus, worm, Trojan horse, or memory content corruption; failures of the product which result from accident, abuse, misuse (including but not limited to improper installation, connection to incorrect voltages, and power points); failures caused by products not supplied by U.S. ROBOTICS; damage cause by moisture, corrosive environments, high voltage surges, shipping, abnormal working conditions; or the use of the product outside the borders of the country or territory intended for use (As indicated by the Product Model Number and any local telecommunication approval stickers affixed to the product).

5.3 TO THE FULL EXTENT ALLOWED BY LAW, THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, TERMS, OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES, TE RMS, OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, SATISFACTORY QUALITY, CORRESPONDENCE WITH DESCRIPTION, AND NON-INFRINGEMENT, ALL OF WHICH ARE EXPRESSLY DISCLAIMED. U.S. ROBOTICS NEITHER ASSUMES NOR AUTHORISES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, WARRANTY, OR USE OF ITS PRODUCTS.

5.4 LIMITATION OF LIABILITY. TO THE FULL EXTENT ALLOWED BY LAW, U.S. ROBOTICS ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PE RFO RM ANC E, FA ILU RE , OR INT ER RUP TIO N OF I TS P ROD UCT S, E VEN IF U .S. ROB OTIC S OR ITS AUT HOR ISE D RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT U.S. ROBOTICS OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.

6.0 DISCLAIMER:

Some countries, states, territories or provinces do not allow the exclusion or limitation of implied warranties or the limitation of incidental or consequential damages for certain products supplied to consumers, or the limitation of liability for personal injury, so the above limitations and exclusions may be limited in their application to CUSTOMER. When the implied warranties are not allowed by law to be excluded in their entirety,

EGULATORY

they will be limited to the TWO (2) YEAR duration of this written warranty. This warranty gives CUSTOMER specific legal rights, which may vary depending on local law.

7.0 GOVERNING LAW: This Limited Warranty shall be governed by the laws of the State of Illinois, U.S.A. excluding its conflicts of

laws principles and excluding the United Nations Convention on Contracts for the International Sale of Goods.

U.S. Robotics Corporation 935 National Parkway Schaumburg, IL, 60173 U.S.A.

Printed in XXXXXX

US-Robotics USR9110 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Setup Wizard

Advanced Setup

Additional Support
