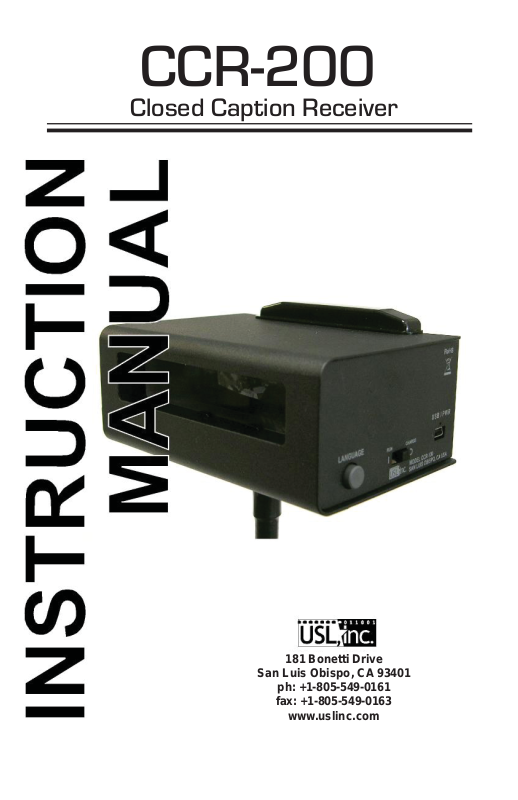

CCR-200
Closed Caption Receiver
181 Bonetti Drive
San Luis Obispo, CA 93401
ph: +1-805-549-0161
fax: +1-805-549-0163
www.uslinc.com
Page 2
CCR-100 INSTRUCTION MANUAL Ultra Stereo Labs, Inc.
Introduction
The CCR-200 is a personal closed caption display for use in movie theater auditoriums. It receives captions for up to six languages from a Sony STWA-C101
data transmitter.
Operation
Because of the auditorium channel selection requirement, we suggest the fi rst
few steps be handled by theater personnel.
1. Move the slide switch on the right side of the unit towards the front to turn the
CCR-200 on. A sign on screen should appear. Verify that the indicated battery
voltage is at least two volts. If less than two volts, replace or recharge the batteries
2. The display will then scroll through the available channels (G1 to G7 and Y1
to Y7). Press the language button when the channel for the desired auditorium is
displayed. The display will say “Channel xx Selected” until a few seconds after
the button is released. If a mistake is made, and the wrong channel is selected,
turn the unit off and back on again to repeat the process.
3. When content with captions is run, the captions should appear on the display.
- 2 -
Page 3
CCR-100 INSTRUCTION MANUAL Ultra Stereo Labs, Inc.
4. If the content has multiple languages and the STWA-C101 has been
confi gured to support those languages, the language button on the side of
the CCR-200 can be pressed to select a different language. The display will
show which language (one through 6) will be displayed when the button is
released. Press and release this button until the desired language is visible.
5. Theater personnel should hand the CCR-200 to the patron at this point.
Explain the operation of the system along with the following instructions.
6. Place the “puck” at the end of the gooseneck in the cup holder.
7. Position the CCR-200 such that its display is visible at a convenient
location while the movie screen is visible. Most people place the CCR-200
display immediately below the bottom of the screen so the captions appear
similar to on-screen subtitles, but a little lower.
Batteries
The CCR-200 uses two AA cells. These batteries give about 30 hours of
continuous operation. The battery voltage is displayed each time the unit is
turned on. If the battery voltage is below two volts, replace or recharge the
batteries.
The CCR-200 ships with non-rechargeable alkaline batteries. A charger kit
(USL part number CCR-CHGR) is available. This kit includes two NiMH
rechargeable batteries, a USB power supply, and a cable to connect the
CCR-200 to the USB power supply. These rechargeable batteries provide
about 24 hours of continuous operation.
USB Jack
The USB jack is used to charge rechargeable batteries and to update system
software. Instructions on charging are delivered with the CCR-CHGR.
Instructions on software updates are delivered with the updates.
- 3 -
Page 4
FCC Information
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Users are cautioned that changes or modifi cations not expressly approved by
USL, Inc. could void your authority to operate the equipment.
This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment and meets the FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65. This equipment has very low levels of
RF energy that are deemed to comply without testing of specifi c absorbtion rate
(SAR).
