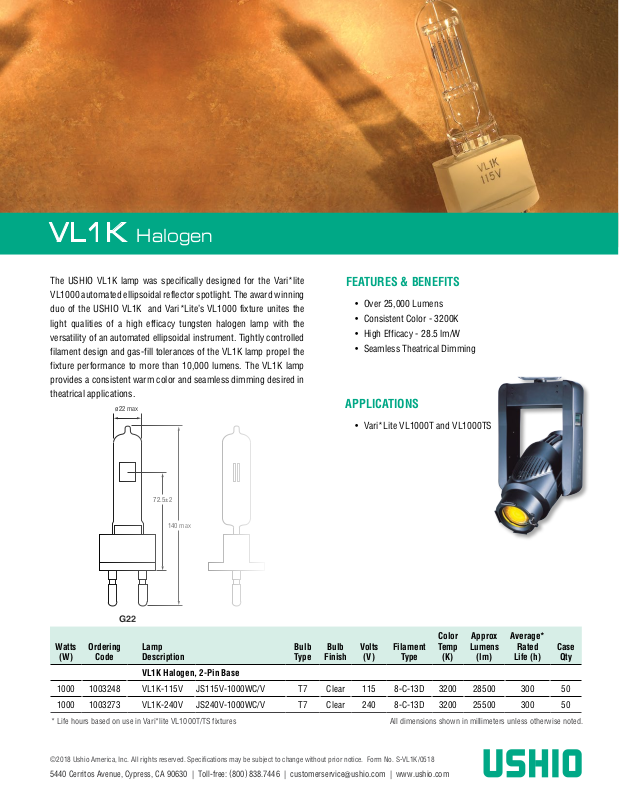

Ushio VL1K User Manual
VL1K Halogen
72.5±2
140 max
ø22 max
G22
The USHIO VL1K lamp was specifically designed for the Vari*lite
VL1000 automated ellipsoidal reflector spotlight. The award winning
duo of the USHIO VL1K and Vari*Lite’s VL1000 fixture unites the
light qualities of a high efficacy tungsten halogen lamp with the
versatility of an automated ellipsoidal instrument. Tightly controlled
filament design and gas-fill tolerances of the VL1K lamp propel the
fixture performance to more than 10,000 lumens. The VL1K lamp
provides a consistent warm color and seamless dimming desired in
theatrical applications.
FEATURES & BENEFITS
• Over 25,000 Lumens
• Consistent Color - 3200K
• High Efficacy - 28.5 lm/W
• Seamless Theatrical Dimming
APPLICATIONS
• Vari*Lite VL1000T and VL1000TS
Color Approx Average*
Watts
1000 1003248 VL1K-115V JS115V-1000WC/V T7 Clear 115 8-C-13D 3200 28500 300 50
1000 1003273 VL1K-240V JS240V-1000WC/V T7 Clear 240 8-C-13D 3200 25500 300 50
* Life hours based on use in Vari*lite VL1000T/TS fixtures All dimensions shown in millimeters unless otherwise noted.
©2018 Ushio America, Inc. All rights reserved. Specifications may be subject to change without prior notice. Form No. S-VL1K/0518
5440 Cerritos Avenue, Cypress, CA 90630 | Toll-free: (800) 838.7446 | customerservice@ushio.com | www.ushio.com
(W)
Ordering
Code
Lamp
Description
VL1K Halogen, 2-Pin Base
Bulb
Type
Bulb
Finish
Volts
(V)
Filament
Type
Temp
(K)
Lumens
(lm)
Life (h)
Rated
Case
Qty
