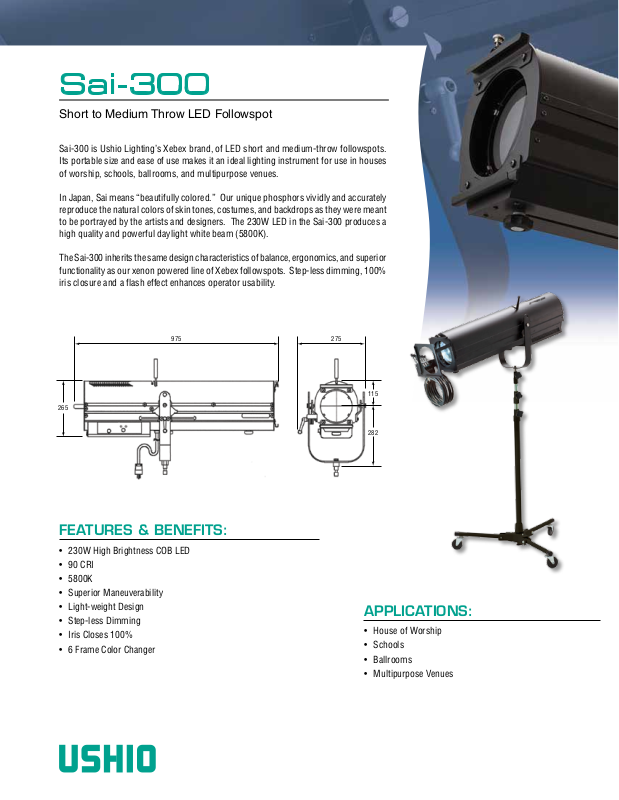

Sai-300
Short to Medium Throw LED Followspot
Sai-300 is Ushio Lighting’s Xebex brand, of LED short and medium-throw followspots.
Its portable size and ease of use makes it an ideal lighting instrument for use in houses
of worship, schools, ballrooms, and multipurpose venues.
In Japan, Sai means “beautifully colored.” Our unique phosphors vividly and accurately
reproduce the natural colors of skin tones, costumes, and backdrops as they were meant
to be portrayed by the artists and designers. The 230W LED in the Sai-300 produces a
high quality and powerful daylight white beam (5800K).
The Sai-300 inherits the same design characteristics of balance, ergonomics, and superior
functionality as our xenon powered line of Xebex followspots. Step-less dimming, 100%
iris closure and a flash effect enhances operator usability.
975
265
FEATURES & BENEFITS:
• 230W High Brightness COB LED
• 90 CRI
• 5800K
• Superior Maneuverability
• Light-weight Design
• Step-less Dimming
• Iris Closes 100%
• 6 Frame Color Changer
275
115
282
APPLICATIONS:
• House of Worship
• Schools
• Ballrooms
• Multipurpose Venues
Page 2
Sai-300
Short to Medium Throw LED Followspot
Photometric Data
Specifications
Throw Distance (ft)
16’ 33’
12000(lx)/1115(fc)
2800(lx)/260(fc)
50’
1200(lx)/111(fc)
Illumination Intensity (lx)/(fc)
2’ 4’
6’
Spot Diameter (ft)
The above spot diameter is the minimum data.
The maximum diameter (compared with minimum data) is 1.5 times ratio.
Sai-300 LED Followspot
Fixture Body Model Name Sai-300CB (Black Body) / Sai-300CW (White Body)
Rated Voltage Single Phase AC 100V-240V
Power Consumption 230W
Frequency 50/60 Hz
Input Cable 3m Long Cable with NEMA-5-15P Plug (ETL Spec)
Weight 17 kg
Operation Angle Range Within 45º Upward, 45º Downward
Dimensions W 275 x H 397 x L 975 (mm)
Noise 35dB or Less (Distance of 1m)
Material Sheet Iron, Aluminum Plate
Color Black/White
Light Source 225W White LED Array
Beam Color Temperature 5800K
CRI >90 Ra
LED Average Lifetime 50,000 Hours at 25ºC
Cooling Dual Cooling Fans
Dimming 0-100% by Local Dimmer Knob
Flash By Press Button
Compliance Standards ETL, CE Pending
Accessories Gobo Holder: B Size, Effective Gobo Diameter ø35
Option Stand
Color Changer: 6 Color
ACCESSORIES
OPTIONAL
Color Changer Gobo Holder Stand
Form No. S-SAI300/1016
Specifications may be subject to change without prior notice. Refer to www.ushio.com for the most current product specifications.
