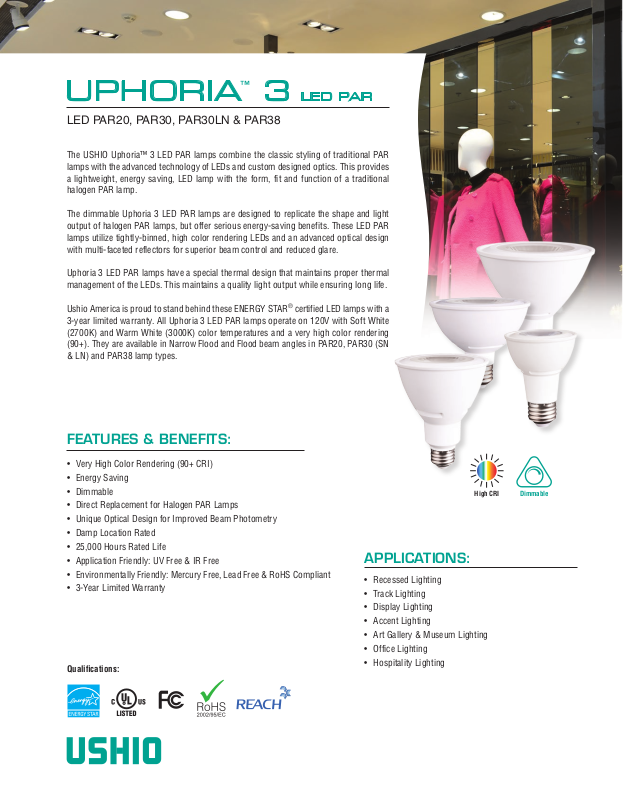

UPHORIA™ 3 LED PAR
LED PAR20, PAR30, PAR30LN & PAR38
The USHIO Uphoria™ 3 LED PAR lamps combine the classic styling of traditional PAR lamps with the advanced technology of LEDs and custom designed optics. This provides a lightweight, energy saving, LED lamp with the form, fit and function of a traditional halogen PAR lamp.
The dimmable Uphoria 3 LED PAR lamps are designed to replicate the shape and light output of halogen PAR lamps, but offer serious energy-saving benefits. These LED PAR lamps utilize tightly-binned, high color rendering LEDs and an advanced optical design with multi-faceted reflectors for superior beam control and reduced glare.
Uphoria 3 LED PAR lamps have a special thermal design that maintains proper thermal management of the LEDs. This maintains a quality light output while ensuring long life.
Ushio America is proud to stand behind these ENERGY STAR 3-year limited warranty. All Uphoria 3 LED PAR lamps operate on 120V with Soft White (2700K) and Warm White (3000K) color temperatures and a very high color rendering (90+). They are available in Narrow Flood and Flood beam angles in PAR20, PAR30 (SN & LN) and PAR38 lamp types.
®
certified LED lamps with a
FEATURES & BENEFITS:
• Very High Color Rendering (90+ CRI)
• Energy Saving
• Dimmable
• Direct Replacement for Halogen PAR Lamps
• Unique Optical Design for Improved Beam Photometry
• Damp Location Rated
• 25,000 Hours Rated Life
• Application Friendly: UV Free & IR Free
• Environmentally Friendly: Mercury Free, Lead Free & RoHS Compliant
• 3-Year Limited Warranty
Qualications:
APPLICATIONS:
• Recessed Lighting
• Track Lighting
• Display Lighting
• Accent Lighting
• Office Lighting
• Hospitality Lighting
DimmableHigh CRI
UPHORIA™ 3 LED PAR, (90
3.75 in.
3.75 in.
2.50 in.
+
CRI)
4.75 in.
4.70 in.
3.40 in.
E26 E26 E26 E26
PAR20 PAR30
Color Rated** Watts Ordering Lamp Bulb Volts Temp Beam Lumens* CBCP* CRI Life Case (W) Code Description Type (V) (K) Angle (lm) (cd) (h) Qty
7 1004075 7W LED PAR20, FL40, SW27 PAR20 120 2700 40º 460 593 90+ 25,000 12
7 1004076 7W LED PAR20, FL40, WW30 PAR20 120 3000 40º 470 593 90+ 25,000 12
7 1004077 7W LED PAR20, NFL25, SW27 PAR20 120 2700 25º 460 1179 90+ 25,000 12
7 1004078 7W LED PAR20, NFL25, WW30 PAR20 120 3000 25º 470 1179 90+ 25,000 12
11 1004079 11W LED PAR30, FL40, SW27 PAR30 120 2700 40º 750 1315 90+ 25,000 6
11 1004080 11W LED PAR30, FL40, WW30 PAR30 120 3000 40º 800 1315 90+ 25,000 6
11 1004081 11W LED PAR30, NFL25, WW30 PAR30 120 3000 25º 800 2910 90+ 25,000 6
11 1004082 11W LED PAR30LN, FL40, SW27 PAR30LN 120 2700 40º 750 1315 90+ 25,000 6
11 1004083 11W LED PAR30LN, FL40, WW30 PAR30LN 120 3000 40º 800 1315 90+ 25,000 6
11 1004084 11W LED PAR30LN, NFL25, WW30 PAR30LN 120 3000 25º 800 2910 90+ 25,000 6
15 1004085 15W LED PAR38, NFL25, SW27 PAR38 120 2700 25º 950 4241 90+ 25,000 6
17 1004086 17W LED PAR38, FL40, SW27 PAR38 120 2700 40º 1150 2231 90+ 25,000 6
17 1004087 17W LED PAR38, FL40, WW30 PAR38 120 3000 40º 1200 2231 90+ 25,000 6
17 1004088 17W LED PAR38, NFL25, WW30 PAR38 120 3000 25º 1200 5382 90+ 25,000 6
* Photometric data is based on LM-79 tests. ** Hours rated life based on 70% lumen maintenance. LM-80 data available.
3.50 in.
PAR38PAR30LN
5.10 in.
ENERGY STAR Certied
Electrical Specications:
Driver: High Efficiency
Power Factor: > 0.90
Dimming:
See www.ushio.com for dimmer compatibility options.
Photometrics 2700K
ø(ft) H(ft) E(fc)
133.1
33.29
14.79
5.33
2.2
4.4
6.6
11.1
11W
40º
3.3
6.6
9.8
16.4
8.328.8
13.1
11W LED PAR30, FL40, SW27
ø(ft) H(ft) E(fc)
136.7
34.17
15.19
5.47
2.1
4.3
6.4
10.8
11W
40º
3.3
6.6
9.8
16.4
8.548.7
13.1
11W LED PAR30LN, FL40, SW27
ø(ft) H(ft) E(fc)
108.8
27.20
12.09
4.35
2.8
5.6
8.4
14.0
15W
25º
6.6
13.1
19.8
32.8
6.8011.2
26.3
15W LED PAR38, NFL25, SW27
ø(ft) H(ft) E(fc)
225.8
56.44
25.08
9.03
2.1
4.2
6.3
10.6
17W
40º
3.3
6.6
9.8
16.4
14.118.5
13.1
17W LED PAR38, FL40, SW27
ø(ft) H(ft) E(fc)
20.52
5.13
2.28
0.82
4.3
8.6
12.9
21.4
7W
40º
6.6
13.1
19.7
32.8
1.2817.1
26.3
7W LED PAR20, FL40, SW27
ø(ft) H(ft) E(fc)
127.9
31.96
14.21
5.11
1.54
3.08
4.62
7.70
7W
25º
3.3
6.6
9.8
16.4
7.996.16
13.1
7W LED PAR20, NFL25, SW27
UPHORIA™ 3 LED PAR, (90
Item 1004077Item 1004075
ø(ft) H(ft) E(fc)
ø(ft) H(ft) E(fc)
+
CRI)
Photometrics 3000K
Item 1004079 Item 1004082 Item 1004086Item 1004085
ø(ft) H(ft) E(fc)
2.2
4.4
6.6
11.1
3.3
6.6
9.8
13.1
16.4
133.1
33.29
14.79
40º
11W LED PAR30, FL40, SW27
ø(ft) H(ft) E(fc)
2.2
4.4
6.7
11.1
Item 1004076 Item 1004078 Item 1004080 Item 1004081
77.66
3.3
19.42
6.6
9.8
13.1
16.4
40º
7W LED PAR20, FL40, WW30
4.3
8.6
12.9
21.4
6.6
13.1
19.7
26.3
32.8
40º
7W LED PAR20, FL40, SW27
ø(ft) H(ft) E(fc)
8.328.8
5.33
11W
2.1
4.3
6.4
10.8
3.3
6.6
9.8
13.1
16.4
40º
11W LED PAR30LN, FL40, SW27
8.63
4.858.9
3.12
7W
ø(ft) H(ft) E(fc)
1.6
3.1
4.7
7.8
3.3
6.6
9.8
13.1
16.4
25º
7W LED PAR20, NFL25, WW30
20.52
5.13
2.28
1.54
3.08
4.62
1.2817.1
0.82
7W
7.70
25º
7W LED PAR20, NFL25, SW27
ø(ft) H(ft) E(fc)
136.7
34.17
15.19
2.8
5.6
8.4
8.548.7
5.47
11W
14.0
25º
15W LED PAR38, NFL25, SW27
133.1
33.27
14.79
ø(ft) H(ft) E(fc)
2.2
4.3
6.5
8.326.2
5.32
7W
10.8
40º
11W LED PAR30, FL40, WW30
3.3
6.6
9.8
13.1
16.4
6.6
13.1
19.8
26.3
32.8
3.3
6.6
9.8
13.1
16.4
127.9
31.96
14.21
7.996.16
5.11
7W
108.8
27.20
12.09
6.8011.2
4.35
15W
139.5
34.88
15.50
8.728.7
5.58
11W
ø(ft) H(ft) E(fc)
2.1
4.2
6.3
13.1
10.6
16.4
40º
17W LED PAR38, FL40, SW27
3.3
6.6
9.8
225.8
56.44
25.08
14.118.5
9.03
17W
ø(ft) H(ft) E(fc)
3.1
6.3
9.4
15.7
13.1
19.7
26.3
32.8
25º
11W LED PAR30, NFL25, WW30
6.6
69.82
17.45
7.78
4.3612.6
2.79
11W
ø(ft) H(ft) E(fc)
2.2
4.4
6.6
13.1
10.9
16.4
40º
11W LED PAR30LN, FL40, WW30
3.3
6.6
9.8
133.8
33.45
14.87
8.368.7
5.35
11W
Item 1004084 Item 1004087 Item 1004088Item 1004083
ø(ft) H(ft) E(fc)
3.2
6.4
9.6
16.1
13.1
19.7
26.3
32.8
25º
11W LED PAR30LN, NFL25, WW30
6.6
67.62
16.91
7.51
4.2312.9
2.71
11W
ø(ft) H(ft) E(fc)
2.3
4.5
6.8
13.1
11.3
16.4
40º
17W LED PAR38, FL40, WW30
3.3
6.6
9.8
227.7
56.92
25.30
14.239.0
9.12
17W
ø(ft) H(ft) E(fc)
3.0
6.0
8.9
14.9
13.1
19.7
26.3
32.8
25º
17W LED PAR38, NFL25, WW30
6.6
103.9
25.96
11.54
6.4911.9
4.15
17W
UPHORIA™ 3 LED PAR, (90
Spectral Distribution Charts 2700K
+
CRI)
Item 1004075 7W LED PAR20, FL40, SW27
1.0 –
0.8 –
0.6 –
0.4 –
Spectrum
0.2 –
0.0 – 380 480 580 680 780 380 480 580 680 780
Item 1004079 11W LED PAR30, FL40, SW27
1.0 –
0.8 –
0.6 –
0.4 –
Spectrum
0.2 –
0.0 – 380 480 580 680 780
Item 1004085 15W LED PAR38, NFL25, SW27
1.0 –
Wavelength (nm)
Wavelength (nm)
Spectrum
Spectrum
Item 1004077 7W LED PAR20, NFL25, SW27
1.0 –
0.8 –
0.6 –
0.4 –
0.2 –
0.0 –
Wavelength (nm)
Item 1004082 11W LED PAR30LN, FL40, SW27
1.0 –
0.8 –
0.6 –
0.4 –
0.2 –
0.0 – 380 480 580 680 780
Item 1004086 17W LED PAR38, FL40, SW27
1.0 –
Wavelength (nm)
0.8 –
0.6 –
0.4 –
Spectrum
0.2 –
0.0 – 380 480 580 680 780
Wavelength (nm) Wavelength (nm)
0.8 –
0.6 –
0.4 –
Spectrum
0.2 –
0.0 – 380 480 580 680 780
Spectral Distribution Charts 3000K
UPHORIA™ 3 LED PAR, (90
+
CRI)
Item 1004076 7W LED PAR20, FL40, WW30
1.0 –
0.8 –
0.6 –
0.4 –
Spectrum
0.2 –
0.0 – 380 480 580 680 780
Item 1004080 11W LED PAR30, FL40, WW30
1.0 –
0.8 –
0.6 –
0.4 –
Spectrum
0.2 –
0.0 – 380 480 580 680 780
Wavelength (nm)
Wavelength (nm)
Item 1004078 7W LED PAR20, NFL25, WW30
1.0 –
0.8 –
0.6 –
0.4 –
Spectrum
0.2 –
0.0 – 380 480 580 680 780
Item 1004081 11W LED PAR30, NFL25, WW30
1.0 –
0.8 –
0.6 –
0.4 –
Spectrum
0.2 –
0.0 – 380 480 580 680 780
Wavelength (nm)
Wavelength (nm)
Item 1004083 11W LED PAR30LN, FL40, WW30
1.0 –
0.8 –
0.6 –
0.4 –
Spectrum
0.2 –
0.0 – 380 480 580 680 780
Item 1004087 17W LED PAR38, FL40, WW30
1.0 –
0.8 –
0.6 –
0.4 –
Spectrum
0.2 –
0.0 – 380 480 580 680 780
Wavelength (nm)
Wavelength (nm)
Item 1004084 11W LED PAR30LN, NFL25, WW30
1.0 –
0.8 –
0.6 –
0.4 –
Spectrum
0.2 –
0.0 – 380 480 580 680 780
Item 1004088 17W LED PAR38, NFL25, WW30
1.0 –
0.8 –
0.6 –
0.4 –
Spectrum
0.2 –
0.0 – 380 480 580 680 780
Wavelength (nm)
Wavelength (nm)
UPHORIA™ 3 LED PAR, (90
Lighting Facts 2700K
+
CRI)
Item 1004075
7W LED PAR20, FL40, SW27
Lighting Facts/ Faits d’éclairage
Per Bulb/Par l’ampoule
Brightness/Luminosité
Estimated Yearly Energy Cost/ Coût énergétique annual estimé
Based on 3 hrs/day, 11¢/kWh. Cost depends on rates and use. /Basé sur 3 heures/jour, 11¢/kWh. Les coûts dépendent du tariff et de la fréquence d’utilisation.
Life/Vie
Based on 3 hrs/day. /Basé sur 3 heures/jour.
Light Appearance/Apparence de l’éclairage
Warm/Chaud
2700K
Energy Used/Énergie utilisée 7 watts
11W LED PAR30LN, FL40, SW27
Item 1004082
460 lumens
$0.84
22 years/ans
Cool/Froid
Lighting Facts/ Faits d’éclairage
Per Bulb/Par l’ampoule
Brightness/Luminosité
Estimated Yearly Energy Cost/ Coût énergétique annual estimé
Based on 3 hrs/day, 11¢/kWh. Cost depends on rates and use. /Basé sur 3 heures/jour, 11¢/kWh. Les coûts dépendent du tariff et de la fréquence d’utilisation.
Life/Vie
Based on 3 hrs/day. /Basé sur 3 heures/jour.
Light Appearance/Apparence de l’éclairage
Warm/Chaud
2700K
Energy Used/Énergie utilisée 11 watts
750 lumens
$1.32
22 years/ans
Cool/Froid
Item 1004077
7W LED PAR20, NFL25, SW27
Lighting Facts/ Faits d’éclairage
Per Bulb/Par l’ampoule
Brightness/Luminosité
Estimated Yearly Energy Cost/ Coût énergétique annual estimé
Based on 3 hrs/day, 11¢/kWh. Cost depends on rates and use. /Basé sur 3 heures/jour, 11¢/kWh. Les coûts dépendent du tariff et de la fréquence d’utilisation.
Life/Vie
Based on 3 hrs/day. /Basé sur 3 heures/jour.
Light Appearance/Apparence de l’éclairage
Warm/Chaud
2700K
Energy Used/Énergie utilisée 7 watts
15W LED PAR38, NFL25, SW27
Item 1004085
460 lumens
$0.84
22 years/ans
Cool/Froid
Lighting Facts/ Faits d’éclairage
Per Bulb/Par l’ampoule
Brightness/Luminosité
Estimated Yearly Energy Cost/ Coût énergétique annual estimé
Based on 3 hrs/day, 11¢/kWh. Cost depends on rates and use. /Basé sur 3 heures/jour, 11¢/kWh. Les coûts dépendent du tariff et de la fréquence d’utilisation.
Life/Vie
Based on 3 hrs/day. /Basé sur 3 heures/jour.
Light Appearance/Apparence de l’éclairage
Warm/Chaud
2700K
Energy Used/Énergie utilisée 15 watts
950 lumens
$1.81
22 years/ans
Cool/Froid
Item 1004079
11W LED PAR30, FL40, SW27
Lighting Facts/ Faits d’éclairage
Per Bulb/Par l’ampoule
Brightness/Luminosité
Estimated Yearly Energy Cost/ Coût énergétique annual estimé
Based on 3 hrs/day, 11¢/kWh. Cost depends on rates and use. /Basé sur 3 heures/jour, 11¢/kWh. Les coûts dépendent du tariff et de la fréquence d’utilisation.
Life/Vie
Based on 3 hrs/day. /Basé sur 3 heures/jour.
Light Appearance/Apparence de l’éclairage
Warm/Chaud
2700K
Energy Used/Énergie utilisée 11 watts
17W LED PAR38, FL40, SW27
Item 1004086
750 lumens
$1.32
22 years/ans
Cool/Froid
Lighting Facts/ Faits d’éclairage
Per Bulb/Par l’ampoule
Brightness/Luminosité
Estimated Yearly Energy Cost/ Coût énergétique annual estimé
Based on 3 hrs/day, 11¢/kWh. Cost depends on rates and use. /Basé sur 3 heures/jour, 11¢/kWh. Les coûts dépendent du tariff et de la fréquence d’utilisation.
Life/Vie
Based on 3 hrs/day. /Basé sur 3 heures/jour.
Light Appearance/Apparence de l’éclairage
Warm/Chaud
2700K
Energy Used/Énergie utilisée 17 watts
1150 lumens
$2.05
22 years/ans
Cool/Froid
Lighting Facts 3000K
UPHORIA™ 3 LED PAR, (90
+
CRI)
Item 1004076
7W LED PAR20, FL40, WW30
Lighting Facts/ Faits d’éclairage
Per Bulb/Par l’ampoule
Brightness/Luminosité
Estimated Yearly Energy Cost/ Coût énergétique annual estimé
Based on 3 hrs/day, 11¢/kWh. Cost depends on rates and use. /Basé sur 3 heures/jour, 11¢/kWh. Les coûts dépendent du tariff et de la fréquence d’utilisation.
Life/Vie
Based on 3 hrs/day. /Basé sur 3 heures/jour.
Light Appearance/Apparence de l’éclairage
Warm/Chaud
3000K
Energy Used/Énergie utilisée 7 watts
Item 1004080
11W LED PAR30, FL40, WW30
Lighting Facts/ Faits d’éclairage
Per Bulb/Par l’ampoule
Brightness/Luminosité
Estimated Yearly Energy Cost/ Coût énergétique annual estimé
Based on 3 hrs/day, 11¢/kWh. Cost depends on rates and use. /Basé sur 3 heures/jour, 11¢/kWh. Les coûts dépendent du tariff et de la fréquence d’utilisation.
Life/Vie
Based on 3 hrs/day. /Basé sur 3 heures/jour.
Light Appearance/Apparence de l’éclairage
Warm/Chaud
3000K
Energy Used/Énergie utilisée 11 watts
800 lumens
$1.32
22 years/ans
Cool/Froid
Item 1004078
7W LED PAR20, NFL25, WW30
Lighting Facts/ Faits d’éclairage
Per Bulb/Par l’ampoule
470 lumens
$0.84
22 years/ans
Cool/Froid
Item 1004081
11W LED PAR30, NFL25, WW30
Brightness/Luminosité
Estimated Yearly Energy Cost/ Coût énergétique annual estimé
Based on 3 hrs/day, 11¢/kWh. Cost depends on rates and use. /Basé sur 3 heures/jour, 11¢/kWh. Les coûts dépendent du tariff et de la fréquence d’utilisation.
Life/Vie
Based on 3 hrs/day. /Basé sur 3 heures/jour.
Light Appearance/Apparence de l’éclairage
Warm/Chaud
3000K
Energy Used/Énergie utilisée 7 watts
Lighting Facts/ Faits d’éclairage
Per Bulb/Par l’ampoule
Brightness/Luminosité
Estimated Yearly Energy Cost/ Coût énergétique annual estimé
Based on 3 hrs/day, 11¢/kWh. Cost depends on rates and use. /Basé sur 3 heures/jour, 11¢/kWh. Les coûts dépendent du tariff et de la fréquence d’utilisation.
Life/Vie
Based on 3 hrs/day. /Basé sur 3 heures/jour.
Light Appearance/Apparence de l’éclairage
Warm/Chaud
3000K
Energy Used/Énergie utilisée 11 watts
800 lumens
$1.32
22 years/ans
Cool/Froid
.
470 lumens
$0.84
22 years/ans
Cool/Froid
Item 1004083
11W LED PAR30LN, FL40, WW30
Lighting Facts/ Faits d’éclairage
Per Bulb/Par l’ampoule
Brightness/Luminosité
Estimated Yearly Energy Cost/ Coût énergétique annual estimé
Based on 3 hrs/day, 11¢/kWh. Cost depends on rates and use. /Basé sur 3 heures/jour, 11¢/kWh. Les coûts dépendent du tariff et de la fréquence d’utilisation.
Life/Vie
Based on 3 hrs/day. /Basé sur 3 heures/jour.
Light Appearance/Apparence de l’éclairage
Warm/Chaud
3000K
Energy Used/Énergie utilisée 11 watts
800 lumens
$1.32
22 years/ans
Cool/Froid
Item 1004084
11W LED PAR30LN, NFL25, WW30
Lighting Facts/ Faits d’éclairage
Per Bulb/Par l’ampoule
Brightness/Luminosité
Estimated Yearly Energy Cost/ Coût énergétique annual estimé
Based on 3 hrs/day, 11¢/kWh. Cost depends on rates and use. /Basé sur 3 heures/jour, 11¢/kWh. Les coûts dépendent du tariff et de la fréquence d’utilisation.
Life/Vie
Based on 3 hrs/day. /Basé sur 3 heures/jour.
Light Appearance/Apparence de l’éclairage
Warm/Chaud
3000K
Energy Used/Énergie utilisée 11 watts
800 lumens
$1.32
22 years/ans
Cool/Froid
Item 1004087
17W LED PAR38, FL40, WW30
Lighting Facts/ Faits d’éclairage
Per Bulb/Par l’ampoule
Brightness/Luminosité
Estimated Yearly Energy Cost/ Coût énergétique annual estimé
Based on 3 hrs/day, 11¢/kWh. Cost depends on rates and use. /Basé sur 3 heures/jour, 11¢/kWh. Les coûts dépendent du tariff et de la fréquence d’utilisation.
Life/Vie
Based on 3 hrs/day. /Basé sur 3 heures/jour.
Light Appearance/Apparence de l’éclairage
Warm/Chaud
3000K
Energy Used/Énergie utilisée 17 watts
1200 lumens
$2.05
22 years/ans
Cool/Froid
Item 1004088
17W LED PAR38, NFL25, WW30
Lighting Facts/ Faits d’éclairage
Per Bulb/Par l’ampoule
Brightness/Luminosité
Estimated Yearly Energy Cost/ Coût énergétique annual estimé
Based on 3 hrs/day, 11¢/kWh. Cost depends on rates and use. /Basé sur 3 heures/jour, 11¢/kWh. Les coûts dépendent du tariff et de la fréquence d’utilisation.
Life/Vie
Based on 3 hrs/day. /Basé sur 3 heures/jour.
Light Appearance/Apparence de l’éclairage
Warm/Chaud
3000K
Energy Used/Énergie utilisée 17 watts
1200 lumens
$2.05
22 years/ans
Cool/Froid
UPHORIA™ 3 LED PAR
CAUTIONS:
The lamp may not be compatible with all dimmers. Check www.ushio.com to find up to date dimmer compatibility options. Use only 120V 60Hz circuits. Do not open. No user serviceable parts inside. Use is not recommended where exposed to weather, outdoor usage requires an enclosed fixture. The device is not intended for use with emergency exit fixtures, emergency exit lights, photo controls or electric timers. Fully enclosed or recessed fixtures must contain proper ventilation. Reliable operating temperature is -4°F to 113°F. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Form No. S-UPH3LEDPAR/0717 Specifications may be subject to change without prior notice. Refer to www.ushio.com for the most current product specifications.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
