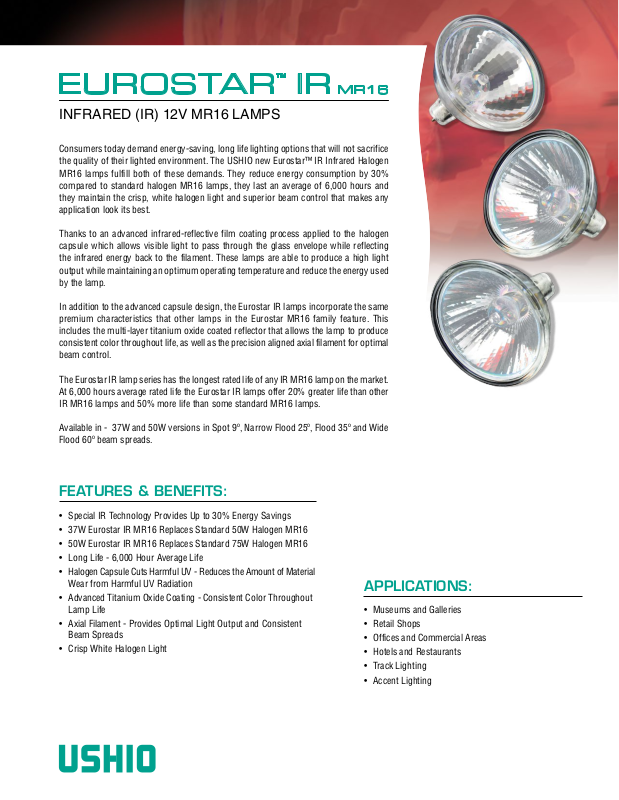

EUROSTAR
IR MR16
INFRARED (IR) 12V MR16 LAMPS
Consumers today demand energy-saving, long life lighting options that will not sacrifice
the quality of their lighted environment. The USHIO new Eurostar™ IR Infrared Halogen
MR16 lamps fulfill both of these demands. They reduce energy consumption by 30%
compared to standard halogen MR16 lamps, they last an average of 6,000 hours and
they maintain the crisp, white halogen light and superior beam control that makes any
application look its best.
Thanks to an advanced infrared-reflective film coating process applied to the halogen
capsule which allows visible light to pass through the glass envelope while reflecting
the infrared energy back to the filament. These lamps are able to produce a high light
output while maintaining an optimum operating temperature and reduce the energy used
by the lamp.
In addition to the advanced capsule design, the Eurostar IR lamps incorporate the same
premium characteristics that other lamps in the Eurostar MR16 family feature. This
includes the multi-layer titanium oxide coated reflector that allows the lamp to produce
consistent color throughout life, as well as the precision aligned axial filament for optimal
beam control.
The Eurostar IR lamp series has the longest rated life of any IR MR16 lamp on the market.
At 6,000 hours average rated life the Eurostar IR lamps offer 20% greater life than other
IR MR16 lamps and 50% more life than some standard MR16 lamps.
Available in - 37W and 50W versions in Spot 9º, Narrow Flood 25º, Flood 35º and Wide
Flood 60º beam spreads.
FEATURES & BENEFITS:
• Special IR Technology Provides Up to 30% Energy Savings
• 37W Eurostar IR MR16 Replaces Standard 50W Halogen MR16
• 50W Eurostar IR MR16 Replaces Standard 75W Halogen MR16
• Long Life - 6,000 Hour Average Life
• Halogen Capsule Cuts Harmful UV - Reduces the Amount of Material
Wear from Harmful UV Radiation
• Advanced Titanium Oxide Coating - Consistent Color Throughout
Lamp Life
• Axial Filament - Provides Optimal Light Output and Consistent
Beam Spreads
• Crisp White Halogen Light
APPLICATIONS:
• Museums and Galleries
• Retail Shops
• Offices and Commercial Areas
• Hotels and Restaurants
• Track Lighting
• Accent Lighting
EUROSTAR™ IR MR16
2 in
MOL
MOL
Infrared (IR) 12V MR16 Lamps for General Lighting
ø(ft) H(ft) E(fc)
0.52
1.03
1.55
2.07
9º
ø(ft)
0.52
1.03
1.55
2.07
9º
13.1
JR12V-37W/SP/FG/IR
H(ft)
13.1
JR12V-50W/SP/FG/IR
3.3
6.6
9.8
3.3
6.6
9.8
1208
302
134
37W
E(fc)
1440
360
160
50W
ø(ft) H(ft) E(fc)
1.45
2.91
4.36
75
90
5.82
25º
ø(ft) H(ft) E(fc)
1.45
2.91
4.36
5.82
3.3
6.6
9.8
13.1
JR12V-37W/NFL/FG/IR
3.3
6.6
9.8
13.1
JR12V-50W/NFL/FG/IR
409
102
45
26
37W
529
132
59
33
50W25º
ø(ft) H(ft) E(fc)
2.07
4.14
6.21
8.28
35º
ø(ft) H(ft) E(fc)
2.07
4.14
6.21
8.28
35º
3.3
6.6
9.8
13.1
JR12V-37W/FL/FG/IR
3.3
6.6
9.8
13.1
JR12V-50W/FL/FG/IR
204
37W
260
50W
51
23
13
65
29
16
ø(ft) H(ft) E(fc)
3.79
7.58
11.37
15.15
60º
ø(ft) H(ft) E(fc)
3.79
7.58
11.37
15.15
60º
3.3
6.6
9.8
13.1
JR12V-37W/WFL/FG/IR
3.3
6.6
9.8
13.1
JR12V-50W/WFL/FG/IR
GU5.3
Case Quantity: 20
Dimension Color Luminous Average
Watts
(W)
Ordering
Code
Lamp
Description
MOL
(in)
Temp
(K)
Beam
Angle
Beam
Spead
Intensity
(cd)
Burn
Position
Rated Life
EUROSTAR™ IR MR16, 2-Pin Base, C-6 Filament
37 1003706 JR12V-37W/SP/FG/IR 1.99 3000 9° Spot 13000 Universal 6000
37 1003705 JR12V-37W/NFL/FG/IR 1.99 3000 25° Narrow Flood 4400 Universal 6000
37 1003704 JR12V-37W/FL/FG/IR 1.99 3000 35° Flood 2200 Universal 6000
37 1003707 JR12V-37W/WFL/FG/IR 1.99 3000 60° Wide Flood 1100 Universal 6000
50 1003710 JR12V-50W/SP/FG/IR 1.99 3000 9° Spot 15500 Universal 6000
50 1003709 JR12V-50W/NFL/FG/IR 1.99 3000 25° Narrow Flood 5700 Universal 6000
50 1003708 JR12V-50W/FL/FG/IR 1.99 3000 35° Flood 2800 Universal 6000
50 1003711 JR12V-50W/WFL/FG/IR 1.99 3000 60° Wide Flood 1400 Universal 6000
All dimensions shown in inches unless otherwise noted.
102
26
11
6
37W
130
33
14
8
50W
(h)
Form No. S-MR16EUROIR/0615
Specifications may be subject to change without prior notice. Refer to www.ushio.com for the most current product specifications.
