Ushio HPL+ Specifications

HPL

0 500 1000 1500 2000 2500 3000 3500

250

500

Ceramic Heat Sink

Metal Heat Sink

Test Hours (h)

Insulation Resistance (MW)

∞

+

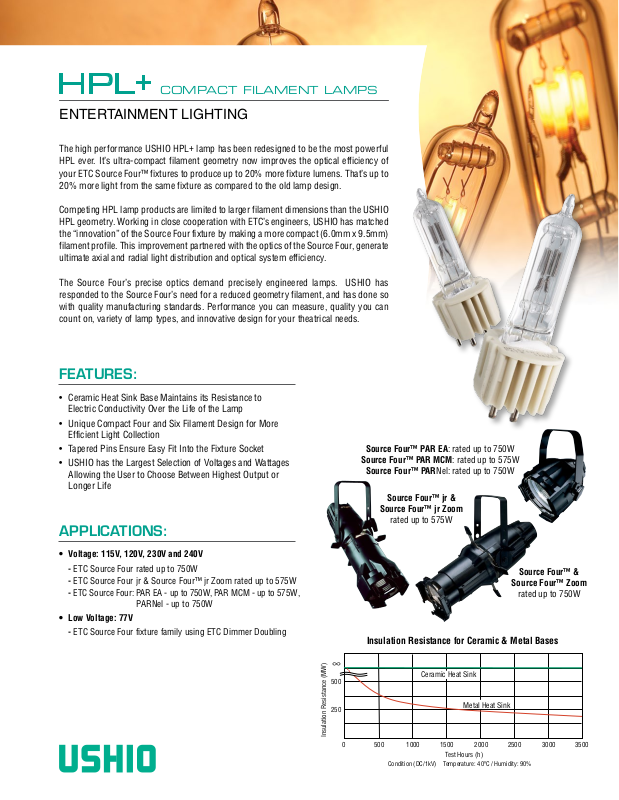

COMPACT FILAMENT LAMPS

ENTERTAINMENT LIGHTING

The high performance USHIO HPL+ lamp has been redesigned to be the most powerful
HPL ever. It’s ultra-compact filament geometry now improves the optical efficiency of
your ETC Source Four™ fixtures to produce up to 20% more fixture lumens. That’s up to
20% more light from the same fixture as compared to the old lamp design.

Competing HPL lamp products are limited to larger filament dimensions than the USHIO
HPL geometry. Working in close cooperation with ETC’s engineers, USHIO has matched
the “innovation” of the Source Four fixture by making a more compact (6.0mm x 9.5mm)
filament profile. This improvement partnered with the optics of the Source Four, generate
ultimate axial and radial light distribution and optical system efficiency.

The Source Four’s precise optics demand precisely engineered lamps. USHIO has
responded to the Source Four’s need for a reduced geometry filament, and has done so
with quality manufacturing standards. Performance you can measure, quality you can
count on, variety of lamp types, and innovative design for your theatrical needs.

FEATURES:

• Ceramic Heat Sink Base Maintains its Resistance to
Electric Conductivity Over the Life of the Lamp

• Unique Compact Four and Six Filament Design for More
Efficient Light Collection

• Tapered Pins Ensure Easy Fit Into the Fixture Socket

• USHIO has the Largest Selection of Voltages and Wattages
Allowing the User to Choose Between Highest Output or
Longer Life

APPLICATIONS:

• Voltage: 115V, 120V, 230V and 240V

- ETC Source Four rated up to 750W

- ETC Source Four jr & Source Four™ jr Zoom rated up to 575W

-

ETC Source Four: PAR EA - up to 750W, PAR MCM - up to 575W

PARNel - up to 750W

• Low Voltage: 77V

- ETC Source Four fixture family using ETC Dimmer Doubling

Source Four™ PAR EA: rated up to 750W

Source Four™ PAR MCM: rated up to 575W

Source Four™ PARNel: rated up to 750W

Source Four™ jr &

Source Four™ jr Zoom

rated up to 575W

Source Four™ &

,

Insulation Resistance for Ceramic & Metal Bases

Source Four™ Zoom

rated up to 750W

Condition (DC/1kV) Temperature: 40ºC / Humidity: 90%

HPL

TOP VIEW

4000 lm

3600 lm

+

Compact Filament Lamps

Entertainment Lighting

Case Quantity: 10

Color Initial Average

Watts

(W)

550 1000668 HPL-550/77V

550 1000669 HPL-550/77X

750 1000676 HPL-550/77V JS77V-750WC 4-C8 3250 22950 300

375 1000666 HPL-375/115V

375 1000667 HPL-375/115X

575 1000670 HPL-575/115V

575 1000671 HPL-575/115X

750 1000675 HPL-750/115V

750 1003153 HPL-750/115X

575 1000672 HPL-575/120V

575 1002283 HPL-575/120X

750 1003144 HPL-750/120V

750 1003178 HPL-750/120X

375 1003182 HPL-375/230X

575 1000673 HPL-575/230V

575 1002233 HPL-575/230X

750 1002289 HPL-750/230V

750 1003179 HPL-750/230X

375 1003183 HPL-375/240X

575 1000674 HPL-575/240V

575 1002234 HPL-575/240X

750 1003184 HPL-750/240V

750 1003180 HPL-750/240X

Ordering

Code

Lamp
Description

77 Volt for Dimmer Doubling

+

+

115 Volt

+

+

+

+

+

+

120 Volt

+

+

+

+

230 Volt

+

+

+

+

+

240 Volt

+

+

+

+

+

Description Filament

Type

JS77V-550WC 4-C8 3250 16170 300

JS77V-550WX 4-C8 3050 12160 2000

JS115V-375WC 4-C8 3250 10540 300

JS115V-375WX 4-C8 3050 8000 1000

JS115V-575WC 4-C8 3250 16520 300

JS115V-575WX 4-C8 3050 12360 2000

JS115V-750WC 4-C8 3250 21900 300

JS115V-750WX 4-C8 3050 16400 1500

JS120V-575WC 4-C8 3250 16520 300

JS120V-575WX 4-C8 3050 12360 2000

JS120V-750WC 4-C8 3250 21900 300

JS120V-750WX 4-C8 3050 16400 1500

JS230V-375WXN 6-C8 3000 7250 1000

JS230V-575WCN 6-C8 3200 14900 400

JS230V-575WXN 6-C8 3050 11780 1500

JS230V-750WCN 6-C8 3200 19750 300

JS230V-750WXN 6-C8 3050 15600 1500

JS240V-375WXN 6-C8 3000 7250 1000

JS240V-575WCN 6-C8 3200 14900 400

JS240V-575WXN 6-C8 3050 11780 1500

JS240V-750WCN 6-C8 3200 19750 300

JS240V-750WXN 6-C8 3050 15600 1500

All dimensions shown in millimeters unless otherwise noted.

Temp

(K)

Lumens

(lm)

Rated

Life (h)

BENEFITS OF HPL+ LAMPS:

18.35mm

• High Efficiency (28.5 Lumens Per Watt Average)

• Increased Fixture Light Output of Up to 20%

Old HPL Design

Illumination distribution measured with: HPL 750 watt

Form No. S-HPL+/0715
Specifications may be subject to change without prior notice. Refer to www.ushio.com for the most current product specifications.

USHIO HPL

+

60.3mm

104mm
