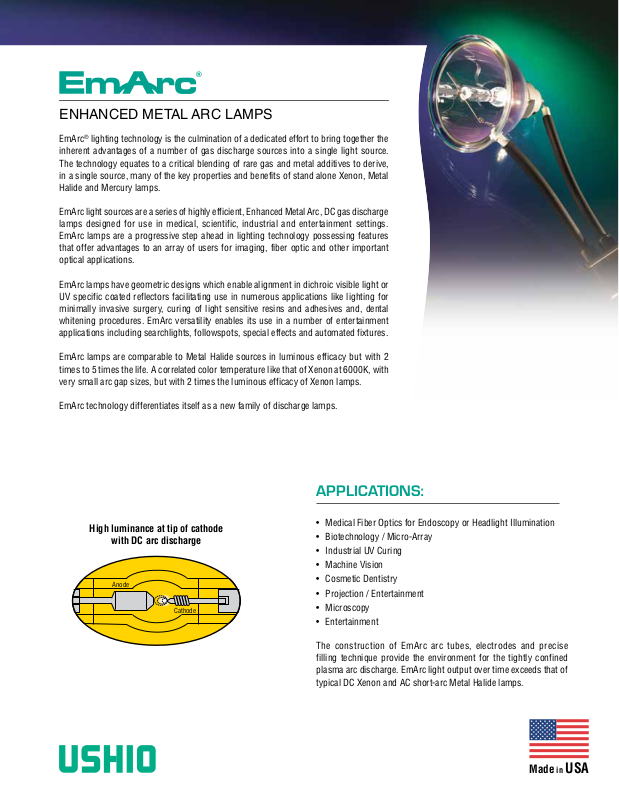

ENHANCED METAL ARC LAMPS
Anode
Cathode
®
®
EmArc® lighting technology is the culmination of a dedicated effort to bring together the
inherent advantages of a number of gas discharge sources into a single light source.
The technology equates to a critical blending of rare gas and metal additives to derive,
in a single source, many of the key properties and benefits of stand alone Xenon, Metal
Halide and Mercury lamps.
EmArc light sources are a series of highly efficient, Enhanced Metal Arc, DC gas discharge
lamps designed for use in medical, scientific, industrial and entertainment settings.
EmArc lamps are a progressive step ahead in lighting technology possessing features
that offer advantages to an array of users for imaging, fiber optic and other important
optical applications.
EmArc lamps have geometric designs which enable alignment in dichroic visible light or
UV specific coated reflectors facilitating use in numerous applications like lighting for
minimally invasive surgery, curing of light sensitive resins and adhesives and, dental
whitening procedures. EmArc versatility enables its use in a number of entertainment
applications including searchlights, followspots, special effects and automated fixtures.
EmArc lamps are comparable to Metal Halide sources in luminous efficacy but with 2
times to 5 times the life. A correlated color temperature like that of Xenon at 6000K, with
very small arc gap sizes, but with 2 times the luminous efficacy of Xenon lamps.
EmArc technology differentiates itself as a new family of discharge lamps.
High luminance at tip of cathode
with DC arc discharge
APPLICATIONS:
• Medical Fiber Optics for Endoscopy or Headlight Illumination
• Biotechnology / Micro-Array
• Industrial UV Curing
• Machine Vision
• Cosmetic Dentistry
• Projection / Entertainment
• Microscopy
• Entertainment
The construction of EmArc arc tubes, electrodes and precise
filling technique provide the environment for the tightly confined
plasma arc discharge. EmArc light output over time exceeds that of
typical DC Xenon and AC short-arc Metal Halide lamps.
Made
in
USA
86 2
(34.5)
90 2
(36)
(89)
40 ±1
®
Enhanced Metal Arc Lamps
DOUBLE-ENDED BARE BURNER VERSIONS
(1) SMH-200/D1
(3) SMH-600/D1
All dimensions shown in millimeters unless otherwise noted.
Lamp Lamp Arc Color** Luminous Average*
Watts
(W)
Lamp
Description
Voltage
(V)
Current
(A)
Gap
(mm)
Temp
(K)
(lm) nom
Double-Ended Bare Burner Versions
160 - 200 SMH-200/D1 43 4.65 1.2 6000 10000
350 SMH-350/D2 48 7.30 1.8 6000 21000
600 SMH-600/D1 68 8.80 3.0 5700 44000
* Based on 50% spherical lumen depreciation at a duty cycle of 2 hours 45 minutes ON and 15 minutes OFF.
** As measured in a sphere. All values ± 500K from nominal.
(2) SMH-350/D2
Flux
Rated Life
(h)
2000 1
2000 2
1000 3
Fig
No.
Enhanced Metal Arc Lamps
7000
6000
5000
4000
3000
2000
1000
0
0 2 4 6 8 10 12
Aperture Diameter (mm)
Lumens
71 max
(8)
REFLECTORIZED VERSIONS
70mm Reflector
FIBER OPTIC EFFICIENCY
Measured lumens vs. aperture size
200W DC 1.2mm arc gap
®
(6) SMR-200/D1
Lamp aligned for maximum throughput thru 6mm
aperture at 52mm distance from reflector rim.
Watts
(W)
Ordering
Code
Lamp
Description
Reectorized Versions
160 - 200 5001399 SMR-200/D1 43 4.65 1.2 6500 5100/
160 - 200 5001523 SMR-201/D1 47 4.25 1.6 6500 5500/
160 - 200 5001466 SMR-202/D1 56 3.50 2.0 6900 5900/
* Based on measurement through aperture into a sphere.
** Based on 50% spherical lumen depreciation at a duty cycle of 2 hours 45 minutes ON and 15 minutes OFF.
*** As measured in a sphere. All values ± 500K from nominal.
All dimensions shown in millimeters unless otherwise noted.
Lamp Lamp Arc Color*** Luminous* Average**
Voltage
(V)
Current
(A)
Gap
(mm)
Temp
(K)
Flux
(lm) nom
6mm Aperture
8mm Aperture
10mm Aperture
Rated Life
(h)
2000 6
2500 6
4000 6
Fig
No.
350 400 450 500 550 600 650 700 750 800
Wavelength (nm)
2000
1500
1000
500
0
mW/nm (measured)
®
Enhanced Metal Arc Lamps
FEATURES & BENEFITS:
EmArc® SPECTRAL DISTRIBUTION
• Power Ranges from 150-600 Watts - Versatility / Power Tunability
• Custom Reflector Designs Available
• Small Arc Gap Sizes - Down to 1.2mm Highly Effective Optical
Collection Capability
• Unique Hybrid Gas Discharge Technology - 2,000 Hours of Life;
No Internal Pressure When Cold
• EmArc DC Technology - Enables Operation on Lower Cost DC
Power Supplies Reducing OEM System Design Costs
• 6000K Correlated Color Temperature - Xenon-Like Light for Crisp,
White Imaging
• Hot Reignition
• Up to 60 Lumens per Watt Efficacy - Two Times That of
Xenon Sources
• Highly Durable, Rugged Elliptical and Parabolic Reflector
Designs - Very High Light Path Efficiencies for Small Diameter
Fiber Optic Bundle Applications
• Precise Filling Control, Electrode Design and Tight
Manufacturing Tolerances with Tipless Arc Tube Construction
Allows for Tightly Confined and Stable Plasma Discharge,
Long Life with Minimal Color Temperature Drift Over Life,
Better Optical Control, No Shadowing
• Far Better Color Control Over Life Than Conventional Metal
Halide Lamps
Form No. S-EmArc/1115
Specifications may be subject to change without prior notice. Refer to www.ushio.com for the most current product specifications.
