INCANDESCENT PROJECTION LAMPS
A
C
B
A
C
B
C
B
A
A
C
B

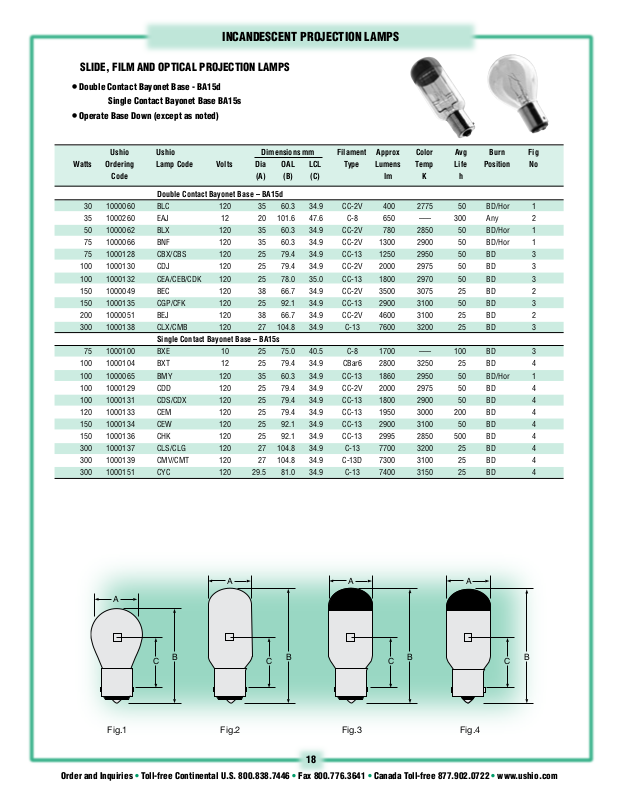

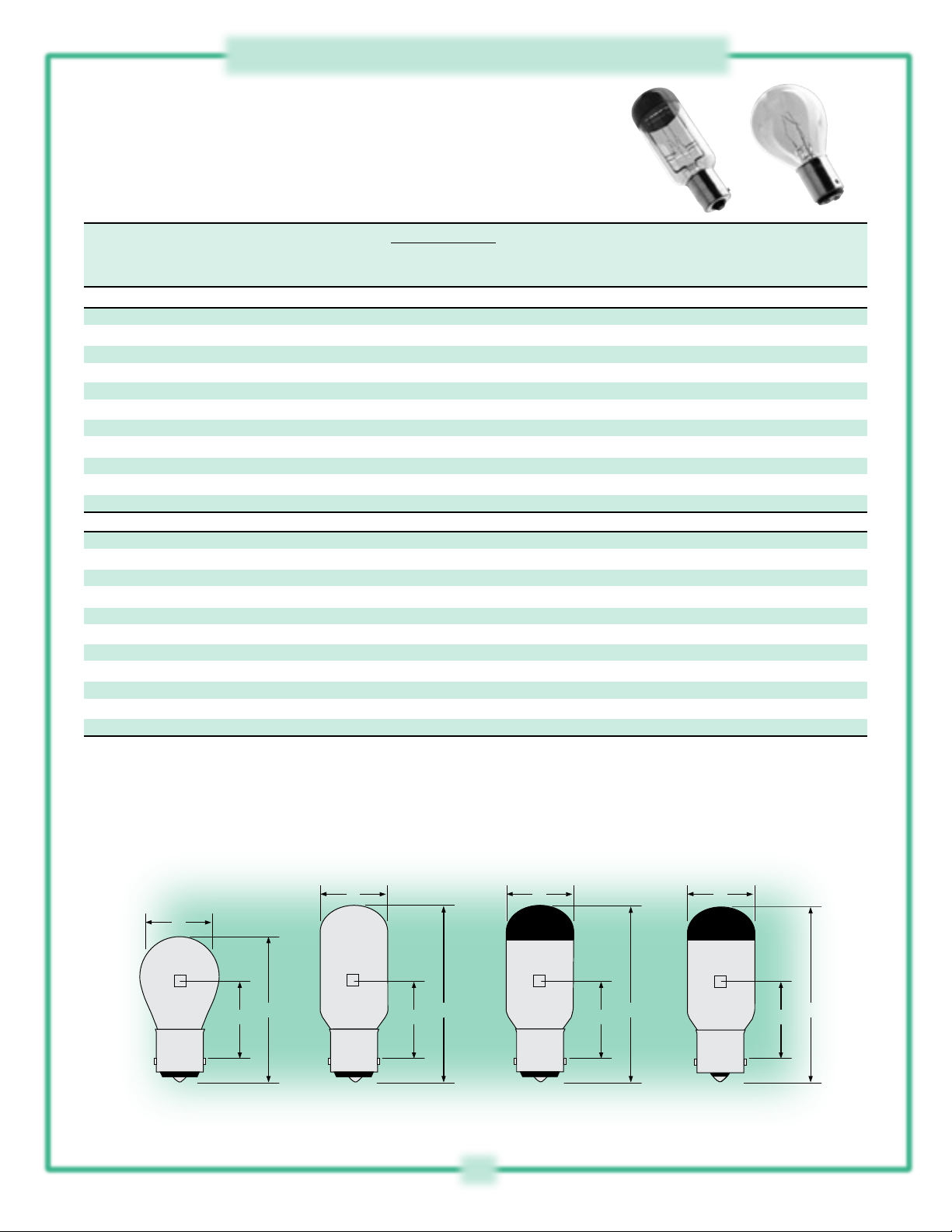

SLIDE, FILM AND OPTICAL PROJECTION LAMPS
Double Contact Bayonet Base - BA15d
•
Operate Base Down (except as noted)
•
Ushio Ushio Dimensions mm Filament Approx Color Avg Burn Fig
Watts Ordering Lamp Code Volts Dia OAL LCL Type Lumens Temp Life Position No
Code (A) (B) (C) lm K h
Double Contact Bayonet Base – BA15d
30 1000060 BLC 120 35 60.3 34.9 CC-2V 400 2775 50 BD/Hor 1
35 1000260 EAJ 12 20 101.6 47.6 C-8 650 ––– 300 Any 2
50 1000062 BLX 120 35 60.3 34.9 CC-2V 780 2850 50 BD/Hor 1
75 1000066 BNF 120 35 60.3 34.9 CC-2V 1300 2900 50 BD/Hor 1
75 1000128 CBX/CBS 120 25 79.4 34.9 CC-13 1250 2950 50 BD 3
100 1000130 CDJ 120 25 79.4 34.9 CC-2V 2000 2975 50 BD 3
100 1000132 CEA/CEB/CDK 120 25 78.0 35.0 CC-13 1800 2970 50 BD 3
150 1000049 BEC 120 38 66.7 34.9 CC-2V 3500 3075 25 BD 2
150 1000135 CGP/CFK 120 25 92.1 34.9 CC-13 2900 3100 50 BD 3
200 1000051 BEJ 120 38 66.7 34.9 CC-2V 4600 3100 25 BD 2
300 1000138 CLX/CMB 120 27 104.8 34.9 C-13 7600 3200 25 BD 3
Single Contact Bayonet Base – BA15s
75 1000100 BXE 10 25 75.0 40.5 C-8 1700 ––– 100 BD 3
100 1000104 BXT 12 25 79.4 34.9 CBar6 2800 3250 25 BD 4
100 1000065 BMY 120 35 60.3 34.9 CC-13 1860 2950 50 BD/Hor 1
100 1000129 CDD 120 25 79.4 34.9 CC-2V 2000 2975 50 BD 4
100 1000131 CDS/CDX 120 25 79.4 34.9 CC-13 1800 2900 50 BD 4
120 1000133 CEM 120 25 79.4 34.9 CC-13 1950 3000 200 BD 4
150 1000134 CEW 120 25 92.1 34.9 CC-13 2900 3100 50 BD 4
150 1000136 CHK 120 25 92.1 34.9 CC-13 2995 2850 500 BD 4
300 1000137 CLS/CLG 120 27 104.8 34.9 C-13 7700 3200 25 BD 4
300 1000139 CMV/CMT 120 27 104.8 34.9 C-13D 7300 3100 25 BD 4
300 1000151 CYC 120 29.5 81.0 34.9 C-13 7400 3150 25 BD 4
Single Contact Bayonet Base BA15s
Fig.1 Fig.2 Fig.3 Fig.4
18
Order and Inquiries • Toll-free Continental U.S. 800.838.7446 • Fax 800.776.3641 • Canada Toll-free 877.902.0722 • www.ushio.com
INCANDESCENT PROJECTION LAMPS
A
C
B
A
C
B
A
C B

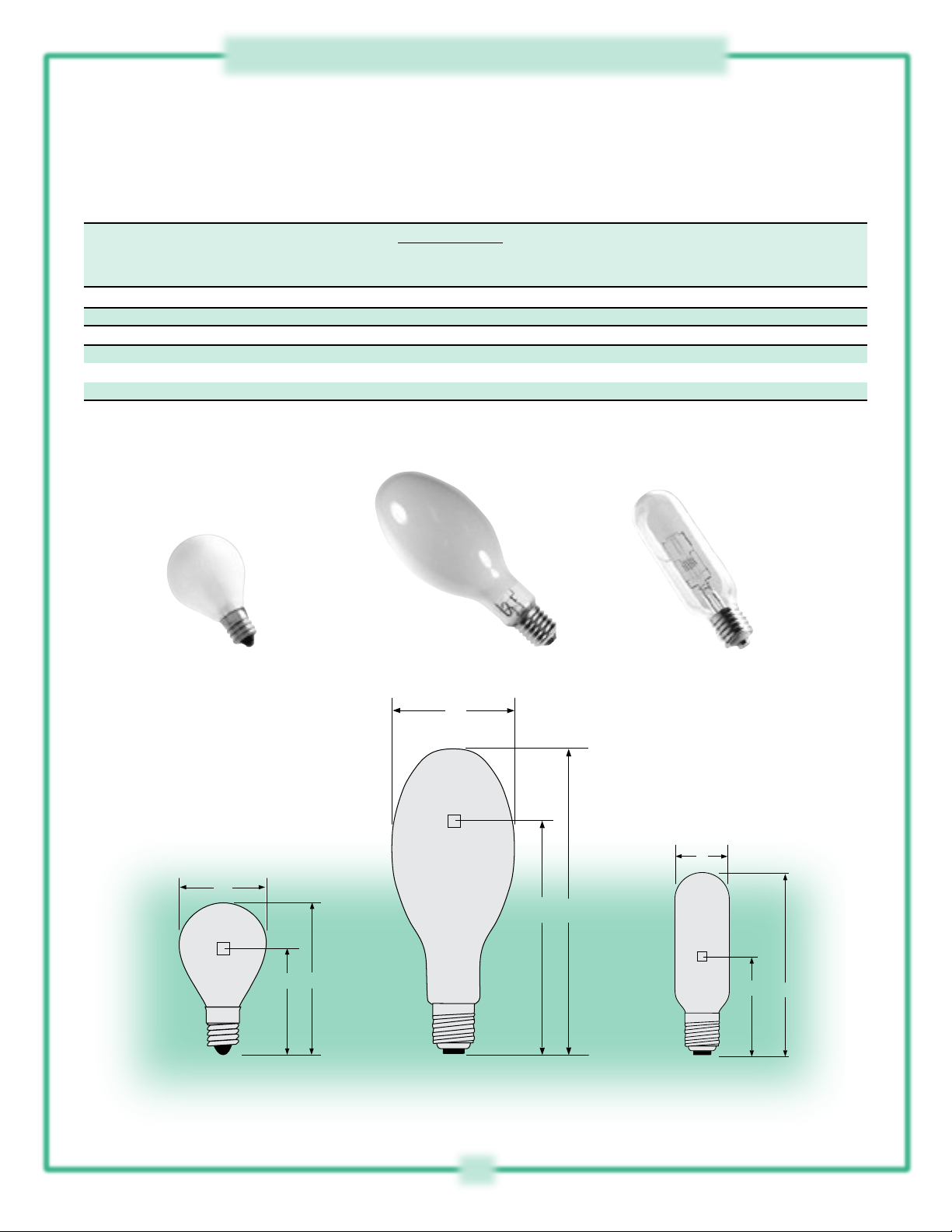

Candelabra Base - E12/15
•
Ushio Ushio Dimensions mm Filament Approx Color Avg Burn Fig
Watts Ordering Lamp Code Volts Dia OAL LCL Type Lumens Temp Life Position No
Code (A) (B) (C) lm K h
Candelabra Base – E12/15
30 1000061 BLK 130 30.0 57.2 41.3 CC-2V 420 2700 50 Any 1
Mogul Screw Base – E39
1000 1001611 DKZ 120 164.0 330 241.3 CC-8 28000 3200 750 Any 2
1000 1000213 DPT 120 64.0 230 125.0 C-13 29000 3200 50 BD 3
1000 1000219 DRW 120 64.0 230 125.0 C-13D 27400 3250 25 BD 3
Mogul Screw Base - E39
Fig.1 Fig.2
Fig.3
19
Order and Inquiries • Toll-free Continental U.S. 800.838.7446 • Fax 800.776.3641 • Canada Toll-free 877.902.0722 • www.ushio.com
INCANDESCENT PROJECTION LAMPS
A
B
C
A
B
C
A
Reflector
B
C
A
Reflector
Net
B
C

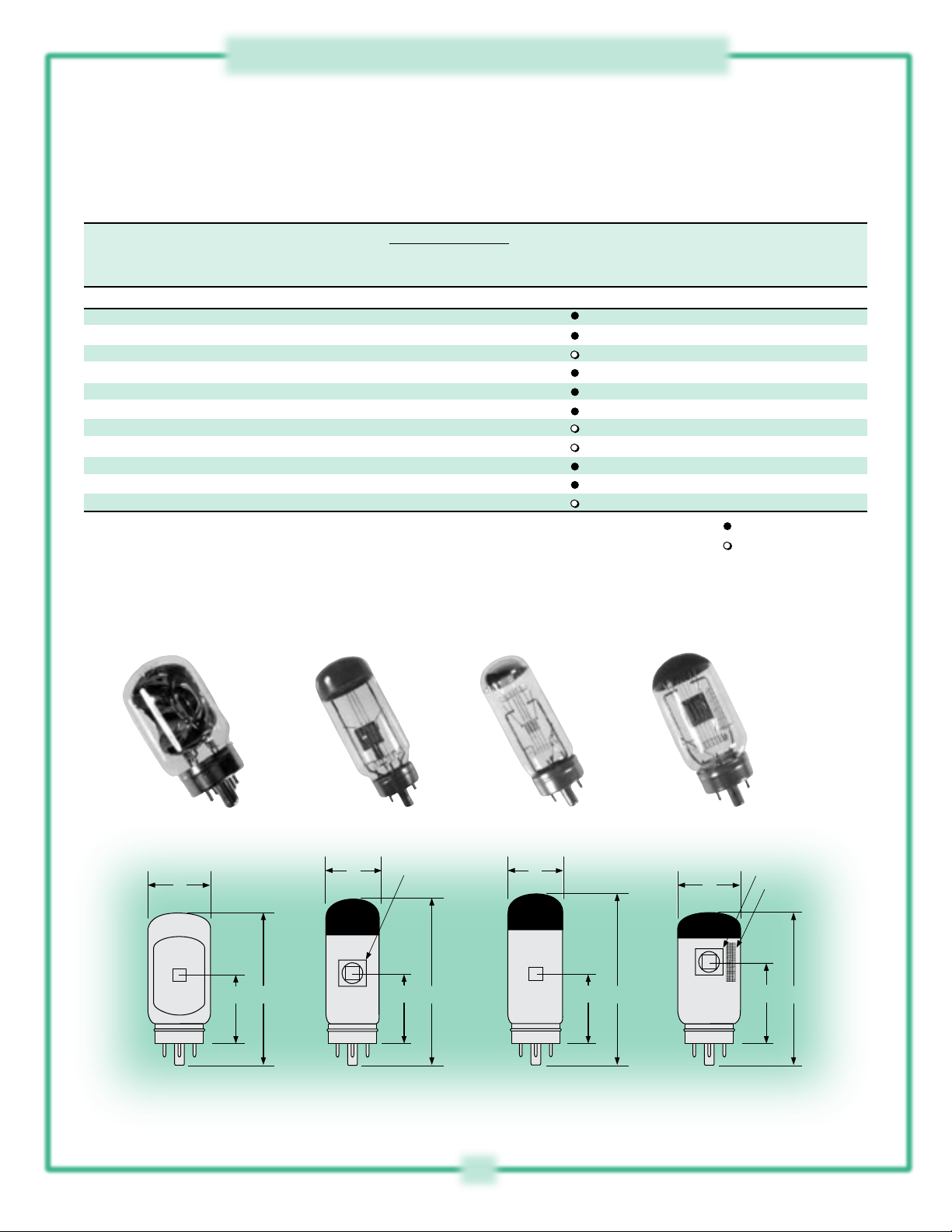

4-Pin Base - G17q-7
•
1 9/16” (39.7mm), 1 3/4” (44.5mm) Light Center Length
•
Proximity and Opaque Reflector Lamps
•
Ushio Ushio Dimensions mm Filament Approx Color Avg Burn Fig
Watts Ordering Lamp Code Volts Dia OAL LCL Type Lumens Temp Life Position No
Code (A) (B) (C) lm K h
4-Pin Base – G17q-7 - 1 9/16” (39.7mm), 1 3/4” (44.5mm) LCL
80 1000186 DFE 30 38.0 82.0 39.7 CC-8 ––– 3200 15 BD/Hor 1
80 1000192 DGB/DMD 30 38.0 85.7 39.7 CC-6 ––– 3200 15 BD 1
150 1000196 DJL 120 44.5 88.9 39.7 CC-8 ––– 3150 15 BD/Hor 1
150 1000166 DCH/DJA/DFP 120 25.0 90.5 39.7 CC-6 ––– 3150 ––– BD 1
150 1000188 DFN/DFC 125 38.0 81.0 39.7 CC-6 ––– 3150 15 Horiz 1
300 1000119 CAL/CXP 120 32.0 101.6 39.7 C-13 ––– 3200 25 BD 2
400 1000163 DAT/DAK 120 32.0 103.0 39.7 C-13D 10000 3200 25 BD 3
500 1000164 DAY/DAK 120 32.0 104.0 39.7 C-13D 12500 3200 25 BD 3
500 1000156 CZA/CZB 120 32.0 101.6 39.7 C-13D ––– 3300 25 BD 2
500 1000161 DAH 120 38.0 93.0 44.5 C-13D ––– 3300 200 Horiz 4
500 1000183 DEK/DFW/DHN 120 38.0 89.0 44.5 C-13D ––– 3200 25 Horiz 4
Opaque Reflector
Proximity Reflector
Fig.1 Fig.2 Fig.3 Fig.4
20
Order and Inquiries • Toll-free Continental U.S. 800.838.7446 • Fax 800.776.3641 • Canada Toll-free 877.902.0722 • www.ushio.com
INCANDESCENT PROJECTION LAMPS
A
B
C
A
Reflector
Net
B
C
A
B
C
Reflector
Source
A
B
C
A
Reflector
Net
B
C
A
B
C
Reflector

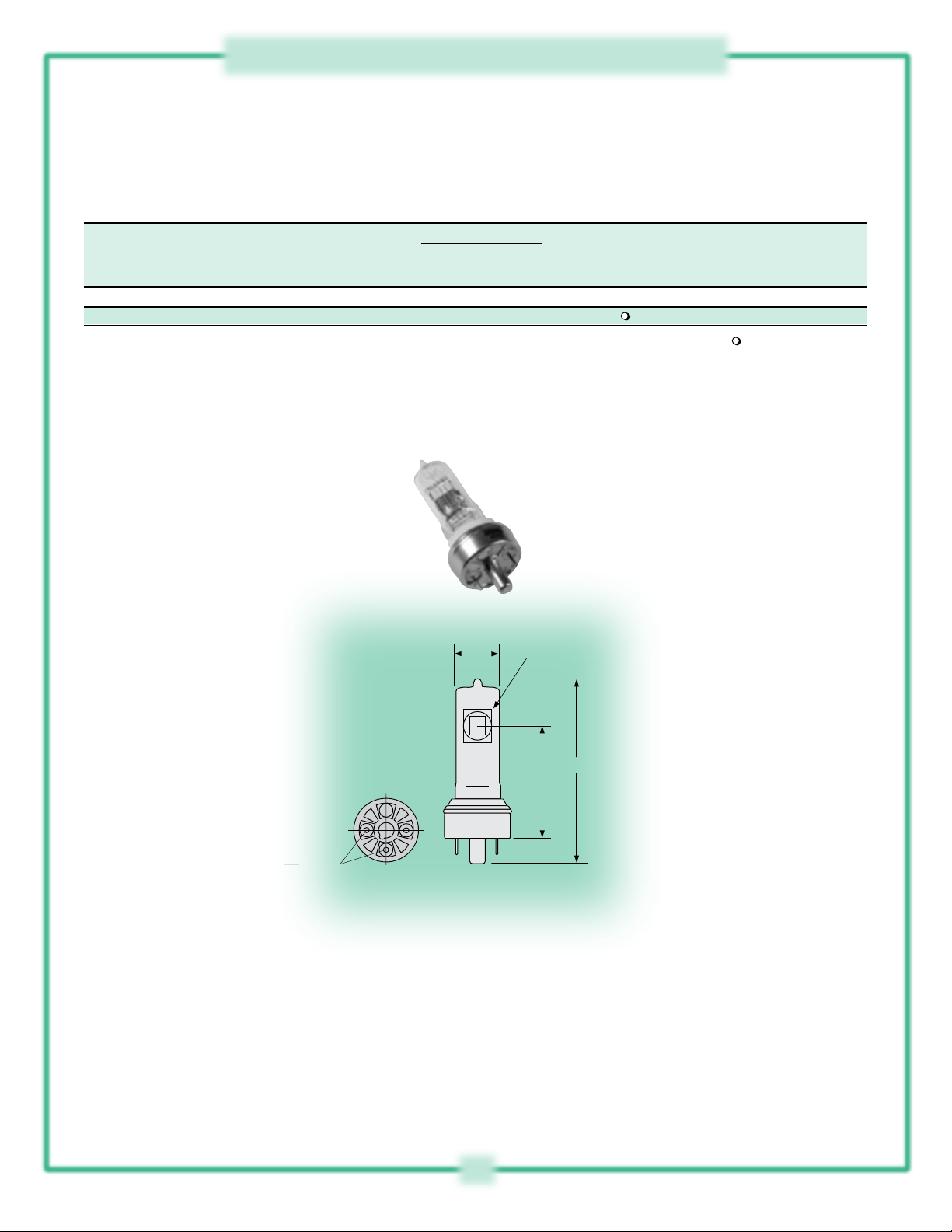

4-Pin Base - G17t-7
•
5
/
1
•
•
Ushio Ushio Dimensions mm Filament Color Avg Burn Fig
Watts Ordering Lamp Code Volts Dia OAL LCL Type Temp Life Position No
Code (A) (B) (C) K h
4-Pin Base – G17t-7 - 1 9/16” (39.7mm) LCL
500 1000047 BCK 120 19.5 88.9 38.7 C-13D 3250 50 BD/Hor 1
” (33.4mm) Light Center Length
16
Proximity and Opaque Reflector Lamps
Proximity Reflector
Fig.1
21
Order and Inquiries • Toll-free Continental U.S. 800.838.7446 • Fax 800.776.3641 • Canada Toll-free 877.902.0722 • www.ushio.com
INCANDESCENT PROJECTION LAMPS
A
C
B
A
C
B
A
C
B
A
C
B
A
C
B

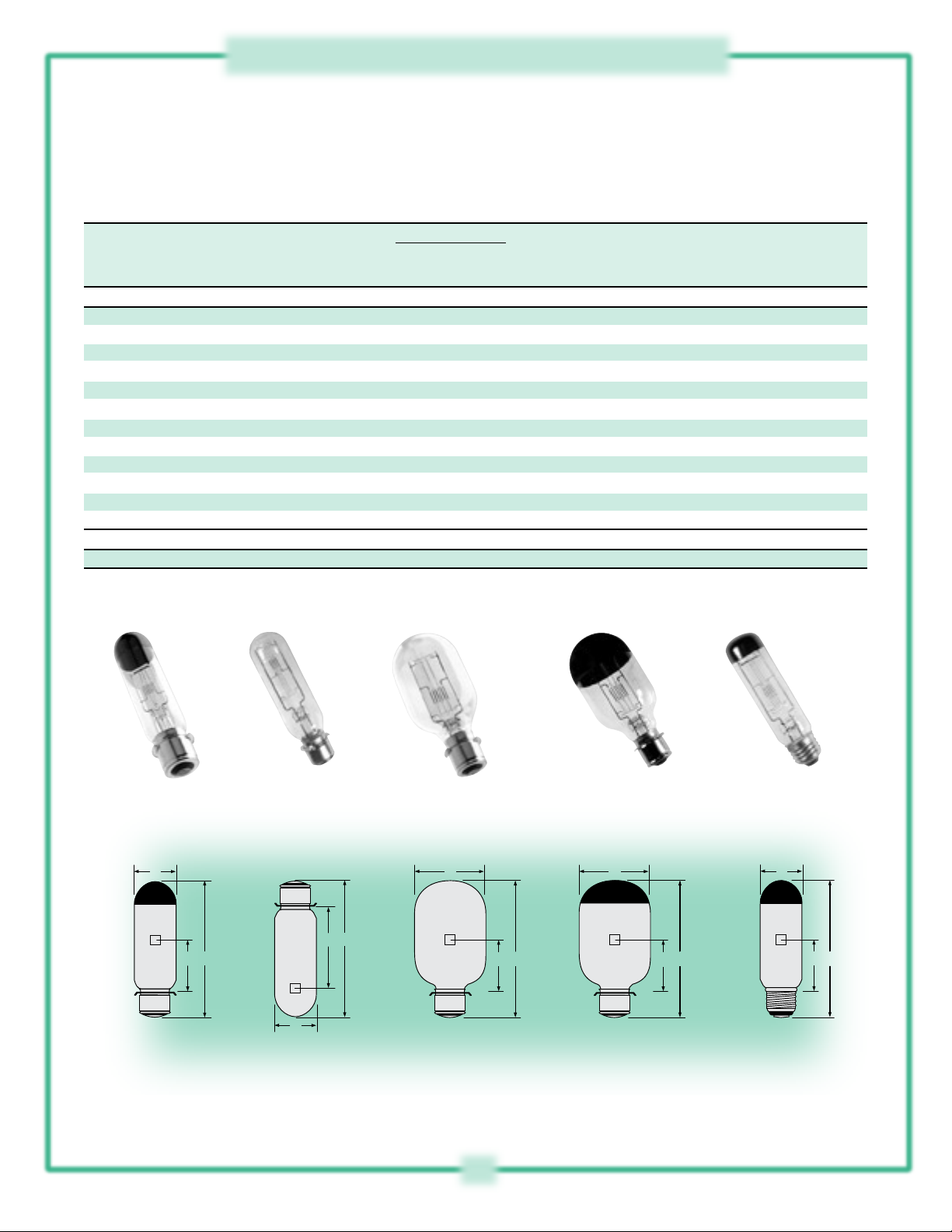

FILM AND OVERHEAD PROJECTION LAMPS
Medium Prefocus Base - P28s
•
3
/
2
” (55.5mm) and 3
•
16
Medium Screw Base - E26
•
3” (76mm) Light Center Length
•
Ushio Ushio Dimensions mm Filament Approx Color Avg Burn Fig
Watts Ordering Lamp Code Volts Dia OAL LCL Type Lumens Temp Life Position No
Code (A) (B) (C) lm K h
Medium Prefocus Base – P28S - 2 3/16” (55.5mm) LCL
300 1000147 CXK 120 32.0 146 55.6 C-13 7500 3200 25 BD 1
500 1000160 CZX/DAB 120 32.0 146 55.6 C-13D 12500 3200 25 BD 1
500 1000179 DEB 120 38.0 144 88.9 C-13D 9000 2850 800 BU 2
500 1000205 DMX 120 64.0 144 55.5 C-13 13200 3200 50 BD 3
500 1000211 DNW 120 64.0 145 55.5 C-13 10000 3050 500 BD/Hor 3
750 1000053 BFK/BFL 120 64.0 146 55.5 C-13 17500 3100 200 BD 4
750 1000170 DDB/DDW 120 38.0 146 55.6 C-13D 20000 3250 25 BD 1
750 1000178 DDY 120 38.0 144 55.5 C-13D 17000 2950 200 BD 1
1000 1000189 DFT 120 38.0 144 55.5 C-13D 27400 3250 25 BD 1
1000 1000217 DRB/DRC 120 64.0 144 55.5 C-13 28000 3250 50 BD 3
1000 1000218 DRS 120 64.0 144 55.5 C-13D 27400 3250 25 BD 3
1000 1000227 DWK 230 64.0 146 55.6 C-13 25000 3100 50 BD 3
Medium Screw Base – E26 - 3” (76mm) LCL
750 1000169 DCX 120 38.0 139.7 76.2 C-13D 19500 3200 25 BD 5
1
/
” (88.9mm) Light Center Length
2
Fig.1 Fig.2 Fig.3 Fig.4 Fig.5
22
Order and Inquiries • Toll-free Continental U.S. 800.838.7446 • Fax 800.776.3641 • Canada Toll-free 877.902.0722 • www.ushio.com
INCANDESCENT PROJECTION LAMPS
A
C
B
A
C
B
A
B
C

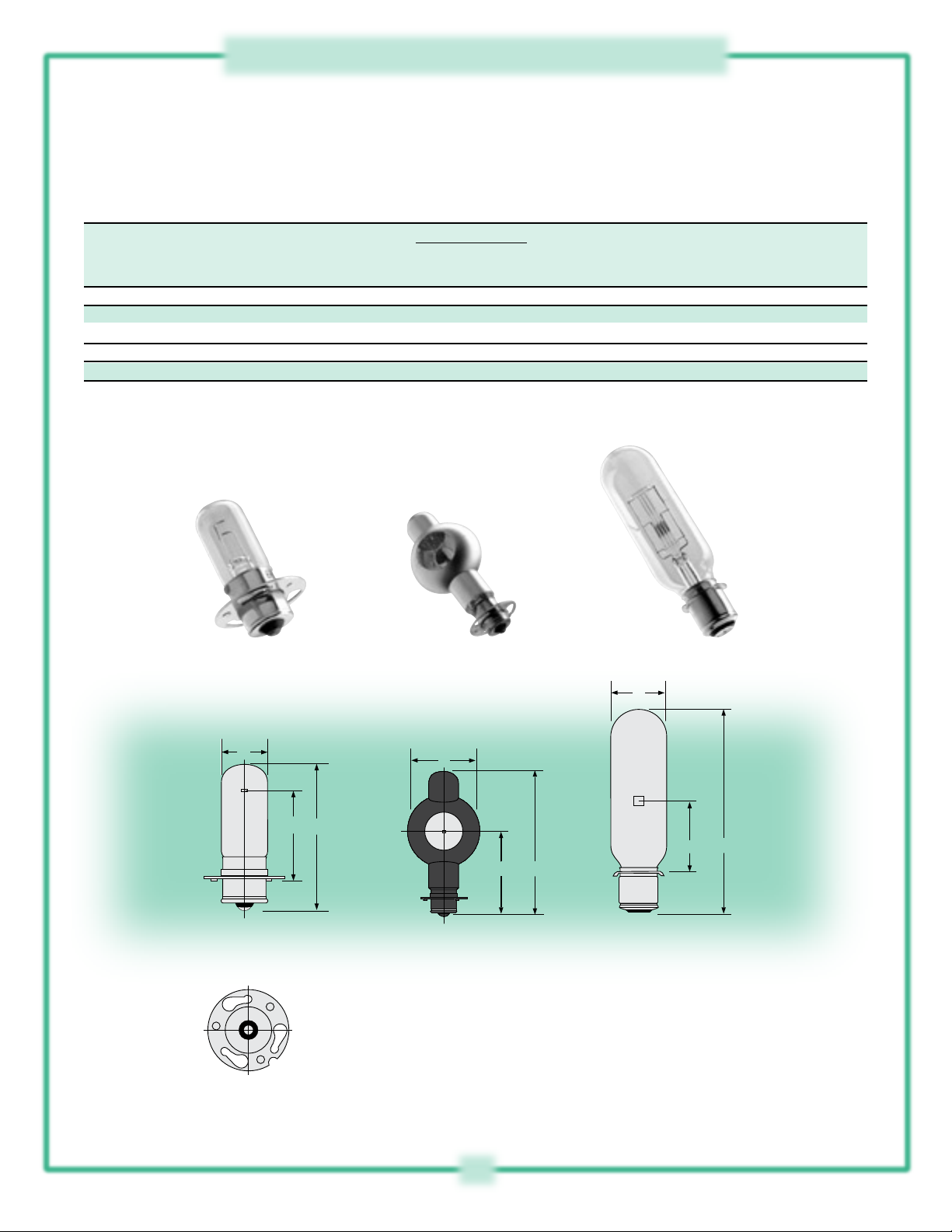

Projection Sound Lamps
•
Single Contact Prefocus Base - P30s
•
Ushio Ushio Dimensions mm Filament Approx Color Avg Burn Fig
Watts Ordering Lamp Code Volts Amps Dia OAL LCL Type Lumens Temp Life Position No
Code (A) (B) (C) lm K h
Single Contact Prefocus Base – P30s
3 1000070 BRK 4 0.75 16 60 28.5 C-8 30 ––– 50 Any 1
50 1000148 CXL/CXR 8 ––– 43 96 47.0 C-6 36 3200 25 BD 2
Mogul Prefocus Base – P40s
1500 1000221 DTJ 120 ––– 64 242 87.3 C-13D 42500 3200 25 BD 3
Mogul Prefocus Base - P40s
Fig.1 Fig.2 Fig.3
23
Order and Inquiries • Toll-free Continental U.S. 800.838.7446 • Fax 800.776.3641 • Canada Toll-free 877.902.0722 • www.ushio.com

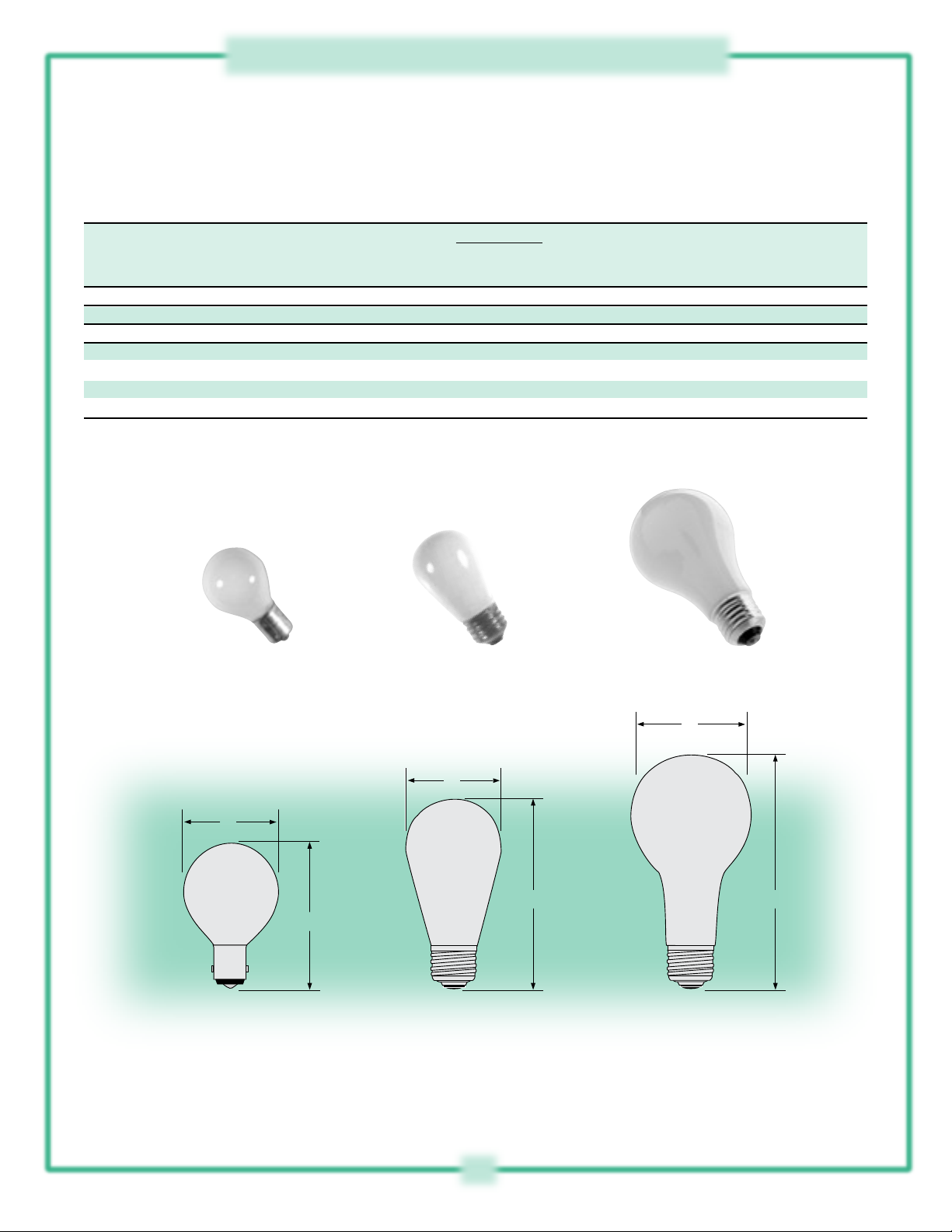

INCANDESCENT PHOTOGRAPHIC ENLARGER LAMPS
A
A
A
B
B B
Single Contact Bayonet Base - BA15s
•
Ushio Ushio Dimensions mm Approx Color Avg Burn Fig
Watts Ordering Lamp Code Volts Dia OAL Lumens Temp Life Position No
Code (A) (B) lm K h
Single Contact Bayonet Base – BA15s
75 1001265 PH111A, S-11 125 34.9 60.3 1120 2900 25 BD/Hor 1
Medium Screw Base – E26
75 1001266 PH140, S-14 120 44.45 125.4 1200 2900 50 Any 2
75 1001267 PH211, A-21 115-125 66.68 176.2 1200 3000 100 Any 3
150 1001268 PH212, A-21 115-125 66.68 176.2 2800 3050 100 Any 3
250 1001269 PH213, A-21 NO.1 115-125 66.68 176.2 7000 3400 3 Any 3
Medium Screw Base - E26
Fig.2Fig.1
Fig.3
24
Order and Inquiries • Toll-free Continental U.S. 800.838.7446 • Fax 800.776.3641 • Canada Toll-free 877.902.0722 • www.ushio.com

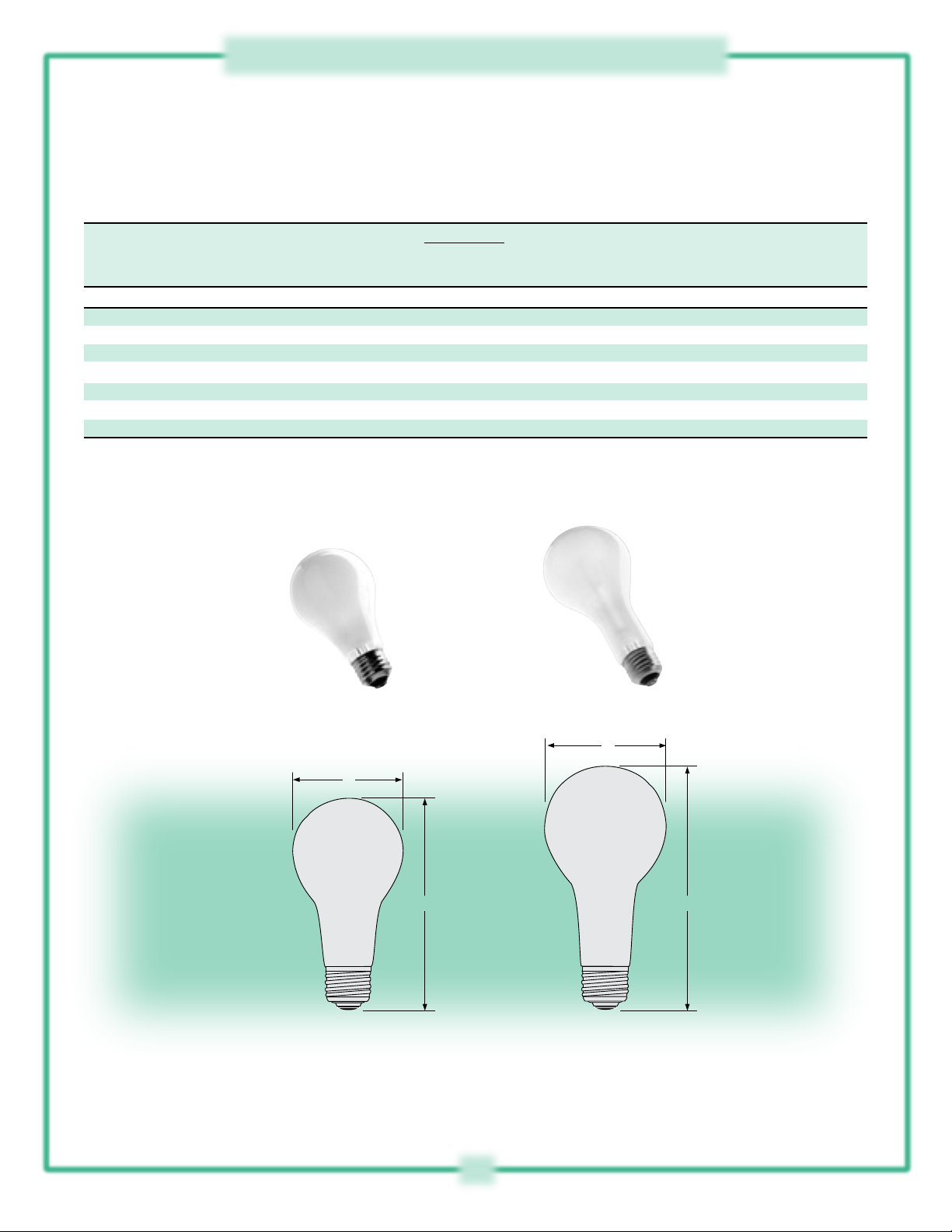

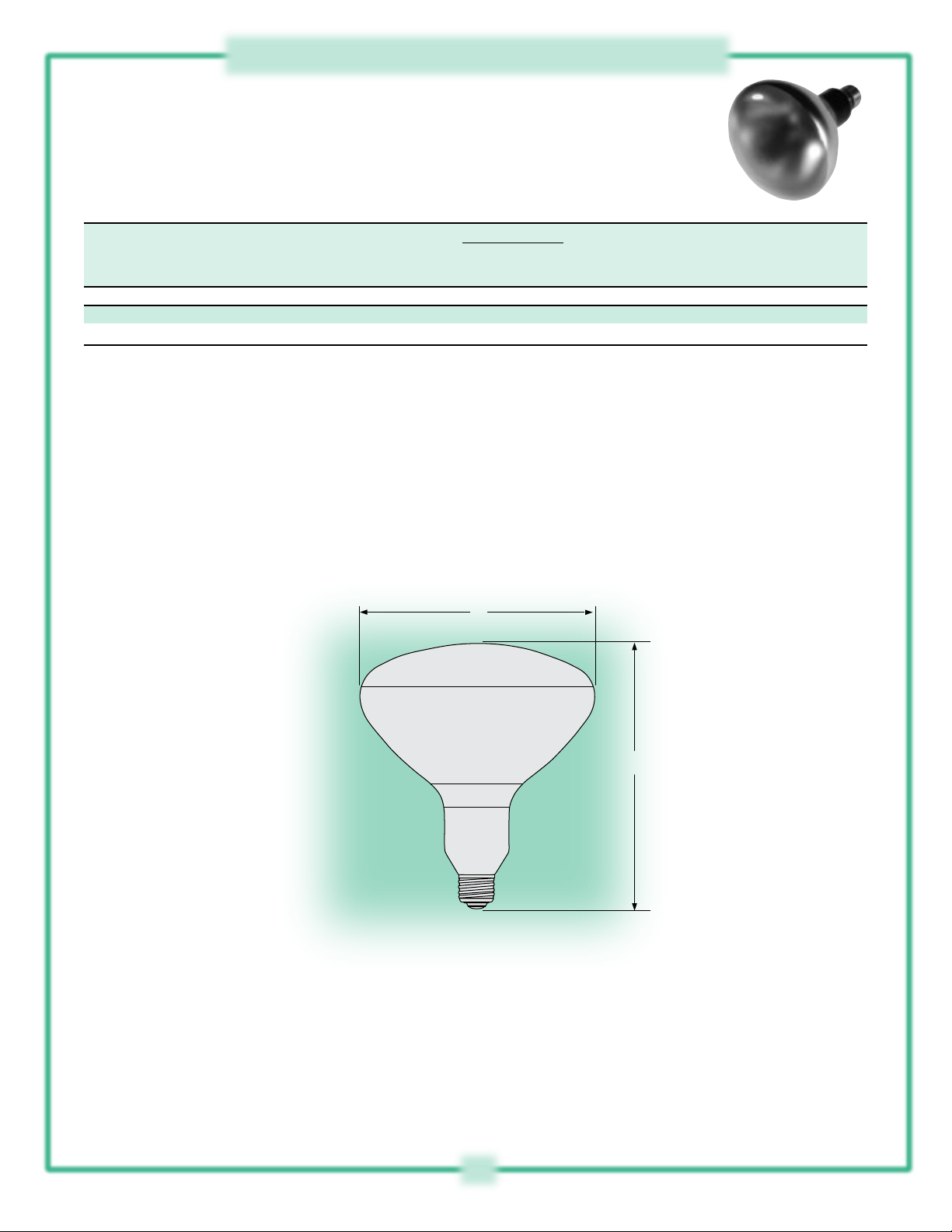

INCANDESCENT PHOTO FLOOD LAMPS
A
A
B B
Medium Screw Base - E26
•
Inside Frosted and Blue Bulbs
•
115-120 Volts
•
Ushio Ushio Dimensions mm Approx Color Avg Burn Fig
Watts Ordering Lamp Code Volts Dia OAL Lumens Temp Life Position Application No
Code (A) (B) lm K h
Medium Screw Base – E26
250 1000026 BBA, A-21 NO.1 115-125 66.68 125.4 8500 3400 3 Any Photoflood 1
250 1000046 BCA, A-21 NO. B1 BLUE 115-125 66.68 125.4 5000 4800 3 Any Photoflood 1
250 1000265 ECA, A-23 120 73.03 152.4 6500 3200 20 Any Photoflood 1
300 1000024 BAH, INC115V-300W 115 66.68 125.4 9300 3200 20 Any Photocopy 1
500 1000263 EBV, PS-25 NO.2 115-125 79.38 176.2 17000 3400 6 Any Photoflood 2
500 1000264 EBW, PS-25 NO. B2/BLUE 115-125 79.38 176.2 10500 4800 6 Any Photoflood 2
500 1000266 ECT, PS-25 3200K 120 79.38 176.2 13650 3200 60 Any Photoflood 2
Fig.1 Fig.2
25
Order and Inquiries • Toll-free Continental U.S. 800.838.7446 • Fax 800.776.3641 • Canada Toll-free 877.902.0722 • www.ushio.com
INCANDESCENT PHOTO FLOOD LAMPS
A
B
Medium Screw Base - E26
•
120 Volts
•
Ushio Ushio Dimensions mm Color Avg Burn Fig
Watts Ordering Lamp Code Volts Dia OAL Temp Life Position No
Code (A) (B) K h
Medium Screw Base – E26
500 1000231 DXB, INC120V-500W 120 127.0 168.3 3400 6 Any 1
500 1000262 EAL, INC120V-500W 120 127.0 168.3 3200 15 Any 1
Fig.1
26
Order and Inquiries • Toll-free Continental U.S. 800.838.7446 • Fax 800.776.3641 • Canada Toll-free 877.902.0722 • www.ushio.com

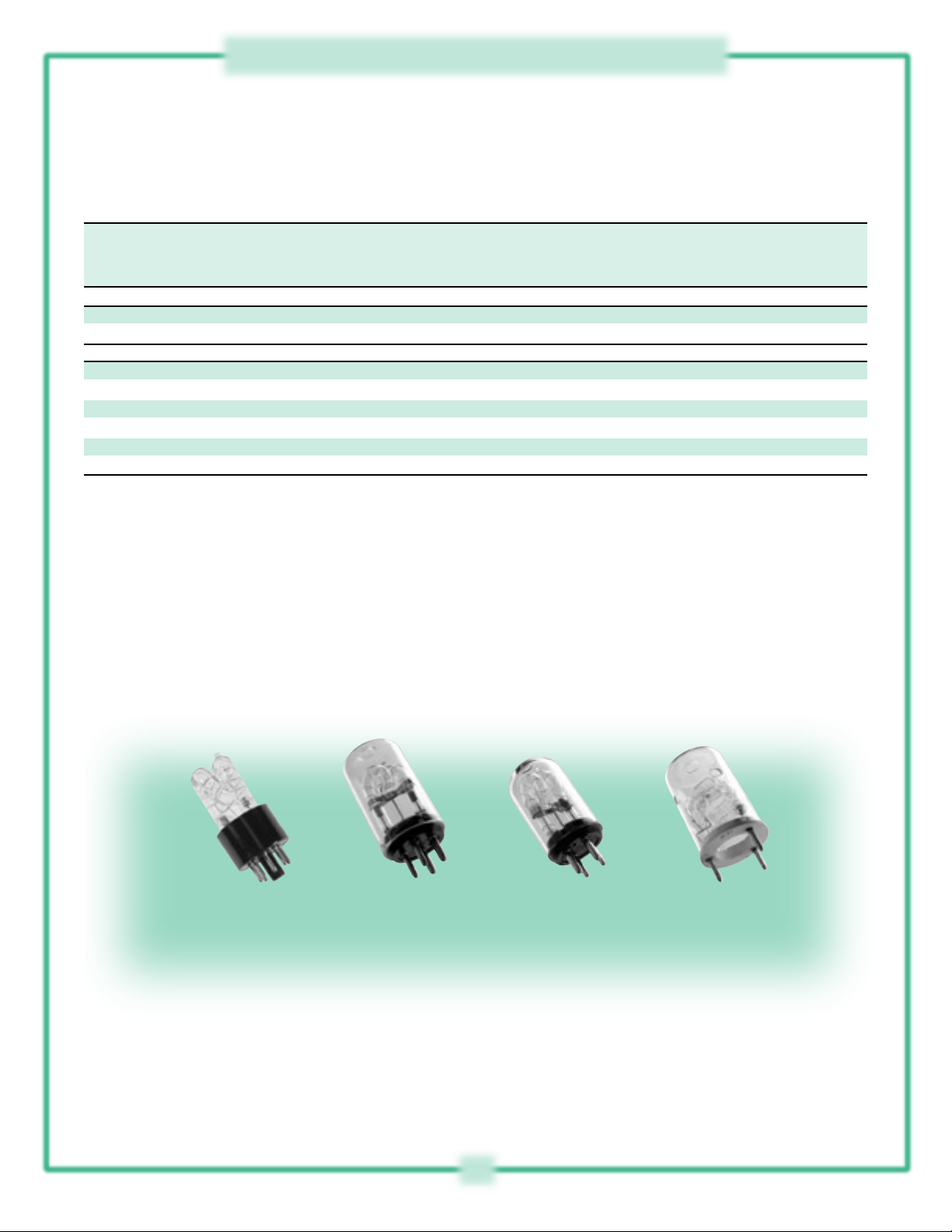

ENTERTAINMENT & PHOTOGRAPHIC FLASH LAMPS
CROSS REFERENCE
Lamp Lamp System
Code Description Watts Volts Other Cross Reference
Entertainment Flash
5000916 UA-AF1, 1000W, 400V 1000 400 Dataflash HO1
5000177 UA-DF1, 1000W, 400V 1000 400 Dataflash SO1
Photographic Flash
5000153 UA-20 400 400-450 B-G53 Photogenic H4-6HD Norman 120
Lumedyne #090 (dm15) (FT400)
5000154 UA-20UV 400 400-450 B-G53UV Photogenic H4-6Hd-UV
5000156 UA-40 400 400-450 Norman 400B
5000157 UA-40UV 400 400-450 Norman 400B-UV
5000175 UA-98UV 2400 600-1000 B-G61UV Speedotron MW8QVC (14571)
UA-40UA-20 UA-98UVUA-DF1
27
Order and Inquiries • Toll-free Continental U.S. 800.838.7446 • Fax 800.776.3641 • Canada Toll-free 877.902.0722 • www.ushio.com
A
C
B
D
C
B

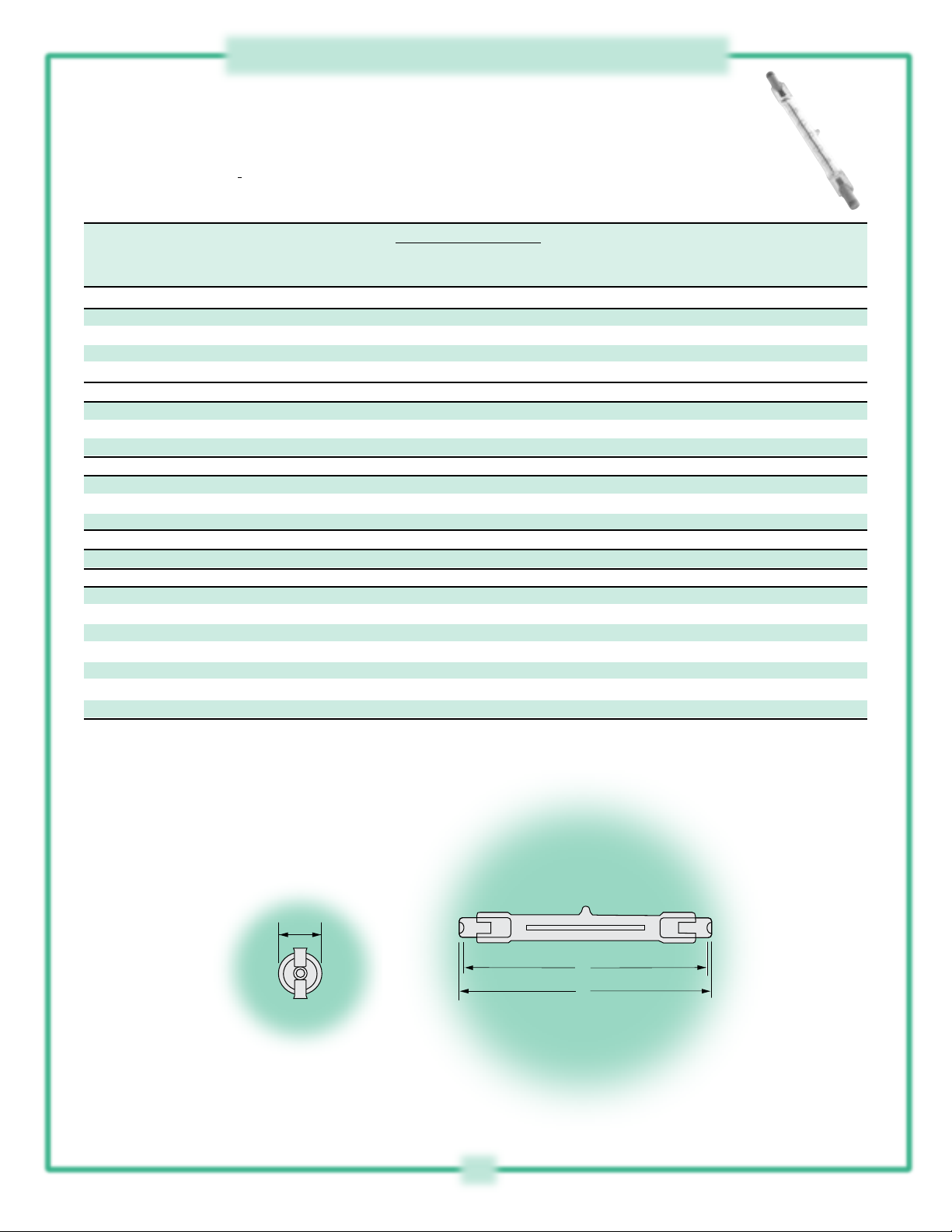

J SERIES

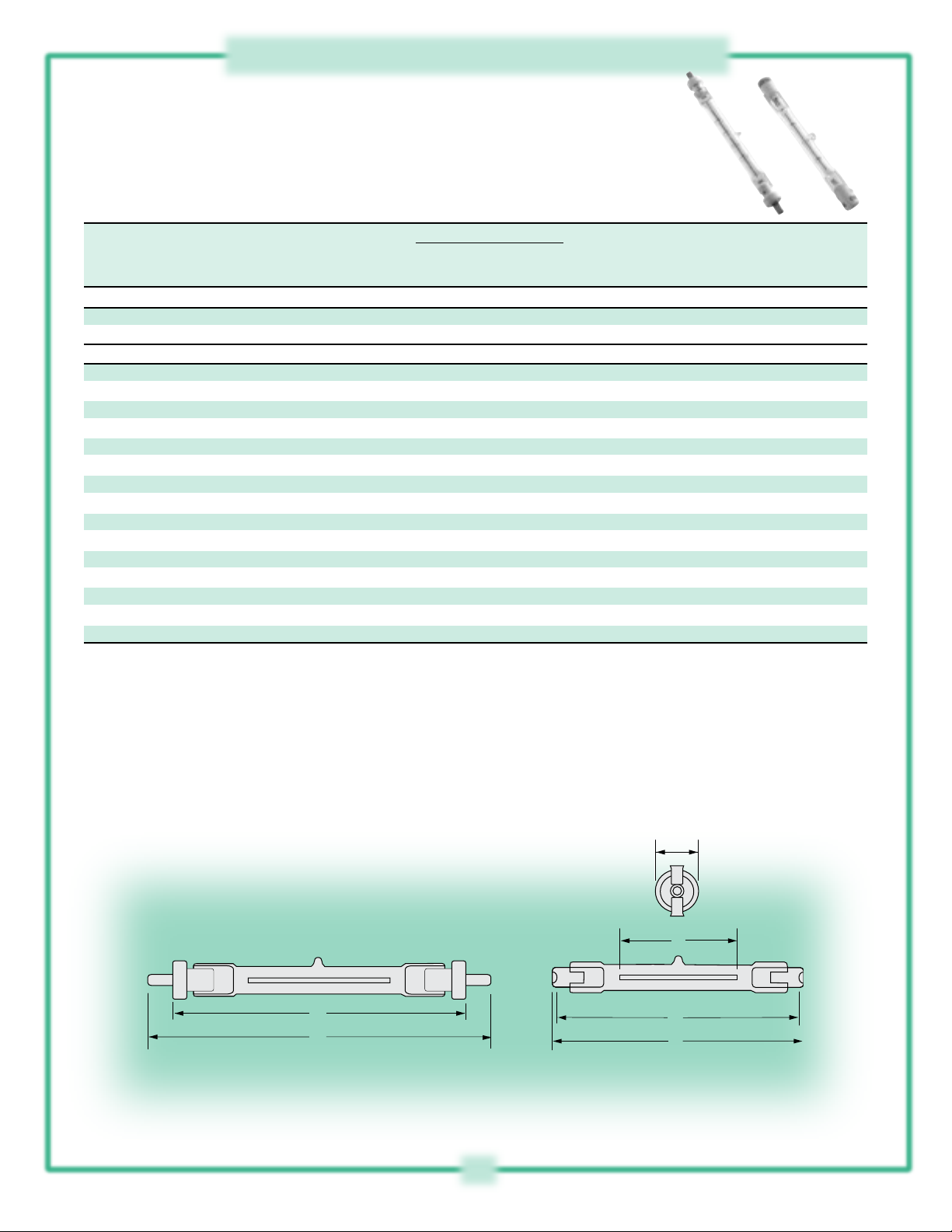

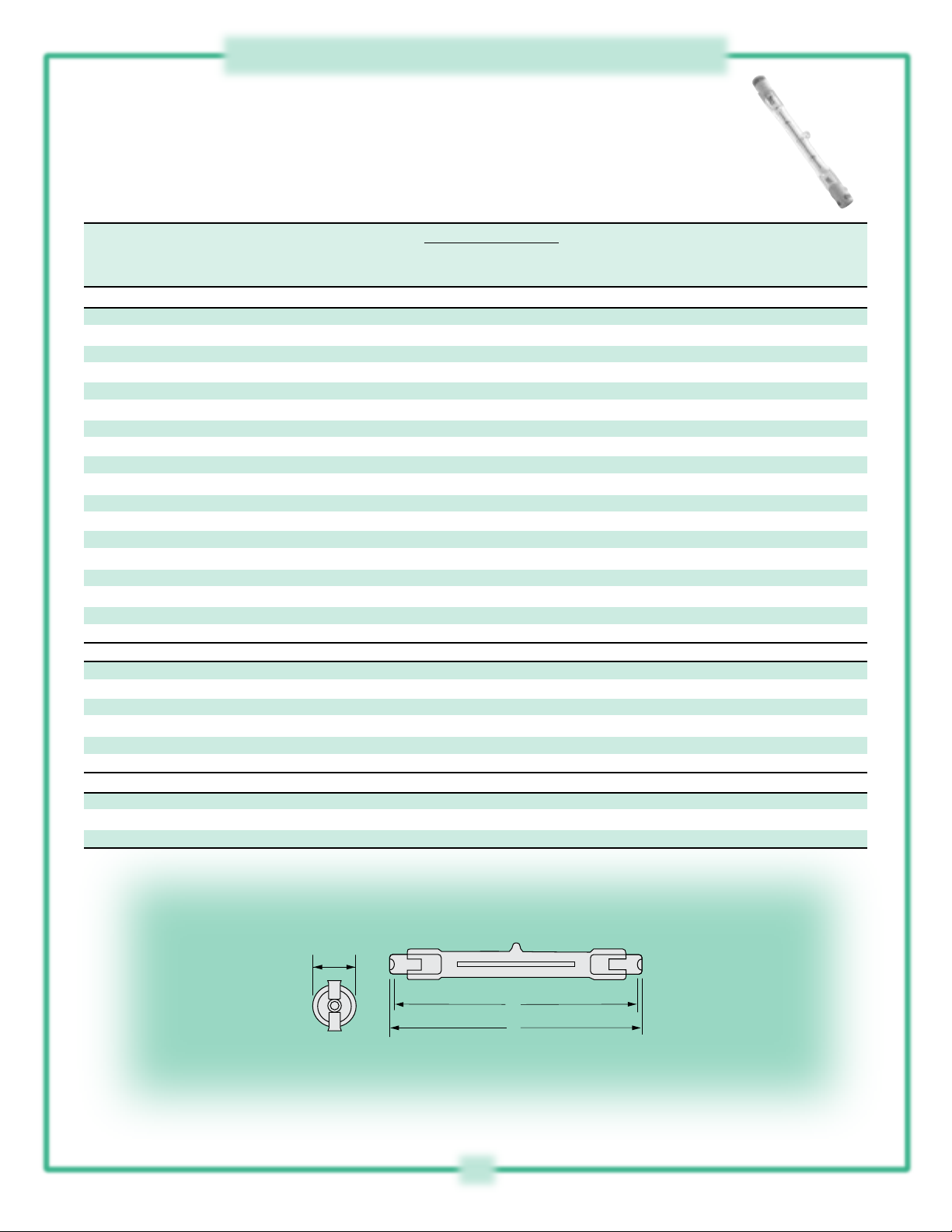

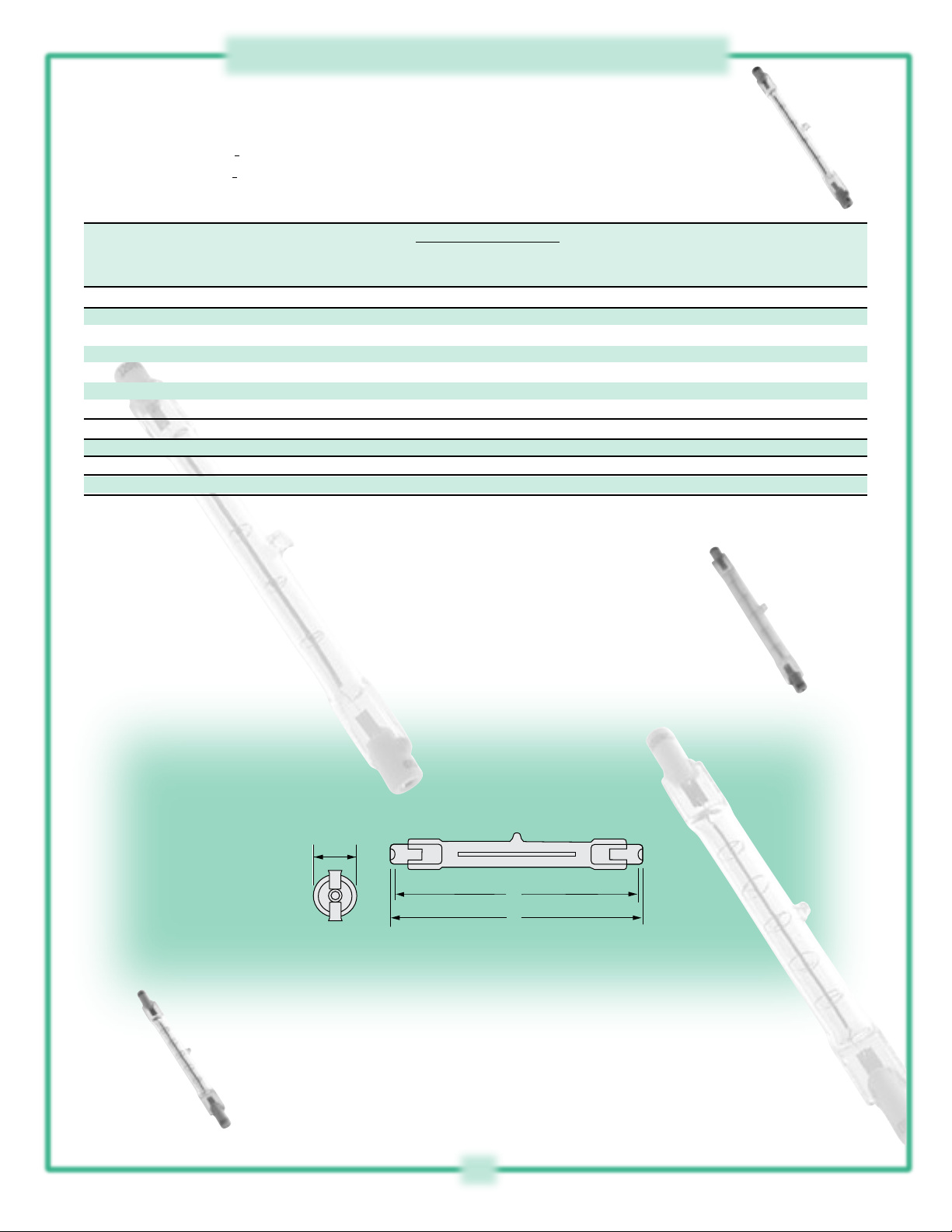

QUARTZ HALOGEN LAMPS • DOUBLE ENDED
Only for Use in Approved Enclosed Halogen Fixtures
•
Recessed Single Contact & Pin Blade Base
•
Compact CC-8 & Linear C-8 Filaments
•
Even, Linear Illumination
•
Ushio Ushio Dimensions mm Filament Approx Avg Bulb
Watts Ordering Lamp Code Dia OAL C-to-C Type Lumens Life Finish
Code (A) (B) (C) lm h
Pin Blade Base - OAL ≈ 5 11/16” (145mm) – T4
500 1000729 J130V-500WPB 12.7 145.0 127.0 C-8 11000 2000 Clear
R7s-12 Base - OAL ≈ 3 1/8” (80.3mm) – T2.5, T4*
100 1000698 J120V-100W/79MM SHORT 8.0 80.3 74.9 CC-8 1450 1500 Clear
100 1000721 J130V-100W/79MM SHORT 8.0 80.3 74.9 CC-8 1450 1500 Clear
100 1000762 J240V-100W/79MM SHORT 8.0 80.3 74.9 CC-8 1250 1500 Clear
150 1001734 J12V-150WA/80* 12.0 85.5 80.0 C-8 2700 2000 Clear
150 1000701 J120V-150W/79MM SHORT 8.0 80.3 74.9 CC-8 2400 1500 Clear
150 1000723 J130V-150W/79MM SHORT 8.0 80.3 74.9 CC-8 2400 2000 Clear
150 1000751 J230V-150W/79MM SHORT 8.0 80.3 74.9 CC-8 1950 1500 Clear
150 1000765 J240V-150W/79MM SHORT 8.0 80.3 74.9 CC-8 1950 1500 Clear
200 1000703 J120V-200W/79MM SHORT 8.0 80.3 74.9 CC-8 3460 2000 Clear
200 1000705 J120V-200WF/79MM SHORT 8.0 80.3 74.9 CC-8 3400 2000 Frosted
200 1000725 J130V-200W/79MM SHORT 8.0 80.3 74.9 CC-8 3460 2000 Clear
250 1001737 J120V-250WG/83 8.0 ––– 80.0 C-8 4000 2000 Clear
250 1000707 J120V-250W/79MM SHORT 8.0 80.3 74.9 CC-8 4500 2000 Clear
250 1000773 J240V-250W/79MM SHORT 8.0 80.3 74.9 CC-8 3800 2000 Clear
300 1000709 J120V-300W/79MM SHORT 8.0 80.3 74.9 CC-8 5900 2000 Clear
300 1000727 J130V-300W/79MM SHORT 8.0 80.3 74.9 CC-8 5900 2000 Clear
T2.5 & T4
•
With greater economy through long life and high output, J series lamps
are ideal for flood lighting wide areas for both indoor and outdoor
lighting installations.
R7s-12Pin Blade
28
Order and Inquiries • Toll-free Continental U.S. 800.838.7446 • Fax 800.776.3641 • Canada Toll-free 877.902.0722 • www.ushio.com

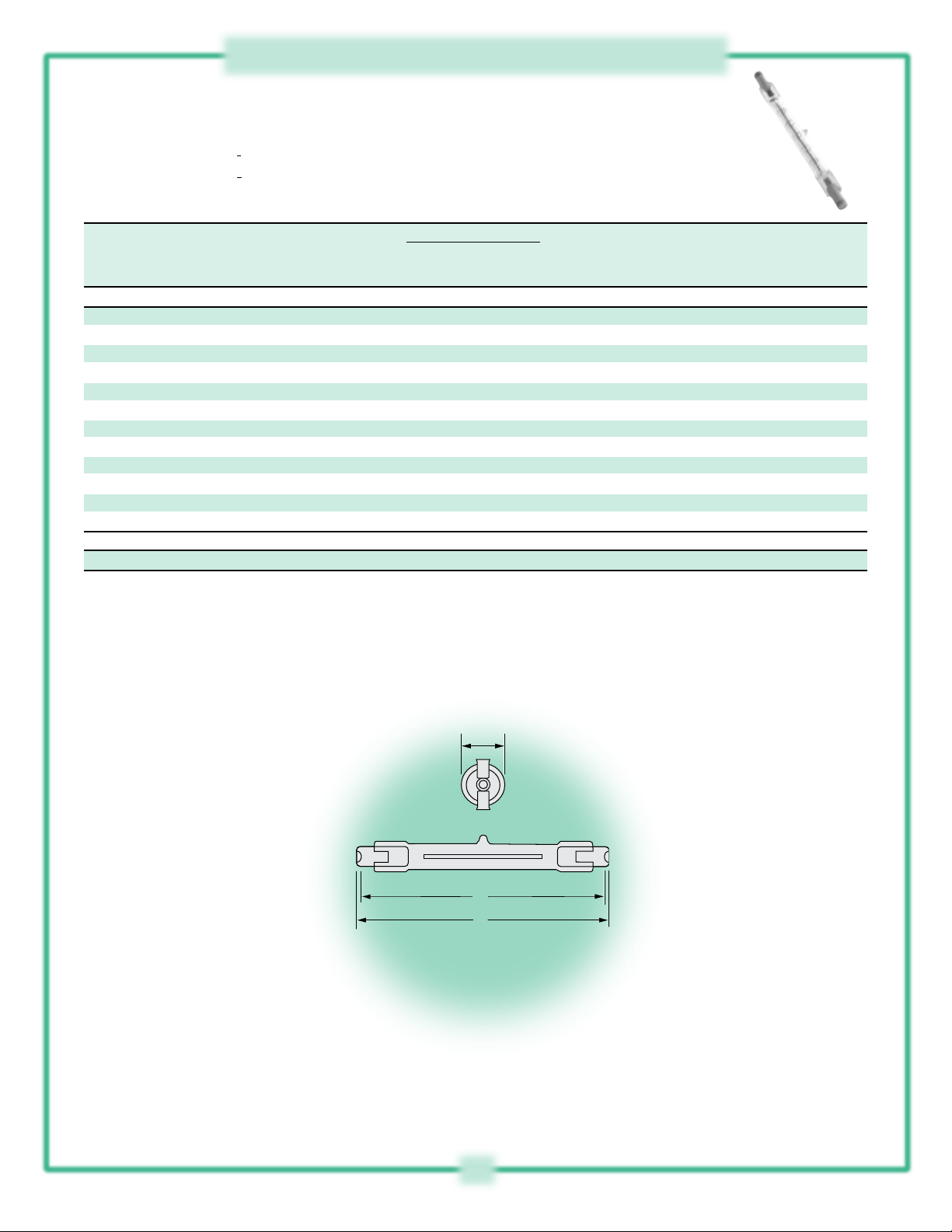

QUARTZ HALOGEN LAMPS • DOUBLE ENDED
A
C
B
J SERIES
Only for Use in Approved Enclosed Halogen Fixtures
•
Recessed Single Contact Base - R7s-12
•
Compact CC-8 & Linear C-8 Filaments
•
T2.5 & T4
•
Ushio Ushio Dimensions mm Filament Approx Color Avg Bulb
Watts Ordering Lamp Code Dia OAL C-to-C Type Lumens Temp Life Finish
Code (A) (B) (C) lm K h
R7s-12 Base - OAL≈ 4 11/16” (119.6mm) – T 2.5
100 1000697 J120V-100W/119MM LONG 8.0 119.6 114.2 C-8 1450 2750 1500 Clear
100 1000720 J130V-100W/119MM LONG 8.0 119.6 114.2 C-8 1450 2750 1500 Clear
100 1000761 J240V-100W/119MM LONG 8.0 119.6 114.2 C-8 1250 ––– 1500 Clear
150 1000719 J12V-150WG 8.0 119.6 114.2 C-8 2400 2900 1500 Clear
150 1000700 J120V-150W/119MM LONG 8.0 119.6 114.2 C-8 2400 2800 1500 Clear
150 1000722 J130V-150W/119MM LONG 8.0 119.6 114.2 C-8 2400 2850 1500 Clear
150 1000764 J240V-150W/119MM LONG 8.0 119.6 114.2 C-8 1950 2750 1500 Clear
200 1000704 J120V-200WF/119MM LONG 8.0 119.6 114.2 C-8 2790 ––– 2000 Frosted
200 1000702 J120V-200W/119MM LONG 8.0 119.6 114.2 C-8 2850 2900 2000 Clear
200 1000724 J130V-200W/119MM LONG 8.0 119.6 114.2 C-8 2850 2900 2000 Clear
200 1000770 J240V-200W/119MM LONG 8.0 119.6 114.2 C-8 3200 2850 1500 Clear
250 1000706 J120V-250W/119MM LONG 8.0 119.6 114.2 C-8 4500 2900 2000 Clear
300 1000777 J24V-300WG 8.0 119.6 114.2 C-8 5000 2900 1500 Clear
300 1000779 J32V-300WG 8.0 119.6 114.2 C-8 5000 2900 1500 Clear
300 1000291 EHM, J120V-300W 8.0 119.6 114.2 C-8 5900 3000 2000 Clear
300 1000296 EHZ, J120V-300WF 8.0 119.6 114.2 C-8 5770 3000 2000 Frosted
300 1000726 J130V-300W/119MM LONG 8.0 119.6 114.2 C-8 5900 ––– 2000 Clear
300 1000756 J230V-300W 8.0 119.6 114.2 CC-8 4800 2900 2000 Clear
OAL≈ 4 11/16” (119.6mm) – T 2.5
500 1000488 FCL, J120V-500W 8.0 119.6 114.2 C-8 10000 3000 2000 Clear
500 1000497 FCZ, J120V-500WF 8.0 119.6 114.2 C-8 10700 3000 2000 Frosted
500 1000224 DVS, J130V-500WB 8.0 119.6 114.2 C-8 10500 3000 2000 Clear
500 1000736 J220V-500WE 8.0 119.6 114.2 C-8 9500 3000 2000 Clear
500 1000077 BSH, J240V-500WN 10.0 119.6 114.2 C-8 9500 2950 2000 Clear
750 1000738 J220V-750WB1 8.0 119.6 114.2 C-8 16100 3050 1500 Clear
R7s-12 Base - OAL ≈ 7 1/2” (191.1mm) – T 2.5, T4*
1000 1000695 J120V-1000WB* 12.0 191.1 185.7 C-8 22000 3000 2000 Clear
1000 1000739 J225V-1000WB 8.0 191.1 185.7 C-8 22000 3050 2000 Clear
1000 1000258 DZX, J240V-1000WB 8.0 191.1 185.7 C-8 22000 3050 2000 Clear
R7s-12
29
Order and Inquiries • Toll-free Continental U.S. 800.838.7446 • Fax 800.776.3641 • Canada Toll-free 877.902.0722 • www.ushio.com
QUARTZ HALOGEN LAMPS • DOUBLE ENDED
A
C
B
J SERIES
Only for Use in Approved Enclosed Halogen Fixtures
•
Recessed Single Contact Base - R7s-12
•
Operate Horizontal +4º
•
T2.5
•
Ushio Ushio Dimensions mm Filament Approx Color Avg Bulb
Watts Ordering Lamp Code Dia OAL C-to-C Type Lumens Temp Life Finish
Code (A) (B) (C) lm K h
OAL ≈ 10 5/64” (256.1mm)
1000 1000740 J225V-1000WB1 8.0 256.1 250.7 C-8 22000 3050 2000 Clear
1000 1000758 J240V-1000WB1 8.0 256.1 250.7 C-8 2100 3050 2000 Clear
1500 1000699 J120V-1500WB 8.0 256.1 250.7 C-8 35000 3050 2000 Clear
1500 1000750 J230V-1500WB 8.0 256.1 250.7 C-8 35000 3000 2000 Clear
1500 1000243 DYD, J240V-1500WB 8.0 256.1 250.7 C-8 33000 3050 2000 Clear
1500 1000778 J277V-1500WB 8.0 256.1 250.7 C-8 31500 3050 2000 Clear
OAL ≈ 13 7/54” (332.8mm)
2000 1000766 J240V-2000WB 8.0 332.8 327.4 C-8 44000 3050 2000 Clear
OAL ≈ 13 5/32” (334.4mm)
2000 1000752 J230V-2000WB 8.0 334.4 322.0 C-8 44000 ––– 2000 Clear
R7s-12
30
Order and Inquiries • Toll-free Continental U.S. 800.838.7446 • Fax 800.776.3641 • Canada Toll-free 877.902.0722 • www.ushio.com
QUARTZ HALOGEN LAMPS • DOUBLE ENDED
C
B
A
C
B
JP SERIES
Only for Use in Approved Enclosed Halogen Fixtures
•
Recessed Single Contact Base - R7s
•
Operate Horizontal
•
T2.5, T3 & T4
•
Ushio Ushio Dimensions mm Filament Approx Color Avg Bulb
Watts Ordering Lamp Code Dia OAL C-to-C Type Lumens Temp Life Finish
Code (A) (B) (C) lm K h
OAL ≈ 4 11/16” (119.6mm)
500 1000502 FDN, JP120V-500WCF6 12.0 119.6 114.2 C-8 12500 3200 400 Frosted
500 1000500 FDF, JP120V-500WC6 12.0 119.6 114.2 C-8 13250 3200 400 Clear
500 1001079 JP120V-500WC7 8.0 119.6 114.0 C-8 13200 3200 25 Clear
500 1001084 JP220V-500WC 12.0 119.6 114.2 C-8 12500 3200 200 Clear
550 1001089 JP225V-550WC 12.0 119.6 115.6 C-8 14000 3200 250 Clear
750 1000327 EMD, JP120V-750WCF 12.0 119.6 114.2 C-8 19500 3200 400 Frosted
750 1000299 EJG, JP120V-750WC 12.0 119.6 114.2 C-8 20600 3200 400 Clear
800 1000329 EMF, JP240V-800WCF 12.0 119.6 114.2 C-8 21400 3200 250 Frosted
800 1000328 EME, JP240V-800WC1UA 12.0 119.6 114.2 C-8 22000 3200 250 Clear
1000 1000489 FCM, JP120V-1000WC1 12.0 119.6 114.2 C-8 27000 3200 300 Clear
1000 1000298 EJD, JP185V-1000WS 12.0 119.6 114.2 C-8 33600 3350 100 Clear
1000 1000533 FHM, JP120V-1000WCF1 12.0 119.6 114.2 C-8 26000 3200 300 Frosted
OAL ≈ 4 23/32” (120.0 mm)
800 1001096 JP240V-800W 11.0 120.0 114.2 C-8 20000 3200 250 Clear
+
4º
R7s-12
31
Order and Inquiries • Toll-free Continental U.S. 800.838.7446 • Fax 800.776.3641 • Canada Toll-free 877.902.0722 • www.ushio.com
QUARTZ HALOGEN LAMPS • DOUBLE ENDED
C
B
A
C
B
JP SERIES
Only for Use in Approved Enclosed Halogen Fixtures
•
Recessed Single Contact Base - R7s
•
Operate Horizontal
•
T3 & T4
•
Ushio Ushio Dimensions mm Filament Approx Color Avg Bulb
Watts Ordering Lamp Code Dia OAL C-to-C Type Lumens Temp Life Finish
Code (A) (B) (C) lm K h
OAL ≈ 5” (127.1mm)
800 1001081 JP125V-800W 10.0 127.1 121.7 C-8 26000 3400 25 Clear
1000 1000501 FDG, JP225V-1000W 12.0 127.1 121.7 C-8 33000 3400 15 Clear
1000 1001097 JP245V-1000WS 12.0 127.1 121.7 C-8 31000 3400 15 Clear
1000 1001075 JP120V-1000WS 11.0 127.0 121.7 C-8 30000 3400 30 Clear
OAL ≈ 5 5/16” (135.2mm)
500 1000652 GDA, JP120V-500WC2 12.0 135.2 129.8 C-8 11000 3100 100 Clear
500 1000653 GDA/220V, JP220V-500WC2/UA 12.0 135.2 129.8 C-8 13000 3200 75 Clear
500 1000654 GDA/240V, JP245V-500WC 12.0 135.2 129.8 C-8 11000 3150 100 Clear
OAL ≈ 6 19/32” (167.4mm)
1000 1000523 FFT, JP120V-1000WC2 12.0 167.4 163.3 C-8 27000 3200 300 Clear
1500 1000529 FGT, JP120V-1500WCF 13.0 167.4 162.0 C-8 40200 3200 400 Frosted
1500 1000499 FDB, JP120V-1500WC 13.0 167.4 162.0 C-8 41200 3200 400 Clear
OAL ≈ 6 21/32” (169.3mm)
2000 1000524 FFW, JP120V-2000WC 14.0 169.3 163.9 C-8 57000 3200 125 Clear
OAL ≈ 7 9/16” (191.1mm)
625 1001090 JP225V-625WCL 12.0 191.1 185.7 C-8 15500 3200 200 Clear
625 1001091 JP225V-625WCLF 12.0 191.1 185.7 C-8 15000 3200 200 Frosted
625 1001094 JP240V-625WCL 12.0 191.1 185.7 C-8 15500 3200 200 Clear
650 1001862 JP125V-650WS 12.0 191.1 185.7 C-8 15500 3200 200 Clear
1000 1000310 EKM, JP225V-1000WCL 12.0 191.1 140.0 C-8 25000 3200 200 Clear
1250 1001076 JP120V-1250WCF 12.0 191.1 185.7 C-8 32500 3200 200 Frosted
1250 1001086 JP225V-1250WC1 12.0 191.1 185.7 C-8 33500 3200 200 Clear
+
4º
R7s-12
32
Order and Inquiries • Toll-free Continental U.S. 800.838.7446 • Fax 800.776.3641 • Canada Toll-free 877.902.0722 • www.ushio.com
Loading...
