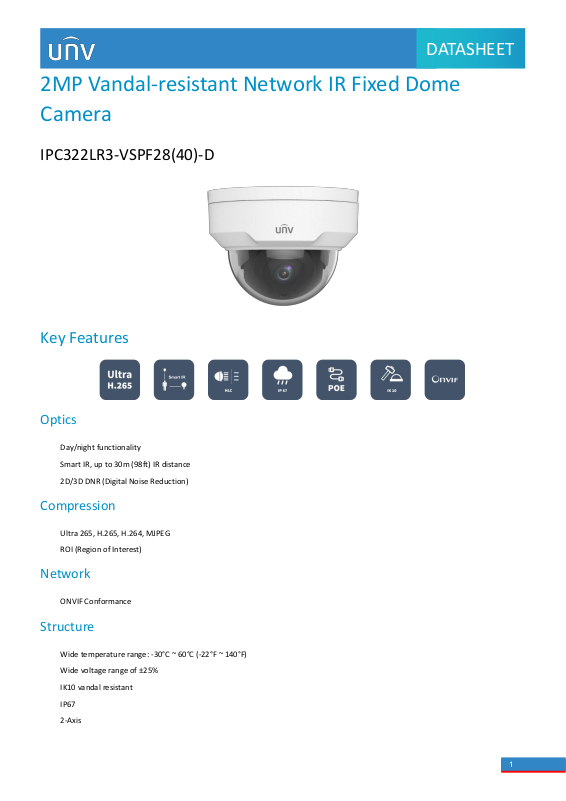

Page 1
1
DATASHEET
2MP Vandal-resistant Network IR Fixed Dome
Day/night functionality
Smart IR, up to 30m (98ft) IR distance
2D/3D DNR (Digital Noise Reduction)
Ultra 265, H.265, H.264, MJPEG
ROI (Region of Interest)
ONVIF Conformance
Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
Wide voltage range of ±25%
IK10 vandal resistant
IP67
2-Axis
Camera
IPC322LR3-VSPF28(40)-D
Key Features
Optics
Compression
Network
Structure
Page 2
2
DATASHEET
Specifications
IPC322LR3-VSPF28-D
IPC322LR3-VSPF40-D
Camera
Sensor
1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens
DORI Distance
Lens (mm)
Detect (m)
Observe (m)
Recognize (m)
Identify (m)
2.8
46.7
18.7
9.3
4.7
4.0
66.7
26.7
13.3
6.7
Angle of View (H)
112.7°
86.5°
Angle of View (V)
60.1°
44.1°
Angle of View (O)
146.5°
106.4°
Adjustment angle
Pan: 0° ~ 360°
Tilt: 0° ~ 75°
Shutter
Auto/Manual, 1 ~ 1/100000s
Minimum Illumination
Colour: 0.02Lux ( F2.0, AGC ON)
0Lux with IR
Day/Night
IR-cut filter with auto switch (ICR)
Digital noise reduction
2D/3D DNR
S/N
>52dB
IR Range
Up to 30m (98ft) IR range
Wavelength
850nm
IR On/Off Control
Auto/Manual
Defog
Digital Defog
WDR
DWDR
Video
Video Compression
Ultra 265, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main Profile
Frame Rate
Main Stream: 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: CIF (352*288), Max 30fps
Video Bit Rate
128 Kbps~16 Mbps
OSD
Up to 4 OSDs
Privacy Mask
Up to 8 areas
ROI
Up to 2 areas
Motion Detection
Up to 4 areas
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction
2D/3D DNR
Smart IR
Support
Flip
Normal/Vertical/Horizontal/180°
Dewarping
Supported
HLC
Supported
BLC
Supported
Page 3
3
DATASHEET
Network
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration
ONVIF (Profile S, Profile T), API
Client
EZStation
EZView
EZLive
Web Browser
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network
10/100M Base-TX Ethernet
Certifications
Certifications
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.5W
Dimensions (Ø x H)
Φ109 x 81mm (Ø4.3” x 3.2”)
Net Weight
0.45kg (0.99lb)
Material
Shield：PC
Body：plastic
Bottom plate：metal
Working Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95%RH (non-condensing)
Strorage Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95%RH (non-condensing)
Surge Protection
2KV
Ingress Protection
IP67
Vandal Resistant
IK10
Dimensions
Page 4
4
DATASHEET
Accessories
Junction Mount
Pole Mount
TR-JB03-G-IN
TR-JB07/WM03-G-IN
TR-UM06-E-IN
TR-JB07/WM03-G-IN+TR-UP06-IN
TR-CM24-IN+TR-JB03-G-IN
TR-JB03-G-IN TR-JB07/WM03-G-IN TR-WM03-D-IN TR-UM06-E-IN TR-UP06-IN TR-A01-IN
TR-SE24-IN TR-SE24-A-IN TR-CM24-IN

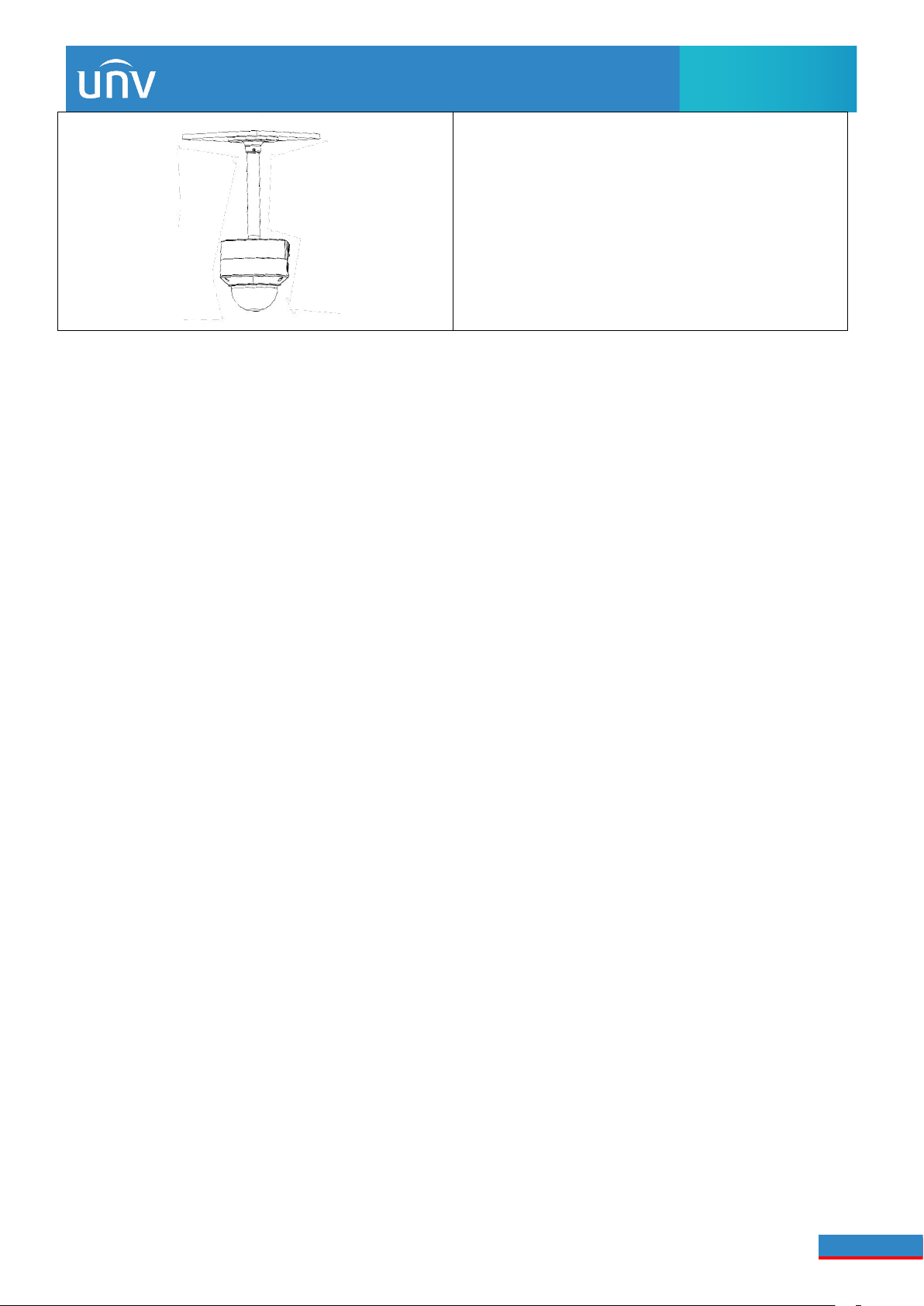

Page 5
5
DATASHEET
Zhejiang Uniview Technologies Co., Ltd.
Building No.10, Wanlun Science Park, Jiangling Road 88, Binjiang District, Hangzhou, Zhejiang, China (310051)
Email: [email protected]; [email protected]
http://www.uniview.com
©2019 Zhejiang Uniview Technologies Co., Ltd. All rights reserved.
*Product specifications and availability are subject to change without notice.
