IMPORTANT MANUAL Do Not Throw Away
Operator's
Manual
Model No.
358.798380
Mort. - Sat, 7 a.m. - 7 p.m.
I HOURS (CST) )
!_ ARNING
Sun. 10 a,m. - 7 p.m.
READ THE OPERATOR'S
MANUAL AND FOLLOW ALL
WARNINGS AND SAFETY
INSTRUCTIONS. FAILURE
TO DO SO CAN RESULT IN
SERIOUS INJURY.
Always Wear Eye Protection
®
. CRRFTSMRN
12 AMP MOTOR .
165 MPH A_rVelocaty
ELECTRIC BLOWER/VAC
DOUBLE INSULATED
• Assembly
• Operation
° Customer Responsibilities
° Storage
530--083224--09/29/94
FOR HOUSEHOLD USE ONLY
Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA
,, , , , .................
ii iiiiiiil,llll IH IIIIl,l,ll I II I II I IIII " II II ............. ,...............
IMPORTANT WARNINGS & SAFETY INSTRUCTIONS
, ,,,,,,,, ................................. _ ................ _ ................................
The warnings and safety instructions in this manual must befollowed to reduce the risk of fire, electric
shock, or injury, and to provide reasonable safety and efficiency in using this unit. The operator is
responsible for following the warnings and instructions in this manual and on the unit Read the
WARNING I
entire Operator s Manual before assembhng and using the unit! Restrmt the use of this und to persons
who read, understand, and follow the warnings and instructions in this manual and on the unit.
OPERATOR SAFETY
• Always wear safety glasses or similar eye
protection when operating, servicing, or performing
maintenance onyourunit. Wearing eye protectioncan
help to prevent rocksor debris from being blown or
ncocheting into eyes and face which can result in
blindness or serious injury.
• Always wear a respirator or facemask when work-
ing with the unitin dusty environments.
• Dress safely in long pants. Do not go barefoot or
wear shortpants, sandals, jewelry, loose clothing,or
clothingwithlooselyhanging straps, ties, tassels, etc.;
theycan be caught inmoving parts. Secure hairsoitis
above shoulder length.
• Do not operate the unit when you are tired, lit, upset,
or if you are under the influence of alcohol, drugs, or
medication.
• Keep loose hair, loose clothing, fingers, and all
other parts of the body away from openings and
moving parts.
• Keep children, bystanders, andanimals away from
thework area a minimum of 30 feet (10 meters) when
starting or operating the unit.
• inspect the area before using the unit. Remove all
debris and hard objects such as rocks, glass, wire, etc.
that can ricochet, be thrown, or otherwise cause injury
or damage during operation.
• Restrict the use of this unitto persons who read, un-
derstand, and follow the warnings and instructions in
this manual and on the unit. Never allow children to use
this unit.
• When using the optional vacuum attachment kit,
the unit is designed to pick up dry material such as
leaves, grass, small twigs, and bits of paper. Do not
vacuum stones, gravel, metal, broken glass, etc.. to
avoid severe damage to the impeller. Toavoid thepos-
sibility of electrical shock, do not attempt to vacuum
water or other liquids.
ELECTRICAL SAFETY
• Use only a voltage supply as shown on the name
plate ofthe unit.
• Avoid dangerous situations. Do not use in pres-
ence offlammable liquids or gases to avoid creating a
fire or explosion and/or causing damage to unit.
• WARNING--TO REDUCE THE RISK OF
ELECTRICAL SHOCK--Do not use in damp or wet
locations or around swimming pools, hottubs, etc. Do
not expose to snow, rain, or water. Do not handle
extension cord plug or unit with wet hands.
• WARNING--To reduce the risk of electrical shock,
use extension cords specifically marked as suitable for
outdoor appliances having electrical rating not less
than the rating of the unit. The cord must be marked
with the suffix "W-A" (in Canada =W").Use a polarized
cord. Make sure your extension cord isin good condi-
tion. If damaged have the cord replaced. Keep cord
from heat, oil, and sharp edges. An undersized exten-
sion cord will cause a drop in line voltage resulting in
tossof power and overheating. Ifin doubt, use the next
heavier gauge. The smaller the gauge number, the
heavier the cord. (NOTE: Figure 7 shows the correct
size to be used depending on the cord length).
• Inspect the insulation and connectors on the unit
and extension cord before each use. If there is any
damage, do not use until damage is repaired by a
Sears Service Center.
• Do not pull or carry by cord; do not use cord as a
handle, closea door on cord, orpullcord around sharp
edges or corners. Keep cord away from heated sur-
faces. Do not unplug by pulling on cord. To unplug,
grasp the plug, not the cord.
• To reduce the possibility of the extension cord
disconnecting from the unit duringoperation, tiepig
tail plug and cord receptacletogether as shown inFig-
ure 8.
• Do not use the unit if the switch does not turn the
unit on and off properly. Have the unit repaired by a
Sears Service Center.
• Keep the extension cord clear of operator and ob-
stacles at all times. Do not expose cordsto heat, oil,
water, or sharp edges.
• Avoid any body contact with any grounded con-
ductor, such as metal pipes or wire fences, to avoid
the possibilityof electric shock.
• Do not use with damaged cord or plug. Ifunit is not
working as it should, has been dropped, damaged, left
outdoors, or dropped into water, return it to a Sears
Service Center.
• Ground fault Circuit Interrupter (GFCI) protection
should be provided onthe circuit oroutlettobe usedfor
this unit. Receptacles are available having buitd-in
GFCl protection and may be used for this measure of
safety.
• To reduce the risk of electrical shock this equip-
ment has a polarized plug. This plug wil! fit ina polar-
ized outlet orextension cord only one way. (Or_eblade
is wider than the other.) If the plug does not fit fully in
the outlet, reverse the plug. If it still does not fit, contact
a qualified electrician to install the proper outlet. Do not
change the plug in any way.
LOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT SAFETY PRECAUTIONS. IT MEANS -]
f_l .,,ATTENTION... BECOME ALERT tH YOUR SAFETY IS INVOLVED.
i
f
IMPORTANT WARNINGS & SAFETY INSTRUCTIONS
....................... open'ing, damaging the unit, property, or causing seri_
• Stop the motor and disconnect the power source
before opening the air inletdoor or attempting to insert • Do not overreach or use from unstable surfaces
or remove the vacuum tubes. The motor must be
stopped and the impeller blades no longer tuming to
avoid serious injury from the rotating blades.
• inspect the entire unit before each use for worn,
loose, missing, ordamaged parts. Do not use untitthe
unit is in proper working order.
• Have all internal service performed by qualified ser-
vice repair personnel to avoid creating a hazard or
voiding your warranty.
• Have all maintenance other than the recommended
procedures descdbed in the Operator's Manual per-
formed by a Sears Service Center.
• Always see a Sears Service Center to replace a
damaged impeller. Partsthat are chipped, cracked,
broken, or damaged inany otherway can fly apart and
cause sedous injury. Replace damaged parts before
using the unit.
• Never run the unit without the proper equipment
attached. When used as a blower, always install a
blower tube. When used as a vacuum, always install
vacuum tubes and collection bag assembly.
• Do not use any accessory or attachment other than
those recommended by the manufacturer for use with
your unit.
• Use only in daylight or in good artificial light.
OPERATION SAFETY
• Keep others including children, animals, bystand-
ers, and helpers a minimum of 30 feet (10 meters)
away. Stop the motor immediately if you are ap-
proached.
• Inspect the area before using the unit. Remove all
debris and hardobjectssuchas rocks,glass, wire, etc.
that can ricochet, be thrown, or otherwise cause injury
or damage during operation.
• When using the optional vacuum attachment kit,
the unit is designed to pick up dry material such as
leaves, grass, small twigs, and bitsof paper. Do not
vacuum stones, gravel, metal, broken glass, etc. to
avoid severe damage tothe impeller. Do not attempt
to vacuum water or otherliquidstoavoid electrocution.
• Avoid accidental starting. Be sure the switch is in
the "off" positionand keep your hand and fingers away
from the switch whileconnecting the unittothe power
source orwhen carrying a unit connected tothe power
source.
• Turn off all controls and allow the motor to stop
before disconnecting the unit from the power
source.
• Disconnect the unit from the power source when
not in use. Do not leave the unitwhen itisplugged into
an outlet.
• Avoid dangerous environments. Do not use in un-
ventilated areas orwhere dustor explosive vapors can
build up.
• Do not set the unit on any surface except a clean,
hard area while the unit is running. Debris such as
gravel, sand, dust, grass, etc. could be picked up by
the air intake and thrown out through the discharge
ff situations occur which are not covered in this manual, use care and good judgmenL
if you need assistance, contact your SEARS Service Center/Department or call the
CUSTOMER ASSISTANCE HOTLINE at 1-800-235-5878.
ous injury to bystanders or operator.
such as ladders, trees, steep slopes, rooftops, etc.
Use extra care when cleaning on stairways. Keepfirm
footing and balance at all times.
• Never place objects inside the blower tubes; al-
ways direct the blowing debris away from people, ani-
mals, glass, and solid objects such as trees, automo-
biles, wa!ts, etc. The force of air can cause rocks, dirt,
or sticks to be thrown or to ricochet which can hurt
people or animals, break glass, or cause other dam-
age. Do not allow the unit to be used as a toy.
• Never place any object in the air intake opening as
this could restrict proper air flow and cause damage to
the unit.
° Never run the unit without the proper equipment
attached. When used as a blower, always install a
blower tube. When used as a vacuum, always install
vacuum tubes and collection bag assembly. Make
sure the collection bag assembly is completely zipped
when unit is running to avoid flying debris.
• Never use for spreading chemicals, fertilizers, or
any other substances which may contain toxic materi-
als.
• Avoid situations which could set the collection
bag on fire. Do not vacuum discarded matches, ci-
gars, cigarettes, or ash from fireplaces, barbecue pits,
brush piles, etc. To avoid spreading fire, do not use
blower near leaf or brush fires, fireplaces, barbecue
pits,ashtrays, etc.
• Always use the collection bag shoulder strap
when vacuumingto avoid loss of control.
° Use only for jobs explained in this manual.
MAINTENANCE SAFETY
• Maintain the unit according to recommended pro-
cedures.
• This unit is Double insulated. See the "DOUBLE
INSULATION" section. Have all service and mainte-
nance not explained in your operator's manual
performed by a Sears Service Center toavoid creat-
ing a hazard and/or voiding your warranty.
° Disconnect from power source before servicing,
cleaning, performingmaintenance, or storing the unit.
° Use only genuine replacement parts as recom-
mended by the manufacturer to avoidcreating a haz-
ard and!or voidingyour warranty.
• Never douse the unit with water or other liquids or
squirt with a water hose. Clean with a damp sponge

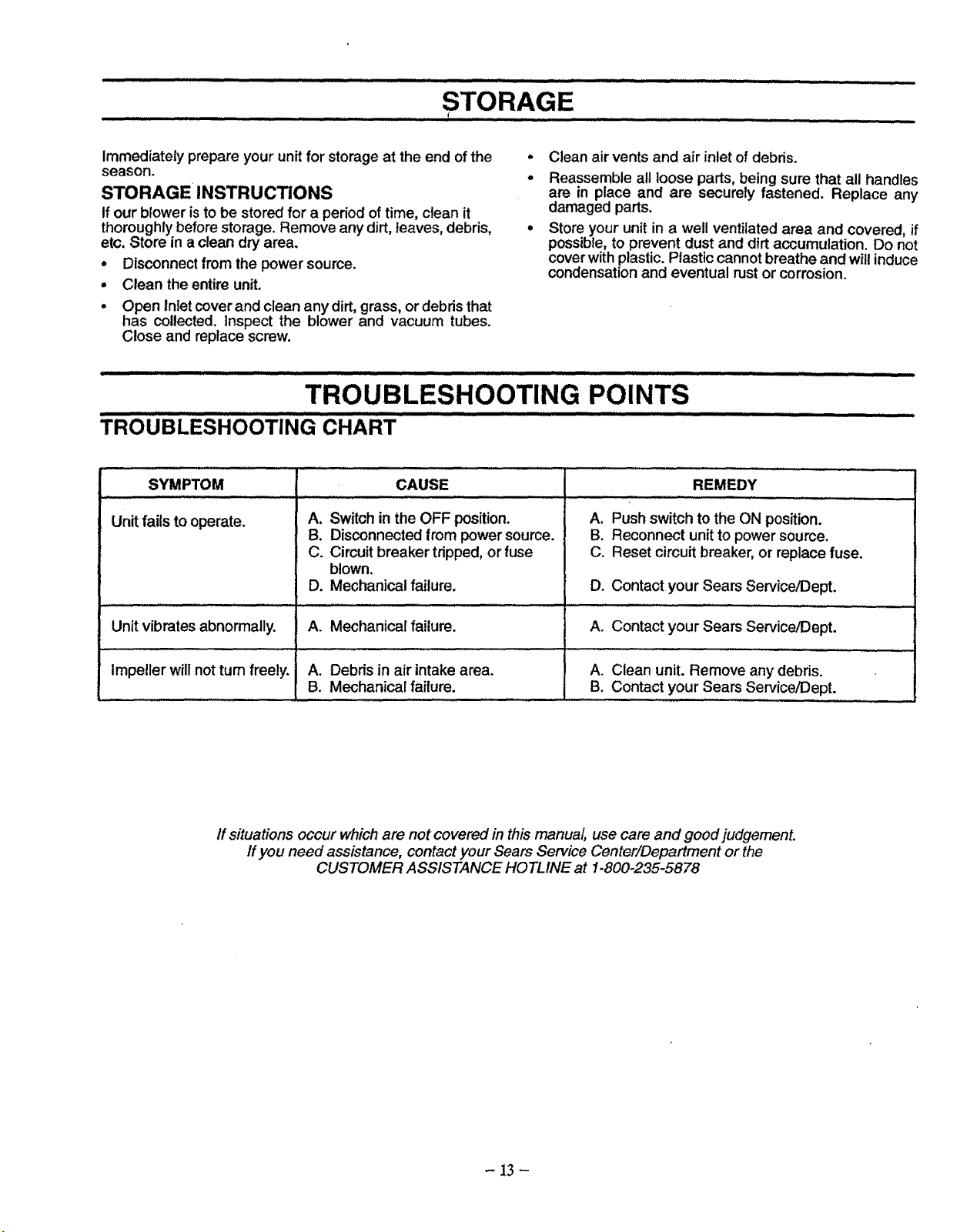

and mildsoap. See =STORAGE".
• Check air intake openings, blower tubes, elbow
tube, and vacuum tubes frequently, always withthe
unit stopped and the power soume disconnected.
Keep vents and tubes free of debris which can accu-
mulate and restrict proper air flow.
• Do not attempt to repair unit. Repairs must be per-
formed by a Sears Service Center.
• Do not bum, incinerate, or expose thisunitto extreme
heat.
• Store the unit unplugged in a high, cool, dry, in-
doors area out of the reach of children.
SAVE THESE INSTRUCTIONS
CONGRATULATIONS on your purchase of a Sears
Craftsman Electdc Blower/vac. It has been d(tsigned,
engineered and manufactured to give you the best
possible dependability and performance.
Should you experience.any problems you,cannot.easily
remedy, please contact your nearest Sears Service
Center/Department. Sears has competent, well trained
technicians and the proper tools to service or repair this
unit.
Please read and retain this manual. The instructions will
enable you to assemble and maintain your unit properly.
Always observe the "SAFETY RULES."
MODEL NUMBER: 358.798380
PRODUCT SPECIFICATIONS
VOLTAGE: ............. 320 Volts A:C.
AMPS ................. 12
AIR VOLUME .......... 405 c.f.m.
AIR VELOCITY: ......... 165 mph
WEIGHT .............. 7 Pounds
SERIAL NUMBER:
DATE OF PURCHASE:
THE MODEL AND SERIAL NUMBER WILL BE FOUND
ON A DECAL ATTACHED TO THE PRODUCT.
YOU SHOULD RECORD BOTH SERIAL NUMBER AND
DATE OF PURCHASE AND KEEP IN A SAFE PLACE
FOR FUTURE REFERENCE.
MANUFACTURED UNDER THE FOLLOWING U.S. PATENT:
4,325,163.
CUSTOMER RESPONSIBILITIES
• Read and observe the safety rules.
• Follow a regular schedule in maintaining, caring for,
and using your unit.
• ]Follow the instructions under "Customer
Responsibilities" and "Storage" sections of this Oper-
ator's Manual.
FULL NO YEAR WARRANTY ON
SEARS BEST CRAFTSMAN ELECTRIC BLOWERNAC
Ifthis Craftsman Electric BtowerNac fails to perform properly due to a defect in material or workmanship withintwo
(2) years from the date of purchase, Sears will repair or replace it, free of charge.
This warranty does not cover the nylon line.
WARRANTY SERVICE 1S AVAILABLE BY RETURNING THE CRAFTSMAN ELECTRIC BLOWER/VAC TO THE
NEAREST SEARS SERVICE STORE IN THE UNITED STATES.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
SEARS, ROEBUCK AND CO., D/817WA, HOFFMAN ESTATES, IL 60179
-4-
i ii iiiiiiiii ....... _nliiii iii iiiii L
.............. J ......................
TABLE OF CONTENTS
Safety Rules .................................. 2
Product Specifications .......................... 4
Customer Responsibilities .................... 4,12
Warranty ..................................... 4
Accessories ................................... 5
IIIIHIIIIIIIIIIIIIIII IIIIIIII IIIIIIIIIIIIIIIIIIIIIII IIII ............................ IIIIII I III
Assembly ..................................... 6
Operation ..................................... 9
Storage ...................................... 13
Trouble Shooting .............................. 13
Repair Parts Ordering/Service ......... Back Cover
INDEX
I I Hill IIIII I IIIIIII J IIIIII IIIIIIIIIII • ......... IIII IIIIIII I
Accessories ................................... 5 Operation .............................. 9, 10, 11
Assembly ................................. 6, 7,8 Ordering Repair Parts ................ Back Cover
Customer Assistance Hotline .......... Back Cover Safety Rules ................................ 2,3
Customer Responsibilities ................... 4, 12 Specifications ................................. 4
Hardware Contents ............................. 6
Know Your Electric Blowerivac ................... 9 T
Maintenance Schedule ........................ 12 W
Model Number ............... ................... 4 Warranty ...................................... 4
A O
C S
H Stopping & Starting your Unit ................... 10
K Storage ...................................... 13
M Trouble Shooting .............................. 13
ACCESSORIES
I
These accessories and attachments were available when the unit was originally purchased. They are also available at
most Sears retail outlets and service centers. Most Sears stores can order these items for you when you provide the model
number of your unit.
ACCESSORIES
Safety Goggles
Extension Cord
IL II= I Ill II
Operator's Manual
HARDWARE CONTENTS
III Jllllllll III IL I IIIIIIIIIIIIIIIII IIIIIIII I II UJJ _ .......
PARTS PACKED SEPARATELY IN CARTON NOT SHOWN ACTUAL SIZE
ConcentratorNozzle
Upper Vacuum Tube
Blower Tube Lower Vacuum Tube
Flare Nozzle
ASSEMBLY
REMOVE BLOWER FR'bM CARTON
- Remove loose parts includedwith Blower/vac.
• Remove all packing material.
• Check carton thoroughly for additional loose parts.
ASSEMBLE YOUR UNIT INTO A
BLOWER OR VACUUM MODE
You can assemble your unitas a blower ora vacuum, Later
you can refer tothese instructions and reconfigure yourunit
into a different mode. The instnJctionsbelow provided
information on how to assemble your unit for both
configurations.
HOW TO ASSEMBLE YOUR UNIT AS A
BLOWER
If your unit is configured in the vacuum mode, follow the
following steps to prepare your blower for blower mode.
If your unit is not in the vacuum mode, continue with
"ATTACHING THE BLOWER TUBE & NO_LE."
• Stop the unit.
• Remove the vacuum tubes and collection bag.
• Latch the inlet cover closed, and replace the screw.
ATTACHING THE BLOWER TUBE & NOZZLE
(Fig. 1, & 2)
Remove the blower vacuum tubes and collection bag, if
assembled to the unit.
• Insert the blower tube into the bloweroutlet.
• Turn the blowertube clockwise until it is firmly seated in
the blower outlet.
• With a slight twisting motion, slide nozzle firmly onto the
end of the blower tube.
HOW TO ASSEMBLE YOUR UNIT AS A
VACUUM
VACUUM TUBES ASSEMBLY (Fig. 3,& 4)
STOP THE UNIT AND DISCONNECT IT FROM
WARNING
THE POWERSOURCEBEFOREOPENING THE
INLETCOVERORATTEMPTINGTO INSERTOR
REMOVE THE VACUUMTUBES. THE MOTOR
MUST BE STOPPED AND THE IMPELLER
BLADES NO LONGER TURNING TO AVOID
SERIOUS INJURY FROM THE ROTATING
BLADES.
The lower vaccum tube is cut at an angle. Make sure the
label on the lower vacuum tube is aligned on the opposite
side of the screw tab on the upper vacuum tube before
pushing the two tubes together.
• Push the upper and lowervacuum tubes together.
o Using a Phillips screwdriver, remove the screw from the
inlet cover.
• Press the locking latch and open the inlet cover.
• Holding inletcover open, push assembled vacuum tubes
intothe opening until the locking latch engages.
• Reinstall screw.
Locking Latcb.,.__
Blower Outlet
Figure 1
Blower Tube ,. _ Blower Tube
Concentrator Nozzle _""_ Flare Nozzle
Figure 2
/
-6-
Inlet cove,:. _) _/_
Figure 3
Upper
Lower
Vacuum Tube
Vacuum Tube
tnlet cover
Figure 4
Air Intake Openin!
ASSEMBLY
,_TTACHING coLLEcTION BAG (Fig. 5)
• Slide the opening of the collection bag over the blower
outlet. Pullthestrap with Velcrotightlythroughthe buckle
and secure the Velcro tabs.
NOTE: Make sure the strap with Velcm is located between
the motor housing and the collar on the blower outlet.
Strap
with Velcro
Collection Ba,
Figure 5
ADJUSTING THE SHOULDER STRAP ON THE
COLLECTION BAG (Fig. 6, & 7)
• Carefully loop the shoulder strap through the buckle as
shown in the illustration, Notice the first in and last in is
the same hole.
• With your left hand hold the unit in an upright position,
Support the lower vacuum tube on the ground, Make
sure the blower outlet and collection bag are positioned
on your right-hand side.
° Place the shoulder strap over your right shoulder.
• Adjust the shoulder strap to allow a free flow of air from
the blower outlet. If the collection bag is kinked, the unit
wil! not operate properly.
NOTE; The shoulder strap is designed to position the collec-
tion bag on your shoulder without kinks. The strap is not in-
tended to support the weight of the unit.
Last In
Collar on Blower Outlet
L]] n , ,,n III I,,I n lU l,...... ,I I II I
BLOWER CONVERSION
° Stop unitand disconnectfrom power soume.
o Remove the vacuum tubes and collection bag.
• Secure the inlet cover making sure that thetatch is se-
curely fastened and screw is reinstalled.
° Reinstall the blower tubes. Refer to "Blower Tube
Assembly" section.
EXTENSION CORD (Fig. 8, & 9)
Use only a voltage supply as shown on the nameplate of
the unit to power your unit.
The extension cord used to reach the power source must be:
• Specifically marked as suitable for outdoor use. The
cord must be marked with the suffix "W-A. ("W in Cana-
da).
• Heavy enough to carry the current from the power
source the full length of the extension cord to the
unit. Otherwise, loss of power and overheating can
occur causing damage to the unit. Refer to Figure 8 for
minimum wire gauge recommendations. The cord must
be marked with the proper wire gauge.
- In good condition. Cord insulation must be intact with
no cracks or deterioration, Plug connectors must be un-
damaged.
Secure extension cord to unit as follows:
• Tie cord from unit to extension cord.
° Plug cord from unit into extension cord.
To reduce the risk of electric shock, this unit has a
polarized plug (one blade is wider than the other). This plug
willfit ina polarized extension cord onlyone way, If the plug
does not fit fully into the extension cord, reverse the cord.
If it still does not fit, make sure you have a polarized
extension cord. if the extension cord does not fit into the
outlet, reverse the cord. If it still does not fit into the outlet,
contact a qualifiedelectrician to installthe proper outlet. Do
not changethe plugor socket ofthe unitor extension cordin
any way.
MINIMUM WIRE GAUGE
RECOMMENDATIONS
First lnJ_
Shoulder strap
on right shoulder
Figure 6
Figure 7
Free flow of air.
No kinks In
collection bag
VOLTS 25 FT. 50 FT. 100 FT. 150 FT.
120 16 16 14 12
A.W.G.* A.W.G.* A.W.G.* A.W,G.*
*American Wire Gauge Figure 8
Extension Cord
Cord from Unit
Figure 9
.......................................................................................ASSEMBLY
CHECK LIST
° Check all.fasteners. Make sure they are tight and there
are no looseparts.
• Make sure the blowertube isfirmly seated in the blower
outlet.
• If you are using the unit as a blower, make sure the inlet
cover is latched and the screw is fastened.
° In blower mode, check to insure the nozzle is securely
seated in the blower tube.
• If you are using your unit as a vacuum, make sure the
vaccum tubes are firmly connected, and positioned as
shown in the assembly illustrationswith the screw se-
curely fastened.
• Make sure the collection bag is correctly adjusted with
the shoulder strap on your left shoulder.
° Make sure your extension cord is marked with a suffix of
"W-A". ("W" in Canada).
ii jilL //
-8-
KNOW YOURELECTRIC BLOWER (Fig. 10)
READ THIS OPERATOR'S MANUAL AND SAFETY RULES BEFORE OPERATING "fOUR ELECTRIC BLOWER. Compare
the illustrationswithyour unit to famUiadze yourself with the location of the various controls and adjustments. Save this manual
for future reference.
TOP HANDLE
ONIOFF SWITCH
/
INLET COVER
LATCH
FLAR E NOZZLE
CONCENTRATOR NOZZLE
The ONIOFF SWITCH is used to turn on the unit.
The INLET COVER LATCH is used to open the inlet cover
for attaching Upper Vacuum Tube.
The TOP HANDLE is used to hold the unitduring the Blower
and Vacuum mode.
COLLECTION BAG
SIDE HANDLE
/
AIR VENTS
U
LOWER VACUUM TUBE
Figure 10
The SIDE HANDLE is used to hold the unit during Vacuum
mode.
The FLARE NOZZLE is use to direct the flow of air into a
larger area than the CONCENTRATOR NOZZLE.
The CONCENTRATOR NOZZLE is use to direct the flow of
air into a concentrated area.
........................ i ii rl :
DOUBLE INSULATION CONSTRUCTION
ALL ELECTRICAL REPAIRS TO THIS
_ WARNING
UNIT, INCLUDING HOUSING, SWlTCH, i
MOTOR, ETC., MUST BE DIAGNOSED
AND REPAIRED BY QUALIFIED SER-;;
VICE PERSONNEL. REPLACEMENT
PARTS FOR A DOUBLE INSULATED AP-
PLIANCE MUST BE IDENTICAL TO THE J
PARTS THEY REPLACE. A DOUBLE IN-
SULATED APPLIANCE IS MARKED
WITH THE WORDS "DOUBLE INSULA-
TION" OR "DOUBLE INSULATED". THE
SYMBOL (SQUARE WITHIN A SQUARE)
[] MAY ALSO BE MARKED ON THE AP-
PLIANCE. FAILURE TO HAVE THE UNIT
REPAIRED BY QUALIFIED SERVICE
PERSONNEL CAN CAUSE THE
DOUBLE INSULATIONS CONSTRUC-
TION TO BECOME INEFFECTIVE AND
RESULT IN SERIOUS INJURY.
This unit is Double Insulated to help protect against
electric shock. Double insulationconstruction consists of
two separate "layers" of electrical insulation instead of
grounding.
Tools and appliances build with a double insulation system
are not intended to be grounded. No grounding means is
provided on this unit, nor should a means of grounding be
added to this unit. As a result, the extension cord used with
your unit can be plugged into anystandard 120 volt electrical
outlet.
Safety precautions must be observed when operating
any electrical tool. The double insulation system only pro-
vides added protection against in}uryresulting from an inter-
nal electrical insulation failure.
OPERATION - SAFETY
O'PERATOR SAFETY' ..... " .......
DONOT ASSEMBEEOR'DISASSEMBLETHE
_ WARNING
As a blower, the unit is designed to sweep debris, grass,
straw, leaves, or small twigs. Never use for spreading or
misting chemicals, fertilizers, or any other materials which
may contain toxic substances. As a vacuum, the unit is
designedtopickup dry material such as leaves, grass,small
twigs,and bits of paper. Do not attempt to vacuum stones,
gravel, metal, broken glass, or any other debris which may
cause damage to the impeller. Do not attempt to vacuum
snow, water, orany other liquids: vacuuming water or other
liquidswill cause damage to the unit. Avoid situationsthat
couldcatchthe collectionbag on fire. Do notoperate near an
open flame. Do not vacuum discarded matches, cigars, or
cigarettes, or ash from fireplaces, barbecue pits, brush
piles, etc.
VACUUM TUBES WHILE THE UNIT IS
RUNNING, INSERTING OR REMOVING THE
VACUUM= TUBES WHILE THE UNIT IS
RUNNING CAN RESULTIN SERIOUSINJURY.
ALWAYSSTOPTHE UNIT AND DISCONNECT
THE POWER SOURCE BEFORE
UNCLOGGING THE UNIT OR PERFORMING
ANY MAINTENANCE ON THE COLLECTION
BAG.
DO NOT USE THE UNIT WITHOUT THE
BLOWER TUBES PROPERLY ATTACHED TO
AVOID FLYING DEBRIS AND/OR IMPELLER
CONTACT WHICH CAN CAUSE SERIOUS
INJURY.
ALWAYS WEAR EYE PROTECTION TO
PREVENT ROCKS OR DEBRIS FROM BEING
BLOWN OR RICOCHETING INTO THE EYES
AND FACE WHICH CAN RESULT IN
BLINDNESS OR SERIOUS INJURY.
DO NOT USE THE UNIT AS A VACUUM
WITHOUT THE VACUUM TUBES AND
COLLECTION BAG PROPERLY ATTACHED TO
AVOID FLYING DEBRIS AND/OR IMPELLER
CONTACT WHICH CAN CAUSE SERIOUS
INJURY. ALWAYS MAKE SURE THE
COLLECTION BAG IS COMPLETELY ZIPPED
BEFORE THE UNIT IS STARTED.
DO NOT ATTEMPT TO VACUUM WATER OR
OTHER LIQUIDSTO AVOID ELECTROCUTION.
° Dress safely in long pants. Do notgo barefoot orwear
short pants, sandals, jewelry, loose clothing, or clothing
with Ioose!y hanging strops, ties, tassels, etc.; they can
be caught in moving parts. Secure hair so it is above
shoulder length. Use of rubber gloves is recommended.
• Check the unit before each operation. Look for worn,
loose, missing, ordamaged parts. Do not usethe unitun-
til it is in proper workingorder.
° inspect area before operating unit. Remove all debris
and objects suchas rocks, glass, wire, large sticks, etc.
that can cause damage during operation.
• Keep children, bystanders, and animals safely away.
Before starting the unit and during operation, make
certain children, people, and animals are a minimum of
30 feet away from the work area.
• Check air intake opening, blower tubes, and vacuum
tubes frequently, always with the motor stopped and the
power source disconnected. Keep vents and discharge
tubes free from debriswhichcan accumulate and restrict
properair flow.
• Do not ptugunit intoany receptacle other than a normal
120 volt household outlet.
• Never immerse any part of the unit into any liquid,
• Use the correct operating position. Figure 11. Do not
overreach or use from unstable surfaces such as
ladders, trees, steep slopes, roof tops, etc. Keep firm
footing and balance at all times.
° Never place objects inside the blower tubes; always
direct blowing debris away from people, animals, glass,
and solid objects such as trees, automobiles, walls, etc.
The force of air can cause rocks, dirt, or sticks to be
thrown or to dcochet which may hurt people or animals,
break glass, or cause other damage.
° When using your unit as a vacuum, always use collec-
tion bag shoulder strap to avoid loss of control.
• Never run the unit without the proper equipment
attached. When using your unit as a blower, always
install blower tubes. When using your unit with the
optional vacuum attachment, always install vacuum
tubes and collectionbag assembly. Make sure collection
bag assembly iscompletely zipped.
• Adjust shoulder strap and waist belt to fit securely
before operation of unit.
OPERATING
POSITIONS
BLOWER VACUUM
• Read your Operator's Manual. Make sure you com-
pletelyunderstand and can follow all warnings and safety
instructionsin the manual before operating the unit.
• Always wear eye protection when operating, servicing,
or performing maintenance to prevent rocks or debris
from being blown or ricocheting into eyes and face which
can result in blindness or other serious injury.
• Always wear a respirator or face mask when working
in dusty environments.
Figure 11
- 10-
STOPPING YOUR UNIT
• Slide the switch to the OFF position.
STARTING YOUR UNIT
• Slide the switch to the LOW or HIGH position.
OPERATING YOUR UNIT
WARNING
DO NOT USE THE UNIT WITHOUT THE
BLOWER TUBES PROPERLY AT-
TACHED TO AVOID FLYING DEBRIS
AND/OR IMPELLER CONTACT WHICH
CAN CAUSE SERIOUS INJURY.
ALWAYS WEAR EYE PROTECTION TO
PREVENT ROCKS OR DEBRIS FROM i
BEING BLOWN OR RICOCHETING
INTO THE EYES AND FACE WHICH CAN
RESULT IN BLINDNESS OR SERIOUS
INJURY.
USING YOUR UNIT AS A BLOWER (Fig. 11)
Use your unit as a blower for sweeping debris or grass
clippings from driveways, sidewalks, patios, etc.
Use your unit as a blower for blowing grass clippings, straw,
or leaves into piles, or removing debris from comers, around
joints, and between bricks.
- Direct air flow by directing the nozzle down orto one side.
Always work away from solid objects such as walks,
large stones, automobiles, and fences.
- Clean comers by starting in comers and moving outward
to straight areas to prevent an accumulation of debris
which could fly into face.
• Be careful when working near plants. The force of the air
could damage tender plants.
USING YOUR UNIT AS A VACUUM (Fig. 12)
Use your unit as a vacuum to pick up dry matedal such as
leaves, grass, small twigs, and bits of paper.
• For best results operate your unit at high speed, while us-
ing as a vacuum.
• Move the unit slowly back and forth over debds to be vac-
uumed. Avoid forcing the vacuum tubes into a pile of
debris as this can clog the unit.
• Keep the vacuum tube about an inch above the ground.
NOTE: If the unit becomes clogged:
• Stop the unit and disconnect the power source.
• Wait until the impeller has completely stopped turning,
then remove the vacuum tubes.
° Carefully reach into the vacuum opening and clear out
debris.
IMPORTANT: THE COLLECTION BAG MUST BE PROP-
ERLY EMPTIED.
° You must properly empty and maintain the collection bag
to avoid deterioration and obstruction of air flow.
• Remove the collection bag from the unit and empty after
each use. Do not store collection bag containing leaves,
grass, etc.
° Wash the collection bag once a year. Remove the bag
from the blower and turn the bag inside out. Wash the
bag with a water hose. Allow the bag to hang and dry
before you reuse the bag.
Vacuum Operating Position
DO NOT FORCE INTO PILE.
DO MOVE VACUUM SLOWLY
BACK AND FORTH.
Figure 12
Figure 13
- 11-
,I,L,ILILIIllJIlll ' II,,lllllll,lllll I Illll Illlllllll I I ........................ ,.......
CUSTOMER RESPONSIBILITIES
MAINTENANCE SCHEDULE
Fill in dates as you complete regular service.
iiii illl i =l
Check for damaged or worn parts.
,,,,,,,,,,,, ..........................
Clean unit and labels.
...... i ,,,,,,, ..... , ..............
Check for loose fasteners and parts.
Wash collection bag.
......... ,,,,,,,,,,...................
GENERAL RECOMMENDATIONS
The warranty on this unit does not cover itoms that have
been subjected to operator abuse or negligence. To receive
full value from the warranty, the operator must maintain unit
as instructed in this manual.
Some adjustments will need to be made periodically to
properly maintain your unit.
All adjustments in the "Service and Adjustments" section of
this manual should be checked at lease once each season.
Follow the maintenance schedule in this manual,
WARNING
THIS BLOWER IS PROVIDED WITH
DOUBLE INSULATION. USE ONLY IDEN-
TICAL REPLACEMENT PARTS. ALL
ELECTRICAL REPAIRS TO THE UNIT, IN-
CLUDING ON/OFF SWITCH, MOTOR,
ETC., MUST BE DIAGNOSED AND RE-
PAIRED BY YOUR SEARS SERVICE
CENTER. FAILURE TO DO SO CAN
CAUSE THE DOUBLE INSULATION
CONSTRUCTION TO BECOME INEFFEC-
TIVE AND RESULT IN SERIOUS INJURY
TO THE OPERATOR.
CLEAN UNIT AND LABELS
• Clean the unit using a damp cloth witha mild detergent.
• Wipe off the unit with a clean dry cloth.
• Keep air vents and air intakefree from debris at all times.
BEFORE EACH USE
CHECK FOR DAMAGED/WORNPARTS
• Replace blower nozzles that are bent, warped, cracked,
or damaged in any way.
• Replace vacuum tubes that are bent, warped, cracked,
or damaged in any way.
• Inspect impeller for cracks.
CHECK FOR LOOSE FASTENERS/PARTS
• Inspect blower tube. Make sure tube is secure to the
blower outlet.
HOW TO REMOVE AN OBJECT FROM THE AIR
INTAKE (Fig. 14)
if an object is drawn into the unit through the air intake, do
the following:
• Push the switch to the OFF position and disconnect cord
from the power source.
• Remove the vacuum tubes.
• Locate and remove the object(s).
• Inspect the impeller for cracks. If cracked or damaged,
DO NOT use the unit. Have impeller replaced by your
Sears Service Center. DO NOT attempt to replace it
yourself.
Vacuum Air Intake
Inlet Cover
Release
Locking
Air Vents
Figure 14
CLEANING THE COLLECTION BAG
The collection bag must be properly emptied and maintained
to avoid deterioration and obstruction of air flow which will
reduce the performance of your unit.
• Remove the bag and empty after each use. DO NOT
store the bag leaves, grass, or debds.
• Wash the bag once a year by turning inside out and
washing with a water hose. Be sure to let bag dry com-
pletely before re-using the unit.
- 12.-
Immediately prepare your unitfor storage at the end of the
season.
STORAGE INSTRUCTIONS
Ifour blower isto be stored for a pedod of time, clean it
thoroughly before storage. Remove any dirt, leaves, debris,
etc, Store in a clean dry area.
• Disconnect from the power source.
• Clean air vents and air inlet of debris.
• Reassemble all loose parts, being sure that all handles
are in place and are securely fastened. Replace any
damaged parts.
• Store your unit in a well ventilated area and covered, if
possible, to prevent dust and dirt accumulation. Do not
coverwith plastic. Plastic cannot breathe and willinduce
condensation and eventual rust or corrosion.
• Clean the entire unit.
• Open Inlet coverand clean any dirt, grass, ordebris that
has collected. Inspect the blower and vacuum tubes.
Close and replace screw.
..... m.lllllll i liH i ,,,,,,,,,,,,,,,,,,,,,,,,Hill. ,,,,, .ll illl i i.H. i ,,.,,, ,,,,,,,,,,,,,,,,,,,,,,, , ,, .............................
TROUBLESHOOTING POINTS
........... I ii iiiiiiiiiiii i I i iiiiiiiiiii ii IL== ,H ,=, ,,,...............................................................................
TROUBLESHOOTING CHART
Unit fails to operate.
Unit vibrates abnormally.
Impeller willnot tum freely.
ff situations occur which are not covered in this manual, use care and good judgement.
ff you need assistance, contact your Sears Service Center!Department or the
,,,i ,,,,,,,, ...... , ,i ............ J
A. Switch in the OFF position.
B. Disconnected from power source.
C. Circuit breaker tripped, or fuse
CAUSE
A. Push switch to the ON position.
B. Reconnect unitto power source.
C. Reset circuit breaker, or replace fuse.
blown.
D. Mechanical failure.
, ,,,,,,,,,,
A. Mechanical failure.
A. Debris in air intake area.
B. Mechanical failure.
D. Contact your Sears Service/Dept.
A. Contact your Sears Service/Dept.
A. Clean unit. Remove any debds.
B. Contact your Sears Service/Dept.
CUSTOMER ASSISTANCE HOTLINE at 1-800-235-5878
REMEDYSYMPTOM
.................... u
- ]3 -
CRRFTSMRNo
Operator's
Manual
Model No.
358.798380
IF YOU NEED REPAIR
SERVICE OR PARTS:
REPAIR SERVICE
1-800-4-REPAIR
(1-800-473-7247)
ORDERING PARTS
1-800-FON-PART
(1-800-366-7278)
12 AMP MOTOR
165 MPH Air Velocity
E BLOWER/VAC
Each Electric BlowerNac has its own model number. The model
number for your unit will be found on a decal attached to the unit.
All parts listed herein may be ordered through Sears, Roebuck and
Co. Service Centers and most Retail Stores.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION
• PRODUCT-"ELECTRIC BLOWER/VAC"
• MODEL NUMBER - 358.798380
• PART NUMBER
• PART DESCRIPTION
Your Sears merchandise has added value when you consider that
Sears has service units nationwide staffed with Sears trained techni-
cians.., professional technicians specifically trained on Sears prod-
ucts, having the parts, tools and the equipment to insure that we meet
our pledge to you, we service what we sell.
i.... HOURs(csn i
! Mon.-Sat. 7a.m.-7 p.m. !
I Sun. 10 a.m.- 7 p.m. j
Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA
iL
II
Loading...
