Universal Remote Control DMS-AV TPS2000 User Manual
DMS-AV TSP2000
Home Theater Amplifier
Owner's Manual
DMS-AV Owner’s Manual ©2012 Universal Remote Control, Inc.
The information in this manual is copyright protected. No part of this manual
may be copied or reproduced in any form without prior written consent
from Universal Remote Control, Inc.
UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN
THIS MANUAL.
The information in this manual may be subject to change without prior notice.
URC - Control the Experience is a registered trademark of Universal Remote
Control, Inc.
All other brand or product names are trademarks or registered trademarks
of their respective companies or organizations.
Universal Remote Control,Inc.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
DMS-AV HOME THEATER AMPLIFIER
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . 7
Cautions on Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Introduction / Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
DMS-AV Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
DMS-AV Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Quick Start Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connection Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Video Inputs - Hardware Connections . . . . . . . . . . . . . . . . . . . . . . . . 20
Video Input Connection – HDMI . . . . . . . . . . . . . . . . . . . . . . . . . 20
Video Input Connection - Component Video . . . . . . . . . . . . . . . . 20
Video Input Connection - Composite Video . . . . . . . . . . . . . . . . . 20
Video
Outputs - Hardware Connections . . . . . . . . . . . . . . . . . . . . . . 21
Video Output Connection - HDMI . . . . . . . . . . . . . . . . . . . . . . . . 21
Video Output Connection - Component Video . . . . . . . . . . . . . . 21
Audio Inputs - Hardware Connections . . . . . . . . . . . . . . . . . . . . . . . 22
Audio Input Connection – HDMI . . . . . . . . . . . . . . . . . . . . . . . . . 22

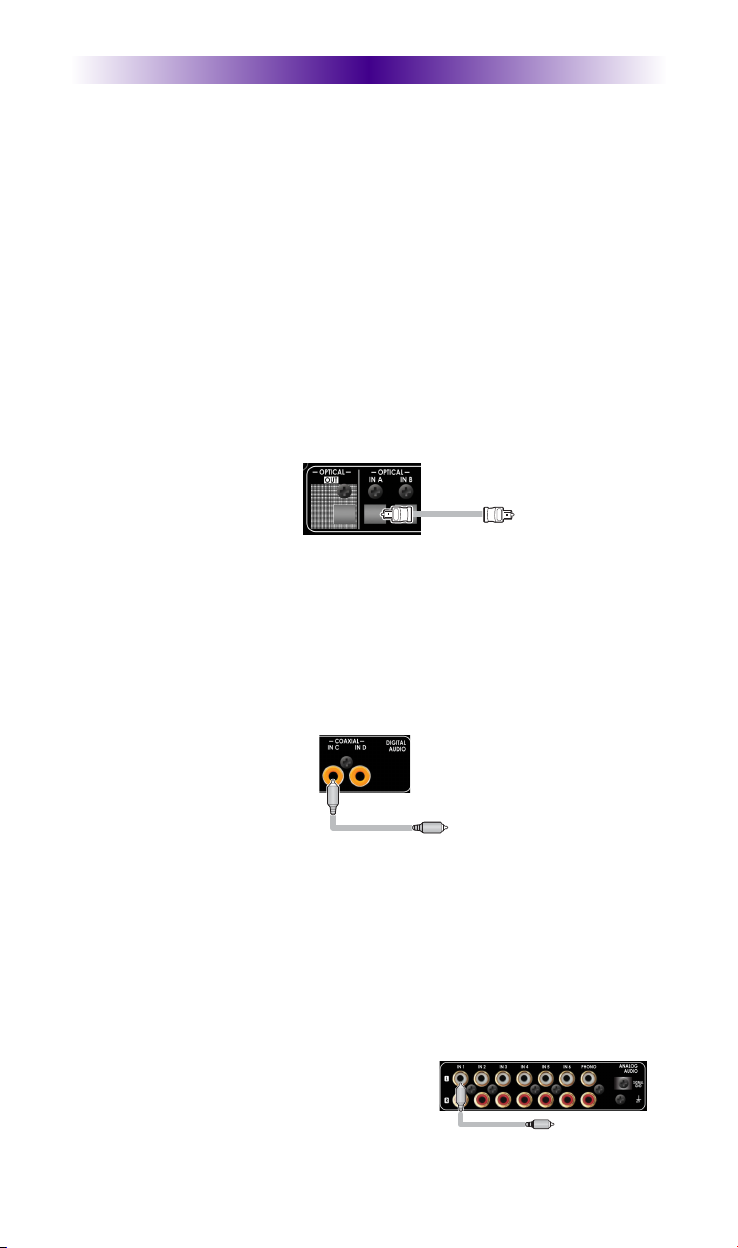

Audio Input Connection - Optical Digital . . . . . . . . . . . . . . . . . . . 22
Audio Input Connection - Coax Digital . . . . . . . . . . . . . . . . . . . . . 22
Audio Input Connection - Stereo Analog . . . . . . . . . . . . . . . . . . . 22
Audio Output - Hardware Connections . . . . . . . . . . . . . . . . . . . . . . 23
Audio Output Connection – Unbalanced . . .
. . . . . . . . . . . . . . . . 23
Audio Output Connection – Speakers . . . . . . . . . . . . . . . . . . . . . 23
Audio Output Connection – Subwoofer(s) . . . . . . . . . . . . . . . . . . 24
Audio Output Connection - Optical Digital Record . . . . . . . . . . . 24
Audio Output Connection - Analog Record . . . . . . . . . . . . . . . . . 24
Configuration and Control - Hardware Connections . . . . . . . . . . . . 25

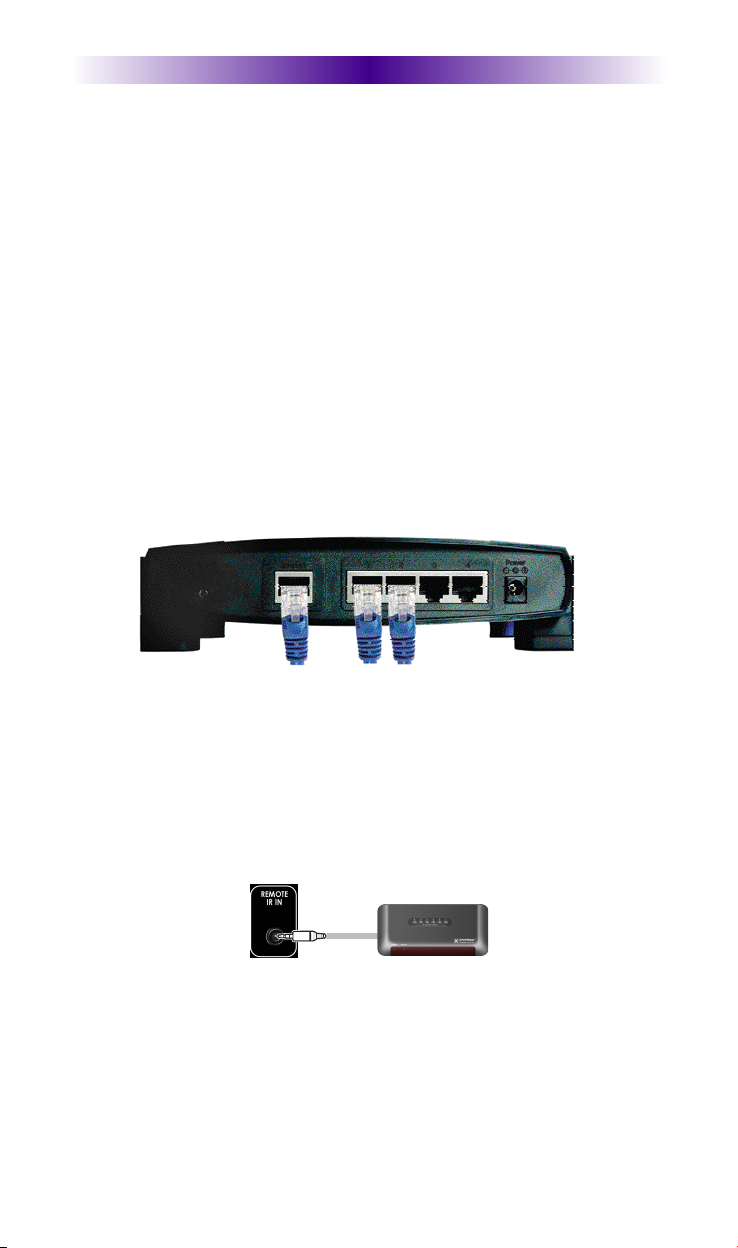

Ethernet Communication - Connection Instructions . . . . . . . . . . . 25
Infrared Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Control Output Triggers / Amp Enable . . . . . . . . . . . . . . . . . . . . . . 26
Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Video Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Detail Enhancement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Mosquito Noise Reduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Edge Enhancement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Page 4
DMS-AV HOME THEATER AMPLIFIER
HDMI Audio Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
CEC Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Auto A/V Sync . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Video PReP ® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Video Test Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Frame Geometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Bright/Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Checker board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Vertical Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Horizontal Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Judder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Color 8 Bars 75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Color 8 Bars 100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
OSD Transparency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Audio Modes and Speaker Selections . . . . . . . . . . . . . . . . . . . . . . . . 30
Audio/Surround Mode Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
On Screen Display (OSD) Format . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Momentary OSD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Software Setup - URC Accelerator . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
DMS-AV System Settings – Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Speaker Size/Speaker Crossover . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Front Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Center Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Surround Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Surround Back Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Front Height Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Subwoofer(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Speaker Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Channel Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Speaker Crossover (X-Over) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
LFE (Dolby/DTS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Height Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Dolby Pro Logic II Music Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Panorama . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Center Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Dimension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Page 5
DMS-AV HOME THEATER AMPLIFIER
Night Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Surround modes
Selecting the Surround mode
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .
Cancelling the surround mode for stereo operation
Tone Setting
Automated Speaker Setup
Input Settings
Input Rename
Digital Audio Assign
Analog Audio Assign
Video Scaling
A/V Sync
DC Trigger 1
DC Trigger 2
Linking Audio Zones with the DMS-AV
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
. . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
. . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
. . . . . . . . . . . . . . . . . . . . . . . 42
Accessing Streaming Audio Sources with the DMS-AV
Updating DMS-AV
Firmware
DMS-AV Specifications
General Information
Power Amplifier
DSP Processing
Video Processing
Video Input/Output
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
General Audio Features
USA Limited Warranty Statement
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
. . . . . . . . . . . . 40
. . . . . . . . . . . 43
36
40
. . . 42
Page 6
DMS-AV HOME THEATER AMPLIFIER
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Heed all warnings.
3. Follows all instructions
4. Do not use this apparatus near
water.
5. Clean only with dry cloth.
6. Do not block any ventilation
openings. Install in accordance
with the manufacturer`s instructions.
7. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
8. Do not defeat the safety purpose
of the polarized or groundingtype plug. A polarized plug has
two blades with one wider than
the other. A grounding
two blades and a third grounding
prong. The wide blade or the
third prong are provided for
your safety. If the provided plug
does not fit into your outlet,
consult an electrician for
replacement of the obsolete
outlet.
9. Protect the power cord from
being walked on or pinched
particularly at plugs,
convenience receptacles, and the
point where they exit from the
apparatus.
plug has
10. Only use attachments/accessories
specified by the manufacturer.
11.
Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer, or sold with
the apparatus. When a cart is used,
use caution when moving the
cart/apparatus combination to
avoid injury from tip-over.
12.
Unplug this apparatus during
lightning storms or when unused
for long periods of time.
13.
Refer all servicing to qualified
service personnel. Servicing is
required when the apparatus has
been damaged in any way, such
as power-supply cord or plug is
damaged, liquid has been spilled
or objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, dose
not operate normally, or has been
dropped.
Cautions on Installation
For proper heat dispersal, do not install this unit in a confined space, such as a
bookcase or similar enclosure. More than 3” clearance is recommended for the top,
while 0.5” is recommended for the sides and bottom of the unit. Do not place any
other equipment on this unit.
Page 7
DMS-AV HOME THEATER AMPLIFIER
Safety Precautions
To prevent fire or shock hazard, do not expose this unit to rain or moisture.
Care should be taken to prevent objects or liquid from entering the
enclosure. Never handle the power cord with wet hands.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION:
To completely disconnect this product from the main AC power,
disconnect the plug from the wall socket outlet. The main plug is used
to completely interrupt the power supply to the unit and must be within
easy access by the user.
Page 8
DMS-AV HOME THEATER AMPLIFIER
•
To prevent the risk of electric shock, do not remove cover. No userserviceable parts inside. Refer servicing to qualified service personnel.
•
These servicing instructions are for use by qualified service personnel
only. To reduce the risk of electric shock, do not perform any servicing
other than that contained in the operating instructions unless you are
qualified to do so.
• The ventilation should not be impeded by covering the ventilation
openings with items, such as newspapers, tablecloths, curtains, etc.
• No naked flame source, such as lighted candles, should be placed on the
unit.
• Observe and follow local regulations regarding battery disposal.
• Do not expose the unit to dripping or splashing fluids, do not place
objects filled with liquids, such as vases, on the unit.
• Prevent damage to the power cord. Replace the power cord if it becomes
damaged in any way. Always grasp the plug on the power cord when
plugging or unplugging the receiver from the AC outlet.
• Your system may produce sound levels capable of causing permanent
hearing loss. Do not operate for extended periods of time at high volume
levels.
• Protect the receiver from impact and place the receiver on a level surface.
• The receiver is equipped with raised feet to provide ventilation, reduce
acoustic feedback, and protect against scratching the surface the unit is
resting on. URC advises against removing the feet.
• Do not stack anything on top of the receiver (processor, source, etc.)
Leave a minimum of 3" clearance from above the top of the receiver.
• The receiver should be located away from sources sensitive to heat.
• Do not perform any internal modifications to the receiver.
• Always connect the receiver's power cord to a dedicated AC outlet for
normal operation.
• If young children are present, adult supervision should be provided until
the children are capable of following all rules for safe operation.
• Mistaking CONTROL OUTPUT or IR INPUT connectors for audio/video
inputs or outputs may damage your receiver or other components.
Page 9
DMS-AV HOME THEATER AMPLIFIER
• It is recommended that the system speaker impedance seen by the
amplifier channels of the receiver not fall below 4 ohms. Best amplifier
thermal stability is achieved when it operates into a 4 ohms or greater
speaker load. The nominal impedance of most home speakers range
between 6 and 8 ohms.
The receiver should be serviced by qualified personnel when:
A. The receiver is not functioning properly.
B. Objects have entered the chassis.
C. The receiver was exposed to rain or any other type of moisture.
D. The receiver was dropped, or the chassis is damaged.
• Any changes or modifications in construction of this device which are
not expressly approved by the party responsible for
void the user`s authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003 Cet
apprareil numerique de la Classe B est conforme a la norme NMB-003 du
Canada.
Note: The manufacturer is not responsible for any Radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user`s authority to operate the equipment.
Manufactured under license from Dolby Laboratories. Dolby, Pro Logic
and the double-D symbol are trademarks of Dolby Laboratories.
compliance could
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380;
6, 226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 &
other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol,
& DTS-HD and the Symbol together are registered trademarks & DTS-HD
Master Audio is a t
DTS, Inc. All Rights Reserved.
"HDMI, the HDMI Logo, and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries."
rademark of DTS, Inc. Product includes software. ©
Page 10
DMS-AV HOME THEATER AMPLIFIER
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment Off and On, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Product name: Home Theater Amplifier
Model Number: TSP-2000
Responsible Party Name: UNIVERSAL REMOTE CONTROL, INC.
Address: 500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914)835-4484, Fax: (914)835-4532
URL: www.universalremote.com
Introduction / Overview
URC's DMS-AV is our new state-of-the-art Network Home Theater
Processor which is the centerpiece of your Home Theater System, all based
on network technology. It is easy to setup and use, sounds great and
delivers crystal clear high-definition video to your home theater. The DMSAV provides today's cutting edge technologies and performance with
sophistication and convenience that is unparalleled in this industry, all at
the touch of a button. Dolby Digital, DTS, and URC’s proprietary
multichannel stereo and surround modes deliver the best audio formats to
you with detail, clarity, and tremendous bass and treble response.
URC’s DMS-AV performance is based upon combining our in-house design
expertise with that of our engineering partners. The DMS-AV has a fully
loaded rear panel with 11 discrete audio & video inputs, as well as a
Phono Input (MM), including 5 HDMI Inputs and 7 x 125 watt amplifier
channels. Combine all these connections with our state-of-the-art
technology inside the DMS-AV and you get pristine sound and
picture quality unprecedented in the industry.
Cutting edge technologies combined with URC’s legendary user interface
design, engineering and manufacturing expertise make the DMS-AV the
elegant and easy choice for today’s demanding home theater installations.
Page 11
DMS-AV HOME THEATER AMPLIFIER
DMS-AV Front Panel
1
3 4 5 6
2
1. Right-Hand Knob -The right selector knob’s primary purpose is audio
volume adjustment.
2. Power LED – This LED illuminates Blue when the DMS-AV is ON and
Red when the DMS-AV is in Standby mode.
3. Ethernet LED - The Ethernet LED illuminates STEADY BLUE when
successfully connected to an Ethernet network, otherwise when not
connected it will BLINK BLUE.
4. HDMI LED - The HDMI LED illuminates Blue when the DMS-AV is
playing an HDMI source.
5. DTS-HD LED - The DTS-HD LED illuminates when the DMS-AV is
playing a DTS-HD bitstream.
6. Digital LED - The Digital LED illuminates when the DMS-AV is playing a
source containing a digital bitstream. This includes any Dolby, DTS or
PCM input type, as well as a URC Proprietary Streaming Audio Input.
7. Standby Button – Pressing this button toggles the state of Standby mode.
Pressing and holding this button causes the DMS-AV to reboot.
7
Page 12
DMS-AV HOME THEATER AMPLIFIER
DMS-AV Rear Panel
1
9
2 3 4 5
6 87
10 11
12 13
1. Voltage Triggers, Reset Switch and Ethernet - The two 12 volt triggers
present at this section of the back panel supply a maximum current of
100 mA, and can be used to trigger an external amplifier, or can also be
used to trigger the use of an anamorphic lens on a projector. These jacks
are both 3.5 mm mono style female mini jacks. The pin is positive(+), and
the sleeve is ground.
Each of the 12V DC triggers may be set to 12V DC when a particular input
is selected. For example, Trigger #1 may be set to output 12V DC when
Input 8 is selected. When another input besides Input 8 is selected, Trigger
#1 will go to 0V DC.
The Ethernet port is a 10/100 Base Ethernet port, that allows receiving and
sending multicast audio streams when used with a DMS/SNP URC Multi
zone system, and also used for command and control when used with an
MRX-10/MRX-12 (or similar) URC Advanced System Controller.
Pressing the RESET button will return the DMS-AV to its factory default
state.
2. Optical and Coaxial Digital S/PDIF Inputs/Output - By default, the
optical and coaxial S/PDIF audio inputs are not assigned to any composite,
component or HDMI video input. The optical and coaxial S/PDIF inputs
require assignment to a video input (via the on-screen display, or the URC
Accelerator PC application).
Any of the optical/coaxial S/PDIF inputs can be assigned to any numbered
video input (Composite, Component or HDMI). The optical/coaxial S/PDIF
inputs cannot be assigned to Input Phono or Input Multi Cast Stream, since
those inputs are “Audio Only” inputs.
The optical digital output shall provide a S/PDIF digital output of any selected
optical input signal. This digital output is for use with a digital recording device.
Page 13
DMS-AV HOME THEATER AMPLIFIER
3. Remote Infrared Input - The Infrared Input port allows for easy integration with
an RF(radio frequency) to IR (infrared) style base station, such as the URC MRF-350
or MRF-260. This port provides the ability to perform simple one-way control of
the DMS-AV with a URC legacy-style infrared remote control, such as a MX-900,
MX-980 or MX-880, among others. Use of this port with RF based remote controls
allows for “stand alone” operation of the DMS-AV, that is, use of the DMS-AV
without an MRX-10/MRX-12 or similar external URC Advanced System Controller.
This is a 3.5 mm mono style female mini jack input, with the tip being positive(+),
and the sleeve being ground.
4. HDMI Inputs/Output - The DMS-AV supports six HDMI connections; five are
used for signal input, while one supports HDMI signal output.
The DMS-AV supports a single HDMI video output. All video signals sent to the
DMS-AV via composite, component, HDMI, or generated by the internal on-screen
display output via the HDMI OUT connector.
The HDMI Technology within the DMS-AV supports all versions of HDMI, which
means it is compatible with the following formats:
sRGB
YCbCr
Blu-ray Disc and HD DVD Video and Audio at Full Resolution
Consumer Electronic Control (CEC)
Deep Color
xvYCC
Auto Lip-Sync
Dolby TrueHD Bitstream Capable
DTS-HD Master Audio Bitstream Capable
Audio Return Channel
3D over HDMI
5. Main AC Rocker Style Switch - Provided is a Main AC Rocker Switch. This
switch is sometimes known as a “Vacation” switch, and is used to remove main
AC from the DMS-AV, or perform a hard reboot of the unit.
6. Composite Video Inputs - The DMS-AV supports four composite video RCA
connectors. All video present at these connectors is upconverted to the HDMI
Video Output.
7. Analog Audio Inputs - The DMS-AV provides seven total analog audio inputs.
Six of these inputs support a line-level analog audio signal. One of these inputs
will support a phono level analog audio signal. The Phono Input supports the MM
(Moving Magnet) phono input type. The Phono Input also provides a ground lug
connector on the DMS-AV back panel.
Page 14
DMS-AV HOME THEATER AMPLIFIER
8. Component Video Inputs/Output - The DMS-AV has three component video
connections. Two of these connections are inputs, while the third connection acts
as a video output (in case HDMI is not used).
The component video inputs accept a maximum input resolution of 1080i/60Hz.
The component video output supports a maximum output resolution of
1080i/60Hz. Composite and HDMI video are not converted and will not output via
the component video. The on-screen display is not viewable via the component
video output as it only works with HDMI.

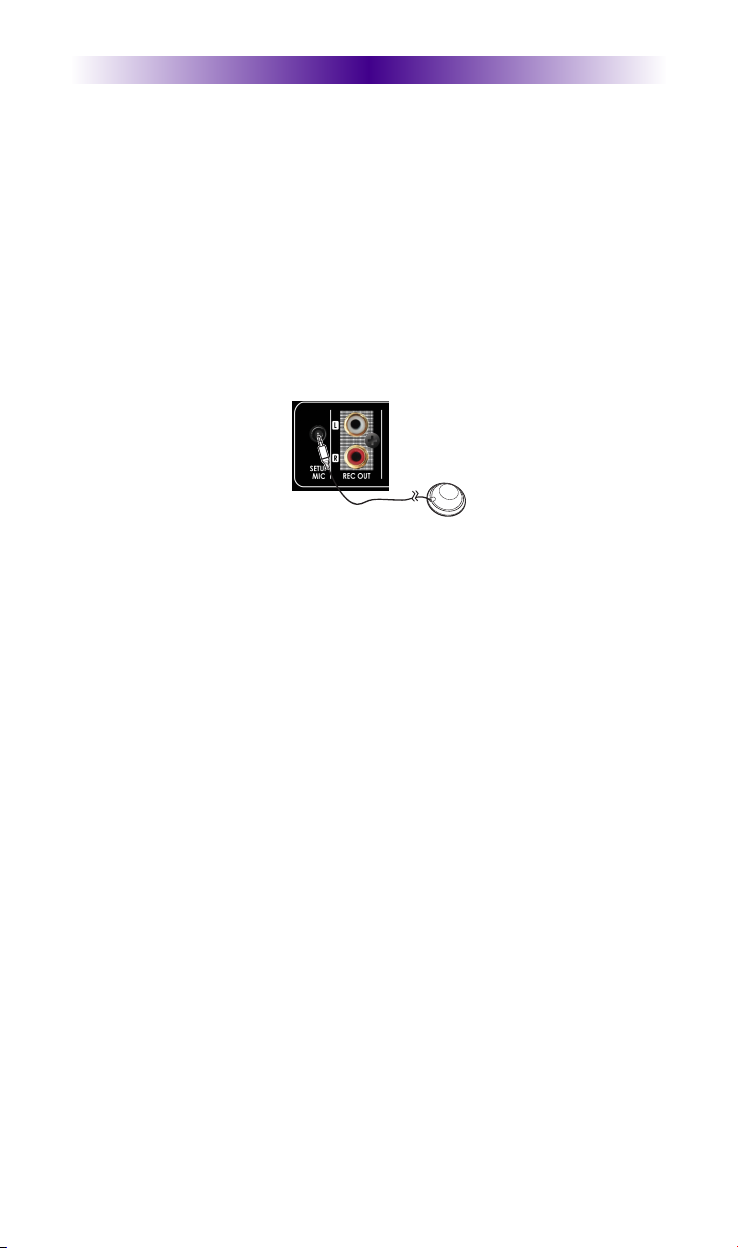

9. Setup Microphone Input - This jack allows the connection of an external
microphone for automated setup of the DMS-AV speakers, in regards to
crossovers, audio levels, and equalization. This is a 3.5 mm mono style female
mini jack, tip being positive(+), and sleeve being ground. A setup microphone is
provided.
10. Record Output – This output is an analog left/right line level signal of the
currently selected analog audio input. Only analog audio input signals are output
via this connection. Volume control settings do not effect the record output. This
stereo pair of analog RCA outputs are for use with an analog recording device.
11. Preamplifier Outputs – The DMS-AV supports nine preamplifier audio
outputs. In addition to the standard “7.1” audio outputs, including front, center,
surround and subwoofer channels, the DMS-AV shall also support a second
subwoofer output channel. These surround outputs are designed for driving
external power amplifiers or powered speakers.
12. Speaker Outputs - The DMS-AV provides seven amplifier channels for
surround sound reproduction, rated at 125 watts per channel into an 8 ohm
speaker load.
Within the on-screen display or the URC Accelerator Application, set your DMSAV to use "Surround Back" amplifier channels or "Front Height" amplifier
channels. Surround back speakers and front height speakers cannot be
powered simultaneously.
The output connectors are industry standard high-current binding posts.
Bare speaker wire may be secured within the screw-type binding posts, or
banana plugs may be inserted into the center of the binding posts.
The processed audio present at the binding post connectors (speaker
connections) contains the same processing as the audio present at the preamplifier stage. As an example, if a crossover is applied to the front left and
right preamplifier channels, the same crossover settings are applied to the
front left and right speaker outputs, only amplified.
13. AC Receptacle - For attaching the supplied high current AC power cord
to the unit.
Page 15
DMS-AV HOME THEATER AMPLIFIER
Quick Start Considerations
Your URC receiver is pre-programmed for ease of operation, right out of the
box. In general, there is minimal setup required to start using your new
DMS-AV Network Home Theater Processor.
To quickly setup and begin operating your receiver, follow these steps:
1. Start with all AC power cords unplugged from their designated AC outlet.
2. From each source device, connect the A/V cables which could include
composite, component, or HDMI cables.
3. Connect the speaker cables from the receiver’s speaker outputs to the
appropriate speakers.
4. Connect the appropriate video cables from the receiver’s video outputs to
the video monitor’s input(s).
5. Connect an Ethernet cable from the DMS-AV to local network router.
6. Plug the AC power cords for the DMS-AV and all connected sources into
their designated AC outlets.
7. Power On the DMS-AV. Bring the DMS-AV out of “standby” mode, via
the front panel “standby” button.
8. Power On all source components.
9. On a computer connected to the same network as the DMS-AV, launch the
DMS System Toolbox application.
10. In the unit discovery window, select the Network Scan button. Select the
DMS-AV Home Theater Amplifier.
11. In the DMS System Toolbox application, select any of the connected source
components. Verify proper operation of the DMS-AV and the source
components.
Page 16
