UNITRODE UCC1581, UCC2581, UCC3581 Technical data

Micropower Voltage Mode PWM

application

INFO

available

UCC1581
UCC2581
UCC3581

FEATURES

Low 85µA Startup Current

•
Low 300µA Operating Current

•

Automatically Disabled

•

Startup Preregulator
Programmable Minimum Duty

•

Cycle with Cycle Skipping
Programmable Maximum

•

Duty Cycle
Output Current 1A Peak

•

Source and Sink
Programmable Soft Start

•

Programmable Oscillator

•

Frequency

• External Oscillator
Synchronization Capability

BLOCK DIAGRAM

Note: Pin Connection shown for 14-pin Package

DESCRIPTION

The UCC3581 voltage mode pulse width modulator is de
signed to control low power isolated DC - DC converters
in applications such as Subscriber Line Power (ISDN
I.430). Primarily used for single switch forward and
flyback converters, the UCC3581 features BiCMOS cir
cuitry for low startup and operating current, while main
taining the ability to drive power MOSFETs at
frequencies up to 100kHz. The UCC3581 oscillator al
lows the flexibility to program both the frequency and the
maximum duty cycle with two resistors and a capacitor. A
TTL level input is also provided to allow synchronization
to an external frequency source.

The UCC3581 includes programmable soft start circuitry,
overcurrent detection, a 7.5V linear preregulator to con
trol chip V
supply.

The UCC3581 provides functions to maximize light load
efficiency that are not normally found in PWM controllers.

DD during startup, and an on-board 4.0V logic

UDG-95011-1

-

A linear preregulator driver in conjunction with an exter
nal depletion mode N-MOSFET provides initial controller
power. Once the bootstrap supply is functional, the
preregulator is shut down to conserve power. During light

-

load, power is saved by providing a programmable mini

-

mum duty cycle clamp. When a duty cycle below the
minimum is called for, the modulator skips cycles to pro

-

vide the correct average duty cycle required for output
regulation. This effectively reduces the switching fre
quency, saving significant gate drive and power stage
losses.

The UCC3581 is available in 14-pin plastic and ceramic
dual-in-line packages and in a 14-pin narrow body small

-

outline IC package (SOIC). The UCC1581 is specified for
operation from −55°C to +125°C, the UCC2581 is speci
fied for operation from −40°C to +85°C, and the
UCC3581 is specified for operation from 0°C to +70°C.

-

-

-

-

-

MARCH 1999 - REVISED MARCH 2003 - SLUS295B

ABSOLUTE MAXIMUM RATINGS

Supply Voltage (IDD ≤ 10mA). . . . . . . . . . . . . . . . . . . . . . . . 15V

Supply Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30mA

V

Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –10mA

REF

OUT Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ± 1A

Analog Inputs

EN. . . . . . . . . . . . . . . . . . . . . . . . . . . . –0.3V to (VDD + 0.3V)

VC, ISEN, SYNC, DCMIN. . . . . . . . . . –0.3V to (V

Power Dissipation at T

(N, J, Q, L Package) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1W

(D Package) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.65W

Storage Temperature . . . . . . . . . . . . . . . . . . . –65°C to +150°C

Junction Temperature . . . . . . . . . . . . . . . . . . . –55C to +150°C

Lead Temperature (Soldering, 10 sec.). . . . . . . . . . . . . +300°C

= 25°C

D

Unless otherwise specified, all voltages are with respect to
Ground. Currents positive into, negative out of the specified ter
minal. Consult Packaging Section of Databook for thermal limi
tations and considerations of packages.

REF

+ 0.3V)

UCC1581
UCC2581
UCC3581

CONNECTION DIAGRAMS

DIL-14, SOIC-14 (Top View)
N or J, D Packages

-

-

ORDERING INFORMATION

TEMPERATURE RANGE PACKAGE

UCC1581J –55°C to +125°C CDIP
UCC2581D –40°C to +85°C SOIC
UCC2581N –40°C to +85°C PDIP
UCC3581D 0°C to +70°C SOIC
UCC3581N 0°C to +70°C PDIP

ELECTRICAL CHARACTERISTICS:

from VDD to GND, 1.0µF capacitor from REF to GND, RT1 = 680kΩ, RT2 = 12kΩ, CT = 750pF and T

PARAMETER TEST CONDITIONS MIN TYP MAX UNITS

Reference Section

Output Voltage I = –0.2mA 3.94 4.0 4.06 V
Load Regulation –5.0mA < I < –0.2mA 20 45 mV

Undervoltage Lockout Section

Start Threshold 6.7 7.3 7.9 V
Minimum Operating Voltage After Start 6.2 6.8 7.4 V
Hysteresis 0.2 0.5 0.8 V

Linear Preregulator Section

Regulated VDD Voltage 7.0 7.5 8.0 V
Regulated VDD to UVLO Delta 100 230 600 mV
VDD Override Threshold 8.2 V

Oscillator Section

Frequency 25°C 18 19.5 21 kHz
Temperature Stability (Note 1) 3.0 %
CT Peak Voltage (Note 1) 2.5 V
CT Valley Voltage (Note 1) 1.0 V
SYNC VIH 1.9 2.1 2.3 V
SYNC VIL (Note 1) 1.8 V

PWM SECTION

Maximum Duty Cycle 81 84 87 %
Minimum Duty Cycle (VC < 1.0V) DCMIN = 0V 0 %

Input Bias Current (DCMIN), (Note 1) –150 20 150 nA

Unless otherwise stated, these specifications apply for VDD = 10V, 0.1µF capacitor

A =TJ.

(VC > 1.0V at start of cycle) DCMIN = 1.18V 7 10 13 %

(VC), (Note 1) –150 20 150 nA

2

UCC1581
UCC2581
UCC3581

ELECTRICAL CHARACTERISTICS: Unless otherwise stated, these specifications apply for VDD = 10V, 0.1µF capacitor

from VDD to GND, 1.0µF capacitor from REF to GND, RT1 = 680kΩ, RT2 = 12kΩ, CT = 750pF and T

PARAMETER TEST CONDITIONS MIN TYP MAX UNITS

Current Sense Section

Input Bias Current –150 20 150 nA
Overcurrent Threshold 0.4 0.5 0.6 V

Output Section

OUT Low Level I = 100mA 0.6 1.2 V
OUT High Level I = –100mA, VDD – OUT 0.6 1.2 V
Rise/Fall Time (Note 1) 20 100 ns

Soft start Section

Soft start Current SS = 2V –9 –11.5 –14 µA

Chip Enable Section

VIH 1.9 2.0 2.1 V
VIL 1.7 1.8 1.9 V
Hysteresis 180 230 280 mV
Source Current 51015µA

Overall Section

Start-Up Current VDD < Start Threshold 85 130 µA
Operating Supply Current VC = 0V 300 600 µA
VDD Zener Shunt Voltage I

DD Stand-by Shunt Voltage EN = 0V 100 150 µA

I

= 10mA 13.5 15 16.5 V

DD

A =TJ.

Note 1: Guaranteed by design.Not 100% tested in production

PIN DESCRIPTIONS

CT: Oscillator timing capacitor pin. Minimum value is

100pF.
DCMIN: Input for programming minimum duty cycle

where pulse skipping begins. This pin can be grounded
to disable minimum duty cycle feature and pulse
skipping.

EN: Enable input. This pin has an internal 10µA pull-up.
A logic low input inhibits the PWM output and causes the
soft start capacitor to be discharged.

GND: Circuit ground.
GT: Pin for controlling the gate of an external depletion

mode N-MOSFET for the startup supply. The external
N-MOSFET regulates VDD to 7.5V until the bootstrap
supply comes up, then GT goes low.

ISEN: Input for overcurrent comparator. This function can
be used for pulse-by-pulse current limiting. The threshold
is 0.5V nominal.

OUT:Gate drive output to external N-MOSFET.
REF: 4.0V reference output. A minimum value bypass

capacitor of 1.0µF is required for stability.
RT1: Resistor pin to program oscillator charging current.

V

20









The oscillator charging current is

92

..•



RT

.



1

See Application Diagram Fig.1.

201.

V







The current into this pin is



RT

.





The value of RT1 should be between 220k and 1MΩ.

RT2: Resistor pin to program oscillator discharge time.
The minimum value of RT2 is 10kΩ. See Application
Diagram Fig.1.

SS: Soft start capacitor pin. The charging current out of
SS is 3.75X the current in RT1.

SYNC: Oscillator synchronization pin. Rising edge
triggered CMOS/TTL compatible input with a 2.1V
threshold. SYNC should be grounded if not used. The
minimum pulse width of the SYNC signal is 100ns.

VC: Control voltage input to PWM comparator. The
nominal control range of VC is 1.0V to 2.5V.

VDD: Chip input power with an 15V internal clamp. VDD
is regulated by startup FET to 7.5V until the bootstrap
voltage comes up. VDD should be bypassed at the chip
with a 0.1µF minimum capacitor.

3

APPLICATION INFORMATION

The UCC3581’s oscillator allows the user the flexibility to
program the frequency and the duty cycle by adjusting
two resistors and a capacitor. Application Diagram Fig. 1
shows these components as RT1, RT2, and C
grams the timing capacitor charging current which results
in a linear ramp charging C

T. Discharge of CT is accom

plished though RT2 which results in a standard RC dis
charge waveform. The oscillator on-time (C
calculated by the formula

tRTC

=••0082 1.

ON T

The off-time (C

tRTC

OFF T

T discharging) is calculated by the formula

=••095 1.

.

.

Resistor RT1 programs the charging current. The current
is:

2.0V
.

RT

1

CT charging current is 9.2 times the current in RT1. RT1
can range from 220kΩ to 1MΩ. Minimum capacitor size
is 100pF, and minimum RT2 size is 10k.

A Block Diagram of the Oscillator is shown in Fig. 2. The
oscillator also has an external synchronization pin.
When a low to high level is detected, and if the oscilla­tor’s output is in the high state (C

T charging), the oscilla-

tor output immediately goes low and C
discharging. The sync input is rising edge sensitive and
is ignored when the oscillator output is low.

T. RT1 pro

T charging) is

T starts

-

1

CT

V

C

-

-

T

BSS129 OR

EQUIV.

IN

GT

D2

REF

V

IN

T1

2

3

VDD

1µF

Q1

4

OUT

5

GND

6

REF

1µF

7

ISEN

D1

Figure 1. Application diagram.

RT2

UCC3581

REF &

E/A

R

L

RT2

UCC1581
UCC2581
UCC3581

14

13SYNC

12RT1

RT1

11EN

10SS

C

9DCMIN

8VC

U1

SS

REF

REF

U1

UDG-99043

Figure 2. Oscillator.

UDG-96105

4

APPLICATION INFORMATION (cont.)

The externally bypassed 4.0V reference is controlled by
undervoltage lockout and chip enable circuitry. The en
able input is internally tied to a 10µA current source
which allows the pin to be driven by an open collector
driver. The part is also enabled if EN floats. The
UCC3581 has a soft start function which requires a user
supplied external timing capacitor. When in soft start
mode, the soft start capacitor, C
constant current source. The soft start current is 3.75X
the current in RT1.

There is an on-chip control amplifier, which when driving
the gate of an external depletion mode N-MOSFET, acts
as a 7.5V linear preregulator supplying VDD directly from
the primary input power line. The preregulator may sub
sequently be fully disabled by a tertiary bootstrap winding
providing a minimum of 8.2V to the VDD pin.

Computation of DCMIN

DCMIN for a given duty cycle is calculated as follows:

()

tt

+

∆

Vi DC

=••

OSC

ON OFF

C

T

where:

• i = oscillator charge current = 9.2 . (2.0V/RT1)

• DC = Duty Cycle, as a fraction of 1

• t

= 0.082 • RT1 • CT

ON

•

t

= 0.95 • RT2 • CT

OFF

•

C

= Oscillator Capacitor

T

The CT pin ramp slews from 1V to 2.5V. Therefore, add
∆V to 1V to get DCMIN voltage.

Example: For 10% duty cycle with RT1 = 680kΩ, RT2 =
12kΩ, and CT = 705pF,

SS, is charged with a

UCC1581
UCC2581
UCC3581

A Typical Micropower Application

-

The circuit shown in Fig. 3 illustrates the use of the
UCC3581 in a micropower application. The isolated 5V
flyback power supply uses a minimum of parts and oper
ates over an 8:1 input voltage range (15VDC to 120VDC)
while delivering a regulated 5V output with a load swing
from 0W to 1W. It operates in the discontinuous mode at
light load or high line, and continuous mode at heavier
loads and lower line voltages. Higher input line voltages
are possible by simply increasing the voltage ratings of
C1, Q1, D1 and D2.

The most notable feature of the design is its efficiency.
With a load of 1 watt, the typical efficiency is 82%, drop

-

ping to 70% around 50mW. With a load of only 12.5mW,
the efficiency remains as high as 50%. At this load, with
an input of 50V, the total input current is only 500µA.
Note that the power supply can be disabled by pulling the
UCC3581 enable pin low, in which case the input current
drops to less than 150µA.

The UCC3581 achieves very low losses by means of low
quiescent current and pulse skipping at light loads which
reduces switching losses. The degree of pulse skipping is
controlled by programming the minimum duty cycle. In
this example, the frequency is 35kHz at maximum load
and drops to <2kHz at 12.5mW load (minimum pulse
width of around 6µsec, or 21% duty cycle at 35kHz).
Another way losses are reduced is operating with a VDD
of around 10V rather than the more common 12V to 16V.
At such light primary currents, the MOSFET remains in
full saturation with a gate drive voltage well below 10V.

Gate drive losses are minimized by choosing a MOSFET
with low total gate charge, in this case only 8nC maxi
mum. By choosing a large gate drive resistor, EMI is min
imized by reducing peak currents. Due to pulse skipping,
switching times are less critical for efficiency at light load.

-

-

-

-

∆

Vi DC

=••

OSC

V

20

.









92

.

•


=

680

∆

VV

=018.

()

01 4 182 10 8 55 10

. . sec . sec

•• • +•



k

Therefore,

DCMIN V V V

=+ =1018118..

()

tt

+

ON OFF

C

T

−−

56

750 1012•

−

The shunt regulator (LM3411) and optocoupler
(MOC8100) are also key to the efficiency at such light
loads, and were chosen for their low operating current.
The LM3411 has a quiescent current of only 150µA max
imum (compared to 1mA for the more common TL431).
In addition, because it is not a three terminal device, the
LM3411’s quiescent current does not flow in the
optocoupler LED. Since this bias current is not in the
feedback control path, a higher value pull-up resistor can
be used on the optocoupler output transistor, further re
ducing losses.

5

-

-

TYPICAL APPLICATION

UCC1581
UCC2581
UCC3581

Figure 3. Micropower power supply with 50% efficiency at 12.5mW load.

90

80

25V Line

70

60

100V Line

50

40

Efficiency [%]

30

20

10

0

UDG-96104

10 100 1000

Figure 4. UCC3581 efficiency vs. line and load.

Output Load [mW]

6

APPLICATION INFORMATION (cont.)

A rather large soft start capacitor was chosen to give a
startup time of several hundred milliseconds, reducing
the input surge current while the output is coming up.

UCC1581
UCC2581
UCC3581

If the sync input is used, it should not be left in a high im
pedance state where noise could cause false triggering.
If unused, it should be grounded.

-

Note that for stability, the UCC3581 V
tor needs to be at least 1µF. The V

REF bypass capaci

DD supply also needs

some capacitance to hold it up between pulses at light
load and high line, where the frequency may drop to less
than 1kHz due to pulse skipping. Otherwise it may drop
low enough for the startup MOSFET to be biased on,
lowering efficiency.

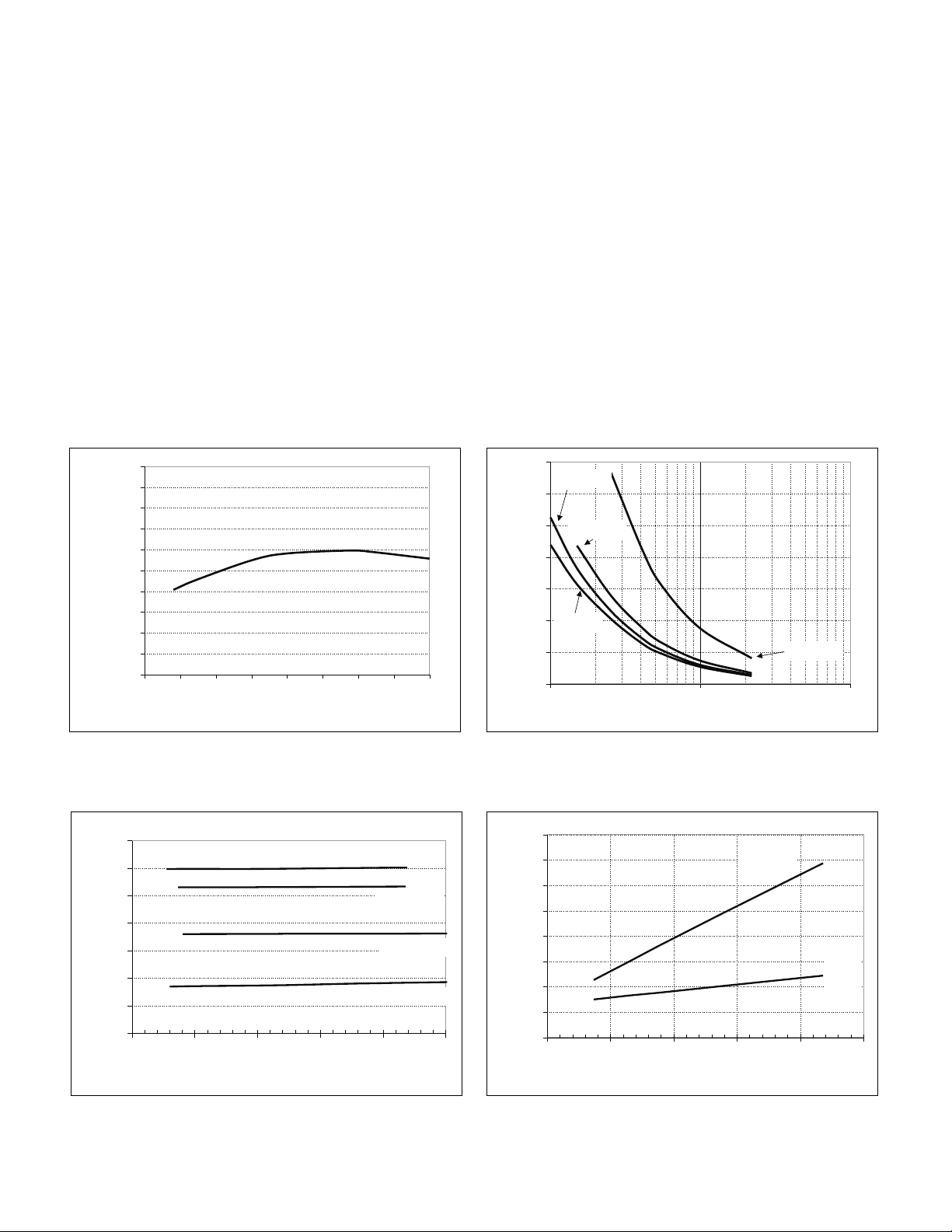

TYPICAL CHARACTERISTIC CURVES

4.10

4.08

4.06

4.04

4.02

4.00

3.98

VREF [V]

3.96

3.94

3.92

3.90

-75 -50 -25 0 25 50 75 100 125

TEMPERATURE [°C]

Figure 5. Reference voltage vs. temperature.

The transformer was designed with a standard Magnetics

­RM8 ferrite core using P material, gapped for an A
1600mH/1000Turn

2

. The primary consists of 44 turns,
while the 5V secondary has 10 turns and the bootstrap
winding 18 turns. For simplicity, all the windings can be
#28 AWG.A two section bobbin was used to provide high
primary to secondary isolation. A much smaller design,
with reduced isolation, could have been done for this low
power level.

140

470k/47k

120
100

FREQUENCY [kHz]

680k/12k

80
60
40

1M/10k

20

0

100 1000 10000

CT [pF]

220k/10k

Figure 6. Frequency vs. CT vs. RT1 and RT2.

L of

100

90

1M/10K

80

680K/12K

70

220K/10K

470K/47K

DUTY CYCLE [%]

60
50
40
30

0 20406080100

FREQUENCY [kHz]

Figure 7. Duty cycle vs. frequency vs. RT1 / RT2.

1600
1400
1200
1000

[uA]

800

DD

I

600
400
200

0

0 20 40 60 80 100

FREQUENCY [kHz]

1nF LOAD

Figure 8. IDDvs. frequency RT1 = 680k, RT2 = 12k.

7

NO
LOAD

TYPICAL CHARACTERISTIC CURVES (cont.)

40
35
30
25
20
15

ISOFT START [uA]

10

5
0

200 400 600 800 1000 1200

RT1 [kW]

Figure 9. Soft start current vs. RT1.

UCC1581
UCC2581
UCC3581

UNITRODE CORPORATION
7 CONTINENTAL BLVD.• MERRIMACK, NH 03054
TEL. [phone] FAX [phone]

8

PACKAGE OPTION ADDENDUM

www.ti.com

27-Feb-2008

PACKAGING INFORMATION

Orderable Device Status

(1)

Package

Type

Package
Drawing

Pins Package

Qty

Eco Plan

UCC2581D ACTIVE SOIC D 14 50 Green (RoHS &

no Sb/Br)

UCC2581DG4 ACTIVE SOIC D 14 50 Green (RoHS &

no Sb/Br)

UCC2581DTR ACTIVE SOIC D 14 2500 Green (RoHS &

no Sb/Br)

UCC2581DTRG4 ACTIVE SOIC D 14 2500 Green (RoHS &

no Sb/Br)

UCC2581J OBSOLETE UTR TBD Call TI Call TI
UCC2581Q OBSOLETE UTR TBD Call TI Call TI
UCC3581D ACTIVE SOIC D 14 50 Green (RoHS &

no Sb/Br)

UCC3581DG4 ACTIVE SOIC D 14 50 Green (RoHS &

no Sb/Br)

UCC3581DTR ACTIVE SOIC D 14 2500 Green (RoHS &

no Sb/Br)

UCC3581DTRG4 ACTIVE SOIC D 14 2500 Green (RoHS &

no Sb/Br)

UCC3581N ACTIVE PDIP N 14 25 Green (RoHS &

no Sb/Br)

UCC3581NG4 ACTIVE PDIP N 14 25 Green (RoHS &

no Sb/Br)

UCC3581Q OBSOLETE UTR TBD Call TI Call TI

(1)

The marketing status values are defined as follows:

ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in

a new design.

PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.

(2)

Lead/Ball Finish MSL Peak Temp

CU NIPDAU Level-2-260C-1 YEAR

CU NIPDAU Level-2-260C-1 YEAR

CU NIPDAU Level-2-260C-1 YEAR

CU NIPDAU Level-2-260C-1 YEAR

CU NIPDAU Level-2-260C-1 YEAR

CU NIPDAU Level-2-260C-1 YEAR

CU NIPDAU Level-2-260C-1 YEAR

CU NIPDAU Level-2-260C-1 YEAR

CU NIPDAU N / A for Pkg Type

CU NIPDAU N / A for Pkg Type

(3)

(2)

Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check

http://www.ti.com/productcontent for the latest availability information and additional product content details.

TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements

for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered
at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and
package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS
compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame
retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material)

(3)

MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder

temperature.

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is
provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the
accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take
reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on
incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited
information may not be available for release.

Addendum-Page 1

PACKAGE OPTION ADDENDUM

www.ti.com

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI
to Customer on an annual basis.

27-Feb-2008

Addendum-Page 2

PACKAGE MATERIALS INFORMATION

www.ti.com

TAPE AND REEL INFORMATION

11-Mar-2008

*All dimensions are nominal

Device Package

Type

UCC2581DTR SOIC D 14 2500 330.0 16.4 6.5 9.0 2.1 8.0 16.0 Q1
UCC3581DTR SOIC D 14 2500 330.0 16.4 6.5 9.0 2.1 8.0 16.0 Q1

Package
Drawing

Pins SPQ Reel

Diameter

(mm)

Reel

Width

W1 (mm)

A0 (mm) B0 (mm) K0 (mm) P1

(mm)W(mm)

Pin1

Quadrant

Pack Materials-Page 1

PACKAGE MATERIALS INFORMATION

www.ti.com

11-Mar-2008

*All dimensions are nominal

Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)

UCC2581DTR SOIC D 14 2500 346.0 346.0 33.0
UCC3581DTR SOIC D 14 2500 346.0 346.0 33.0

Pack Materials-Page 2

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements,
and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should
obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are
sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard
warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where
mandated by government requirements, testing of all parameters of each product is not necessarily performed.

TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and
applications using TI components. To minimize the risks associated with customer products and applications, customers should provide
adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right,
or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a
warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual
property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied
by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive
business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional
restrictions.

Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all
express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not
responsible or liable for any such statements.

TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably
be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing
such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products
and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be
provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in
such safety-critical applications.

TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are
specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military
specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at
the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.

TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are
designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated
products in automotive applications, TI will not be responsible for any failure to meet such requirements.

Following are URLs where you can obtain information on other Texas Instruments products and application solutions:

Products Applications

Amplifiers amplifier.ti.com Audio www.ti.com/audio
Data Converters dataconverter.ti.com Automotive www.ti.com/automotive
DSP dsp.ti.com Broadband www.ti.com/broadband
Clocks and Timers www.ti.com/clocks Digital Control www.ti.com/digitalcontrol
Interface interface.ti.com Medical www.ti.com/medical
Logic logic.ti.com Military www.ti.com/military
Power Mgmt power.ti.com Optical Networking www.ti.com/opticalnetwork
Microcontrollers microcontroller.ti.com Security www.ti.com/security
RFID www.ti-rfid.com Telephony www.ti.com/telephony
RF/IF and ZigBee® Solutions www.ti.com/lprf Video & Imaging www.ti.com/video

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Copyright © 2008, Texas Instruments Incorporated

Wireless www.ti.com/wireless
