UNI-T Uti80 User Manual

P/N:110401106660X

Thermal Imager

User Manual

User Manual

Thank you for choosing this brand new Uni-Trend instrument. In order to use this instrument safely and correctly,
please read this manual thoroughly, especially the Safety part.Instructions
After reading this manual, it is recommended to keep the manual at an easily accessible place, preferably close
to the device, for future reference.

Uni-Trend Technology (China) Limited will guarantee that the product is free from any defect in material and
workmanship within one year since the purchase date. This warranty does not apply to the damage caused by
accident, negligence, misuse, modification, contamination and improper handling.
The dealer shall not be entitled to give any other warranty on behalf of Uni-Trend.
If you need warranty service within the warranty period, please contact to your nearest authorized service center
to obtain return authorization information, and then post the product to the service center with the question
description enclosed. This warranty is the only compensation you can obtain. Meanwhile, Uni-T rend will not be
responsible for any special incidental for indirect damage or loss that is caused by any reason or speculation.
As some areas or countries do not allow to imply guarantees and collateral or limit incidental or subsequent
damage, above limitation of liability and stipulation may not be applicable to you

LIMITED WARRANTY AND LIABILITY

DEAR USERS

Table of Contents

1.Technical Specification-------------------------------------------------------------------------------------------------------------- 1

2.Structure Description---------------------------------------------------------------------------------------------------------------- 3

3.Display---------------------------------------------------------------------------------------------------------------------------------- 4

4.Power On/Off-------------------------------------------------------------------------------------------------------------------------- 5

5.Menu Introduction-------------------------------------------------------------------------------------------------------------------- 5

6.Image Blending----------------------------------------------------------------------------------------------------------------------- 7

7.Photograph Taking------------------------------------------------------------------------------------------------------------------- 7

8.Temperature Display---------------------------------------------------------------------------------------------------------------- 7

9.Temperature of Center Point Position and Heat/Cold detection---------------------------------------------------------- 8

10.Color palette-------------------------------------------------------------------------------------------------------------------------- 9

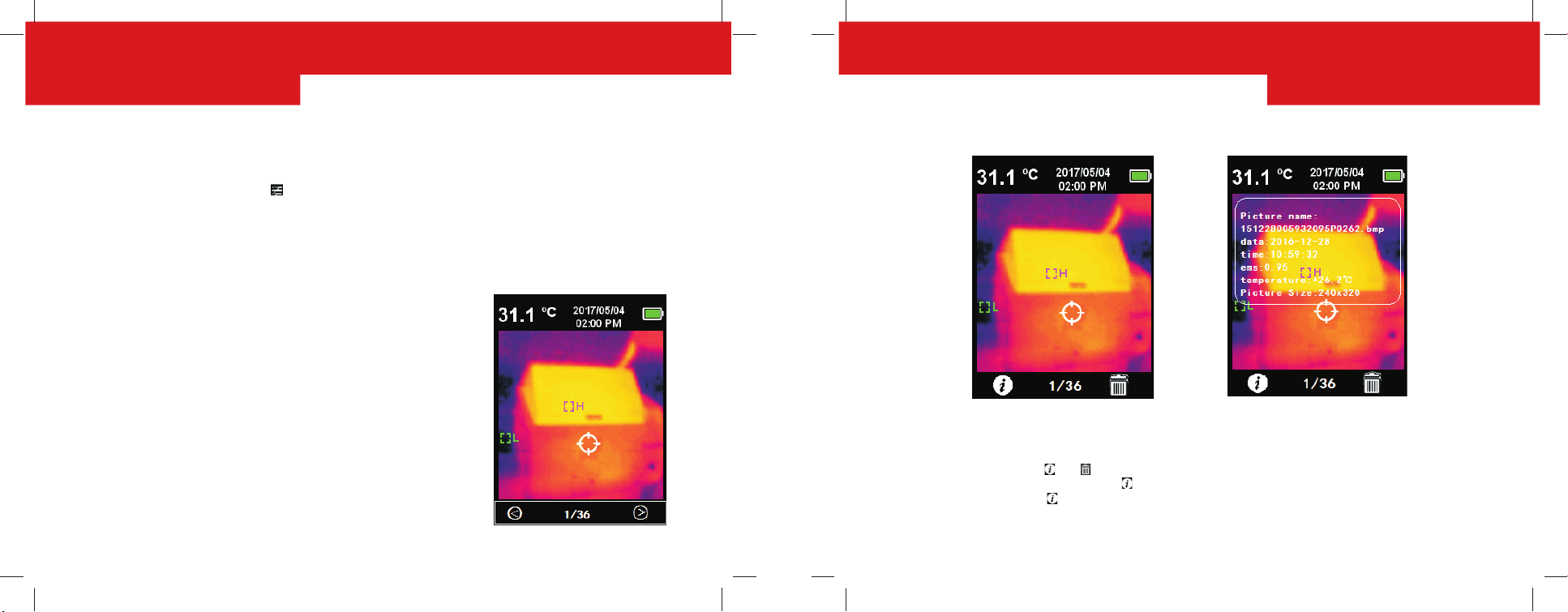

11.Photograph Playback-------------------------------------------------------------------------------------------------------------- 9

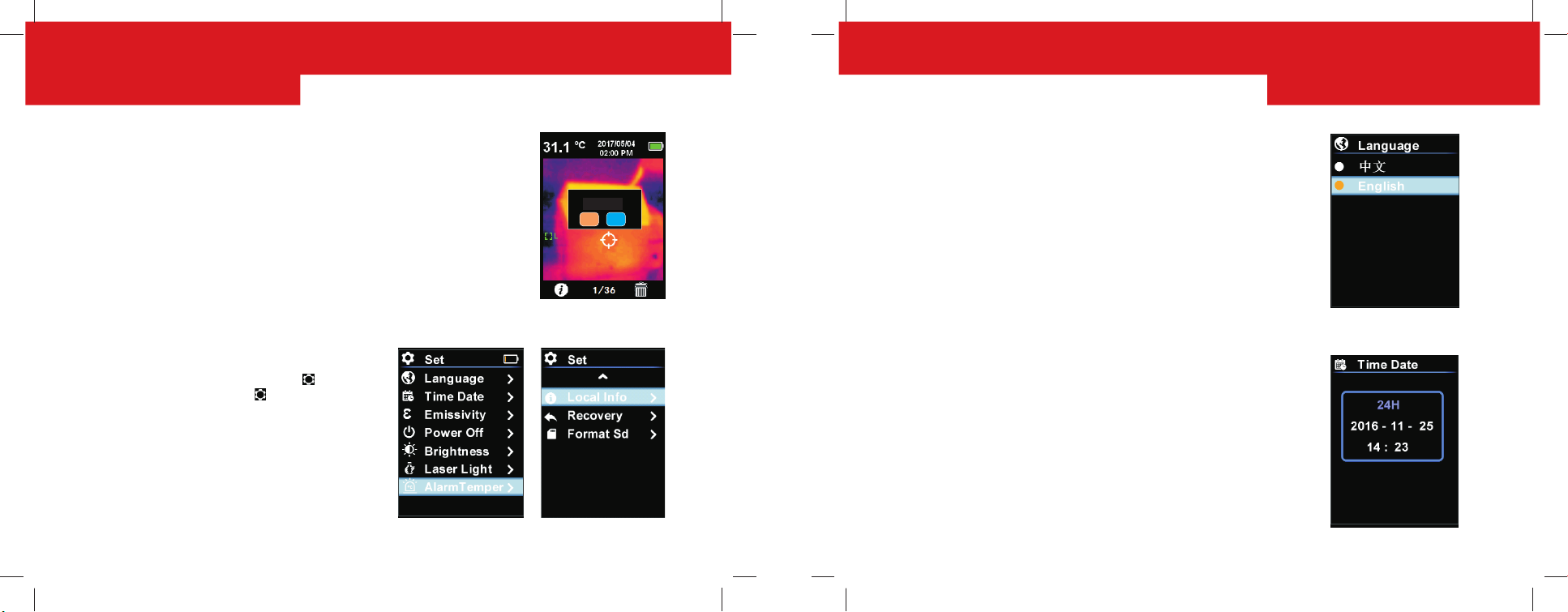

12.Setup--------------------------------------------------------------------------------------------------------------------------------- 11

13.Language Setting----------------------------------------------------------------------------------------------------------------- 12

14.Date and Time--------------------------------------------------------------------------------------------------------------------- 12

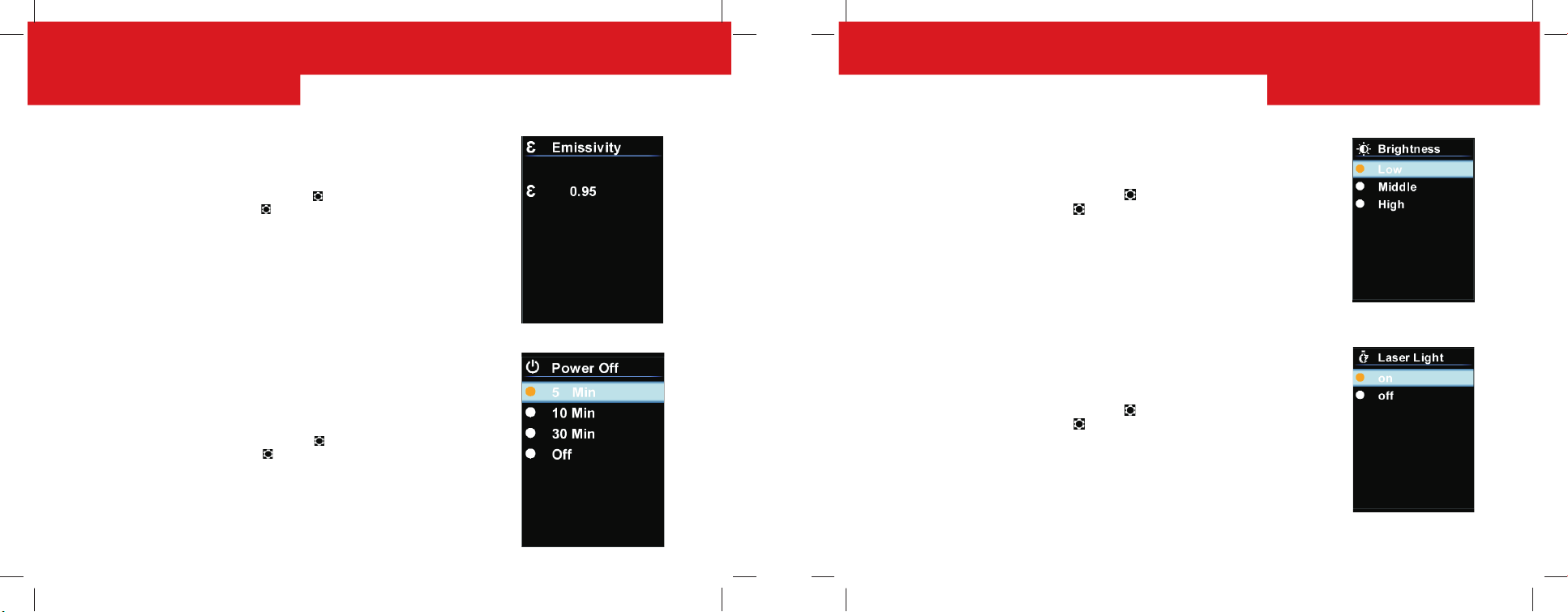

15.Emissivity--------------------------------------------------------------------------------------------------------------------------- 13

16.Auto Power Off-------------------------------------------------------------------------------------------------------------------- 13

17.Display Brightness---------------------------------------------------------------------------------------------------------------- 14

18.Laser Setting----------------------------------------------------------------------------------------------------------------------- 14

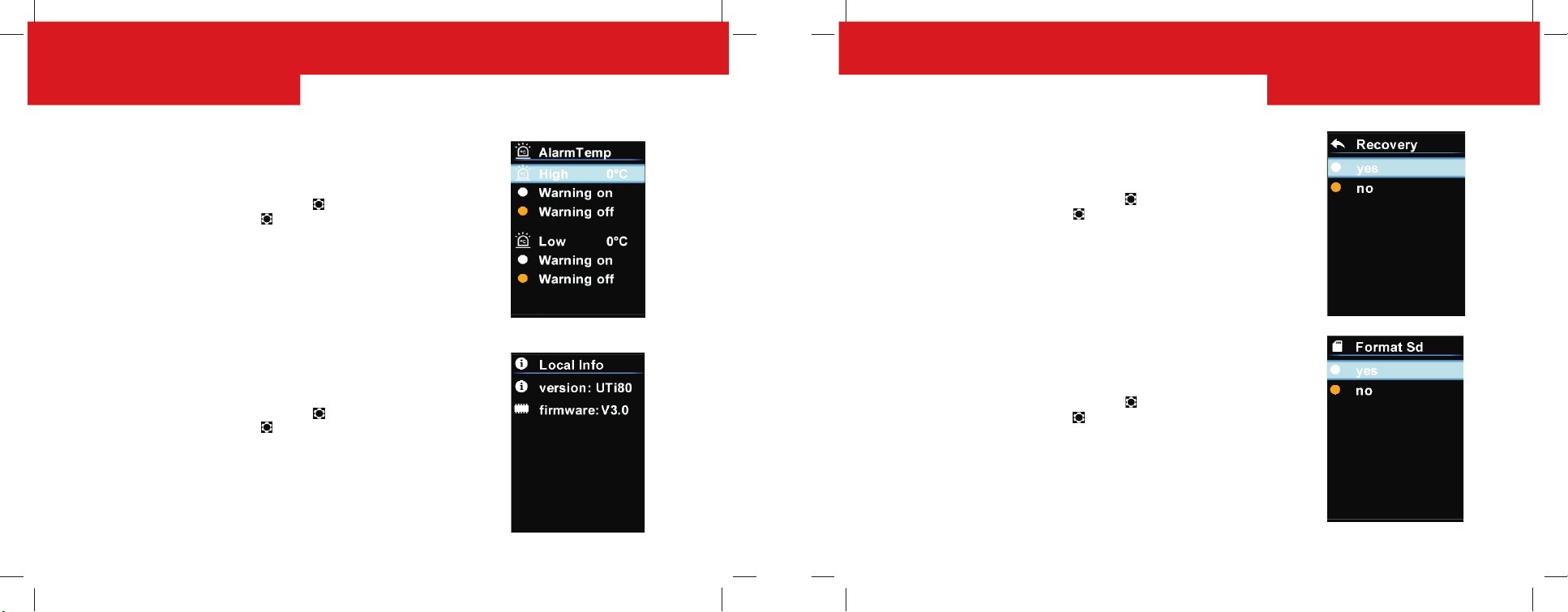

19.High/Low Temperature Alert Setting----------------------------------------------------------------------------------------- 15

20.Device Information---------------------------------------------------------------------------------------------------------------- 15

21.Restore Setting-------------------------------------------------------------------------------------------------------------------- 16

22.Format SD Card------------------------------------------------------------------------------------------------------------------- 16

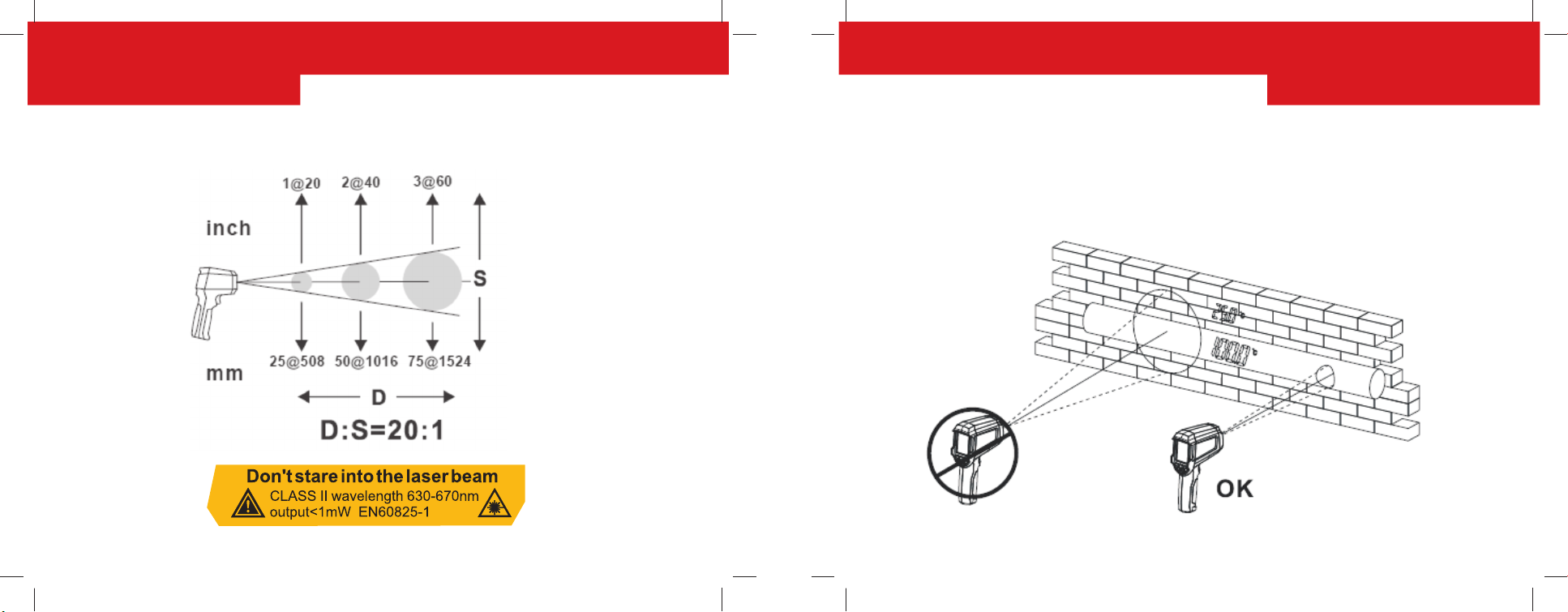

23. D:S(Distance to Spot ratio)----------------------------------------------------------------------------------------------------- 17

24. View field----------------------------------------------------------------------------------------------------------------------------18

25. Maintenance----------------------------------------------------------------------------------------------------------------------- 19

26. Safety Instructions--------------------------------------------------------------------------------------------------------------- 19

User Manual User Manual

1.Technical Specification

UT i80 Technical Specification

Infrared temperature measurement

Temperature range

Basic accuracy

Emissivity

D:S (Distance to Spot ratio)

Measurement resolution

Response time

Thermal imaging technology

IR resolution

Pixel size

Display mode

Color palette

Image blending setting

Optimized image distanceblending

Spectral range

Field of view (FOV)

- ℃(30 400

-30 0 : ±3
0

100℃: ±2℃(33.8 212℉:±3.6℉)

100
Nominal temperature and humidity 23±2℃(73.4 , 50-75% RH

0.95 (default, 0.1-0.99 adjustment)manual

20:1

0.1 (0.18℉)℃

250ms

4800 pixels (80*60)

17µm

Thermal imaging, image blending, digital camera

, rainbow, gray scaleIronbow

0% (full thermal imaging), 25%, 50%, 100% (all visible light )

≧1m

8~14µm

50° horizontal

-22 752℉)
(-22 32℉:±5.4℉)

℃ ℃

400℃: ±2%(213.8 752℉:±2%)

±3.6℉)

Thermal imaging sensitivity

Frame rate
Save image format
General parameters

Visual camera
Equipment size (length * width * height)
Display type
Display resolution

Laser indication
Battery

Auto Power Off
Battery life
Charge time

Certification
Storage temperature
Working temperature
Temperature coefficient
Drop test
Standard accessory

Altitude

150mk

≦9Hz

BMP (320x240)

2 MP
205mm *124mm * 65mm

2.4”TFT LCD
320*240 pixels

Dual laser

3.7V/2600mAh
Yes
Approx. 6 hours
Approx. 7 hours

CE

-20~50 ( 4 122℃ - ℉)~

0 45 32 113~ ( ~℃ ℉)

± ℃ ℃ ± ℃0.1 / or 0.1%/ (any of the larger ones)(±0.18℉/℉) (±0.1%/℉)
1 meter (3.28 feet)

User manual, USB cable, 8GB Micro SD card

No more than 2000 meters

1 2

User Manual User Manual

2.Structure Description

Description Description

Item Item

Micro SD card slot

USB interface

Visible lightcamera

Thermal camera

LCD

Laser

Infrared lens

Trigger

Menu-OK button

Description

Item

Left arrow button

Power button

Right arrow button

Back button

3.Display

Screen size: 2.4” (49.5mm x 37.7mm)
Display resolution: 320 (vertical) x 240 (horizontal) pixels

Description

Item

Measure temperature

Date & clock

Battery status

Description

Item

Thermal & Visible Light image display area

”Setting” option

”Photograph playback “option

Description

Item

”Color palette” option

”Cursor” option

"Temperature" option

3 4
