INTRODUCTION

Thank you for purchasing the BébéSounds® Ear Thermometer. This thermometer will enable you to take an accurate temperature in just one second.

The ear thermometer is a delicate electronic device designed to measure body temperature. This thermometer provides you with accurate and reliable temperature readings by detecting infrared heat from the eardrum. The eardrum reflects the body’s temperature because it shares blood vessels with the part of the brain that controls body temperature.

Temperature readings from an ear thermometer are considered to be as accurate as those taken orally. Please keep in mind that body temperature will differ based on a person’s age and the time of day when it is taken. Temperature will also vary from ear to ear. Therefore, for best results, temperature should be taken from the same ear whenever possible.

Use of this ear thermometer should not replace a visit to your doctor. It is recommended that you advise your doctor any time a temperature is above 100°F/37.8°C.

2

3

KEY FEATURES

No probe cover needed

Probe can be wiped clean with water or alcohol

Each temperature reading takes only 1 second

A second temperature reading can be taken after just 5 seconds

512 temperature scanning sequences per second ensure reliable accuracy

Ergonomic design makes the thermometer comfortable and easy to use

Stores and recalls last 10 readings

Small and lightweight design makes it ideal for home use and traveling

Powers off automatically after one minute of non-use to ensure a long battery life for at least 5,000 measurements

Easy to read LCD display

Temperature shown in Fahrenheit (F) or Celsius (C)

The Ear Thermometer is a Personal Care Product and cannot be returned to the retailer. All exchange and refund requests should be directed to the BébéSounds® Help Desk

at 1-888-232-6476

Mon-Fri from 9:00AM – 5:00PM EST

4

BATTERY INSTALLATION

(See diagram below)

1. Replace the battery when the “low battery” warning symbol appears.

2.Slide the battery compartment lid off.

3.Insert one 3-volt CR-2032 lithium battery with the anode (+) facing up.

4.Replace the battery compartment lid by sliding it forward.

5

INSTRUCTIONS FOR USE

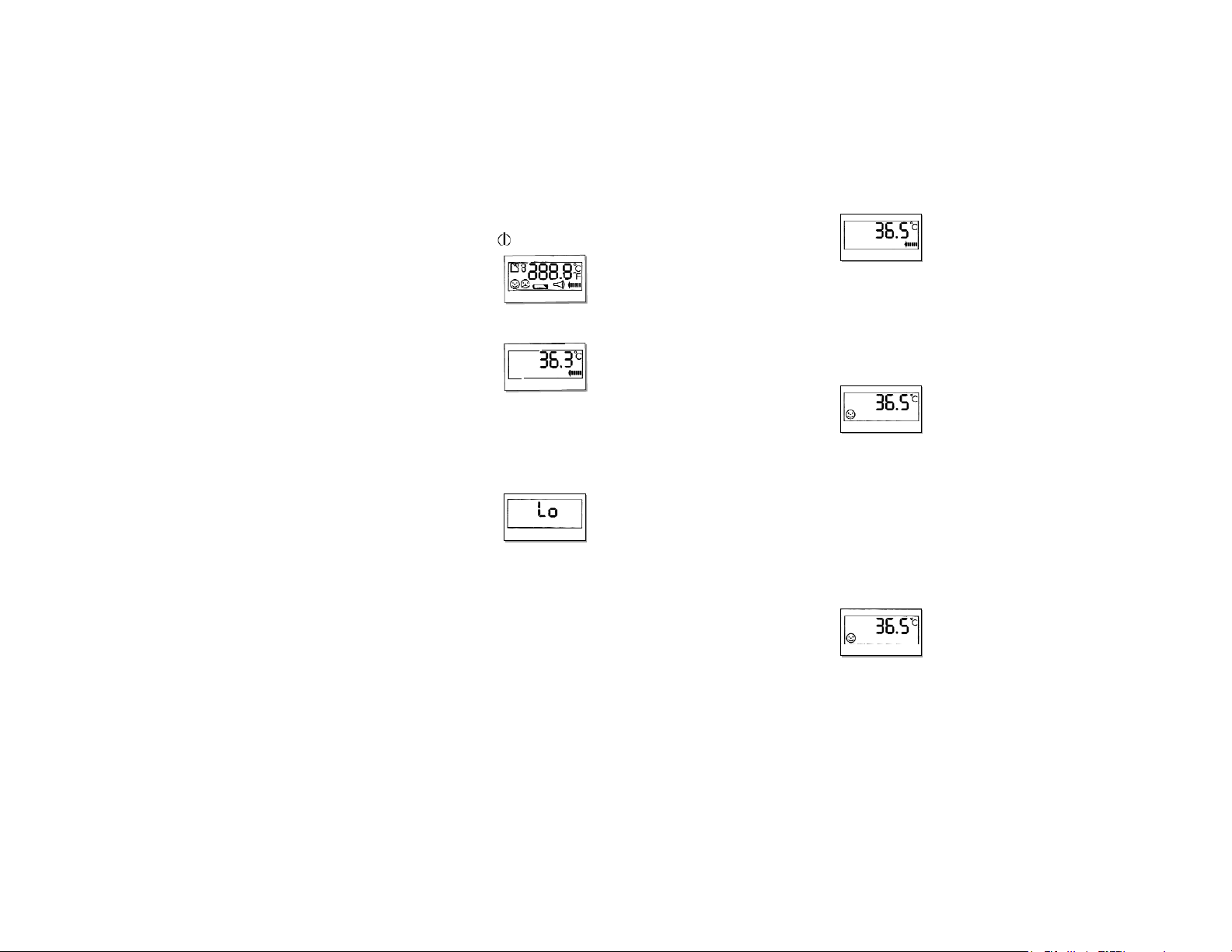

1. Press and realease the



POWER/SCAN button



and the system will start



its self-testing cycle



Figure 1

(See Fig. 1).



2. Once the self-testing is



completed, the display



will show the last temper-

Figure 2



ature recorded. (See Fig.



2). This indicates that the



thermometer is ready for



you to use.



3.Press the POWER/SCAN button without releasing

it so it will perform the

Figure 3



automatic scanning





sequences. The word Lo



may appear indicating



the temperature



registering is lower than



93.2°F/34°C (See Fig. 3).



4.Keeping the POWER/SCAN button depressed, insert the probe into the ear canal. The probe must be inserted well

6

into the ear to allow the



probe tip to continuously



scan the ear canal. This



will ensure an accurate

Figure 4





temperature measurement



(See Fig. 4). After one



second release the



POWER/SCAN button



for a temperature reading.



5. A beep will indicate the





end of the temperature



measurement. (See Fig. 5).

Figure 5







Remove thermometer from



ear canal and view the



temperature.



6.To change the reading from Celsius to Fahrenheit, press the POWER/SCAN button without releasing it and then press the MEM button.

7.A smiling face will

appear in the display to

indicate a temperature Figure 6 lower than 100.4°F/38°C

7

Figure 7
Figure 8
Figure 9

while a frowning face accompanied by one long and two short beeps will indicate a temperature higher than 100.4°F/38°C

(See Figs. 6 & 7).

8.The thermometer’s temperature range is

between 93.2°- 109.4°F and 34°- 43°C. A Lo

reading appears when the temperature measured

is lower than 93.2°F/34°C, while a Hi reading appears when the temperature measured is higher than 109.4°F/43°C (See Figs. 8 & 9).

9.If the ambient temperature is outside the thermome-

ter’s range (see Technical









Figure 10













Specifications), “Err” will





appear in the display





(see Fig. 10).





10. The Ear Thermometer

















stores and recalls the last









10 temperature readings.





Figure 11











To recall prior readings





simply press the MEM button. The memory symbol (top left corner), the number of the reading and the temperature reading will appear on the display (See Fig. 11).

11.To get the most precise temperature reading wait five seconds before taking a temperature again.

12.The temperature will vary between both ears so try to take the temperature from the same ear each time.

The Ear Thermometer is a Personal Care Product and cannot be returned to the retailer. All exchange and refund requests should be directed to the BébéSounds® Help Desk

at 1-888-232-6476

Mon-Fri from 9:00AM – 5:00PM EST

8

9

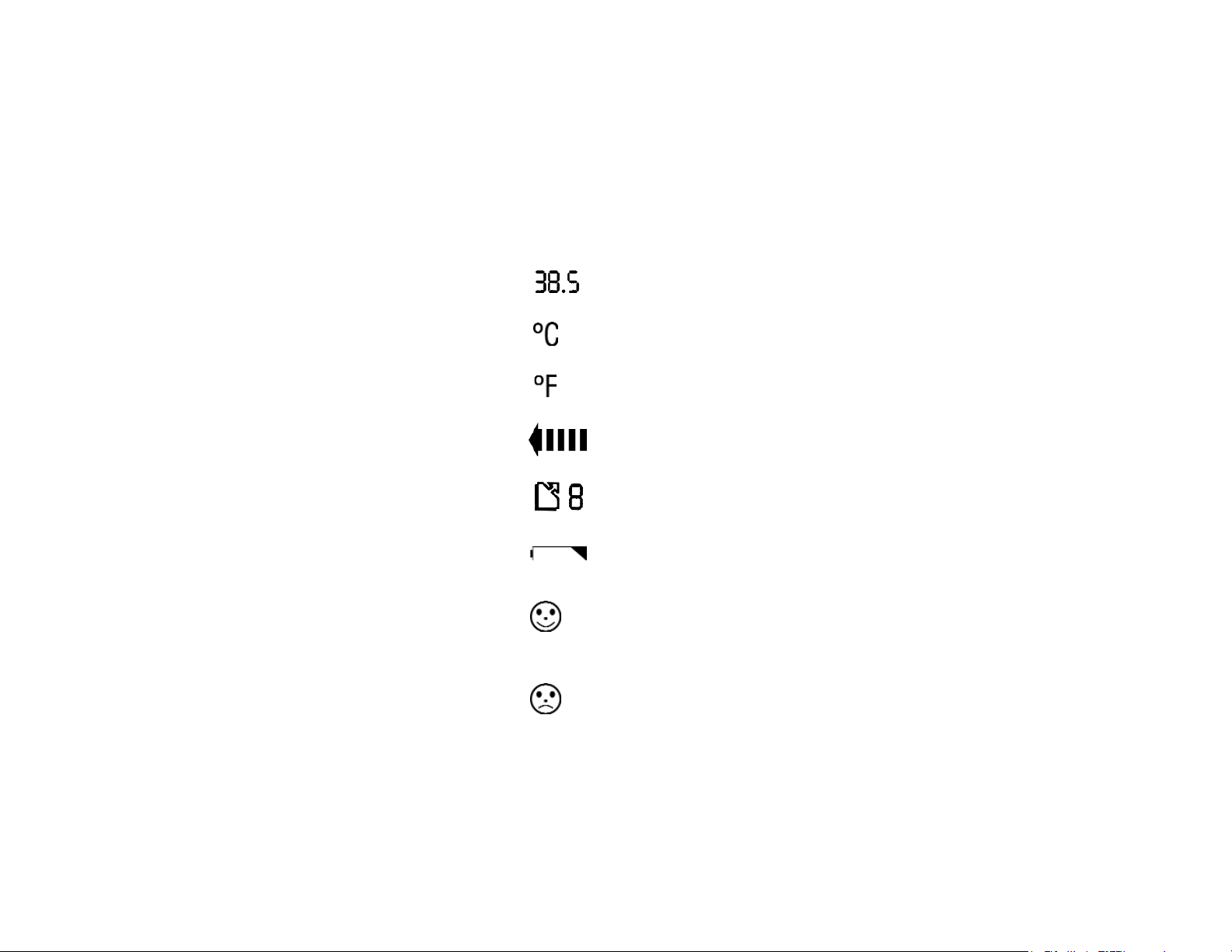

UNDERSTANDING THE

SYMBOLS

Degrees of temperature

Celsius

Fahrenheit

Temperature is being scanned

Memory symbol and number of the recorded reading

Low battery warning

Smiling face indicating temperature lower than 100.4°F/38°C

Frowning face indicating temperature higher than 100.4°F/38°C

10

CARE AND CLEANING

1.The ear thermometer is a delicate electronic device. Although the probe is waterproof, the body of the thermometer is not. Therefore, to ensure proper functioning, avoid direct contact of the body of the thermometer with water or other liquids.

2.Clean the probe with a soft cloth moistened with either water or alcohol. Clean the body of the thermometer with a soft dry cloth. Never use an abrasive.

3.Avoid touching the probe with your fingers.

4.Do not expose the thermometer to direct sunlight.

5.Keep out of the reach of children and in the storage case when not in use.

The optimal storage temperature is between 4°~122°F/-20°~50°C.

6.The ear thermometer is designed for taking temperatures from the ear canal only. Do not use it to take rectal, oral, or armpit temperatures.

7.Do not disassemble the thermometer.

11

NOTE: According to extensive clinical examinations, the temperature readings given by an ear thermometer are equivalent to those given by its oral counterparts.

Use of this ear thermometer should not replace a visit to your doctor.

TROUBLESHOOTING

1.Consistent low temperature readings

a.The probe is not positioned properly in the ear canal. The tip of the probe must be snug and fully seated against the opening of the ear canal. Failure to properly position the probe may lead to a low temperature reading.

b.The waterproof lens is dirty. Clean the lens with a soft cloth moistened with water or alcohol.

2.The measurement is out of the range of the ear thermometer

a.Switch the ear thermometer on before positioning it in the ear. Please properly position the ear thermometer in the ear canal and then repeat the measurement.

3.Low battery warning

a.Battery needs to be replaced.

See Battery Installation section of the manual.

NOTE: If you believe your thermometer is defective or otherwise not operating properly, please check the battery first. If the thermometer is still not operating properly or if you are having any other technical problems, please contact:

Unisar Inc.

15 West 36th Street

New York, NY 10018

1-888-232-6476

TECHNICAL SPECIFICATIONS

For household use only

Temperature readings are to the nearest 0.1°F or °C

Temperature measurement range: 93.2° ~ 109.4°F/34°C ~ 43°C

Ambient operating environment:

60.8~ 104°F (16° ~ 40°C)

Ambient storage environment: -4° ~ 122°F/-20° ~ 50°C

Laboratory accuracy against an infrared reference source:

95°~102.2°F/35° ~ 39°C: +/- 0.4°F/0.2°C less than 96.8°F/36°C: +/- 0.5°F/0.3°C greater than 102.2°F/39°C: +/-0.5°F/0.3°C

Requires one 3-volt CR-2032 battery (included)

Equipment is not category AP/APG

12

13

APPLIED STANDARDS AND APPROVALS

FDA approved. For home use only.

This product conforms to the provisions of the EC directive MDD(93/42/EEC).

The following standards apply to design and/or manufacturing of the products:

ASTM E 1965-98: Standard Specification for infrared thermometers for intermittent determination of patient temperature.

EN 980:1997: Graphical symbol for use in the labeling of medical devices.

EN 60601-1: Medical electrical equipment – Part 1: General requirement for safety.

EN60601-1-2: Medical electrical equipment – Part 2: Collateral standard: Electromagnetic compatibility – Requirements and tests.

LIMITED PRODUCTWARRANTY

The BébéSounds® Ear Thermometer, distributed by Unisar Inc., has a limited warranty against defects for a period of three years from the original purchase date. Battery life or damage due to misuse or abuse are excluded from this warranty.

In-Warranty Procedure

In the event service is required due to defect or malfunction during the warranty period, Unisar Inc. will replace or repair the product under warranty. The repair or replacement of the defective item will be free of charge. Repair or replacement of the defective item is subject to verification of the malfunction or defect when delivered to:

Unisar® Service Center 15 West 36th Street

New York, NY 10018 USA

Please enclose dated proof of purchase with your return.

14

15

The Ear Thermometer is a Personal Care Product and cannot be returned to the retailer. All exchange and refund requests should be directed to the BébéSounds® Help Desk

at 1-888-232-6476

Mon-Fri from 9:00AM – 5:00PM EST

Unisar Inc.

15 West 36th Street

New York, NY 10018

1-800-233-1196

visit us at www.bebesounds.com
