Unimac UX75PVQU7-Extractor Parts Diagram

Washer-Extractor

CFD8C_9001005

Cabinet Freestanding

Refer to Page 5 for Model Numbers

Parts

www.alliancelaundry.com

Part No. 9001005R26

August 2017

Model Identification

Information in this manual is applicable to these washer-extractor models:

HX055PVNU7 HX055PVQU7 HX055PVXU7 HX075PVNU7 HX075PVPU7 HX075PVQU7 HX55PVNU6 HX55PVNU7 HX55PVQU6 HX55PVQU7 HX55PVXU6 HX55PVXU7 HX75PVNU6 HX75PVNU7 HX75PVPU7 HX75PVQU6 HX75PVQU7

SX055PVNU7 SX055PVPU7 SX055PVQU7 SX055PVXU7 SX075PVNU7 SX075PVPU7 SX075PVQU7 SX55PVNU6 SX55PVNU7 SX55PVPU6 SX55PVPU7 SX55PVQU6 SX55PVQU7 SX55PVXU6 SX55PVXU7 SX75PVNU6 SX75PVNU7 SX75PVPU7 SX75PVQU6 SX75PVQU7

UX055PVNU7 UX055PVPU7 UX055PVQU7 UX055PVXF7 UX055PVXU7 UX075PVNU7 UX075PVPU7 UX075PVQU7 UX55PVNU6 UX55PVNU7 UX55PVPU6 UX55PVPU7 UX55PVQU6 UX55PVQU7 UX55PVXF6 UX55PVXF7 UX55PVXU6 UX55PVXU7 UX75PVNU6 UX75PVNU7 UX75PVPU6 UX75PVPU7 UX75PVQU6 UX75PVQU7

9001005 5

Cabinet Freestanding Washer-Extractor Product Overview

CFD266P_9001005

WASH

ADD

BLEACH

RINSE

SPIN

DOOR

NORMAL

QUICK AS QUICK WASH

HEAVY SOIL

DELICATE

RM RESS

PERM PRESS

HOT

WARM

HOT

WARM

COLD

WARM

COLD

START

PE P

WH

B Computer (Domestic)

60C 60C

40C 40C

95C 95C

<

30C

B Computer (International)

WE-8 Micro

X55PVXM60001

12

55

25

50 60

15

2/3+PE 1/3

1000

*

6 9001005

Cabinet Freestanding Washer-Extractor Product Overview

REF PART NO. DESCRIPTION COMMENTS

1 -Product Family HX

NX SX UX

2 - Capacity (Pounds) 18

25 30 35 55 or 055 75 or 075 100 135 165

3 - Control B (B Computer)

P (WE-8 Micro)

4 - Speed V (Variable)

5 - Voltage N (440-480/50-60/3/3)

P (380-415/50-60/3/3) Q (200-240/50-60/3/3) X (200-240/50-60/1/3)

6 - OEM A

F M U

7 - Design 6 and 7

9001005 7

Frame - 55 Pound Models

CFD110P_9001005

8 9001005

Frame - 55 Pound Models

REF PART NO. DESCRIPTION COMMENTS

1 B12616001 Tub Support

2 114/00019/50 Frame

3 114/00024/00 Shipping Brace

9001005 9

Frame - 75 Pound Models

CFD111P_9001005

10 9001005

Frame - 75 Pound Models

REF PART NO. DESCRIPTION COMMENTS

1 115/00118/00 Tub Support

2 114/00018/50 Frame

3 114/00023/00 Shipping Brace

9001005 11

Shock and Spring Assembly - 55 Pound Models Through 6/20/11

CFD273P_9001005

and 75 Pound Models Through 11/13/11

12 9001005

Shock and Spring Assembly - 55 Pound Models Through 6/20/11

and 75 Pound Models Through 11/13/11

REF PART NO. DESCRIPTION COMMENTS

NA B12419101 Shock Absorber Service Kit 55 pound models; Used to convert to the dual shock

absorber configuration

NA B12460901 Shock Absorber Service Kit 75 pound models; Used to convert to the dual shock

absorber configuration

1 206/00153/00 Bolt

2 204/00012/00 Nut

3 201/00023/00 Washer

4 247/00008/00 Shock Absorber Includes 2 of item 5

5 211/00137/10 Shock Absorber Bushing

6 204/00113/00 Nut

7 B12456301 Suspension Spring 55 pound models

7 B12440101 Suspension Spring 75 pound models

8 204/00016/00 Nut

9 224/00046/00 Bolt

10 204/00019/00 Nut

9001005 13

Shock and Spring Assembly - 55 Pound Models Starting 6/21/11

CFD486P_9001005

14 9001005

Shock and Spring Assembly - 55 Pound Models Starting 6/21/11

REF PART NO. DESCRIPTION COMMENTS

NA B12419101 Shock Absorber Service Kit Includes items 1-6, 8, 9, 206/00119/00 Bolt,

204/00110/00 Nut, 111/10101/00 Dispenser Front Mounting Plate, 111/10102/00 Dispenser Rear Mounting Plate, 206/00027/00 Bolt, 202/00004/00 Washer, 204/00114/00 Nut, B12419501 Small Caliber and B12419401 Large Caliber

1 204/00113/00 Nut

2 201/00001/00 Washer

3 247/00008/00 Shock Absorber

4 204/00012/00 Nut

5 B12418401 Support

6 201/00010/00 Washer

7 206/00087/00 Bolt

8 B12511601 Threaded Rod

9 206/00153/00 Bolt

10 204/00016/00 Nut

11 224/00046/00 Bolt

12 204/00019/00 Nut

13 B12456301 Suspension Spring

9001005 15

Shock and Spring Assembly - 75 Pound Models Starting 11/14/11

CFD486PA_9001005

16 9001005

Shock and Spring Assembly - 75 Pound Models Starting 11/14/11

REF PART NO. DESCRIPTION COMMENTS

NA B12460901 Shock Absorber Service Kit Includes items 1-6, 8-10, and 15, 206/00119/00 Bolt,

204/00110/00 Nut, B12459801 Out-of-Balance Frame, B12456101 Support Bracket, B12456201 Support Bracket, 206/00027/00 Bolt, 202/00004/00 Washer, 204/00114/00 Nut, B12463301 Small Caliber and B12463201 Large Caliber

1 204/00113/00 Nut

2 201/00001/00 Washer

3 247/00008/00 Shock Absorber

4 204/00012/00 Nut

5 B12455401 Support

6 201/00010/00 Washer

7 206/00087/00 Bolt

8 B12511601 Threaded Rod

9 206/00153/00 Bolt

10 B12455301 Support

11 204/00016/00 Nut

12 224/00046/00 Bolt

13 204/00019/00 Nut

14 B12456301 Suspension Spring

15 B12418401 Support

9001005 17

Shell, Basket and Front Panel - Design 6 Models

CFD79P_9001005

18 9001005

Shell, Basket and Front Panel - Design 6 Models

REF PART NO. DESCRIPTION COMMENTS

1 217/00008/00 Tub Front Panel Clip 2 204/00113/00 Nut 3 B12522101 Washer 4 115/00151/00 Spacer 5 246/00092/00 Gasket 6 206/00071/00 Bolt 7 201/00007/00 Washer 55 pound models

7 202/00105/00 Washer 75 pound models

8 208/00122/00 Screw 55 pound models

8 208/00123/00 Screw 75 pound models

9 229/00281/00 Door Handle Decal 10 9001096 Door Front Panel 55 pound models

10 111/32568/00 Door Front Panel 75 pound models

11 115/00140/00 Counterweight 55 pound models

11 115/00136/00 Counterweight 75 pound models

12 138/00001/00 Tub Front 55 pound models

12 131/00002/00 Front Panel 75 pound models

13 223/00242/40 Tub Front Panel Gasket 55 pound models

13 223/00242/50 Front Panel Gasket 75 pound models

14 204/00109/00 Nut 15 201/00010/00 Washer 16 206/00009/00 Bolt 17 115/00125/00 Tub Mount Rings Bracket 18 115/00162/00 Tub Tightening Ring 19 115/00161/00 Tub Front Mounting Strap 55 pound models

19 115/00163/00 Tub Tightening Ring 75 pound models

20 206/00111/00 Screw 21 204/00111/00 Nut 22 119/00213/11 Tub Model UX55PVXF6

22 B12330201 Tub All other 55 pound models; Standard 22 B12330101 Tub All other 55 pound models; Electric heat 22 B12330301 Tub All other 55 pound models; Electric and steam heat 22 B12330601 Tub 75 pound models; Standard 22 B12330501 Tub 75 pound models; Electric and steam heat 22 B12330701 Tub 75 pound models; Steam heat

23 137/00008/00 Tub Mounting Strap 55 pound models

23 131/00010/00 Tub Strap 75 pound models

24 238/00011/00 Tub Clamp Ring 55 pound models

24 231/00010/00 Tub Front Ring Clamp 75 pound models

25 B12327101 Cylinder and Shaft Assembly 55 pound models; Models through 1/30/11

25 B12543201 Basket Kit 55 pound models; Models through 1/30/11; Includes

B12380901 Basket and 3884P Bearing and Seal Kit

25 B12380901 Basket 55 pound models; Models starting 1/31/11; 3 mm 25 B12381001 Basket 55 pound models; Models starting 1/31/11; 9 mm 25 B12327301 Drum 75 pound models; Models starting Serial No.

10040300103

25 B12537901 Basket and Pulley Kit Models through Serial No. 10040300102; Includes

B12327301 Basket, 226/00150/00 Basket Pulley, 206/00056/00 Screw, 226/00152/00 Motor Pulley, 226/00151/00 Belt and 212/00026/00 Key

26 204/00009/00 Nut 27 201/00007/00 Washer 28 206/00032/00 Bolt 29 204/00111/00 Nut 30 206/00066/00 Bolt

9001005 19

Shell, Basket and Front Panel - Design 7 Models

CFD213P_9001005

20 9001005

Shell, Basket and Front Panel - Design 7 Models

REF PART NO. DESCRIPTION COMMENTS

1 217/00008/00 Tub Front Panel Clip

2 204/00113/00 Nut

3 201/00001/00 Washer

4 115/00151/00 Spacer

5 246/00092/00 Gasket

6 206/00071/00 Bolt

7 201/00007/00 Washer 55 pound models

7 202/00105/00 Washer 75 pound models

8 208/00122/00 Screw 55 pound models

8 208/00123/00 Screw 75 pound models

9 229/00281/00 Door Handle Decal 10 111/05015/00 Door Front Panel 11 115/00140/00 Counterweight 55 pound models

11 9001023 Counterweight 75 pound models

12 138/00001/00 Tub Front 55 pound models

12 131/00002/00 Front Panel 75 pound models

13 223/00242/40 Tub Front Panel Gasket 55 pound models

13 223/00242/50 Front Panel Gasket 75 pound models

14 204/00109/00 Nut 15 201/00010/00 Washer 16 206/00009/00 Bolt 17 115/00125/00 Tub Mount Rings Bracket 18 115/00162/00 Tub Tightening Ring 19 115/00161/00 Tub Front Mounting Strap 55 pound models

19 115/00163/00 Tub Tightening Ring 75 pound models

20 206/00111/00 Screw 21 204/00111/00 Nut 22 119/00213/11 Tub Models UX055PVXF7 and UX55PVXF7

22 B12330201 Tub All other 55 pound models; Standard 22 B12330101 Tub All other 55 pound models; Electric heat 22 B12330301 Tub All other 55 pound models; Electric and steam heat 22 B12330601 Tub 75 pound models; Standard 22 B12330501 Tub 75 pound models; Electric and steam heat 22 B12330701 Tub 75 pound models; Steam heat

23 137/00008/00 Tub Mounting Strap 55 pound models

23 131/00010/00 Tub Strap 75 pound models

24 238/00011/00 Tub Clamp Ring 55 pound models

24 231/00010/00 Tub Front Ring Clamp 75 pound models

25 B12327101 Cylinder and Shaft Assembly 55 pound models; Models through 1/30/11

25 B12543201 Basket Kit 55 pound models; Models through 1/30/11; Includes

B12380901 Basket and 3884P Bearing and Seal Kit

25 B12380901 Basket 55 pound models; Models starting 1/31/11; 3 mm 25 B12381001 Basket 55 pound models; Models starting 1/31/11; 9 mm 25 B12327301 Drum 75 pound models; Models starting Serial No.

10040300103

25 B12537901 Basket and Pulley Kit Models through Serial No. 10040300102; Includes

B12327301 Basket, 226/00150/00 Basket Pulley, 206/00056/00 Screw, 226/00152/00 Motor Pulley, 226/00151/00 Belt and 212/00026/00 Key

26 204/00009/00 Nut 27 201/00007/00 Washer 28 206/00032/00 Bolt 29 204/00111/00 Nut 30 206/00066/00 Bolt

9001005 21

Bearing Assembly - 55 Pound Models Through 1/30/11

CFD30P_9001005

22 9001005

Bearing Assembly - 55 Pound Models Through 1/30/11

REF PART NO. DESCRIPTION COMMENTS

NA 891P3 Bearing Replacement Kit Includes items 5, 6, 11, 12, 14, 219/00004/00 Counter

Ring and 223/00242/00 Tub Front Gasket

NA 385P4 Bearing Replacement Tool Kit

1 210/00074/00 Speed Detector

2 205/00104/00 Bolt

3 203/00004/00 Washer

4 224/00051/00 Caddy Bracket 4H58-4

4 224/00052/00 Caddy Bracket 4H912

5 201/00201/00 Washer

6 212/00004/00 Ball Bearing

7 212/00006/00 Retainer Ring

8 217/00002/00 O-Ring

9 219/00001/00 Seal Cover

10 219/00003/00 Shaft Seal

11 119/00001/01 Seal Holder Assembly

12 205/00102/00 Bolt

13 212/00037/00 Retainer Ring

14 F100134 Bearing

15 204/00113/00 Nut

16 201/00001/00 Washer

17 206/00158/00 Screw

18 139/10006/00 Bearing Housing Assembly Includes items 6-7 and 13-14

9001005 23

Bearing Assembly - 55 Pound Models Starting 1/31/11

CFD546P_9001005

24 9001005

Bearing Assembly - 55 Pound Models Starting 1/31/11

REF PART NO. DESCRIPTION COMMENTS

NA 3884P Bearing and Seal Kit Includes items 5, 6, 8-10, 12, 219/00004/00 Counter

Ring and 223/00242/40 Tub Front Panel Gasket

NA 381P3 Bearing Replacement Tool Kit

1 210/00074/00 Speed Detector

2 205/00104/00 Bolt

3 203/00004/00 Washer

4 224/00051/00 Caddy Bracket 4H58-4

4 224/00052/00 Caddy Bracket 4H912

5 201/00201/00 Washer

6 212/00004/00 Ball Bearing

7 212/00006/00 Retainer Ring

8 B12332301 Lip Seal

9 B12333701 Seal Plate Assembly

10 205/00102/00 Bolt

11 212/00037/00 Retainer Ring

12 F100134 Bearing

13 204/00113/00 Nut

14 201/00001/00 Washer

15 206/00158/00 Screw

16 139/10006/00 Bearing Housing Assembly Includes items 6, 7, 11 and 12

9001005 25

Bearing Assembly - 75 Pound Models

CFD45P_9001005

26 9001005

Bearing Assembly - 75 Pound Models

REF PART NO. DESCRIPTION COMMENTS

NA 892P3 Bearing Replacement Kit Includes 132/00009/00 Shaft Seal, 223/00242/00 Tub

Front Gasket, 232/00008/00 Counter Ring and items 6, 7, 10, 11, 13, 14 and 17

NA 385P4 Bearing Replacement Tool Kit

1 206/00158/00 Screw

2 201/00001/00 Washer

3 212/10036/01 Bearing Housing Assembly Includes items 13 and 17

4 204/00113/00 Nut

5 224/00051/00 Caddy Bracket 4H58-4

5 224/00052/00 Caddy Bracket 4H912

6 201/00202/00 Washer

7 205/00104/00 Bolt

8 131/00035/00 Seal Cover Plate

9 231/00036/00 O-Ring

10 131/00035/01 Seal Holder Assembly Includes items 6-9

11 212/00007/00 Grease Ring

12 212/00006/00 Retainer Ring

13 212/00005/00 Roller Bearing

14 212/00002/00 Lubricator FAG manufactured bearings

15 210/00075/00 Speed Detector

16 112/00004/00 Bearing Housing Cover

17 212/00004/00 Ball Bearing

18 203/00003/00 Washer

19 206/00010/00 Bolt

9001005 27

Basket, Pulley and Belt - 55 Pound Models

CFD37P_9001005

28 9001005

Basket, Pulley and Belt - 55 Pound Models

REF PART NO. DESCRIPTION COMMENTS

1 B12327101 Cylinder and Shaft Assembly Models through 1/30/11

1 B12543201 Basket Kit Models through 1/30/11; Includes B12380901 Basket

and 3884P Bearing and Seal Kit

1 B12380901 Basket Models starting 1/31/11; 3 mm

1 B12381001 Basket Models starting 1/31/11; 9 mm

2 212/00026/00 Key

3 219/00004/00 Counter Ring

4 239/00013/00 Pulley

5 967P3 Pulleys and Belt Kit Models through Serial No. 08010230051; Includes

185/00086/00 Pulley, 226/00148/00 Pulley and 226/00149/00P Belt; Converts V-belt to flat belt configuration

5 226/00148/00 Pulley Used with serpentine/poly-V belt

6 206/00130/00 Bolt 2 required

7 206/00004/00 Bolt

8 203/00001/00 Washer

9 201/00011/00 Washer

10 226/00102/01 Belt Models through 2008 with Serial No. 08010230051;

V-belt; 2 required

10 226/00149/00 Belt Models starting 2008 with Serial No. 08010230052;

Serpentine/poly-V; 1 required

9001005 29

Basket, Pulley and Belt - 75 Pound Models

CFD351P_9001005

30 9001005

Basket, Pulley and Belt - 75 Pound Models

REF PART NO. DESCRIPTION COMMENTS

1 B12537901 Basket and Pulley Kit Models through Serial No. 10040300102; Includes

B12327301 Basket, 226/00150/00 Basket Pulley, 206/00056/00 Screw, 226/00152/00 Motor Pulley, 226/00151/00 Belt and 212/00026/00 Key

1 B12327301 Drum Models starting Serial No. 10040300103

2 212/00026/00 Key Models starting Serial No. 10040300103

3 232/00008/00 Counter Ring

4 132/00009/00 Shaft Seal

5 212/00005/00 Roller Bearing

6 232/00020/00 Bearing Spacer

7 207/00110/00 Screw

8 212/00009/00 Pulley Models through 12/16/2007; Includes bushing

8 239/00014/00 Pulley Models starting 12/17/2007; Includes bushing

9 201/00011/00 Washer

10 203/00001/00 Washer

11 206/00004/00 Bolt

12 206/00056/00 Screw Models starting Serial No. 10040300103

13 226/00118/00 Belt 3 required; Models through Serial No. 10040300102

13 226/00151/00 Belt 1 required; Models starting Serial No. 10040300103

9001005 31

Motor - 55 Pound Models

CFD31P_9001005

32 9001005

Motor - 55 Pound Models

REF PART NO. DESCRIPTION COMMENTS

1 204/00019/00 Nut

2 115/10126/00 Motor Plate

3 B12511601 Threaded Rod

4 206/00006/00 Bolt

5 201/00004/00 Washer

6 206/00031/00 Screw

7 211/00138/00 Cordlock

8 967P3 Pulleys and Belt Kit Models through Serial No. 08010230051

8 185/00086/00 Pulley Models starting Serial No. 08010230052

9 B12510901 Motor

10 204/00111/00 Nut

11 206/00003/00 Bolt

12 111/00243/00 Intermediate Fan Motor Plate

13 209/00287/00 Cooling Fan

14 9001036 Bearing Retainer Ring

15 204/00115/00 Nut

16 204/00113/00 Nut

17 201/00002/00 Washer

18 206/00072/00 Bolt

9001005 33

Motor - 75 Pound Models

CFD352P_9001005

34 9001005

Motor - 75 Pound Models

REF PART NO. DESCRIPTION COMMENTS

1 206/00047/00 Bolt

2 204/00012/00 Nut

3 115/10117/00 Motor Plate

4 204/00113/00 Nut

5 201/00001/00 Washer

6 206/00072/00 Bolt

7 206/00006/00 Bolt

8 203/00002/00 Washer

9 201/00004/00 Washer

10 206/00056/00 Screw

11 211/00138/00 Cordlock

12 226/00117/00 Pulley Models through Serial No. 10040300102

12 226/00152/00 Pulley Models starting Serial No. 10040300103

13 B12510401 Motor

14 204/00111/00 Nut

15 206/00003/00 Bolt

16 209/00287/00 Cooling Fan

17 9001329 Screw

18 203/00006/00 Washer

19 204/00007/00 Nut

20 204/00114/00 Nut

9001005 35

Drain Assembly

CFD316P_9001005

Models UX055PVXF7, UX55PVXF6 and UX55PVXF7

36 9001005

Drain Assembly

REF PART NO. DESCRIPTION COMMENTS

NA 210/00905/00 Drain Valve Wiring Harness

1 119/00213/11 Tub

2 F200171 Supply Hose

3 223/00013/00 Hose Clamp

4 F0380632-00 Drain Valve

5 111/10312/00 Drain Valve Mounting Bracket

6 205/00107/00 Bolt

7 202/00101/00 Washer

8 204/00009/00 Nut

9 205/00105/00 Bolt

10 B12341901 Coupling

11 F0200236-01 Supply Dispenser Hose

12 44127701 Warning Label

13 F200213 Hose Clamp

14 F0380318-00 Drain Tee

15 803292 Gravity Drain Valve

16 F0150470-01 Hose

17 111/10318/00 Drain Valve Bracket Plate

18 F430939 Screw

19 F431147 Washer

20 F431024 Nut

21 111/10305/00 Drain Valve Bracket

22 F430927 Screw

23 M400080 Washer

24 F430218 Nut

25 F200105 Hose

26 223/00369/00 Tee

27 246/00149/00 Gasket 1.2 meters used

28 111/10300/00 Drain Support Bracket

29 204/00113/00 Nut

30 223/00368/00 Drain Elbow

31 223/00370/00 Pipe

32 223/00141/00 Drain Valve to Drain Pipe Hose

33 F200201 Hose Clamp

9001005 37

Single Drain Assembly

CFD27P_9001005

All Models Except UX055PVXF7, UX55PVXF6 and UX55PVXF7

38 9001005

Single Drain Assembly

REF PART NO. DESCRIPTION COMMENTS

NA 900/00261/UL00 Drain Valve Harness

1 205/00103/00 Bolt

2 101/00007/00 Outlet Pipe Plate Assembly

3 203/00004/00 Washer

4 204/00106/00 Nut

5 223/00106/00 Drain Pipe

6 223/00071/00 Hose Clamp

7 223/00141/00 Drain Valve to Drain Pipe Hose

8 223/00133/00 Drain Tub to Drain Valve Hose

9 F8619001 Drain Valve Bracket Used with black valve

9 115/00147/00 Drain Valve Plate Assembly Used with yellow valve

10 223/00086/00 Drain Valve Overflow Plug

11 223/00012/00 Hose Clamp

12 B12630701 Drain Valve Kit

13 206/00009/00 Bolt

14 203/00003/00 Washer

15 202/00002/00 Washer

16 204/00004/00 Nut

17 223/00013/00 Hose Clamp

18 223/00131/00 Overflow Hose

9001005 39

Dual Drain Assembly

CFD113P_9001005

40 9001005

Dual Drain Assembly

REF PART NO. DESCRIPTION COMMENTS

NA 900/00261/UL00 Drain Valve Harness

NA 831P3 Drain Kit Includes items 6-18, F200104100 2-Drain Harness

and installation instructions

1 223/00131/00 Overflow Hose

2 223/00013/00 Hose Clamp

3 205/00103/00 Bolt

4 101/00007/00 Outlet Pipe Plate Assembly

5 203/00004/00 Washer

6 204/00106/00 Nut

7 223/00106/00 Drain Pipe

8 223/00071/00 Hose Clamp

9 223/00141/00 Drain Valve to Drain Pipe Hose

10 223/00086/00 Drain Valve Overflow Plug

11 223/00012/00 Hose Clamp

12 F8619001 Drain Valve Bracket Used with black valve

12 115/00147/00 Drain Valve Plate Assembly Used with yellow valve

13 206/00009/00 Bolt

14 203/00003/00 Washer

15 202/00002/00 Washer

16 209/00171/00 Drain Valve

17 253/00006/00 T-Piece

18 223/00170/00 Exhaust Valve Hose

19 204/00004/00 Nut

20 B12630701 Drain Valve Kit

9001005 41

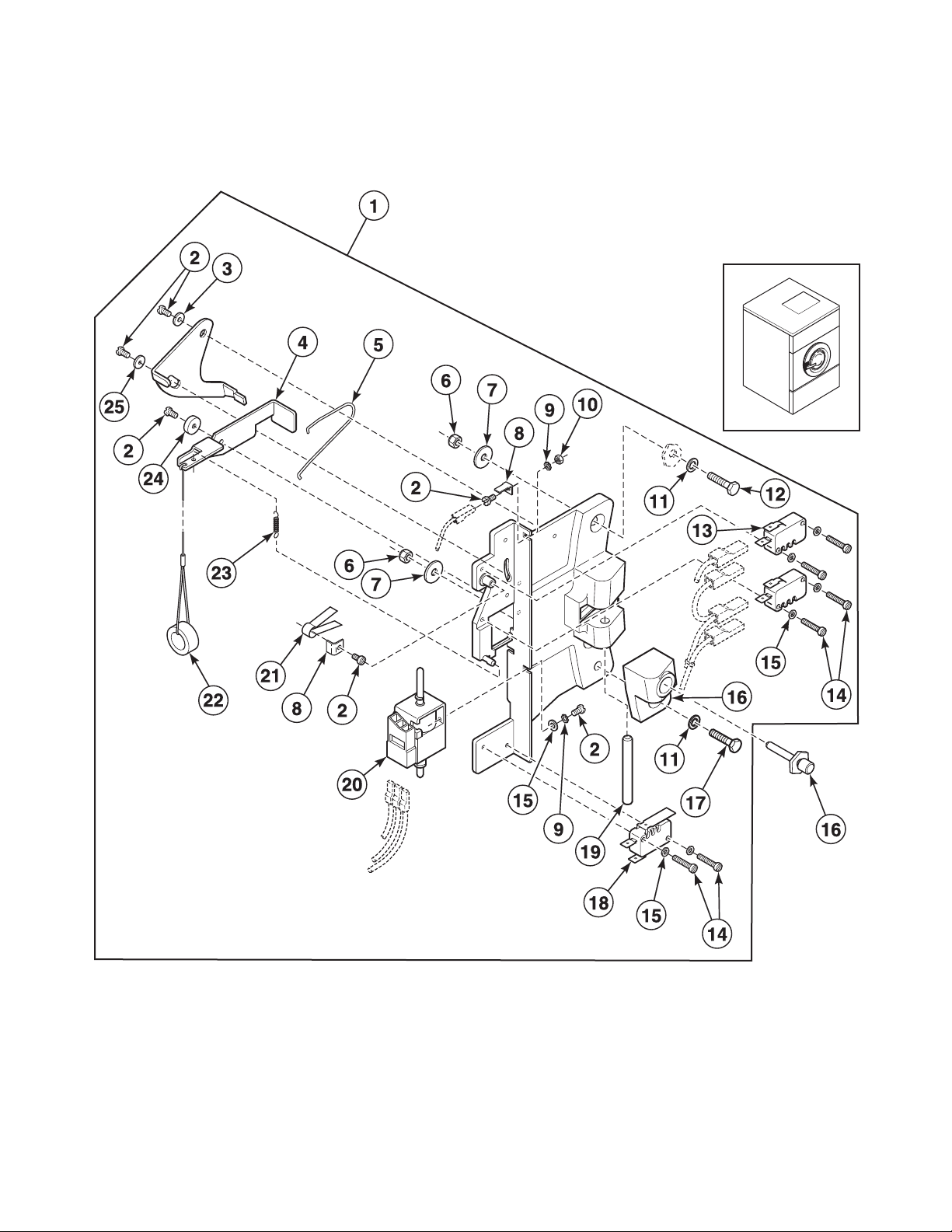

Door Lock

CFD543P_9001005

42 9001005

Door Lock

REF PART NO. DESCRIPTION COMMENTS

NA 210/59001/00 Door Lock Harness

1 B12517701 Door Lock Assembly

2 207/00135/00 Screw

3 201/00017/00 Washer

4 217/00052/04 Interlock Lever

5 224/00040/00 Lever Spring

6 204/00009/00 Nut

7 201/00006/00 Washer

8 210/10015/00 Ground Terminal

9 203/00007/00 Washer

10 204/00008/00 Nut

11 202/00101/00 Washer

12 207/00112/00 Screw

13 209/00272/00 Door Lock Microswitch

14 207/00009/00 Screw

15 201/00018/00 Washer

16 211/00109/02 Door Lock Pin Kit

17 207/00115/00 Screw

18 B12625101 Microswitch

19 217/00017/03 Lock Shaft

20 C000184P Door Lock Solenoid

21 224/00049/00 Door Lock Spring

22 217/00052/07 Door Release Wire

23 224/00043/00 Interlock Coil Spring

24 9001477 Door Lock Spacer

25 202/00124/00 Washer

9001005 43

Door - Design 6 Models

CFD34P_9001005

44 9001005

Door - Design 6 Models

REF PART NO. DESCRIPTION COMMENTS

1 204/00106/00 Nut

2 9001038 Door Hinge Plate Assembly

3 253/00022/00 Door Hinge Block

4 118/00124/00 Door Hinge Spacer

5 207/00126/00 Screw

6 202/00104/00 Washer

7 221/00004/00 Hinge

8 217/00021/00 O-Ring

9 202/00101/00 Washer

10 205/00104/00 Bolt

11 131/00004/00 Door

12 217/00055/00 Door Handle

13 217/00016/00 Door Handle Stop

14 203/00008/00 Washer

15 207/00020/00 Screw

16 204/00103/00 Nut

17 202/00111/00 Washer

18 211/00109/02 Door Lock Pin Kit Includes door lock pin

19 223/00068/00 Door Glass Seal

20 B12449801 Door Glass

9001005 45

Door - Design 7 Models Through 9/30/07

CFD207P_9001005

46 9001005

Door - Design 7 Models Through 9/30/07

REF PART NO. DESCRIPTION COMMENTS

1 204/00106/00 Nut

2 9001038 Door Hinge Plate Assembly

3 253/00022/00 Door Hinge Block

4 118/00124/00 Door Hinge Spacer

5 207/00126/00 Screw

6 202/00104/00 Washer

7 221/00004/00 Hinge

8 217/00021/00 O-Ring

9 202/00101/00 Washer

10 205/00104/00 Bolt

11 118/00125/00 Door

12 217/00055/00 Door Handle

13 217/00016/00 Door Handle Stop

14 203/00008/00 Washer

15 207/00020/00 Screw

16 204/00103/00 Nut

17 202/00111/00 Washer

18 211/00109/02 Door Lock Pin Kit Includes door lock pin

19 223/00068/00 Door Glass Seal

20 B12449801 Door Glass

9001005 47

Door - Design 7 Models Starting 10/1/07

CFD263P_9001005

48 9001005

Door - Design 7 Models Starting 10/1/07

REF PART NO. DESCRIPTION COMMENTS

1 204/00106/00 Nut

2 9001038 Door Hinge Plate Assembly

3 253/00022/00 Door Hinge Block

4 118/00124/00 Door Hinge Spacer

5 207/00126/00 Screw

6 202/00104/00 Washer

7 221/00004/00 Hinge

8 217/00021/00 O-Ring

9 202/00101/00 Washer

10 205/00104/00 Bolt

11 118/00125/00 Door

12 217/00065/00 Door Handle

13 217/00016/00 Door Handle Stop

14 203/00008/00 Washer

15 B12500801 Screw

16 204/00103/00 Nut

17 202/00111/00 Washer

18 211/00109/02 Door Lock Pin Kit Includes door lock pin

19 223/00068/00 Door Glass Seal

20 B12449801 Door Glass

9001005 49

Door Handle

CFD10P_9001005

Models Through 9/30/07

50 9001005

Door Handle

REF PART NO. DESCRIPTION COMMENTS

1 217/00055/00 Door Handle

2 9001474 Door Handle Latch

3 217/00051/13 Door Handle Catch

9001005 51

Control Panel - Models UX055PVXF7, UX55PVXF6 and UX55PVXF7

CFD318P_9001005

52 9001005

Control Panel - Models UX055PVXF7, UX55PVXF6 and UX55PVXF7

REF PART NO. DESCRIPTION COMMENTS

1 204/00116/00 Nut

2 223/00123/00 Washer

3 211/00128/00 Printboard Separator

4 F0637819-00 Control Module Wrap

5 211/00143/00 Trim

6 111/10310/03 Latch

7 208/00017/00 Rivet

8 201415 Screw

9 B12388302 Ribbon Assembly

10 F0637820-00 Balance Switch Access Cover

11 F430956 Screw

12 B12388303 Programming Cable

13 209/00580/03 Display

14 209/00099/25 Switch Base

15 44018901 Contact Block

16 44018701 Contact Block

17 F606295 Lock Latch

18 F0637813-00 Control Module Face

19 F190802P Lid Lock

20 F160562 Key

21 F9001561 Overlay

22 209/00326/20 Programming Key Contact Switch

23 209/00326/21 Programming Key

24 44018801 Pushbutton

25 211/00140/00 Spacer

26 F0637821-00 Control Module Bottom Assembly

27 F431017 Nut

28 F431123 Washer

29 229/00255/00 Insulating Sticker

30 209/00580/00-AR Main Control Army cycles

30 209/00580/00-MA Main Control Marine cycles

9001005 53

Control Panel - All Models Except UX055PVXF7,

CFD189P_9001005

1

4

7

S

t

o

p

2

5

8

0

3

6

9

St

a

r

t

UX55PVXF6 and UX55PVXF7

54 9001005

Control Panel - All Models Except UX055PVXF7,

UX55PVXF6 and UX55PVXF7

REF PART NO. DESCRIPTION COMMENTS

1 209/00372/01 Fuse

2 204/00116/00 Nut

3 223/00123/00 Washer

4 211/00107/00 Spacer

5 204/00008/00 Nut

6 203/00007/00 Washer

7 111/32728/00 Control Panel 55 pound models

7 111/05016/00 Control Panel 75 pound models

8 F8435601 Overlay UX models

8 225/00392/00 Overlay SX models

8 9001890 Overlay HX models

9 44018901 Contact Block

10 209/00099/25 Switch Base

11 209/00099/29 Switch Knob Steam and electric heat

12 44018701 Contact Block

13 44018801 Pushbutton

14 209/00326/21 Programming Key Key code 455

15 209/00326/20 Programming Key Contact Switch

16 F9001561 Overlay

17 211/00140/00 Spacer

18 209/00580/03 Display

19 B12388303 Programming Cable

20 B12388302 Ribbon Assembly

21 229/00255/00 Insulating Sticker

22 209/00580/0000 Main Control

22 210/01304/07 Soap Harness Main control to soap board

23 229/00289/00 Circuit Board Cover

9001005 55

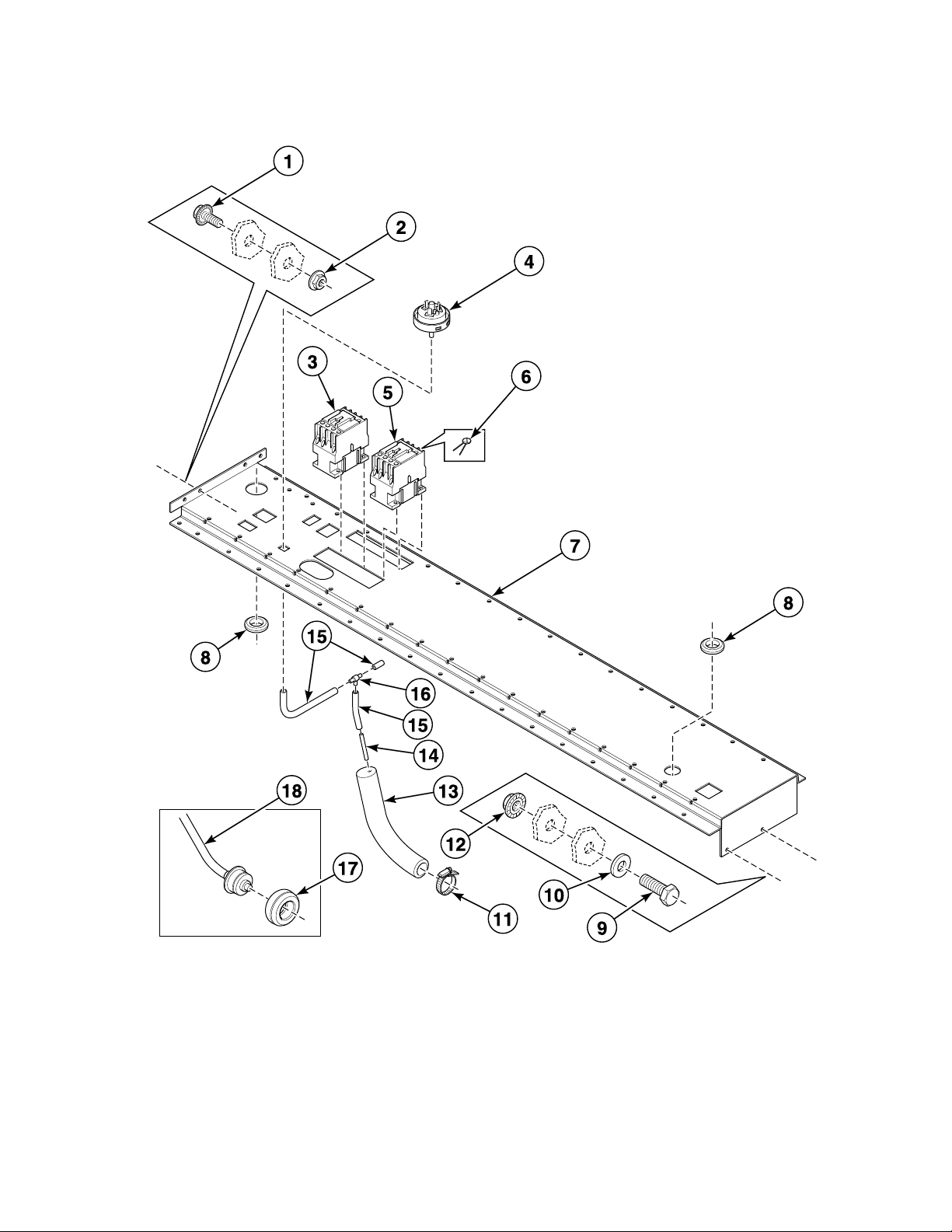

Control Module Through February 2006 - 55 Pound Models

CFD75P_9001005

56 9001005

Control Module Through February 2006 - 55 Pound Models

REF PART NO. DESCRIPTION COMMENTS

1 206/00101/00 Nut

2 206/00099/00 Bolt

3 111/00197/30 Electrical Components Plate

4 223/00198/00 Grommet

5 140/00021/00 Electrical Component Extension Plate

6 223/00011/00 Hose Clamp

7 223/00210/00 Pressure Switch Elbow

8 225/10004/00 Thermostat Grommet

9 210/01064/16 Thermostat

10 223/00016/00 Hose Barb

11 B12700018 Pressure Hose

12 223/00173/10 Pressure Switch Hose Tee

13 209/00356/00 Noise Suppressor

14 209/06148/02 Heating Contactor

15 209/00041/04 Contactor

16 209/00007/50 Pressure Switch

17 203/00004/00 Washer

18 204/00005/00 Nut

9001005 57

Control Module Through February 2006 - 75 Pound Models

CFD77P_9001005

58 9001005

Control Module Through February 2006 - 75 Pound Models

REF PART NO. DESCRIPTION COMMENTS

1 206/00099/00 Bolt

2 206/00101/00 Nut

3 209/00041/04 Contactor

4 209/00007/50 Pressure Switch

5 209/06148/02 Heating Contactor

6 209/00356/00 Noise Suppressor

7 111/01028/00 Electrical Components Plate

8 223/00198/00 Grommet

9 205/00107/00 Bolt

10 202/00101/00 Washer

11 223/00011/00 Hose Clamp

12 140/10020/10 Electrical Components Plate

13 223/00210/00 Pressure Switch Elbow

14 223/00016/00 Hose Barb

15 B12700018 Pressure Hose

16 223/00173/10 Pressure Switch Hose Tee

17 225/10004/00 Thermostat Grommet

18 210/01304/16 Thermostat

9001005 59

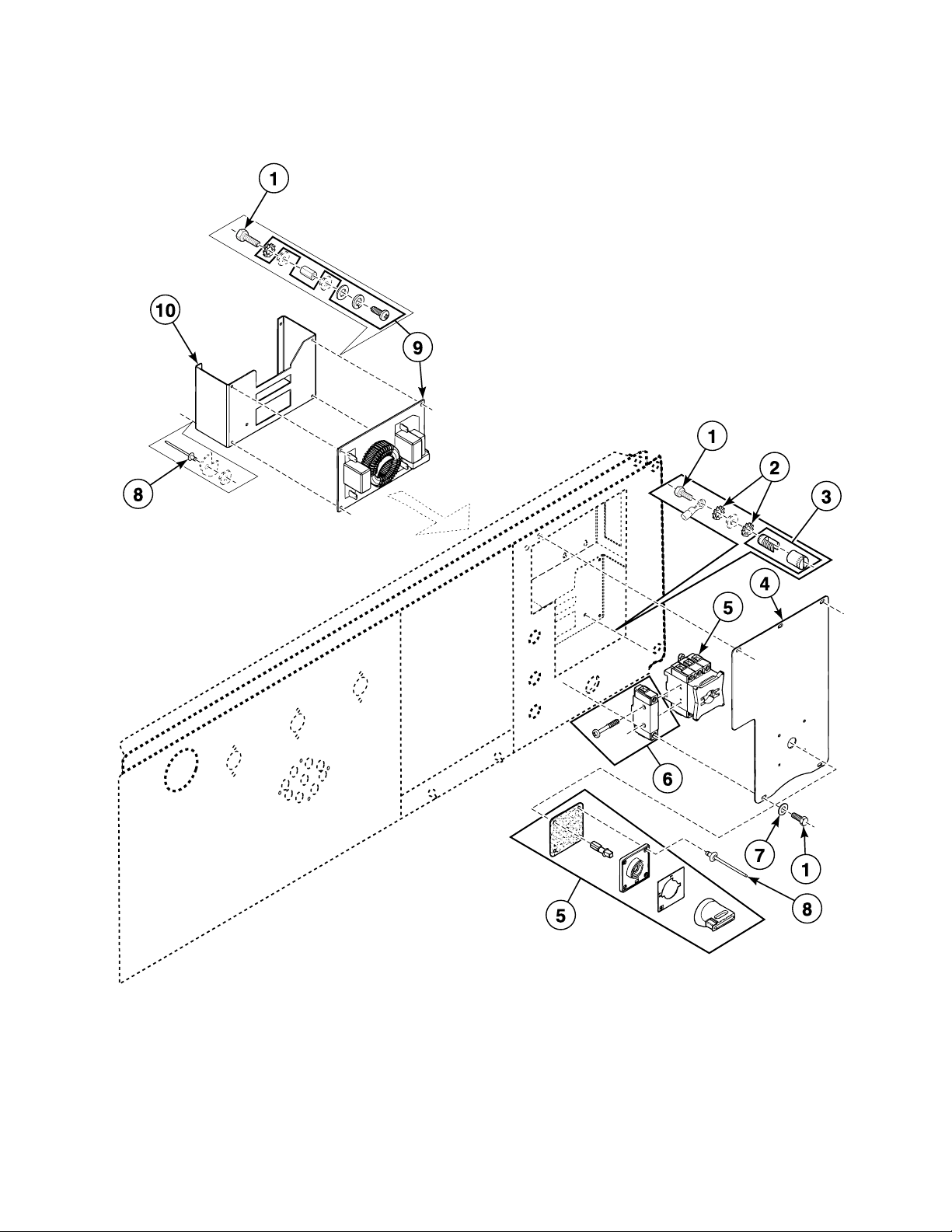

Control Module Starting March 2006

CFD198P_9001005

60 9001005

Control Module Starting March 2006

REF PART NO. DESCRIPTION COMMENTS

1 111/10003/40 Electrical Component Mounting Plate

2 210/01304/16 Thermostat

3 225/10004/00 Thermostat Grommet

4 206/00099/00 Bolt

5 111/10004/00 Electrical Component Plate Includes item 7

6 208/00007/00 Screw

7 111/10003/10 Support Connector

8 209/06148/02 Heating Contactor

9 9002021 Overload Contactor 2006-1201

9 9002022 Overload Contactor 2006-1204

9 9002023 Overload Contactor 2006-1304

9 9002024 Overload Contactor 2006-1301

9 9002025 Overload Contactor 2010-1201

9 9002026 Overload Contactor 2010-1204

9 9002027 Overload Contactor 2010-1301

10 209/00041/04 Contactor Heating

11 209/00007/50 Pressure Switch Models through 7/8/08

11 B12548601 Water Level Switch Models starting 7/9/08

12 223/00035/02 Pressure Switch Cap

13 B12700018 Pressure Hose

14 223/00173/10 Pressure Switch Hose Tee

15 111/10004/10 Electrical Component Plate

9001005 61

Front, Left Side and Upper Back Panels - 55 Pound Models

CFD80P_9001005

Except Models UX055PVXF7, UX55PVXF6 and UX55PVXF7

62 9001005

Front, Left Side and Upper Back Panels - 55 Pound Models

Except Models UX055PVXF7, UX55PVXF6 and UX55PVXF7

REF PART NO. DESCRIPTION COMMENTS

1 111/01158/90 Backbridge

2 111/10102/00 Dispenser Rear Mounting Plate

3 111/10101/00 Dispenser Front Mounting Plate

4 206/00099/00 Bolt

5 206/00101/00 Nut

6 246/00149/00 Gasket

7 205/00103/00 Bolt

8 203/00004/00 Washer

9 204/00106/00 Nut

10 204/00009/00 Nut

11 111/32728/00 Control Panel

12 202/00110/00 Washer

13 208/00121/00 Screw

14 111/32957/50 Right Front Panel

15 208/00125/00 Screw

16 207/00101/00 Screw

17 111/32943/00 Kickplate

18 111/32951/50 Left Front Panel

19 F0637762-00 Finger Guard Extension Assembly

20 140/00007/60 Side Panel

21 206/00042/00 Bolt

22 201/00010/00 Washer

23 204/00109/00 Nut

24 205/00105/00 Bolt

25 101/00007/00 Outlet Pipe Plate Assembly

26 207/00032/00 Screw

27 202/00004/00 Washer

28 203/00006/00 Washer

29 204/00007/00 Nut

9001005 63

Front, Left Side and Upper Back Panels - Models UX055PVXF7,

CFD314P_9001005

UX55PVXF6 and UX55PVXF7

64 9001005

Front, Left Side and Upper Back Panels - Models UX055PVXF7,

UX55PVXF6 and UX55PVXF7

REF PART NO. DESCRIPTION COMMENTS

1 111/10303/00 Backbridge

2 111/10102/00 Dispenser Rear Mounting Plate

3 111/10101/00 Dispenser Front Mounting Plate

4 206/00099/00 Bolt

5 206/00101/00 Nut

6 246/00149/00 Gasket

7 205/00103/00 Bolt

8 203/00004/00 Washer

9 204/00106/00 Nut

10 204/00009/00 Nut

11 111/10302/00 Control Panel

12 202/00110/00 Washer

13 208/00121/00 Screw

14 111/32957/50 Right Front Panel

15 208/00125/00 Screw

16 207/00101/00 Screw

17 111/32943/00 Kickplate

18 111/32951/50 Left Front Panel

19 F0637762-00 Finger Guard Extension Assembly

20 206/00042/00 Bolt

21 201/00010/00 Washer

22 204/00109/00 Nut

23 140/00007/60 Side Panel

24 205/00105/00 Bolt

25 101/00007/00 Outlet Pipe Plate Assembly

26 207/00032/00 Screw

27 202/00004/00 Washer

28 203/00006/00 Washer

29 204/00007/00 Nut

9001005 65

Front, Left Side and Upper Back Panels -

CFD49P_9001005

75 Pound Models Through 9/30/08

66 9001005

Front, Left Side and Upper Back Panels -

75 Pound Models Through 9/30/08

REF PART NO. DESCRIPTION COMMENTS

1 206/00099/00 Bolt

2 246/00149/00 Gasket

3 111/00117/00 Soap Box Support Plate

4 206/00101/00 Nut

5 111/00207/00 Dispenser Mounting Plate

6 201/00006/00 Washer

7 204/00005/00 Nut

8 205/00103/00 Bolt

9 203/00004/00 Washer

10 204/00106/00 Nut

11 204/00009/00 Nut

12 111/05016/00 Control Panel

13 111/32960/50 Right Front Panel

14 202/00110/00 Washer

15 208/00121/00 Screw

16 208/00125/00 Screw

17 207/00101/00 Screw

18 111/32943/00 Kickplate

19 111/32948/50 Left Front Panel

20 206/00042/00 Bolt

21 201/00010/00 Washer

22 204/00109/00 Nut

23 133/00126/60 Side Panel

24 205/00105/00 Bolt

25 101/00007/00 Outlet Pipe Plate Assembly

9001005 67

Front, Left Side and Upper Back Panels - 75 Pound

CFD529P_9001005

Models Starting 10/1/08 Through 11/13/11

68 9001005

Front, Left Side and Upper Back Panels - 75 Pound

Models Starting 10/1/08 Through 11/13/11

REF PART NO. DESCRIPTION COMMENTS

1 206/00099/00 Bolt

2 206/00166/00 Screw

3 B12421401 Washer

4 111/00207/11 Support Bracket

5 201/00006/00 Washer

6 204/00005/00 Nut

7 205/00103/00 Bolt

8 203/00004/00 Washer

9 204/00106/00 Nut

10 204/00009/00 Nut

11 111/05016/00 Control Panel

12 111/32960/50 Right Front Panel

13 202/00110/00 Washer

14 208/00121/00 Screw

15 208/00125/00 Screw

16 207/00101/00 Screw

17 111/32943/00 Kickplate

18 111/32948/50 Left Front Panel

19 246/00149/00 Gasket

20 206/00042/00 Bolt

21 201/00010/00 Washer

22 204/00109/00 Nut

23 133/00126/60 Side Panel

24 205/00105/00 Bolt

25 101/00007/00 Outlet Pipe Plate Assembly

9001005 69

Front, Left Side and Upper Back Panels - 75 Pound

CFD530P_9001005

Models Starting 11/14/11

70 9001005

Front, Left Side and Upper Back Panels - 75 Pound

Models Starting 11/14/11

REF PART NO. DESCRIPTION COMMENTS

1 206/00099/00 Bolt

2 B12456101 Support Bracket Rear

3 B12456201 Support Bracket Front

4 201/00006/00 Washer

5 204/00005/00 Nut

6 205/00103/00 Bolt

7 203/00004/00 Washer

8 204/00106/00 Nut

9 204/00009/00 Nut

10 111/05016/00 Control Panel

11 111/32960/50 Right Front Panel

12 202/00110/00 Washer

13 208/00121/00 Screw

14 208/00125/00 Screw

15 207/00101/00 Screw

16 111/32943/00 Kickplate

17 111/32948/50 Left Front Panel

18 246/00149/00 Gasket

19 206/00042/00 Bolt

20 201/00010/00 Washer

21 204/00109/00 Nut

22 133/00126/60 Side Panel

23 205/00105/00 Bolt

24 101/00007/00 Outlet Pipe Plate Assembly

25 206/00027/00 Bolt

26 202/00004/00 Washer

27 204/00114/00 Nut

9001005 71

Top, Right Side and Lower Back Panels - Models UX055PVXF7,

CFD315P_9001005

UX55PVXF6 and UX55PVXF7

72 9001005

Top, Right Side and Lower Back Panels - Models UX055PVXF7,

UX55PVXF6 and UX55PVXF7

REF PART NO. DESCRIPTION COMMENTS

1 206/00099/00 Bolt

2 111/10304/00 Top Panel

3 206/00104/00 Screw

4 111/10316/00 Side Panel Cover

5 111/10301/00 Right Side Panel

6 111/10308/00 Rear Panel

7 111/10315/00 Cover

8 206/00099/00 Bolt

9001005 73

Top, Right Side and Lower Back Panels - All Models

CFD40P_9001005

Except UX055PVXF7, UX55PVXF6 and UX55PVXF7

74 9001005

Top, Right Side and Lower Back Panels - All Models

Except UX055PVXF7, UX55PVXF6 and UX55PVXF7

REF PART NO. DESCRIPTION COMMENTS

1 206/00099/00 Bolt

2 140/00045/01 Top Panel 55 pound models

2 111/05013/00 Top Panel 75 pound models

3 223/00103/04 Soap Dispenser Cover Hinge Rod 2 required

4 223/00103/01 Soap Dispenser Cover

5 223/00103/03 Soap Dispenser Frame

6 207/00131/00 Bolt

7 208/00104/00 Nut

8 140/00007/60 Side Panel 55 pound models

8 133/00126/60 Side Panel 75 pound models

9 111/00127/10 Rear Panel 55 pound models

9 111/00126/10 Rear Panel 75 pound models

10 204/00301/00 Bushing

9001005 75

Fill Plumbing - Models UX055PVXF7, UX55PVXF6 and UX55PVXF7

CFD319P_9001005

76 9001005

Fill Plumbing - Models UX055PVXF7, UX55PVXF6 and UX55PVXF7

REF PART NO. DESCRIPTION COMMENTS

NA G582P3 Diaphragm and Guide Kit Use with F0381737-00P 3-Way Valve

1 209/00419/00 2-Way Inlet Valve Used with F380939 Valve Repair Kit

1 223/00367/00 Flow Restrictor

2 223/00009/00 Clamp

3 223/00044/00 Water Hose

4 223/00360/60 Coupling

5 F0381737-00P 3-Way Valve

5 F380119 Flow Restrictor

6 223/00249/00 Liquid Soap Manifold

7 223/00360/50 Coupling

8 223/00360/00 Hose

9 223/00102/07 Hose Vent

10 107/00136/00 Screw

11 211/00147/00 Standoff

12 204/00114/00 Nut

13 223/00014/00 Hose Clamp

14 223/00359/00 Hose

15 223/00059/00 Water Hose

16 223/00010/00 Hose Clamp

17 F0638025-00 Fill Inlet Tube

18 F200107P Water Hose

19 F130315 Bushing

9001005 77

Fill Plumbing - All Models Except UX055PVXF7,

CFD223P_9001005

UX55PVXF6 and UX55PVXF7

78 9001005

Fill Plumbing - All Models Except UX055PVXF7,

UX55PVXF6 and UX55PVXF7

REF PART NO. DESCRIPTION COMMENTS

1 204/00007/00 Nut

2 202/00004/00 Washer

3 203/00006/00 Washer

4 206/00027/00 Bolt

5 223/00102/07 Hose Vent

6 111/01158/90 Backbridge 55 pound models; Models through Serial No. 0605755252

6 N/A Backbridge 75 pound models; Models through Serial No. 0605775058

7 209/00090/01 Inlet Valve Solenoid

8 209/00316/02 Diaphragm

9 F200052400 Inlet Valve Restrictor Cold water valve

9 223/00390/00 Flow Restrictor Hot water valve

10 209/00419/00 2-Way Inlet Valve Standard thread; 3 required; Used with F380939 Valve

Repair Kit

10 209/00316/00 2-Way Inlet Valve Metric thread; 3 required; Used with F380939 Valve

Repair Kit

11 223/00011/00 Hose Clamp

12 223/00059/00 Water Hose

13 223/00044/00 Water Hose

14 F200205 Hose Clamp No. 10

15 9001329 Screw

16 209/00058/00 Terminal Block

17 211/00120/00 Standoff

18 209/00218/13 Soap Injection PCB with Fuse Includes item 19

19 209/00996/00 Connector

20 209/00006/01 Ground Terminal

21 209/00468/00 Fuse

22 209/00202/01 Fuse Holder

23 223/00198/00 Grommet

24 111/00094/10 Electrical Connection Plate

25 208/00017/00 Rivet

26 211/00123/00 Cordlock PE16

27 211/00138/00 Cordlock PG21

28 204/00201/00 Nut

29 201/00002/00 Washer

30 206/00099/00 Bolt

31 223/00001/04 Prewash and Mainwash Nozzle

32 205/00113/00 Bolt

33 9001594 Electrical Connection Sticker

34 209/00385/01 Filter

35 209/00385/00 Filter

36 223/00050/01 Water Valve Adapter Converts from metric to standard thread

37 803615 Washer

38 F200164 Water Hose Standard thread

38 F200166 Water Hose Metric thread

39 20290 Washer

N/A = Part no longer available

9001005 79

Upper Back Panel - 55 Pound Models

CFD427P_9001005

80 9001005

Upper Back Panel - 55 Pound Models

REF PART NO. DESCRIPTION COMMENTS

NA 227/00171/00 Parameter Unit Assembly Includes 227/00171/10 Parameter Unit Program Cable; Hand

held

NA F8410901 Parameter Unit Assembly Used with 500-series inverter drives; Mounts to the inverter

drive

1 206/00099/00 Bolt

2 206/00136/00 Bolt

3 204/00114/00 Nut

4 223/00179/10 Pressure Hose

5 B12350903 Screw

6 111/01158/90 Backbridge Models through Serial No. 0605755252

7 B12382103 Motor Harness

8 223/00249/00 Liquid Soap Manifold

9 111/01150/00 Inverter Drive Box 10 227/00238/00 Inverter N-voltage; 440-480 Volt/3 Phase, 2.2 kW; 500-series

10 227/00125/05 Inverter Fan 10 F8421105 Drive Q and X-voltage; 700-series; Used with models with V-belts 10 F8421107 Drive Q and X-voltage; 700-series; Used with models with flat belts 10 F8421106 Drive N and P-voltage; 700-series; Used with models with V-belts 10 F8421108 Drive N and P-voltage; 700-series; Used with models with flat belts 10 F8421005 Inverter Kit Q and X-voltage; 700-series; Used with models with V-belts;

Includes F8421105 Drive

10 F8421007 Inverter Kit Q and X-voltage; 700-series; Used with models with flat belts;

Includes F8421107 Drive

10 F8421006 Inverter Kit N and P-voltage; 700-series; Used with models with V-belts;

Includes F8421106 Drive, F8409501 Mounting Plate Assembly and F430903 Screw

10 F8421008 Inverter Kit N and P-voltage; 700-series; Used with models with flat belts;

Includes F8421108 Drive, F8409501 Mounting Plate Assembly and F430903 Screw

11 204/00007/00 Nut 12 203/00005/00 Washer 13 205/00108/00 Bolt 14 223/00174/00 Grommet 15 227/00165/00 Noise Filter 16 202/00004/00 Washer 17 207/00004/00 Screw 18 210/00027/UL00 Filter 16A1; Standard; Models starting 1/8/04

18 227/00180/00 Filter 45A1; 220 Volt/1 Phase models with electric heat; Models

starting 1/8/04

18 227/00242/00 Noise Filter 16A3; 220 Volt/3 Phase, 4.2 and 6 kW models with electric

heat; Models starting 1/8/04

18 227/00179/00 Filter 40A3; 400 Volt/3 Phase, 9 kW models with electric heat;

Models starting 1/8/04

19 9001952 Electrical Connection Plate Models through Serial No. 0605755252 20 203/00006/00 Washer 21 206/00027/00 Bolt 22 210/01304/15 Micro to Connector Harness From the main control to the inverter drive; Requires the

inverter jumper be in the “source” position

23 210/01064/14 Connector to Inverter Harness From the main control to the inverter drive 24 209/00406/00 Transformer N-voltage 25 209/00287/00 Cooling Fan 26 F200167500 AC Drive Cover 27 209/00287/01 Fan Grill Models through 10/5/08

27 209/00287/11 AC Drive Filter Models starting 10/6/08

28 B12355001 Voltage Discharge Decal

9001005 81

Upper Back Panel - 75 Pound Models

CFD428P_9001005

82 9001005

Upper Back Panel - 75 Pound Models

REF PART NO. DESCRIPTION COMMENTS

NA 227/00171/00 Parameter Unit Assembly Includes 227/00171/00 Parameter Unit Assembly and

227/00171/10 Parameter Unit Program Cable; Hand held

NA F8410901 Parameter Unit Assembly Used with 500-series inverter drives; Mounts to the inverter

drive

1 206/00136/00 Bolt 2 204/00114/00 Nut 3 223/00179/10 Pressure Hose 4 206/00099/00 Bolt 5 B12350903 Screw 6 111/01166/20 Backbridge Models through Serial No. 0605775057

6 111/01166/90 Backbridge Models starting Serial No. 0605775058

7 223/00249/00 Liquid Soap Manifold 8 111/01149/00 Inverter Drive Box

9 210/38729UL/15 Inverter to Motor Harness 10 205/00108/00 Bolt 11 203/00005/00 Washer 12 204/00107/00 Nut 13 227/00224/00 Inverter Q-voltage; 3.7 kW; 3 x 240 Volt; 500-series

13 227/00231/00A Inverter N and P-voltage; 3.7 kW; 3 x 380 Volt; 500-series 13 227/00125/05 Inverter Fan 13 F8421109 Drive Q-voltage; 700-series; Used with models with V-belts 13 F842 1111 Dr iv e Q- v o l t a g e ; 7 0 0 - s e r i e s ; U s e d w i t h m o d e ls with flat belts 13 F8421110 Drive N and P-voltage; 700-series; Used with models with V-belts 13 F8421112 Drive N and P-voltage; 700-series; Used with models with flat belts 13 F8421009 Inverter Kit Q-voltage; 700-series; Used with models with V-belts;

Includes F8421109 Drive

13 F8421011 Inverter Kit Q-voltage; 700-series; Used with models with flat belts;

Includes F8421111 Drive

13 F8421010 Inverter Kit N and P-voltage; 700-series; Used with models with V-belts;

Includes F8421110 Drive, F8409501 Mounting Plate Assembly and F430903 Screw

13 F8421012 Inverter Kit N and P-voltage; 700-series; Used with models with flat belts;

Includes F8421112 Drive, F8409501 Mounting Plate Assembly and F430903 Screw

14 227/00162/00 Noise Filter 15 223/00174/00 Grommet 16 210/00027/UL00 Filter 16A1; Standard; Models starting 1/8/04

16 227/00180/00 Filter 45A1; 220 Volt/1 Phase models with electric heat; Models

starting 1/8/04

16 227/00242/00 Noise Filter 16A3; 220 Volt/3 Phase, 4.2 and 6 kW models with electric

heat; Models starting 1/8/04

16 227/00179/00 Filter 40A3; 400 Volt/3 Phase, 9 kW models with electric heat;

Models starting 1/8/04

17 111/00180/00 Electrical Connection Plate Models through Serial No. 0605775058 18 203/00006/00 Washer 19 206/00027/00 Bolt 20 B12371101 Micro to Connector Harness Q-voltage; From the main control to the inverter drive;

Requires the inverter jumper to be in the “sink” position

20 210/01304/15 Micro to Connector Harness N and P-voltage; From the main control to the inverter drive;

Requires the inverter jumper to be in the “source” position

21 210/01064/14 Connector to Inverter Harness From the main control to the inverter drive 22 209/00406/00 Transformer N-voltage 23 206/00099/00 Bolt 24 209/00287/00 Cooling Fan 25 111/01158/11 Inverter Box Cover 26 209/00287/01 Fan Grill Models through 10/5/08

26 209/00287/11 AC Drive Filter Models starting 10/6/08

27 B12355001 Voltage Discharge Decal

9001005 83

Upper Back Panel - 55 Pound Models Starting Serial No.

CFD200P_9001005

0605755253 and 75 Pound Models Starting Serial No. 060775059

84 9001005

Upper Back Panel - 55 Pound Models Starting Serial No.

0605755253 and 75 Pound Models Starting Serial No. 060775059

REF PART NO. DESCRIPTION COMMENTS

1 206/00027/00 Bolt

2 203/00006/00 Washer

3 209/00006/01 Ground Terminal

4 111/01834/00 Main Switch Cover

5 209/00529/00 Main Switch Standard and steam heat

5 209/00672/00 Main Switch Electric heat; 40 A

5 209/00526/00 Main Switch Electric heat; 80 A

6 209/00530/00 Terminal Block 25 A VZ-11; Neutral

6 209/00527/00 Terminal Block 63/80 A VZ-12; Neutral

7 202/00004/00 Washer

8 208/00017/00 Rivet

9 210/00027/UL00 Filter 16A1; Standard; Models starting 1/8/04

9 227/00180/00 Filter 45A1; 220 Volt/1 Phase models with electric heat;

Models starting 1/8/04

9 227/00178/00 Filter 16A3; 220 Volt/3 Phase, 4.2 and 6 kW models with

electric heat; Models starting 1/8/04

9 227/00179/00 Filter 40A3; 220 Volt/3 Phase, 9 kW models with electric heat;

Models starting 1/8/04

10 111/01837/01 Filter Bracket

9001005 85

Balance Switch

CFD28P_9001005

86 9001005

Balance Switch

REF PART NO. DESCRIPTION COMMENTS

1 207/00018/00 Screw

2 203/00006/00 Washer

3 209/00255/00 Out-of-Balance Switch

4 111/00107/00 Tilt Switch Bracket

5 111/00255/01 Out-of-Balance Switch Bracket

6 206/00099/00 Bolt

7 206/00101/00 Nut

8 205/00107/00 Bolt

9 202/00101/00 Washer

10 204/00009/00 Nut

11 204/0007/00 Nut

12 206/00009/00 Bolt

13 201/00010/00 Washer

14 203/00003/00 Washer

15 204/00004/00 Nut

16 223/00246/00 Out-of-Balance Switch Boot

17 B12485001 Tilt Detector Plate

9001005 87

Supply Dispenser - Models UX055PVXF7,

CFD317P_9001005

UX55PVXF6 and UX55PVXF7

88 9001005

Supply Dispenser - Models UX055PVXF7,

UX55PVXF6 and UX55PVXF7

REF PART NO. DESCRIPTION COMMENTS

1 F430939 Screw

2 111/10310/02 Control Module Wrap Brace

3 F431147 Washer

4 F430322 Washer

5 F431005 Nut

6 F0609664-00 Supply Dispenser Mounting Bracket

7 F8322001 Injection Nozzle

8 F432223 Supply Dispenser Lid Latch

9 F430909 Screw

10 F0637866-00 Supply Dispenser Mounting Bracket

11 F431147 Washer

12 F431024 Nut

13 111/10313/00 Dispenser Lock Plate

14 F0637862-00 Supply Dispenser Weldment

15 F431000 Nut

16 F431106 Washer

17 F431133 Washer

18 F0637838-00 Supply Dispenser Assembly Includes items 3-17

19 F150390 Siphon Tube

20 F150369 Supply Dispenser Cup 32 oz.

21 F150368 Supply Dispenser Cup 20 oz.

22 F190202P Lift-Off Hinge

23 F430903 Screw

24 F431105 Washer

25 F431137 Washer

26 F190101 Push-Pull Knob

27 F190205P Lift-Off Hinge

28 F0637836-00 Gasket Cover

29 F0637835-00 Gasket Retaining Plate

30 F431106 Washer

31 F431028 Nut

32 F0637833-00 Supply Dispenser Cover Assembly Includes items 22-31

9001005 89

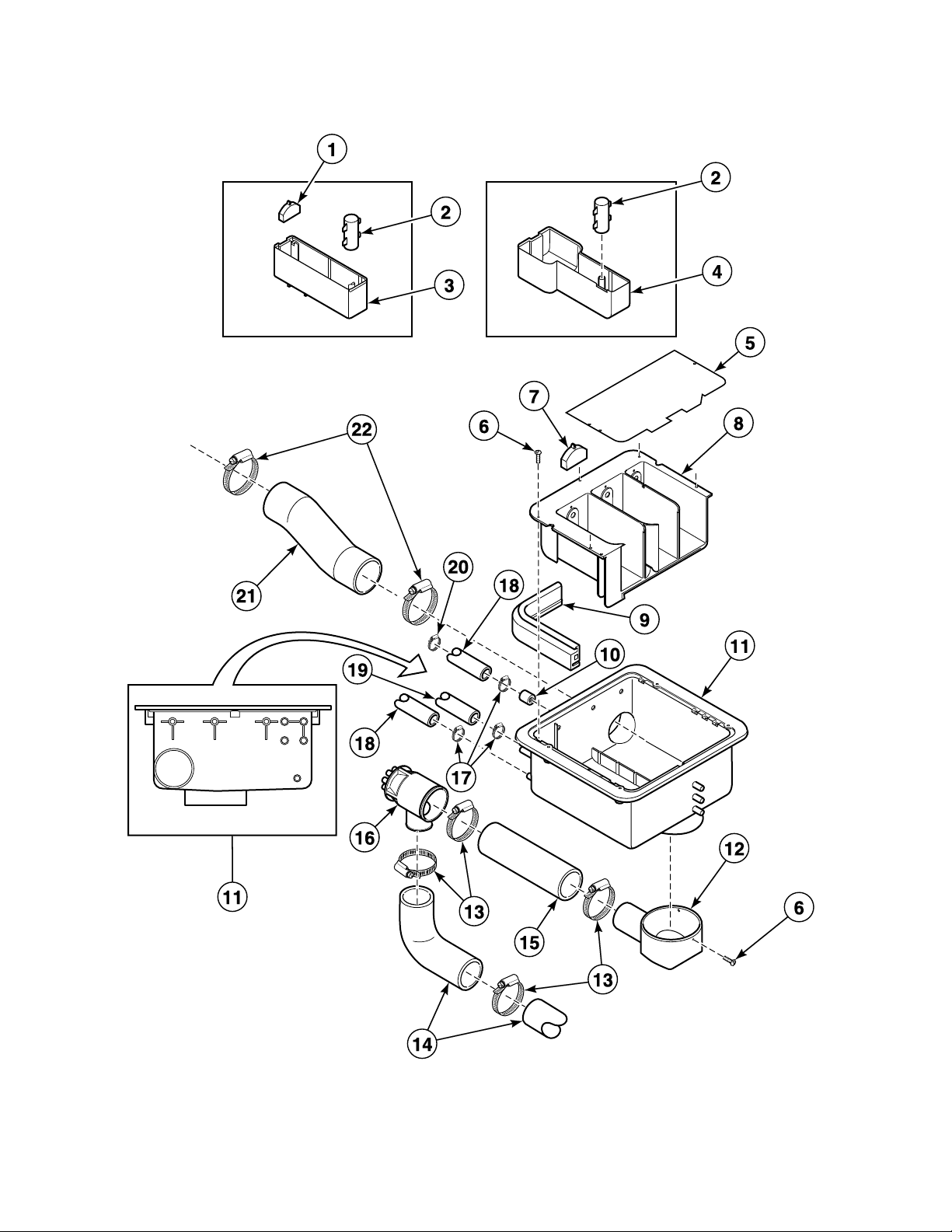

Supply Dispenser - All Models Except UX055PVXF7,

CFD118P_9001005

UX55PVXF6 and UX55PVXF7

90 9001005

Supply Dispenser - All Models Except UX055PVXF7,

UX55PVXF6 and UX55PVXF7

REF PART NO. DESCRIPTION COMMENTS

1 223/00102/05 Softener Spray Nozzle

2 223/00102/04 Soap Dispenser Rinse Siphon

3 223/00102/03 Rinse Insert

4 223/00102/08 Liquid Soap Dispenser Insert

5 F200047800 Supply Deflector

6 B12347509 Screw

7 223/00102/06 Soap Spray Nozzle

8 223/00102/30 Soap Dispenser Assembly

9 223/00109/00 Soap Dispenser Gasket

10 F060334200P Restrictor Assembly

11 223/00102/60 Dispenser Assembly

12 223/00196/00 Dispenser Drain Funnel

13 223/00071/00 Hose Clamp

14 B12322401 Siphon Break Hose 55 pound models

14 B12322402 Siphon Break Hose 75 pound models

15 223/00263/00 Siphon Break Dispenser Hose 55 pound models

15 223/00264/00 Siphon Break Dispenser Hose 75 pound models

16 223/00249/00 Liquid Soap Manifold

17 F200205 Hose Clamp No. 10

18 9001499 Water Hose

19 223/00059/00 Water Hose

20 36801 Hose Clamp No. 8

21 223/00107/06 Vent Hose

22 223/00014/00 Hose Clamp

9001005 91

Electric Heating Option

CFD81P_9001005

92 9001005

Electric Heating Option

REF PART NO. DESCRIPTION COMMENTS

1 F360202 Heating Element Plug

2 209/00562/20 Heating Element 3000 W

9001005 93

Steam Heating Option

CFD106P_9001005

94 9001005

Steam Heating Option

REF PART NO. DESCRIPTION COMMENTS

NA 808P3 Steam Kit Includes items 1-11

1 206/00099/00 Bolt

2 119/00082/00 Steam Injector

3 217/00025/00 Steam Hose

4 118/01063/00 Steam Inlet

5 206/00101/00 Nut

6 70435601 Pipe Nipple 1/2 inch

7 F200001100 Reducer

8 F200001200 Nipple 3/8 inch

9 F8521801 DIN Valve Kit 3/4 inch

9 F8521501 DIN Valve Kit 1/2 inch

10 F605220 Steam Valve Harness

11 210/01304/03 Main Control Heat Harness

9001005 95

Notes

96 9001005

Parts Index

206/00009/00 ..................................19, 21, 39, 41, 87

A

AC Drive Cover

F200167500............................................................ 81

AC Drive Filter

209/00287/11 .......................................................... 81

B

Backbridge

111/01158/90 ............................................... 63, 79, 81

111/01166/20 ........................................................... 83

111/01166/90 ........................................................... 83

111/10303/00........................................................... 65

Balance Switch Access Cover

F0637820-00........................................................... 53

Ball Bearing

212/00004/00.............................................. 23, 25, 27

Basket

B12380901.................................................. 19, 21, 29

B12381001.................................................. 19, 21, 29

Basket and Pulley Kit

B12537901.................................................. 19, 21, 31

Basket Kit

B12543201.................................................. 19, 21, 29

Bearing

F100134............................................................ 23, 25

Bearing and Seal Kit

3884P...................................................................... 25

Bearing Housing Assembly

139/10006/00.................................................... 23, 25

212/10036/01.......................................................... 27

Bearing Housing Cover

112/00004/00 .......................................................... 27

Bearing Replacement Kit

891P3...................................................................... 23

892P3...................................................................... 27

Bearing Replacement Tool Kit

381P3...................................................................... 25

385P4................................................................ 23, 27

Bearing Retainer Ring

9001036 .................................................................. 33

Bearing Spacer

232/00020/00.......................................................... 31

Belt

226/00102/01.......................................................... 29

226/00118/00 .......................................................... 31

226/00149/00.......................................................... 29

226/00151/00.......................................................... 31

Bolt

205/00102/00.................................................... 23, 25

205/00103/00...................... 39, 41, 63, 65, 67, 69, 71

205/00104/00............................ 23, 25, 27, 45, 47, 49

205/00105/00............................ 37, 63, 65, 67, 69, 71

205/00107/00.............................................. 37, 59, 87

205/00108/00.................................................... 81, 83

205/00113/00 .......................................................... 79

206/00003/00.................................................... 33, 35

206/00004/00.................................................... 29, 31

206/00006/00.................................................... 33, 35

9001005 97

206/00010/00 ..........................................................27

206/00027/00 ..................................71, 79, 81, 83, 85

206/00032/00 .................................................... 19, 21

206/00042/00 ..................................63, 65, 67, 69, 71

206/00047/00 ..........................................................35

206/00066/00 .................................................... 19, 21

206/00071/00 .................................................... 19, 21

206/00072/00 .................................................... 33, 35

206/00087/00 .................................................... 15, 17

206/00099/00 ...............57, 59, 61, 63, 65, 67, 69, 71,

73, 75, 79, 81, 83, 87, 95

206/00130/00 ..........................................................29

206/00136/00 .................................................... 81, 83

206/00153/00 ..............................................13, 15, 17

207/00131/00 ..........................................................75

224/00046/00 .................................................... 13, 15

9001557 ..................................................................17

Bushing

F130315 ..................................................................77

204/00301/00 ..........................................................75

C

Caddy Bracket

224/00051/00 ..............................................23, 25, 27

224/00052/00 ..............................................23, 25, 27

Circuit Board Cover

229/00289/00 ..........................................................55

Clamp

223/00009/00 ..........................................................77

Connector

209/00996/00 ..........................................................79

Connector to Inverter Harness

210/01064/14 .................................................... 81, 83

Contact Block

44018701 .......................................................... 53, 55

44018901 .......................................................... 53, 55

Contactor

209/00041/04 ..............................................57, 59, 61

209/06148/02 ..........................................................61

Control Module Bottom Assembly

F0637821-00...........................................................53

Control Module Face

F0637813-00...........................................................53

Control Module Wrap

F0637819-00...........................................................53

Control Module Wrap Brace

111/10310/02 ........................................................... 89

Control Panel

111/05016/00 .........................................55, 67, 69, 71

111/10302/00 ........................................................... 65

111/32728/00 .....................................................55, 63

Cooling Fan

209/00287/00 ........................................33, 35, 81, 83

Cordlock

211/00123/00...........................................................79

211/00138/00...............................................33, 35, 79

Counter Ring

219/00004/00 ..........................................................29

232/00008/00 ..........................................................31

N/A items do not appear in index.

Counterweight

115/00136/00 .......................................................... 19

115/00140/00 .................................................... 19, 21

9001023 .................................................................. 21

Coupling

B12341901.............................................................. 37

223/00360/50.......................................................... 77

223/00360/60.......................................................... 77

Cover

111/10315/00........................................................... 73

Cylinder and Shaft Assembly

B12327101.................................................. 19, 21, 29

D

Diaphragm

F0638025-00........................................................... 77

209/00316/02.......................................................... 79

Diaphragm and Guide Kit

G582P3................................................................... 77

DIN Valve Kit

F8521501................................................................ 95

F8521801................................................................ 95

Dispenser Assembly

223/00102/60.......................................................... 91

Dispenser Drain Funnel

223/00196/00.......................................................... 91

Dispenser Front Mounting Plate

111/10101/00..................................................... 63, 65

Dispenser Lock Plate

111/10313/00........................................................... 89

Dispenser Mounting Plate

111/00207/00........................................................... 67

Dispenser Rear Mounting Plate

111/10102/00..................................................... 63, 65

Display

209/00580/03.................................................... 53, 55

Door

118/00125/00 .................................................... 47, 49

131/00004/00.......................................................... 45

Door Front Panel

111/05015/00........................................................... 21

111/32568/00........................................................... 19

9001096 .................................................................. 19

Door Glass

B12449801.................................................. 45, 47, 49

Door Glass Seal

223/00068/00.............................................. 45, 47, 49

Door Handle

217/00055/00.............................................. 45, 47, 51

217/00065/00.......................................................... 49

Door Handle Catch

217/00051/13.......................................................... 51

Door Handle Decal

229/00281/00.................................................... 19, 21

Door Handle Latch

9001474 .................................................................. 51

Door Handle Stop

217/00016/00.............................................. 45, 47, 49

Door Hinge Block

253/00022/00.............................................. 45, 47, 49

Door Hinge Plate Assembly

9001038 ...................................................... 45, 47, 49

N/A items do not appear in index.

98 9001005

Door Hinge Spacer

118/00124/00...............................................45, 47, 49

Door Lock Assembly

B12517701 ..............................................................43

Door Lock Harness

210/59001/00 ..........................................................43

Door Lock Microswitch

209/00272/00 ..........................................................43

Door Lock Pin Kit

211/00109/02.........................................43, 45, 47, 49

Door Lock Solenoid

C000184P ............................................................... 43

Door Lock Spacer

9001477 ..................................................................43

Door Lock Spring

224/00049/00 ..........................................................43

Door Release Wire

217/00052/07 ..........................................................43

Drain Elbow

223/00368/00 ..........................................................37

Drain Kit

831P3 ......................................................................41

Drain Pipe

223/00106/00 .................................................... 39, 41

Drain Support Bracket

111/10300/00 ........................................................... 37

Drain Tee

F0380318-00...........................................................37

Drain Tub to Drain Valve Hose

223/00133/00 ..........................................................39

Drain Valve

F0380632-00...........................................................37

209/00171/00 ..........................................................41

Drain Valve Bracket

F8619001 ..........................................................39, 41

111/10305/00 ........................................................... 37

Drain Valve Bracket Plate

111/10318/00 ........................................................... 37

Drain Valve Harness

900/00261/UL00................................................39, 41

Drain Valve Kit

B12630701 ........................................................39, 41

Drain Valve Mounting Bracket

111/10312/00 ........................................................... 37

Drain Valve Overflow Plug

223/00086/00 .................................................... 39, 41

Drain Valve Plate Assembly

115/00147/00..................................................... 39, 41

Drain Valve to Drain Pipe Hose

223/00141/00 ..............................................37, 39, 41

Drain Valve Wiring Harness

210/00905/00 ..........................................................37

Drive

F8421105.................................................................81

F8421106.................................................................81

F8421107.................................................................81

F8421108.................................................................81

F8421109.................................................................83

F8421110.................................................................83

F8421111 .................................................................83

F8421112.................................................................83

Drum

B12327301 ..................................................19, 21, 31

Unimac UX75PVQU7-Extractor Parts Diagram

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Parts Ordering Information

Serial Plate Location

Model Identification

Cabinet Freestanding Washer-Extractor Product Overview

Frame - 55 Pound Models

Frame - 75 Pound Models

Shock and Spring Assembly - 55 Pound Models Starting 6/21/11

Shock and Spring Assembly - 75 Pound Models Starting 11/14/11

Shell, Basket and Front Panel - Design 6 Models

Shell, Basket and Front Panel - Design 7 Models

Bearing Assembly - 55 Pound Models Through 1/30/11

Bearing Assembly - 55 Pound Models Starting 1/31/11

Bearing Assembly - 75 Pound Models

Basket, Pulley and Belt - 55 Pound Models

Basket, Pulley and Belt - 75 Pound Models

Motor - 55 Pound Models

Motor - 75 Pound Models

Drain Assembly

Single Drain Assembly

Dual Drain Assembly

Door Lock

Door - Design 6 Models

Door - Design 7 Models Through 9/30/07

Door - Design 7 Models Starting 10/1/07

Door Handle

Control Panel - Models UX055PVXF7, UX55PVXF6 and UX55PVXF7

Control Module Through February 2006 - 55 Pound Models

Control Module Through February 2006 - 75 Pound Models

Control Module Starting March 2006

Fill Plumbing - Models UX055PVXF7, UX55PVXF6 and UX55PVXF7

Upper Back Panel - 55 Pound Models

Upper Back Panel - 75 Pound Models

Balance Switch

Electric Heating Option

Steam Heating Option

Parts Index
