Uniden UDR100 User Manual

Contents

1) Getting to know your repeater......................2

Checking the package contents.............................2

How it works.........................................................2

Features............................................................3

Specifications...................................................4

2) Setting up your repeater................................4

Setting up the base................................................5

Changing the telephone system PIN................5

Automatic registration..........................................5

Manual registrationError! Bookmark not defined.

Registration for a daisy-chain layout ...................6

Registering to a different base..............................6

3) Installing the repeater....................................6

Finding the right location.....................................6

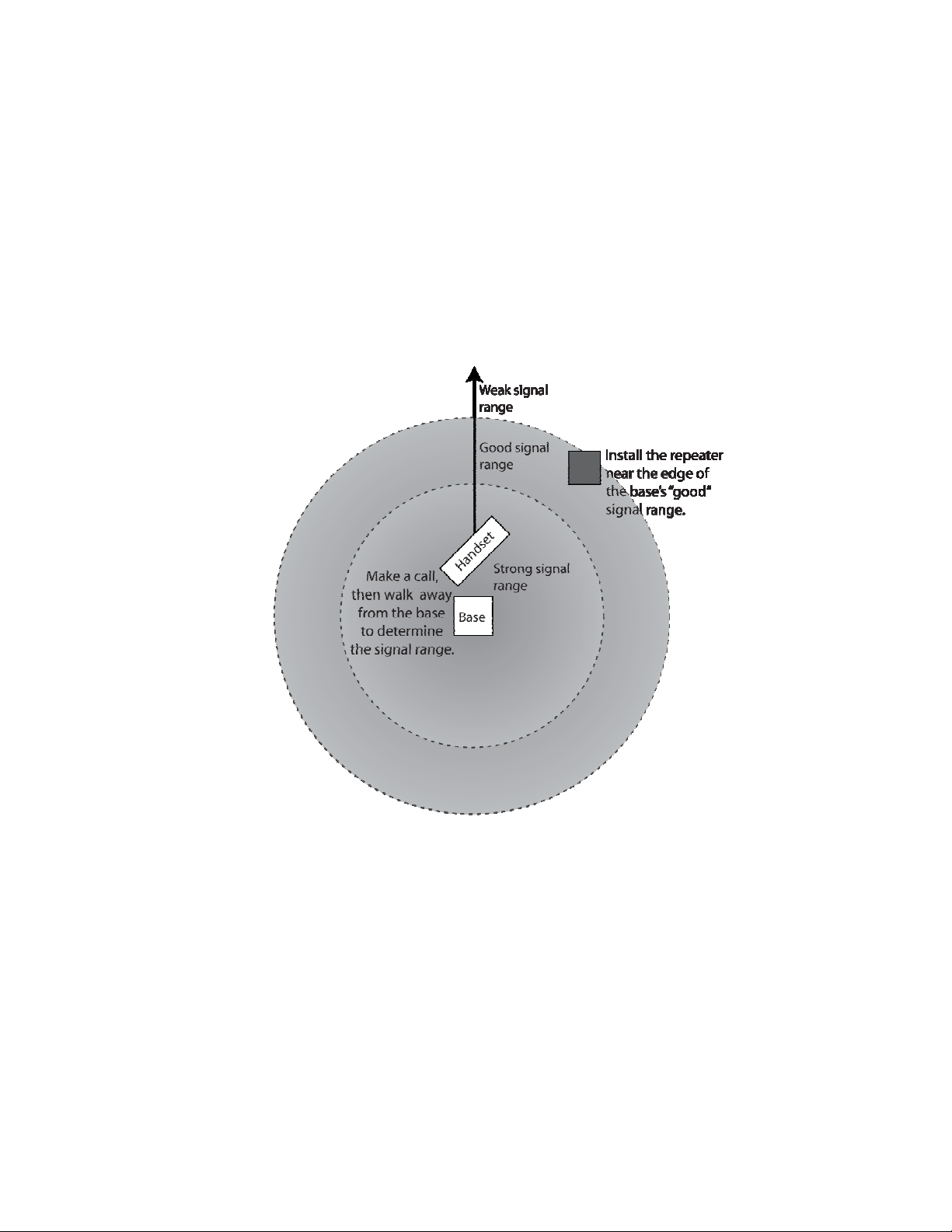

Map the base's coverage area...........................7

Test the location...............................................7

Installing the repeater...........................................8

Multiple-repeater systems.....................................8

Incorrect installation ........................................9

Correct installation...........................................9

Daisy-chain installations................................10

4) Troubleshooting and Maintenance.............11

Turning on the verification tone .........................11

Maintenance .......................................................12

5) Legal and warranty information................12

Important safety instructions ..............................12

Important electrical considerations................13

FCC regulatory information...............................13

Part 15 compliance.........................................13

Privacy information .......................................14

Radio interference information......................14

I.C. Notice...........................................................15

Terminal Equipment......................................15

Radio Equipment...........................................15

One Year Limited Warranty................................15

Contact Information............................................17

Having Trouble?............................................17

Need a Part?...................................................17

Help for our Special Needs Customers..........17

1) Getting to know your repeater

Checking the package contents

You should have received the following items:

UDR100 DECT repeater

•

AC adapter

•

Mounting screw and wall anchor

•

How it works

The UDR100 repeater lets you extend the coverage area of your cordless DECT
telephone system in all directions, including up and down. If the repeaters are
installed so their coverage area overlaps the coverage area of the base, the base
can hand-off calls to the repeaters as the user moves from one coverage area to
another. When it's connected to the repeater, the mobile handset operates the
exact same way as it does when connected to the base, and the hand-off from
the base to the repeater can be completely invisible to the end user, even during
an active call.

Each base supports up to six repeaters, so you can extend coverage in all
directions, including through floors and ceilings:

In addition, the UDR100 supports a sequential or "daisy chain" layout to extend
coverage in a single direction. Up to 3 repeaters can be installed in sequence:

For detailed information on daisy-chain layout and configuration,

contact your installer or refer to the UDR100 Administrator's Guide.

Features

Automatic registration to the base

•

Up to 6 repeaters per base station

•

Up to 3 repeaters in a sequential or daisy-chain layout

•

2 internal antennas to support 2 simultaneous calls

•

Repeater connection verification tone

•

Low power consumption

•

Specifications

AC power adapter:
Unit weight: 5oz (142g)

Frequency band: 1920Mhz -1939Mhz
Transmit power: 110mW
Receiver sensitivity: <-92 dBm at 10-3 BER
Operating

Temperature

Standards:

Input: 100 -240VAC 50 -60Hz
Output; 5VDC 500mA

14° to 122° F (-10° to +50° C)
Designed in accordance with the Digital Enhanced

Cordless Telecommunications (DECT) standard
Compliant with TBR6, TBR22 (Generic Access

Profile, GAP), and ETS 300 700 - ETSI Wireless
Relay Station Specification

2) Setting up your repeater

Before installing the repeater, you need to activate the repeater mode on your
base and then register the repeater to the base and any handsets. Before you
start the registration process, be sure you have

A working base

•

A working handset registered to that base

•

Any repeaters you want to register to this base (you must complete the

•

registration process separately for each repeater)
At least one of the AC adapters supplied with the repeaters.

•

Use ONLY the power adapter that came with your repeater. A

different power adapter may cause an electrical hazard or damage

the repeater.

Setting up the base

Changing the telephone system PIN

Before you start the registration process, you must reset the system PIN of your
telephone to
information). After you reset the PIN, make sure to re-register the handset you
used back to the base station.

(consult the manual that came with your base for more

0000

Automatic registration

The repeater seeks out the base with strongest DECT/GAP signal and
automatically registers to that base.

Step 1: Make sure the repeater is powered off (i.e., the AC power adapter is

not connected).

Step 2: Set the base into registration mode. (Consult the owner's manual that

came with your base station for more information.

Step 3: Use the AC adapter to connect the repeater to a standard 120 V AC

outlet. (Do not use a power outlet controlled by a wall switch.) The
LED on the repeater flashes briefly, then remains on and steady.

If the LED continues to flash, try registering the repeater again.

The repeater is now registered to this base and is ready to use.
You can safely disconnect the power and move the repeater to the selected

location; the repeater will stay registered to the base.

The repeater remains registered even if you disconnect the AC

adapter or there is a power failure. If you want to clear the

registration (for example, so you can register to a different base),

you must reset the repeater.

Registration for a daisy-chain layout

Registering the repeaters to operate in a daisy-chain or sequential layout
requires network administrator access and configuration software. Contact your
installer or refer to the UDR100 Administrator's Guide (provided with the
configuration software) for more information.

Registering to a different base

Once the repeater is registered, you need to reset it before you can change the
registration to a different base. If you want to reset the repeater and clear its
registration, follow the steps below:

Step 1: Disconnect the power.
Step 2: Reconnect the power for 1 to 5 seconds, and disconnect it again.
Step 3: Reconnect the power for 25 to 35 seconds.
Step 4: Disconnect the power, and perform the registration procedure with the

new base.

3) Installing the repeater

Finding the right location

To get the best operating conditions for the repeater, it is important to place it
correctly. Here are a few tips for placing repeaters.

Place the repeater as high as possible, but

•

Make sure you have good reception from the base

•

Make sure the location is close to a standard 120 V AC power outlet. Never

•

install electrical cords across a traffic area: they can create a trip hazard or
become damaged and create a fire or electrical hazard.

Allow

•

across multiple floors, don't forget to allow 30 feet
Avoid sources of electrical interference, such as hi-fi systems, office

•

equipment or microwave ovens.
Avoid heat sources and direct sunlight

•

at least 30 feet

between repeaters (if you are installing repeaters

at least 6 feet

vertically

off the ground

, also)

Avoid things that can interfere with radio signals, such as metal doors, thick

•
