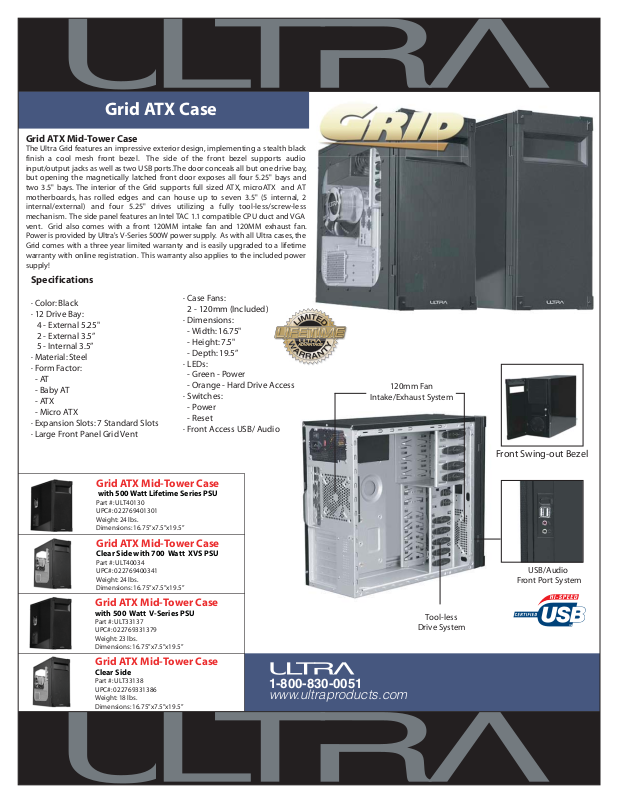

Grid ATX Case

Grid ATX Mid-Tower Case

The Ultra Grid features an impressive exterior design, implementing a stealth black finish a cool mesh front bezel. The side of the front bezel supports audio input/output jacks as well as two USB ports.The door conceals all but one drive bay, but opening the magnetically latched front door exposes all four 5.25" bays and two 3.5" bays. The interior of the Grid supports full sized ATX, microATX and AT motherboards, has rolled edges and can house up to seven 3.5" (5 internal, 2 internal/external) and four 5.25" drives utilizing a fully tool-less/screw-less mechanism. The side panel features an Intel TAC 1.1 compatible CPU duct and VGA vent. Grid also comes with a front 120MM intake fan and 120MM exhaust fan. Power is provided by Ultra's V-Series 500W power supply. As with all Ultra cases, the Grid comes with a three year limited warranty and is easily upgraded to a lifetime warranty with online registration. This warranty also applies to the included power supply!

Specifications

· Color: Black

· Case Fans:





2 - 120mm (Included)





· 12 Drive Bay:





· Dimensions:





4 - External 5.25"





- Width: 16.75"





2 - External 3.5”





- Height: 7.5"





5 - Internal 3.5”





- Depth: 19.5”





· Material: Steel





· LEDs:





· Form Factor:





- Green - Power





- AT





- Orange - Hard Drive Access



120mm Fan

- Baby AT



· Switches:



Intake/Exhaust System

- ATX



- Power





- Micro ATX





- Reset





· Expansion Slots: 7 Standard Slots





· Front Access USB/ Audio





· Large Front Panel Grid Vent











Grid ATX Mid-Tower Case





with 500 Watt Lifetime Series PSU





Part #: ULT40130





UPC#: 022769401301





Weight: 24 lbs.





Dimensions: 16.75”x7.5”x19.5”











Grid ATX Mid-Tower Case









Clear Side with 700 Watt XVS PSU





Part #: ULT40034





UPC#: 022769400341





Weight: 24 lbs.





Dimensions: 16.75”x7.5”x19.5”





Grid ATX Mid-Tower Case









with 500 Watt V-Series PSU

Tool-less

Part #: ULT33137

Drive System

UPC#: 022769331379

Weight: 23 lbs.





Dimensions: 16.75”x7.5”x19.5”











Grid ATX Mid-Tower Case





Clear Side

1-800-830-0051



Part #: ULT33138



UPC#: 022769331386



www.ultraproducts.com

Weight: 18 lbs.

Dimensions: 16.75”x7.5”x19.5”





Front Swing-out Bezel

USB/Audio

Front Port System
