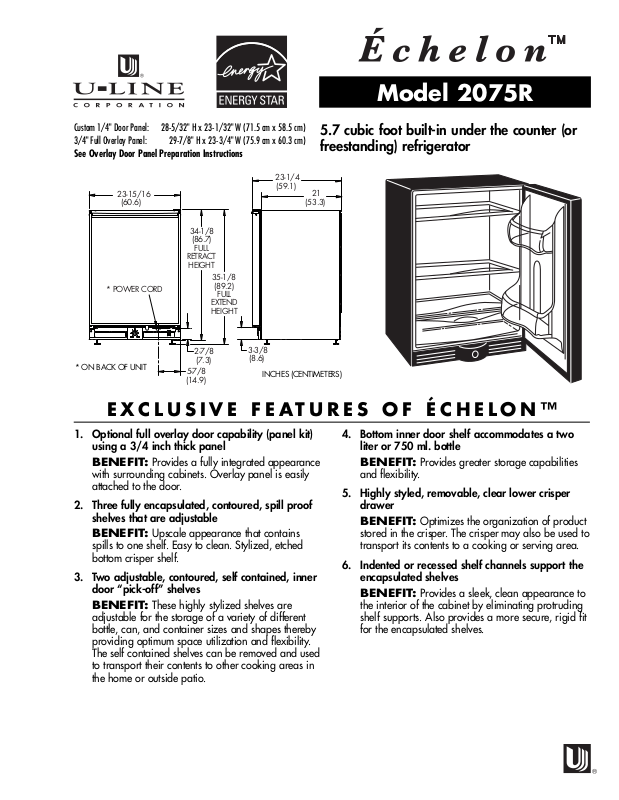

U-Line Echelon 2075R Specification
1. Optional full overlay door capability (panel kit)
using a 3/4 inch thick panel
BENEFIT:
Provides a fully integrated appearance
with surrounding cabinets. Overlay panel is easily
attached to the door.
2. Three fully encapsulated, contoured, spill proof
shelves that are adjustable
BENEFIT:
Upscale appearance that contains
spills to one shelf. Easy to clean. Stylized, etched
bottom crisper shelf.
3. Two adjustable, contoured, self contained, inner
door “pick-off” shelves
BENEFIT:
These highly stylized shelves are
adjustable for the storage of a variety of different
bottle, can, and container sizes and shapes thereby
providing optimum space utilization and flexibility.
The self contained shelves can be removed and used
to transport their contents to other cooking areas in
the home or outside patio.
4. Bottom inner door shelf accommodates a two
liter or 750 ml. bottle
BENEFIT:
Provides greater storage capabilities
and flexibility.
5. Highly styled, removable, clear lower crisper
drawer
BENEFIT:
Optimizes the organization of product
stored in the crisper. The crisper may also be used to
transport its contents to a cooking or serving area.
6. Indented or recessed shelf channels support the
encapsulated shelves
BENEFIT:
Provides a sleek, clean appearance to
the interior of the cabinet by eliminating protruding
shelf supports. Also provides a more secure, rigid fit
for the encapsulated shelves.
EXCLUSIVE FEATURES OF ÉCHELON™
Model 2075R
5.7 cubic foot built-in under the counter (or
freestanding) refrigerator
Custom 1/4" Door Panel: 28-5/32" H x 23-1/32" W (71.5 cm x 58.5 cm)
3/4" Full Overlay Panel: 29-7/8" H x 23-3/4" W (75.9 cm x 60.3 cm)
See Overlay Door Panel Preparation Instructions
23-1/4
23-15/16
(60.6)
* POWER CORD
* ON BACK OF UNIT
34-1/8
(86.7)
FULL
RETRACT
HEIGHT
2-7/8
(7.3)
5-7/8
(14.9)
35-1/8
(89.2)
FULL
EXTEND
HEIGHT
(59.1)
3-3/8
(8.6)
INCHES (CENTIMETERS)
21
(53.3)
1. Self closing door hinges are engaged when
door is open approximately 8-10 inches
BENEFIT:
Ensures a positive door seal and
prevents door bounce back.
2. “L” shaped door hinges
BENEFIT:
This hinge design provides greater
door support thereby permitting larger and heavier
door panels and full overlay doors to be utilized.
3. A slightly contoured, across the top, integrated
door handle design for black and white models
BENEFIT:
The contoured shape maintains the
stylized shape of the Échelon™ series plus permits
full door field reversibility on black and white units.
4. Flat, recessed, front grille with “warmer/colder”
control settings
BENEFIT:
Greater toe kick space. Easy to read
molded temperature control settings. The grille
design shields the interior motor compartment and
all electrical components from view.
5. New condenser design
BENEFIT:
Optimizes product performance and
energy efficiency while providing further reductions
in noise levels.
6. All stainless steel units have a seamless full
wrap stainless steel cabinet and door with
sculpted, contoured handle.
BENEFIT:
This seamless full wrap stainless steel
door with sculpted stainless handle distinguishes the
Echelon™ stainless steel units from other heavier
“commercial” looks. All stainless steel units have a
full wrap stainless cabinet, stainless hinges, and
black grille. All stainless units must be ordered either
right or left hand hinged and are not field reversible.
7. The 2075R stainless unit is deemed suitable for
outdoor use by UL.
BENEFIT:
For those outdoor applications that
require products that are deemed suitable for
outdoor use by UL, the 2075R stainless steel unit
meets these requirements.
8. New evaporator design
BENEFIT:
Provides for more uniform
temperatures throughout the interior cabinet,
ensuring that products are stored at the desired
temperature.
9. Field reversible doors (except stainless steel).
BENEFIT:
Greater flexibility where the unit can
be installed and allows for side-by-side applications.
SUPERIOR FEATURES OF ÉCHELON™
ADDITIONAL FEATURES
1. Automatic (cycle) Defrost
2. Built-in or freestanding
3. All doors (except stainless steel models)
accommodate a 1/4 inch thick custom panel.
Door comes standard with a factory installed flush
panel.
4. Door locks optional on black and white units. Not
available on stainless steel.
5. Adjustable temperature control
6. Interior light.
7. Vinyl clad steel cabinet (black/white)
8. Adjustable leveling legs.
9. Available in black, white, stainless steel.
10. Energy Star Appliance.
BENEFITS
Maintenance free defrosting
Provides custom look. No additional clearance
around sides, top, or rear for ventilation. Do not
obstruct front grille.
Standard feature to achieve a custom, built-in look by
matching surrounding cabinets.
Doors remain field reversible. Locks located in upper
middle portion of the door.
Ability to adjust temperature.
Automatically illuminates when door opens.
Textured rich look. More resistant to scratching,
peeling, flaking. Cabinet sides extend to the floor.
More precise under the counter fit, durable – factory
installed.
Blends with all cabinet colors.
Qualifies for U.S. Government ENERGY STAR program.
2075R
