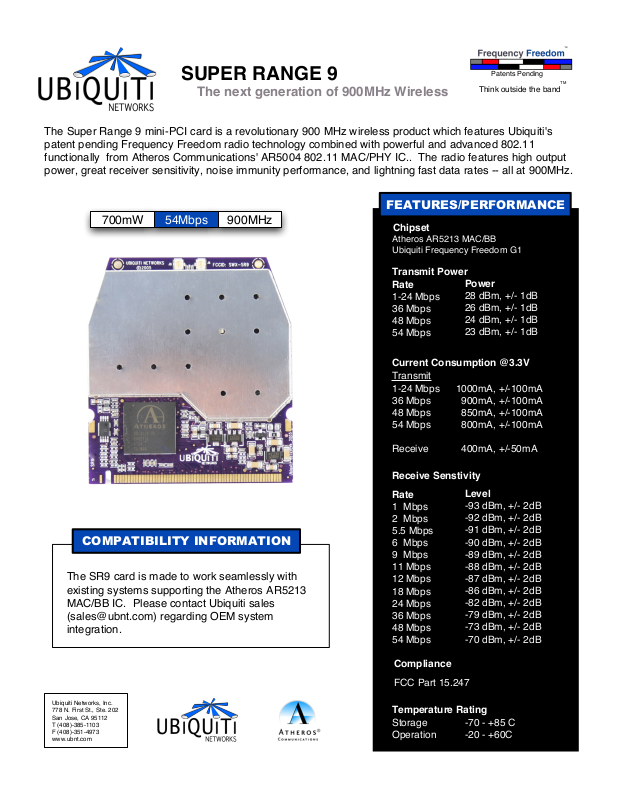

Ubiquiti SR9 Product Information

FEATURES/PERFORMANCE

Ubiquiti Networks, Inc.
778 N. First St., Ste. 202
San Jose, CA 95112
T (408)-385-1103
F (408)-351-4973
www.ubnt.com

SUPER RANGE 9

Chipset

Atheros AR5213 MAC/BB
Ubiquiti Frequency Freedom G1

Transmit Power
Rate

1-24 Mbps
36 Mbps
48 Mbps
54 Mbps

Power

28 dBm, +/- 1dB
26 dBm, +/- 1dB
24 dBm, +/- 1dB
23 dBm, +/- 1dB

Current Consumption @3.3V

Transmit
1-24 Mbps
36 Mbps
48 Mbps
54 Mbps

Receive

1000mA, +/-100mA
900mA, +/-100mA
850mA, +/-100mA
800mA, +/-100mA

400mA, +/-50mA

Temperature Rating

Storage
Operation

-70 - +85 C

-20 - +60C

Receive Senstivity

Rate

1 Mbps
2 Mbps

5.5 Mbps
6 Mbps
9 Mbps
11 Mbps
12 Mbps
18 Mbps
24 Mbps
36 Mbps
48 Mbps
54 Mbps

Level

-93 dBm, +/- 2dB

-92 dBm, +/- 2dB

-91 dBm, +/- 2dB

-90 dBm, +/- 2dB

-89 dBm, +/- 2dB

-88 dBm, +/- 2dB

-87 dBm, +/- 2dB

-86 dBm, +/- 2dB

-82 dBm, +/- 2dB

-79 dBm, +/- 2dB

-73 dBm, +/- 2dB

-70 dBm, +/- 2dB

Compliance

FCC Part 15.247

COMPATIBILITY INFORMATION

The SR9 card is made to work seamlessly with
existing systems supporting the Atheros AR5213
MAC/BB IC. Please contact Ubiquiti sales
([e-mail]) regarding OEM system
integration.

The Super Range 9 mini-PCI card is a revolutionary 900 MHz wireless product which features Ubiquiti's
patent pending Frequency Freedom radio technology combined with powerful and advanced 802.11
functionally from Atheros Communications' AR5004 802.11 MAC/PHY IC.. The radio features high output
power, great receiver sensitivity, noise immunity performance, and lightning fast data rates -- all at 900MHz.

The next generation of 900MHz Wireless

Patents Pending

Think outside the band

TM

700mW 54Mbps 900MHz
