Ubiquiti POE-50-60W Data sheet

Datasheet

PoE Adapters

PoE Adapters

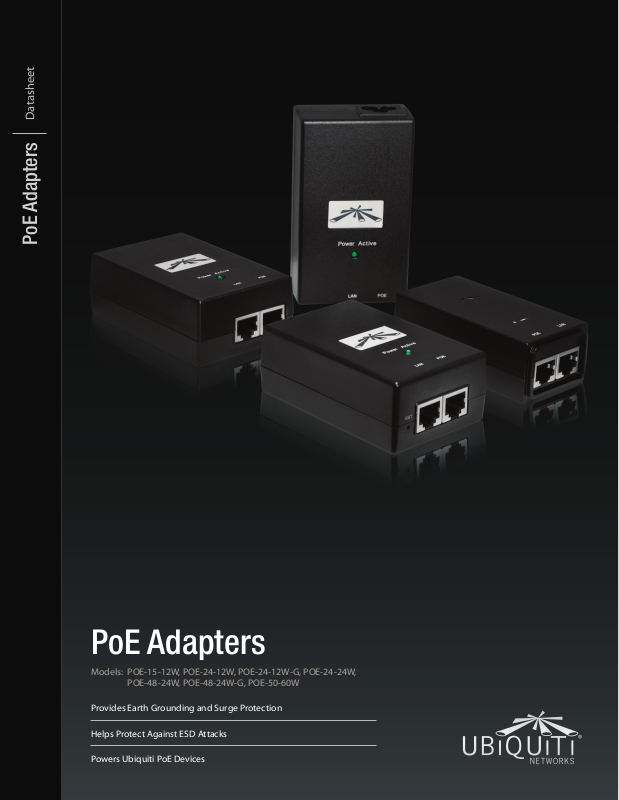

Models: POE-15-12W, POE-24-12W, POE-24-12W-G, POE-24-24W,
POE-48-24W, POE-48-24W-G, POE-50-60W

Provides Earth Grounding and Surge Protection

Helps Protect Against ESD Attacks

Powers Ubiquiti PoE Devices

Overview

POE

LAN

POE

LAN

Ubiquiti Networks™ offers Power over Ethernet (PoE)
Adapters to power a variety of Ubiquiti products. The PoE
Adapters are compatible with most Ubiquiti PoE devices*,
including:

Datasheet

• airFiber®

• airMAX®

• airVision®

• UniFi®

• mFi®

* Check product specications to verify PoE compatibility.

Ubiquiti PoE Adapter Compatibility with
the airGateway

PoE Adapters

Specic PoE Adapter models are designed to work with

the airGateway

toconnect wireless client devices.

The airGateway is available in two models:

• airGateway Standard model with an internal antenna

• airGateway-LR Long-range model with an external

antenna for extended range

The airGateway plugs into either of these PoE Adapters:

Model Number Compatibility

POE-15-12W

POE-24-12W

POE-24-12W-G*

™

. You can deploy the airGateway indoors

✓

✓

✓

Protection

Ubiquiti PoE Adapters provide a variety of features to help
protect your Ubiquiti PoE devices:

• Surge protection

• Clamping protection

• Maximum surge discharge

• Peak pulse current

• AC cable with earth ground

ESD attacks are the leading cause for device failures. You can
effectively protect against ESD attacks using a grounded

UbiquitiPoE Adapter, TOUGHCable

Connectors.

Potential for ESD Attacks

Unshielded cable

with no ESD drain

™

, and TOUGHCable

PoE adapter with

no earth ground

* airGateway maximum speed: 100 Mbps

airGateway

POE-24-12W

Thisdiagram illustrates the areas vulnerable to ESD attacks in
anetwork.

Protection Against ESD Attacks

POE-48-24W-G

Ubiquiti

TOUGHCable

Thisdiagram illustrates the areas protected against ESD
attacks in anetwork.

2

www.ubnt.com/airmax#poe

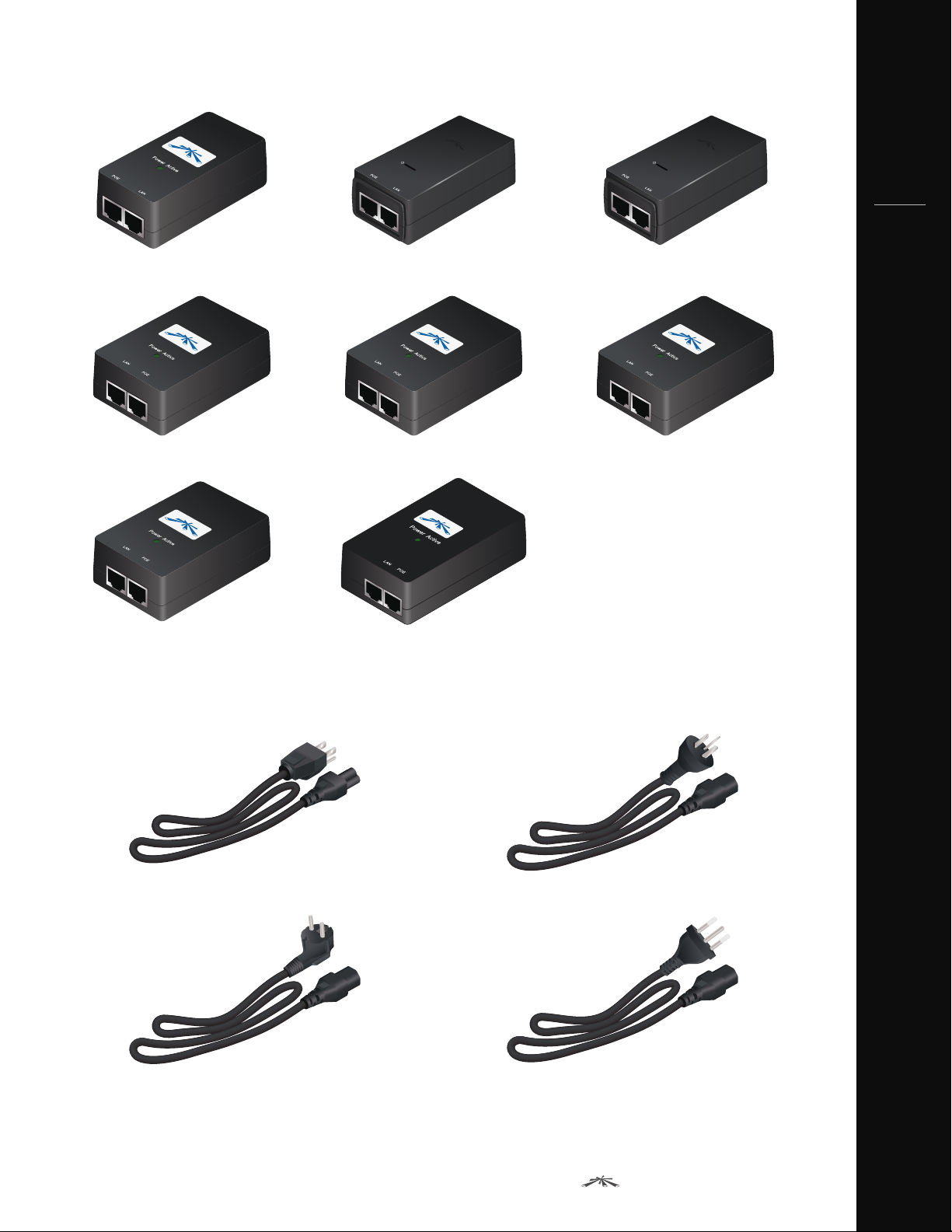

Models

POE-15-12W POE-24-12W POE-24-12W-G

POE-24-24W POE-24-24W-G POE-48-24W

Datasheet

PoE Adapters

POE-48-24W-G POE-50-60W

Power Cords

US Power Cord AR Power Cord

EU Power Cord BR Power Cord

www.ubnt.com/airmax#poe

3

Datasheet

Specications

PoE Adapters

Model POE-15-12W POE-24-12W POE-24-12W-G

Dimensions

Weight 91.7 g (3.24 oz) 92 g (3.25 g) 99.4 g (3.51 g)

85.1 x 44 x 29.2 mm

(3.35 x 1.73 x 1.15 in)

87 x 84 x 29.2 mm

(3.43 x 3.31 x 1.15 in)

87 x 84 x 29.2 mm

(3.43 x 3.31 x 1.15 in)

Output Volt

LAN Activity
Indicator

Gigabit LAN Port No No Yes

Remote Reset
Capability

PoE Adapters

Reset Button No Yes Ye s

Input Voltage 90-260VAC @ 47-63 Hz 90-260VAC @ 47-63 Hz 90-260VAC @ 47-63 Hz

Input Current

Inrush Current

Efciency 75+% 75+% 75+%

Output Ripple 1% Max. 1% Max. 1% Max.

Switching Frequency 50 kHz 50 kHz 50 kHz

Line Regulation ± 1% ± 1% ± 1%

Load Regulation ± 3% ± 3% ± 3%

2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-) Pins 4, 5 (+) and Pins 7, 8 (-) Pins 4, 5 (+) and Pins 7, 8 (-)

Operating
Temperature

Storage Temperature -30 to 70°C (-22 to 158° F) -30 to 70°C (-22 to 158° F) -30 to 70°C (-22 to 158° F)

age 15VDC @ 0.8A 24VDC @ 0.5A 24VDC @ 0.5A

No No No

No Yes Ye s

0.3A @ 120VAC,

0.2A @ 240VAC

<30A Peak @120VAC,
<60A Peak @ 230VAC

0 to 40° C (32 to 104° F) 0 to 40° C (32 to 104° F) 0 to 40° C (32 to 104° F)

0.3A @ 120VAC,

0.2A @ 240VAC

<30A Peak @120VAC,
<60A Peak @ 230VAC

0.3A @ 120VAC,

0.2A @ 240VAC

<30A Peak @120VAC,
<60A Peak @ 230VAC

Operating Humidity 35 to 95% Non-Condensing 35 to 95% Non-Condensing 35 to 95% Non-Condensing

AC Connector IEC-320 C6 IEC-320 C6 IEC-320 C6

Data IN / POE RJ45 Shielded Socket RJ45 Shielded Socket RJ45 Shielded Socket

Surge Protection Difference and Common Mode Difference and Common Mode Difference and Common Mode

Clamping Protection 11V Data, 60V Power 11V Data, 60V Power 11V Data, 60V Power

Max. Surge
Discharge

Peak Pulse Current 36A (10/1000µS) Data 36A (10/1000µS) Data 36A (10/1000µS) Data

Shunt Capacitance <5 pf data <5 pf data <5 pf data

Response Time <1 nS <1 nS <1 nS

Compliance

AC Cable with Earth
Ground

4

www.ubnt.com/airmax#poe

1500A (8/20µS) Power 1500A (8/20µS) Power 1500A (8/20µS) Power

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

USA, EU, AR, BR, UL, CCC,

Mexico

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

USA, EU, AR, BR, UL, CCC,

Mexico

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

USA, EU, AR, BR, UL, CCC,

Mexico

Specications

PoE Adapters

Model POE-24-24W POE-24-24W-G POE-48-24W

Dimensions

Weight 135 g (4.76 oz) 158.5 g (5.59 oz) 135.5 g (4.78 oz)

88 x 57 x 33 mm

(3.47 x 2.24 x 1.30 in)

88 x 57 x 33 mm

(3.47 x 2.24 x 1.30 in)

88 x 57 x 33 mm

(3.47 x 2.24 x 1.30 in)

Datasheet

Output Volt

LAN Activity
Indicator

Gigabit LAN Port No Ye s No

Remote Reset
Capability

Reset Button Yes Ye s No

Input Voltage 90-260VAC @ 47-63 Hz 90-260VAC @ 47-63 Hz 90-260VAC @ 47-63 Hz

Input Current

Inrush Current

Efciency 80+% 80+% 80+%

Output Ripple 1% Max. 1% Max. 1% Max.

Switching Frequency 65 kHz 65 kHz 65 kHz

Line Regulation ± 1% ± 1% ± 1%

Load Regulation ± 3% ± 3% ± 3%

4-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)

Operating
Temperature

Storage Temperature -30 to 70°C (-22 to 158° F) -30 to 70°C (-22 to 158° F) -30 to 70°C (-22 to 158° F)

age 24VDC @ 1.0A 24VDC @ 1.0A 48VDC @0.5A

No No No

Yes Ye s No

0.6A @ 120VAC,

0.4A @ 240VAC

<60A Peak @120VAC,

<120A Peak @ 230VAC

0 to 40° C (32 to 104° F) 0 to 40° C (32 to 104° F) 0 to 40° C (32 to 104° F)

0.6A @ 120VAC,

0.4A @ 240VAC

<60A Peak @120VAC,

<120A Peak @ 230VAC

Pins 1, 2, 4, 5 (+) and

Pins 7, 8, 3, 6 (-)

0.6A @ 120VAC,

0.4A @ 240VAC

<60A Peak @120VAC,

<120A Peak @ 230VAC

Pins 4, 5 (+) and Pins 7, 8 (-)

PoE Adapters

Operating Humidity 35 to 95% Non-Condensing 35 to 95% Non-Condensing 35 to 95% Non-Condensing

AC Connector IEC-320 C6 IEC-320 C6 IEC-320 C6

Data IN / POE RJ45 Shielded Socket RJ45 Shielded Socket RJ45 Shielded Socket

Surge Protection Difference and Common Mode Difference and Common Mode Difference and Common Mode

Clamping Protection 11V Data, 60V Power 11V Data, 60V Power 11V Data, 60V Power

Max. Surge
Discharge

Peak Pulse Current 36A (10/1000µS) Data 36A (10/1000µS) Data 36A (10/1000µS) Data

Shunt Capacitance <5 pf data <5 pf data <5 pf data

Response Time <1 nS <1 nS <1 nS

Compliance

AC Cable with Earth
Ground

1500A (8/20µS) Power 1500A (8/20µS) Power 1500A (8/20µS) Power

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

USA, EU, AR, BR, UL, CCC,

Mexico

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

USA, EU, AR, BR, UL, CCC,

Mexico

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

USA, EU, AR, BR, UL, CCC,

Mexico

www.ubnt.com/airmax#poe

5

Datasheet

Specications

PoE Adapters

Model POE48-24W-G POE-50-60W

Dimensions

Weight 158.5 g (5.59 oz) 192 g (6.77 oz)

91.8 x 59.9 x 33 mm

(3.61 x 2.36 x 1.30 in)

100.95 x 60 x 33 mm
(3.97 x 2.36 x1.30 in)

Output Volt

LAN Activity Indicator No No

Gigabit LAN Port Ye s Yes

Remote Reset Capability No No

Reset Button No No

PoE Adapters

Input Voltage 90-260VAC @ 47-63 Hz 90-260VAC @ 47-63 Hz

Input Current

Inrush Current

Efciency 80+% 85+%

Output Ripple 1% Max. 1% Max.

Switching Frequency 65 kHz 65 kHz

Line Regulation ± 1% ± 1%

Load Regulation ± 3% ± 3%

4-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)

Operating Temperature 0 to 40° C (32 to 104° F) 0 to 40° C (32 to 104° F)

age 48VDC @0.5A 50VDC @ 1.2A

0.6A @ 120VAC,

0.4A @ 240VAC

<65A Peak @120VAC,

<130A Peak @ 230VAC

1.3A @ 120VAC,

0.75A @ 240VAC

<100A Peak @120VAC,

\<200A Peak @ 230VAC

Pins 1, 2, 4, 5 (+) and

Pins 7, 8, 3, 6 (-)

Storage Temperature -30 to 70°C (-22 to 158° F) -30 to 70°C (-22 to 158° F)

Operating Humidity 35 to 95% Non-Condensing 35 to 95% Non-Condensing

AC Connector IEC-320 C6 IEC-320 C6

Data IN / POE RJ45 Shielded Socket RJ45 Shielded Socket

Surge Protection Difference and Common Mode Difference and Common Mode

Clamping Protection 11V Data, 60V Power 11V Data, 60V Power

Max. Surge Discharge 1500A (8/20µS) Power 1500A (8/20µS) Power

Peak Pulse Current 36A (10/1000µS) Data 36A (10/1000µS) Data

Shunt Capacitance <5 pf data <5 pf data

Response Time <1 nS <1 nS

IEC 60950-1:2005+A1

Compliance

AC Cable with Earth
Ground

All specications in this document are subject to change without notice.

©2012-2014 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam
logo, airFiber, airGateway, airMAX, airOS, airVision, mFi, and UniFi are trademarks or registered trademarks of Ubiquiti

Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.

Allother trademarks are the property of their respective owners.

EN55022:2010, EN55024:2010

USA, EU, AR, BR, UL, CCC, Mexico USA, EU, AR, BR, UL, CCC, Mexico

UL60950-1

FCC Class B

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

www.ubnt.com

JL011014
