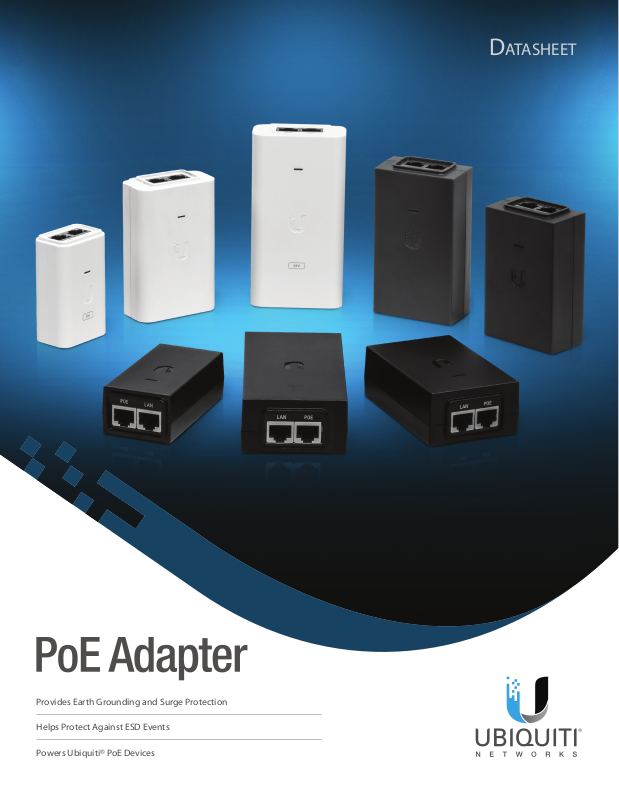

Datasheet

PoE Adapters

Provides Earth Grounding and Surge Protection

Helps Protect Against ESD Events

Powers Ubiquiti® PoE Devices

Datasheet

Ubiquiti Networks offers Power over Ethernet (PoE) Adapters
to power a variety of Ubiquiti products. The PoE Adapters
are compatible with most Ubiquiti PoE devices*, including:

• airFiber®

• airMAX®

• EdgeMAX®

• mFi®

• UniFi® AP

• UniFi Video / airVision®

* Check product specications to verify PoE compatibility.

Protection

Ubiquiti PoE Adapters provide a variety of features to help
protect your PoE devices:

• Surge protection

• Clamping protection

• Maximum surge discharge

• Peak pulse current

• AC cable with earth ground

Electrostatic discharge (ESD) is the leading cause for
outdoor device failures. You can effectively protect against

ESD damage using a grounded UbiquitiPoE Adapter,

TOUGHCable™, and TOUGHCable Connectors.

Potential for ESD

PoE Adapters

Ubiquiti PoE Adapter Compatibility with
the airGateway

Specic PoE Adapter models are designed to work with the

airGateway. The airGateway is a compact CPE (consumer
premises equipment) gateway with built-in Wi-Fi used to
connect the subscriber’s local network to the WISP network.

The airGateway is available in three models:

• airGateway Standard model with an internal antenna

• airGateway Pro Dual-Band Wi-Fi model with an internal

antenna

• airGateway-LR Long-range Wi-Fi model with an external

antenna for extended range

The airGateway plugs into any of these PoE Adapters:

Model Number Compatibility

POE-15-12W

POE-24-12W

POE-24-12W-G ✓*

POE-24-7W ✓*

POE-24-12W-G-WH ✓*

* airGateway maximum LAN port speed: 100 Mbps

™

Ethernet cable

with no ESD drain

PoE adapter with

no earth ground

✓

✓

Areas vulnerable to ESD events in a network without a Ubiquiti
PoE Adapter.

Protection Against ESD

airGateway

TOUGHCable

Connectors

Ubiquiti PoE Adapter

with earth ground

POE-24-12W

TOUGHCable

protects and

provides ESD drain

Ubiquiti PoE Adapters and TOUGHCable protect against ESD
events in anetwork.

2

Models

Datasheet

POE-25-5W POE-24-7W

PoE Adapters

POE-15-12W
POE-24-12W

POE-24-12W-G

POE-24-12W-G-WH POE-48-24W-WH

POE-24-24W

POE-24-24W-G

POE-24-30W

POE-48-24W-G-WH

POE-48-24W

POE-48-24W-G

POE-24-AF5X POE-50-60W

POE-54-80W-G POE-54-80W

3

Specications

Model POE-25-5W POE-24-7W POE-15-12W

Dimensions

Datasheet

PoE Adapters

Weight 65 g (2.3 oz) 72.1g (2.54 oz) 91.7 g (3.24 oz)

Output Voltage 24VDC @ 0.2A 24VDC @ 0.3A 15VDC @ 0.8A

LAN Activity
Indicator

Gigabit LAN Port No Yes No

Remote Reset
Capability

Reset Button Yes Ye s No

Input Voltage 100-240AC @ 50/60Hz 100-240AC @ 50/60Hz 90-260VAC @ 47-63 Hz

Input Current

Inrush Current

Efciency 72+% 80+% 75+%

Output Ripple 1% Max. 1% Max. 1% Max.

64 × 44× 30 mm

(2.53 × 1.73 × 1.18")

No No No

Yes Ye s No

0.3A @ 120VAC,

0.2A @ 240VAC

<40A Peak @ 120VAC,

<70A Peak @ 230VAC

72 x 45 x 33

(2.84 x 1.75 x 1.33")

0.3A @ 120VAC, 0.2A @240VAC

<40A Peak @ 120VAC,

<70A Peak @ 230VAC

85 x 44 x 29 mm

(3.35 x 1.73 x 1.14")

0.3A @ 120VAC,

0.2A @ 240VAC

<30A Peak @ 120VAC,

<60A Peak @ 230VAC

Switching Frequency 60kHz Max. 65 kHz 50 kHz

Line Regulation ± 1% ± 1% ± 1%

Load Regulation ± 3% ± 3% ± 3%

2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-) Pins 4, 5 (+) and Pins 7, 8 (-) Pins 4, 5 (+) and Pins 7, 8 (-)

Operating
Temperature

Storage Temperature -30 to 70° C (-22 to 158°F) -30 to 70°C (-22 to 158°F) -30 to 70°C (-22 to 158° F)

Operating Humidity 35 to 95% Noncondensing 35 to 95% Non-Condensing 35 to 95% Noncondensing

AC Connector IEC-320 C6 IEC-320 C6 IEC-320 C6

Data IN / POE RJ45 Shielded Socket RJ45 Shielded Socket RJ45 Shielded Socket

Surge Protection Difference and Common Mode Difference and Common Mode Difference and Common Mode

Clamping Protection 11V Data, 60V Power 11V Data, 60V Power 11V Data, 60V Power

Max. Surge
Discharge

Peak Pulse Current 36A (10/1000 µs) Data 36A (10/1000 µs) Data 36A (10/1000 µs) Data

Shunt Capacitance <5 pF data <5 pf data <5 pF data

Response Time <1 ns <1 ns <1 ns

Compliance

AC Cable with Earth
Ground

0 to 40° C (32 to 104° F) 0 to 40°C (32 to 104°F) 0 to 40° C (32 to 104° F)

1500A (8/20 µs) Power 1500A (8/20 µs) Power 1500A (8/20 µs) Power

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

EU, AR, BR, UL/cUL, CCC,

Mexico, RCM

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

EU, AR, BR, UL/cUL, CCC,

Mexico, RCM

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

USA, EU, AR, BR, UL, CCC,

Mexico

4

Specications

Model POE-24-12W POE-24-12W-G POE-24-12W-G-WH

Dimensions

Weight 92 g (3.25 g) 99.4 g (3.51 g) 75 g (2.65 g)

Output Voltage 24VDC @ 0.5A 24VDC @ 0.5A 24VDC @ 0.5A

LAN Activity
Indicator

Gigabit LAN Port No Yes Ye s

Remote Reset
Capability

Reset Button Yes Ye s Yes

Input Voltage 90-260VAC @ 47-63 Hz 90-260VAC @ 47-63 Hz 90-260VAC @ 47-63 Hz

Input Current

Inrush Current

Efciency 75+% 75+% 75+%

Output Ripple 1% Max. 1% Max. 1% Max.

87 x 44 x 29 mm

(3.43 x 1.73 x 1.14")

No No No

Yes Ye s Yes

0.3A @ 120VAC,

0.2A @ 240VAC

<30A Peak @ 120VAC,

<60A Peak @ 230VAC

87 x 44 x 29 mm

(3.43 x 1.73 x 1.14")

0.3A @ 120VAC,

0.2A @ 240VAC

<30A Peak @ 120VAC,

<60A Peak @ 230VAC

89 x 46 x 33 mm

(3.48 x 1.81 x 1.30")

0.3A @ 120VAC,

0.2A @ 240VAC

<30A Peak @ 120VAC,

<60A Peak @ 230VAC

Datasheet

PoE Adapters

Switching Frequency 50 kHz 50 kHz 50 kHz

Line Regulation ± 1% ± 1% ± 1%

Load Regulation ± 3% ± 3% ± 3%

2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-) Pins 4, 5 (+) and Pins 7, 8 (-) Pins 4, 5 (+) and Pins 7, 8 (-)

Operating
Temperature

Storage Temperature -30 to 70°C (-22 to 158° F) -30 to 70°C (-22 to 158° F) -30 to 70°C (-22 to 158° F)

Operating Humidity 35 to 95% Noncondensing 35 to 95% Noncondensing 35 to 95% Noncondensing

AC Connector IEC-320 C6 IEC-320 C6 IEC-320 C6

Data IN / POE RJ45 Shielded Socket RJ45 Shielded Socket RJ45 Shielded Socket

Surge Protection Difference and Common Mode Difference and Common Mode Difference and Common Mode

Clamping Protection 11V Data, 60V Power 11V Data, 60V Power 11V Data, 60V Power

Max. Surge
Discharge

Peak Pulse Current 36A (10/1000 µs) Data 36A (10/1000 µs) Data 36A (10/1000 µs) Data

Shunt Capacitance <5 pF data <5 pF data <5 pF data

Response Time <1 ns <1 ns <1 ns

Compliance

AC Cable with Earth
Ground

0 to 40° C (32 to 104° F) 0 to 40° C (32 to 104° F) 0 to 40° C (32 to 104° F)

1500A (8/20 µs) Power 1500A (8/20 µs) Power 1500A (8/20 µs) Power

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

USA, EU, AR, BR, UL, CCC,

Mexico

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

USA, EU, AR, BR, UL, CCC,

Mexico

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

USA, EU, AR, BR, UL, CCC,

Mexico

5

Specications

Model POE-24-AF5X POE-24-24W POE-24-24W-G

Dimensions

Datasheet

PoE Adapters

Weight 158.5 g (5.59 oz) 135 g (4.76 oz) 158.5 g (5.59 oz)

Output Voltage 24VDC @ 1.0A 24VDC @ 1.0A 24VDC @ 1.0A

LAN Activity
Indicator

Gigabit LAN Port Yes No Ye s

Remote Reset
Capability

Reset Button Yes Ye s Yes

Input Voltage 90-260VAC @ 47-63 Hz 90-260VAC @ 47-63 Hz 90-260VAC @ 47-63 Hz

Input Current

Inrush Current

Efciency 80+% 80+% 80+%

Output Ripple 1% Max. 1% Max. 1% Max.

88 x 57 x 33 mm

(3.47 x 2.24 x 1.30")

No No No

Yes Ye s Yes

0.6A @ 120VAC,

0.4A @ 240VAC

<60A Peak @ 120VAC,

<120A Peak @ 230VAC

88 x 57 x 33 mm

(3.47 x 2.24 x 1.30")

0.6A @ 120VAC,

0.4A @ 240VAC

<60A Peak @ 120VAC,

<120A Peak @ 230VAC

88 x 57 x 33 mm

(3.47 x 2.24 x 1.30")

0.6A @ 120VAC,

0.4A @ 240VAC

<60A Peak @ 120VAC,

<120A Peak @ 230VAC

Switching Frequency 65 kHz 65 kHz 65 kHz

Line Regulation ± 1% ± 1% ± 1%

Load Regulation ± 3% ± 3% ± 3%

2-Pair Powering – Pins 4, 5 (+) and Pins 7, 8 (-) –

4-Pair Powering

Operating
Temperature

Storage Temperature -30 to 70°C (-22 to 158° F) -30 to 70° C (-22 to 158° F) -30 to 70°C (-22 to 158° F)

Operating Humidity 35 to 95% Noncondensing 35 to 95% Noncondensing 35 to 95% Noncondensing

AC Connector IEC-320 C6 IEC-320 C6 IEC-320 C6

Data IN / POE RJ45 Shielded Socket RJ45 Shielded Socket RJ45 Shielded Socket

Surge Protection Difference and Common Mode Difference and Common Mode Difference and Common Mode

Clamping Protection 11V Data, 60V Power 11V Data, 60V Power 11V Data, 60V Power

Max. Surge
Discharge

Peak Pulse Current 36A (10/1000 µs) Data 36A (10/1000 µs) Data 36A (10/1000 µs) Data

Shunt Capacitance <5 pF data <5 pF data <5 pF data

Pins 1, 2, 4, 5 (+) and

Pins 3, 6, 7, 8 (-)

0 to 40° C (32 to 104° F) 0 to 40° C (32 to 104° F) 0 to 40° C (32 to 104° F)

1500A (8/20 µs) Power 1500A (8/20 µs) Power 1500A (8/20 µs) Power

–

Pins 1, 2, 4, 5 (+) and

Pins 3, 6, 7, 8 (-)

Response Time <1 ns <1 ns <1 ns

IEC 60950-1:2005+A1

Compliance

AC Cable with Earth
Ground

6

EN55022:2010, EN55024:2010

UL60950-1

FCC Class B

USA, EU, AR, BR, UL, CCC,

Mexico

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

USA, EU, AR, BR, UL, CCC,

Mexico

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

USA, EU, AR, BR, UL, CCC,

Mexico

Specications

Model POE-24-30W POE-48-24W POE48-24W-G

Dimensions

Weight 156 g (5.5 oz) 135.5 g (4.78 oz) 158.5 g (5.59 oz)

Output Voltage 24VDC @ 1.25A 48VDC @ 0.5A 48VDC @ 0.5A

LAN Activity
Indicator

Gigabit LAN Port Yes No Ye s

Remote Reset
Capability

Reset Button Yes No No

Input Voltage 100-240AC @ 50/60Hz 90-260VAC @ 47-63 Hz 90-260VAC @ 47-63 Hz

Input Current

Inrush Current

Efciency 83+% 80+% 80+%

Output Ripple 1% Max. 1% Max. 1% Max.

94 × 60 × 33 mm

(3.70 × 2.36 × 1.30")

No No No

Yes No No

0.6A @ 120VAC,

0.4A @ 240VAC

<60A Peak @ 120VAC,

<120A Peak @ 230VAC

88 x 57 x 33 mm

(3.47 x 2.24 x 1.30")

0.6A @ 120VAC,

0.4A @ 240VAC

<60A Peak @ 120VAC,

<120A Peak @ 230VAC

92 x 60 x 33 mm

(3.62 x 2.36 x 1.30")

0.6A @ 120VAC,

0.4A @ 240VAC

<65A Peak @ 120VAC,

<130A Peak @ 230VAC

Datasheet

PoE Adapters

Switching Frequency 65 kHz 65 kHz 65 kHz

Line Regulation ± 1% ± 1% ± 1%

Load Regulation ± 3% ± 3% ± 3%

2-Pair Powering – Pins 4, 5 (+) and Pins 7, 8 (-) Pins 4, 5 (+) and Pins 7, 8 (-)

4-Pair Powering

Operating
Temperature

Storage Temperature -30 to 70° C (-22 to 158° F) -30 to 70°C (-22 to 158° F) -30 to 70°C (-22 to 158° F)

Operating Humidity 35 to 95% Noncondensing 35 to 95% Noncondensing 35 to 95% Noncondensing

AC Connector IEC-320 C6 IEC-320 C6 IEC-320 C6

Data IN / POE RJ45 Shielded Socket RJ45 Shielded Socket RJ45 Shielded Socket

Surge Protection Difference and Common Mode Difference and Common Mode Difference and Common Mode

Clamping Protection 11V Data, 60V Power 11V Data, 60V Power 11V Data, 60V Power

Max. Surge
Discharge

Peak Pulse Current 36A (10/1000 µs) Data 36A (10/1000 µs) Data 36A (10/1000 µs) Data

Shunt Capacitance <5 pF data <5 pF data <5 pF data

Pins 1, 2, 4, 5 (+) and

Pins 3, 6, 7, 8 (-)

0 to 40° C (32 to 104° F) 0 to 40° C (32 to 104° F) 0 to 40° C (32 to 104° F)

1500A (8/20 µs) Power 1500A (8/20 µs) Power 1500A (8/20 µs) Power

– –

Response Time <1 ns <1 ns <1 ns

Compliance

AC Cable with Earth
Ground

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

EU, AR, BR, UL/cUL, CCC,

Mexico, RCM

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

USA, EU, AR, BR, UL, CCC,

Mexico

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

USA, EU, AR, BR, UL, CCC,

Mexico

7

Specications

Model POE-48-24W-WH POE-48-24W-G-WH POE-50-60W

Dimensions

Datasheet

PoE Adapters

Weight 145 g (5.12 oz) 166 g (5.86 oz) 192 g (6.77 oz)

Output Voltage 48VDC @ 0.5A 48VDC @ 0.5A 50VDC @ 1.2A

LAN Activity
Indicator

Gigabit LAN Port No Yes Ye s

Remote Reset
Capability

Reset Button No No No

Input Voltage 90-260VAC @ 47-63 Hz 90-260VAC @ 47-63 Hz 90-260VAC @ 47-63 Hz

Input Current

Inrush Current

Efciency 80+% 80+% 85+%

Output Ripple 1% Max. 1% Max. 1% Max.

93 x 59 x 33 mm

(3.66 x 2.32 x 1.30")

No No No

No No No

0.6A @ 120VAC,

0.4A @ 240VAC

<60A Peak @ 120VAC,

<120A Peak @ 230VAC

96 x 62 x 35 mm

(3.78 x 2.44 x 1.38")

0.6A @ 120VAC,

0.4A @ 240VAC

<65A Peak @ 120VAC,

<130A Peak @ 230VAC

101 x 60 x 33 mm

(3.98 x 2.36 x 1.30")

1.3A @ 120VAC,

0.75A @ 230VAC

<100A Peak @120VAC,
<200A Peak @ 230VAC

Switching Frequency 65 kHz 65 kHz 65 kHz

Line Regulation ± 1% ± 1% ± 1%

Load Regulation ± 3% ± 3% ± 3%

2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-) Pins 4, 5 (+) and Pins 7, 8 (-) –

4-Pair Powering – –

Operating
Temperature

Storage Temperature -30 to 70°C (-22 to 158° F) -30 to 70°C (-22 to 158° F) -30 to 70°C (-22 to 158° F)

Operating Humidity 35 to 95% Noncondensing 35 to 95% Noncondensing 35 to 95% Noncondensing

AC Connector IEC-320 C6 IEC-320 C6 IEC-320 C6

Data IN / POE RJ45 Shielded Socket RJ45 Shielded Socket RJ45 Shielded Socket

Surge Protection Difference and Common Mode Difference and Common Mode Difference and Common Mode

Clamping Protection 11V Data, 60V Power 11V Data, 60V Power 11V Data, 60V Power

Max. Surge
Discharge

Peak Pulse Current 36A (10/1000 µs) Data 36A (10/1000 µs) Data 36A (10/1000 µs) Data

Shunt Capacitance <5 pF data <5 pF data <5 pF data

0 to 40° C (32 to 104° F) 0 to 40° C (32 to 104° F) 0 to 40° C (32 to 104° F)

1500A (8/20 µs) Power 1500A (8/20 µs) Power 1500A (8/20 µs) Power

Pins 1, 2, 4, 5 (+) and

Pins 3, 6, 7, 8 (-)

Response Time <1 ns <1 ns <1 ns

IEC 60950-1:2005+A1

Compliance

AC Cable with Earth
Ground

8

EN55022:2010, EN55024:2010

UL60950-1

FCC Class B

USA, EU, AR, BR, UL, CCC,

Mexico

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

USA, EU, AR, BR, UL, CCC,

Mexico

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

USA, EU, AR, BR, UL, CCC,

Mexico

Specications

Model POE-54-80W-G POE-54-80W

Dimensions

Weight 275 g (9.7 oz) 299 g (10.55 oz)

Output Voltage 54VDC @ 1.5A 54VDC @ 1.5A

LAN Activity
Indicator

Gigabit LAN Port Yes Ye s

Remote Reset
Capability

Reset Button No No

Input Voltage 100-240AC @ 50/60Hz 100-240AC @ 50/60Hz

Input Current

Inrush Current

Efciency 87+% 87+%

Output Ripple 1% Max. 1% Max.

123 × 65 × 34 mm

(4.84 × 2.56 × 1.34")

No No

No No

0.8A @ 120VAC,

0.4A @ 240VAC

<80A Peak @ 120VAC,

<120A Peak @ 230VAC

123 x 65 x 34 mm

(4.84 × 2.56 × 1.34")

0.8A @ 120VAC,

0.4A @ 240VAC

<80A Peak @ 120VAC,

<120A Peak @ 230VAC

Datasheet

Datasheet

PoE Adapters

Switch

Switching Frequency 100 kHz Max. 100 kHz Max.

Line Regulation ± 1% ± 1%

Load Regulation ± 3% ± 3%

4-Pair Powering

Operating
Temperature

Storage Temperature -30 to 70° C (-22 to 158° F) -30 to 70° C (-22 to 158° F)

Operating Humidity 35 to 95% Noncondensing 35 to 95% Noncondensing

AC Connector IEC-320 C6 IEC-320 C6

Data IN / POE RJ45 Shielded Socket RJ45 Shielded Socket

Surge Protection Difference and Common Mode Difference and Common Mode

Clamping Protection 11V Data, 60V Power 11V Data, 60V Power

Max. Surge
Discharge

Peak Pulse Current 36A (10/1000 µs) Data 36A (10/1000 µs) Data

Shunt Capacitance <5 pF data <5 pF data

Response Time <1 ns <1 ns

Compliance

AC Cable with Earth
Ground

Pins 1, 2, 4, 5 (+) and

Pins 3, 6, 7, 8 (-)

0 to 40° C (32 to 104° F) 0 to 40° C (32 to 104° F)

1500A (8/20 µs) Power 1500A (8/20 µs) Power

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

EU, AR, BR, UL/cUL, CCC,

Mexico, RCM

Pins 1, 2, 4, 5 (+) and

Pins 3, 6, 7, 8 (-)

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

EU, AR, BR, UL/cUL, CCC,

Mexico, RCM

Specications are subject to change. Ubiquiti products are sold with a limited warranty described at: www.ubnt.com/support/warranty
©2012-2016 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, UbiquitiNetworks, the Ubiquiti U logo, the Ubiquiti beam logo, airFiber, airGateway,

airMAX, airVision, EdgeMAX, mFi, TOUGHCable, and UniFi are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in
other countries. All other trademarks are the property of their respective owners.

www.ubnt.com

PH032916

9
