Ubiquiti PBE-5AC-400-ISO, PBE-M5-400-ISO, PBE-5AC-500-ISO Quick Start Manual

ISO

5 GHz airMAX® ac Bridge with
400 mm RF Isolated Reflector

Model: PBE-5AC-400-ISO

Introduction

Thank you for purchasing the Ubiquiti Networks® PowerBeam™ac.

This Quick Start Guide is designed to guide you through

installation and includes warranty terms.

Package Contents

Reflector Radome Antenna

Feed*

Rear Housing

Mounting Bracket Adjustment Bracket Pole Clamp

Hex Bolts with Washers

(M8x20, Qty. 4)

Flange Nuts

(M8, Qty. 2)

Carriage Bolts

(M8x135, Qty. 2)

ISO

5 GHz airMAX® ac Bridge with
400 mm RF Isolated Reflector

Model: PBE-5AC-400-ISO

Gigabit PoE (24V, 0.5A)

with Mounting Bracket

Power Cord Quick Start Guide

* The PBE-5AC-400-ISO Antenna Feed has a thin gray ring around the center

of the cap to differentiate it from the PBE-5AC-300-ISO Antenna Feed.

TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet
cable and earth grounding must be used as conditions of product warranty. TOUGHCable™ is
designed for outdoor installations. It is the customer’s responsibility to follow local country

regulations, including operation within legal frequency channels, output power, and Dynamic

Frequency Selection (DFS) requirements.

Hardware Overview

Bottom View

Technology

Cable Door

Rear Housing

Antenna Feed

Ethernet Port

Release Button Slot

Mounting Bracket

Release Button

Reflector

Alignment Pins

Reset Button

Radome

Reset Button To reset to factory defaults, press and hold the

Reset button for more than 10 seconds while the PowerBeam

is already poweredon. Alternatively, the PowerBeam may be

reset remotely via a Reset button located on the bottom of the
Gigabit PoE adapter.

Release Button After you assemble the PowerBeam, check

the Release button; it should be fully engaged in the Release
Button Slot of the Rear Housing. This ensures that the Antenna
Feed is locked into place. If you need to remove the Antenna
Feed, you must depress the Release button first.

LEDs

Signal In airOS, you can modify the wireless signal

strength threshold values for each LED on the
Wireless tab under Signal LED Thresholds. The default
values are shown below:

LED will light blue when the wireless signal

strength is above -65 dBm.

LED will light blue when the wireless signal

strength is above -73 dBm.

LED will light blue when the wireless signal

strength is above -80 dBm.

LED will light blue when the wireless signal

strength is above -94 dBm.

Ethernet The Ethernet LED will light steady blue

when an active Ethernet connection is made and

flash when there is activity.

Power The Power LED will light blue when the

device is connected to a power source.

Application Examples

The PowerBeam mounted outdoors with the Reflector
installed provides directional outdoor coverage (gain is

reflector-dependent).

The PowerBeam mounted outdoors without the Reflector
installed provides outdoor-to-indoor coverage using the 3 dBi

Antenna Feed only.

Installation Requirements

• 13 mm wrench

• Shielded Category 5 (or above) cabling should be used for

all wired Ethernet connections and should be grounded

through the AC ground of the PoE.

We recommend that you protect your networks from the
most brutal environments and devastating ESD attacks
with industrial-grade shielded Ethernet cable from Ubiquiti

Networks. For more details, visit www.ubnt.com/toughcable

Installation

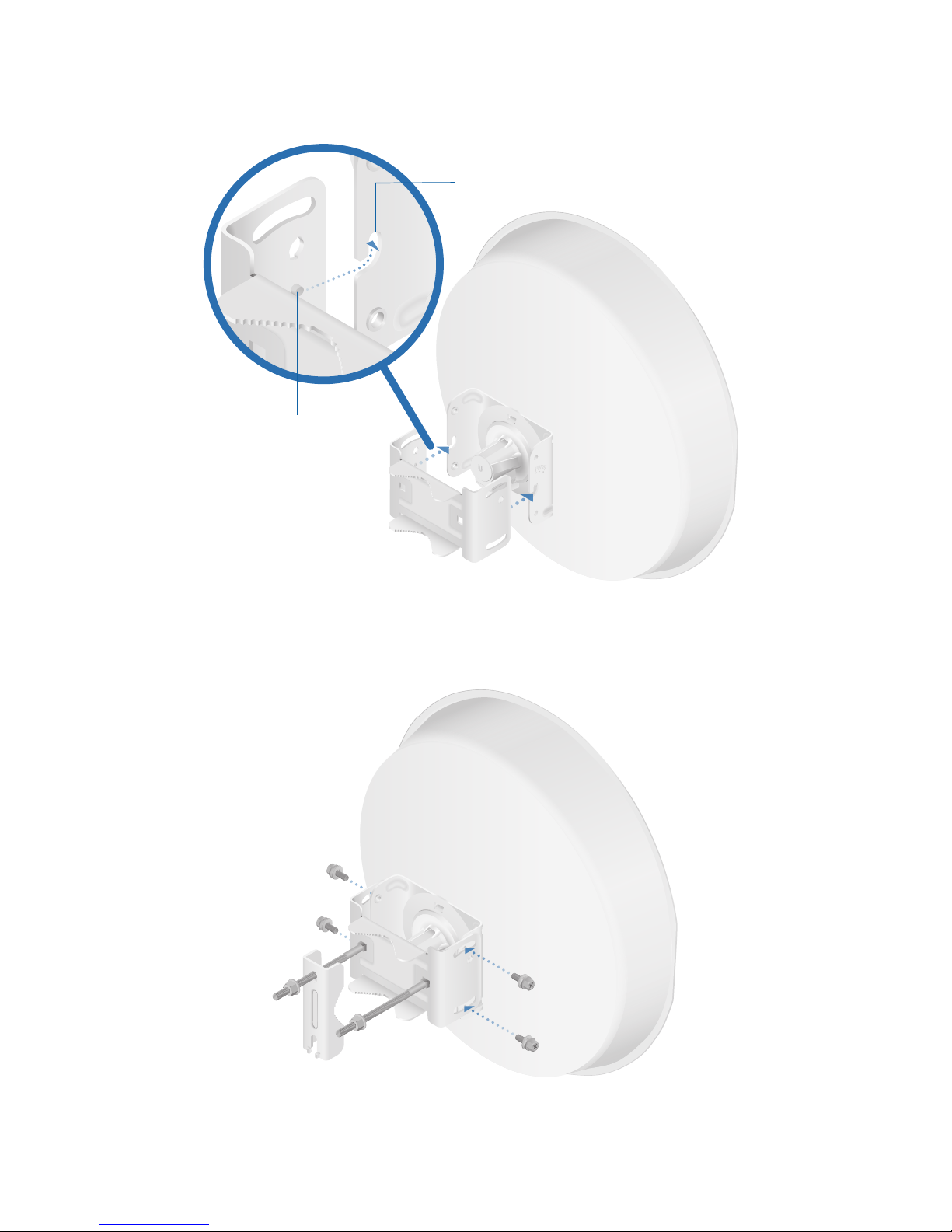

1. Align and insert the tabs of the Mounting Bracket into
the slots of the Reflector. Rotate the Mounting Bracket
counterclockwise until the alignment holes in the dish and

bracket align with each other.

2. Line up the Alignment Pins of the Rear Housing with the

alignment holes of the Mounting Bracket. Push the Rear
Housing into the Mounting Bracket.

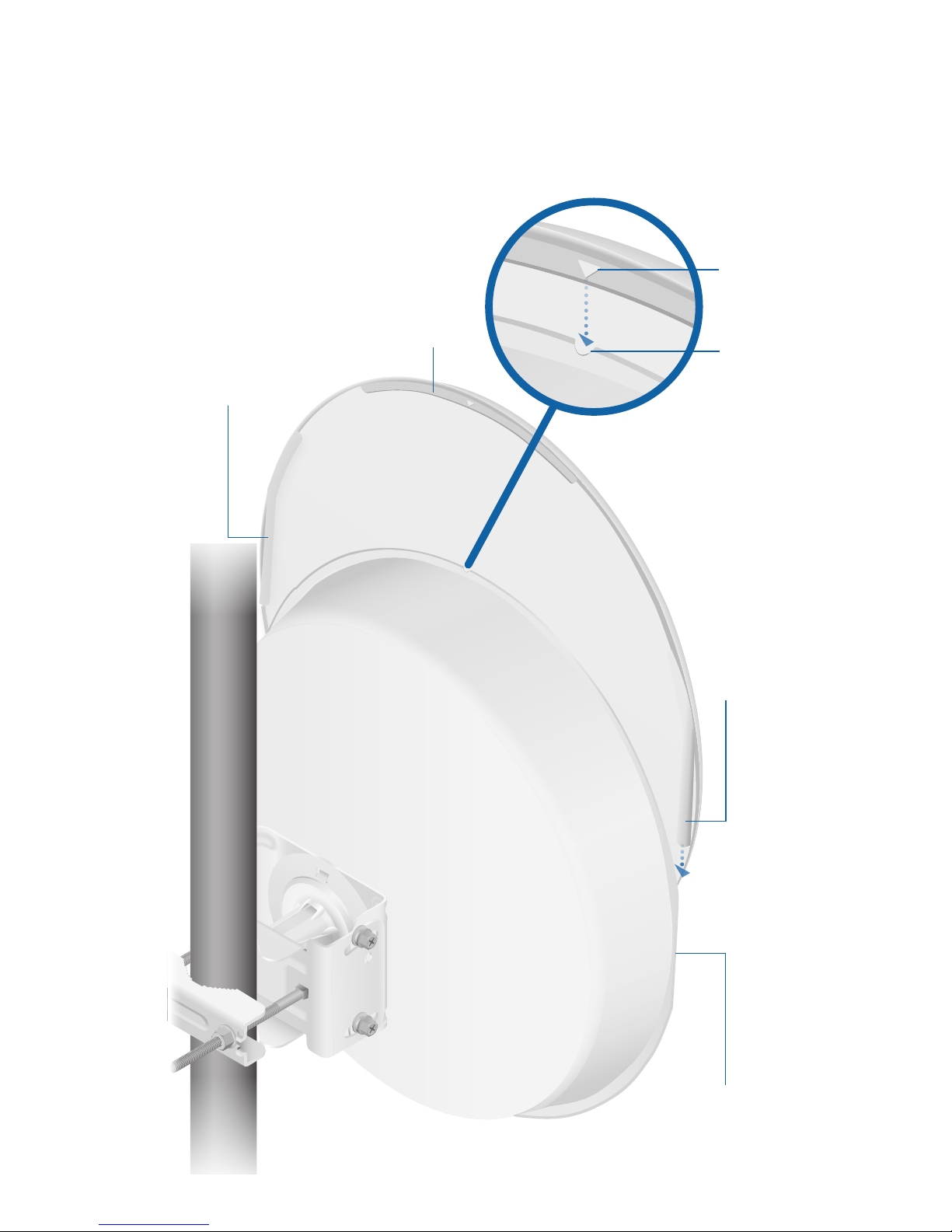

3. View the Reflector from the front. Ensure that the three
hooks (indicated below) of the Rear Housing are fully

engaged with the inner wall of the Reflector and locked

into place.

Important: Before proceeding, lightly pull the Rear

Housing to confirm that it is locked into place.

4. Push in the sides of the Cable Door and detach it from the
Rear Housing.

5. Attach the Antenna Feed.
a. Insert the Antenna Feed into the Rear Housing, and push

until it locks into place with a click.

b. Lightly pull the Antenna Feed to ensure that it is locked

into place and the Release Button is fully engaged.

Release

Button

Bottom View

6. Connect an Ethernet cable to the Ethernet Port of the
Antenna Feed. Then re-attach the Cable Door to the

RearHousing.

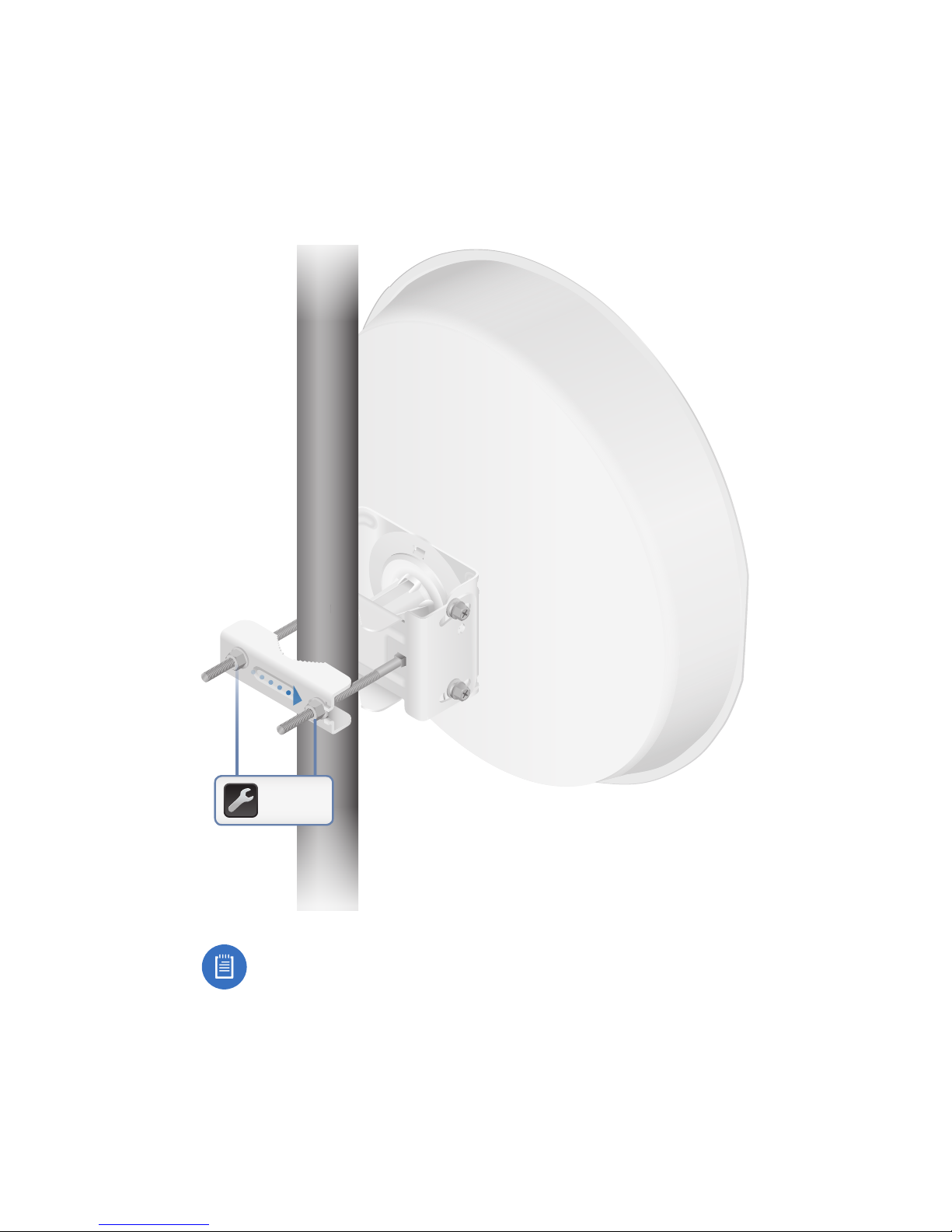

7. Attach the Pole Clamp to the Adjustment Bracket.
a. Hold the Adjustment Bracket with the clamps facing you

and the Elevation Indicators towards the top.

b. Insert the Carriage Bolts through the holes of the

Adjustment Bracket.

c. Slide the hole of the Pole Clamp over one bolt of the

Adjustment Bracket.

d. Place one Flange Nut on each bolt.

Elevation
Indicator
