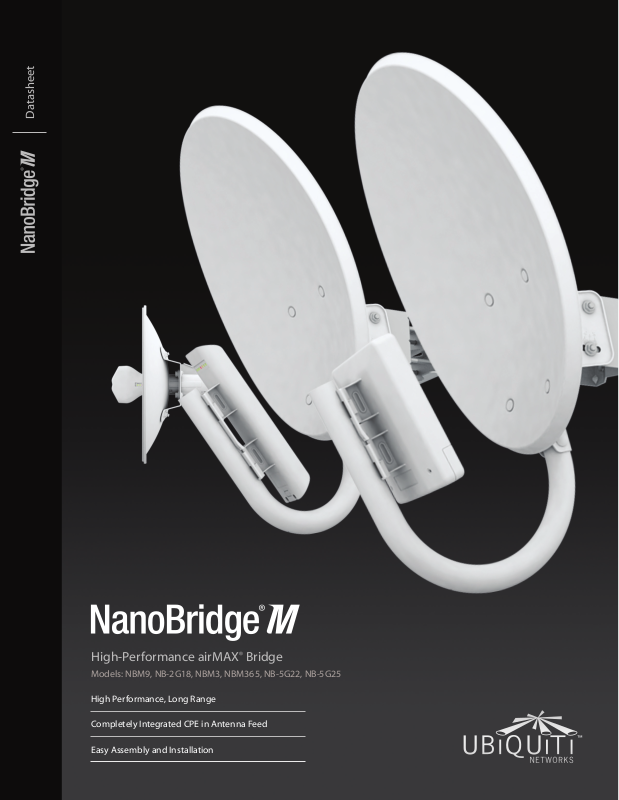

Ubiquiti NBM3 Specsheet

Datasheet

Datasheet

High-Performance airMAX® Bridge

Models: NBM9, NB-2G18, NBM3, NBM365, NB-5G22, NB-5G25

High Performance, Long Range

Completely Integrated CPE in Antenna Feed

Easy Assembly and Installation

Overview

Packet Prioritization

Datasheet

With the NanoBridge®, Ubiquiti
Networks

™

pioneered the all-in-one
design for an airMAX® product
functioning as a CPE (Customer
Premises Equipment).

The NanoBridge combines Ubiquiti's
InnerFeed

™

and airMAX technologies
to create a simple, yet powerful
wireless unit capable of up to

100+Mbps real outdoor throughput
and up to 30+kmrange.

InnerFeed Technology

Ubiquiti’s revolutionary InnerFeed
technology integrates the radio into
the feedhorn of an antenna, so there
is no need for a cable*. This improves
performance because it eliminates
cable losses.

Providing high performance and
robust all-in-one mechanical design
at a low cost, the NanoBridge is
extremely versatile and cost-effective
to deploy.

airMAX Technology

Application Examples

PtMP Client Links

The NanoBridge used as a CPE device for each client in an airMAX PtMP network.

Wireless Client

PtP Link

Unlike standard Wi-Fi protocol,
Ubiquiti’s Time Division Multiple
Access (TDMA) airMAX protocol
allows each client to send and receive
data using pre-designated time
slots scheduled by an intelligent AP
controller.

This “time slot” method eliminates
hidden node collisions and

maximizes airtime efciency. It
provides signicant performance

improvements in latency, throughput,
and scalability compared to all other
outdoor systems in its class.

Intelligent QoS Priority is given to
voice/video for seamless streaming.

Scalability High capacity and
scalability.

Long Distance Capable of
high-speed, carrier-class links.

The NanoBridge as a powerful

wirelessclient.

airMAX TDMA Technology

Wireless Channel

Time Slots

Time Slot 1

Use a NanoBridge on each side of a

PtPlink.

VOIP

Time Slot 2

Data

VOIP

VOIP

Time Slot 3

Time Slot 4

Up to 100 airMAX stations can be connected to an airMAX Sector; four airMAX
stations are shown to illustrate the general concept.

* NanoBridgeM2 and M5 models only.

2

www.ubnt.com/airmax

Software

airOS® is an intuitive, versatile,

highly developed Ubiquiti rmware

technology. It is exceptionally
intuitive and was designed to require
no training to operate. Behind
the user interface is a powerful

rmware architecture, which

enables high-performance, outdoor
multi-point networking.

• Protocol Support

• Ubiquiti Channelization

• Spectral Width Adjustment

• ACK Auto-Timing

• AAP Technology

• Multi-Language Support

Datasheet

Integrated on all Ubiquiti M
products, airView® provides
advanced spectrum analyzer
functionality: waterfall, waveform,
and real-time spectral views allow
operators to identify noise signatures
and plan their networks to minimize
noise interference.

• Waterfall Aggregate energy over

time for each frequency.

• Waveform Aggregate energy

collected.

• Real-time Energy is shown in real

time as a function of frequency.

• Recording Automate airView to

record and report results.

airControl® is a powerful and
intuitive, web-based server network
management application, which
allows operators to centrally manage
entire networks of Ubiquiti devices.

• Network Map

• Monitor Device Status

• Mass Firmware Upgrade

• Web UI Access

• Manage Groups of Devices

• Task Scheduling

www.ubnt.com/airmax

3

Datasheet

Models

Model Frequency Gain

NBM9 900 MHz 10.6 - 11.3 dBi

Model Frequency Gain

NB-2G18 2.4 GHz 18 dBi

NB-5G22 5 GHz 22 dBi

NB-5G25 5 GHz 25 dBi

Model Frequency Gain

NBM3 3.3 - 3.7 GHz 21.5 - 22.5 dBi

NBM365 3.65 - 3.675 GHz 21.5 - 22.5 dBi

4

www.ubnt.com/airmax

Specications

System Information

Model NBM9 NB-2G18/NB-5G22/NB-5G25 NBM3/NBM365

Processor Specs Atheros MIPS 24KC, 400 MHz Atheros MIPS 24KC, 400 MHz Atheros MIPS 24KC, 400 MHz

Memory 64 MB SDRAM, 8 MB Flash 32 MB SDRAM, 8 MB Flash 32 MB SDRAM, 8 MB Flash

Networking Interface (1) 10/100 EthernetPort (1) 10/100 EthernetPort (2) 10/100 EthernetPorts

Regulatory/Compliance Information

Model NBM9

Wireless Approvals FCC, IC FCC, IC, CE – FCC

RoHS Compliance Yes

Physical/Electrical/Environmental

Model NBM9 NB-2G18/NB-5G22/NB-5G25 NBM3/NBM365

Dimensions (mm) 543 x 440 x 725

Weight
(Dish and Mount
Included)

Power Supply 24V, 1A PoE 24V, 0.5A PoE 24V, 0.5A PoE

Power Method

Max. Power Consumption 6.5 W 5.5 W 8 W

Gain 10.6 - 11.3 dBi

LEDs (1) Power, (1) LAN, (4) WLAN (1) Power, (1) LAN, (4) WLAN (1) Power, (2) LAN, (4) WLAN

Wind Loading 105 lbf @ 125 mph

Wind Survivability 125 mph

5.098 kg

Passive PoE

(Pairs 4, 5+; 7, 8 Return)

NB-2G18/NB-5G22/

NB-5G25

NB-2G18: 400 diameter
NB-5G22: 326 mm diameter
NB-5G25: 400 mm diameter

NB-2G18: 2.346 kg
NB-5G22: 1.904 kg
NB-5G25: 2.304 kg

Passive PoE

(Pairs 4, 5+; 7, 8 Return)

NB-2G18: 18 dBi
NB-5G22: 22 dBi
NB-5G25: 25 dBi

NB-2G18: 77 lbf @ 125 mph
NB-5G22: 45 lbf @ 125 mph
NB-5G25: 77 lbf @ 125 mph

NBM3 NBM365

492 x 440 x 705

NBM3: 4.656 kg

NBM365: 4.660 kg

Passive PoE

(Pairs 4, 5+; 7, 8 Return)

21.5 - 22.5 dBi

105 lbf @ 125 mph

Datasheet

LEDs (1) Power, (1) LAN, (4) WLAN

Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels

Enclosure Outdoor UV Stabilized Plastic

Mounting Pole-Mount Kit Included

Operating Temperature -30 to 75° C

Operating Humidity 5 to 95% Non-Condensing

Shock & Vibration ETSI300-019-1.4

Operating Frequency Summary (MHz)

Model NBM9 NB-2G18 NBM3 NBM365 NB-5G22/NB-5G25

Worldwide

902 - 928 2402 - 2462 3370 - 3730 3650 - 3675

USA 5725 - 5850

5170 - 5875

www.ubnt.com/airmax

5

Datasheet

Specications

NBM9 – Output Power: 28 dBm

900 MHz TX POWER SPECIFICATIONS 900 MHz RX POWER SPECIFICATIONS

Data Rate Avg. TX Tolerance Data Rate Sensitivity Tolerance

MCS0 28 dBm ± 2 dB

MCS1 28 dBm ± 2 dB MCS1 -95 dBm ± 2 dB

MCS2 28 dBm ± 2 dB MCS2 -92 dBm ± 2 dB

MCS3 28 dBm ± 2 dB MCS3 -90 dBm ± 2 dB

MCS4 28 dBm ± 2 dB MCS4 -86 dBm ± 2 dB

MCS5 24 dBm ± 2 dB MCS5 -83 dBm ± 2 dB

MCS6 22 dBm ± 2 dB MCS6 -77 dBm ± 2 dB

MCS7 21 dBm ± 2 dB MCS7 -74 dBm ± 2 dB

11n/airMAX

Gain 10.6 - 11.3 dBi

Max. VSWR 1.6:1

MCS8 28 dBm ± 2 dB MCS8 -95 dBm ± 2 dB

MCS9 28 dBm ± 2 dB MCS9 -93 dBm ± 2 dB

MCS10 28 dBm ± 2 dB MCS10 -90 dBm ± 2 dB

MCS11 28 dBm ± 2 dB MCS11 -87 dBm ± 2 dB

MCS12 28 dBm ± 2 dB MCS12 -84 dBm ± 2 dB

MCS13 24 dBm ± 2 dB MCS13 -79 dBm ± 2 dB

MCS14 22 dBm ± 2 dB MCS14 -78 dBm ± 2 dB

MCS15 21 dBm ± 2 dB MCS15 -75 dBm ± 2 dB

11n/airMAX

NBM9 Antenna Information

MCS0 -96 dBm ± 2 dB

Return Loss Vertical Azimuth Vertical Elevation

Horizontal Azimuth Horizontal Elevation

6

www.ubnt.com/airmax

Specications

NB-2G18 – Output Power: 23 dBm

2.4 GHz TX POWER SPECIFICATIONS 2.4 GHz RX POWER SPECIFICATIONS

Data Rate Avg. TX Tolerance Data Rate Sensitivity Tolerance

MCS0 23 dBm ± 2 dB

MCS1 23 dBm ± 2 dB MCS1 -93 dBm ± 2 dB

MCS2 23 dBm ± 2 dB MCS2 -90 dBm ± 2 dB

MCS3 23 dBm ± 2 dB MCS3 -89 dBm ± 2 dB

MCS4 22 dBm ± 2 dB MCS4 -86 dBm ± 2 dB

MCS5 20 dBm ± 2 dB MCS5 -83 dBm ± 2 dB

MCS6 19 dBm ± 2 dB MCS6 -77 dBm ± 2 dB

MCS7 18 dBm ± 2 dB MCS7 -74 dBm ± 2 dB

11n/airMAX

Gain 18 dBi

Max. VSWR 1.6:1

MCS8 23 dBm ± 2 dB MCS8 -93 dBm ± 2 dB

MCS9 23 dBm ± 2 dB MCS9 -91 dBm ± 2 dB

MCS10 23 dBm ± 2 dB MCS10 -89 dBm ± 2 dB

MCS11 23 dBm ± 2 dB MCS11 -87 dBm ± 2 dB

MCS12 22 dBm ± 2 dB MCS12 -84 dBm ± 2 dB

MCS13 20 dBm ± 2 dB MCS13 -79 dBm ± 2 dB

MCS14 19 dBm ± 2 dB MCS14 -78 dBm ± 2 dB

MCS15 18 dBm ± 2 dB MCS15 -75 dBm ± 2 dB

NB-2G18 Antenna Information

11n/airMAX

MCS0 -94 dBm ± 2 dB

Datasheet

Return Loss Vertical Azimuth Vertical Elevation

Horizontal Azimuth Horizontal Elevation

www.ubnt.com/airmax

7

Datasheet

Specications

NBM3/NBM365 – Output Power: 25 dBm

3 GHz TX POWER SPECIFICATIONS 3 GHz RX POWER SPECIFICATIONS

Data Rate Avg. TX Tolerance Data Rate Sensitivity Tolerance

MCS0 25 dBm ± 2 dB

MCS1 25 dBm ± 2 dB MCS1 -93 dBm ± 2 dB

MCS2 25 dBm ± 2 dB MCS2 -90 dBm ± 2 dB

MCS3 25 dBm ± 2 dB MCS3 -89 dBm ± 2 dB

MCS4 24 dBm ± 2 dB MCS4 -86 dBm ± 2 dB

MCS5 23 dBm ± 2 dB MCS5 -83 dBm ± 2 dB

MCS6 22 dBm ± 2 dB MCS6 -77 dBm ± 2 dB

MCS7 20 dBm ± 2 dB MCS7 -74 dBm ± 2 dB

11n/airMAX

Gain 21.5 - 22.5 dBi

Max. VSWR 1.5:1

MCS8 25 dBm ± 2 dB MCS8 -93 dBm ± 2 dB

MCS9 25 dBm ± 2 dB MCS9 -91 dBm ± 2 dB

MCS10 25 dBm ± 2 dB MCS10 -89 dBm ± 2 dB

MCS11 25 dBm ± 2 dB MCS11 -87 dBm ± 2 dB

MCS12 24 dBm ± 2 dB MCS12 -84 dBm ± 2 dB

MCS13 23 dBm ± 2 dB MCS13 -79 dBm ± 2 dB

MCS14 22 dBm ± 2 dB MCS14 -78 dBm ± 2 dB

MCS15 20 dBm ± 2 dB MCS15 -75 dBm ± 2 dB

11n/airMAX

NBM3/NBM365 Antenna Information

MCS0 -94 dBm ± 2 dB

Return Loss Vertical Azimuth Vertical Elevation

Horizontal Azimuth Horizontal Elevation

8

www.ubnt.com/airmax

Specications

NB-5G22 – Output Power: 23 dBm

5 GHz TX POWER SPECIFICATIONS 5 GHz RX POWER SPECIFICATIONS

Data Rate Avg. TX Tolerance Data Rate Sensitivity Tolerance

MCS0 23 dBm ± 2 dB

MCS1 23 dBm ± 2 dB MCS1 -95 dBm ± 2 dB

MCS2 23 dBm ± 2 dB MCS2 -92 dBm ± 2 dB

MCS3 23 dBm ± 2 dB MCS3 -90 dBm ± 2 dB

MCS4 22 dBm ± 2 dB MCS4 -86 dBm ± 2 dB

MCS5 20 dBm ± 2 dB MCS5 -83 dBm ± 2 dB

MCS6 19 dBm ± 2 dB MCS6 -77 dBm ± 2 dB

MCS7 18 dBm ± 2 dB MCS7 -74 dBm ± 2 dB

11n/airMAX

Gain 22 dBi

Max. VSWR 1.5:1

MCS8 23 dBm ± 2 dB MCS8 -95 dBm ± 2 dB

MCS9 23 dBm ± 2 dB MCS9 -93 dBm ± 2 dB

MCS10 23 dBm ± 2 dB MCS10 -90 dBm ± 2 dB

MCS11 23 dBm ± 2 dB MCS11 -87 dBm ± 2 dB

MCS12 22 dBm ± 2 dB MCS12 -84 dBm ± 2 dB

MCS13 20 dBm ± 2 dB MCS13 -79 dBm ± 2 dB

MCS14 19 dBm ± 2 dB MCS14 -78 dBm ± 2 dB

MCS15 18 dBm ± 2 dB MCS15 -75 dBm ± 2 dB

NB-5G22 Antenna Information

11n/airMAX

MCS0 -96 dBm ± 2 dB

Datasheet

Return Loss Vertical Azimuth Vertical Elevation

Horizontal Azimuth Horizontal Elevation

www.ubnt.com/airmax

9

Datasheet

Specications

NB-5G25 – Output Power: 23 dBm

5 GHz TX POWER SPECIFICATIONS 5 GHz RX POWER SPECIFICATIONS

Data Rate Avg. TX Tolerance Data Rate Sensitivity Tolerance

MCS0 23 dBm ± 2 dB

MCS1 23 dBm ± 2 dB MCS1 -95 dBm ± 2 dB

MCS2 23 dBm ± 2 dB MCS2 -92 dBm ± 2 dB

MCS3 23 dBm ± 2 dB MCS3 -90 dBm ± 2 dB

MCS4 22 dBm ± 2 dB MCS4 -86 dBm ± 2 dB

MCS5 20 dBm ± 2 dB MCS5 -83 dBm ± 2 dB

MCS6 19 dBm ± 2 dB MCS6 -77 dBm ± 2 dB

MCS7 18 dBm ± 2 dB MCS7 -74 dBm ± 2 dB

11n/airMAX

Gain 25 dBi

Max. VSWR 1.5:1

MCS8 23 dBm ± 2 dB MCS8 -95 dBm ± 2 dB

MCS9 23 dBm ± 2 dB MCS9 -93 dBm ± 2 dB

MCS10 23 dBm ± 2 dB MCS10 -90 dBm ± 2 dB

MCS11 23 dBm ± 2 dB MCS11 -87 dBm ± 2 dB

MCS12 22 dBm ± 2 dB MCS12 -84 dBm ± 2 dB

MCS13 20 dBm ± 2 dB MCS13 -79 dBm ± 2 dB

MCS14 19 dBm ± 2 dB MCS14 -78 dBm ± 2 dB

MCS15 18 dBm ± 2 dB MCS15 -75 dBm ± 2 dB

NB-5G25 Antenna Information

MCS0 -96 dBm ± 2 dB

11n/airMAX

Return Loss Vertical Azimuth Vertical Elevation

Horizontal Azimuth Horizontal Elevation

www.ubnt.com/airmax

Protect your networks from the most
brutal environments with Ubiquiti
Networks’ industrial-grade, shielded
Ethernet cable, TOUGHCable.

Increase Performance

Dramatically improve your
Ethernet link states, speeds, and
overall performance with Ubiquiti
TOUGHCables.

Extreme Weatherproof

Designed for outdoor use,
TOUGHCables have been built to
perform even in the harshest weather
and environments.

ESD Damage Protection

Protect your networks from
devastating electrostatic discharge
(ESD) attacks.

Extended Cable Support

TOUGHCables have been developed
to increase power handling
performance for extended cable run
lengths.

Advanced Gigabit PoE
Managed Switch

Introducing the Advanced
Power over Ethernet Controllers,
TOUGHSwitch
Networks. TOUGHSwitch PoE
delivers reliable passive PoE and fast
10/100/1000 Mbps connectivity to
attached Ubiquiti devices and other
devices that support passive PoE.

To connect your PoE devices, simply
enable PoE in the easy-to-use

TOUGHSwitch Con guration Interface.

Each port can be individually

con gured to provide PoE, so both

PoE and non-PoE devices can be
connected.

www.ubnt.com

Datasheet

TOUGHCable Connectors

Speci cally designed for use with Ubiquiti TOUGHCables, TOUGHCable

Connectors protect against ESD attacks and Ethernet hardware damage, while

allowing rapid  eld deployment without soldering. The standard TOUGHCable

Connectors are available in 100-pc. bags, while the TC-GND versions include
ground wires and are available in 20-pc. bags.

All specications in this document are subject to change without notice.

© 2013 Ubiquiti Networks, Inc. All rights reserved. airMAX®, airOS®, airView®, airControl®,
InnerFeed™, NanoBridge®, TOUGHCable™, TOUGHSwitch™, Ubiquiti Networks™, and the
Ubiquiti logo® are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the

UnitedStates and in other countries. GEOMET® is a trademark of NOF METAL COATINGS GROUP.

™

PoE from Ubiquiti

JL102813
