Ubiquiti AMGPRO Users Manual

Model: AMG-PRO

Quick Start Guide

Hardware Overview

Top

LAN
Port

LED

LED

Steady White Power on and initializing
Steady Blue Working properly and

actively connected

Alternating Blue/White Device is busy;

do not touch or unplug.

POE
Port

RJ45

Connector

(Male)

Bottom

Reset

Reset

Ext

Reset Buttons

Reset To reset the airGateway™ to

factory defaults, press and hold the
Reset button for more than 10 seconds
while the airGateway is powered on.

Reset Ext To reset the airMAX® device

connected to the airGateway to factory
defaults,press the Reset Ext button
for about 8 seconds while the airMAX
device is powered on.

Installation

WARNING: Do not connect

non-PoE devices (such as laptops)
to the POE port.

To install the airGateway, perform the
following steps:

1. Disconnect the Ethernet cables
from the Ethernet ports on the PoE
Adapter that is connected to your
airMAX device. Ensure that you
note which cable was connected to
the POE port and which cable was
connected to the LAN port.

2. Connect the male RJ45 Connector of
the airGateway to the Ethernet port
labeled POE on the PoEAdapter.

3. Connect the Ethernet cable that was
disconnected from the POE port in
step 1 to the Ethernet port labeled
POE on the airGateway.

4. Connect the Ethernet cable that was
disconnected from the LAN port in
step 1 to the Ethernet port labeled
LAN on the airGateway.

Connecting via Wi-Fi

To configure the airGateway, you must
access it via Wi-Fi from a host machine.

1. Connect your host machine Wi-Fi to
the wireless network (SSID) named

www.ubnt.com

Note: Ensure that you have

DHCP enabled on your Wi-Fi
adapter.

2. Launch a web browser and go to:
https://192.168.1.1

3. The airOS® login screen will appear.
Enter ubnt in the Username and
Password fields.

Upon initial login you must select
your Country, Language, and agree to
the Terms of Use to use the product.

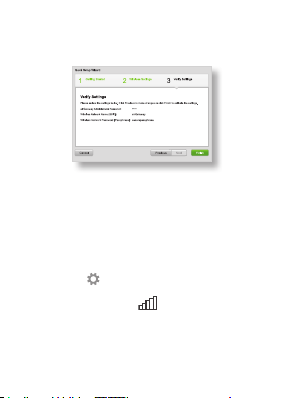

Click Login and the airGateway Setup
Wizard will appear.

Note: U.S. product versions are

locked to the U.S. Country Code
to ensure compliance with FCC
regulations.

4. Change the default airGateway
administrator password. Enter a new
password in the New Password and
Verify Password fields and click Next.

5. Enter a name for your wireless
network (SSID) and a password
(passphrase) for your wireless
network. Click Next.
