Ubiquiti ACBAC User Manual

Dual-Band 802.11ac Wi-Fi
Access Point with PoE In/Out

Model: ACB-AC

Introduction

Thank you for purchasing the airMAX® airCube™ AC Access
Point. This Quick Start Guide is designed to guide you through
installation and also includes warranty terms.

Package Contents

airCube AC Access Point Power Adapter

Dual-Band 802.11ac Wi-Fi
Access Point with PoE In/Out

Model: ACB-AC

Quick Start Guide

Hardware Overview

WAN

24V PoE OUT

Access Point Front

LED

The LED lights up when the airCube is powered on.

Access Point Back

LAN Ports

1-3

Three Gigabit Ethernet ports available to
connect 10/100/1000 Mbps devices to the
Internet. Port 1 also allows 24V PoE In and can
be used to power the airCube.

Connects to and powers a 24V PoE airMAX
device.

The Power Adapter connects to this port.

WAN Port

Power Port

Hardware Installation

1. Connect one end of an Ethernet cable to the WAN Port
on the back of the airCube. Connect the other end of the
Ethernet cable to your airMAX CPE radio.

2. Connect the Power Adapter to the Power Port on the back
of the airCube.

3. Plug the other end of the Power Adapter into a
power outlet.

4. The LED in the base of the airCube will light up as soon as
the device is powered on.

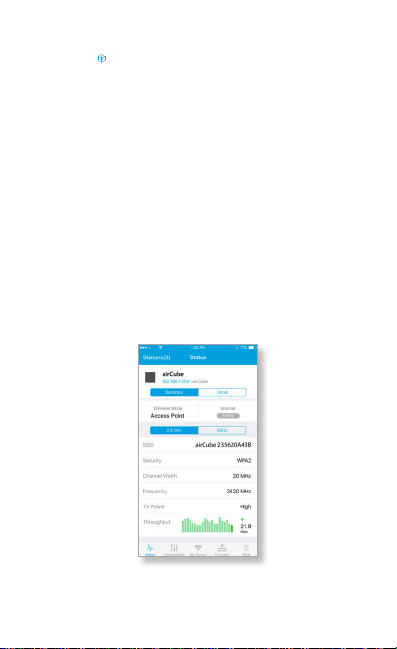

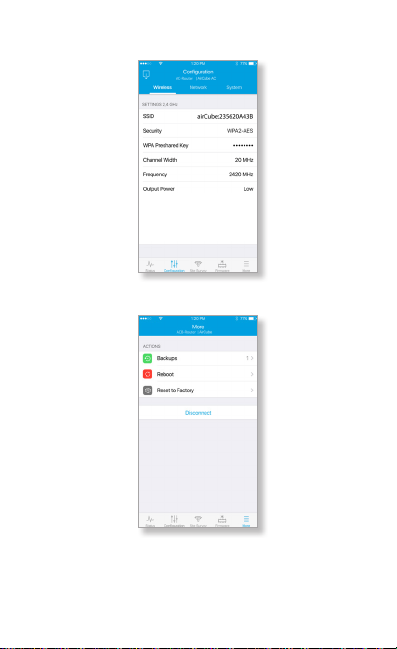

U Mobile App

The airCube can be installed and configured using the
U Mobile app on your mobile phone or tablet. Follow these
steps to ensure proper installation:

1. Download and install the U Mobile app from the AppStore
(iOS) or Google Play™ (Android).

Ensure that Wi-Fi is enabled on your mobile phone
or tablet.

2. Launch the U Mobile app and proceed to the section that
corresponds with your mobile device: Android Users or
iOS Users.

Android Users

1. Tap the icon to add a new device to U Mobile.

2. Select Discover to scan for devices on the active Wi-Fi
networks in range.

3. Tap the airCube device from the list. U Mobile will activate
a QR scanner using the camera function on your mobile
device.

4. Scan the QR code located on the bottom of the airCube.
Once the QR code is scanned, U Mobile will return to the
main app screen.

5. Proceed to the section: Verify Connection to airCube
