Touchmonitor User Guide

1939L 19¨ LCD Rear-mount Touchmonitor

3000 Series

Revision A

User Guide

19" LCD REAR-MOUNT TOUCHMONITOR

1939L Family 3000 Series

Revision A

P/N E851250

Copyright © 2006 Tyco Electronics Corporation. All Rights Reserved.

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permission of Elo TouchSystems.

Disclaimer

The information in this document is subject to change without notice. Elo TouchSystems makes no representations or warranties with respect to the contents hereof, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. Elo TouchSystems reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Elo TouchSystems to notify any person of such revisions or changes.

Trademark Acknowledgments

IntelliTouch is a trademark of Tyco Electronics Corporation.Other product names mentioned herein may be trademarks or registered trademarks of their respective companies.

iii

Table of Contents

Chapter 1



Introduction

7

Product Description ...................................................

7

Precautions ................................................................

7

About the Product ......................................................

8

Chapter 2



Installation and Setup

9

Unpacking Your Touchmonitor ...................................

9

Touch Interface Connection .......................................

10

Product Overview ......................................................

11

Main Unit ..............................................................

11

Rear View ............................................................

11

Installing the Driver Software .....................................

12

Installing the Serial Touch Driver .........................

13

Installing the Serial Touch Driver for Windows



XP, Windows 2000, Me, 95/98 and NT 4.0 .....

13

Installing the Serial Touch Driver for MS-DOS



and Windows 3.1 ..................................................

14

Installing the USB Touch Driver ...........................

15

Installing the USB Touch Driver for Windows



XP, Windows 2000, Me, 95/98 and NT 4.0 .....

15

Regulatory Information

33

Warranty

37

Index

39

Chapter 3



Operation

17

About Touchmonitor Adjustments ..............................

17

Rear Panel Controls .............................................

18

Controls and Adjustment ............................................

19

On Screen Display (OSD) Menu Functions .........

19

On Screen Display (OSD) Control Options .........

20

Preset Modes .......................................................

21

Power Management System ................................

22

Chapter 4



Troubleshooting

23

Solutions to Common Problems .................................

23

Appendix A



Native Resolution .......................................................

25

Appendix B



Touchmonitor Safety ..................................................

27

Care and Handling of Your Touchmonitor ..................

28

Appendix C



Touchmonitor Specifications ......................................

30

19" LCD Touchmonitor (ET1939L-XCWA-X-G)



Dimensions ..........................................................

31

v

C H A P T E R

1

INTRODUCTION

Product Description

Your new touchmonitor combines the reliable performance of touch technology with the latest advances in (LCD) display design. This combination of features creates a natural flow of information between a user and your touchmonitor.

This LCD monitor incorporates a 19” color active matrix thin-film-transistor (TFT) to provide superior display performance. A maximum resolution of SXGA 1280x1024 is ideal for displaying graphics and images. Other outstanding features that enhance this LCD monitor’s performance are Plug & Play compatibility, and On Screen Display (OSD) controls.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user’s manual to maximize the life of your unit. See Appendix B for more information on touchmonitor safety.

1-7

About the Product

Your LCD rear-mount touchmonitor is a 19” SXGA TFT color display with the following features:

The internal microprocessor digitally controls auto-scanning for horizontal scan frequencies between 31.5 KHz and 80 KHz, and vertical scan frequencies between 56.3 Hz and 75.0 Hz. In each frequency mode, the microprocessor-based circuitry allows the monitor to function at the precision-of a fixed frequency.

High contrast color TFT LCD display supports resolutions up to SXGA 1280x1024. Compatible with VGA, SVGA, XGA, SXGA(non-interlaced) and most Macintosh compatible color video cards.

Power management system conforms to VESA DPMS standard.

Supports DDC1/2B for Plug & Play compatibility.

Advanced On Screen Display (OSD) control for picture quality adjustment.

For full Product Specifications refer to Appendix C.

1-8 User Guide

C H A P T E R

2

INSTALLATION AND SETUP

This chapter discusses how to install your LCD touchmonitor and how to install the driver software.

Unpacking Your Touchmonitor

Check that the following 9 items are present and in good condition:





























































LCD monitor

Video cable

USB cable

Serial cable

European power cable

Power cable US/Canada

















Touch Tools CD + Quick Install Guide

Brick power supply

2-9

Touch Interface Connection

Note: Before connecting the cables to your touchmonitor and PC, be sure that the computer and touchmonitor are turned off.

1

3

2

2

Adapter

Video Cable

Serial Cable

USB Cable

1.Connect one end of the power adapter to the monitor and the other end to the connector of the power cord.

2.Connect one end of either the touchscreen serial (RS232) cable or the touchscreen USB cable (but not both) to the rear side of the computer and the other end to the LCD monitor. Tighten by turning the two thumb screws clockwise to ensure proper grounding (USB cable does not have thumb screws).

3.Connect one end of the video cable to the rear side of computer and the other to the LCDmonitor. Tighten by turning the two thumb screws clockwise to ensure proper grounding.

4.Press the power button on the rear panel to turn the monitor power on.

2-10 User Guide

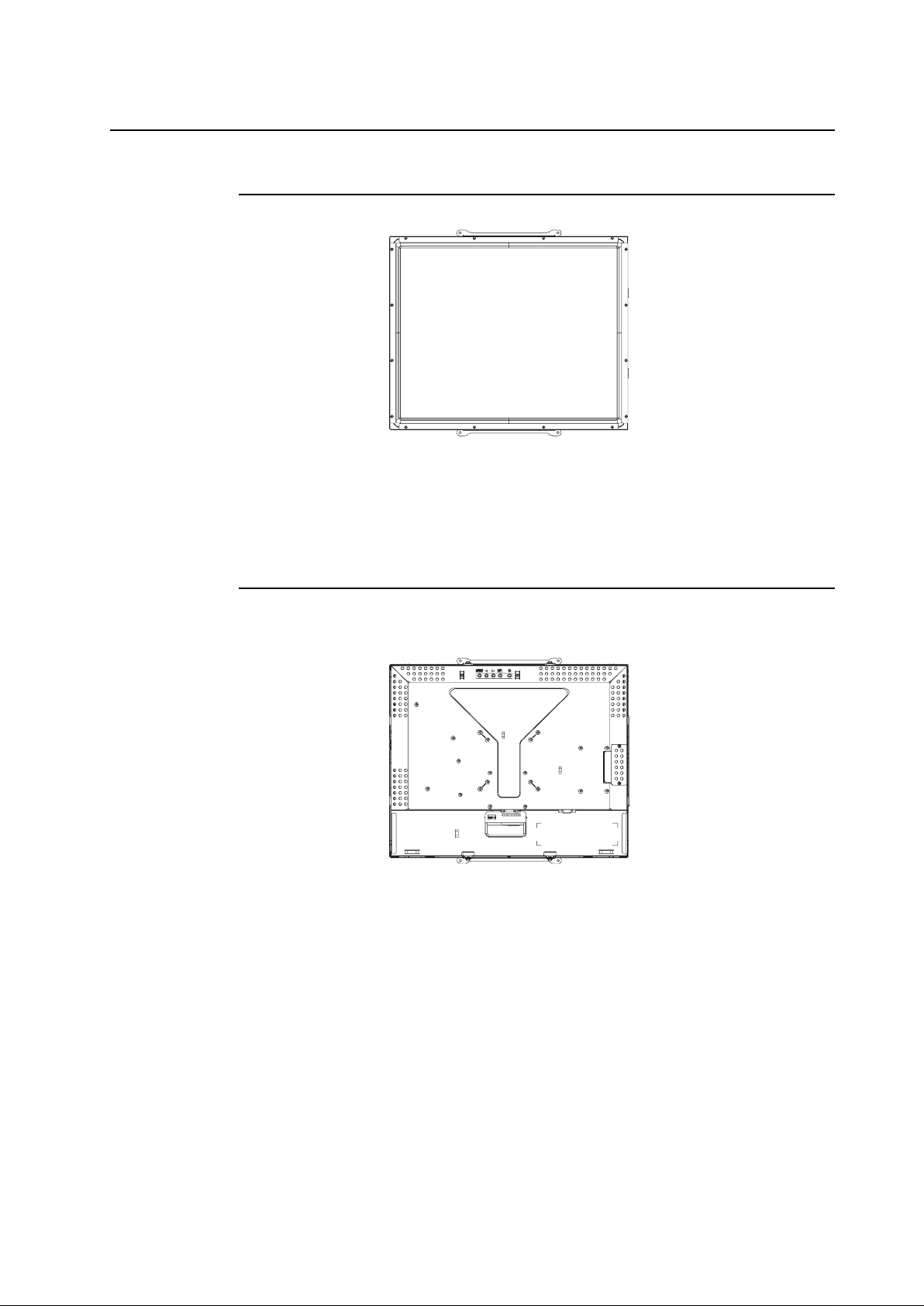

Product Overview

Main Unit

Rear View

2-11

Installing the Driver Software

Elo TouchSystems provides driver software that allows your touchmonitor to work with your computer. Drivers are located on the enclosed CD-ROM for the following operating systems:

Windows XP

Windows 2000

Windows Me

Windows 98

Windows 95

Windows NT 4.0

The latest versions of drivers and driver information for other operating systems are available on the Elo TouchSystems web site at www.elotouch.com.

Your Elo touchmonitor is Plug-and-Play compliant. Information on the video capabilities of your touchmonitor is sent to your video display adapter when Windows starts. If Windows detects your touchmonitor, follow the instructions on the screen to install a generic Plug-and-Play monitor.

Refer to the appropriate section for driver installation instructions.

Depending upon whether you connected the serial communication cable or the USB communication cable, you should install only the serial driver or the USB driver.

2-12 User Guide

Installing the Serial Touch Driver

Installing the Serial Touch Driver for Windows XP,

Windows 2000, Me, 95/98 and NT 4.0

NOTE: For Windows 2000 and NT 4.0 you must have administrator access rights to install the driver.

1Insert the Elo CD-ROM in your computer's CD-ROM drive.

2If the AutoStart feature for your CD-ROM drive is active, the system automatically detects the CD and starts the setup program.

3Follow the directions on the screen to complete the driver setup for your version of Windows.

4If the AutoStart feature is not active:

5Click Start > Run.

6Click the Browse button to locate the EloCd.exe program on the CD-ROM.

7Click Open, then OK to run EloCd.exe.

8Follow the directions on the screen to complete the driver setup for your version of Windows.

To install Windows 2000 and Windows XP, you must use the "update driver" method; you will not find a setup.exe file within the download.

2-13

Installing the Serial Touch Driver for MS-DOS and Windows 3.1

You must have a DOS mouse driver (MOUSE.COM) installed for your mouse if you wish to continue using your mouse along with your touchmonitor in DOS.

To install Windows 3.x and MS-DOS from Windows 95/98, follow the directions below:

1Insert the CD-ROM in your computer’s CD-ROM drive.

2From DOS, type d:\EloDos_W31 to change to the correct directory on the CD-ROM (your CDROM drive may be mapped to a different drive letter).

3Type install and press Enter to start the installation.

4Align the touchscreen.

You must have already completed Steps 1 and 2 before proceeding.

To run the INSTALL program:

1Type INSTALL at the DOS prompt in the directory containing the driver install files.

2INSTALL asks you to select the software to install. Then choose d:\EloDos_W31 from the displayed list.

3INSTALL also asks you for the paths to use during installation, or you may use its defaults. INSTALL creates directories as necessary, and warns you if they exist.

If you are updating your software, you may wish to specify the paths containing the earlier versions, and overwrite the obsolete files. All executable programs are upward compatible. For a list of differences from each previous version of the drivers, be sure to select "Differences from Previous Versions" during the installation process.

INSTALL updates yourAUTOEXEC.BAT file with the drivers you select. INSTALL makes a copy of your originalAUTOEXEC.BAT file, called AUTOEXEC.OLD. If you already have Elo driver commands in your AUTOEXEC.BAT file, they will be commented out.

When INSTALL is finished, it leaves a file called GO.BAT in the subdirectory you specified. GO loads the touchscreen driver, runs the calibration program ELOCALIB, and gives you some final instructions.

If you are using Windows 3.1, you will also calibrate the touchscreen within Windows 3.1 with the Touchscreen Control Panel.

2-14 User Guide

Installing the USB Touch Driver

Installing the USB Touch Driver for Windows XP,

Windows 2000, Me, 95/98 and NT 4.0

1Insert the Elo CD-ROM in your computer’s CD-ROM drive.

If Windows 98, Windows Me or Windows 2000 starts the Add New Hardware Wizard.

2Choose Next. Select “Search for the best driver for your device (Recommended)” and choose

Next.

3When a list of search locations is displayed, place a checkmark on “Specify a location” and use Browse to select the \EloUSB directory on the Elo CD-ROM.

4Choose Next. Once the Elo USB touchscreen driver has been detected, choose Next again.

5You will see several files being copied. Insert your Windows 98 CD if prompted. Choose Finish.

If Windows 98, Windows Me or Windows 2000 does not start the Add New Hardware Wizard.

NOTE: For Windows 2000 you must have administrator access rights to install the driver.

1Insert the Elo CD-ROM in your computer’s CD-ROM drive. If the AutoStart feature for your CD-ROM drive is active, the system automatically detects the CD and starts the setup program.

2Follow the directions on the screen to complete the driver setup for your version of Windows.

If the AutoStart feature is not active:

1Click Start > Run.

2Click the Browse button to locate the EloCd.exe program on the CD-ROM.

3Click Open, then OK to run EloCd.exe.

4Follow the directions on the screen to complete the driver setup for your version of Windows.

To install Windows 2000 and Windows XP, you must use the "update driver" method; you will not find a setup.exe file within the download.

2-15

2-16 User Guide

C H A P T E R

3

OPERATION

About Touchmonitor Adjustments

Your touchmonitor will not likely require adjustment. Variations in video output and application may require adjustments to your touchmonitor to optimize the quality of the display.

For best performance, your touchmonitor should be operating in native resolution, that is 1280 x 1024 at 80k-75 Hz. Use the Display control panel in Windows to choose 1280 x 1024 resolution.

Operating in other resolutions will degrade video performance. For further information, please refer to Appendix A.

All control adjustments are automatically memorized. This feature saves you from having to reset your choices every time you unplug or power your touchmonitor off and on. If there is a power failure, your touchmonitor settings will not default to the factory specifications.

3-17

Rear Panel Controls

MENU



SEL





































1

2

3

4

5



Control

Function

1

Menu/Exit

Display/exits the On Screen Display (OSD) menus.

2



1. Enter contrast of the OSD.





2. Increase value of the adjustment item.





3. Select item counter-clockwise.

3



1. Enter brightness adjustment.





2. Decrease value of the adjustment item.





3. Select item clockwise.

4

Select

Selects the adjustment items from the OSD menus.

5

Power Switch

Switches the power of the monitor.

3-18 User Guide

Controls and Adjustment

On Screen Display (OSD) Menu Functions

To Display and Select the OSD Functions:

1Press the Menu key to activate the OSD menu.

2Use or to move through the menu. Press the Select key, the parameter will be highlighted when selected.

3To quit the OSD screen at any time during the operation, press the Menu key. If no keys are pressed for a short time period, the OSD automatically disappears.

NOTE: The OSD screen will disappear if no input activities are detected for 45 seconds.

3-19

On Screen Display (OSD) Control Options

Control

Description

Contrast

Increases or decreases contrast.

Brightness

Increases or decreases brightness.

V-Position

Moves the screen up or down.

H-Position

Moves the screen left or right.

Recall Defaults

Returns the monitor to its default settings.

RGB

Press or to select 9300, 6500, 5500, 7500 and USER. Only when



selecting USER can you make adjustments to the R/G/B content.



Press Enter to restore to factory default setting.

Exit

Exit the menu.

Sharpness

Adjusts the sharpness.

Phase

Increases or decreases the snow noise of the image after auto



adjustment is made.

Clock

The dot clock is fine-adjusted after auto adjust.

OSD H-Position

Moves the OSD position horizontally on the screen. When the



button is pressed, the OSD control menu will move to the right



side of the screen. Likewise, when the button is pressed, the



OSD control menu will move to the left side.

OSD V-Position

Moves the OSD position vertically on the screen. When the



button is pressed, the OSD control menu will move to the top side



of the screen. Likewise, when the button is pressed, the OSD



control menu will move to the lower side.

OSDTime

Determines how long (in seconds) the OSD menu waits before



closing automatically after no action has been performed.

Auto-Adjust

Press Auto to enable this function. The Auto-Adjust will automatically



adjust V-Position, H-Position, Clock and Clock-Phase.

OSDLanguage

Select from English, French, German, Spanish, and Japanese.

Information Description

Indicates the current resolution, H-Frequency and V-Frequency.

3-20 User Guide

Preset Modes

To reduce the need for adjustment for different modes, the monitor has default setting modes that are most commonly used as given in the table below. If any of these display modes are detected, the monitor automatically adjusts the picture size and centering. When no mode is matched, the user can store their preferred modes in the user modes. The monitor is capable of storing up to 7 user modes. The only condition to store as a user mode is the new display information must have 1 KHz difference for horizontal frequency or 1 Hz for vertical frequency or the sync signal polarities are different from the default modes.





H. Freq.

Band Width





Mode

Resolution

(KHz)

(MHz)

H

V













1

VGA 640x350 70 Hz

31.47

28.322





2

VGA 720x400 70 Hz

31.47

28.322





3

VGA 640x480 60 Hz

31.47

25.175





4

MAC 640x48066 Hz

35.00

32.24

-

-

5

VESA 640x480 72 Hz

37.86

31.5

-

-

6

VESA 640x480 75 Hz

37.50

31.5

-

-

7

VESA 800x600 56 Hz

35.16

36

+

+

8

VESA 800x600 60 Hz

37.88

40

+

+

9

VESA 800x600 75 Hz

46.88

49.5

+

+

10

VESA 800x600 72 Hz

48.08

50

+

+

11

MAC 832x624 75 Hz

49.72

57.283

-

-

12

VESA 1024x768 60 Hz

48.36

65

-

-

13

SUN 1024x768 65 Hz

52.45

70.49

-

-

14

VESA 1024x768 70 Hz

56.48

75

-

-

15

VESA 1024x768 75 Hz

60.02

78.75

+

+

16

SXGA 1280x1024 60 Hz

64

108

+

+

17

SXGA 1280x1024 75 Hz

80

135

+

+

18

SXGA 1152x864 75 Hz

67.5

108

+

+

19

SXGA 1280x960 60 Hz

60

108

+

+

3-21

Power Management System

The monitor is equipped with the power management function which automatically reduces the power consumption when not in use.



Power

Mode

Consumption

On

<50W

Sleep

<4W

Off

<2W





We recommend switching the monitor off when it is not in use for a long time.

NOTE: The monitor automatically goes through the Power Management System (PMS) steps when it is idle. To activate the monitor, press any key on the keyboard or move the mouse.

3-22 User Guide

C H A P T E R

4

TROUBLESHOOTING

If you are experiencing trouble with your touchmonitor, refer to the following table. If the problem persists, please contact your local dealer or our service center.

Solutions to Common Problems



Problem

Suggestion(s)



The monitor does not respond

Check that the monitor’s Power Switch is on.



after you turn on the system

Turn off the power and check the monitor’s power cord





and signal cable for proper connection.



Characters on the screen are dim

Refer to the About Touchmonitor Adjustments section to





adjust the brightness.



The screen is blank

During operation, the monitor screen may automatically turn





off as a result of the Power Saving feature. Press any key to see





if the screen reappears.





Refer to the About Touchmonitor Adjustments section to





adjust the brightness.



Screen flashes when initialized

Turn the monitor off then turn it on again.



“Out of Range” display

Check to see if the resolution of your computer is higher than





that of the LCD display.





Reconfigure the resolution of your computer to make it less





than or equal to 1280x1024. See Appendix A for more information





on resolution.



Touch doesn’t work

Make sure the touch cable is securely attached at both ends.







4-23

4-24 User Guide

A P P E N D I X

A

NATIVE RESOLUTION

The native resolution of a monitor is the resolution level at which the LCD panel is designed to perform best. For the LCD touchmonitor, the native resolution is 1280 x 1024 for the 17 inch size. In almost all cases, screen images look best when viewed at their native resolution. You can lower the resolution setting of a monitor but not increase it.

Input Video

19" LCD

640 x 480 (VGA)

Transforms input format to 1280 x 1024

800 x 600 (SVGA)

Transforms input format to 1280 x 1024

1024 x 768 (XGA)

Transforms input format to 1280 x 1024

1280 x 1024(SXGA)

Displays in Native Resolution

The native resolution of an LCD is the actual number of pixels horizontally in the LCD by the number of pixels vertically in the LCD. LCD resolution is usually represented by the following symbols:

VGA

640 x 480

SVGA

800 x 600

XGA

1024 x 768

SXGA

1280 x 1024

UXGA

1600 x 1200

A-25

As an example, a SXGA resolution LCD panel has 1280 pixels horizontally by 1024 pixels vertically. Input video is also represented by the same terms. SXGA input video has a format of 1280 pixels horizontally by 1024 pixels vertically. When the input pixels contained in the video input format match the native resolution of the panel, there is a one to one correspondence of mapping of input video pixels to LCD pixels. As an example, the pixel in column 45 and row 26 of the input video is in column 45 and row 26 of the LCD. For the case when the input video is at a lower resolution than the native resolution of the LCD, the direct correspondence between the video pixels and the LCD pixels is lost. The LCD controller can compute the correspondence between video pixels and LCD pixels using algorithms contained on its controller. The accuracy of the algorithms determines the fidelity of conversion of video pixels to LCD pixels. Poor fidelity conversion can result in artifacts in the LCD displayed image such as varying width characters.

A-26 User Guide

A P P E N D I X

B

TOUCHMONITOR SAFETY

This manual contains information that is important for the proper setup and maintenance of your touchmonitor. Before setting up and powering on your new touchmonitor, read through this manual, especially Chapter 2 (Installation), and Chapter 3 (Operation).

1To reduce the risk of electric shock, follow all safety notices and never open the touchmonitor case.

2Turn off the product before cleaning.

3Your new touchmonitor is equipped with a 3-wire, grounding power cord. The power cord plug will only fit into a grounded outlet. Do not attempt to fit the plug into an outlet that has not been configured for this purpose. Do not use a damaged power cord. Use only the power cord that comes with your touchmonitor. Use of an unauthorized power cord may invalidate your warranty.

4The slots located on the sides and top of the touchmonitor case are for ventilation. Do not block or insert anything inside the ventilation slots.

5It is important that your touchmonitor remains dry. Do not pour liquid into or onto your touchmonitor. If your touchmonitor becomes wet do not attempt to repair it yourself.

B-27

Care and Handling of Your Touchmonitor

The following tips will help keep your touchmonitor functioning at the optimal level.

To avoid risk of electric shock, do not disassemble the brick supply or display unit cabinet. The unit is not user serviceable. Remember to unplug the display unit from the power outlet before cleaning.

Do not use alcohol (methyl, ethyl or isopropyl) or any strong dissolvent. Do not use thinner or benzene, abrasive cleaners or compressed air.

To clean the display unit cabinet, use a cloth lightly dampened with a mild detergent.

Avoid getting liquids inside your touchmonitor. If liquid does get inside, have a qualified service technician check it before you power it on again.

Do not wipe the screen with a cloth or sponge that could scratch the surface.

To clean the touchscreen, use window or glass cleaner. Put the cleaner on the rag and wipe the touchscreen. Never apply the cleaner directly on the touchscreen.

B-28 User Guide

A P P E N D I X

C

TECHNICAL SPECIFICATIONS

C-29

Touchmonitor Specifications



Model



1939L



LCDDisplay



19” TFTActive Matrix Panel



Display Size



376(H) x 301(V) mm



Pixel Pitch



0.294(H) x 0.294(V) mm



Display Mode



VGA 640 x 350 (70Hz)







VGA 720 x 400 (70Hz)







VGA 640 x 480 (60 / 72/ 75Hz)







SVGA 800 x 600 (56 / 60 / 72/ 75Hz)







XGA 1024 x 768 (60 / 70 / 75Hz)







SXGA 1280 x 1024 (60 / 70 / 75Hz)



Max. Resolution



SXGA 1280 x 1024 at 75Hz maximum



Contrast Ratio



1000 : 1 (typical)



Brightness



Without touch screen: typical 250 cd/m2 ; Min 200 cd/m2







IntelliTouch: typical 230 cd/m2 ; Min 184 cd/m2







Surface Capacitive: typical 212 cd/m2 ; Min 170 cd/m2



Response Time



Tr: 13 ms Tf: 7ms (Typ.)



Display Color



16.7M



Viewing Angle



Vertical -85o ~ +85o







Horizontal -85o ~+85o



Input Signal

Video

R.G.B. Analog 0.7Vp-p, 75 ohm





Sync

TTL Positive or Negative



Signal Connector



Mini D-Sub 15 pin



Rear Controls



Menu, , , Select, Power



On Screen Display (OSD) Controls

Contrast, Brightness, H-Position, V-Position,







Color Temperature, Phase, Clock, OSD Time, Recall,







Language: English, French, German, Spanish, Japanese



Plug & Play



DDC1 / 2B



Touch Panel (optional)



IntelliTouch/Surface Capacitive.



Power Adapter



Input AC 100-240V, 50/60Hz



Operating Conditions

Temperature

0oC ~ 40oC (32oF ~ 104oF)





Humidity

20% ~ 80% (No Condensation)





Altitude

To 12,000 Feet



Storage Conditions

Temperature

-20oC ~ 60oC (-4oF ~ 140oF)





Humidity

10% ~ 90% (No Condensation)



Dimensions (HxWxD)



343 x 415 x 51mm



Weight (Net)



5.2Kg



ertifications



UL, C-UL, FCC-B, CE, VCCI, C-Tick, MPRII , TUV T Mark









C-30 User Guide

19” LCD Touchmonitor (ET1939L-XCWA-X-G) Dimensions

C-31

C-32 User Guide

REGULATORY INFORMATION

I.Electrical Safety Information:

A)Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.

B)There are no operator serviceable parts inside this equipment. There are hazardous voltages generated by this equipment which constitute a safety hazard. Service should be provided only by a qualified service technician.

C)This equipment is provided with a detachable power cord which has an integral safety ground wire intended for connection to a grounded safety outlet.

1)Do not substitute the cord with other than the provided approved type. Under no circumstances use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire.

2)The equipment requires the use of the ground wire as a part of the safety certification, modification or misuse can provide a shock hazard that can result in serious injury or death.

3)Contact a qualified electrician or the manufacturer if there are questions about the installation prior to connecting the equipment to mains power.

II.Emissions and Immunity Information

A)Notice to Users in the United States: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

B)Notice to Users in Canada: This equipment complies with the Class B limits for radio noise emissions from digital apparatus as established by the Radio Interference Regulations of Industrie Canada.

C)Notice to Users in the European Union: Use only the provided power cords and interconnecting cabling provided with the equipment. Substitution of provided cords and cabling may compromise electrical safety or CE Mark Certification for emissions or immunity as required by the following standards:

33

This InformationTechnology Equipment (ITE) is required to have a CE Mark on the manufacturer’s label which means that the equipment has been tested to the following Directives and Standards: This equipment has been tested to the requirements for the CE Mark as required by EMC Directive 89/336/EEC indicated in European Standard EN 55022 Class B and the Low Voltage Directive 73/23/EEC as indicated in European Standard EN 60950.

D) General Information to all Users: This equipment generates, uses and can radiate radio frequency energy. If not installed and used according to this manual the equipment may cause interference with radio and television communications. There is, however, no guarantee that interference will not occur in any particular installation due to site-specific factors.

1)In order to meet emission and immunity requirements, the user must observe the following:

a)Use only the provided I/O cables to connect this digital device with any computer.

b)To ensure compliance, use only the provided manufacturer’s approved line cord.

c)The user is cautioned that changes or modifications to the equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

2)If this equipment appears to cause interference with radio or television reception, or any other device:

a)Verify as an emission source by turning the equipment off and on.

b)If you determine that this equipment is causing the interference, try to correct the interference by using one or more of the following measures:

i)Move the digital device away from the affected receiver.

ii)Reposition (turn) the digital device with respect to the affected receiver.

iii)Reorient the affected receiver’s antenna.

iv)Plug the digital device into a different AC outlet so the digital device and the receiver are on different branch circuits.

v)Disconnect and remove any I/O cables that the digital device does not use. (Unterminated I/O cables are a potential source of high RF emission levels.)

vi)Plug the digital device into only a grounded outlet receptacle. Do not use AC adapter plugs. (Removing or cutting the line cord ground may increase RF emission levels and may also present a lethal shock hazard to the user.)

If you need additional help, consult your dealer, manufacturer, or an experienced radio or television technician.

34 User Guide

TYPE

APPROVED

MPR II

35

36 User Guide

WARRANTY

Except as otherwise stated herein or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the touchmonitors and components of the product is regional; please contact your regional office.

Seller makes no warranty regarding the model life of components. Seller’s suppliers may at any time and from time to time make changes in the components delivered as Products or components. Buyer shall notify Seller in writing promptly (and in no case later than thirty (30) days after discovery) of the failure of any Product to conform to the warranty set forth above; shall describe in commercially reasonable detail in such notice the symptoms associated with such failure; and shall provide to Seller the opportunity to inspect such Products as installed, if possible. The notice must be received by Seller during the Warranty Period for such product, unless otherwise directed in writing by the Seller. Within thirty (30) days after submitting such notice, Buyer shall package the allegedly defective Product in its original shipping carton(s) or a functional equivalent and shall ship to Seller at Buyer’s expense and risk.

Within a reasonable time after receipt of the allegedly defective Product and verification by Seller that the Product fails to meet the warranty set forth above, Seller shall correct such failure by, at Seller’s options, either (i) modifying or repairing the Product or (ii) replacing the Product. Such modification, repair, or replacement and the return shipment of the Product with minimum insurance to Buyer shall be at Seller’s expense. Buyer shall bear the risk of loss or damage in transit, and may insure the Product. Buyer shall reimburse Seller for transportation cost incurred for Product returned but not found by Seller to be defective. Modification or repair, of Products may, at Seller’s option, take place either at Seller’s facilities or at Buyer’s premises. If Seller is unable to modify, repair, or replace a Product to conform to the warranty set forth above, then Seller shall, at Seller’s option, either refund to Buyer or credit to Buyer’s account the purchase price of the Product less depreciation calculated on a straight-line basis over Seller’s stated Warranty Period.

37

THESE REMEDIES SHALL BE THE BUYER’S EXCLUSIVE REMEDIES FOR BREACH OF WARRANTY.EXCEPTFORTHEEXPRESSWARRANTYSETFORTHABOVE,SELLERGRANTS NOOTHERWARRANTIES,EXPRESSORIMPLIEDBYSTATUTEOROTHERWISE,REGARDING THE PRODUCTS, THEIR FITNESS FOR ANY PURPOSE, THEIR QUALITY, THEIR MERCHANTABILITY, THEIR NONINFRINGEMENT, OR OTHERWISE. NO EMPLOYEE OF SELLER OR ANY OTHER PARTY IS AUTHORIZED TO MAKE ANY WARRANTY FOR THE GOODSOTHERTHANTHEWARRANTYSETFORTHHEREIN.SELLER’SLIABILITYUNDER THE WARRANTY SHALL BE LIMITEDTO A REFUND OF THE PURCHASE PRICE OF THE PRODUCT. INNO EVENT SHALL SELLER BE LIABLE FOR THE COST OF PROCUREMENT OR INSTALLATION OF SUBSTITUTE GOODS BY BUYER OR FOR ANY SPECIAL, CONSEQUENTIAL,INDIRECT,ORINCIDENTALDAMAGES.

Buyer assumes the risk and agrees to indemnify Seller against and hold Seller harmless from all liability relating to (i) assessing the suitability for Buyer’s intended use of the Products and of any system design or drawing and (ii) determining the compliance of Buyer’s use of the Products with applicable laws, regulations, codes, and standards. Buyer retains and accepts full responsibility for all warranty and other claims relating to or arising from Buyer’s products, which include or incorporate Products or components manufactured or supplied by Seller. Buyer is solely responsible for any and all representations and warranties regarding the Products made or authorized by Buyer. Buyer will indemnify Seller and hold Seller harmless from any liability, claims, loss, cost, or expenses (including reasonable attorney’s fees) attributable to Buyer¡¦s products or representations or warranties concerning same.

38 User Guide

INDEX

Numerics

19" LCD Touchmonitor (ET1939L-XCWA-X-G)

Dimensions, 32

A

About the Product, 8

About Touchmonitor Adjustments, 17

B

Brightness, 30

C

Care and Handling of Your Touchmonitor, 28

Certifications, 30

Cleaning Your Touchmonitor, 28

Contrast Ratio, 30

Controls and Adjustment, 19

D

Dimensions (HxWxD), 30

Display Color, 30

Display Mode, 30

Display Size, 30

E

Electrical Safety Information, 33

Emissions and Immunity Information, 33

I

Image problem, 23 Image, scrolling, 23 Input Signal, 30 Installation and Setup, 9

Installing the Driver Software, 12 Installing the Serial Touch Driver, 13

Installing the Serial Touch Driver for MS-DOS and Windows 3.1, 14

Installing the Serial Touch Driver for Windows XP, Windows 2000, Me, 95/98 and NT 4.0, 13

Installing the USB Touch Driver, 15

Installing the USB Touch Driver for Windows XP, Windows 2000, Me, 95/98 and NT 4.0, 15

M

Main Unit, 10

Max. Resolution, 30

N

Native Resolution, 25

O

Operating Conditions, 30

On Screen Display (OSD), 30

OSD Control Options, 20

OSD Menu Functions, 19

P

Pixel Pitch, 30

Plug & Play, 30

Power Adapter, 30

Power Management System, 22

Precautions, 7

Product Description, 7

Product Overview, 10

R

Rear Control, 30

Rear View, 10

Rear Panel Controls, 18

Regulatory Information, 33

Response Time, 30

I N D E X - 39

S

Signal Connector, 30

Solutions to Common Problems, 23 Storage Conditions, 30

SVGA, 25

SXGA, 25

T

Technical Specifications, 29 Touch Interface Connection, 11 Touch not working, 23

Touch Panel (optional), 30 Touchmonitor Safety, 27 Touchmonitor Specifications, 30 Troubleshooting, 23

U

Unpacking Your Touchmonitor, 9 UXGA, 25

V

VGA, 25

Viewing Angle, 30

W

Warranty, 37

Weight (Net), 30

X

XGA, 25

I N D E X - 40

Check out Elo’s Web site!

www.elotouch.com

Get the latest...

Product information

Specifications

News on upcoming events

Press releases

Software drivers

Getting in Touch with Elo

To find out more about Elo’s extensive range of touch solutions, visit our Web site at www.elotouch.com or simply call the office nearest you:

USA & Headquarters

Belgium

Japan

Elo TouchSystems

Elo TouchSystems

Touch Panel Systems K.K

301 Constitution Drive,

Diestsesteenweg 692

Sun Homada Bldg. 2F

Menlo Park, CA 94025

B-3010 Kessel-Lo

1-19-20 Shin-Yokohama

USA

Belgium

Kanagawa 222-0033





Japan

(800) ELO-TOUCH(800-356-8682)





Tel 650-361-4700

Tel +32(16)35-2100

Tel +81(45)478-2161

Fax 650-361-4747

Fax +32(16)35-2101

Fax +81(45)478-2180

eloinfo@elotouch.com

elosales@elotouch.com

www.tps.co.jp







© 2006 Tyco Electronics Corporation. Printed in USA
