SL100SV

™

CUTMASTER

AUTOMATED PLASMA CUTTING SYSTEM

PLASMA CUTTING MACHINE TORCH

Art # A-04611

Operating Manual

Rev. AD.01 Date: April 2, 2007 Manual # 0-4641 Operating Features:

WE APPRECIATE YOUR BUSINESS!

Congratulations on your new Thermal Dynamics product. We are proud to have you as our customer and will strive to provide you with the best service and reliability in the industry. This product is backed by our extensive warranty and world-wide service network. To locate your nearest distributor or service agency call 1-800426-1888, or visit us on the web at www.thermal-dynamics.com.

This Operating Manual has been designed to instruct you on the correct use and operation of your Thermal Dynamics product. Your satisfaction with this product and its safe operation is our ultimate concern. Therefore please take the time to read the entire manual, especially the Safety Precautions. They will help you to avoid potential hazards that may exist when working with this product.

YOU ARE IN GOOD COMPANY!

The Brand of Choice for Contractors and Fabricators Worldwide.

Thermal Dynamics is a Global Brand of manual and automation Plasma Cutting Products for Thermadyne Industries Inc.

We distinguish ourselves from our competition through marketleading, dependable products that have stood the test of time. We pride ourselves on technical innovation, competitive prices, excellent delivery, superior customer service and technical support, together with excellence in sales and marketing expertise.

Above all, we are committed to developing technologically advanced products to achieve a safer working environment within the welding industry.

W ARNINGS

Read and understand this entire Manual and your employer’s safety practices before installing, operating, or servicing the equipment.

While the information contained in this Manual represents the Manufacturer's best judgement, the Manufacturer assumes no liability for its use.

Automated Plasma Cutting System Automated CutMaster™ 81 Power Supply SL100 Machine Torch Operating Manual Number 0-4641

Covered under U.S. Patents.

Published by: Thermal Dynamics Corporation 82 Benning Street West Lebanon, New Hampshire, USA 03784 (603) 298-5711

www.thermal-dynamics.com

Reproduction of this work, in whole or in part, without written permission of the publisher is prohibited.

The publisher does not assume and hereby disclaims any liability to any party for any loss or damage caused by any error or omission in this Manual, whether such error results from negligence, accident, or any other cause.

Printed in the United States of America

Publication Date: April 2, 2007

Record the following information for Warranty purposes:

Where Purchased:____________________________________

Purchase Date:_______________________________________

Power Supply Serial #:________________________________

Torch Serial #:________________________________________

TABLE OF CONTENTS

SECTION 1:

GENERAL INFORMATION ................................................................................................ 1-1

1.01 Notes, Cautions and Warnings ...................................................................... 1-1

1.02 Important Safety Precautions ....................................................................... 1-1

1.03 Publications .................................................................................................. 1-3

1.04 Note, Attention et Avertissement .................................................................. 1-3

1.05 Precautions De Securite Importantes ........................................................... 1-4

1.06 Documents De Reference ............................................................................. 1-5

1.07 Declaration of Conformity ............................................................................. 1-7

1.08 Statement of Warranty .................................................................................. 1-8

SECTION 2: SPECIFICATIONS ................................................................................................ 2-1

2.01 Scope of Manual .......................................................................................... 2-1

2.02 Power Supply Specifications ......................................................................... 2-1

2.03 Input Wiring Specifications ........................................................................... 2-2

2.04 Power Supply Features ................................................................................. 2-3

2.05 Power Supply Options and Accessories ....................................................... 2-4

2.06 Torch Specifications ..................................................................................... 2-5

2.07 Torch Options and Accessories .................................................................... 2-6

2.08 Introduction to Plasma .................................................................................. 2-7

SECTION 3: INSTALLATION ..................................................................................................... 3-1

3.01 Unpacking .................................................................................................... 3-1

3.02 Lifting Options .............................................................................................. 3-1

3.03 Primary Input Power Connections ................................................................. 3-2

3.04 Gas Connections .......................................................................................... 3-4

3.05 Torch Connections ........................................................................................ 3-7

3.06 Torch Installation .......................................................................................... 3-9

3.07 Torch Parts Selection................................................................................... 3-10

3.08 Power Supply Connection to SC-11 Standoff Control ................................... 3-11

3.09 Power Supply Connection to Alternate Standoff Control ............................... 3-12

3.10 Automation Interface PC Board Set-up ........................................................ 3-14

3.11 Optional Remote Current Control Harness Installation .................................. 3-15

SECTION 4: OPERATION ......................................................................................................... 4-1

4.01 Product Features .......................................................................................... 4-1

4.02 Preparations For Operating ........................................................................... 4-2

4.03 Selection, Inspection and Replacement of Consumable Torch Par ts ............. 4-6

4.04 Cut Quality ................................................................................................... 4-8

4.05 General Cutting Information .......................................................................... 4-9

4.06 Torch Operation ........................................................................................... 4-10

4.07 Cutting Parameters ...................................................................................... 4-12

4.08 Cutting Specifications .................................................................................. 4-13

4.09 Cutting Speed Chart: Mild Steel, SL100 Torch with Exposed Tip .................. 4-14

4.10 Cutting Speed Charts: Stainless Steel, SL100 Torch with Exposed Tip ........ 4-15

4.11 Cutting Speed Charts: Aluminum, SL100 Torch with Exposed Tip ................4-16

4.12 Cutting Speed Charts: Mild Steel, SL100 Torch with Shielded Tip ................ 4-17

4.13 Cutting Speed Charts: Stainless Steel, SL100 Torch with Shielded Tip ........ 4-18

4.14 Cutting Speed Charts: Aluminum, SL100 Torch with Shielded Tip ................ 4-19

4.15 Operator's Custom Cutting Speed Charts .................................................... 4-20

TABLE OF CONTENTS (continued)

SECTION 5:

SERVICE .......................................................................................................................... 5-1

5.01 General Maintenance .................................................................................... 5-1

5.02 Common Faults ............................................................................................ 5-5

5.03 Basic Troubleshooting ................................................................................... 5-6

5.04 Advanced Troubleshooting Guide - General Information ............................... 5-11

5.05 Main Input and Internal Power Problems ...................................................... 5-13

5.06 Pilot Arc Problems .......................................................................................5-19

5.07 Main Arc Problems ...................................................................................... 5-24

5.08 Test Procedures........................................................................................... 5-25

5.09 Power Supply Major External Parts Replacement ........................................5-31

5.10 Front Panel Parts Replacement.................................................................... 5-33

5.11 Left Side Internal Parts Replacement .......................................................... 5-35

5.12 Right Side Internal Parts Replacement ........................................................ 5-42

SECTION 6:

PARTS LISTS ................................................................................................................... 6-1

6.01 Introduction ................................................................................................... 6-1

6.02 Ordering Information ..................................................................................... 6-1

6.03 Complete Power Supply Replacement .......................................................... 6-1

6.04 Power Supply Basic Replacement Parts ....................................................... 6-2

6.05 Power Supply Options and Accessories ....................................................... 6-2

6.06 Power Supply Major External Replacement Parts ......................................... 6-3

6.07 Power Supply Front Panel Replacement Parts ............................................. 6-4

6.08 Rear Panel Replacement Parts .................................................................... 6-5

6.09 Power Supply Left Side Internal Replacement Parts .................................... 6-6

6.10 Right Side Internal Replacement Parts ........................................................ 6-8

6.11 Torch Replacement Parts .............................................................................6-10

6.12 Torch Replacement Parts .............................................................................6-12

6.13 Torch Consumables ..................................................................................... 6-14

6.14 Torch Spare Parts Kits .................................................................................6-14

6.15 Complete Torch Assembly Replacement ...................................................... 6-16

6.16 Torch Options & Accessories ...................................................................... 6-16

PATENT INFORMATION ...........................................................................................................6-17

APPENDIX 1: SEQUENCE OF OPERATION

(BLOCK DIAGRAM) .......................................................................................................... A-1

APPENDIX 2: DATA TAG INFORMATION ................................................................................ A-2

APPENDIX 3: MAINTENANCE SCHEDULE ............................................................................. A-3

APPENDIX 4: TORCH PIN - OUT DIAGRAMS.......................................................................... A-4

APPENDIX 5: TORCH CONNECTION DIAGRAMS .................................................................. A-5

APPENDIX 6: CONTROL CABLE PIN - OUT DIAGRAM .......................................................... A-6

APPENDIX 7: INTERFACE PCB SWITCH SETTINGS (MOST COMMON SETTINGS) ............ A-7

TABLE OF CONTENTS

APPENDIX 8: INTERFACE PCB SWITCH SETTINGS (Division Factors 16-24) ....................... A-8

APPENDIX 9: INTERFACE PCB SWITCH SETTINGS (Division Factors 24-30) ....................... A-9

APPENDIX 10: INTERFACE PCB SWITCH SETTINGS (Division Factors 30-33) ................... A-10

APPENDIX 11: INTERFACE PCB SWITCH SETTINGS (Division Factors 33-36) ................... A-11

APPENDIX 12: INTERFACE PCB SWITCH SETTINGS (Division Factors 36-43) ................... A-12

APPENDIX 13: INTERFACE PCB SWITCH SETTINGS (Division Factors 43-50) ................... A-13

APPENDIX 14: AUTOMATION INTERFACE PC BOARD WIRING LAYOUT ............................ A-14

APPENDIX 15: AUTOMATION INTERFACE PC BOARD LAYOUT and TEST POINTS ........... A-15

APPENDIX 16: AUTOMATION INTERFACE PC BOARD WIRING CONNECTIONS TO

OEM CNC HARNESS .................................................................................................... A-16

APPENDIX 17: AUTOMATION INTERFACE PC BOARD WIRING CONNECTIONS TO

ALTERNATE CNC HARNESS .......................................................................................... A-17

APPENDIX 18: MAIN PC BOARD LAYOUT ............................................................................ A-18

APPENDIX 19: MAIN PC BOARD WIRING LAYOUT (208 /230-Volt POWER SUPPLIES) ...... A-20

APPENDIX 20: MAIN PC BOARD WIRING LAYOUT (400-Volt, 415-Volt, 460-Volt,

600-Volt POWER SUPPLIES) ......................................................................................... A-21

APPENDIX 21: LOGIC BOARD LAYOUT ................................................................................ A-22

APPENDIX 22: POT / LED BOARD LAYOUT .......................................................................... A-23

APPENDIX 23: OUTPUT BOARD WIRING DIAGRAM ............................................................ A-24

APPENDIX 24: OUTPUT DIODE BOARD LAYOUT ................................................................ A-25

APPENDIX 25: PILOT BOARD LAYOUT ................................................................................. A-26

APPENDIX 26: 28VAC CIRCUIT DIAGRAM ........................................................................... A-27

APPENDIX 27: INPUT DIODE LAYOUT.................................................................................. A-28

APPENDIX 28: 208/230V SYSTEM SCHEMATIC ................................................................... A-30

APPENDIX 29: 208/230V SYSTEM SCHEMATIC ................................................................... A-32

APPENDIX 30: 400 / 415V / 460V SYSTEM SCHEMATIC ..................................................... A-34

APPENDIX 31: 400 / 415V / 460V SYSTEM SCHEMATIC ..................................................... A-36

TABLE OF CONTENTS (continued)

APPENDIX 32: 600V SYSTEM SCHEMATIC ........................................................................... A-38

APPENDIX 33: 600V SYSTEM SCHEMATIC ........................................................................... A-40

APPENDIX 34: Publication History .......................................................................................... A-42

Global Customer Service Contact Information ..................................................... Inside Rear Cover

SECTION 1:

GENERAL INFORMATION

1.01 Notes, Cautions and Warnings

Throughout this manual, notes, cautions, and warnings are used to highlight important information. These highlights are categorized as follows:

NOTE

An operation, procedure, or background information which requires additional emphasis or is helpful in efficient operation of the system.

CAUTION

A procedure which, if not properly followed, may cause damage to the equipment.

WARNING

A procedure which, if not properly followed, may cause injury to the operator or others in the operating area.

1.02 Important Safety Precautions

WARNINGS

OPERATION AND MAINTENANCE OF PLASMA ARC EQUIPMENT CAN BE DANGEROUS AND HAZARDOUS TO YOUR HEALTH.

Plasma arc cutting produces intense electric and magnetic emissions that may interfere with the proper function of cardiac pacemakers, hearing aids, or other electronic health equipment. Persons who work near plasma arc cutting applications should consult their medical health professional and the manufacturer of the health equipment to determine whether a hazard exists.

GASES AND FUMES

Gases and fumes produced during the plasma cutting process can be dangerous and hazardous to your health.

• Keep all fumes and gases from the breathing area. Keep your head out of the welding fume plume.

• Use an air-supplied respirator if ventilation is not adequate to remove all fumes and gases.

• The kinds of fumes and gases from the plasma arc depend on the kind of metal being used, coatings on the metal, and the different processes. You must be very careful when cutting or welding any metals which may contain one or more of the following:

Antimony Chromium M ercury Arsenic Cobalt Nickel Barium Copper Selenium Beryllium Lead Silver Cadmium Manganese Vanadium

• Always read the Material Safety Data Sheets (MSDS) that should be supplied with the material you are using. These MSDSs will give you the information regarding the kind and amount of fumes and gases that may be dangerous to your health.

• For information on how to test for fumes and gases in your workplace, refer to item 1 in Subsection 1.03, Publications in this manual.

• Use special equipment, such as water or down draft cutting tables, to capture fumes and gases.

• Do not use the plasma torch in an area where combustible or explosive gases or materials are located.

• Phosgene, a toxic gas, is generated from the vapors of chlorinated solvents and cleansers. Remove all sources of these vapors.

• This product, when used for welding or cutting, produces fumes or gases which contain chemicals known to the State of California to cause birth defects and, in some cases, cancer. (California Health & Safety Code Sec. 25249.5 et seq.)

To prevent possible injury, read, understand and follow all warnings, safety precautions and instructions before using the equipment. Call 1-603298-5711 or your local distributor if you have any questions.

Manual 0-4641 1-1 GENERAL INFORMATION

ELECTRIC SHOCK

NOISE

Electric Shock can injure or kill. The plasma arc process uses and produces high voltage electrical energy. This electric energy can cause severe or fatal shock to the operator or others in the workplace.

• Never touch any parts that are electrically “live” or “hot.”

• Wear dry gloves and clothing. Insulate yourself from the work piece or other parts of the welding circuit.

• Repair or replace all worn or damaged parts.

• Extra care must be taken when the workplace is moist or damp.

• Install and maintain equipment according to NEC code, refer to item 9 in Subsection 1.03, Publications.

• Disconnect power source before performing any service or repairs.

• Read and follow all the instructions in the Operating Manual.

FIRE AND EXPLOSION

Fire and explosion can be caused by hot slag, sparks, or the plasma arc.

• Be sure there is no combustible or flammable material in the workplace. Any material that cannot be removed must be protected.

• Ventilate all flammable or explosive vapors from the workplace.

• Do not cut or weld on containers that may have held combustibles.

• Provide a fire watch when working in an area where fire hazards may exist.

• Hydrogen gas may be formed and trapped under aluminum workpieces when they are cut underwater or while using a water table. DO NOT cut aluminum alloys underwater or on a water table unless the hydrogen gas can be eliminated or dissipated. Trapped hydrogen gas that is ignited will cause an explosion.

Noise can cause permanent hearing loss. Plasma arc processes can cause noise levels to exceed safe limits. You must protect your ears from loud noise to prevent permanent loss of hearing.

• To protect your hearing from loud noise, wear protective ear plugs and/or ear muffs. Protect others in the workplace.

• Noise levels should be measured to be sure the decibels (sound) do not exceed safe levels.

• For information on how to test for noise, see item 1 in Subsection 1.03, Publications, in this manual.

PLASMA ARC RAYS

Plasma Arc Rays can injure your eyes and burn your skin. The plasma arc process produces very bright ultra violet and infra red light. These arc rays will damage your eyes and burn your skin if you are not properly protected.

• To protect your eyes, always wear a welding helmet or shield. Also always wear safety glasses with side shields, goggles or other protective eye wear.

• Wear welding gloves and suitable clothing to protect your skin from the arc rays and sparks.

• Keep helmet and safety glasses in good condition. Replace lenses when cracked, chipped or dirty.

• Protect others in the work area from the arc rays. Use protective booths, screens or shields.

• Use the shade of lens as suggested in the following per ANSI/ASC Z49.1:

Minimum Protective Suggested

Arc Current Shade No. Shade No.

Less Than 300* 8 9

300 - 400* 9 12

400 - 800* 10 14

* These values apply where the actual arc is clearly seen. Experience has shown that lighter filters may be used when the arc is hidden by the workpiece.

GENERAL INFORMATION 1-2 Manual 0-4641

1.03 Publications

Refer to the following standards or their latest revisions for more information:

1. OSHA, SAFETY AND HEALTH STANDARDS, 29CFR 1910, obtainable from the Superintendent of Documents, U.S. Government Printing Office, Washington, D.C. 20402

2. ANSI Standard Z49.1, SAFETY IN WELDING AND CUTTING, obtainable from the American Welding Society, 550 N.W. LeJeune Rd, Miami, FL 33126

3. NIOSH, SAFETY AND HEALTH IN ARC WELDING AND GAS WELDING AND CUTTING, obtainable from the Superintendent of Documents, U.S. Government Printing Office, Washington, D.C. 20402

4. ANSI Standard Z87.1, SAFE PRACTICES FOR OCCUPATION AND EDUCATIONAL EYE AND FACE PROTECTION, obtainable from American National Standards Institute, 1430 Broadway, New York, NY 10018

5. ANSI Standard Z41.1, STANDARD FOR MEN’S SAFETYTOE FOOTWEAR, obtainable from the American National Standards Institute, 1430 Broadway, New York, NY 10018

14. American Welding Society Standard AWSF4.1, RECOMMENDED SAFE PRACTICES FOR THE PREPARATION FOR WELDING AND CUTTING OF CONTAINERS AND PIPING THAT HAVE HELD HAZARDOUS SUBSTANCES, obtainable from the American Welding Society, 550 N.W. LeJeune Rd, Miami, FL 33126

15. ANSI Standard Z88.2, PRACTICE FOR RESPIRATORY PROTECTION, obtainable from American National Standards Institute, 1430 Broadway, New York, NY 10018

1.04 Note, Attention et

Avertissement

Dans ce manuel, les mots “note,” “attention,” et “avertissement” sont utilisés pour mettre en relief des informations à caractère important. Ces mises en relief sont classifiées comme suit :

NOTE

Toute opération, procédure ou renseignement général sur lequel il importe d’insister davantage ou qui contribue à l’efficacité de fonctionnement du système.

6. ANSI Standard Z49.2, FIRE PREVENTION IN THE USE OF CUTTING AND WELDING PROCESSES, obtainable from American National Standards Institute, 1430 Broadway, New York, NY 10018

7. AWS Standard A6.0, WELDING AND CUTTING CONTAINERS WHICH HAVE HELD COMBUSTIBLES, obtainable from American Welding Society, 550 N.W. LeJeune Rd, Miami, FL 33126

8. NFPA Standard 51, OXYGEN-FUEL GAS SYSTEMS FOR WELDING, CUTTING AND ALLIED PROCESSES, obtainable from the National Fire Protection Association, Batterymarch Park, Quincy, MA 02269

9. NFPA Standard 70, NATIONAL ELECTRICAL CODE, obtainable from the National Fire Protection Association, Batterymarch Park, Quincy, MA 02269

10. NFPA Standard 51B, CUTTING AND WELDING PROCESSES, obtainable from the National Fire Protection Association, Batterymarch Park, Quincy, MA 02269

11. CGA Pamphlet P-1, SAFE HANDLING OF COMPRESSED GASES IN CYLINDERS, obtainable from the Compressed Gas Association, 1235 Jefferson Davis Highway, Suite 501, Arlington, VA 22202

ATTENTION

Toute procédure pouvant résulter l’endommagement du matériel en cas de nonrespect de la procédure en question.

AVERTISSEMENT

Toute procédure pouvant provoquer des blessures de l’opérateur ou des autres personnes se trouvant dans la zone de travail en cas de non-respect de la procédure en question.

12. CSA Standard W117.2, CODE FOR SAFETY IN WELDING AND CUTTING, obtainable from the Canadian Standards Association, Standards Sales, 178 Rexdale Boulevard, Rexdale, Ontario, Canada M9W 1R3

13. NWSA booklet, WELDING SAFETY BIBLIOGRAPHY obtainable from the National Welding Supply Association, 1900 Arch Street, Philadelphia, PA 19103

Manual 0-4641 1-3 GENERAL INFORMATION

1.05 Precautions De Securite Importantes

AVERTISSEMENTS

L’OPÉRATION ET LA MAINTENANCE DU MATÉRIEL DE SOUDAGE À L’ARC AU JET DE PLASMA PEUVENT PRÉSENTER DES RISQUES ET DES DANGERS DE SANTÉ.

Coupant à l’arc au jet de plasma produit de l’énergie électrique haute tension et des émissions magnétique qui peuvent interférer la fonction propre d’un “pacemaker” cardiaque, les appareils auditif, ou autre matériel de santé electronique. Ceux qui travail près d’une application à l’arc au jet de plasma devrait consulter leur membre professionel de médication et le manufacturier de matériel de santé pour déterminer s’il existe des risques de santé.

Il faut communiquer aux opérateurs et au personnel TOUS les dangers possibles. Afin d’éviter les blessures possibles, lisez, comprenez et suivez tous les avertissements, toutes les précautions de sécurité et toutes les consignes avant d’utiliser le matériel. Composez le + 603-298-5711 ou votre distributeur local si vous avez des questions.

• Lisez toujours les fiches de données sur la sécurité des matières (sigle américain “MSDS”); celles-ci devraient être fournies avec le matériel que vous utilisez. Les MSDS contiennent des renseignements quant à la quantité et la nature de la fumée et des gaz pouvant poser des dangers de santé.

• Pour des informations sur la manière de tester la fumée et les gaz de votre lieu de travail, consultez l’article 1 et les documents cités à la page 5.

• Utilisez un équipement spécial tel que des tables de coupe à débit d’eau ou à courant descendant pour capter la fumée et les gaz.

• N’utilisez pas le chalumeau au jet de plasma dans une zone où se trouvent des matières ou des gaz combustibles ou explosifs.

• Le phosgène, un gaz toxique, est généré par la fumée provenant des solvants et des produits de nettoyage chlorés. Eliminez toute source de telle fumée.

• Ce produit, dans le procéder de soudage et de coupe, produit de la fumée ou des gaz pouvant contenir des éléments reconnu dans L’état de la Californie, qui peuvent causer des défauts de naissance et le cancer. (La sécurité de santé en Californie et la code sécurité Sec. 25249.5 et seq.)

CHOC ELECTRIQUE

FUMÉE et GAZ

La fumée et les gaz produits par le procédé de jet de plasma peuvent présenter des risques et des dangers de santé.

• Eloignez toute fumée et gaz de votre zone de respiration. Gardez votre tête hors de la plume de fumée provenant du chalumeau.

• Utilisez un appareil respiratoire à alimentation en air si l’aération fournie ne permet pas d’éliminer la fumée et les gaz.

• Les sortes de gaz et de fumée provenant de l’arc de plasma dépendent du genre de métal utilisé, des revêtements se trouvant sur le métal et des différents procédés. Vous devez prendre soin lorsque vous coupez ou soudez tout métal pouvant contenir un ou plusieurs des éléments suivants:

antimoine cadmium mercure argent chrome nickel arsenic cobalt plomb baryum cuivre sélénium béryllium manganèse vanadium

Les chocs électriques peuvent blesser ou même tuer. Le procédé au jet de plasma requiert et produit de l’énergie électrique haute tension. Cette énergie électrique peut produire des chocs graves, voire mortels, pour l’opérateur et les autres personnes sur le lieu de travail.

• Ne touchez jamais une pièce “sous tension” ou “vive”; portez des gants et des vêtements secs. Isolez-vous de la pièce de travail ou des autres parties du circuit de soudage.

• Réparez ou remplacez toute pièce usée ou endommagée.

• Prenez des soins particuliers lorsque la zone de travail est humide ou moite.

• Montez et maintenez le matériel conformément au Code électrique national des Etats-Unis. (Voir la page 5, article 9.)

• Débranchez l’alimentation électrique avant tout travail d’entretien ou de réparation.

• Lisez et respectez toutes les consignes du Manuel de consignes.

GENERAL INFORMATION 1-4 Manual 0-4641

INCENDIE ET EXPLOSION

Les incendies et les explosions peuvent résulter des scories chaudes, des étincelles ou de l’arc de plasma. Le procédé à l’arc de plasma produit du métal, des étincelles, des scories chaudes pouvant mettre le feu aux matières combustibles ou provoquer l’explosion de fumées inflammables.

• Soyez certain qu’aucune matière combustible ou inflammable ne se trouve sur le lieu de travail. Protégez toute telle matière qu’il est impossible de retirer de la zone de travail.

• Utilisez la nuance de lentille qui est suggèrée dans le recommendation qui suivent ANSI/ASC Z49.1:

Nuance Minimum Nuance Suggerée

Courant Arc Protective Numéro Numéro

Moins de 300* 8 9

300 - 400* 9 12

400 - 800* 10 14

* Ces valeurs s’appliquent ou l’arc actuel est observé clairement. L’experience a démontrer que les filtres moins foncés peuvent être utilisés quand l’arc est caché par moiceau de travail.

• Procurez une bonne aération de toutes les fumées inflammables ou explosives.

• Ne coupez pas et ne soudez pas les conteneurs ayant pu renfermer des matières combustibles.

• Prévoyez une veille d’incendie lors de tout travail dans une zone présentant des dangers d’incendie.

• Le gas hydrogène peut se former ou s’accumuler sous les pièces de travail en aluminium lorsqu’elles sont coupées sous l’eau ou sur une table d’eau. NE PAS couper les alliages en aluminium sous l’eau ou sur une table d’eau à moins que le gas hydrogène peut s’échapper ou se dissiper. Le gas hydrogène accumulé explosera si enflammé.

RAYONS D’ARC DE PLASMA

Les rayons provenant de l’arc de plasma peuvent blesser vos yeux et brûler votre peau. Le procédé à l’arc de plasma produit une lumière infra-rouge et des rayons ultra-violets très forts. Ces rayons d’arc nuiront à vos yeux et brûleront votre peau si vous ne vous protégez pas correctement.

• Pour protéger vos yeux, portez toujours un casque ou un écran de soudeur. Portez toujours des lunettes de sécurité munies de parois latérales ou des lunettes de protection ou une autre sorte de protection oculaire.

• Portez des gants de soudeur et un vêtement protecteur approprié pour protéger votre peau contre les étincelles et les rayons de l’arc.

• Maintenez votre casque et vos lunettes de protection en bon état. Remplacez toute lentille sale ou comportant fissure ou rognure.

• Protégez les autres personnes se trouvant sur la zone de travail contre les rayons de l’arc en fournissant des cabines ou des écrans de protection.

BRUIT

Le bruit peut provoquer une perte permanente de l’ouïe. Les procédés de soudage à l’arc de plasma peuvent provoquer des niveaux sonores supérieurs aux limites normalement acceptables. Vous dúez vous protéger les oreilles contre les bruits forts afin d’éviter une perte permanente de l’ouïe.

• Pour protéger votre ouïe contre les bruits forts, portez des tampons protecteurs et/ou des protections auriculaires. Protégez également les autres personnes se trouvant sur le lieu de travail.

• Il faut mesurer les niveaux sonores afin d’assurer que les décibels (le bruit) ne dépassent pas les niveaux sûrs.

• Pour des renseignements sur la manière de tester le bruit, consultez l’article 1, page 5.

1.06 Documents De Reference

Consultez les normes suivantes ou les révisions les plus récentes ayant été faites à celles-ci pour de plus amples renseignements :

1. OSHA, NORMES DE SÉCURITÉ DU TRAVAIL ET DE PROTECTION DE LA SANTÉ, 29CFR 1910, disponible auprès du Superintendent of Documents, U.S. Government Printing Office, Washington, D.C. 20402

2. Norme ANSI Z49.1, LA SÉCURITÉ DES OPÉRATIONS DE COUPE ET DE SOUDAGE, disponible auprès de la Société Américaine de Soudage (American Welding Society), 550 N.W. LeJeune Rd., Miami, FL 33126

3. NIOSH, LA SÉCURITÉ ET LA SANTÉ LORS DES OPÉRATIONS DE COUPE ET DE SOUDAGE À L’ARC ET AU GAZ, disponible auprès du Superintendent of Documents, U.S. Government Printing Office, Washington, D.C. 20402

Manual 0-4641 1-5 GENERAL INFORMATION

4. Norme ANSI Z87.1, PRATIQUES SURES POUR LA PROTECTION DES YEUX ET DU VISAGE AU TRAVAIL ET DANS LES ECOLES, disponible de l’Institut Américain des Normes Nationales (American National Standards Institute), 1430 Broadway, New York, NY 10018

5. Norme ANSI Z41.1, NORMES POUR LES CHAUSSURES PROTECTRICES, disponible auprès de l’American National Standards Institute, 1430 Broadway, New York, NY 10018

6. Norme ANSI Z49.2, PRÉVENTION DES INCENDIES LORS DE L’EMPLOI DE PROCÉDÉS DE COUPE ET DE SOUDAGE, disponible auprès de l’American National Standards Institute, 1430 Broadway, New York, NY 10018

7. Norme A6.0 de l’Association Américaine du Soudage (AWS), LE SOUDAGE ET LA COUPE DE CONTENEURS AYANT RENFERMÉ DES PRODUITS COMBUSTIBLES, disponible auprès de la American Welding Society, 550 N.W. LeJeune Rd., Miami, FL 33126

8. Norme 51 de l’Association Américaine pour la Protection contre les Incendies (NFPA), LES SYSTEMES À GAZ AVEC ALIMENTATION EN OXYGENE POUR LE SOUDAGE, LA COUPE ET LES PROCÉDÉS ASSOCIÉS, disponible auprès de la National Fire Protection Association, Batterymarch Park, Quincy, MA 02269

13. Livret NWSA, BIBLIOGRAPHIE SUR LA SÉCURITÉ DU SOUDAGE, disponible auprès de l’Association Nationale de Fournitures de Soudage (National Welding Supply Association), 1900 Arch Street, Philadelphia, PA 19103

14. Norme AWSF4.1 de l’Association Américaine de Soudage, RECOMMANDATIONS DE PRATIQUES SURES POUR LA PRÉPARATION À LA COUPE ET AU SOUDAGE DE CONTENEURS ET TUYAUX

9. Norme 70 de la NFPA, CODE ELECTRIQUE NATIONAL, disponible auprès de la National Fire Protection Association, Batterymarch Park, Quincy, MA 02269

10. Norme 51B de la NFPA, LES PROCÉDÉS DE COUPE ET DE SOUDAGE, disponible auprès de la National Fire Protection Association, Batterymarch Park, Quincy, MA 02269

11. Brochure GCA P-1, LA MANIPULATION SANS RISQUE DES GAZ COMPRIMÉS EN CYLINDRES, disponible auprès de l’Association des Gaz Comprimés (Compressed Gas Association), 1235 Jefferson Davis Highway, Suite 501, Arlington, VA 22202

12. Norme CSA W117.2, CODE DE SÉCURITÉ POUR LE SOUDAGE ET LA COUPE, disponible auprès de l’Association des Normes Canadiennes, Standards Sales, 178 Rexdale Boulevard, Rexdale, Ontario, Canada, M9W 1R3

GENERAL INFORMATION 1-6 Manual 0-4641

AYANT RENFERMÉ DES PRODUITS DANGEREUX , disponible auprès de la American Welding Society, 550 N.W. LeJeune Rd., Miami, FL 33126

15. Norme ANSI Z88.2, PRATIQUES DE PROTECTION RESPIRATOIRE, disponible auprès de l’American National Standards Institute, 1430 Broadway, New York, NY 10018

1.07 Declaration of Conformity

Manufacturer: Thermal Dynamics Corporation Address: 82 Benning Street

West Lebanon, New Hampshire 03784 USA

The equipment described in this manual conforms to all applicable aspects and regulations of the ‘Low Voltage Directive’ (European Council Directive 73/23/EEC as amended by Council Directive 93/68/EEC) and to the National legislation for the enforcement of this Directive.

The equipment described in this manual conforms to all applicable aspects and regulations of the "EMC Directive" (European Council Directive 89/336/EEC) and to the National legislation for the enforcement of this Directive.

Serial numbers are unique with each individual piece of equipment and details description, parts used to manufacture a unit and date of manufacture.

National Standard and Technical Specifications

The product is designed and manufactured to a number of standards and technical requirements. Among them are:

* CSA (Canadian Standards Association) standard C22.2 number 60 for Arc welding equipment.

* UL (Underwriters Laboratory) rating 94VO flammability testing for all printed-circuit boards used.

* CENELEC EN50199 EMC Product Standard for Arc Welding Equipment.

* ISO/IEC 60974-1 (BS 638-PT10) (EN 60 974-1) (EN50192) (EN50078) applicable to plasma cutting equipment and associ-

ated accessories.

* For environments with increased hazard of electrical shock, Power Supplies bearing the S mark conform to EN50192

when used in conjunction with hand torches with exposed cutting tips, if equipped with properly installed standoff guides.

* Extensive product design verification is conducted at the manufacturing facility as part of the routine design and manufac-

turing process. This is to ensure the product is safe, when used according to instructions in this manual and related industry standards, and performs as specified. Rigorous testing is incorporated into the manufacturing process to ensure the manufactured product meets or exceeds all design specifications.

Thermal Dynamics has been manufacturing products for more than 30 years, and will continue to achieve excellence in our area of manufacture.

Manufacturers responsible representative: Steve Ward

Operations Director Thermadyne Europe Europa Building Chorley N Industrial Park Chorley, Lancashire, England PR6 7BX

Manual 0-4641 1-7 GENERAL INFORMATION

1.08 Statement of Warranty

LIMITED WARRANTY: Subject to the terms and conditions established below, Thermal Dynamics® Corporation warrants to the original retail purchaser that new Thermal Dynamics CUTMASTER™ 1Series plasma cutting systems sold after the effective date of this warranty are free of defects in material and workmanship. Should any failure to conform to this warranty appear within the applicable period stated below, Thermal Dynamics Corporation shall, upon notification thereof and substantiation that the product has been stored operated and maintained in accordance with Thermal Dynamics’ specifications, instructions, recommendations and recognized industry practice, correct such defects by suitable repair or replacement.

This warranty is exclusive and in lieu of any warranty of merchantability or fitness for a particular purpose.

Thermal Dynamics will repair or replace, at its discretion, any warranted parts or components that fail due to defects in material or workmanship within the time periods set out below. Thermal Dynamics Corporation must be notified within 30 days of any failure, at which time Thermal Dynamics Corporation will provide instructions on the warranty procedures to be implemented.

Thermal Dynamics Corporation will honor warranty claims submitted within the warranty periods listed below. All warranty periods begin on the date of sale of the product to the original retail customer or 1 year after sale to an authorized Thermal Dynamics Distributor.

LIMITED WARRANTY PERIOD

Product

Power Supply Component s

(Parts and Labor)

Torch and Leads

(Parts and Labor) CUTMASTER™ 51 3 Years 1 Year CUTMASTER™ 81 3 Years 1 Year CUTMASTER™ 101 3 Years 1 Year

This warranty does not apply to:

1. Consumable Parts, such as tips, electrodes, shield cups, o - rings, starter cartridges, gas distributors, fuses, filters.

2. Equipment that has been modified by an unauthorized party, improperly installed, improperly operated or misused based upon industry standards.

In the event of a claim under this warranty, the remedies shall be, at the discretion of Thermal Dynamics Corporation:

1. Repair of the defective product.

2. Replacement of the defective product.

3. Reimbursement of reasonable costs of repair when authorized in advance by Thermal Dynamics.

4. Payment of credit up to the purchase price less reasonable depreciation based on actual use.

These remedies may be authorized by Thermal Dynamics and are FOB West Lebanon, NH or an authorized Thermadyne service station. Product returned for service is at the owner’s expense and no reimbursement of travel or transportation is authorized.

LIMITATION OF LIABILITY: Thermal Dynamics Corporation shall not under any circumstances be liable for special or consequential damages such as, but not limited to, damage or loss of purchased or replacement goods or claims of customer of distributors (hereinafter “Purchaser”) for service interruption. The remedies of the Purchaser set forth herein are exclusive and the liability of Thermal Dynamics with respect to any contract, or anything done in connection therewith such as the performance or breach thereof, or from the manufacture, sale, delivery, resale, or use of the goods covered by or furnished by Thermal Dynamics whether arising out of contract, negligence, strict tort, or under any warranty, or otherwise, shall not, except as expressly provided herein, exceed the price of the goods upon which liability is based.

This warranty becomes invalid if replacement parts or accessories are used which may impair the safety or performance of any Thermal Dynamics product.

This warranty is invalid if the Thermal Dynamics product is sold by non - authorized persons.

Effective January 15, 2004

GENERAL INFORMATION 1-8 Manual 0-4641

SECTION 2: SPECIFICATIONS

2.01 Scope of Manual

This manual contains descriptions, operating instructions and basic maintenance procedures for the Thermal Dynamics Automated CutMaster 81 Plasma Cutting System. Servicing of this equipment is restricted to properly trained personnel; unqualified personnel are strictly cautioned against attempting repairs or adjustments not covered in this manual, at the risk of voiding the Warranty.

Read this manual thoroughly. A complete understanding of the characteristics and capabilities of this equipment will assure the dependable operation for which it was designed.

2.02 Power Supply Specifications

CutMaster 81 Power Supply Specificati ons

208 / 230 VA C (187 - 253 VA C), S ingl e P has e, 50/60 Hz 400 VAC (360 - 440 VA C), Three Phas e, 50/ 60 Hz 400 VAC (360 - 440 VA C), Three Phas e, 50 Hz, CE

Inpu t Po we r

Input Power Cable Out put Current Power Supply Gas F il t ering Abil ity

Am bient Temperature

208/230V

and 460V Units

400V & 415 V Uni ts

600V Uni ts

* NOTE: The duty c yc l e wil l be reduced i f the prim ary i nput power (AC)

is low or the out put voltage (DC) is hi gher t han s hown in t his chart.

415 VAC (370 - 440 VA C), Three Phas e, 50 Hz, CE 460 VAC (414 - 506 VA C), Singl e Phase, 60 Hz 460 VAC (414 - 506 VA C), Three Phas e, 60 Hz 600 VAC (517 - 632 VA C), Three Phas e, 60 hz Cable for 208/230 VAC unit includes plug. 20 - 60 Amps , Continuously A djust able Part iculat es t o 20 Mi crons

CutMa ster 81 Power S u p p ly Duty Cycle*

40° C (104° F)

IEC

Rating Duty Cycle Current 60A 60A 60A 60A 45 A 45A DC Volt age 104V 109V 104V 109V 98V 98V Duty Cycle Current 60A 60A 60A 60A 45 A 45A DC Volt age 104V 104V 104V 104V 98V 98V Duty Cycle Current 60A 60A 60A 60A 43 A 43A DC Volt age 104V 109V 104V 109V 97V 97V

TDC

Rating

IEC

Rating

TDC

Rating

60% 100%

IEC

Rating

TDC

Rating

NOTE:

IEC Rating is determined as specified by the International Electro-Technical Commission. These specifications include calculating an output voltage based upon power supply rated current. To facilitate comparison between power supplies, all manufacturers use this output voltage to determine duty cycle.

TDC Rating is determined using an output voltage representative of actual output voltage during cutting with a TDC torch. This voltage may be more or less than IEC voltage, depending upon choice of torch, consumables, and actual cutting operation.

Manual 0-4641 2-1 INTRODUCTION

Power Supply Dimensions & Weight Ventilation Clearance Requirements

Art # A-03379

83 lb / 37.6 kg

150 mm

17.3 in / 439 mm

27.5 in / 696 mm

A-03572

12.4 in / 315 mm

2.03 Input Wiring Specifications

Input Power Input Current Input Suggested Sizes (See Notes)

Voltage Freq. 1-Ph 3-Ph 1-Ph 3-Ph Fuse (Amps) Wire (AWG) Wire (Canada)

(Volts) (Hz) (kVA) (kVA) (Amps) (Amps) 1-Ph 3-Ph 1-Ph 3-Ph 1-Ph 3-Ph

208 50/60 11.8 57 60 6 6 230 50/60 11.8 52 60 6 6 400 50/60 11.1 16 20 10 10 460 60 11.7 27 30 10 10 460 60 10.8 16 20 12 12 600 60 10.5 10 15 12 12

Line Voltages with Suggested Circuit Protection and Wire Sizes

Based on National Electric Code and Canadian Electrical Code

CE CutMaster 81 Input Wiring S pecifications

Input Suggest e d Size s (See Notes)

Vo ltag e Fr eq u ency 3-P h 3-Ph F u se (Amp s)

(Volts) (Hz) (kVA) (Amps) 3-Ph 3-Ph

400/415 50 11.1 16 20 4

Line Voltages wit h S ugges ted Circui t P rot ect ion and Wire S izes

Bas ed on Nati onal E l ec tric Code and Canadian Elect ric Code

CutMaster 81 Input Wiring Requirements

Pow er Input Current Input

24"

0.6 m

150 mm

Wire (mm

)

NOTES

Refer to Local and National Codes or local authority having jurisdiction for proper wiring requirements. Cable size is de-rated based on the Duty Cycle of the equipment. The suggested sizes are based on flexible power cable with power plug installations. For hard-wired installations

refer to local or national codes. Cable conductor temperature used is 167° F (75° C). An energy limiting fuse UL Class RK-1 (examples: BUSS LPS / LPN-RK or Gould-Shawmut AZK-A6K) should be

used to minimize damage to Plasma Cutting, Welding or power distribution equipment.

NEVER use replaceable element fuses like UL Class H, or "one-time" fuses like UL Class K5.

INTRODUCTION 2-2 Manual 0-4641

2.04 Power Supply Features

Handle and Leads Wrap

Art # A-04507

Control Panel

Torch Leads Receptacle

Work Cable and Clamp

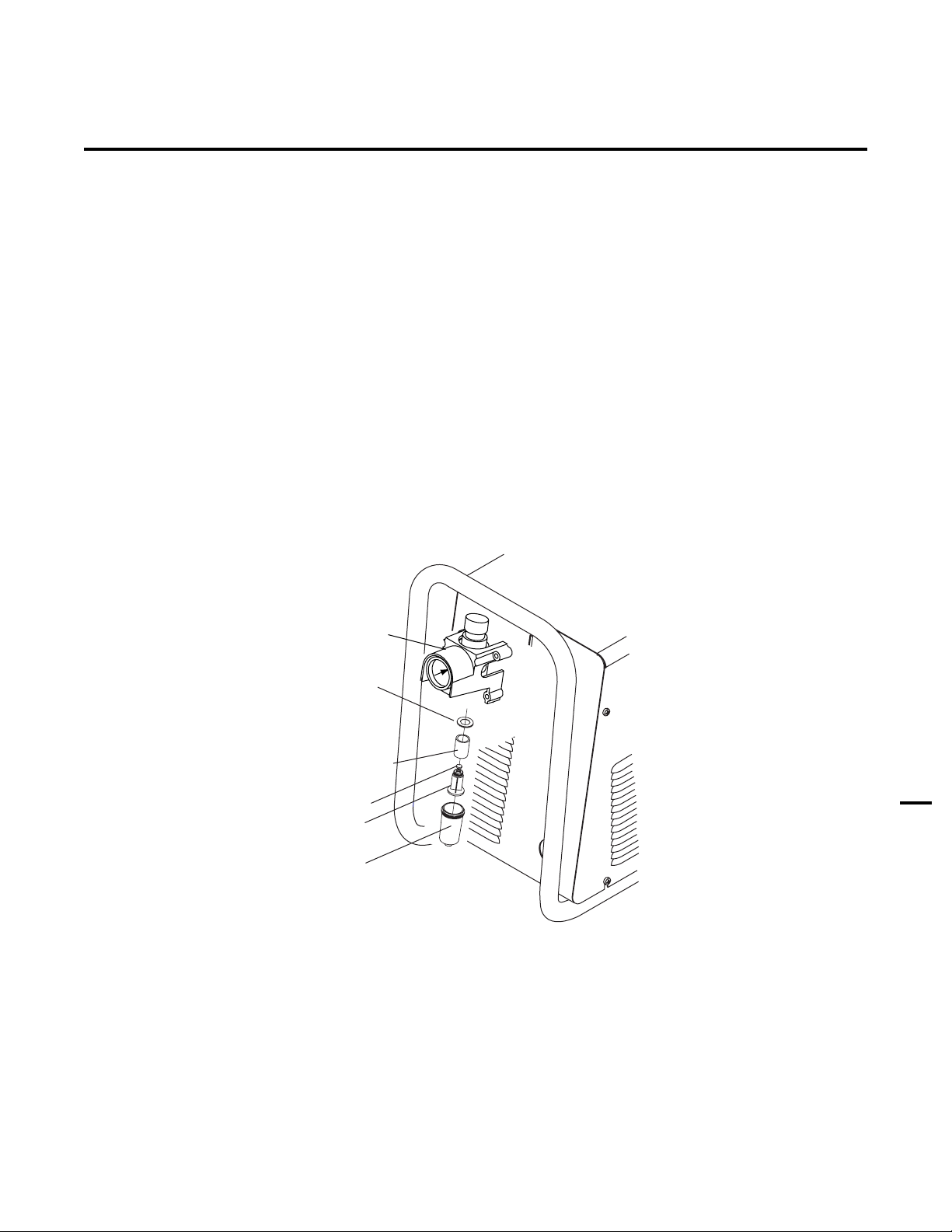

Gas Pressure Regulator / Filter Assembly

CPC Connector for Thermal Dynamics CNC Controller

Knockout for Alternate CNC Controller Wire Harness

Gas Pressure Gauge

Input Power Cord

Gas Inlet Port

Art # A-04214

Manual 0-4641 2-3 INTRODUCTION

2.05 Power Supply Options and Accessories

Section 6, Parts Lists, provides catalog numbers and ordering information.

A. Single-Stage Air Filter Kit

For use with compressed air shop systems. Filters moisture and particulate matter from the air stream to at least

0.85 microns. This filter increases performance and improves consumables parts life.

B. Two Stage Air Filter Kit

For use on compressed air shop systems. Filters moisture and contaminants from the air stream to at least 5.0 microns. This filter is pre-assembled at the factory and needs only to be installed on the power supply.

C. High Pressure Regulators

High pressure regulators are available. The regulators are used to set the proper compressed air pressure.

Regulators should not be installed with In-Line Air Filters.

D. Extended Work Cable with Clamp

As an alternative to the standard 20 ft / 6.1 m work cable & clamp on the power supply, a 50 ft / 15.2 m work cable with clamp is available.

E. Multi-Purpose Cart

Rugged steel cart on easy-rolling rear wheels and front-mounted swivel casters. Provides maximum mobility for the power supply and can also serve as a display cart. Top shelf is 12" / 305 mm x 20" / 508 mm. Steel handle is 30" / 762 mm high.

F. Wheel Kit

A kit with easy-rolling wheels, for maximum portability for the power supply.

G. Nylon Dust Cover

Nylon canvas power supply dust cover with water resistant finish, large outer pocket for storing manuals or spare consumables, and adjustable draw cord for tight fit.

NOTE

INTRODUCTION 2-4 Manual 0-4641

2.06 Torch Specifications

SL100SV Machine Torch Specifications

Ambi ent Temperature 104° F / 40° C Duty Cycle (Refer to NOTE) 100% @ 100 Am ps @ 400 s c fh Maximum Current 100 Amps Volt age (V Arc S t ri k i ng V ol t age 7kV

Type of Cooling Current Rating Up to 100 Amps , DC, Straight Polarity

Gas (P lasma and S econdary) Operating P res s ure (V aries Ac c ordi ng t o Power Supply and Torch Leads Length) Max im um Input P res sure 125 psi / 8. 6 bar Gas Fl ow

NOT

Thermal Dynamics CutMaster 51, CutMaster 81, CutMaster 101, CutMas ter 151

) 500V

peak

: Operat ing pres sure varies wit h operati ng amperage and torch leads l engt h.

Torch duty cycle is greater than power supply duty cy cle.

Torch Ratings

Combi n at ion of A m bient Ai r and

Gas Flo w Thr o ug h Torch

Gas Requirements

Compressed A ir (

300 - 500 scfh / 142 - 235 lpm

Torch Leads Lengths

25' / 7.6 m, with ATC Connector 35' / 10.6 m, with ATC Connector 50' / 15.2 m, with ATC Connector

Plasm a Power Supply Used Wi th

NOTE

60 - 75 psi

4.1 - 5.2 bar

ONL

)

A. Torch Configuration

The standard machine torch has a positioning tube with rack & pinch block assembly.

2.875” / 73 mm

1.75" / 44.5 mm

15.875" / 403 mm

0.625" / 16 mm

9.285" / 236 mm

1.375" / 35 mm

4.95" / 126 mm

1.175" / 30 mm

Art # A-07402

Manual 0-4641 2-5 INTRODUCTION

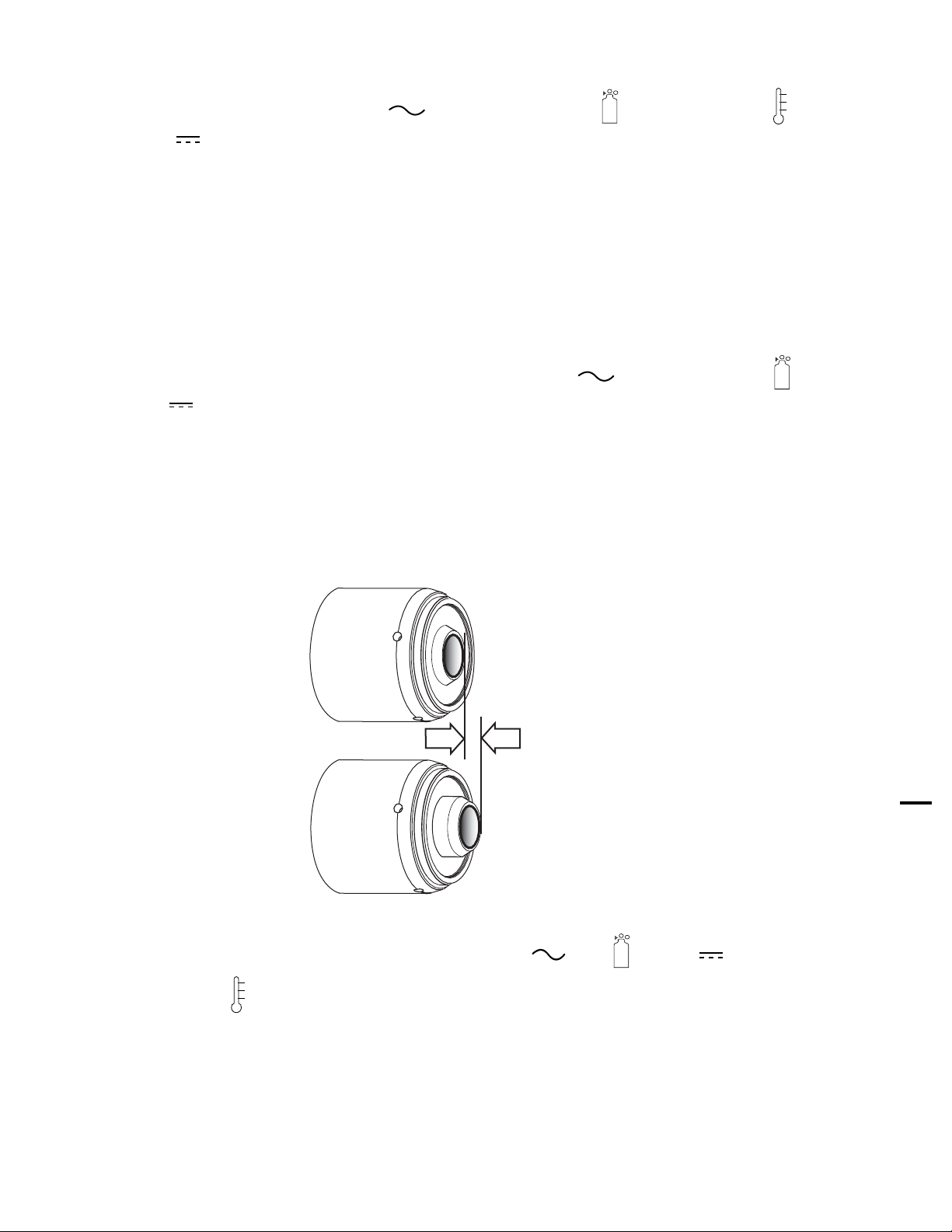

B. Torch Connector Dimensions

Art # A-04056

C. Torch Parts

Start Cartridge, Electrode, Tip, Shield Cup Body, Shield Cap

D. Parts - In - Place (PIP)

Torch Head has built - in switch

12 vdc circuit rating

E. Direct Contact Hazard

For exposed tip the recommended standoff is 3/16 inches / 4.7 mm.

8.5" / 216 mm

5.375" / 137 mm

1.9" / 50 mm

2.07 Torch Options and Accessories

These items can adapt a standard system to a particular application or further enhance performance (refer to Section 6 for ordering information).

• Spare Parts Kits - Various kits containing replacement consumable torch parts.

• Pinion Assembly (for machine torches)

• Leather Leads Covers

INTRODUCTION 2-6 Manual 0-4641

2.08 Introduction to Plasma

A. Plasma Gas Flow

Plasma is a gas which has been heated to an extremely high temperature and ionized so that it becomes electrically conductive. The plasma arc cutting and gouging processes use this plasma to transfer an electrical arc to the workpiece. The metal to be cut or removed is melted by the heat of the arc and then blown away.

In a Plasma Cutting Torch a cool gas enters Zone B, where a pilot arc between the electrode and the torch tip heats and ionizes the gas. The main cutting arc then transfers to the workpiece through the column of plasma gas in Zone C.

Power

Supply

Workpiece

Typical Torch Head Detail

By forcing the plasma gas and electric arc through a small orifice, the torch delivers a high concentration of heat to a small area. The stiff, constricted plasma arc is shown in Zone C. Direct current (DC) straight polarity is used for plasma cutting, as shown in the illustration.

Zone A channels a secondary gas that cools the torch. This gas also assists the high velocity plasma gas in blowing the molten metal out of the cut allowing for a fast, slag - free cut.

B. Gas Distribution

The single gas used is internally split into plasma and secondary gases.

The plasma gas flows into the torch through the negative lead, through the start cartridge, around the electrode, and out through the tip orifice.

The secondary gas flows down around the outside of the torch start cartridge, and out between the tip and shield cup around the plasma arc.

A-00002

Manual 0-4641 2-7 INTRODUCTION

C. Pilot Arc

When the torch is started a pilot arc is established between the electrode and cutting tip. This pilot arc creates a path for the main arc to transfer to the work.

D. Main Cutting Arc

DC power is also used for the main cutting arc. The negative output is connected to the torch electrode through the torch lead. The positive output is connected to the workpiece via the work cable and to the torch through a pilot wire.

E. Parts - In - Place (PIP)

The torch leads include a ‘Parts - In - Place’ (PIP) circuit. When the torch shield cup is properly installed, it closes a switch. The torch will not operate if this switch is open.

To Control

Cable Wiring

PIP Switch

Parts - In - Place Circuit Diagram

Shield Cup

A-03504

INTRODUCTION 2-8 Manual 0-4641

SECTION 3: INSTALLATION

3.01 Unpacking

1. Use the packing lists to identify and account for each item.

2. Inspect each item for possible shipping damage. If damage is evident, contact your distributor and / or shipping company before proceeding with the installation.

3. Record Power Supply and Torch model and serial numbers, purchase date and vendor name, in the information block at the front of this manual.

3.02 Lifting Options

The Power Supply includes a handle for hand lifting only. Be sure unit is lifted and transported safely and securely.

WARNINGS

Do not touch live electrical parts.

Disconnect input power cord before moving unit.

FALLING EQUIPMENT can cause serious personal injury and can damage equipment.

HANDLE is not for mechanical lifting.

• Only persons of adequate physical strength should lift the unit.

• Lift unit by the handle, using two hands. Do not use straps for lifting.

• Use optional wheel kit, cart or similar device of adequate capacity to move unit.

• Place unit on a proper skid and secure in place before transporting with a fork lift or other vehicle.

Manual 0-4641 3-1 INSTALLATION

3.03 Primary Input Power Connections

CAUTION

Check your power source for correct voltage before plugging in or connecting the unit. The primary power source, fuse, and any extension cords used must conform to local electrical code and the recommended circuit protection and wiring requirements as specified in Section 2.03.

A. Connections to 208 / 230-Volt Power

The 208 / 230-Volt power supply includes a factory-installed input power cable and plug.

1. Check your power source for correct voltage before plugging in the unit.

2. Connect the input power cable (or close the main disconnect switch) to supply power to the system.

CAUTION

The primary power source and power cable must conform to local electrical code and the recommended circuit protection and wiring requirements (refer to table in Section 2.03).

B. Connections to 400-Volt, 415-Volt, 460-Volt, or 600-Volt Three-Phase Power

These Power Supplies are equipped with a four-conductor input power cable for three-phase input power. The 460-Volt Power Supplies will accept 460-VAC, Single-Phase input power with a change of input power cable.

1. Check your power source for correct voltage before plugging in the unit.

2. The input cable's outer covering is stripped back at the factory to expose the individual wires at the free end of the cable.

3. Connect the ends of the individual wires to a customer supplied plug or main disconnect as follows:

CAUTION

The primary power source and power cable must conform to local electrical code and the recommended circuit protection and wiring requirements (refer to table in Section 2 ). All the input cable wires must be connected for three-phase operation.

• Green / Yellow wire to Ground.

• Remaining wires to L1, L2, L3 input.

4. Connect the input power cable (or close the main disconnect switch) to supply power to the system.

INSTALLATION 3-2 Manual 0-4641

C. Connections to 460-Volt Single - Phase Power

The 460-Volt Power Supplies will accept 460-VAC, Single-Phase input power with a change of input power cable.

1. Remove the Power Supply cover per section 5.09-A.

2. Disconnect the original input power cable from the main input contactor and the chassis ground connection.

3. Loosen the through-hole protector on the back panel of the power supply. Pull the original power cable out of the power supply.

4. Pass a customer-supplied, three-conductor input power cable through the access opening in the back panel of the power supply. Refer to Section 2 for power cable specifications.

CAUTION

The primary power source and power cable must conform to local electrical code and the recommended circuit protection and wiring requirements (refer to table in Section 2.03).

5. Strip back the insulation on the individual wires.

6. Connect to main input contactor as follows:

• Line 1 wire to terminal L1.

• Line 3 wire to terminal L3.

7. Connect the ground wire to Ground (Earth). The Ground wire connection requires a ring terminal.

8. Tighten the through-hole protector to secure the power cable.

L1 L2 L3

Ground Wire with Ring Terminal

Input Cable

A-03041

Main Input Contactor

Input Power Connections, 460 VAC, Single-Phase

9. Replace the Power Supply cover.

10. Connect the input power cable (or close the main disconnect switch) to supply power to the system.

Manual 0-4641 3-3 INSTALLATION

3.04 Gas Connections

A. Connecting Gas Supply to Unit

Use only compressed air with this power supply.

An in-line pneumatic dryer & evaporator type air filter, capable of filtering to at least 5 microns, is required when using air from a compressor. This type filter will insure that moisture, oil, dirt, chips, rust particles, and other contaminants from the supply hose do not enter the torch. For highly automated applications, a refrigerated drier may be used.

The connection is the same for compressed air from a compressor from high pressure cylinders. Refer to subsection 3.4-B or 3.4C if an additional air line filter is to be installed.

1. Connect the air line to the inlet port. The illustration shows typical fittings as an example. Other fittings can be used.

NOTE

For a secure seal, apply thread sealant to the fitting threads, according to manufacturer's instructions. Do not use Teflon tape as a thread sealer, as small particles of the tape may break off and block the small air passages in the torch.

Regulator/Filter Assembly

Inlet Port

Bowl

1/4 NPT to 1/4"

(6mm) Fitting

Hose Clamp

Art # A-02999

Air Connection to Inlet Port

Gas Supply Hose

INSTALLATION 3-4 Manual 0-4641

B. Optional Air Filters

1. Connect the Filter as illustrated. Use only Synflex or equivalent grade hose. The illustrations show typical fittings as an example.

NOTE

For a secure seal, apply thread sealant to the fitting threads, according to the maker's instructions. Do Not use Teflon tape as a thread sealer, as small particles of the tape may break off and block the small air passages in the torch. Connect as follows:

Regulator Inlet Port

2-Stage Filter Inlet Port (IN)

Regulator/Filter Assembly

Bowl

Inlet Port

Regulator/Filter Assembly

Hose

Clamp

1/4 NPT Hose Fitting

Hose Clamp

1/4" (6 mm) Gas Supply Hose

Art # A-03000

1/4" (6 mm) Gas

Supply Hose)

1/4 NPT

Hose Fitting

Optional Single-Stage Filter Installation Optional Two-Stage Filter Installation

Outlet Por

(OUT)

Two Stage

Filter

Assembly

Art # A-03004

Manual 0-4641 3-5 INSTALLATION

D. Using High Pressure Air Cylinders

When using high pressure air cylinders as the air supply:

1. Refer to the manufacturer’s specifications for installation and maintenance procedures for high pressure regulators.

2. Examine the cylinder valves to be sure they are clean and free of oil, grease or any foreign material. Briefly open each cylinder valve to blow out any dust which may be present.

3. The cylinder must be equipped with an adjustable high-pressure regulator capable of outlet pressures up to 100 psi (6.9 bar) maximum and flows of at least 500 scfh (236 lpm).

4. Connect supply hose to the cylinder.

NOTE

Pressure should be set at 100 psi (6.9 bar) at the high pressure cylinder regulator.

Supply hose must be at least 1/4 inch (6 mm) I.D.

For a secure seal, apply thread sealant to the fitting threads, according to manufacturer's instructions. Do Not use Teflon tape as a thread sealer, as small particles of the tape may break off and block the small air passages in the torch.

INSTALLATION 3-6 Manual 0-4641

3.05 Torch Connections

If necessary, connect the torch to the Power Supply. Connect only the Thermal Dynamics model SL100 Torch (with ATC connector) to this power supply. Maximum torch leads length is 50 feet / 15.2 m.

WARNING

Disconnect primary power at the source before connecting the torch.

1. Align the ATC male connector (on the torch lead) with the female receptacle. Push the male connector into the female receptacle. The connectors should push together with a small amount of pressure.

2. Secure the connection by turning the locking nut clockwise until it clicks. DO NOT use the locking nut to pull the connection together. Do not use tools to secure the connection.

3. The system is ready for operation.

Art # A-06755

ATC Female Receptacle (Panel Mounted)

ATC Male Connector

Torch Leads

Manual 0-4641 3-7 INSTALLATION

Connecting the Torch to the Power Supply

B. Check Air Quality

To test the quality of air:

1. Put the ON / OFF switch in the ON (up) position.

2. Put the RUN / RAPID AUTO RESTART / SET switch in the SET (down) position.

3. Place a welding filter lens in front of the torch and turn on the air. Any oil or moisture in the air will be visible on the lens.

Do not start an arc!

Art # A-03592

INSTALLATION 3-8 Manual 0-4641

3.06 Torch Installation

WARNING

Disconnect primary power at the source before disassembling the torch or torch leads.

The machine torch includes a positioning tube with rack and pinch block assembly.

1. Mount the torch assembly on the cutting table.

2. To obtain a clean vertical cut, use a square to align the torch perpendicular to the surface of the workpiece.

Pinch Block Assembly

Square

Workpiece

A-02585

Machine Torch Set-Up

3. The proper torch parts (shield cup body, shield cap, tip, start cartridge, and electrode) must be installed for the type of operation. Refer to Section 3.07, Torch Parts Selection for details.

Manual 0-4641 3-9 INSTALLATION

3.07 Torch Parts Selection

1. Check the torch for proper consumable parts. The parts supplied in the torch may not be correct for the operator's chosen amperage level. The torch parts must correspond with the type of operation.

Torch Head

Art # A-04173

Electrode

Start Cartridge

Tip

Shield Cup Body

Ohmic Clip (If Installed)

Deflector

Shield Cap

INSTALLATION 3-10 Manual 0-4641

3.08 Power Supply Connection to SC-11 Standoff Control

The power supply includes an Automation Interface PC Board connected to a CPC connector on the power supply rear panel. For connection to the Thermal Dynamics SC-11 Standoff Control, align and connect the cable from the Standoff Control to the CPC connector. Check for a secure connection.

CPC Connector for Thermal Dynamics CNC Controller

Connector for SC-11 Standoff Control / CNC

Art # A-04075

Manual 0-4641 3-11 INSTALLATION

3.09 Power Supply Connection to Alternate Standoff Control

The Power Supply rear panel includes a knockout to accept wiring between the Automation Interface PC Board and alternate CNC controls. The Automation Interface PC board includes a terminal strip for connection to alternate CNC controls.

To connect an alternate CNC Control to the Power Supply:

1. Remove the Power Supply Cover.

2. Carefully open the lower knockout (below the factory-installed CNC connector) on the Power Supply rear panel.

Knockout for Alternate CNC Controller

CPC Connector for Thermal Dynamics CNC Controller

Art # A-04178

3. Install a customer-supplied through-hole protector ('Strain Relief') in the lower knockout hole.

4. Route the wire harness from the alternate CNC Control through the through-hole protector.

INSTALLATION 3-12 Manual 0-4641

5. Connect the wire harness from the alternate CNC Control to the 20-position terminal strip (labeled 'J2') on the Automation Interface PC Board. Refer to the illustration.

a. For divided voltage output, connect to terminals J2-11 (negative) and J2-9 (positive) on the Interface PC Board.. b. For raw arc voltage, connect to terminals E2 (positive) and E1 (negative) on the Output Power PC Board.

NOTE

There is no need to disconnect the factory-installed wire harness from the J4 terminal strip.

Open

Arc Volts Negative - (Proprietary)

Open

Logic Common

Arc Volts - Positive (Proprietary)

Remote Current Control (Optional)

Open

Remote Current Control (Optional)

Divided Output (Negative)

Open

Divided Output (Positive)

Open

OK to Move

Open

Torch Switch (Negative)

Torch Switch

(Positive)

To Main PC Board Terminal J27-3

To Main PC Board Terminal J27-2

To Main PC Board Terminal J27-1

Installed only with

Optional Remote Current Control

Automation Interface PC Board

Output Power PC Board

Terminal Block J2

Raw Arc Voltage Connection Points

Art # A-04149

E1(-)

E2 (+)

Alternate CNC Controller Connections to Automation Interface Board

6. Tighten the through-hole protector ('strain relief') to secure the CNC cable to the power supply.

Manual 0-4641 3-13 INSTALLATION

3.10 Automation Interface PC Board Set-up

The Automation Interface PC board includes switches that must be set to adapt the Interface Board to the automation system being used.

NOTE

The switches are factory-set for the Thermal Dynamics SC-11 Standoff Control.

For operation with any other CNC equipment, refer to the CNC system documents to determine the division factor the CNC system requires. Proceed as follows:

1. Set the interface control board switches as indicated in the appropriate chart in the Appendix pages. The division factors are listed in the right-hand column of each chart.

Automation Interface PC Board

Automation

Interface

PC Board

Pilot PC

Board

8 7 6 5 4 3 2 1

2. Re-install the Power Supply cover.

Output Power

PC Board

Art # A-03902

Switches

Art # A-03757

INSTALLATION 3-14 Manual 0-4641

3.11 Optional Remote Current Control Harness Installation

1. Locate the power supply Pot/LED Board just inside the power supply front panel.

Pot / LED Board

Art # A-03964

2. Disconnect and remove the wire harness between the Pot/LED Board and receptacle J22 on the Main PC Board. Keep the harness for possible future use.

3. The kit includes a wire harness with 3 connectors. Install the harness as follows:

Connector Plugs

To Automation Interface Board Receptacle J3

To Pot/LED Board

To Main PC Board Receptacle J27

Receptacle J14

Art # A-03945

4. Ensure that the wire harness will not interfere with the fit of the power supply cover against the top edge of the power supply center chassis. Use wire ties as needed to secure the wire harness.

NOTE

Installation of this harness disables the output current control (A) on the front panel of the power supply. Use the CNC controller to control the output current of the power supply.

5. Re-install the Power Supply cover.

Manual 0-4641 3-15 INSTALLATION

This Page Left Blank

INSTALLATION 3-16 Manual 0-4641

SECTION 4: OPERATION

4.01 Product Features

A. Power Supply Front Panel Controls and Indicators

AC Indicator

A) Output Current Control

(

Sets the desired output current. At output settings over 40 Amps, the power supply automatically reduces output current to 40 Amps if the torch tip touches the workpiece.

Art # A-03743

Steady light indicates power supply is ready for

operation. Blinking light indicates unit is in protective interlock mode. Shut unit off, shut off or disconnect input power, correct the fault, and restart the unit. Refer to Section 5 for details.

TEMP Indicator

Indicator is normally OFF. Indicator is ON when internal temperature exceeds normal limits. Shut unit OFF; let the unit cool before continuing operation.

GAS Indicator

Indicator is ON when minimum input gas pressure for power supply operation is present. Minimum pressure for power supply operation is not sufficient for torch operation.

ON / OFF Switch

Controls input power to the power supply.

is ON, is OFF.

RUN / RAPID AUTO RESTART / SET Switch

RUN (up) position is for general torch operation.

RAPID AUTO RESTART (middle) position is for an uninterrupted restart, when cutting

expanded metal or in trimming operations.

SET (down) position is for setting gas pressure and purging lines.

Manual 0-4641 4-1 OPERATION

DC Indicator

Indicator is ON when DC output circuit is active.

4.02 Preparations For Operating

Perform the following steps at the start of each operating session:

WARNING

Disconnect primary power at the source before assembling or disassembling power supply, torch parts, or torch and leads assemblies.

A. Torch Parts Selection

Check the torch for proper assembly and appropriate torch parts. The torch parts must correspond with the type of operation, and with the amperage output of this Power Supply (80 amps maximum).

B. Torch Connection

Check that the torch is properly connected. Only Thermal Dynamics model SL100 Torches may be connected to this Power Supply.

C. Check Primary Input Power Source

1. Check the power source for proper input voltage. Make sure the input power source meets the power requirements for the unit per Section 2, Specifications.

2. Connect the input power cable (or close the main disconnect switch) to supply power to the system.

D. Gas Selection

Ensure compressed air source meets requirements (refer to Section 3.4). Check connections and turn gas supply on.

Place the ON - OFF Switch on the Power Supply to the ON position. If the Run - Rapid Auto Restart - Set switch is in SET position, gas will flow. If the switch is in RUN or Rapid Auto Restart position there will be no gas flow.

E. Connect Work Cable

Clamp the work cable to the workpiece or cutting table. The area must be free from oil, paint and rust. Connect only to the main part of the workpiece; do not connect to the part to be cut off.

Art # A-04509

OPERATION 4-2 Manual 0-4641

F. Power On

Place the Power Supply ON / OFF switch to the ON (up) position. AC indicator turns on. Gas indicator

turns on if there is sufficient gas pressure for power supply operation.

NOTE

Minimum pressure for power supply operation is lower than minimum for torch operation.

Art # A-03594

Manual 0-4641 4-3 OPERATION

G. Set Operating Pressure

1. Place the Power Supply RUN / Rapid Auto Restart / SET switch to the SET (down) position. Gas will flow.

2. Adjust gas pressure per the settings chart.

CutM aste r 81

Gas Pressure Setti ngs

Leads

Length

40A Cutting

60A Cutting

Up to 25'

(7.6 m)

65 ps i

4.5 ba r 70 ps i

4.8 ba r

Over 25'

(7.6 m )

70 ps i

4.8 bar 75 ps i

5.2 bar

Art # A-03592

65 - 80 psi /

4.5- 5.5 bar

Pressure Control Knob / Bouton De Contrôle de Pression

Art # A-03581

OPERATION 4-4 Manual 0-4641

H. Select Current Output Level

1. Place RUN / Rapid Auto Restart / SET to RUN (up) or Rapid Auto Restart (center) position. Gas flow stops.

2. Set the current output level, up to 80 amps for standoff cutting. At output settings higher than 40 amps, the power supply automatically reduces output current to 40 amps if the torch tip contacts the workpiece.

Art # A-03593

I. Cutting Operation

When the torch leaves the workpiece during cutting operations with the RUN / Rapid Auto Restart / SET switch in the RUN (up) position, there is a brief delay in restarting the pilot arc. With the switch in the 'Rapid Auto Restart' (middle) position, when the torch leaves the workpiece the pilot arc restarts instantly, and the cutting arc restarts instantly when the pilot arc contacts the workpiece. Use the 'Rapid Auto Restart' position when cutting expanded metal or gratings, or in trimming operations when an uninterrupted restart is desired.

J. Typical Cutting Speeds

Cutting speeds vary according to torch output amperage, the type of material being cut, and operator skill.

Output current setting or cutting speeds may be reduced to allow slower cutting while still producing cuts of excellent quality.

K. Postflow

De-activate the start signal (provided by the CNC Control) to stop the cutting arc. Gas continues to flow for approximately 6 seconds. During post - flow, if the user activates start signal, the pilot arc starts. The main arc transfers to the workpiece if the torch tip is within transfer distance to the workpiece.

Manual 0-4641 4-5 OPERATION

4.03 Selection, Inspection and Replacement of Consumable Torch Parts

The type of operation to be done determines the torch parts to be used. Change the torch parts for a different operation as follows:

WARNINGS

Disconnect primary power to the system before disassembling the torch or torch leads.

DO NOT touch any internal torch parts while the AC indicator light of the Power Supply is ON.

Torch Head

Art # A-04173

Electrode

Start Cartridge

Tip

Shield Cup Body

Ohmic Clip (If Installed)

Deflector

Shield Cap

Consumable Parts

1. Unscrew and remove the shield cup assembly from the torch head. Inspect the cup for damage. Wipe it clean or replace if damaged.

NOTES

The shield cup holds the tip and start cartridge in place.

Slag built up on the shield cup that cannot be removed may affect the performance of the system.

OPERATION 4-6 Manual 0-4641

2. Remove the tip. Check for excessive wear (indicated by an elongated or oversized orifice). Clean or replace the tip if necessary.

Good Tip

Worn Tip

A-03406

Tip Wear

3. Remove the start cartridge. Check for excessive wear, plugged gas holes, or discoloration. Check the lower end fitting for free motion. Replace if necessary.

Spring-Loaded Cylinder at Full Compression

1/8” (3 mm)

Spring-Loaded Cylinder at Full Extension

Art # A-07168

4. Pull the Electrode straight out of the Torch Head. Check the end of the electrode for excessive wear. Replace the electrode if wear is greater than 0.062" / 1.5 mm or if the wear is excessively off-center. Refer to the following figure.

0.062" (1.5 mm)

Art # A-04057

Electrode Wear

5. Reinstall the Electrode by pushing it straight into the torch head until it clicks.

6. Reinstall the start cartridge and tip into the torch head.

7. Hand tighten the shield cup until it is seated on the torch head. If resistance is felt when installing the cup, check the threads before proceeding.

NOTE

When the shield cup is properly installed, there is a slight gap between the shield cup and the torch head. Gas vents through this gap as part of normal operation. Do not attempt to force the shield cup to close this gap. Forcing the shield cup against the torch head can damage components.

Manual 0-4641 4-7 OPERATION

4.04 Cut Quality

NOTES

Cut quality depends heavily on setup and parameters such as torch standoff, alignment with the workpiece, cutting speed, gas pressures, and operator ability.

Cut quality requirements differ depending on application. For instance, nitride build - up and bevel angle may be major factors when the surface will be welded after cutting. Dross - free cutting is important when finish cut quality is desired to avoid a secondary cleaning operation. The following cut quality characteristics are illustrated in the following figure:

Kerf Width

Cut Surface Bevel Angle

Top

Spatter

Top Edge Rounding

Dross

Build-Up

Cut Surface

Drag Lines

A-00007

Cut Quality Characteristics

A. Cut Surface

The desired or specified condition (smooth or rough) of the face of the cut.

B. Nitride Build - Up

Nitride deposits can be left on the surface of the cut when nitrogen is present in the plasma gas stream. These buildups may create difficulties if the material is to be welded after the cutting process.

C. Bevel Angle

The angle between the surface of the cut edge and a plane perpendicular to the surface of the plate. A perfectly perpendicular cut would result in a 0° bevel angle.

D. Top - Edge Rounding

Rounding on the top edge of a cut due to wearing from the initial contact of the plasma arc on the workpiece.

E. Bottom Dross Buildup

Molten material which is not blown out of the cut area and resolidifies on the plate. Excessive dross may require secondary cleanup operations after cutting.

F. Kerf Width

The width of the cut (or the width of material removed during the cut).

G. Top Spatter (Dross)

Top spatter or dross on the top of the cut caused by slow travel speed, excess cutting height, or cutting tip whose orifice has become elongated.

OPERATION 4-8 Manual 0-4641

4.05 General Cutting Information

WARNINGS

Disconnect primary power at the source before disassembling the power supply, torch, or torch leads.

Frequently review the Important Safety Precautions at the front of this manual. Be sure the operator is equipped with proper gloves, clothing, eye and ear protection. Make sure no part of the operator’s body comes into contact with the workpiece while the torch is activated.

CAUTION

Sparks from the cutting process can damage coated, painted, and other surfaces such as glass, plastic and metal.

NOTE

Handle torch leads with care and protect them from damage.

A. Piloting

Piloting is harder on parts life than actual cutting because the pilot arc is directed from the electrode to the tip rather than to a workpiece. Whenever possible, avoid excessive pilot arc time to improve parts life.

B. Torch Standoff

Improper standoff (the distance between the torch tip and workpiece) can adversely affect tip life as well as shield cup life. Standoff may also significantly affect the bevel angle. Reducing standoff will generally result in a more square cut.

C. Edge Starting

For edge starts, hold the torch perpendicular to the workpiece with the front of the tip near (not touching) the edge of the workpiece at the point where the cut is to start. When starting at the edge of the plate, do not pause at the edge and force the arc to “reach” for the edge of the metal. Establish the cutting arc as quickly as possible.

D. Direction of Cut

In the torches, the plasma gas stream swirls as it leaves the torch to maintain a smooth column of gas. This swirl effect results in one side of a cut being more square than the other. Viewed along the direction of travel, the right side of the cut is more square than the left.

Left Side

Cut Angle

Right Side

Cut Angle

Clockwise

Scrap

Counter-

Clockwise

Scrap

Workpiece

A-00512

Art # A-04182

Side Characteristics Of Cut

To make a square - edged cut along an inside diameter of a circle, the torch should move counterclockwise around the circle. To keep the square edge along an outside diameter cut, the torch should travel in a clockwise direction.

Manual 0-4641 4-9 OPERATION

E. Dross

When dross is present on carbon steel, it is commonly referred to as either “high speed, slow speed, or top dross”. Dross present on top of the plate is normally caused by too great a torch to plate distance. “Top dross” is normally very easy to remove and can often be wiped off with a welding glove. “Slow speed dross” is normally present on the bottom edge of the plate. It can vary from a light to heavy bead, but does not adhere tightly to the cut edge, and can be easily scraped off. “High speed dross” usually forms a narrow bead along the bottom of the cut edge and is very difficult to remove. When cutting a troublesome steel, it is sometimes useful to reduce the cutting speed to produce “slow speed dross”. Any resultant cleanup can be accomplished by scraping, not grinding.

4.06 Torch Operation

A. Cutting

1. Use a square to check that the torch is perpendicular to the workpiece to obtain a clean, vertical cut.

Pinch Block Assembly

Square

Workpiece

A-02585

Checking Alignment

2. To start a cut at the plate edge, position the center of the torch along the edge of the plate.

OPERATION 4-10 Manual 0-4641

B. Travel Speed

Proper travel speed is indicated by the trail of the arc which is seen below the plate. The arc can be one of the following:

1. Straight Arc

A straight arc is perpendicular to the workpiece surface. This arc is generally recommended for the best cut using air plasma on stainless or aluminum.

2. Leading Arc

The leading arc is directed in the same direction as torch travel. A five degree leading arc is generally recommended for air plasma on mild steel.

3. Trailing Arc

The trailing arc is directed in the opposite direction as torch travel.

Direction of Torch Travel

Standoff Distance

Straight Arc

Trailing Arc

A-02586

Leading Arc

Machine Torch Operation

For optimum smooth surface quality, the travel speed should be adjusted so that only the leading edge of the arc column produces the cut. If the travel speed is too slow, a rough cut will be produced as the arc moves from side to side in search of metal for transfer.

Travel speed also affects the bevel angle of a cut. When cutting in a circle or around a corner, slowing down the travel speed will result in a squarer cut.

Manual 0-4641 4-11 OPERATION

C. Piercing With Machine Torch

To pierce with a machine torch, the arc should be started with the torch positioned as high as possible above the plate while allowing the arc to transfer and pierce. This standoff helps avoid having molten metal blow back onto the front end of the torch.

When operating with a cutting machine, a pierce or dwell time is required. Torch travel should not be enabled until the arc penetrates the bottom of the plate. As motion begins, torch standoff should be reduced to the recommended 1/8 - 1/4 inch (36 mm) distance for optimum speed and cut quality. Clean spatter and scale from the shield cup and the tip as soon as possible. Spraying or dipping the shield cup in anti - spatter compound will minimize the amount of scale which adheres to it.

4.07 Cutting Parameters

Cutting speed depends on material, thickness, and other factors. These may have an impact on system performance:

• Torch parts wear

• Air quality

• Line voltage fluctuations

• Torch standoff height

• Proper work cable connection

OPERATION 4-12 Manual 0-4641

4.08 Cutting Specifications

Torch Specifica tions For

CutM aster 81 Power Sup p li es

Cutting Ra nge

Material Most Metals

Up to 3/4 inch - 19 mm

Spee d 1 1 i pm / 0.28 m pm

Pierce Rating

Material Carbon Steel

Thickness 3/8 inch - 9.5 mm

Transfer Distance Gas Require m e nt

Type Gas Air

Operating P res s ure 65 psi / 4.5 bar

Max Input P res s ure 125 psi / 8. 6 bar

Cutt ing & Gouging

Total Flow

3/8 i n ch - 9. 5 m m

350 sc fh / 165 lpm

Cut Quality on Various Materials and

Thicknesses

The following table defines the cut quality on various materials and thicknesses:

Cut Quality on V arious Materials

Material Type of Type of Cut

Thickness Material Gas Characteristics

Gage

3/4 inch

( 19 mm )

Carbon Steel

Stainless

Aluminum

Air

Description of Cut Characteristics:

Excellent - Minimum bevel (0 - 4°), minimum kerf (2 x tip

orifice diameter), little or no dross, smooth cut surface.

Good - Slight bevel (0 - 10°), slightly wider kerf (2-1/2 x tip orifice diameter), some dross (easily removed), medium smooth cut surface, slight top edge rounding.

Good - Excellent

Good

Manual 0-4641 4-13 OPERATION

4.09 Cutting Speed Chart: Mild Steel, SL100 Torch with Exposed Tip

Art # A-04203

Electrode Start Cartridge Tip Shield Cup Body Shield Cap, Deflector 9-8215 9-8213 9-8237 9-8243

Material: Mild Steel

Torch: SL100 with Exposed Tip and Defle ctor Pow e r S upply: CutMaste r 81 Automa te d

Tip Current

In GA mm Cat. # Amps PSI In mm SEC Volts in mm IP M mm/min

0.036 20 0.91 8-8208 40 65 0.188 4.8 0.00 96 0.19 4.80 341 8661.4

0.051 1.30 8-8208 40 65 0.188 4.8 0.00 97 0.19 4.80 300 7620

0.060 16 1.52 8-8208 40 65 0.188 4.8 0.10 98 0.19 4.80 265 6731

0.075 14 1.91 8-8208 40 65 0.188 4.8 0.30 100 0.19 4.80 190 4826

0.135 10 3.43 8-8208 40 65 0.188 4.8 0.40 101 0.19 4.80 120 3048

0.141 3.58 8-8208 40 65 0.188 4.8 0.50 102 0.19 4.80 112 2844.8

0.188 4.78 8-8208 40 65 0.188 4.8 0.60 107 0.19 4.80 60 1524

0.250 6.35 8-8208 40 65 0.188 4.8 1.00 111 0.19 4.80 40 1016

0.375 9.53 8-8208 40 65 NR NR NR 119 0.19 4.80 19.7 500.38

0.500 12.70 8-8208 40 65 NR NR NR 123 0.19 4.80 11.1 281.94

0.625 15.88 8-8208 40 65 NR NR NR 127 0.19 4.80 6 152.4

0.060 16 1.57 9-8210 60 70 0.188 4.8 0.00 110 0.19 4.80 293 7442.2

0.075 14 1.91 9-8210 60 70 0.188 4.8 0.10 110 0.19 4.80 288 7315.2

0.120 11 3.05 9-8210 60 70 0.188 4.8 0.10 111 0.19 4.80 273 6934.2

0.135 10 3.43 9-8210 60 70 0.188 4.8 0.10 111 0.19 4.80 215 5461

0.141 3.58 9-8210 60 70 0.188 4.8 0.15 112 0.19 4.80 177.6 4511.04

0.188 4.78 9-8210 60 70 0.188 4.8 0.20 114 0.19 4.80 137 3479.8

0.250 6.35 9-8210 60 70 0.188 4.8 0.30 116 0.19 4.80 82.4 2092.96

0.375 9.53 9-8210 60 70 0.188 4.8 0.50 118 0.19 4.80 42.4 1076.96

0.500 12.70 9-8210 60 70 0.188 4.8 0.75 119 0.19 4.80 26.3 668.02

0.625 15.88 9-8210 60 70 NR NR NR 127 0.19 4.80 17.4 441.96

0.750 19.05 9-8210 60 70 NR NR NR 126 0.19 4.80 16 406.4

1.000 25.40 9-8210 60 70 NR NR NR 128 0.19 4.80 12 304.8

Plasm a

Press.*

Pie rce He i ghtMater ial thickn ess

Tabl e: Dry Gas: Com p r essed Air

Pierce

Time

Arc

voltage

Stand-off

Height

Recommended

Travel Speed

NOTES

* Gas pressure shown is for torches with leads up to 25' / 7.6 m long. For 50' / 15.2 m leads, increase pressure by 5 psi / 0.34 bar.

This information represents realistic expectations using recommended practices and well - maintained systems. Actual speeds may vary up to 50% from those shown.

OPERATION 4-14 Manual 0-4641

4.10 Cutting Speed Charts: Stainless Steel, SL100 Torch with Exposed Tip

Art # A-04203

Electrode Start Cartridge Tip Shield Cup Body Shield Cap, Deflector 9-8215 9-8213 9-8237 9-8243

Mater i al : Stai nless Steel

Torch: SL100 with Exposed Tip and Defle ctor

Pow er Supply: CutMaste r 81 Autom ated

Material thickness Tip Current

In GA mm Cat. # Amps PSI In mm SEC Volts in mm IP M mm/min

0.038 20 0.95 8-8208 40 65 0.188 4.8 0.00 103 0.19 4.80 357 9067.8

0.050 18 1.27 8-8208 40 65 0.188 4.8 0.00 104 0.19 4.80 287 7289.8

0.063 16 1.60 8-8208 40 65 0.188 4.8 0.10 104 0.19 4.80 244 6197.6

0.078 14 1.98 8-8208 40 65 0.188 4.8 0.30 105 0.19 4.80 125 3175

0.135 3.43 8-8208 40 65 0.188 4.8 0.40 105 0.19 4.80 106 2692.4

0.141 10 3.58 8-8208 40 65 0.188 4.8 0.50 106 0.19 4.80 104 2641.6

0.188 4.78 8-8208 40 65 0.188 4.8 0.60 106 0.19 4.80 75 1905

0.250 6.35 8-8208 40 65 0.188 4.8 1.00 109 0.19 4.80 46.6 1183.64

0.375 9.53 8-8208 40 65 NR NR NR 109 0.19 4.80 31.5 800.1

0.500 12.70 8-8208 40 65 NR NR NR 112 0.19 4.80 17.4 441.96

0.625 15.88 8-8208 40 65 NR NR NR 114 0.19 4.80 10 254

0.063 16 1.57 9-8210 60 70 0.188 4.8 0.00 107 0.19 4.80 177 4495.8

0.078 14 1.98 9-8210 60 70 0.188 4.8 0.10 108 0.19 4.80 169 4292.6

0.125 11 3.18 9-8210 60 70 0.188 4.8 0.10 109 0.19 4.80 140 3556

0.135 3.43 9-8210 60 70 0.188 4.8 0.10 110 0.19 4.80 117 2971.8

0.141 10 3.58 9-8210 60 70 0.188 4.8 0.15 111 0.19 4.80 103 2616.2

0.188 4.78 9-8210 60 70 0.188 4.8 0.20 112 0.19 4.80 90 2286

0.250 6.35 9-8210 60 70 0.188 4.8 0.30 113 0.19 4.80 68.8 1747.52

0.375 9.53 9-8210 60 70 0.188 4.8 0.50 115 0.19 4.80 35 889

0.500 12.70 9-8210 60 70 0.188 4.8 0.75 121 0.19 4.80 21.3 541.02

0.625 15.88 9-8210 60 70 NR NR NR 127 0.19 4.80 15.9 403.86

0.750 19.05 9-8210 60 70 NR NR NR 131 0.19 4.80 12.5 317.5

1.000 25.40 9-8210 60 70 NR NR NR 135 0.19 4.80 6 152.4

Plasm a

Press.*

Pie rce He i ght

Tabl e: Dry Gas: Com p r essed Air

Pierce

Time

Arc

voltage

Stand-off

Height

Recommended

Travel Speed

NOTES

*Gas pressure shown is for torches with leads up to 25' / 7.6 m long. For 50' / 15.2 m leads, increase pressure by 5 psi / 0.34 bar.

This information represents realistic expectations using recommended practices and well - maintained systems. Actual speeds may vary up to 50% from those shown.

Manual 0-4641 4-15 OPERATION

4.11 Cutting Speed Charts: Aluminum, SL100 Torch with Exposed Tip

Art # A-04203

Electrode Start Cartridge Tip Shield Cup Body Shield Cap, Deflector 9-8215 9-8213 9-8237 9-8243

Ma t erial : Aluminum

Torch: SL100 with Exposed Tip Pow e r S upply: CutMaste r 81 Automa te d

Tip Current

In GA mm Cat. # Amps PSI In mm SEC Volts in mm IPM mm/min

0.040 20 1.02 8-8208 40 65 0.188 4.8 0.00

0.052 18 1.32 8-8208 40 65 0.188 4.8 0.00 96 0.19 4.80 440 11176

0.064 16 1.63 8-8208 40 65 0.188 4.8 0.10 98 0.19 4.80 440 11176

0.079 14 2.01 8-8208 40 65 0.188 4.8 0.30 102 0.19 4.80 297 7543.8

0.125 3.18 8-8208 40 65 0.188 4.8 0.35 106 0.19 4.80 145.6 3698.24

0.135 3.43 8-8208 40 65 0.188 4.8 0.40 108 0.19 4.80 135 3429

0.187 4.75 8-8208 40 65 0.188 4.8 0.60 112 0.19 4.80 98 2489.2

0.250 6.35 8-8208 40 65 0.188 4.8 1.00 115 0.19 4.80 50.4 1280.16

0.375 9.53 8-8208 40 65 NR NR NR 122 0.19 4.80 22 558.8

0.500 12.70 8-8208 40 65 NR NR NR 126 0.19 4.80 13.5 342.9

0.625 15.88 8-8208 40 65 NR NR NR 130 0.19 4.80 8 203.2

0.034 22 1.57 9-8210 60 70 0.2 5.1 0.00

0.079 14 2.01 9-8210 60 70 0.2 5.1 0.10 98 0.19 4.80 440 11176

0.125 3.18 9-8210 60 70 0.2 5.1 0.10 103 0.19 4.80 440 11176

0.135 3.43 9-8210 60 70 0.2 5.1 0.10 108 0.19 4.80 340 8636

0.141 3.58 9-8210 60 70 0.2 5.1 0.15 111 0.19 4.80 275 6985

0.188 4.78 9-8210 60 70 0.2 5.1 0.20 115 0.19 4.80 170 4318

0.250 6.35 9-8210 60 70 0.2 5.1 0.30 119 0.19 4.80 94.4 2397.76

0.375 9.53 9-8210 60 70 0.2 5.1 0.50 122 0.19 4.80 57.4 1457.96

0.500 12.70 9-8210 60 70 0.2 5.1 0.75 128 0.19 4.80 34.4 873.76

0.625 15.88 9-8210 60 70 NR NR NR 131 0.19 4.80 23 584.2

0.750 19.05 9-8210 60 70 NR NR NR 134 0.19 4.80 17.6 447.04

1.000 25.40 9-8210 60 70 NR NR NR 140 0.19 4.80 8 203.2

Plasm a

Press.*

Pie rce He i ghtMater ial thickn ess

Tabl e: Dry Gas: Com p r essed Air

Pierce

Time

Arc

voltage

94 0.19 4.80 440 11176

95 0.19 4.80 440 11176

Stand-off

Height

Recommended

Travel Speed

NOTES

* Gas pressure shown is for torches with leads up to 25' / 7.6 m long. For 50' / 15.2 m leads, increase pressure by 5 psi / 0.34 bar.

This information represents realistic expectations using recommended practices and well - maintained systems. Actual speeds may vary up to 50% from those shown.

OPERATION 4-16 Manual 0-4641

4.12 Cutting Speed Charts: Mild Steel, SL100 Torch with Shielded Tip

Electrode Start Cartridge Tip Shield Cup Body Shield Cap, Machine 9-8215 9-8213 9-8237

Material: Mild Steel

Torch: SL100 w ith Shielded Tip Pow er Supply: CutMaste r 81 Automa te d

Mater ial thickn ess

In GA mm Cat. # Cat. # Amps PSI In mm SEC Volts in mm IPM mm/min

0.036 20 0.9144 8-8208 9-8245 40 65 1.88 4.8 0.00 102 0.19 4.80 170 4318

0.051 1.30 8-8208 9-8245 40 65 1.88 4.8 0.00 103 0.19 4.80 148 3759.2

0.060 16 1.52 8-8208 9-8245 40 65 1.88 4.8 0.10 104 0.19 4.80 133 3378.2

0.075 14 1.91 8-8208 9-8245 40 65 1.88 4.8 0.30 106 0.19 4.80 95 2413

0.135 10 3.43 8-8208 9-8245 40 65 1.88 4.8 0.40 110 0.19 4.80 65 1651

0.188 4.78 8-8208 9-8245 40 65 1.88 4.8 0.60 113 0.19 4.80 30 762

0.250 6.35 8-8208 9-8245 40 65 1.88 4.8 1.00 117 0.19 4.80 23 584.2

0.375 9.53 8-8208 9-8245 40 65 NR NR NR 126 0.19 4.80 10 254

0.500 12.70 8-8208 9-8245 40 65 NR NR NR 122 0.19 4.80 7 177.8

0.625 15.88 8-8208 9-8245 40 65 NR NR NR 135 0.19 4.80 3 76.2

0.060 16 1.57 9-8210 9-8238 60 70 1.88 4.8 0.00 117 0.19 4.80 235 5969

0.075 14 1.91 9-8210 9-8238 60 70 1.88 4.8 0.10 118 0.19 4.80 190 4826

0.120 11 3.05 9-8210 9-8238 60 70 1.88 4.8 0.10 118 0.19 4.80 218 5537.2

0.135 10 3.43 9-8210 9-8238 60 70 1.88 4.8 0.10 119 0.19 4.80 142 3606.8

0.188 4.78 9-8210 9-8238 60 70 1.88 4.8 0.20 120 0.19 4.80 117 2971.8

0.250 6.35 9-8210 9-8238 60 70 1.88 4.8 0.30 123 0.19 4.80 66 1676.4

0.375 9.53 9-8210 9-8238 60 70 1.88 4.8 0.50 119 0.19 4.80 34 863.6

0.500 12.70 9-8210 9-8238 60 70 1.88 4.8 0.75 121 0.19 4.80 23.4 594.36

0.625 15.88 9-8210 9-8238 60 70 NR NR NR 135 0.19 4.80 14 355.6

0.750 19.05 9-8210 9-8238 60 70 NR NR NR 130 0.19 4.80 13.6 345.44

1.000 25.40 9-8210 9-8238 60 70 NR NR NR 135 0.19 4.80 12.8 325.12

Torch

Tip

Shield

Cap

Current

Plasma

Press. *

Pie rce He i ght

Tabl e: Dry Gas: Compresse d Air

Pierce

Time

Arc

voltage

Stand-off

Height

Art # A-04204

Recommended

Travel speed

NOTES

* Gas pressure shown is for torches with leads up to 25' / 7.6 m long. For 50' / 15.2 m leads, increase pressure by 5 psi / 0.34 bar.

This information represents realistic expectations using recommended practices and well - maintained systems. Actual speeds may vary up to 50% from those shown.

Manual 0-4641 4-17 OPERATION

4.13 Cutting Speed Charts: Stainless Steel, SL100 Torch with Shielded Tip

Electrode Start Cartridge Tip Shield Cup Body Shield Cap, Machine 9-8215 9-8213 9-8237

Mater i al : Stai nless Steel

Torch: SL100 with Shielded Tip Pow e r S uppl y: CutM aster 81 Automate d

Torch

Tip

In GA mm Cat. # Cat. # Amps PSI In mm SEC Volts in mm IPM mm/min

0.038 20 8-8208 9-8245 40 65 0.188 4.8 0.00 109 0.19 4.8 179 4546.6

0.050 18 1.27 8-8208 9-8245 40 65 0.188 4.8 0.00 109 0.19 4.8 150 3810

0.063 16 1.60 8-8208 9-8245 40 65 0.188 4.8 0.10 110 0.19 4.8 122 3098.8

0.078 14 1.98 8-8208 9-8245 40 65 0.188 4.8 0.30 111 0.19 4.8 66 1676.4

0.135 3.43 8-8208 9-8245 40 65 0.188 4.8 0.40 111 0.19 4.8 66 1676.4

0.141 10 3.58 8-8208 9-8245 40 65 0.188 4.8 0.50 112 0.19 4.8 65 1651

0.187 4.75 8-8208 9-8245 40 65 0.188 4.8 0.60 112 0.19 4.8 38 965.2

0.250 6.35 8-8208 9-8245 40 65 0.188 4.8 1.00 116 0.19 4.8 23 584.2

0.375 9.53 8-8208 9-8245 40 65 NR NR NR 116 0.19 4.8 16 406.4

0.500 12.70 8-8208 9-8245 40 65 NR NR NR 119 0.19 4.8 9 228.6

0.625 15.88 8-8208 9-8245 40 65 NR NR NR 121 0.19 4.8 5 127

0.063 16 1.57 9-8210 9-8238 60 70 0.188 4.8 0.00 113 0.19 4.8 142 3606.8

0.078 14 1.98 9-8210 9-8238 60 70 0.188 4.8 0.10 115 0.19 4.8 134 3403.6

0.125 11 3.18 9-8210 9-8238 60 70 0.188 4.8 0.10 116 0.19 4.8 112 2844.8

0.135 3.43 9-8210 9-8238 60 70 0.188 4.8 0.10 118 0.19 4.8 82 2082.8

0.141 10 3.58 9-8210 9-8238 60 70 0.188 4.8 0.15 118 0.19 4.8 82 2082.8

0.187 4.75 9-8210 9-8238 60 70 0.188 4.8 0.20 119 0.19 4.8 75 1905

0.250 6.35 9-8210 9-8238 60 70 0.188 4.8 0.30 120 0.19 4.8 55 1397

0.375 9.53 9-8210 9-8238 60 70 0.188 4.8 0.50 122 0.19 4.8 28 711.2

0.500 12.70 9-8210 9-8238 60 70 0.188 4.8 0.75 128 0.19 4.8 17 431.8

0.625 15.88 9-8210 9-8238 60 70 NR NR NR 135 0.19 4.8 13 330.2

0.750 19.05 9-8210 9-8238 60 70 NR NR NR 139 0.19 4.8 10 254

1.000 25.40 9-8210 9-8238 60 70 NR NR NR 142 0.19 4.8 4 101.6

Shield

Cap

Current

Plasma

Press. *

Pie rce He i ghtMater ial thickn ess

Tabl e: Dry Gas: Com p r esse d Air

Pierce

Time

Arc

voltage

Stand-off

Heigh

Art # A-04204

Recommended

Travel Speed

NOTES

* Gas pressure shown is for torches with leads up to 25' / 7.6 m long. For 50' / 15.2 m leads, increase pressure by 5 psi / 0.34 bar.

This information represents realistic expectations using recommended practices and well - maintained systems. Actual speeds may vary up to 50% from those shown.

OPERATION 4-18 Manual 0-4641

4.14 Cutting Speed Charts: Aluminum, SL100 Torch with Shielded Tip

Electrode Start Cartridge Tip Shield Cup Body Shield Cap, Machine 9-8215 9-8213 9-8237

Mate ri a l : Alumi num

Torch: SL100 with Shielded Tip Pow er Supply: CutMaste r 81 Automa te d

Mater ial thickn ess

In GA mm Cat. # Cat. # Amps PSI In mm SEC Volts in mm IPM mm/min

0.04 20 1.02 8-8208 9-8245 40 65 0.188 4.8 0.00 100 0.19 4.8 220 5588

0.051 1.30 8-8208 9-8245 40 65 0.188 4.8 0.00 102 0.19 4.8 220 5588

0.064 16 1.63 8-8208 9-8245 40 65 0.188 4.8 0.10 104 0.19 4.8 220 5588

0.079 14 2.01 8-8208 9-8245 40 65 0.188 4.8 0.30 108 0.19 4.8 149 3784.6

0.125 3.18 8-8208 9-8245 40 65 0.188 4.8 0.35 112 0.19 4.8 73 1854.2

0.135 3.43 8-8208 9-8245 40 65 0.188 4.8 0.40 115 0.19 4.8 69 1752.6

0.187 4.75 8-8208 9-8245 40 65 0.188 4.8 0.60 118 0.19 4.8 50 1270

0.250 6.35 8-8208 9-8245 40 65 0.188 4.8 1.00 122 0.19 4.8 25 635

0.375 9.53 8-8208 9-8245 40 65 NR NR NR 129 0.19 4.8 11 279.4

0.500 12.70 8-8208 9-8245 40 65 NR NR NR 134 0.19 4.8 7 177.8

0.625 15.88 8-8208 9-8245 40 65 NR NR NR 138 0.19 4.8 4 101.6

0.034 22 1.57 9-8210 9-8238 60 70 0.188 4.8 0.00

0.064 16 1.63 9-8210 9-8238 60 70 0.188 4.8 0.10 105 0.19 4.8 352 8940.8

0.125 3.18 9-8210 9-8238 60 70 0.188 4.8 0.10 109 0.19 4.8 352 8940.8

0.135 3.43 9-8210 9-8238 60 70 0.188 4.8 0.10 112 0.19 4.8 272 6908.8

0.141 3.58 9-8210 9-8238 60 70 0.188 4.8 0.15 118 0.19 4.8 220 5588

0.187 4.75 9-8210 9-8238 60 70 0.188 4.8 0.20 122 0.19 4.8 136 3454.4

0.250 6.35 9-8210 9-8238 60 70 0.188 4.8 0.30 126 0.19 4.8 76 1930.4

0.375 9.53 9-8210 9-8238 60 70 0.188 4.8 0.50 129 0.19 4.8 46 1168.4

0.500 12.70 9-8210 9-8238 60 70 0.188 4.8 0.75 136 0.19 4.8 28 711.2

0.625 15.88 9-8210 9-8238 60 70 NR NR NR 139 0.19 4.8 19 482.6

0.750 19.05 9-8210 9-8238 60 70 NR NR NR 142 0.19 4.8 14 355.6

1.000 25.40 9-8210 9-8238 60 70 NR NR NR 150 0.19 4.8 4 101.6

Torch

Tip

Shield

Cap

Current

Plasma

Press. *

Pie rce He i ght

Tabl e: Dry Gas: Com p r esse d Air

Pierce

Time

Arc

voltage

101 0.19 4.8 352 8940.8

Art # A-04204

Stand-off

Height

Recommended

Travel Speed

NOTES

* Gas pressure shown is for torches with leads up to 25' / 7.6 m long. For 50' / 15.2 m leads, increase pressure by 5 psi / 0.34 bar.

This information represents realistic expectations using recommended practices and well - maintained systems. Actual speeds may vary up to 50% from those shown.

Manual 0-4641 4-19 OPERATION

4.15 Operator's Custom Cutting Speed Charts

Art # A-04381

Electrode Start Cartridge Tip Shield Cup Body 9-8215 9-8213 9-8237

Shield Cap, Machine

Shield Cap, Deflector

9-8243

Material:

Torch: SL100 with Shielded Tip Pow e r S uppl y: CutM aster 81 Automate d

Torch

Tip

In GA mm Cat. # Cat. # Amps PSI In mm SEC Volts in mm IPM mm/min

Shield

Cap

Current

Plasm a

Press.*

Pierce He ightMa ter i al thi ck n ess

Tabl e : Dry Gas: Comp resse d Air

Pierce

Time

Arc

voltage

Stand-of

Heigh

Recommended

Travel Speed

OPERATION 4-20 Manual 0-4641

Art # A-04381

Shield Cap, Machine

Electrode Start Cartridge Tip Shield Cup Body 9-8215 9-8213 9-8237

Shield Cap, Deflector

9-8243

Material:

Torch: SL100 with Shielded Tip Pow e r S uppl y: CutM aster 81 Autom ated

Torch

Tip

In GA mm Cat. # Cat. # Amps PSI In mm SEC Volts in mm IPM mm/min

Shield

Cap

Current

Plasma

Press. *

Pie rce He i ghtMater ial thickn ess

Tabl e: Dry Gas: Com pressed Air

Pierce

Time

Arc

voltage

Stand-off

Heigh

Recommended

Travel Speed

Manual 0-4641 4-21 OPERATION

Art # A-04381

Shield Cap, Machine

Electrode Start Cartridge Tip Shield Cup Body 9-8215 9-8213 9-8237

Torch: SL100 with Shielded Tip Pow e r S uppl y: CutM aster 81 Automate d

Torch

Tip

In GA mm Cat. # Cat. # Amps PSI In mm SEC Volts in mm IPM mm/min

Shield

Cap

Current

Material:

Plasm a

Press.*

Shield Cap, Deflector

9-8243

Tabl e : Dry Gas: Comp resse d Air

Pierce He ightMa ter i al thi ck n ess

Pierce

Time

Arc

voltage

Stand-of

Heigh

Recommended

Travel Speed

OPERATION 4-22 Manual 0-4641

Art # A-04381

Shield Cap, Machine

Electrode Start Cartridge Tip Shield Cup Body 9-8215 9-8213 9-8237

Shield Cap, Deflector

9-8243

Material:

Torch: SL100 with Shielded Tip Pow e r S uppl y: CutM aster 81 Autom ated

Torch

Tip

In GA mm Cat. # Cat. # Amps PSI In mm SEC Volts in mm IPM mm/min

Shield

Cap

Current

Plasma

Press. *

Pie rce He i ghtMater ial thickn ess

Tabl e: Dry Gas: Com pressed Air

Pierce

Time

Arc

voltage

Stand-off

Heigh

Recommended

Travel Speed

Manual 0-4641 4-23 OPERATION

Art # A-04381

Shield Cap, Machine

Electrode Start Cartridge Tip Shield Cup Body 9-8215 9-8213 9-8237

Shield Cap, Deflector

9-8243

Material:

Torch: SL100 with Shielded Tip Pow e r S uppl y: CutM aster 81 Automate d

Torch

Tip

In GA mm Cat. # Cat. # Amps PSI In mm SEC Volts in mm IPM mm/min

Shield

Cap

Current

Plasm a

Press.*

Pierce He ightMa ter i al thi ck n ess

Tabl e : Dry Gas: Comp resse d Air

Pierce

Time

Arc

voltage

Stand-of

Heigh

Recommended

Travel Speed

OPERATION 4-24 Manual 0-4641

SECTION 5:

SERVICE

5.01 General Maintenance

A. Filter Element Replacement

The Regulator/Filter Assembly is on the rear panel. For better system performance, the Regulator/Filter Assembly filter element should be checked per the Maintenance Schedule (Appendix 3), and either cleaned or replaced.

1. Remove power from the power supply; turn off the gas supply and bleed down the system. Turn the regulator adjustment knob to the 'zero' setting.

2. Unscrew the bowl on the bottom of the Regulator/Filter Assembly. The filter element will be visible and still attached to the main body of the Regulator/Filter.

3. Grasp the filter element and unscrew it from the Regulator/Filter body. The filter element will come off with a spool and some additional pieces.

4. Note the correct assembly of the filter/spool then remove the filter from the spool and either clean it or replace it.

5. The filter element and spool, with the baffle ring in place (teeth facing downward) can be screwed back into the Regulator body by compressing the spring on the spool. Tighten firmly by hand.

6. Reinstall the bowl.

7. Turn on the air supply.

Regulator/Filter

Assembly

Baffle Ring

Filter Element No. 9-4414

Spring

Spool

Bowl

Regulator/Filter Element Replacement

Art # A-02995

Manual 0-4641 5-1 SERVICE

B. Single-Stage Filter Element Replacement

These instructions apply to power supplies where the Single-Stage Filter has been installed.

The Power Supply shuts down automatically when the Filter Element becomes completely saturated. The Filter Element can be removed from its housing, dried, and reused. Allow 24 hours for Element to dry.

1. Remove power from power supply.

2. Shut off air supply and bleed down system before disassembling Filter to change Filter Element.

3. Disconnect gas supply hose.

4. Turn the Cover counter-clockwise and remove it from the Filter Housing. The Filter Element is located inside the Housing.

Housing

Filter

Element

(Cat. No. 9-7741)

Spring

O-ring

(Cat. No. 9-7743)

Cover

Barbed

Fitting

Assembled Filter

Art # A-02476

Single-Stage Filter Element Replacement

5. Remove the Filter Element from the Housing and set Element aside to dry.

6. Wipe inside of housing clean, then insert the replacement Filter Element open side first.

7. Replace Housing on Cover.

8. Reattach gas supply.

NOTE

If unit leaks between housing and cover, inspect the "O" Ring for cuts or other damage.

SERVICE 5-2 Manual 0-4641

C. Optional Two-Stage Filter Element Replacement

The Two-Stage Air Filter has two Filter Elements. When the Filter Elements become dirty the Power Supply will continue to operate but cut quality may become unacceptable. Refer to Section 6, Parts List, for replacement filter element catalog number.

1. Shut off primary input power.

2. Shut off air supply and bleed down system.

WARNING

Always turn off the air supply and bleed down the system before disassembling the Filter Assembly as injury could result.

3. Loosen the two bolts on the top of the Filter Assembly enough to allow the Filter Elements to move freely.

4. Note the location and orientation of the old Filter Elements.

5. Slide out the old Filter Elements.

First & Second Stage Cartridges (as marked)

Art # A-02942

Optional Two-Stage Filter Replacement

6. Slide the replacement Filter Elements into the Filter Assembly, with the same orientation as noted in Step 4 above.

7. Hand tighten the two bolts evenly, then torque each bolt to 20 - 30 in-lbs (2.3 - 3.4 Nm). Improper torque may damage the gasket.

8. Slowly apply air pressure to the assembly, checking for leaks.

NOTE

A small amount of air leakage from the bottom fitting is normal.

Manual 0-4641 5-3 SERVICE

D. Cleaning Torch

Even if precautions are taken to use only clean air with a torch, eventually the inside of the torch becomes coated with residue. This buildup can affect the pilot arc initiation and the overall cut quality of the torch.

WARNINGS

Disconnect primary power to the system before disassembling the torch or torch leads.

DO NOT touch any internal torch parts while the AC indicator light of the Power Supply is ON.

The inside of the torch should be cleaned with electrical contact cleaner using a cotton swab or soft wet rag. In severe cases, the torch can be removed from the leads and cleaned more thoroughly by pouring electrical contact cleaner into the torch and blowing it through with compressed air.

CAUTION

Dry the torch thoroughly before reinstalling.

E. O-Ring Lubrication

An O-ring on the Torch ATC Male Connector requires lubrication on a regular basis, depending on how frequently the torch is disconnected and re-connected. This will allow the O-ring to remain pliable and provide a proper seal. The O-ring will dry out, becoming hard and cracked, if the O-ring lubricant is not used on a regular basis. This can lead to performance problems.

It is recommended to apply a very light film of O-ring lubricant (Catalog # 8-4025) to the O-ring on a weekly basis.

NOTE

DO NOT use other lubricants or grease, they may not be designed to operate within high temperatures or may

contain “unknown elements” that may react with the atmosphere. This reaction can leave contaminants inside the torch. Either of these conditions can lead to inconsistent performance or poor parts life.

ATC Male Connector

Gas Fitting

Art #A-03791

SERVICE 5-4 Manual 0-4641

O-Ring

5.02 Common Faults

1. Insufficient Penetration

a. Cutting speed too fast

b. Torch tilted too much

c. Metal too thick

d. Worn torch parts

e. Cutting current too low

f. Non - Genuine Thermal Dynamics parts used

g. Incorrect gas pressure

2. Main Arc Extinguishes

a. Cutting speed too slow

b. Torch standoff too high from workpiece

c. Cutting current too high

d. Work cable disconnected

e. Worn torch parts

f. Non - Genuine Thermal Dynamics parts used

3. Excessive Dross Formation

a. Cutting speed too slow

b. Torch standoff too high from workpiece

c. Worn torch parts

d. Improper cutting current

e. Non - Genuine Thermal Dynamics parts used

f. Incorrect gas pressure

4. Short Torch Parts Life

a. Oil or moisture in air source

b. Exceeding system capability (material too thick)

c. Excessive pilot arc time

d. Gas pressure too low

e. Improperly assembled torch

f. Non - Genuine Thermal Dynamics parts used

5. Difficult Piloting

a. Worn torch parts

b. Non - Genuine Thermal Dynamics parts used

c. Incorrect gas pressure

Manual 0-4641 5-5 SERVICE

5.03 Basic Troubleshooting

WARNING

There are extremely dangerous voltage and power levels present inside this unit. Do not attempt to diagnose or repair unless you have had training in power electronics measurement and troubleshooting techniques.

A. Basic Troubleshooting: Overview

This guide covers basic troubleshooting. It is helpful for solving many of the common problems that can arise with this system.

Follow all instructions as listed and complete each section in the order presented.

B. How to Use This Guide

The following information will help the Operator determine the most likely causes for various symptoms. Follow all instructions as listed and complete each section in the order presented.

This guide is set up in the following manner:

X. Symptom (Bold Type)

Any Special Instructions

1. Cause

a. Check / Remedy

Locate your symptom, check the causes (easiest listed first), then remedies. Repair as needed being sure to verify that unit operates properly after any repairs.

C. Common Symptoms

A. AC indicator OFF

1. Switch at main power panel in OFF (open) position.

a. Close main power switch.

2. Power Supply ON / OFF switch in OFF (down) position.

a. Turn switch to ON (up).

3. Torch is not connected properly to Power Supply

a. Turn power supply ON / OFF switch to OFF (down). Check torch connection to Power Supply. Tighten or adjust as

required. Do not use tools. Turn power supply ON / OFF switch to ON (up).

4. Shield cup not fully tightened on torch head

a. Check shield cup for proper installation. Do not overtighten. Do not use tools to tighten.

CAUTION

5. Main power line fuse(s) or circuit breaker(s) blown

a. Check main power panel fuse(s). Replace as required.

SERVICE 5-6 Manual 0-4641

6. Unit internal fuse blown or loose

a. If blown, double-check input voltage and replace fuse per Section 5.09-C.

7. Actual input voltage does not correspond to voltage of unit

a. Verify that the input line voltage is correct. Refer to Section 2, Input Wiring Requirements.

B. Gas flows continuously when power is turned on, AC indicator

1. Torch switch is activated (closed) before user turns power on.

a. Release torch switch.

2. Faulty torch switch in CNC Control.

a. Check torch switch for continuity. Replace if necessary.

C. Gas flows continuously; Torch will not pilot when torch switch is activated; AC indicator ON

1. System is in SET mode

a. Change RUN / Rapid Auto Restart / SET switch to RUN (up).

D. No gas flow; RUN / Rapid Auto Restart / SET switch in SET position; Fans operate; AC indicator ON; GAS

indicator OFF

1. Gas not connected

a. Check gas connections.

2. Gas pressure too low for power supply operation

a. Adjust pressure to 70-75 psi / 4.8 - 5.2 bar.

E. Torch will not pilot; gas flows; AC indicator ON, GAS , TEMP , and DC indicators OFF

flashes

1. Gas pressure is below power supply minimum requirement.

a. Adjust pressure to 70-75 psi / 4.8 - 5.2 bar.

NOTE

Minimum pressure for power supply operation is lower than minimum for torch operation.

F. Torch will not pilot; gas flows; AC and Gas indicators ON; DC and TEMP indicators OFF

1. Gas pressure is below torch minimum requirement (Minimum pressure for power supply operation is lower than minimum required for torch operation.)

a. Adjust pressure to 70-75 psi / 4.8 - 5.2 bar.

2. Positive and negative wire connections to automation interface PC Board terminals J2-1 and J2-3 are reversed.

a. Check wire connections, correct if necessary.

NOTE

This condition applies to CNC Controllers (other than the SC-11) with semiconductor switches.

Manual 0-4641 5-7 SERVICE

G. Torch will not pilot; no gas flow; AC indicator ON, GAS indicator ON, DC indicator ON

1. Start cartridge missing from torch

a. Shut off power supply. Remove shield cup, install start cartridge. Reinstall torch tip and shield cup. Turn power

supply ON / OFF switch to ON (up).

2. Shield cup is loose on torch

a. Check shield cup; tighten if necessary.

NOTE

When operating the torch in a normal condition, a small amount of gas vents through the gap between the shield cup and torch head. Do not attempt to over tighten the shield cup as irreparable damage to internal components may result.

3. Upper O-ring on torch head is in wrong position.

a. Remove shield cup from torch; check position of upper O-ring. Correct if necessary.

Upper Groove with Vent Holes Must Remain Open

Upper O-Ring in Correct Groove

Threads

Lower O-Ring

Art # A-03725

H. Torch will not pilot; AC , GAS , and TEMP indicators ON, DC indicator OFF

1. Air flow blocked

a. Check for blocked air flow around the unit and correct condition.

2. Unit is overheated

a. Let unit cool down for at least 5 minutes. Make sure the unit has not been operated beyond Duty Cycle limit. Refer

to duty cycle data in Section 2.

3. Input line voltage is low

a. Check and connect to proper input power line.

SERVICE 5-8 Manual 0-4641

I. Torch cannot be activated; AC indicator flashing; Gas indicator ON; Temp indicator OFF; DC

indicator OFF

1. System is in protective interlock mode. (Torch switch in CNC Controller in ON position while turning on power supply ON / OFF switch.)

a. Release torch switch.

2. System is in protective interlock mode. (Torch parts are missing, defective, or loose.)

a. Release torch switch, and set power supply ON / OFF switch to OFF (down). Open main disconnect switch.

Check torch parts. Replace parts as needed. Reinstall shield cup; hand - tighten it securely against the torch head. Do not overtighten. Do not use tools. Close main disconnect switch. Set ON / OFF switch to ON (up) position.

J . Gas cycles on and off without torch switch being activated; AC indicator Flashing; Gas indicator ON; DC

indicator OFF

1. Torch tip or electrode missing

a. Shut off power supply. Remove shield cup, install missing part(s). Turn power supply ON / OFF switch to ON (up).

2. Start cartridge stuck or worn.

a. Remove the start cartridge. Check for excessive wear, plugged gas holes, or discoloration. Check the lower end fitting

for free motion. Replace if necessary.

Spring-Loaded Cylinder at Full Compression

1/8” (3 mm)

Spring-Loaded Cylinder at Full Extension

Art # A-07168

K. No cutting output; Torch pilots; Gas flows; Fans operate; AC , Gas , and DC indicator ON;

TEMP indicator OFF

1. Work cable not connected to work piece, or connection is poor

a. Make sure that work cable has a proper connection to a clean, dry area of the workpiece or the cutting table.

2. Faulty Torch

a. Return for repair or have qualified technician repair.

Manual 0-4641 5-9 SERVICE

L. Torch cuts but not adequately

1. Incorrect setting of output current (A) control

a. Check and adjust to proper setting.

2. Torch consumables worn

a. Check torch consumables; replace as needed.

3. Work cable connection is poor

a. Make sure that work cable has a proper connection to a clean, dry area of the workpiece or cutting table.

4. Torch is being moved too fast across workpiece

a. Reduce cutting speed.

5. Excessive oil or moisture in torch

a. Put RUN / RAPID AUTO RESTART / SET switch in SET (down) position. Hold torch 1/8 inch (3 mm) from

clean surface while purging and observe oil or moisture buildup (do not activate torch). If there are contaminants in the gas, additional filtering may be needed.

6. Fluctuations in input power

a. Have electrician check input line voltage.

M. Arc shuts off during operation; arc will not restart when torch switch is activated.

1. Power Supply is overheated (TEMP indicator

a. Let unit cool down for at least 5 minutes. Make sure the unit has not been operated beyond Duty Cycle limit. Refer

to Section 2 for duty cycle specifications.

2. Fan blades blocked (TEMP indicator ON)

a. Check and clear blades.

3. Air flow obstructed (TEMP indicator ON)

N. AC indicator remains ON when shield cup is removed

a. Check for obstructed air flow around the unit and correct condition.

4. Gas pressure too low (GAS indicator OFF when torch switch is activated)

a. Check source for at least 60 psi / 4.1 bar; adjust as needed. (Minimum pressure for power supply operation is lower

than minimum required for torch operation.)

5. Torch consumables worn

a. Check torch consumables; replace as needed.

1. Faulty PIP switch in torch

ON)

a. Check PIP switch for continuity; replace if necessary

SERVICE 5-10 Manual 0-4641

5.04 Advanced Troubleshooting Guide - General Information

WARNING

A. General Information

This Section covers advanced troubleshooting, which requires power supply disassembly and live measurements. Advanced troubleshooting and repair of this unit is a process which should be undertaken only by those familiar with high voltage high power electronic equipment.

If major complex subassemblies are faulty, the faulty subassembly must be returned for repair. Refer to Repairs & Replacement Procedures, for parts replacement instructions. Replacement instructions for some parts are included in this manual. Replacement instructions for parts not covered in this manual are included with the replacement part.

Under no circumstances are field repairs to be attempted on Printed Circuit Boards or other subassemblies of this unit. Evidence of unauthorized repairs will void the factory warranty.

NOTE

Follow all instructions as listed and complete each in the order presented.

B. How to Use the Troubleshooting Guide

The following information is a guide to help the Service Technician determine the most likely causes for various symptoms. This guide is set up in the following manner:

1. Perform operational check(s) on the equipment to isolate problem to possible circuit(s) per Subsection 5.06, Circuit Fault Isolation.

2. Determine symptom and isolate to defective assembly using the following format:

X. Symptom (Bold Type)

Any Special Instructions (Text Type)

1. Cause (Italic Type)

a. Check/Remedy (Text Type)

3. Locate your symptom in the appropriate Subsection.

4. Check the causes (easiest listed first) for the symptom.

5. Check the remedies listed for each cause.

6. Repair as needed being sure to verify that unit is fully operational after any repairs.

NOTES

Many signals are transferred between Printed Circuit Board Assemblies on Cables. If these cables become faulty they can then cause various problems. Do not forget about these cables when troubleshooting.

While troubleshooting visually inspect the internal components for signs of overheating, fractures and damage.

Manual 0-4641 5-11 SERVICE

C. Main Input and Internal Power Tests

1. Connect main AC power to the unit.

2. Set the Power Supply ON/OFF switch to ON (up) and note the following:

• AC indicator steady ON

• Gas solenoid energizes (clicks)

• Main PCB Relay energizes, pulling in main input contactor (W1)

• TEMP Indicator OF F

• GAS Indicator operation is lower than minimum for torch operation.

• Gas flows

• Fans operate

• DC indicator is OFF

3. Set the Power Supply RUN / RAPID AUTO RESTART / SET switch to the RUN (up) position and note the following:

• Gas flow stops

This completes the Main Input and Internal Power Tests. If the above are all correct then proceed to paragraph ‘D’. If not, note the symptom and proceed to Subsection 5.05, Main Input and Internal Power Problems.

ON if input pressure is sufficient for power supply operation. Minimum pressure for power supply

D. Pilot Arc Test

1. Activate the torch to establish a pilot arc and note the following:

• Gas flows

• Preflow delay (two seconds) then DC indicator turns ON

• Pilot arc is established

This completes the Pilot Arc Test. If the above are all correct then proceed to paragraph ‘E’. If the unit does not function properly, then note the symptom and proceed to Subsection 5.06, Pilot Arc Problems.

E. Main Arc Test

Make sure the work cable is firmly connected to the workpiece. Activate the torch to establish a pilot arc.

Bring the torch to within 1/8"-3/8" (3-10 mm) of the workpiece to establish the main cutting arc, and note the following:

• Main cutting arc starts

This completes the Main Arc Test. If the above are all correct then the equipment should be operating properly. If problems still persist then contact Technical Services.

If the torch does not function as noted then note the symptom and proceed to Subsection 5.07, Main Arc Problems.

SERVICE 5-12 Manual 0-4641

5.05 Main Input and Internal Power Problems

A. Opening Power Supply Enclosure

The cover of the Power Supply must be removed for access to input power connections and test points.

WARNING

Disconnect primary power at the source before assembling or disassembling the Power Supply, torch parts, or torch and leads assemblies.

1. Remove the upper screws securing the cover to the main assembly.

2. Loosen, but do not remove, the lower screws.

NOTE

There is a ground wire attached from the cover to the main body of the unit.

3. Carefully lift the cover off the unit, and remove the nut securing the ground wire to the side panel.

4. Re-install the cover by reversing the above steps.

Lower screws

Art # A-04510

Upper screws

Ground wire

Lower screws

Cover Removal

Manual 0-4641 5-13 SERVICE

Locate your symptom below:

A. Main power line fuses blow as soon as main disconnect is closed

1. Input power cable installed incorrectly or defective power cord.

a. Refer to Subsection 5.07 and check that the input power cable is not defective or installed incorrectly.

2. Main input contactor (W1) stuck.

a. Check contactor. Replace if stuck.

B. Main power line fuses blow immediately after the ON/OFF Switch is turned on.

1. Faulty Input Diode

a. Test Input Diode per Subsection 5.08-C; repair as necessary.

C. Fans do not operate; AC indicator

1. Front Panel ON/OFF switch in OFF position

a. Place switch to ON (up) position.

2. Main power disconnect open

a. Close main power disconnect.

3. Torch is not properly connected to Power Supply.

a. Check torch connections to Power Supply. Tighten or adjust as needed.

4. Shield cup not fully tightened on torch head.

a. Check shield cup for proper installation. Do not overtighten.

5. Main power line fuses blown

a. Replace main power line fuses.

TP4

FUSE

TP1

OFF

J23-1

J23-3

J24-1

J24-3

J34

J32

J29

J33

J18-5

J18-6

J27

J15

J11

INPUT DIODE

J15-1

J15-2

J15-5

J15-6

J43

Art # A-03658

Main Printed Circuit Board Layout (logic board not shown)

SERVICE 5-14 Manual 0-4641

6. Improper input power cable connections inside Power Supply

a. Refer to System Schematic and correct if needed.

7. Defective input power cable

a. Replace input power cable. Refer to subsection 5.09-L.

8. Fuse blown inside Power Supply

a. Replace internal Fuse per Subsection 5.09-C.

9. Line voltage above 10% tolerance (over voltage protection)

a. Reduce line supply.

10. Faulty Auxiliary Transformer (refer to Appendix pages, 28 VAC Circuit Diagram)

Measure for 28 VAC on Main PC Board from J23-1 to J23-3.

a. If voltage is not present, replace the Main PC Board.

11. Faulty ON/OFF switch

Measure for 28 VAC on the Main PC Board between J18-5 to J18-6.

a. If voltage is not present replace the ON/OFF Switch.

12. Faulty Main PC Board

Measure for 12 vdc on Main PC Board

a. If voltage is not present, replace the Main PC Board.

D. AC and TEMP indicators ON, fans do not run

1. Air flow through unit is restricted

a. Provide adequate air flow

2. Exceeded Duty Cycle of Power Supply

a. Deactivate torch and wait for fan to cool unit. Refer to Specifications Section for proper duty Cycle for this unit.

3. Faulty Fan(s)

Measure for 230 VAC (±) on the Main PC Board from J15-1 to J15-2, and from J15-5 to J15-6.

• If voltage at J15-1 to J15-2 is correct, replace lower Fan (M1).

• If voltage at J15-5 to J15-6 is correct, replace upper Fan (M2).

4. Faulty Temperature Sensor / Switch

a. Check IGBT Heatsink Temp Sensor (TS1). Disconnect wire connector P29 from terminal J29 on Main PC

Board. Check connector pins 1 and 2 for 10K ohm (±25%) (at ambient temperature). If resistance is not 10K ohm (±25%), replace TS1.

b. Check Inductor Temp Switch (TS2). Disconnect wire connector P32 from terminal J32 on Main PC Board.

Check connector pins 1 and 2 for at least 12K ohms. If resistance is less than 12K ohms, replace output inductor (L1). If temp switch is open, replace Main PC Board.

from TP4 to TP1.

Manual 0-4641 5-15 SERVICE

E. No gas flow; AC indicator ON; TEMP , GAS and DC indicators OFF

1. RUN / RAPID AUTO RESTART / SET switch in RUN position

a. Change switch to SET position.

2. Gas supply not connected to unit

a. Connect to gas supply.

3. Gas supply not turned on

a. Turn gas supply on.

4. Faulty RUN / RAPID AUTO RESTART / SET switch

a. Check continuity.

5. Faulty Gas Solenoid circuit

a. Test Gas Solenoid circuit per Subsection 5.08-E; repair as necessary.

6. Faulty Logic Board

a. Replace logic board.

F. Gas flows; AC indicator ON; GAS and DC indicator OFF

1. Gas pressure too low

a. Set operating pressure per pressure setting label on power supply.

NOTE

Minimum pressure for power supply operation is lower than minimum required for torch operation.

2. Faulty Pressure Switch

Measure for 12 vdc from wire #10 to wire #11 at the Gas Pressure Switch, located on the right side of the unit. Refer to System Schematic in the Appendix pages.

a. If 12 vdc is present and pressure is above 50 psi (3.4 bar), replace Gas Pressure Switch/Solenoid Assembly. Refer to

Section 5.08-A.

G. Gas continues to flow with RUN / RAPID AUTO RESTART / SET switch in RUN position.

b. If pressure is above 50 psi (3.4 bar) and 12 vdc is not present, replace the Logic PC Board.

3. Faulty Wiring or Faulty Logic PC Board

Check for 12 vdc at Main PC Board pin J24-3 to J24-4 from the Logic PC Board. Refer to Appendix Pages, Main PC Board Layout.

• If less than a volt, replace Logic PC Board.

1. Damaged gas solenoid.

a. Turn the front panel ON/OFF switch to OFF.

• If gas continues to flow, debris from the air line is preventing the solenoid from closing. Clean or replace the solenoid.

2. Faulty RUN / RAPID AUTO RESTART / SET switch.

a. Remove one wire from the pressure switch. Check for ± 0 vdc at Main PC Board pin J24-3 to J24-4 from the

Logic PC Board. Refer to Main PC Board Layout.

• If less than a volt, replace Logic PC Board.

SERVICE 5-16 Manual 0-4641

3. Faulty Logic PCB.

a. Measure for approximately 12 vdc between P1-7 and TP-1 on the Logic PCB.

• If 12 vdc is present, replace Logic PCB.

• If less than 2 vdc, replace Main PCB.

TP4

TP2

TP1

TP3

D13

TP6

D33

P1-7

P1-9

TP9

TP10

TP11

TP5

D25

TP8

TP7

Art # A-03654

Logic Board Layout

Manual 0-4641 5-17 SERVICE

H. Gas flows continuously when power is turned on; AC indicator flashes

1. Torch switch is activated (closed) before user turns power on

a. Release torch switch.

2. Faulty torch switch

a. Check torch switch for continuity.

I. Gas cycles on and off when power is turned on; AC indicator

1. Shield cup is loose.

a. Tighten shield cup by hand. Do not overtighten.

2. Torch tip, electrode, or start cartridge missing

a. Turn off power supply. Remove shield cup, install missing parts.

3. Start cartridge is stuck

a. Turn off power supply. Remove shield cup, tip, and start cartridge. Check lower end fitting on start cartridge

for free movement. Replace cartridge if lower end fitting does not move freely.

flashes

Spring-Loaded Cylinder at Full Compression

1/8” (3 mm)

Spring-Loaded Cylinder at Full Extension

Art # A-07168

SERVICE 5-18 Manual 0-4641

5.06 Pilot Arc Problems

WARNING

The following tests must be performed with the power supply connected to primary input power. There are extremely dangerous voltage and power levels present inside this unit. Do not attempt to diagnose or repair without proper training in power electronics measurement and troubleshooting techniques.

Locate your symptom below:

A. Torch will not pilot; gas flows; AC indicator

1. Gas pressure is below power supply minimum requirement. (Minimum pressure for power supply operation is lower than minimum required for torch operation.)

a. Adjust gas pressure per pressure setting label on power supply.

B. Torch will not pilot; gas flows; AC

1. Gas pressure is below torch minimum requirement (Minimum pressure for power supply operation is lower than minimum required for torch operation.)

a. Adjust gas pressure per pressure setting label on power supply.

2. Power Supply RUN / SET switch in SET position

a. Place RUN / SET switch to RUN position.

3. Upper O-ring on torch head is in wrong position.

a. Remove shield cup from torch; check position of upper O-ring. Correct if necessary.

and Gas indicators ON; TEMP and DC indicators O FF

ON, GAS , TEMP , and DC indicators OFF

Upper Groove with Vent Holes Must Remain Open

Upper O-Ring in Correct Groove

Threads

Lower O-Ring

Manual 0-4641 5-19 SERVICE

Art # A-03725

C. Torch will not pilot; AC , GAS , and TEMP indicators ON

1. Air flow blocked

a. Check for blocked air flow around the unit and correct condition.

2. Unit is overheated

a. Let unit cool down for at least 5 minutes. Make sure the unit has not been operated beyond Duty Cycle limit. Refer

to duty cycle data in Specifications Section.

3. Input line voltage is low

a. Check and connect to proper input power line.

4. Faulty Temperature Sensor / Switch

a. Refer to Appendix 15, Main PC Board Layout. Check IGBT Heatsink Temp Sensor (TS1). Disconnect wire connector

P29 from terminal J29 on Main PC Board. Check connector pins 1 and 2 for 10K ohm (±25%) (at ambient temperature). If resistance is not 10K ohm (±25%), replace TS1.

b. Check Inductor Temp Switch (TS2). Disconnect wire connector P32 from terminal J32 on Main PC Board. Check

connector pins 1 and 2 for at least 12K ohms. If resistance is less than 12K ohms, replace output inductor (L1). If temp switch is open, replace Main PC Board.

5. Faulty Logic PC Board

a. Check for (±) 12vdc on Main PC Board between J43-9 and TP1. If (±) 12vdc is present, replace Logic PC Board.

6. Faulty Main PC Board

a. Check for (±) 0 vdc on Main PC Board between J43-9 and TP1. If (±) 0 vdc is present, replace Main PC Board.

7. Faulty Fan(s)

Measure for (±) 230 VAC on the Main PC Board from J15-1 to J15-5, and from J15-2 to J15-6.

• If voltage at J15-1 to J15-5 is correct, replace upper Fan (M1).

• If voltage at J15-2 to J15-6 is correct, replace lower Fan (M2).

SERVICE 5-20 Manual 0-4641

D. Torch will not pilot when torch switch is activated; AC and GAS indicators ON; Temp and DC

indicators OFF

1. Gas pressure too high or too low

a. Adjust gas pressure per pressure setting label on power supply.

2. Torch tip, start cartridge, or electrode missing.

a. Turn off power supply. Remove shield cup, install missing parts.

3. Start cartridge is stuck

a. Turn off power supply. Remove shield cup, tip, and start cartridge. Check lower end fitting on start cartridge

for free movement. Replace cartridge if lower end fitting does not move freely.

Spring-Loaded Cylinder at Full Compression

1/8” (3 mm)

Spring-Loaded Cylinder at Full Extension

Art # A-07168

4. Worn or faulty torch parts

a. Inspect torch consumable parts. Replace if necessary.

E. Gas flows; AC indicator and GAS indicators ON; TEMP indicator off; ON; DC indicator

off or blinks on/off once.

1. Faulty IGBT or Output Diode Module Assembly(s)

a. Check per Subsection 5.08-C; repair as needed.

2. Faulty Main PCB

a. Test; repair as needed.

Manual 0-4641 5-21 SERVICE

F. Gas flows; No arc in torch; AC , GAS , and DC indicators ON; TEMP indicator of f

1. Faulty IGBT(s)

a. Measure between the following points on the IGBTs:

• IGBT A: E4 to E10

E10 to E20

• IGBT B: E23 to E27

E27 to E30

Voltage should be approximately 20 vdc before the start signal is active. If voltage measures greater than 100 vdc when the start signal is active, replace the respective IGBT(s).

INPUT

J11

E15

J25

DIODE

E26

E27

E30

E10

E20

Art # A-03659

IGBT A

E33

J30

J31

Main PC Board Layout (IGBT Test Points)

E23

IGBT B

SERVICE 5-22 Manual 0-4641

G. No arc or intermittent arc in torch; Gas flows; AC , GAS , and DC indicators ON; TEMP indica-

tor off

1. Gas pressure set incorrectly (too high)

a. Reset gas pressure per pressure setting label on power supply.

2. Oil/moisture in air lines

a. Purge system. If problem corrected, add filters in line with air source.

3. Incorrect torch parts

a. Inspect the torch parts; replace as needed.

4. Faulty leads

a. Check torch leads continuity.

5. Faulty torch

a. Check torch.

6. Faulty connection of wire #58 or 62 to Pilot Board

a. Check wiring connection. Refer to the System Schematic in the Appendix. Connections should be:

• Wire #58 to Pilot Board terminal E58

• Wire #62 to Pilot Board terminal E62

If wires 58 and 62 are not connected to the proper terminals, replace the Pilot Board.

7. Faulty Main PC Board

a. Check for approximately 12 vdc at TP4 to TP1. If less than 2 vdc, replace the Main PC Board.

8. Faulty Logic Board or Faulty Pilot Board

a. Install a jumper between wires 58 and 62 on Pilot Board and retry piloting. If torch pilots with jumper installed, replace

Pilot Board. If torch does not pilot, replace Logic Board.

Manual 0-4641 5-23 SERVICE

5.07 Main Arc Problems

Locate your symptom below:

A. Main cutting arc will not start

1. Work cable not connected.

a. Connect work cable.

B. No cutting output

1. Torch not properly connected to power supply

a. Check that torch leads are properly attached to power supply

2. Shield cup not properly installed on torch

a. Check that shield cup is fully seated against torch head (do not overtighten)

3. Parts - In - Place (PIP) not satisfied.

a. Check that shield cup is properly installed.

b. Check switch in machine torch head - for continuity.

4. Faulty components in torch and leads assembly

a. Inspect torch assemblies and replace if necessary.

C. Limited output with no control

1. Poor input or output connections to power supply

a. Check all input and output connections.

2. Faulty components in torch and leads assembly

a. Inspect torch assemblies and replace if necessary.

D. Erratic or improper cutting output

1. Poor input or output connections to power supply

a. Check all input and output connections.

2. Current set too low at power supply

a. Increase current setting.

3. Torch is being moved too fast across workpiece

a. Reduce cutting speed.

4. Holding too high of a standoff.

a. Refer to recommended standoff heights provided in speed charts in Section 3. Adjust as needed.

5. Workpiece is painted or rusty.

a. Clean workpiece.

SERVICE 5-24 Manual 0-4641

6. Faulty Main PC Board or Logic Board.

a. Measure for ±0 vdc at TP2 to TP1 on the Logic Board when attempting to transfer. Refer to Logic Board Layout.

• If TP2 goes to 0 vdc replace Output Board.

• If not, replace Main PC Board.

7. Faulty Main Input Contactor.

a. Check per Subsection 5.14-D.

B. When operating the amperage drops off after the main cutting arc starts.

1. Torch tip contacts workpiece

Raise the torch tip off the work. At output settings over 40 amps, circuitry in the power supply automatically reduces output current to 40 amps if the torch tip contacts the workpiece.

2. Faulty Pilot Board

a. With power off and wires E58 and E62 disconnected from the pilot board, measure for continuity between terminals

#E58 and #E62. If continuity is found, replace Pilot Board.

5.08 Test Procedures

The test procedures in this subsection are referenced in the troubleshooting section.

A. Safety Precautions

1. Significant DC Voltage exists after removal of input power. Allow two minutes for discharge time. Voltage measured on input capacitors must be zero before performing service on the power supply.

2. Do Not touch electrical components with any part of the human body when power is applied.

3. Keep away from any moving parts.

4. Hot surfaces can cause severe burns. Allow equipment to cool before servicing.

5. Electrostatic discharge can damage printed circuit board assemblies. Transport printed circuit boards in proper antistatic shielded packages. Use proper grounding techniques with wrist strap before handling printed circuit boards.

6. Misaligned plugs can cause printed circuit board damage. Be sure plugs are properly aligned and completely seated.

7. Excessive pressure can damage printed circuit boards. Use only minimal pressure and gentle movement when disconnecting or connecting printed circuit board plugs.

Manual 0-4641 5-25 SERVICE

B. Diode Testing Basics

WARNING

Disconnect primary power at the source before disassembling the power supply, torch, or torch leads.

Testing of diode modules requires a digital volt/ohmmeter that has a diode test scale. Remember that even if the diode module checks good, it may still be bad. If in doubt, replace the diode module.

1. Locate the diode module to be tested.

2. Remove cables from mounting studs on diodes to isolate the module.

3. Set digital volt/ohmmeter to diode test scale.

4. Using the Figures for each test, check each diode in the module. Each diode must be checked in forward bias (plus to negative) and reverse bias (negative to plus) direction.

5. Connect the volt/ohmmeter positive lead to the anode (+) of the diode and the negative lead to the cathode (-) of the diode for forward bias testing (refer to following figure). A properly functioning diode will conduct in the forward bias direction and indicate between 0.3 to 0.9 volts.

Forward Bias

Diode Conducting

Anode

Cathode

Diode Test Symbol

Art # A-00307

0.75

COM

Reverse Bias

Diode Not Conducting

Cathode

Anode

Art # A-00306

COM

Testing Diode Forward Bias Testing Diode Reverse Bias

6. Reverse the meter leads across the diode for reverse bias testing (refer to following figure). A properly functioning diode will block in the reverse bias direction and depending on the meter function will indicate an open or “OL”.

7. If a diode checks bad, replace the diode module.

8. Reconnect all cables.

SERVICE 5-26 Manual 0-4641

C. Diode Module Board Tests

WARNING

Disconnect primary power at the source before taking any resistance checks.

1. Input Diode Test

a. Disconnect input AC power.

b. Check Input Diode for shorted input diode. With an ohmmeter set on the diode range make the following checks from

Main PC Board to Input Diode:

For 400-Volt, 415-Volt, 460-Volt, and 600-Volt Power Supplies: For 208/230-Volt Power Supplies:

400V, 415V, 460V, and 600V

Input Diode Indications

Met e r + Met er - Indication

E15 E 1 Diode Drop

E1 E15 Open

E15 E 2 Diode Drop

E2 E15 Open

E15 E 3 Diode Drop

E3 E15 Open E7 E1 Open E1 E7 Diode Drop E7 E2 Open E2 E7 Diode Drop E7 E3 Open E3 E7 Diode Drop E7 E15 Open

E15 E7 Diode Drop*

* Indicat i on c an be t wic e

other indicati ons .

208/230V Input Diode Indic at i ons

Meter + Meter - Indicat i on

E7 E1 Open E1 E7 Diode Drop

E15 E1 Diode Drop

E1 E15 Open

E15 E 7 Diode Drop*

E7 E15 Open

* Indicat i on can be twi c e

other indicat i ons .

c. The meter should indicate a diode drop in one direction and an open in the other direction for each check. Replace the

Input Diode Module Board if the readings do not match the chart.

d. If Input Diode Module Board is shorted, make the following checks with an ohmmeter at the Main Contactor (W1):

Met e r (+) Meter (-) Indicati on

L1 T1 Open L2 T2 Open L3 T3 Open

If any test has resistance, then replace the Main Contactor.

Manual 0-4641 5-27 SERVICE

2. Output Diode Module Board Circuit Test

a. Use an ohmmeter set on the diode function and make the following measurements on the Output Diode Module Boards

to Power Output PC Board.

Output Diode A Output Diode B

Meter + M eter - Meter + Met er -

E37 E58 E 36 E57 Diode Drop * E58 E37 E57 E36 Open E37 E47 E 36 E49 Diode Drop E47 E37 E49 E36 Open E58 E47 E57 E49 Open E47 E58 E 49 E57 Diode Drop

* Indicat i on can be twi c e ot her i ndicat i ons .

b. The meter should indicate a diode drop in one direction and an open in the other direction for each check.

Replace the Output Diode Module Board(s) if the readings do not match the chart.

3. IGBT Module Board Circuit Test

a. Use an ohmmeter set on the diode function and make the following measurements on the IGBT Module Board(s) to the

Main PC Board.

IGBT PCB A IGBT PCB B

Met er + Met er - Met er + M et er -

E10 E4 E 27 E 23 Diode Drop

E4 E10 E23 E27 Open E10 E20 E27 E30 Open E20 E 10 E30 E27 Diode Drop

E4 E20 E23 E30 Open E20 E4 E 30 E 23 Diode Drop *

* Indicat i on can be twice ot her indi c ations.

Indication

b. The meter should indicate a diode drop in one direction and an open in the other direction for each check.

Replace IGBT Module Board(s) if readings are not the same as the chart.

SERVICE 5-28 Manual 0-4641

D. Main Input Power Test

WARNING

Reconnect power and observe proper start-up procedure. AC indicator on the Front Panel should be ON. If indicator is OFF there is no voltage to the Power Supply or an overvoltage condition exists.

1. If AC indicator on Front Panel is OFF, check for proper AC input voltage between input cables on the Main Contactor. Input voltage should be as shown in the following chart. If not, check for proper voltage at the main power source.

Cont act or Vol t a ge Re adi ng s

Nominal

Inp u t Voltage

208/230VA C L1, L2 187-253VA C

400VAC L1, L3 360-440VA C 415VAC L1, L3 370-460VA C 460VAC L1, L3 414-506VA C 600V A C L1, L3 517-632 VA C

Contactor

Points

Voltage

Range

Connections to

Main PCB

To E1

T1 T2 T3

L1 L2 L3

Main Contactor

Art # A-03194

#12

#13

#78

T1 T2 T3 T4

L1 L2 L3 L4

Main Contactor

Input Side

Art # A-03212

Input Side

#12

#13

To E2

To E3

Main Input Contactor (460-Volt Three-Phase Input Power Shown) 208/230-Volt Main Input Contactor

2. Check for 28 VAC at J23-1 to J23-3 on the Main PC Board.

a. If greater than 30 VAC, input line power is too high.

b. If there is no AC power, check the fuse. If the fuse is okay, the auxiliary transformer is faulty. Replace the

Main PC Board.

Manual 0-4641 5-29 SERVICE

E. Gas Solenoid Circuit Test

Make the following voltage checks and replace the faulty part as required.

1. Place the RUN / RAPID AUTO RESTART / SET Switch to the SET position.

2. Measure for 28 VAC across Solenoid wires #8 and #9. Refer to System Schematic in Appendix Section.

• If 28 VAC is present, replace Solenoid/Pressure Switch Assembly.

• If 28 VAC is not present, check for 65 psi (4.5 bar) at the pressure regulator.

3. Check for less than 2 vdc at P1-7 to TP1 on Logic Board.

• If less than 2 vdc, replace Main PC Board.

• If more than 2 vdc, replace Logic PC Board.

F. Output Power Tests

1 . No DC Output

a. Activate the torch.

• If INV ON indicator D13 on Logic PC Board does not turn ON, then replace the Logic PCB.

• If the INV ON indicator D13 blinks ON then OFF immediately, perform the following test:

WARNING

The next step will defeat the safety interlock feature. Proceed with caution.

b. Remove the tip and electrode from the torch. Attach the work lead to the pilot return (E35 or E62) on the Output Power

Board. Activate the torch switch. Gas should flow, then stop after 2 seconds. Front panel DC indicator should turn on.

c. Measure open circuit voltage between E61(+) to E43 (-) at the Output Power PC Board. Voltage should be greater than

2. Gate Drive & Sensing

200 V. If voltage is less than 10 V, refer to the diode test measurements in Section 5.10-C.

a. After checking all previous steps, jumper TP1 to TP7 on the Logic PCB. Refer to Logic Board layout.

b. When the unit is turned on, the DC light should remain ON.

c. Activate the torch. After two seconds INV ON Indicator (D13) on the Logic PCB should come on and remain on.

• If INV ON indicator does not remain on, replace Logic PCB.

• If INV ON indicator remains on, then check for at least 2 vdc between TP-1 to TP-11 and between TP-1 to TP-10 on the

Logic PCB. Refer to Logic Board Layout.

• If no voltage, replace Logic PC Board.

• If voltage is correct, measure for at least 2 vdc between points as in the following chart:

IGB T A IGB T B

E11J2AE11J2B E19 J10A E19 J10B

• If voltage is 0, replace Main PCB.

SERVICE 5-30 Manual 0-4641

5.09 Power Supply Major External Parts Replacement

WARNING

Disconnect primary power to the system before disassembling the torch, leads, or power supply.

For replacement of parts not covered in this section, instructions are provided with the replacement part.

A. Cover Removal

1. Remove the upper screws which secure the cover to the main assembly.

NOTE

There is a ground wire connection to the inside of the unit. There is no need to disconnect the ground wire, unless there is a need for more room to work.

Upper screws

Lower screws

Ground wire

Art # A-04510

2. Loosen, but do not remove, the lower screws, then carefully pull the Cover up and away from the unit.

Manual 0-4641 5-31 SERVICE

B. Tube Handle Replacement

1. Remove the power supply cover per Section 5.09-A.

2. Remove the four bolts and star washers securing the tube handles to the base of the unit.

3. Move the input power cable, torch leads and work cable inside the handle, then lift the base of the unit away from the Tube Handle.

4. With a rubber mallet, separate the two handle ends as shown below.

5. Install the replacement Tube Handle by reversing the above steps.

6. Reinstall the power supply cover.

C Cover Installation

1. Reconnect the ground wire, if necessary.

2. Place the cover onto the power supply so that slots in the bottom edges of the cover engage the lower screws.

3. Tighten lower screws.

4. Reinstall and tighten the upper screws.

Art # A-02847

SERVICE 5-32 Manual 0-4641

5.10 Front Panel Parts Replacement

WARNING

Disconnect input power at the source and bleed down the system before attempting these procedures.

A. Current (A) Control Knob Replacement

1. Turn the control knob fully clockwise and note the location of the pointer on the knob.

2. Loosen the screw securing the Knob to the potentiometer shaft and remove the Knob.

3. Place the replacement Knob on the potentiometer shaft with the location of the pointer the same as noted in step 1.

4. Tighten the screw to secure the knob to the potentiometer shaft.

B. ON/OFF Switch (SW1) Replacement

1. Remove the power supply cover per Section 5.09-A.

2. Disconnect the wires on the rear of the ON/OFF Switch. Note the location of each wire, as shown below:

Top clip

Wire #21

Wire #24

3. Squeeze together the clips on the top and bottom of the Switch. Remove the Switch through the Front Panel.

4. Install the replacement Switch by reversing the above steps.

5. Reinstall the power supply cover.

Wire #22

Wire #23

Art # A-02774

Manual 0-4641 5-33 SERVICE

C. RUN / RAPID AUTO RESTART / SET Switch (SW2) Replacement

1. Remove the power supply cover per Section 5.09-A.

2. Disconnect the wires on the rear of the Switch. Note the location of each wire, as shown:

Top clip

Wire #46

Wire #26

3. Squeeze together the clips on the top and bottom of the Switch, then remove the switch through the Front Panel.

4. Install the replacement Switch by reversing the above steps.

5. Reinstall the power supply cover.

D. POT/LED PC Board Replacement

1. Remove the power supply cover per Section 5.09-A.

2. Remove Current Knob .

3. Disconnect wire harness Connector from POT/LED PC Board.

4. Remove PC Board from standoffs.

5. Install the replacement POT/LED PC Board by reversing the above steps.

6. Reinstall the power supply cover.

Wire #25

Art # A-03906

SERVICE 5-34 Manual 0-4641

5.11 Left Side Internal Parts Replacement

A. Fuse (F1) Replacement

1. Remove the power supply cover per Section 5.09-A.

2. Locate the internal fuse on the left side of the center chassis.

3. Replace the fuse. A replacement fuse is located inside the power supply. Refer to Section 6, Parts Lists, for replacement fuse catalog number.

4. Reinstall the power supply cover.

Fuse Location

Internal Fuse Location

Art # A-03002

Manual 0-4641 5-35 SERVICE

B. Main Input Contactor (W1) Replacement

1. Remove the power supply cover per Section 5.09-A.

2. Label all wires connected to the Input Contactor.

3. Disconnect wires to the Input Contactor from the input cable.

4. Disconnect all other wires connected to the Input Contactor.

5. Remove the two nuts and washers securing the Input Contactor to the base of the power supply.

6. Position the replacement Input Contactor with the row of connectors labeled L toward the rear of the Power Supply. Fasten in place with the hardware removed previously.

7. Complete the wiring connections as shown.

NOTE

It is important that wires are installed correctly, as shown, to prevent damage to the unit.

8. Reinstall the power supply cover.

To E2

To E3

Connections to

Main PCB

To E1

T1 T2 T3

L1 L2 L3

Input Side

#12

#13

Main Contactor

Art # A-03194

#12

#13

400-Volt, 415-Volt, 460-Volt, and 600-Volt Input Contactor 208 / 230-Volt Input Contactor

(3-phase input power connections shown)

Input Side

#78

T1 T2 T3 T4

L1 L2 L3 L4

Main Contactor

Art # A-03212

SERVICE 5-36 Manual 0-4641

Tweco 81 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1.01 Notes, Cautions and Warnings

1.02 Important Safety Precautions

1.03 Publications

1.05 Precautions De Securite Importantes

1.06 Documents De Reference

1.07 Declaration of Conformity

1.08 Statement of Warranty

SECTION 2: SPECIFICATIONS

2.01 Scope of Manual

2.02 Power Supply Specifications

2.03 Input Wiring Specifications

2.04 Power Supply Features

2.05 Power Supply Options and Accessories

2.06 Torch Specifications

2.07 Torch Options and Accessories

2.08 Introduction to Plasma

SECTION 3: INSTALLATION

3.01 Unpacking

3.02 Lifting Options

3.03 Primary Input Power Connections

3.04 Gas Connections

3.05 Torch Connections

3.06 Torch Installation

3.07 Torch Parts Selection

3.08 Power Supply Connection to SC-11 Standoff Control

3.09 Power Supply Connection to Alternate Standoff Control

3.10 Automation Interface PC Board Set-up

3.11 Optional Remote Current Control Harness Installation

SECTION 4: OPERATION

4.01 Product Features

4.02 Preparations For Operating

4.03 Selection, Inspection and Replacement of Consumable Torch Parts

4.04 Cut Quality

4.05 General Cutting Information

4.06 Torch Operation

4.07 Cutting Parameters

4.08 Cutting Specifications

4.09 Cutting Speed Chart: Mild Steel, SL100 Torch with Exposed Tip

4.10 Cutting Speed Charts: Stainless Steel, SL100 Torch with Exposed Tip

4.11 Cutting Speed Charts: Aluminum, SL100 Torch with Exposed Tip

4.12 Cutting Speed Charts: Mild Steel, SL100 Torch with Shielded Tip

4.13 Cutting Speed Charts: Stainless Steel, SL100 Torch with Shielded Tip

4.14 Cutting Speed Charts: Aluminum, SL100 Torch with Shielded Tip

4.15 Operator's Custom Cutting Speed Charts

5.01 General Maintenance

5.02 Common Faults

5.03 Basic Troubleshooting

5.04 Advanced Troubleshooting Guide - General Information

5.05 Main Input and Internal Power Problems

5.06 Pilot Arc Problems

5.07 Main Arc Problems

5.08 Test Procedures

5.09 Power Supply Major External Parts Replacement

5.10 Front Panel Parts Replacement

5.11 Left Side Internal Parts Replacement
